Page 1
TPX24BRDAA—GE Profile™23.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
Specification Revised 5/00

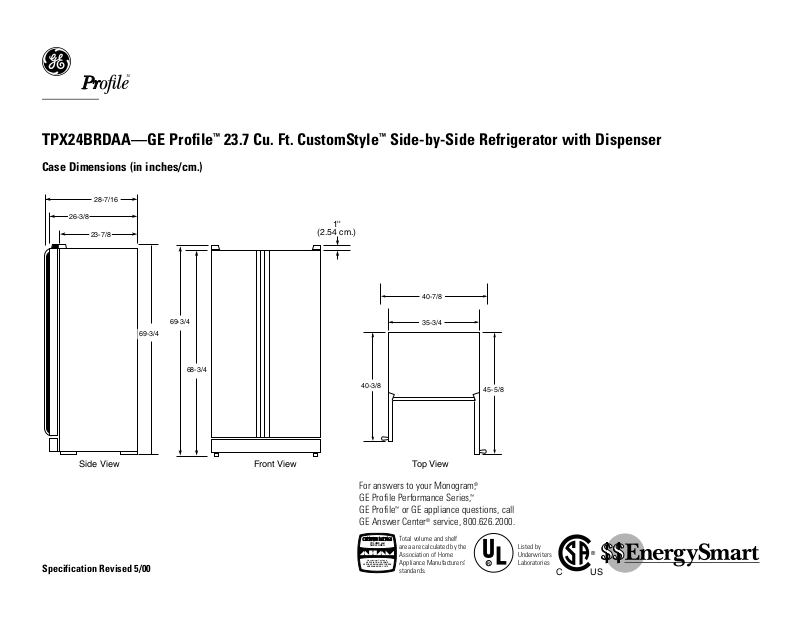

Case Dimensions (in inches/cm.)
1''
(2.54 cm.)
A
B
C
F
D
E
Side View
Front View
69-3/4
68-3/4
28-7/16
26-3/8
23-7/8
69-3/4
TM
CUS
®
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
I
H
G
J
Top View
40-3/8
35-3/4
45-5/8
40-7/8
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Page 2
TPX24BRDAA—GE Profile™23.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
Specification Revised 5/00
TM
Rough-In Dimensions (in inches) Door Panel Dimensions (in inches)
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36"
24"
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
Standard, New Construction and
Replacement Installation
Installation Tips to Maximize the Built-In Look
•All wall/floor moulding should be removed prior to
installation.
•Water recess on rear wall recommended to
prevent water line damage. 48" minimum
length 1/4" diameter water line tubing
recommended.
•When possible, recess both water line and
electrical outlet. (See local codes)
•Front and rear leveling legs are adjustable for
the “Built-In” look. (See owner’s manual)
•If optional collar trim kit is to be used or
anticipated, see collar trim installation on next
page for different rough-in dimensions.
Detail C
5/16"
1/8"
(Fresh Food panel shown)
Notch required at top
corner as noted.
1/4" Max.
Panels 1/4" thick
or less
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
Order your own custom wood panels
to match cabinetry or other decor.
E
C
Detail C Detail C
Fresh Food Panel
Freezer Panel
Without Dispenser
Freezer Panel
With Dispenser
D
F
H
Detail C
*For 24 cu. ft. models only
B
A G
2"*
2"*
1"* 1"* 1"*
11-1/4"*
1-1/8"1-1/8"
2-3/8"
2-3/8"
4-13/16"*
11-1/4"*
11-1/4"*
37-5/8"* 37-5/8"*
Fresh Food Freezer Panel Freezer Panel
Panels With Dispenser Without Dispenser Weight Limits*
G-65-3/16" C-18-3/4" E-32-3/8" Fresh Food = 38 lbs.
21 cu. ft. H-20-1/16" D-14-5/16" F-14-5/16" Freezer = 28 lbs.
G-67-1/8" C-18-13/16" E-34-5/16" A-67-1/8" Fresh Food = 35 lbs.
24 cu. ft. H-19-5/16" D-14-1/2" F-14-1/2" B-14-1/2" Freezer = 25 lbs.
Panels up to 1/4" thick will fit door frame with no special preparation. *Total weight of panels
Add filler behind material thinner than 1/4" for proper fit. (i.e. both freezer panels)
Note: Panels up to 3/4" will require special routing area around handles.
Dimensions may vary depending on depth of panel.
CUS
®
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
IMPORTANT: Before finalizing for your
GE Profile Performance™ and GE Profile™
CustomStyle™ Refrigerator, please NOTE:
• A minimum of 36” is required for
Refrigerator installation.
• Be sure to allow for 1/2” or 3/4” side panels in
addition to the 36” minimum.
Page 3
TPX24BRDAA—GE Profile™23.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
TM
Specification Revised 5/00

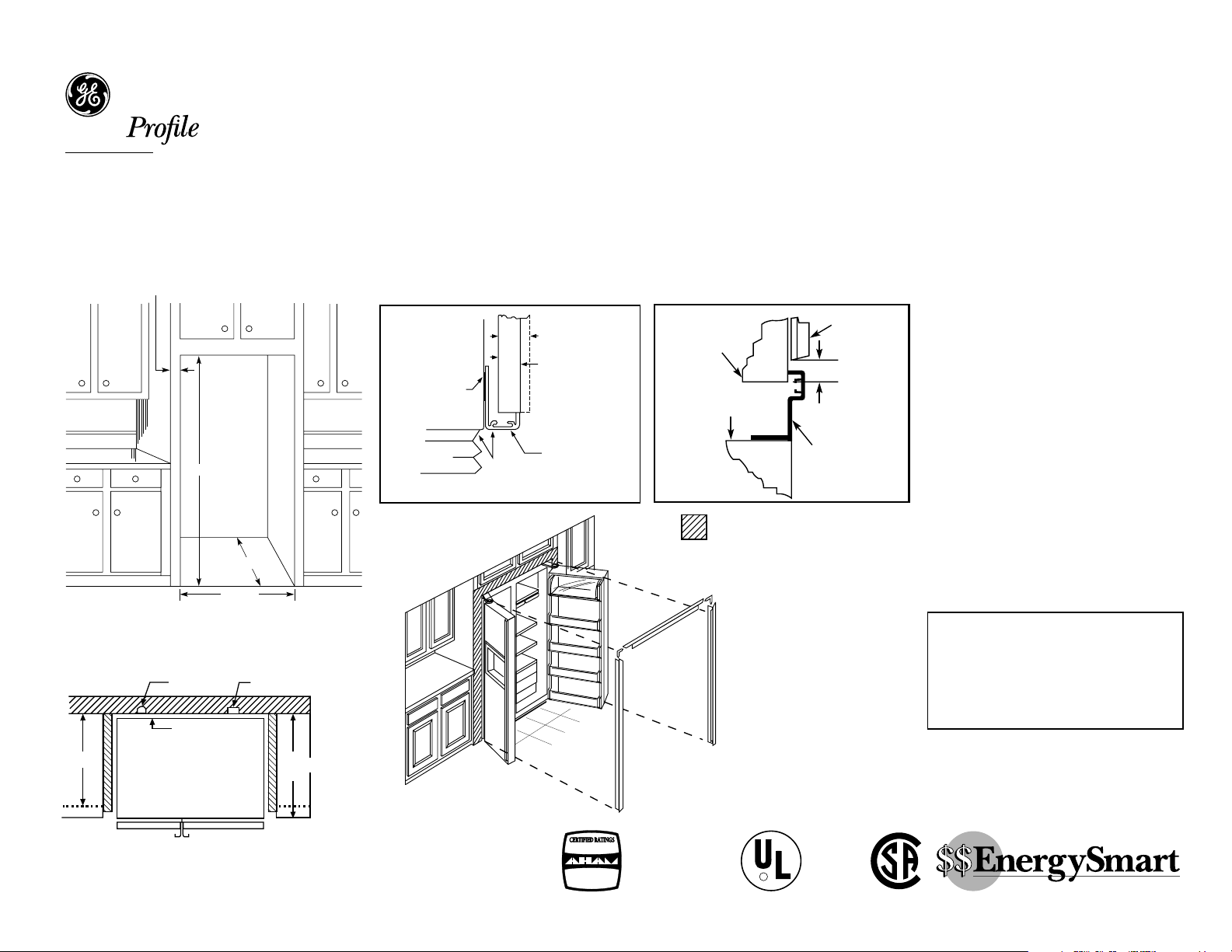

Collar Trim Installation
70-1/4"*
36-1/8"
24-1/2"*
1/2" minimum
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
Case
Overhead
Cabinet
Top
Trim
Cabinet
Door
1"
Typical Installation
Shaded areas represent front surfaces
of side panels and overhead cabinet or
soffit that contacts trim.
CUS
®
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Magnetic
Tape
3/4" Cabinet
Side Panel
1/2" Cabinet
Side Panel
Refrigerator
Case
Side Trim
Side trim must be installed
flush with the gasket contact
surface on the case.
Door Gasket
Collar Trim Installation
An enclosure is required to match up to the
trim, see Typical Installation. To obtain the most
integrated look, the cabinet or soffit above the
refrigerator should extend out to the same
depth as the side panels. The refrigerator
opening must have minimum dimensions of
70-1/4" high x 36-1/8" wide x 24-1/2"* deep as
shown at right. If there is an overhead cabinet,
allow 1" for cabinet door clearance with the top
trim piece so the cabinet doors can be opened
without hitting the top trim. If 1/2" side panels
are used, then side trim and panel will be even.
If 3/4" side panels are used, then some of the
side panel will extend beyond the trim and
must be finished.
*24-1/2” Depth applies to the refrigerator
opening, not the actual cabinet depth.
IMPORTANT: Before finalizing for your
GE Profile Performance™and GE Profile
™
CustomStyle™Refrigerator, please NOTE:
• A minimum of 36-1/8” is required for
Refrigerator installation.
• Be sure to allow for 1/2” or 3/4” side panels in
addition to the 36-1/8” minimum.
Page 4
Specification Revised 5/00
TPX24BRDAA—GE Profile™23.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser

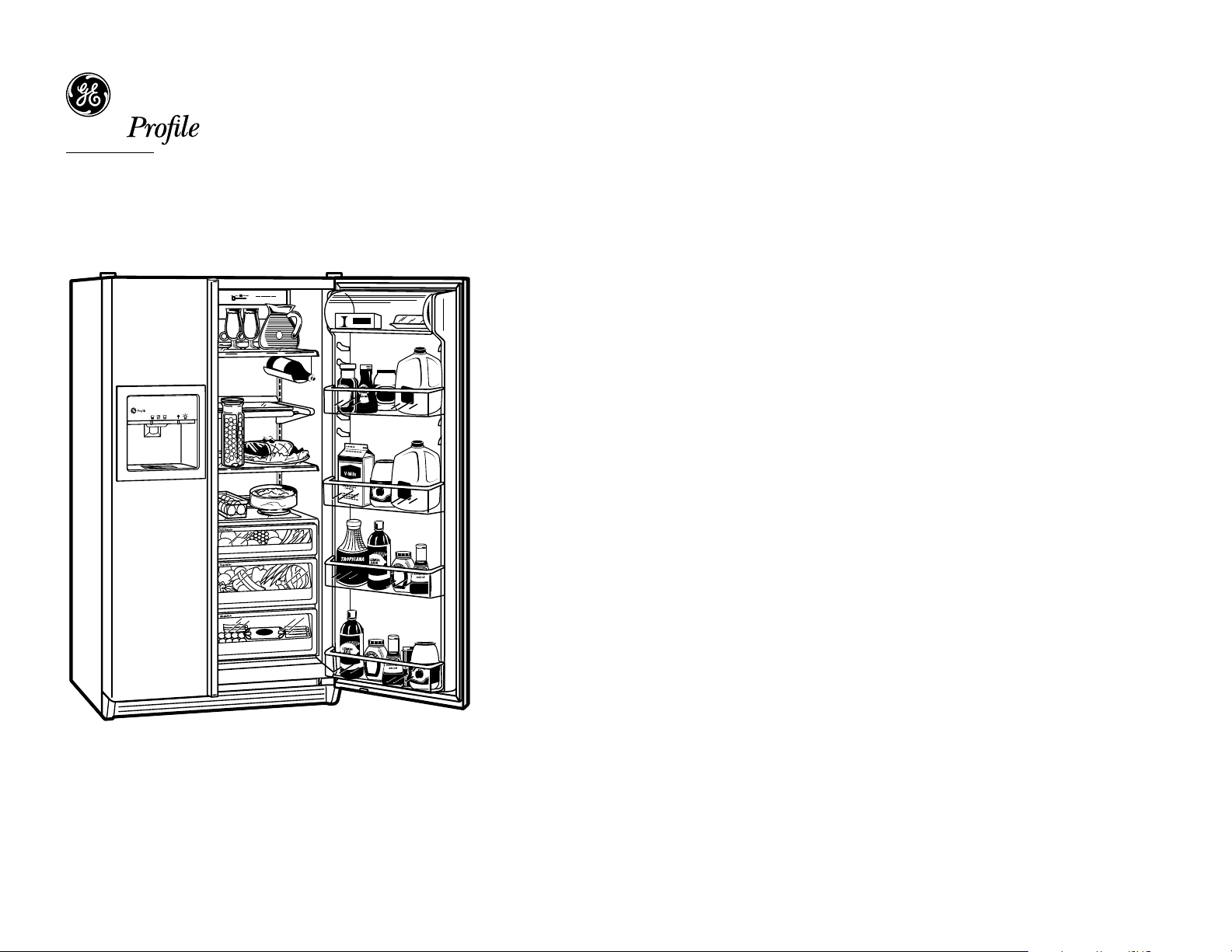

Features and Benefits
• 23.7 cu ft Capacity (Fresh Food 14.48 cu ft / Freezer 9.25 cu ft)
• LightTouch! Dispenser Delivers Chilled Water, Cubed and Crushed Ice
through the Door
• Freshness Center
™
(1 Adjustable Humidity Crisper, 1 Convertible
Meat Keeper with Cold Control and 1 Adjustable Humidity Snack Pan)
with Spill-Proof Cover
• 3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide Out, Spill Proof)
• Quick Space
™
Shelf
• ShelfSaver
™
• 4 ClearLook™Modular Fresh Food Door Shelves (2 Adjustable with
Gallon Storage)
• Beverage Rack
• Dairy Compartment with Glass Butter Dish
• Egg Bin
• 3 Cantilevered Freezer Shelves (2 Adjustable)
• 1 Wire Everwhite, Slide Out Freezer Basket
• 1 Sliding Wire Everwhite Freezer Storage bin
• 4 Freezer Door Shelves (2 Adjustable)
• Quiet Package II
• Color-Matched Full-Length Door Handles
• Model TPX24BRDWW–White on White
• Model TPX24BRDBB–Black on Black
• Model TPX24BRDAA–Almond on Almond
TM
