TPS24BPDBS—GE Profile Performance™23.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
Specification Revised 5/00

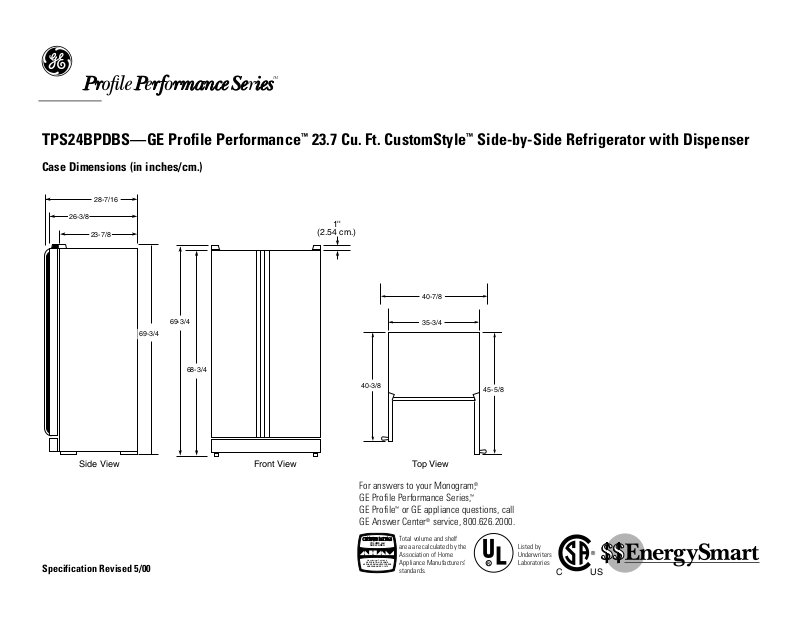

Case Dimensions (in inches/cm.)
1''
(2.54 cm.)
A
B
C
F
D
E
Side View
Front View
69-3/4
68-3/4
28-7/16
26-3/8
23-7/8
69-3/4
CUS
®
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
I
H
G
J
Top View
40-3/8
35-3/4
45-5/8
40-7/8
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Page 2
TPS24BPDBS—GE Profile Performance™23.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
Specification Revised 5/00
CUS
®
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Rough-In Dimensions (in inches)
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
Installation of Water and Electrical Outlets
Standard, New Construction and
Replacement Installation
Installation Tips to Maximize the
Built-In Look
• All wall/floor moulding should be remove
prior to installation.
• Water recess on rear wall recommended
to prevent water line damage. 48"
minimum length 1/4" diameter water
line tubing recommended.
• When possible, recess both water line
and electrical outlet. (See local codes)
• Front and rear leveling legs are adjustable
for the “Built-In” look. (See owner’s manual)
• If optional collar trim kit is to be used or
anticipated, see collar trim installation on
next page for different rough-in dimensions.
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36"
24"
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
Page 3
TPS24BPDBS—GE Profile Performance™23.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
Specification Revised 5/00

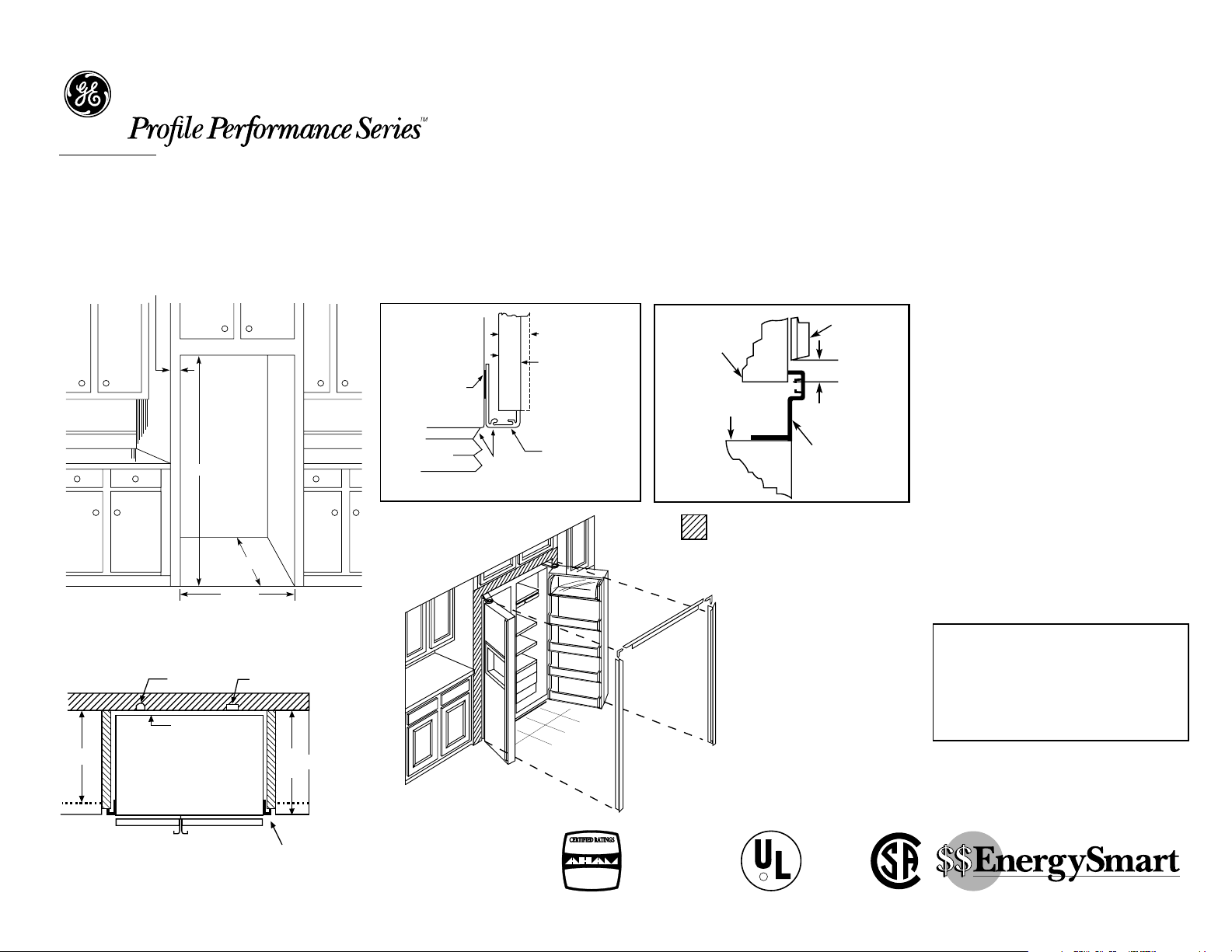

Collar Trim Installation
Collar Trim Installation
An enclosure is required to match up to the
trim, see Typical Installation. To obtain the most
integrated look, the cabinet or soffit above the
refrigerator should extend out to the same
depth as the side panels. The refrigerator
opening must have minimum dimensions of
70-1/4" high x 36-1/8" wide x 24-1/2"* deep as
shown at right. If there is an overhead cabinet,
allow 1" for cabinet door clearance with the top
trim piece so the cabinet doors can be opened
without hitting the top trim. If 1/2" side panels
are used, then side trim and panel will be even.
If 3/4" side panels are used, then some of the
side panel will extend beyond the trim and
must be finished.
*24-1/2” Depth applies to the refrigerator
opening, not the actual cabinet depth.
70-1/4"*
36-1/8"
24-1/2"*
1/2" minimum
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
Case
Overhead
Cabinet
Top
Trim
Cabinet
Door
1"
Magnetic
Tape
3/4" Cabinet
Side Panel
1/2" Cabinet
Side Panel
Refrigerator
Case
Side Trim
Side trim must be installed
flush with the gasket contact
surface on the case.
Door Gasket
Typical Installation
Shaded areas represent front surfaces
of side panels and overhead cabinet or
soffit that contacts trim.
CUS
®
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
*24” Depth applies to the refrigerator
opening, not the actual cabinet depth.
IMPORTANT: Before finalizing for your
GE Profile Performance™and GE Profile
™
CustomStyle™Refrigerator, please NOTE:
• A minimum of 36-1/8” is required for
Refrigerator installation.
• Be sure to allow for 1/2” or 3/4” side panels in
addition to the 36-1/8” minimum.
Page 4
Specification Revised 5/00
TPS24BPDBS—GE Profile Performance™23.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser

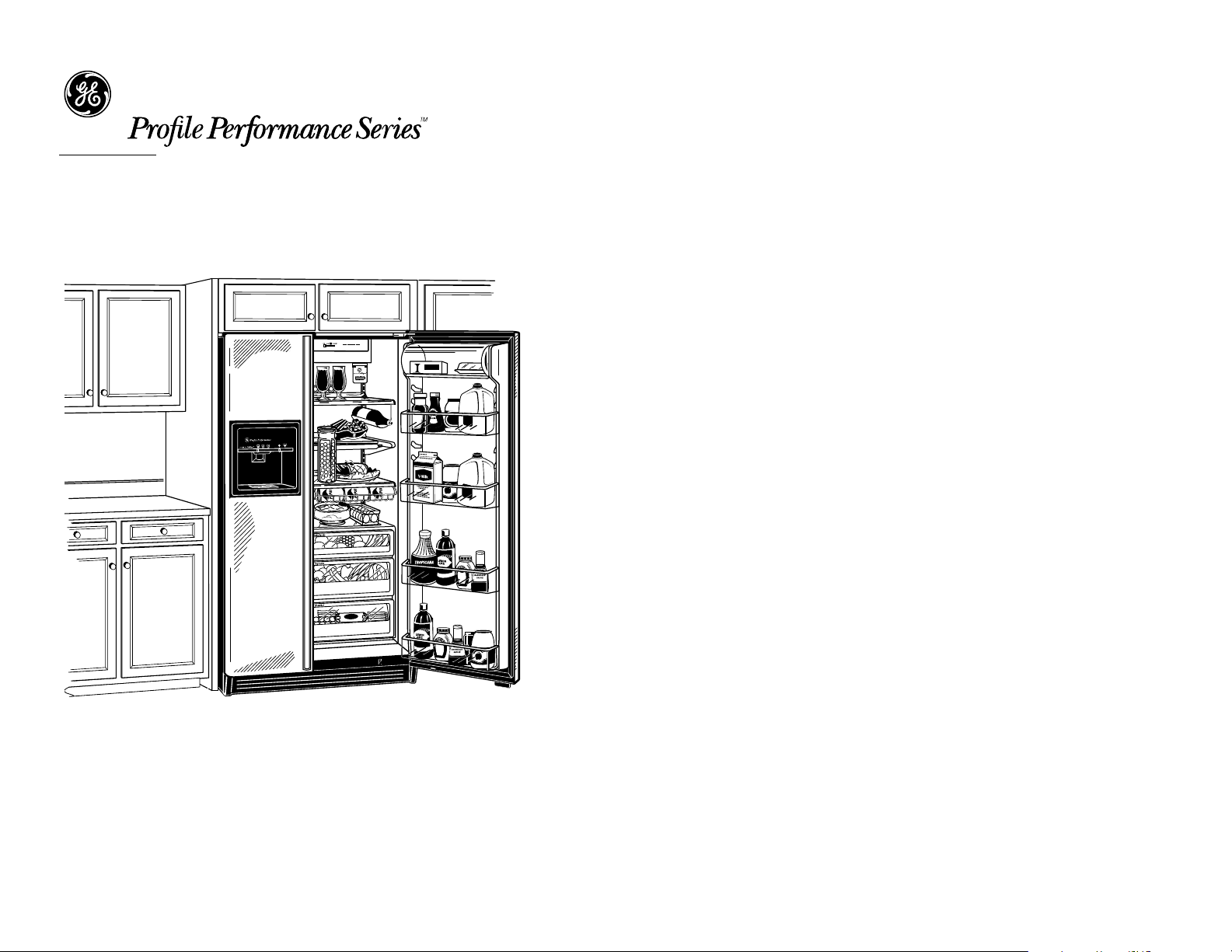

Features and Benefits
• 23.7 cu. ft. Capacity (Fresh Food 14.48 cu ft / Freezer 9.25 cu ft)
• Exclusive Water-By-Culligan
™
Provides Cleaner, Better Tasting Water and
Ice through the LightTouch! Dispenser (Chilled Water, Cubed and Crushed Ice)
• Freshness Center
™
(1 Adjustable Humidity Crisper, 1 Convertible
Meat Keeper with Cold Control and 1 Adjustable Humidity Snack Pan)
with Spill-Proof Cover
• 3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide Out, Spill Proof)
• Quick Space
™
Shelf
• ShelfSaver
™
• 4 ClearLook™Modular Fresh Food Door Shelves (2 Adjustable with
Gallon Storage)
• Beverage Rack
• Dairy Compartment with Glass Butter Dish
• Egg Bin
• 3 Cantilevered Freezer Shelves (2 Adjustable)
• 1 Wire Everwhite, Slide Out Freezer Basket
• 1 Sliding Wire Everwhite Freezer Storage Bin
• 4 Freezer Door Shelves (2 Adjustable)
• Quiet Package II
• Color-Matched Full-Length Door Handles
• Model TPX24BPDWW–White on white
• Model TPX24BPDBB–Black on black
• Model TPX24BPDCC–Bisque
• Model TPS24BPDBS–Stainless steel
