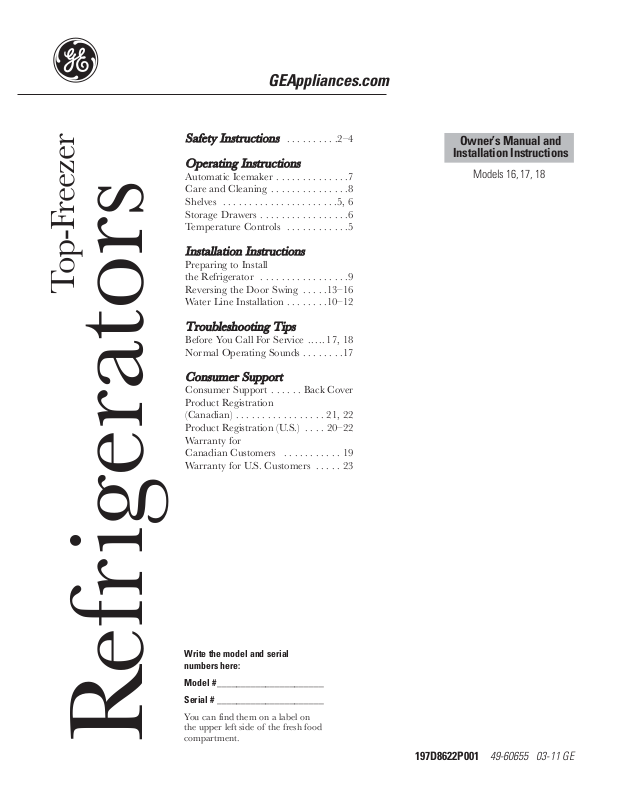

GE TOP-FREEZER 18, TOP-FREEZER 17, TOP-FREEZER 16 User Manual [en, fr]

GEAppliances.com

Safety Instructions

Operating Instructions

Installation Instructions

Troubleshooting Tips

Consumer Support

Top-Freezer

Automatic Icemaker . . . . . . . . . . . . . .7

Care and Cleaning . . . . . . . . . . . . . . .8

Shelves . . . . . . . . . . . . . . . . . . . . . .5, 6

Storage Drawers . . . . . . . . . . . . . . . . .6

Temperature Controls . . . . . . . . . . . .5

Preparing to Install

the Refrigerator . . . . . . . . . . . . . . . . .9

Reversing the Door Swing . . . . .13–16

Water Line Installation . . . . . . . .10–12

Before You Call For Service . . . . .17, 18

Normal Operating Sounds . . . . . . . .17

Consumer Support . . . . . . Back Cover

Product Registration

(Canadian) . . . . . . . . . . . . . . . . . 21, 22

Product Registration (U.S.) . . . . 20–22

Warranty for

Canadian Customers . . . . . . . . . . . 19

Warranty for U.S. Customers . . . . . 23

. . . . . . . . . .2–4

Owner’s Manual and

Installation Instructions

Models 16, 17, 18

Refrigerators

Write the model and serial
numbers here:

Model #______________________
Serial # ______________________

You can find them on a label on
the upper left side of the fresh food
compartment.

197D8622P001 49-60655 03-11 GE

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.

DANGER! RISK OF CHILD ENTRAPMENT

PROPER DISPOSAL OF THE REFRIGERATOR

Child entrapment and suffocation are not
problems of the past. Junked or abandoned refrigerators
are still dangerous…even if they
will sit for “just a few days.” If you are getting
rid of your old refrigerator, please follow the instructions
below to help prevent accidents.

Before You Throw Away Your Old

Refrigerants

All refrigeration products contain refrigerants, which
under federal law must be removed prior to product
disposal. If you are getting rid of an old refrigeration
product, check with the company handling the
disposal about what
to do.

Refrigerator or Freezer:

 Take off the doors.
 Leave the shelves in place so that children

may not easily climb inside.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, we strongly recommend
against the use of an extension cord.

However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United States) or a
CSA certified (in Canada), 3-wire grounding type appliance extension cord having a grounding type plug and outlet
and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

DANGER! RISQUES POUR LES ENFANTS

COMMENT VOUS DÉBARRASSER
CONVENABLEMENT DE VOTRE ANCIEN RÉFRIGÉRATEUR

Les enfants pris au piège ou morts d’asphyxie
sont toujours d’actualité. Les réfrigérateurs abandonnés
sont toujours aussi dangereux,
même si on n’attend que «quelques jours»
pour s’en débarrasser. Si vous ne gardez pas
votre ancien réfrigérateur, veuillez suivre les directives ci­dessous afin de prévenir les accidents.

Avant de vous débarrasser de votre ancien
réfrigérateur ou congélateur :

 Démontez les portes.
 Laissez les clayettes en place afin d’empêcher

les enfants de grimper à l’intérieur.

CORDONS PROLONGATEURS

Nous vous recommandons fortement de ne pas utiliser de cordons prolongateurs à cause des risques
potentiels qu’ils présentent dans certaines conditions.

Réfrigérants

Tous les appareils de réfrigération contiennent des
réfrigérants qui, conformément aux lois fédérales,
doivent être enlevés avant toute élimination de
l’appareil. Si vous vous débarrassez de vieux
appareils de réfrigération, vérifiez, auprès de la
société qui s’occupe de
leur élimination, ce que vous devez faire.

Toutefois si vous décidez d’utiliser tout de même un cordon prolongateur, il est absolument nécessaire
qu’il s’agisse d’un cordon à 3 fils avec mise à la terre pour appareils électro ménagers homologué UL (aux États-Unis)
ou certifié CSA (au Canada), pourvu d’une fiche et d’une prise mises à la terre de 15 ampères (minimum) et de 120

2

volts.

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING. GEAppliances.com

WARNING!

Use this appliance only for its intended purpose as described in this Owner’s Manual.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

 This refrigerator must be properly installed



and located in accordance with the Installation
Instructions before it is used.

 Do not allow children to climb, stand or hang



on the shelves in the refrigerator. They could damage
the refrigerator and seriously injure themselves.

 Do not touch the cold surfaces in the freezer



compartment when hands are damp or wet.
Skin may stick to these extremely cold surfaces.

 Do not store or use gasoline or other flammable



vapors and liquids in the vicinity of this or any other
appliance.

 Keep fingers out of the “pinch point” areas;



clearances between the doors and between
the doors and cabinet are necessarily small.
Be careful closing doors when children are

 In refrigerators with automatic icemakers,



 Unplug the refrigerator before cleaning and making



 Turning the control to the 0 position does



 Do not refreeze frozen foods which have



MESURES DE SÉCURITÉ IMPORTANTES.
LISEZ D’ABORD TOUTES LES DIRECTIVES.

AVERTISSEMENT!

in the area.

avoid contact with the moving parts of the
ejector mechanism, or with the heating element that
releases the cubes. Do not place fingers or hands on
the automatic icemaking mechanism while the
refrigerator is plugged in.

repairs.

NOTE: We strongly recommend that any servicing be
performed by a qualified individual.

not remove power to the light circuit.

thawed completely.

N’utilisez cet électroménager que pour l’usage auquel il est destiné, comme expliqué dans le
présent manuel.

MESURES DE SÉCURITÉ

Lorsque vous utilisez un appareil électrique, observez toujours les mesures de sécurité de base,
y compris les suivantes.

 Installez le réfrigérateur conformément aux directives

d’installation avant de l’utiliser.

 Ne laissez pas les enfants grimper, s’asseoir,

se tenir debout ni se pendre aux clayettes du
réfrigérateur. Ils pourraient endommager le
réfrigérateur et se blesser gravement.

 N’entreposez et n’utilisez pas d’essence ou

autres vapeurs et liquides inflammables à proximité de
cet appareil ou de tout autre appareil électroménager.

 Éloignez les doigts des parties du réfrigérateur

où l’on peut facilement se pincer : les espaces entre les
portes et entre les portes et les placards sont toujours
étroits. Soyez prudent lorsque
vous fermez les portes de l’appareil en présence des
enfants.

 Si votre réfrigérateur est doté d’une machine à glaçons

automatique évitez le contact avec les pièces mobiles
du mécanisme éjecteur, ou avec l’élément chauffant

qui libère les glaçons.
Ne posez pas les doigts ou les mains sur le mécanisme
de la machine à glaçons pendant
que le réfrigérateur est branché.

 Ne touchez pas les surfaces froides du congélateur si

vous avez les mains humides ou mouillées : la peau
risque d’adhérer à ces surfaces très froides.

 Débranchez votre réfrigérateur avant de le nettoyer ou

de le réparer.

REMARQUE : Nous vous recommandons vivement de
confier toute réparation à un technicien qualifié.

 Lorsque vous réglez la commande sur 0 (éteint),

l’alimentation électrique de l’ampoule n’est pas
coupée.

 Ne recongelez pas les aliments surgelés qui ont

complètement dégelé.

3

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3­prong (grounding) plug which mates with a standard 3­prong (grounding) wall outlet to minimize the possibility of
electric shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.

Where a standard 2-prong wall outlet is encountered, it is
your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.

The refrigerator should always be plugged into its own
individual electrical outlet which has a voltage rating that
matches the rating plate.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire
hazard from overheated wires.

Never unplug your refrigerator by pulling on the power
cord. Always grip plug firmly and pull straight out from the
outlet.

Repair or replace immediately all power cords that have
become frayed or otherwise damaged. Do not use a cord
that shows cracks or abrasion damage along its length or at
either end.

When moving the refrigerator away from the
wall, be careful not to roll over or damage the
power cord.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

MESURES DE SÉCURITÉ IMPORTANTES.
LISEZ D’ABORD TOUTES LES DIRECTIVES.

AVERTISSEMENT!

RACCORDEMENT ÉLECTRIQUE

Ne coupez ni retirez en aucun cas la troisième broche (mise à la terre) de la fiche du cordon
d’alimentation. Pour votre sécurité, cet appareil doit être correctement mis à la terre.

Le cordon d’alimentation de cet appareil est muni d’une
fiche à 3 broches (mise à la terre) qui se branche dans une
prise murale ordinaire à 3 alvéoles (mise à la terre) pour
réduire au minimum les risques de chocs électriques.

Faites examiner la prise de courant et le circuit par un
électricien qualifié pour vous assurer que la prise est
correctement mise à la terre.

Si la prise murale est du type standard à 2 alvéoles, il vous
incombe de la faire remplacer par une prise à 3 alvéoles
correctement mise à la terre.

Le réfrigérateur doit toujours être branché dans sa propre
prise de courant, dont la tension nominale est identique à
celle indiquée sur la plaque signalétique.

Cette précaution est recommandée pour garantir un
rendement optimum et éviter une surcharge des circuits
électriques de la résidence, ce qui pourrait créer un risque
d’incendie par surchauffe des fils.

Ne débranchez jamais le réfrigérateur en tirant sur le cordon
d’alimentation. Saisissez fermement la fiche du cordon et
tirez droit pour la retirer de la prise.

Réparez ou remplacez immédiatement tout cordon effiloché
ou endommagé. N’utilisez pas un cordon fendillé ou
présentant des signes d’usure.

Lorsque vous déplacez votre réfrigérateur du mur, faites
attention de ne pas le faire rouler sur le cordon
d’alimentation afin de ne pas l’endommager.

VEUILLEZ LIRE ET SUIVRE ATTENTIVEMENT CES MESURES DE SÉCURITÉ.

CONSERVEZ CES DIRECTIVES

4

About the temperature control dial. GEAppliances.com

Turning the dial to 0/ Off stops cooling in both compartments—fresh food and freezer. It does not shut off power to the refrigerator.

Temperature Control Dial (on some models)

The temperature control dial has nine settings plus 0. 1 is the warmest. 9 is the coldest. At first,
set the dial at 5.

After using the refrigerator, adjust the dial if necessary. Insert a coin into the slot in the middle
of the dial and you can turn the dial to the setting that is best suited to your needs.

Allow 24 hours for the refrigerator to get cold.

OFF

Temperature Control Dial (on some models)

The temperature control dial adjust refrigerator from warmest to coldest.
The recommended factory setting is shown in illustration to the left. For colder
temperature turn dial clockwise toward snowflake. For warmer temperature turn
dial counter clockwise away from snowflake. allow 24 hours for adjustment.

About the fresh food compartment shelves.

Shelf supports at various levels allow you to custom-space your shelves. Not all features are on all models.

Half-Width Shelves

2

Lift up and out

1

Tilt up

One end of the shelf rests on a molded side­wall support; a bracket on the other end hooks
into a track on the rear cabinet wall.

To remove, lift the shelf up at front, then off
the support and out of the track.

To replace, select desired shelf height. With
shelf front raised slightly, hook the bracket’s top
lug into the track, then lower the shelf onto the
support.

NOTE: The shelf to the right of the track is designed
to hook into the right-hand slot; the shelf to the left
is designed to hook into the left-hand slot.

Lift rear

Pull forward

To remove the full-width shelves

Full-Width Shelves

Some models have a steel wire sliding shelf, a
stationary tempered glass shelf,
a spillproof shelf or two steel wire stationary
shelves. These shelves can be moved to
another place in the fresh food
compartment.

The full-width sliding shelf has stop-locks.
When placed correctly on the shelf supports,
the shelf will stop before coming completely
out of the refrigerator and will not tilt when
you place food on it or remove food from it.

Spillproof Shelves (on some models)

Spillproof shelves have special edges
to help prevent spills from dripping
to lower shelves. To remove or replace
the shelves, see the above instructions.

Lift rear

Pull forward and down

To remove a full-width shelf when
the fresh food compartment door
cannot be opened fully

5

About the freezer compartment shelves.

Step Shelf (on some models)

To remove the step shelf:

Lift left side of shelf slightly.

1

Move shelf to the left to free its right ends

1

2

3

2

from holes in the cabinet wall.

To replace the step shelf:

With shelf tilted as shown, fit left ends of

1

shelf into holes in cabinet wall.

About the storage drawers.

Not all features are on all models.

Fruit and Vegetable Drawers

Excess water that may accumulate in the
bottom of the drawers should be emptied
and the drawers wiped dry.

Lower right side of shelf, move shelf to the

3

right and take it out.

Lift left side of shelf slightly, swing shelf up,

2

fit right ends of shelf into holes in cabinet
wall, and lower shelf into place.

Snacks Drawer

The snacks drawer can be moved to the
most useful location for your family’s needs.

6

About storage drawer and cover removal. GEAppliances.com

Not all features are on all models.

Adjustable Humidity Drawer (on some models)

Slide the control all the way to the
HIGH setting to provide high humidity
recommended for most vegetables.

Drawer and Cover Removal

Drawers can be removed easily by grasping the sides and lifting up slightly while pulling drawers
past the stop location.

Full-Width Drawer with
Plastic Cover

To remove the cover, lift it off its supports,

pull it forward, tilt it and take it out.

Twin Drawer Shelf

To remove:

Remove the drawers.

1

Reach in, push the front of glass cover up,

2

and at the same time, pull it forward as far
as it will come.

Tilt it and take it out. Avoid cleaning the cold glass
cover with hot water because the extreme
temperature difference may cause it to break.

Remove the drawer frame. (Always remove

3

the glass cover before you take out the
drawer frame.)

Lift the frame off the supports at each side and
back, pull it forward, tilt it and take it out.

Slide the control all the way to the LOW
setting to provide lower humidity levels
recommended for most fruits.

To replace:

Lower the frame until it rests on the

1

supports at each side and back.
Replace the glass cover, pushing its rear

2

edge firmly into the rear frame channel and
gently lowering the front into place.

Replace the drawers.

3

About the automatic icemaker.

A newly-installed refrigerator may take 12 to 24 hours to begin making ice.

There are 2 types of icemakers:

Power Switch

Green Power Light

Power switch model

Feeler Arm in
the ON (down)
position

Feeler arm model

Icemaker

Feeler Arm

Feeler Arm in
the STOP
(up) position

Automatic Icemaker (on some models)

The icemaker will produce approximately
100–130 cubes in a 24-hour period, depending on
the freezer compartment temperature, room
temperature, number of door openings and other
use conditions.

If the refrigerator is operated before the water
connection is made to the icemaker, move the
feeler arm to the STOP (up) position.

When the refrigerator has been connected to
the water supply, move the feeler arm to the ON
(down) position.

The icemaker will fill with water when it cools to
15°F. A newly-installed refrigerator may take 12 to
24 hours to begin making ice cubes.

Once the icemaker starts to make ice,
it may take up to 48 hours to fill the bin,
depending on the temperature settings
and number of door openings.

You will hear a buzzing sound each time the
icemaker fills with water.

Throw away the first few batches of ice
to allow the water line to clear.

Be sure nothing interferes with the sweep of the
feeler arm.

When the bin fills to the level of the feeler arm,
the icemaker will stop producing ice.

It is normal for several cubes to be joined
together.

If ice is not used frequently, old ice cubes will
become cloudy, taste stale, shrink or fuse
together.

On power switch models, the green power light
will blink if ice cubes get stuck in the icemaker.
To correct this, set the power switch to O (off)
and remove the cubes. Set the power switch to I
(on) to restart the icemaker. After the icemaker
has been turned on again, there will be a delay
of about 45 minutes before the icemaker
resumes operation.

NOTE: In homes with lower-than-average water
pressure, you may hear the icemaker cycle multiple
times when making one batch of ice.

Icemaker Accessory Kit

If your refrigerator did not already come equipped
with an automatic icemaker, an icemaker
accessory kit is available at extra cost.

Check the back of the refrigerator for
the specific icemaker kit needed for
your model.

7

Care and cleaning of the refrigerator.

Cleaning the Outside

The door handles and trim (on some models). Clean

with a cloth dampened with soapy water. Dry with a
soft cloth.

Keep the outside clean. Wipe with a clean cloth lightly
dampened with kitchen appliance wax or mild liquid dish
detergent. Dry and polish with a clean,
soft cloth.

The stainless steel panels and door handles (on some models)
can be cleaned with a commercially available stainless steel
cleaner. Do not use appliance wax or polish on the stainless
steel.

Do not wipe the refrigerator with a soiled dish cloth or wet
towel. These may leave a residue that can erode the paint.
Do not use scouring pads, powdered cleaners, bleach or cleaners
containing bleach because these products can scratch and
weaken the paint finish.

Cleaning the Inside

To help prevent odors, leave an open box of baking soda in

the fresh food and freezer compartments.

Unplug the refrigerator before cleaning.

If this is not practical, wring excess moisture out of sponge
or cloth when cleaning around switches, lights or controls.

Use warm water and baking soda solution—about a
tablespoon (15 ml) of baking soda to a quart (1 liter)
of water. This both cleans and neutralizes odors. Rinse and
wipe dry.

After cleaning the door gaskets, apply a thin layer of
petroleum jelly to the door gaskets at the hinge side. This
helps keep the gaskets from sticking and bending out of
shape.

Avoid cleaning cold glass shelves (on some models) with hot water
because the extreme temperature difference may cause them to
break. Handle glass shelves carefully. Bumping tempered glass can
cause it to shatter.

Do not wash any plastic refrigerator parts in the dishwasher.

Moving the Refrigerator

Be careful when moving the refrigerator away from
the wall. All types of floor coverings can be damaged,
particularly cushioned coverings and those with embossed
surfaces.

Turn the leveling legs at each front corner of the refrigerator
counterclockwise until the rollers support
the refrigerator. Pull the refrigerator straight out and return it to
position by pushing it straight in. Moving

the refrigerator in a side direction may result in damage
to the floor covering or refrigerator.

When pushing the refrigerator back, make sure you don’t roll over
the power cord or icemaker supply line (on some models).

After rolling the refrigerator back into place, turn the legs
clockwise until the legs again bear the weight of the
refrigerator.

Light Bulb Replacement

To replace a burned-out bulb, unplug the refrigerator from
its electrical outlet, unscrew the bulb when cool and replace
it with an appliance bulb of the same or lower wattage.

Turning the control to the 0 position does not remove power to
the light circuit.

Preparing for Vacation

For long vacations or absences, remove food and unplug the
refrigerator. Move the temperature control dial to the 0
position, and clean the interior with a baking soda solution
of one tablespoon (15 ml) of baking soda to one quart (1
liter) of water. Leave the doors open.

Move the feeler arm to the STOP (up) position and
shut off the water supply to the refrigerator.

If the temperature can drop below freezing, have a qualified
servicer drain the water supply system (on some models) to
prevent serious property damage
due to flooding.

Condenser

There is no need for routine condenser cleaning in normal

home operating environments.
However, in environments that
may be particularly dusty or
greasy, the condenser should
be cleaned periodically for

Cleaning the condenser coils.

To clean the condenser, turn the temperature control dial to

0. Sweep away or vacuum up dust.
For best results, use a brush specially designed for this

purpose. It is available at most appliance parts stores.

efficient refrigerator operation.

8

Preparing to Move

Secure all loose items such as grille, shelves and drawers by
taping them securely in place to prevent damage.

Be sure the refrigerator stays in an upright position during moving.

Read these instructions completely and carefully.

IMPORTANT –
IMPORTANT –

Note to Installer –

Note to Consumer –

Skill level

Completion time

GEAppliances.com

www.geappliances.ca

Installation Instructions Models 16, 17, 18

or

or

If you have questions, call 1.800.GE.CARES

In Canada, call 1.800.561.3344

BEFORE YOU BEGIN

•

for local inspector’s use.

•

codes and ordinances.

•

instructions with the Consumer.

•

future reference.

•

mechanical skills.

•

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not

covered under the Warranty.

– Installation of this appliance requires basic

Be sure to leave these

– Refrigerator Installation

15 minutes
Reversing the Door Swing

1 hour

Save these instructions

Observe all governing

Keep these instructions for

visit our Website at: GEAppliances.com

Visit our Website at: www.geappliances.ca

CLEARANCES

Allow the following clearances for ease of installation,
proper air circulation and plumbing and electrical
connections.

• Sides 3/4” (19 mm)

• Top 1” (25 mm)

• Back 2” (50 mm)

ROLLERS AND LEVELING LEGS

Leveling legs near each front corner of the refrigerator are

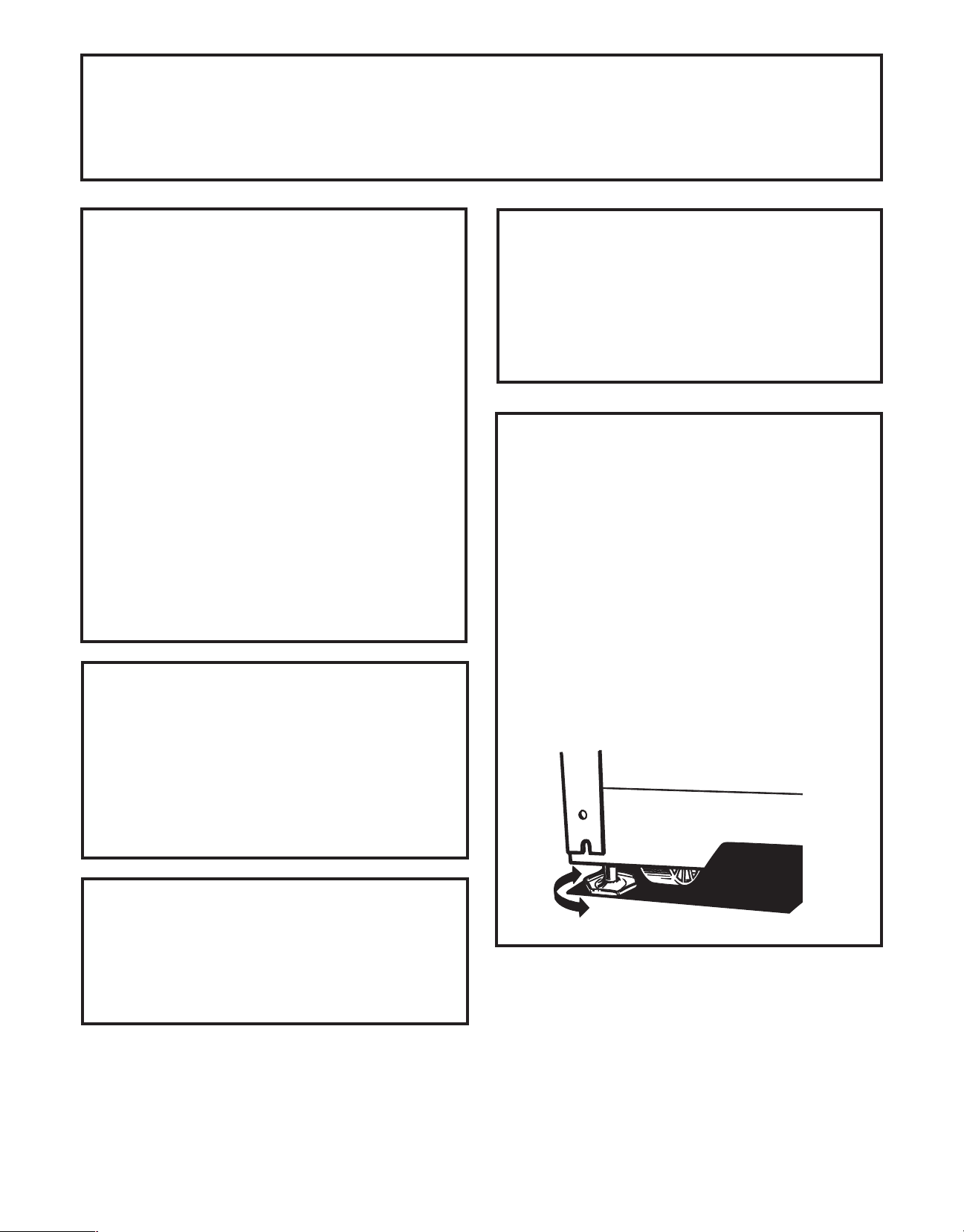

adjustable. They firmly position the refrigerator and prevent
it from moving when the doors are opened. Leveling legs
should be set so the front of the refrigerator is raised just
enough that the doors close easily when opened about
halfway.

Turn the leveling legs clockwise to raise the refrigerator,

counterclockwise to lower it.
Rollers next to the leveling legs allow you to move the

refrigerator away from the wall for cleaning.

WATER SUPPLY TO THE ICEMAKER

(on some models)

If the refrigerator has an icemaker, it will have to be
connected to a cold water line. A water supply kit
(containing copper tubing, shutoff valve, fittings and
instructions) is available at extra cost from your dealer, by
visiting our Website at

1.800.661.1616.

) or from Parts and Accessories,

(in Canada at

REFRIGERATOR LOCATION

• Do not install the refrigerator where the temperature will go
below 60°F (16°C) because it will not run often enough to
maintain proper temperatures.

• Install it on a floor strong enough to support it fully loaded.

Turn the legs counterclockwise until the weight of the
refrigerator is transferred from them to the rollers. After
rolling the refrigerator back into place, turn the legs
clockwise until the legs again bear the weight of the
refrigerator.

9

Copper or GE SmartConnect™Refrigerator Tubing kit

Installation Instructions

NOTE: The only GE approved plastic tubing is that
supplied in GE SmartConnect™Refrigerator Tubing kits.
Do not use any other plastic water supply line because the
line is under pressure at all times. Certain types of plastic
will crack or rupture with age and
cause water damage to your home.

A GE water supply kit

A cold water supply

Power drill.
1/2”or adjustable wrench.
Straight and Phillips

blade screwdriver.
Two 1/4”outer diameter compression nuts and

2 ferrules (sleeves)

OR

adapter

OR

tube cutter

Shutoff valve

COLD WATER LINE

1

INSTALLING THE WATER LINE (ON SOME MODELS)

BEFORE YOU BEGIN

Recommended copper water supply kits are WX8X2,
WX8X3 or WX8X4, depending on the amount of tubing
you need. Approved plastic water supply lines are GE
SmartConnect
WX08X10015 and WX08X10025).

When connecting your refrigerator to a GE Reverse
Osmosis Water System, the only approved installation is
with a GE RVKit. For other reverse osmosis water systems,
follow the manufacturer’s recommendations.

This water line installation is not warranted by the
refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.

Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and lead
to water leakage or flooding. Call a qualified plumber to
correct water hammer before installing
the water supply line to the refrigerator.

To prevent burns and product damage, do not hook up the
water line to the hot water line.

If you use your refrigerator before connecting the water
line, make sure the feeler arm is in the STOP (up) position.

Do not install the icemaker tubing in areas where
temperatures fall below freezing.

When using any electrical device (such as a power drill)
during installation, be sure the device is double insulated or
grounded in a manner to prevent the hazard of electric
shock, or is battery powered.

All installations must be in accordance with local plumbing
code requirements.

™

Refrigerator Tubing (WX08X10006,

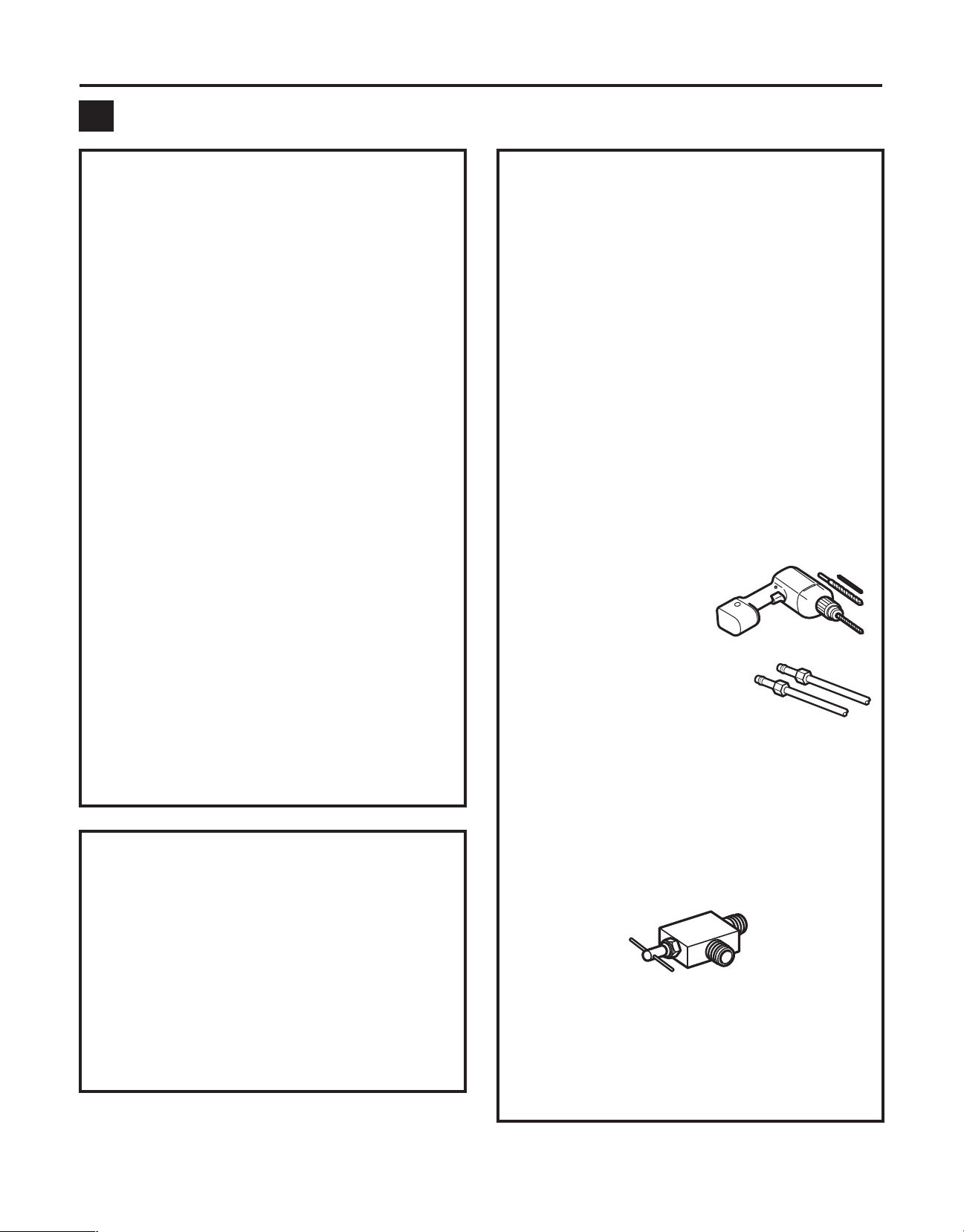

WHAT YOU WILL NEED

•

1/4” outer diameter to connect the refrigerator to the
water supply. If using copper, be sure both ends of the
tubing are cut square.

WHAT YOU WILL NEED (CONT.)

GE SmartConnect™Refrigerator Tubing Kits are available
in the following lengths:

6’ (1.8 m) – WX08X10006
15’ (4.6 m) – WX08X10015
25’ (7.6 m) – WX08X10025

Be sure that the kit you select allows at least 8’ (2.4 m) as
described above.

•

and fittings listed below) is available at extra cost from
your dealer or from Parts and Accessories,

1.800.661.1616.

•

20 and 120 p.s.i. (1.4–8.1 bar).

•

•

•

•

the copper tubing to the shutoff
valve and the refrigerator water valve.

• If you are using a GE SmartConnect™Refrigerator
Tubing kit, the necessary fittings are preassembled
to the tubing.

• If your existing copper water line has a flared fitting at
the end, you will need an
supply stores) to connect the water line to the refrigerator

you can cut off the flared fitting

with a

,

not cut formed end from GE SmartConnect
Refrigerator tubing.

(containing tubing, shutoff valve

. The water pressure must be between

—to connect

and then use a compression fitting. Do

(available at plumbing

™

To determine how much tubing you need: measure the
distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8’
(2.4 m). Be sure there is sufficient extra tubing
(about 8’ [2.4 m] coiled into 3 turns of about 10”
[25 cm] diameter) to allow the refrigerator to move out
from the wall after installation.

10

•

The shutoff valve should have a water inlet with a
minimum inside diameter of 5/32” at the point of
connection to the
shutoff valves are included in many water supply kits.
Before purchasing, make sure a saddle-type valve
complies with your local plumbing codes.

to connect to the cold water line.

. Saddle-type

Installation Instructions

Take care

not to allow water to drain into the drill.

NOTE:

NOTE:

NOTE:

NOTE:

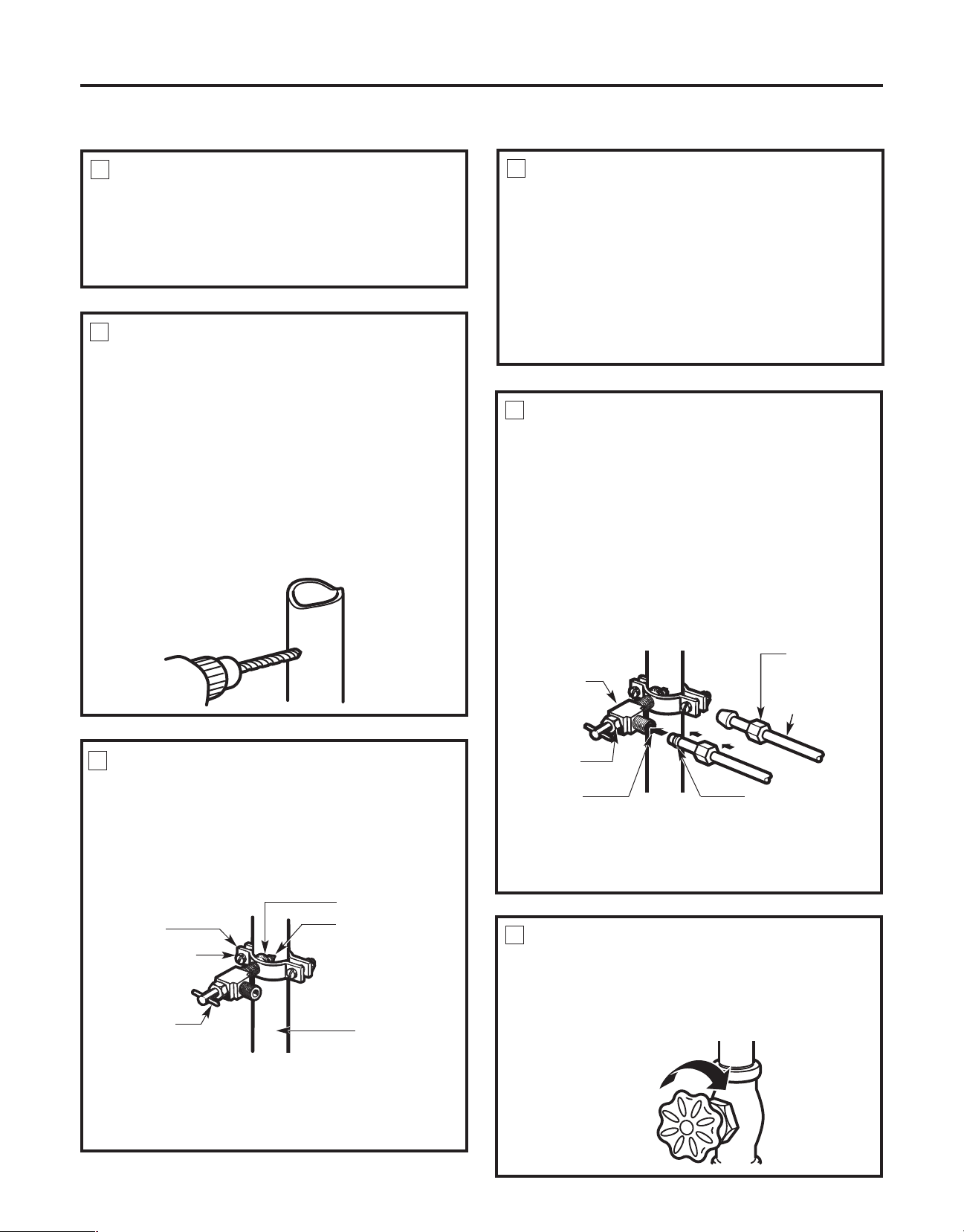

Install the shutoff valve on the nearest frequently used drinking water line.

1

SHUT OFF THE MAIN WATER
SUPPLY AND UNPLUG
REFRIGERATOR

Turn on the nearest faucet (counterclockwise) long
enough to clear the line of water.

2

DRILL THE HOLE FOR THE VALVE

Choose a location for the valve that is easily accessible. It
is best to connect into the side of a vertical water pipe.
When it is necessary to connect into a horizontal water
pipe, make the connection to the top or side, rather than
at the bottom, to avoid drawing off any sediment from
the water pipe.

Drill a 1/4” hole in the water pipe (even if using a self­piercing valve), using a sharp bit. Remove any burrs
resulting from drilling the hole in the pipe.

a 1/4” hole may result in reduced ice production or
smaller cubes.

Failure to drill

4

ROUTE THE TUBING

Route the tubing between the cold water line and the
refrigerator.

Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base cabinet) as
close to the wall as possible.

feet [244 cm] coiled into 3 turns of about 10 ” [25 cm]
diameter) to allow the refrigerator to move out from the
wall after installation.

5

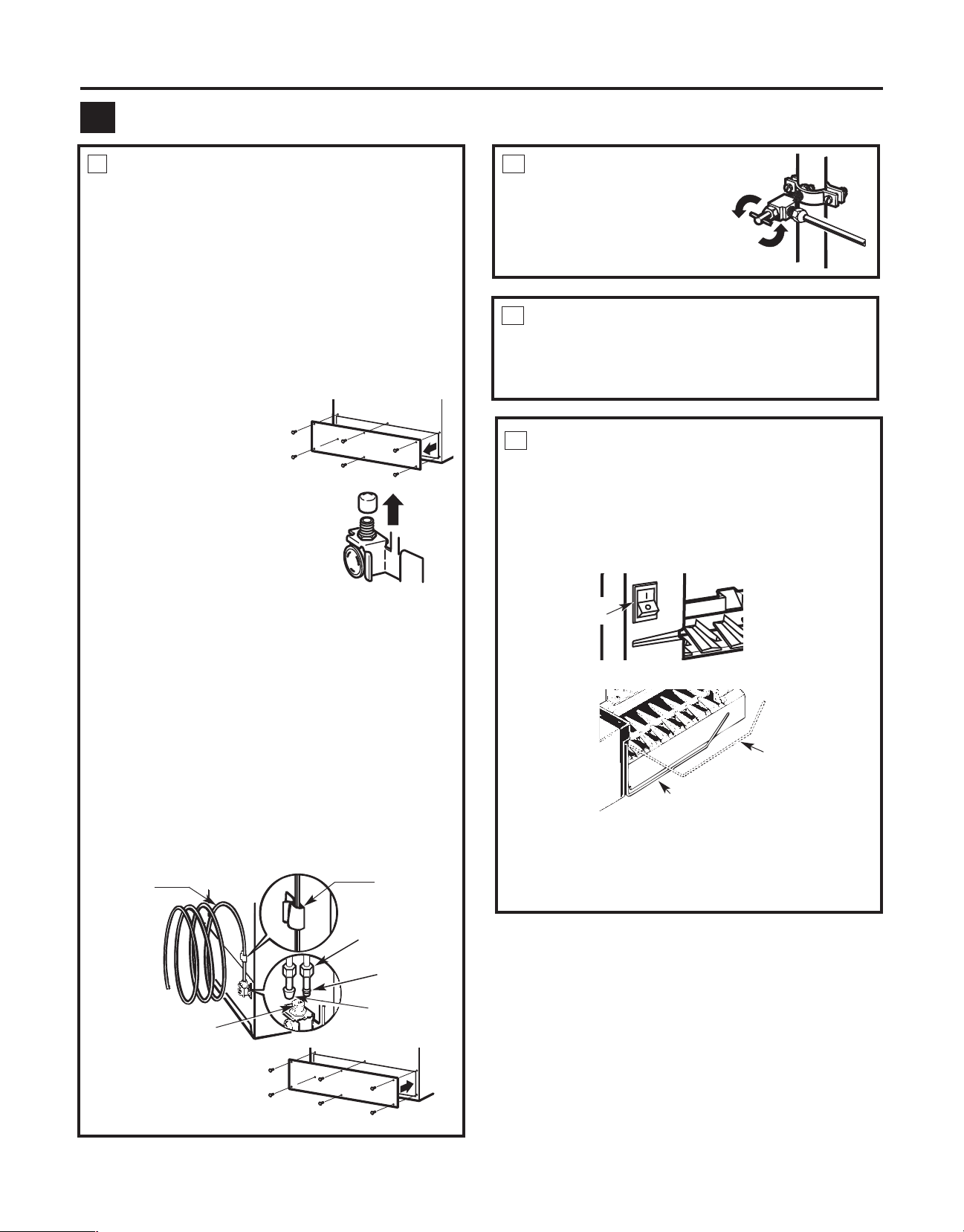

CONNECT THE TUBING

Be sure there is sufficient extra tubing (about 8

TO THE VALVE

Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve.

Make sure the tubing is fully inserted into the
valve. Tighten the compression nut securely.

For plastic tubing from a GE SmartConnect
Refrigerator Tubing kit, insert the molded end
of the tubing into the shutoff valve and tighten
compression nut until it is hand tight, then tighten one
additional turn with a wrench. Overtightening may
cause leaks.

Saddle-Type
Shutoff Valve

™

Compression
Nut

SmartConnect
Tubing

™

3

FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with the
pipe clamp.

Tighten the clamp screws until the sealing washer begins
to swell.

tubing.

Pipe Clamp

Saddle-Type
Shutoff Valve

Codes 248CMR shall be adhered to. Saddle valves are
illegal and use is not permitted in Massachusetts. Consult
with your licensed plumber.

Do not overtighten or you may crush the

Washer
Inlet End

Clamp Screw

Vertical Cold
Water Pipe

Commonwealth of Massachusetts Plumbing

11

Packing Nut

Outlet Valve

Codes 248CMR shall be adhered to. Saddle valves are
illegal and use is not permitted in Massachusetts. Consult
with your licensed plumber.

6

FLUSH OUT THE TUBING

Turn the main water supply on (counterclockwise) and
flush out the tubing until the water is clear.

Shut the water off at the water valve after about
one quart (1 liter) of water has been flushed through the
tubing.

Commonwealth of Massachusetts Plumbing

Ferrule (sleeve)

Installation Instructions

NOTES:

NOTE:

1

INSTALLING THE WATER LINE (CONT.)

7

CONNECT THE TUBING
TO THE REFRIGERATOR

• Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into the
wall outlet.

• We recommend installing a water filter if your water
supply has sand or particles that could clog the screen of
the refrigerator’s water valve. Install it in the water line
near the refrigerator. If using GE SmartConnect
Refrigerator Tubing kit, you will need an additional tube
(WX08X10002) to connect the filter. Do not cut plastic
tube to install filter.

Remove the access cover.

Remove the plastic flexible
cap from the water valve
(refrigerator connection).

8

TURN THE WATER
ON AT THE
SHUTOFF VALVE

Tighten any connections
that leak.

9

™

PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate
against the back of the refrigerator or against the wall.
Push the refrigerator back to the wall.

10

START THE ICEMAKER

On power switch models, set the icemaker power switch
to the l (on) position. On feeler arm models, move the
feeler arm to the ON (down) position. The icemaker will
not begin to operate until it reaches its operating
temperature of 15°F (–9°C) or below.
It will then begin operation automatically.

Place the compression nut and ferrule (sleeve)
onto the end of the tubing as shown. On GE
SmartConnect™Refrigerator Tubing kit,
the nuts are already assembled to the tubing.

Insert the end of the tubing into the water valve
connection as far as possible. While holding the tubing,
tighten the fitting.

For plastic tubing from a GE SmartConnect
Refrigerator Tubing kit, insert the molded end
of the tubing into the shutoff valve and tighten
compression nut until it is hand tight, then
tighten one additional turn with a wrench.
Overtightening may cause leaks.

Fasten the tubing into the clamp provided
to hold it in a vertical position. You may need
to pry open the clamp.

1/4”Copper
Tubing

Refrigerator Connection

™

Tubing Clamp

1/4”Compression
Nut

Ferrule (sleeve)

SmartConnect
Tub i ng

Power
switch

Power switch model

Feeler Arm in the
STOP (up) position

Feeler Arm in
the ON (down) position

Feeler arm model

valve may turn on up to 3 times to deliver enough water
to the icemaker.

™

In lower water pressure conditions, the water

Reattach the access cover.

12

Installation Instructions

IMPORTANT:

2.1

2.2

2.3

2.6

2.5

2.4

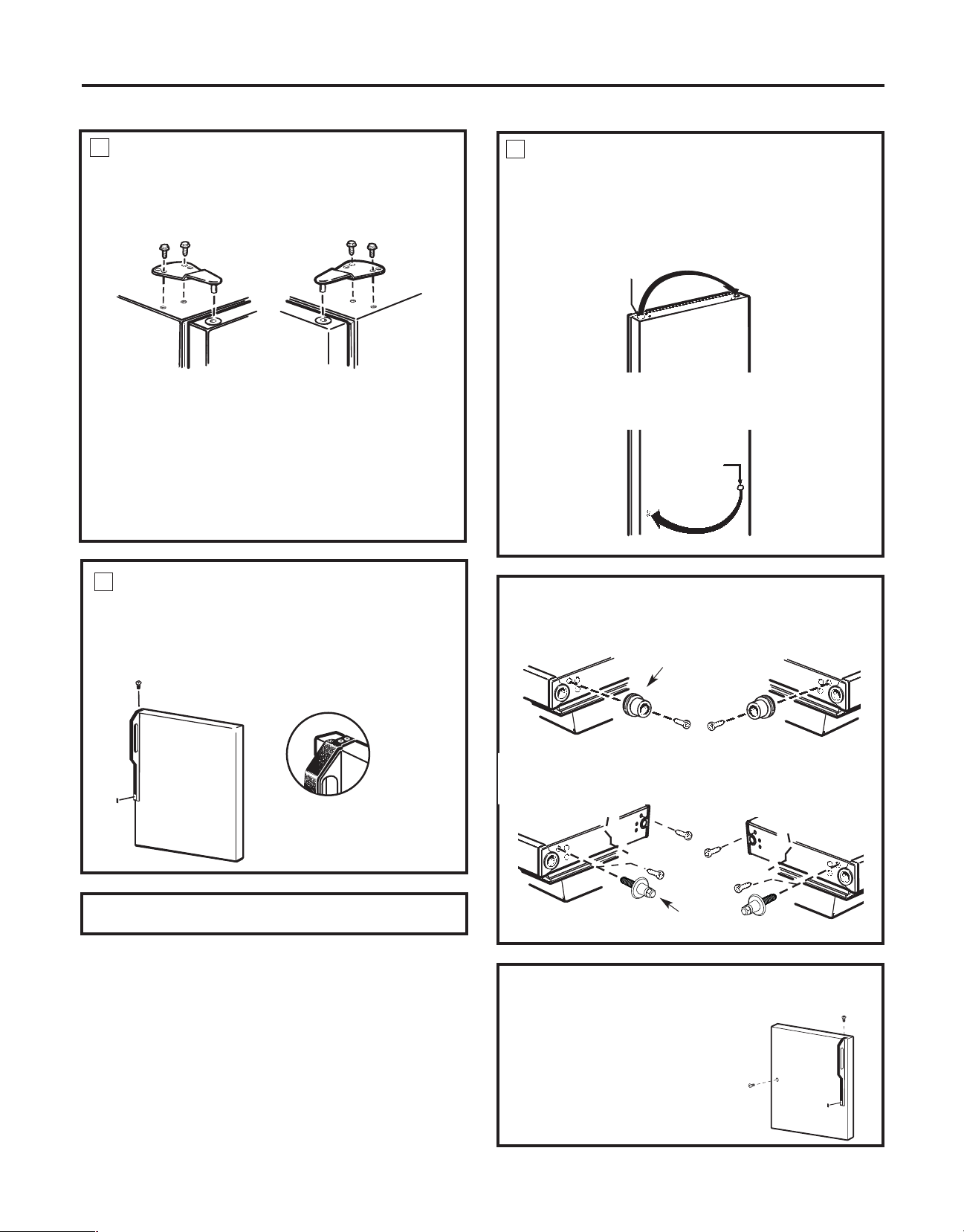

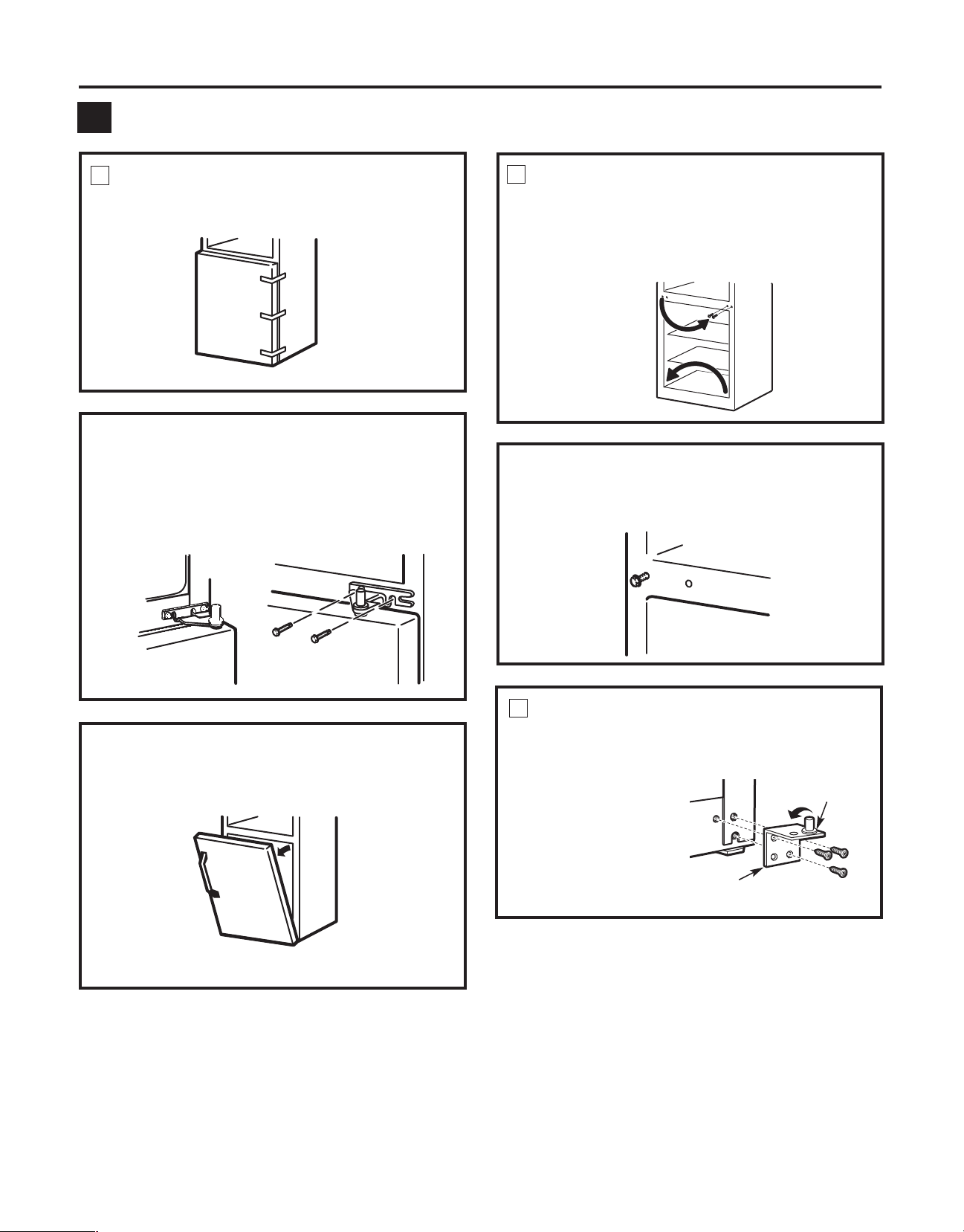

1.1 Unplug the refrigerator from its electrical outlet.

1.2

CAUTION:

2

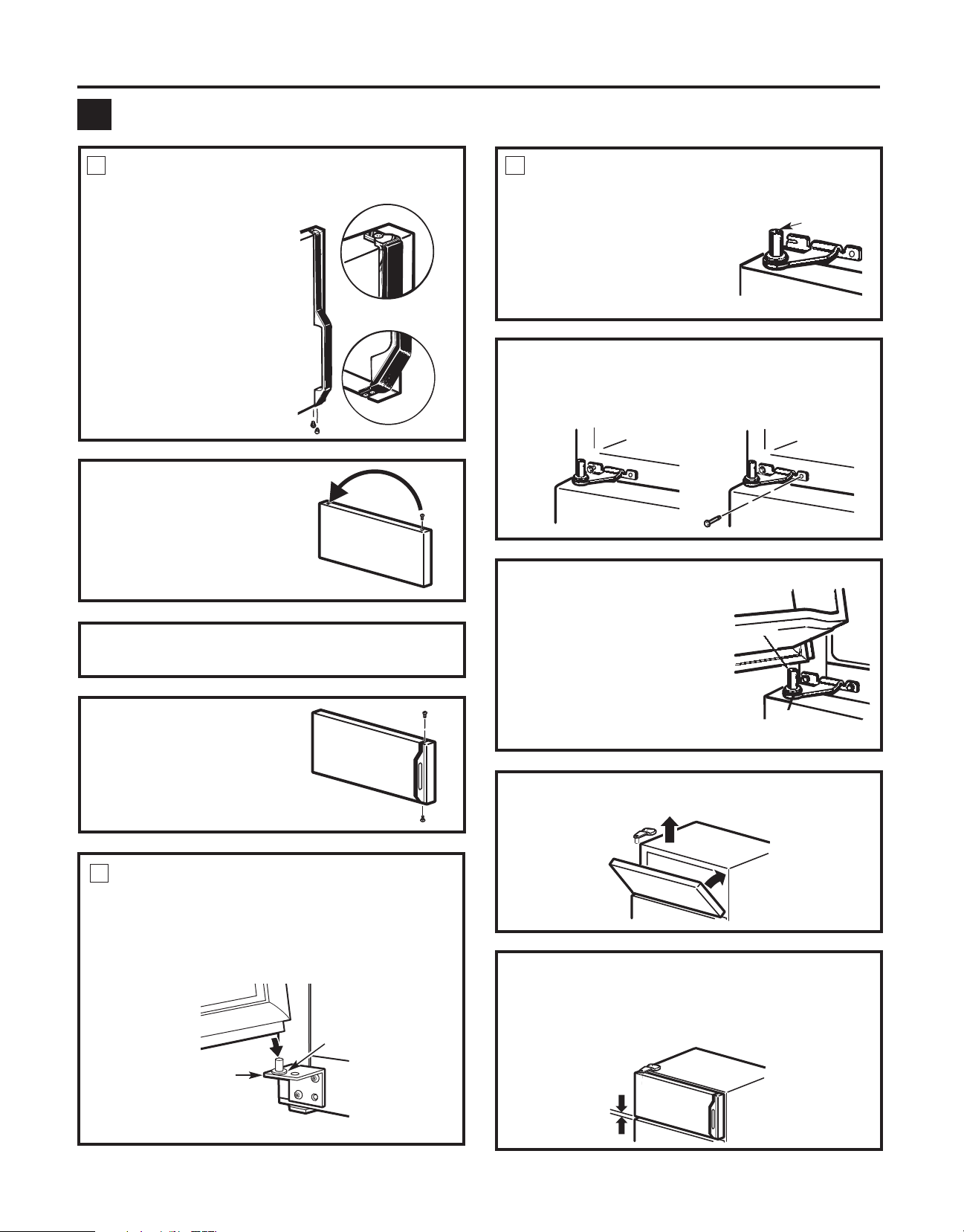

REVERSING THE DOOR SWING

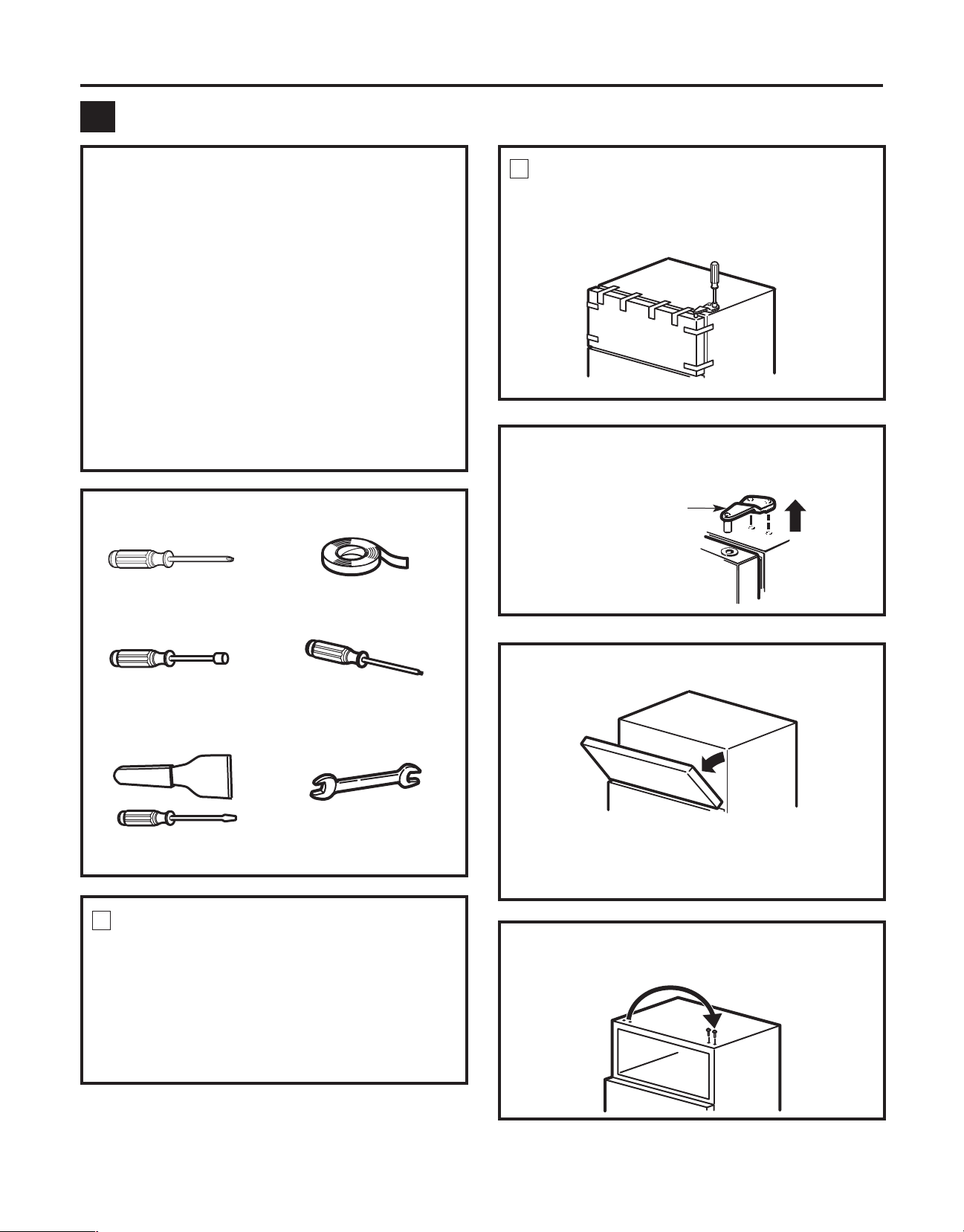

IMPORTANT NOTES

When reversing the door swing:

• Read the instructions all the way through before starting.

• Handle parts carefully to avoid scratching paint.

• Set screws down by their related parts to avoid using them

in the wrong places.

• Provide a non-scratching work surface for
the doors.

until door-swing reversal is completed.
These instructions are for changing the hinges from

the right side to the left side—if you ever want to change the
hinges back to the right side, follow these same instructions
and reverse all references to left and right.

Once you begin, do not move the cabinet

2

REMOVE THE FREEZER DOOR

Tape the door shut with masking tape.
With a 5/16” hex-head socket driver, remove the

screws that hold the top hinge to the cabinet.

Lift the hinge straight up to free the hinge pin from
the socket in the top of the door and set it aside,
along with its screws.

TOOLS REQUIRED

Phillips screwdriver

5/16” hex-head
socket driver

Putty knife or thin-blade
screwdriver

1

BEFORE YOU START

Empty all door shelves, including the dairy
compartment.

Masking tape

T20 or T25 Torxdriver
(needed for some models)

5/16” open-end
wrench

Top Hinge

Remove the tape and tilt the door away from the
cabinet. Lift it off the center hinge pin.

Set the door on a non-scratching surface with the
outside up.

Transfer the 2 screws from the opposite side of the
cabinet to the screw holes vacated by the top hinge
removal.

do so could damage the door stop.

Do not let either door drop to the floor. To

13

Installation Instructions

3.1

3.4

3.3

3.2

Be

careful not to lose the center hinge spacer and washer.

3.7

3.5

3.6

4.1

2

REVERSING THE DOOR SWING (CONT.)

3

REMOVE THE FRESH FOOD DOOR

Tape the door shut with masking tape.

Using a 5/16” hex-head socket screwdriver and a
5/16” open-end wrench, remove the two screws
holding the center hinge to the cabinet. Lift the
center hinge to free its pin from the socket in the top
of the door, and set hinge and screws aside.

3

REMOVE THE FRESH FOOD DOOR (CONT.)

Transfer the two screws from the opposite side of the
cabinet to the screw holes vacated by the center hinge
removal.

Transfer the washer (if your model has one) to the
opposite side.

Take one of the screws removed in step 2 and start
it in the outermost screw hole on the opposite side. Do not
drive it all the way down—leave enough space under the
screw head for thickness of the bracket.

Remove the tape and tilt the door away from the
cabinet. Lift the door from the pin in the bottom hinge
bracket. (If the plastic washer sticks to the door bottom,
put it back on the hinge.)

Set the door outside-up on a non-scratching surface.

4

REVERSING THE HARDWARE

Move the bottom hinge bracket and plastic washer from the
right side to the left side.

Switch the hinge pin to the
opposite side of the bracket.

Hinge
Bracket

Plastic
Washer

14

Installation Instructions

4.2
Do not tighten screws on hinge side

at this time.

NOTES:

5.1.2

5.3.1

5.3.2

5.1.1

5.1.3

5.1.4

5.2.1

5

.

2

.

2

4

REVERSING THE HARDWARE

Interchange hinge and screws at top right with screws at
top left of cabinet.

(CONT.)

5

REVERSING THE DOOR
HANDLES

Remove plug button from the top hinge hole on the left
side of the door and insert it into the hole on the
opposite side that was vacated by removal of the top
hinge.

(CONT.)

Plug Button

Installing the hinge on the left.

• Some hinges have four holes. Which holes you use
for installing the hinge depends on which side you
install the hinge.

• The outer edge of the hinge should be parallel to the
edge of the case for correct installation.

5

REVERSING THE DOOR HANDLES

Installing the hinge on the right.

5.1 Transfer fresh food door handle

Remove the handle plug using a tape-tipped
putty knife under the edge, and remove the screw
underneath. Remove the two screws holding the
handle to the top of the door.

Top

Plug

Pull the plug button from the front of the door and
transfer it to the opposite side.

Plug Button

5.2 Transfer door stop

Move the plastic door stop and screws from
the right side to the left side.

Plastic Door Stop

Left Side

Move the metal door stop from the right side
to the left side and transfer the screw to the
opposite side of the door.

To reattach the

handle on the
opposite side.

Right Side

Remove the handle.

Left Side

Metal Door Stop

5.3 Reinstall the fresh food door handle

Attach the handle to the right side of the
door with screws at the top

and under the handle plug.
Reinstall the handle plug.

15

Right Side

Installation Instructions

5.4.3

5.4.4

5.4.5

5.4.1

5.4.2

6.1.2

NOTE:

6.2.1

Be sure the
washer and spacer
are in place on the pin.

6.1.3

6.1.1
Be sure the washer

is in place on the pin.

6.2.2

6.2.3.

2

REVERSING THE DOOR SWING (CONT.)

5

REVERSING THE DOOR HANDLES (CONT.)

5.4 Transfer Freezer Door Handle

Remove the screw
holding the handle
to the top of the
door and the two
screws holding the
handle to the bottom
of the door.

Remove the handle.

Remove the screw from the
right top edge of the door
and insert it into the handle
screw hole on the left side.

Transfer the door stop as shown in preceding
section 5.2.

TOP

To p

BOTTOM

Bottom

6

RE-HANGING THE DOORS (CONT.)

Insert the pin on the center hinge into the socket in the
top of the door. Place the spacer, then the washer, on the
hinge pin.

be turned over as shown when
mounted on the left side.

Tilt the door toward the cabinet. As the door is brought
into position, slide the hinge under the head of the screw
which earlier had been partly driven into the outermost
hole. Insert the remaining screw, then tighten both screws
securely.

The center hinge must

Plastic Washer
and Spacer

Hinge Pin

6.2 Re-hang the freezer door

Lower the freezer door
onto the center hinge
pin.

Center Hinge Pin

Attach the handle to the right
edge of the door
with screws at top and bottom,
using bottom holes vacated by
removal of the door stop
screws.

RE-HANGING THE DOORS

6

6.1 Re-hang the fresh food door

Lower the fresh food door onto the
bottom hinge pin.

Hinge
Bracket

Plastic
Washer

Tilt the door toward the cabinet, lifting the top hinge so
the pin fits into the socket on the top of the door.

Make sure the door is slightly above the top of the
cabinet and the gap between the doors is even across the
front. Tighten the top hinge screws. Do not overtighten
these screws–tighten them until they are just snug, then
turn them another one-half turn.

Plastic Washer
and Spacer

16

Normal operating sounds. GEAppliances.com

Refrigerator in defrost cycle.
Temperature control dial

in

position.
Refrigerator is unplugged.
The fuse is blown/circuit

breaker is tripped.
Roller screws or leveling legs

need adjusting.
Temperature control dial

not set cold enough.
Warm weather or frequent

door openings.
Door left open.
Package blocking air duct in

freezer compartment.

Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features
and use newer technology.

Do you hear what I hear? These sounds are normal.



The new high efficiency
compressor may run
faster and longer than
your old refrigerator and
you may hear a high-pitched hum or pulsating sound
while it is operating.



You may hear a whooshing sound when the doors close. This
is due to pressure equalizing within the refrigerator.

HUMMM...

WHOOSH...

CLICKS, POPS,

CRACKS and CHIRPS



You may hear cracking or popping sounds when the refrigerator
is first plugged in. This happens as the refrigerator cools to the
correct temperature.



The compressor may cause a clicking or chirping sound when
attempting to restart (this could take
up to 5 minutes).



Expansion and contraction of cooling coils during and after
defrost can cause a cracking or popping sound.



On models with an icemaker, after an icemaking cycle, you may
hear the ice cubes dropping into the ice bucket.



You may hear the fans spinning at high
speeds.
This happens when the refrigerator is
first plugged in, when the doors are
opened frequently or when

a large amount of food is added to the refrigerator or
freezer compartments. The fans are helping to maintain the
correct temperatures.

WATER SOUNDS



The flow of refrigerant through the freezer cooling coils may
make a gurgling noise like boiling water.



Water dropping on the defrost heater can cause a sizzling,
popping or buzzing sound during the defrost cycle.



A water dripping noise may occur during the defrost cycle as ice
melts from the evaporator and flows into the drain pan.



Closing the door may cause a gurgling sound due to pressure
equalization.

For additional information on normal
icemaker operating sounds, see the

About the automatic icemaker section.

Before you call for service…

Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.

Problem Possible Causes What To Do

Refrigerator does not
operate

Vibration or rattling (slight
vibration is normal)

Fresh food or freezer
compartment too warm

0

• Wait about 30 minutes for defrost cycle to end.

• Move the temperature control dial to a temperature

setting.

• Push the plug completely into the outlet.

• Replace fuse or reset the breaker.

• See Rollers and Leveling Legs.

• See About the temperature control dial.

• Set the temperature control dial one step colder.

See About the temperature control dial.

• Check to see if package is holding door open.

• Check to see if package is blocking air duct in freezer

compartment.

17

Normal when refrigerator
is first plugged in.

Often occurs when large
amounts of food are
placed in refrigerator.

Door left open.
Hot weather or frequent

door openings.
Temperature control dial

set at the coldest setting.
Grille and condenser

need cleaning.
Door left open.
Too frequent or too long

door openings.

Icemaker is not on.
Water supply turned off or

not connected.
Freezer compartment

too warm.
Piled up cubes in the storage

bin cause the icemaker
to shut off.

Icemaker is on but the water
supply to the refrigerator has
not been connected.

Water shutoff valve connecting
refrigerator to water line may
be clogged.

Door left open.
Temperature control dial

not set cold enough.
Ice storage bin needs cleaning.
Food transmitting odor/taste

to ice cubes.
Interior of refrigerator

needs cleaning.
Not unusual during

periods of high humidity.

Too frequent or too
long door openings.

Foods transmitting
odor to refrigerator.

Interior needs cleaning.

Before you call for service…

Troubleshooting Tips

Problem Possible Causes What To Do

Motor operates for long
periods or cycles on and
off frequently. (Modern
refrigerators with more
storage space and a larger
space and a larger freezer
require more operating
time. They start and stop
often to maintain even
temperatures.)

Frost or ice crystals
on frozen food
(frost within package
is normal)

Automatic icemaker
does not work
(on some models)

Frequent “buzzing” sound

Cubes too small

Slow ice cube freezing

Ice cubes have
odor/taste

Moisture forms on
cabinet surface
between the doors

Moisture collects inside
(in humid weather, air
carries moisture into
refrigerator when doors
are opened)

Refrigerator has odor

• Wait 24 hours for the refrigerator to completely

cool down.

• This is normal.

• Check to see if package is holding door open.

• This is normal.

• See About the temperature control dial.

• See Care and cleaning.

• Check to see if package is holding door open.

• Move the feeler arm to the ON (down) position.

• See Installing the water line.

• Wait 24 hours for the refrigerator to completely

cool down.

• Level cubes by hand.

• Move the feeler arm to the STOP (up) position. Keeping it

on will damage the water valve.

• Call the plumber to clear the valve.

• Check to see if package is holding door open.

• See About the temperature control dial.

• Empty and wash bin. Discard old cubes.

• Wrap foods well.

• See Care and cleaning.

• Wipe surface dry and reset temperature control dial

one setting colder.

• Foods with strong odors should be tightly wrapped.

• Keep an open box of baking soda in the refrigerator;

replace every three months.

• See Care and cleaning.

18

CUSTOMER WARRANTY

(for customers in Canada)

Your refrigerator is warranted to be free of defects in material and workmanship.

What is covered How Long Warranted Parts Labour

(From Date of Sale) Repair or Replace

at Mabe’s Option

Compressor GE Profile: Ten (10) Years GE Profile: Ten (10) Years GE Profile: Five (5) Years

GE and All Other GE and All Other GE and All Other

Brands: One (1) Year Brands: One (1) Year Brands: One (1) Year

Sealed System (including GE Profile: Five (5) Years GE Profile: Five (5) Years GE Profile: Five (5) Years
evaporator, condenser GE and All Other GE and All Other GE and All Other
tubing and refrigerant) Brands: One (1) Year Brands: One (1) Year Brands: One (1) Year

All Other Parts One (1) Year One (1) Year One (1) Year

TERMS AND CONDITIONS:

This warranty applies only for single family domestic use in
Canada when the Refrigerator has been properly installed
according to the instructions supplied by Mabe and is connected
to an adequate and proper utility service.

Damage due to abuse, accident, commercial use, and alteration or
defacing of the serial plate cancels all obligations of this
warranty.

Service during this warranty period must be performed by an
Authorized Mabe Service Agent.

Neither Mabe nor the Dealer is liable for any claims or damages
resulting from failure of the Refrigerator or from service delays
beyond their reasonable control.

To obtain warranty service, purchaser must present the original
Bill of Sale. Components repaired or replaced are warranted through
the remainder of the original warranty period only.

This warranty is extended to the original purchaser and any
succeeding owner for products purchased for home use within
Canada. In home warranty service will be provided in areas where it
is available and deemed reasonable by Mabe to provide.

This warranty is in addition to any statutory warranty.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited
Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose,
are limited to one year or the shortest period allowed by law.

WHAT IS NOT COVERED:

• Owner is responsible to pay for service calls related to product
installation and/or teaching how to use the product.

• Damage to finish must be reported within 48 hours following
the delivery of the appliance.

• Damage to finish after delivery.

• Improper installation—proper installation includes adequate air
circulation to the refrigeration system, adequate electrical,
plumbing and other connecting facilities.

• Replacement of house fuses or resetting of circuit breakers.

• Replacement of light bulbs.

• Damage to product caused by accident, fire, floods or acts
of God.

• Loss of food due to spoilage.

• Proper use and care of product as listed in the owner’s manual,
proper setting of controls.

• Product not accessible to provide required service.

• WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL
DAMAGES.

IMPORTANT

Keep this warranty and your bill of sale as proof of original purchase and purchase date.
Please have serial number and model number available when calling for service.

Mabe Service is available coast to coast. If further help is
needed concerning this warranty, contact:

Manager, Consumer Relations
Mabe Canada Inc., Consumer Service
1 Factory Lane, Suite 310
Moncton, New Brunswick E1C 9M3

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

1.800.561.3344

19

C

Consumer Product Ownership Registration

Follow these three steps to protect your new appliance investment:

Important: If you did not get a registration card with your

product, detach and return the form on the next page to
ensure that your product is registered, or register online at

GEAppliances.com

. The top card is for products installed in
the U.S. The bottom card is for products installed in
Canada.

Model Number Serial Number

Complete and mail
your Consumer
Product Ownership
Registration today.

GE Service Protection Plus

™

Benefits Include:

• Prompt, reliable service from GE Authorized Servicers

• Convenient hours designed to suit your busy schedule

• Quality replacement parts

• The dependability of GE, a name recognized and trusted worldwide

• Ask about our interest-free payment plans

With Service Protection Plus you can expect:

Place your confidence in GE and call us in the U.S. toll-free at

1.800.626.2224

for more information.

*Most brands covered up to 15 years old in the continental U.S.
SPP is a trademark of General Electric

Company.

Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!

1

Have the peace of
mind of knowing we
can contact you in
unlikely event of
safety modification.

a

the

23

After mailing the
registration below,
store this document
in a safe place. It
contains information
you will need should
you require service.
Our service number is
800 GE CARES
(800.432.2737).

Read your Owner’s
Manual carefully.
It will help you
operate your new
appliance properly.

GE, a name recognized worldwide for quality and dependability together with Assurant Solutions, offers you
Service Protection Plus

• An extended service plan that limits unexpected repair bills

• Service coverage for most major brands

• Unlimited service calls for the length of your contract, or credit toward a replacement product

• Service coverage for covered operating parts and labor on appliances and home electronics that fail during normal single family
household use

• Your satisfaction is our goal. We strive to provide you with excellent service in a professional and timely manner.

™

—comprehensive protection on your appliances.*

20

Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150

For refrigerators installed in the U.S.



Cut here

Please place in envelope and mail to:

General Electric Company

For refrigerators installed in Canada

Please place in envelope and mail to:
Veuillez mettre dans une enveloppe et envoyez à :

OWNERSHIP REGISTRATION
P.O. BOX 1780
MISSISSAUGA, ONTARIO
L4Y 4G1

(FOR CANADIAN CONSUMERS ONLY)



Cut here

21

For refrigerators installed in the U.S.

Consumer Product Ownership Registration

I

m

p

o

r

t

a

n

t

M

a

i

l

T

o

d

a

y

!



Model Number Serial Number



GEAppliances.com

C

Cut here



First

Name

Street

Address

Apt. #

City

Date Placed

In Use

Month

Mr. Ms. Mrs. Miss

Day

Year

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other

important communications from GE Appliances (GEA).

Check here if you do not want to receive communications from GEA’s carefully selected
partners.
FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR
WARRANTY RIGHTS.
For information about GEA’s privacy and data usage policy, go to
“Privacy Policy” or call 800.626.2224.

Last

Name

E-mail Address*

Number

Phone

S

tate

_

Zip

Code

_

and click on

For refrigerators installed in Canada

Cut here



22

Refrigerator Warranty. (For customers in the United States)

GEAppliances.com

Service trips to your home to teach you how to use
the product.

Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other

than the intended purpose or used commercially.
Loss of food due to spoilage.
Replacement of house fuses or resetting of circuit breakers.
Damage caused after delivery.

Replacement of the water filter cartridge, if included, due to
water pressure that is outside the specified operating range or
due to excessive sediment in the
water supply.

Replacement of the light bulbs, if included, or water filter
cartridge, if included, other than as noted above.

Damage to the product caused by accident, fire, floods
or acts of God.

Incidental or consequential damage caused by possible defects
with this appliance.

Product not accessible to provide required service.

All warranty service provided by our Factory Service Centers,
or an authorized Customer Care
on-line, 24 hours a day, visit us at

®

technician. To schedule service,

, or call

800.GE.CARES (800.432.2737). Please have serial number and model

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

number available when calling for service.

For The Period Of: GE Will Replace:

GE and GE PROFILE MODELS:

One Year Any part of the refrigerator which fails due to a defect in materials or workmanship.

From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor and
original purchase related service to replace the defective part.

Thirty Days Any part of the water filter cartridge which fails due to a defect in materials or workmanship.

(Water filter, if included) During this limited thirty-day warranty, GE will also provide, free of charge, a replacement water
From the original filter cartridge.
purchase date of
the refrigerator

GE PROFILE MODELS ONLY:

Five Years Any part of the sealed refrigerating system (the compressor, condenser, evaporator

(GE Profile models only) and all connecting tubing) which fails due to a defect in materials or workmanship.
From the date of the During this limited five-year sealed refrigerating system warranty, GE will also provide,
original purchase free of charge, all labor and related service to replace the defective part in the sealed

refrigerating system.

What GE Will Not Cover:













EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this
Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a
particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available,
you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service
location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.











Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

23

Consumer Support.

In Canada: www.geappliances.ca

In Canada,

in Canada

In Canada: www.geappliances.ca,

Register your new appliance on-line—at your convenience!

In Canada: www.geappliances.ca

In Canada, call 1.800.561.3344

GE Appliances Website In the U.S.: www.Hotpoint.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts, or even schedule service on-line.

Schedule Service In the U.S.: www.Hotpoint.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience
24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio In the U.S.: GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes
and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For
details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our
Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

contact: Manager, Consumer Relations, Mabe Canada Inc.

GEAppliances.com

GEAppliances.com

Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3

Extended Warranties In the U.S.: GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still
in effect. You can purchase it on-line anytime, or call 1.888.261.2133 during normal business hours. GE Consumer Home
Services will still be there after your warranty expires.

GEAppliances.com

Parts and Accessories In the U.S.: www.Hotpoint.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA,
MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at

1.800.661.1616 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be
referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Customers

should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616.

GEAppliances.com

Contact Us In the U.S.: www.Hotpoint.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your
phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park
Louisville, KY 40225

or write to: Director, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3

GEAppliances.com

Register Your Appliance In the U.S.: www.Hotpoint.com

enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material.

Timely product registration will allow for

Printed in the United States
Printed on Recycled Paper
