GE Spacemaker DSXH43, Spacemaker DPXH46, Spacemaker DH43, Spacemaker DCXH46, Spacemaker PSXH43 Owner's Manual & Installation Instructions

Y

GEAppliances.com

Safety Instructions ............. 2-s

Operating Instructions

Care and Cleaning ..................... 8

Controls .............................. 6

Features .............................. 7

Loading and Using the Dryer ........... 8

Installation Instructions ...... 9J20

Electrical Installation for

Electric Dryer .................... 16, 17

Electrical Requirements ............... 11

Exhausting the Dryer ............. 12, 1:3

Gas Connection for Gas Dryer ........ 18

Gas Supply Requirements ............ 1:3

Location of Your Dryer ................ 14

Mobile Home Installation ............. 15

Preparing to Install Your Dryer ...... 9, 10

Reversing the Door Swing ............ 20

Stacking Instructions .............. 19,20

U.S. Models:

DSXH43
DPXH46

DH43

Canada Models:

DCXH46

PSXH43

Troubleshooting Tips ......... 21,22

Consumer Support

Consumer Support ................... 26

Warranty for Canadian Customers .... 25

Warranty for U.S.Customers ......... 2/4

®

®

Printed in Mexico 175D1807P642 49-90380 04-09 JR

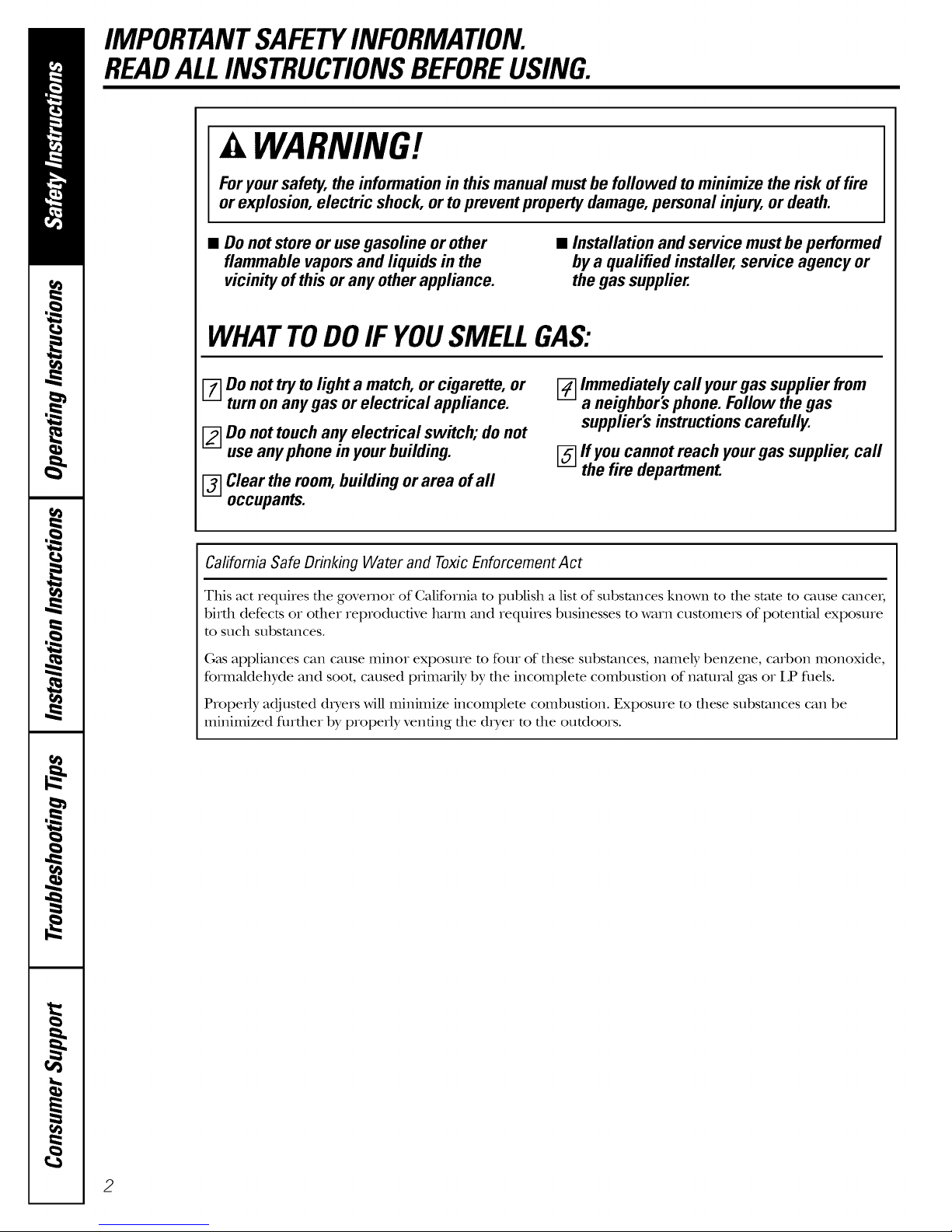

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.

A WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire

or explosion, electric shock, or to prevent property damage, personal injury, or death.

• Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.

• Installation and service must be performed

by a qualified installer, service agency or

the gas supplier.

WHATTODOIF YOUSMELLGAS:

F_ Do not try to light a match, or cigarette, or

turn on any gas or electrical appliance.

]Do not touch any electrical switch; do not

use any phone in your building.

[]Clear the room, building or area of all

occupants.

California Safe Drinking Water and ToxicEnforcement Act

This act requires the governor of California to publish a list of substances known to the state to cause cancet;
birth defects or other reproductive harm and requires businesses to warn customeps of potential exposure

to such substances.
G_ksappliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide,

formaldehyde and soot, caused p_imarily by the incomplete combustion of natural gas or LP flmls.

_-_Immediatelycall yourgas supplierfrom

a neighbor'sphone.Follow thegas
supplier'sinstructionscarefully.

[] If you cannotreach yourgas supplier,call

the fire department.

Properly adjusted (hTerswill minimize incomplete combustion. Exposure to these substances can be
minimized fllrther by properly venting the dryer to the outdoors.

2

PROPERINSTALLATION

This dryer must be properly installed and located in accordance with the Installation Instructions

before it is used.

• Properly ground dryer to conform with all
governing codes and ordinances. Follow

details in Installation Instructions.

• Install or store where it will not be exposed to
temperatures below fleezing or exposed to the

weatheL

• Connect to a properly rated, protected and

sized power supply circuit to avoid electrical

overload.

• Remove all sharp packing items and dispose of

all shipping materials properly.

Exhaust/Ducting:

[--_ This dryer MUSTbe exhausted to the outside.
[_--]Use only rigid metal 4" diameter ductwork

inside the dryer cabinet. Use only rigid metal
or flexible metal 4" diameter ductwork for

exhausting to the outside. USE OFPLASTIC OR

OTHER COMBUSTIBLE DUCTWORK CAN CAUSE

A FIRE. PUNCTURED DUCTWORK CAN CAUSE A

FIRE IF IT COLLAPSES OR BECOMES OTHERWISE
RESTRICTED IN USE ORDURING INSTALLATION.

Fox complete derails, follow tim Installation

Instructions.

3

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.

A WARNING'!

YOURLAUNDRYAREA

• Keep the area underneafll and around your
appliances flee of combustible mamrials, such

as lint, papeI, rags and chemicals.

• Keep the floor around your appliances clean and
d_T to reduce the possibility of slipping.

• Keep area around die exhaust opening and
surrounding areas flee flom the accumulation

of lint, dust and dirt.

• Do not obsnuct die flow of ventilating mL Do not
stuck or place laun& T or throw rugs against tile

flont or back of the d_TeL

WHENUSINGYOURDRYER

Never reach into the dryer while the drum is
moving. Before loading, unloading or adding

clothes, wait until the drum has completely
smpped.

Cleanthelintfilterbeforeeachload to prevent lint

accumulation inside the dryer or in the room.

DONOTOPERATETHEDRYERWITHOUTTHELINT
FILTERIN PLACE,UNLESSTHEDRYINGRACKISIN

USE.Ah,vaysreplace tile lint screen when finished

using the d_Ting rack.

• Do not wash or dIT articles dmt have been
cleaned in, washed in, soaked in or spotted

with combustible or explosive substances (such _ts
wax, oil, paint, gasoline, degreaseIs, dry-cleaning

soNents, kerosene, etc.). These substances give
offvapots that m W igmim or explode. Do not add

these substances m the wash WamL Do not use or
place these substances around your washer or

d_Ter du_ing operation.

• Aaly article on which you have used a cleaning
sokent or dmt contains flammable mamrials

(such as cleaning cloths, mops, towels used in

beauty salons, restaurants or barber shops, etc.)

must not be placed in or near the d_Ter until

sokents or flammable materials have been
removed. There are many highly fl_umnable

imms used in homes such as acetone, denatured
alcohol, gasoline, kerosene, some household
cleaners, some spot removers, turpentines,

waxes, wax removers and products containing

peuoleum disfillams.

The laund_ T process can reduce die fl_une
remrdancy of fabrics. To avoid such a result,

careflfily follow the garment manufacturer's
care insu-ucfions.

• (]lose supervision is necessaiy if dais appliance is
used by or near children. Do not allow children

m plW on, with or inside tills or any other
appliance.

• Keep all laundI T aids (such as detergents,
bleaches, etc.) out of the reach of children,

preferably in a locked cabinet. Observe all

warnings on container labels to avoid i_ju_T.

• Never climb on or stand on die d_Ter rap.

• Do not dIy articles containing mbbeI, plastic
or similar mam_ials such as padded bins, mnnis

shoes, g_doshes, badl mats, rugs, bibs, baby pants,
plastic bags and pillows that may melt or burn.
Some rubber mamIials, when heated, can under

certain circumstances produce fire by
spontaneous combustion.

• Do not store plastic, paper or clodflng dmt may
burn or melt on top of the dxyer during

operation.

• Garments labeled OrgAway from Hoator Do

Not Tumble Dry (such as life jackets containing

kapok) must not be put in your dryeL

• Do not dIT fiberglass articles in your dITeL
Skin iIxitafion could result flom the remaining

particles that may be picked up by clothing
du_ing subsequent d_Ter uses.

• To minimize file possibility of elecuic shock,
unplug ttlis appliance flom tile power supply

or disconnect the &yet at tile household
disuibufion panel by removing the fllse or

swimhing off the circuit breaker before
attemp6ng any maintenance or cleaning

(except the removal and cleaning of the lint

filter). NOTE:Turning the Cycle Selector knob
to an OFFposition does NOTdisconnect the

appliance from the power suppl?:

• Do not spray any type of aerosol into, on or near
d_Ter at any time.

• Do not place imms exposed to cooking oils in
your d_yer. Imms contaminamd with cooking oils

may conuibum to a chemical reaction that could
cause a clothes load m catch fire.

4

WARNING!

• Never attempt m operate dds appliance if
it is damaged, malflmcfioning, partially

dis_tssembled or has missing or broken parts,
including a damaged cord or plug.

• The interior of the machine and dae exhaust
duct connection inside the dryer should be

cleaned at least once a year by a qualified
mclmician. See the Loadingand Usingthe Dryer

section. Do not use any type of spIv_ycleaner

when cleaning diTer interioL Hazardous flmaes

or elecuical shock could OCCUL

• Ifyotns is a gas dryeI; it is equipped wifla an
automatic electric ignition and does not have a

pilot light. DONOTATTEMPTTOLIGHTWITHA
MATCH.Burns may result fiom having your hand

in the vicinity of the burner when the automatic
igmifion nnns on.

WHENNOTUSINGYOURDRYER

• Grasp the plug firmly when disconnecting dais
appliance to avoid damage m the cord while

pulling. Place the cord away flom mfffic areas so
it will not be stopped on, tripped over or

subjecmd m damage.

• Do not attempt to repair or replace any part of

this appliance oi attempt any servicing unless

specifically recommended in this Owner's Manual

oi in published user-repair insmlcfions that you
understand and have the skills to carry out.

• You may wish to soften your laundered fabrics
oi reduce the smdc elecu_icity in them by using

a dIyer-applied fabric softener oi an antistatic
condifioneL We recommend you use ekher a

fabric softener in the x,v_tslacycle, according to the
manufacuner's insuucfions for those products,

or uy a dryer-added product for which the
manufacturer _ves wIJtten assurance on the

package that their product can be safely used in
your dryeL Service oi performance problems

caused by use of these products are the
responsibilit T of the manufacuners of those

products and are not covered under the wanmKy
m this appliance.

• Before discarding a diTei, oi removing it flom
service, remove the diyer door m prevent

children flom hiding inside.

• Do not tamperwida controls.

READAND FOLLOWTHISSAFETYINFORMATIONCAREFULLY.

SAVETHESEINSTRUCTIONS

5

Aboutthe dryercontrolpanel

Models DPXH46 and DCXH46

FABRIC CARE WRINKLE CARE START

PERM PRESS KNITS ] DEMCATES

iii

Models DSXH43, DH43 and PSXH43

FABRIC CARE CYCLE SIGNAL

PERM PRESS KNITS / DOICATES

c+,+..............++

0

EXTENOED COOL AIR TUMBLE

o. oR

START

@

TIMED DRY

miiiiiiii

rAe3 EASY CARE

e_RMe_ESS

;i _mCATES

i COOLI:)owm

OPn_MORy

;o+CO+TO.S

Featuresandappearancemayvary.

ControlSettings

O Fabric Care

COTI'0NS Forregulartoheawcottons.

REG.HEAT

PERM.PRESS Forsynthetics,blendsanditemslabeledpermanentpressor tumbledrymediumheat.

MEDHEAT

KNITS/ Forknits,delicates,syntheticsanditemslabeledtumbledrylow heat.

DELICATES

LOWHEAT

AIRFLUFFForfluffingitemswithout heat.Usethe TIMEDDRYcycle.

NOHEAT

O Drying Cycles

The COTTONS,EASYCAREand DELICATEScycles automatically sense fabric (hTness. Select MOREDRY

for heavier fabrics, LESSDRYfor lighter fabrics. The TIMEDDRYcycle will run for a selected dine.

COTTONSForcottonsandmostlinens.Formostloads,selecttile OptimumDrysetting(onsomemodels).

EASYCAREForwrinklefree,permanentpressanddelicateitems,andknits.Formostloads,selectthe

PERMPRESS OptimumDrysetting(onsomemodels).

DELICATESFordelicatesandspecialcarefabrics.Formostloads,selecttheOptimumDry

setting(onsomemodels).

TIMEDDRY SettheCycleSelectorat thedesireddryingtime.

o Start

Close the dryer dooL Select STARTOpening the door dtMng operation will stop the (hyeL To restart

the (hye_; close the door and select STARTto complete the cycle.

6

Aboutyourdryerfeatures.

Cycle Signal Option (on some models)

When the signal is on it will sound just five minutes as a reminder to remove

can be set at OFF (no sound), LOUD or

behnohorainhe

anywhere in between. • If items are removed before the end of

_/ you to remove tile clothes. Tile signal NOTE:

I promptly during the EASY CARE cycle,

If ttle..dried load cannot be removed • Removet°OFF.

the C) cle Selector will advance to the of the signaLgarmentSplacePr°mptlYclothesatonthehangersSOUnd
EXTENDED COOLDOWN setting. Unheated SOwrinkles won't set in.

tumbling continues during EXTENDED
COOLDOWN and WRINKLE CARE (on • Use the Cycle Signal especially when

some models) for 40 minutes to help drying fabrics like polyester knits and

reduce wrinkling. When die CYCLE permanent press. These fabrics should
SIGNAL is on, it will sound briefly every

the cycle, turn the CYCLESELECTORknob

be removed so wrinkles won't set in.

WRINKLE CARE

EXTENDEDC0 0L AIR TUMBLE

ON

ii

Wrinkle Care Option (on some models)

Use this option to minimize tile wrinkles
in clothes. It provides approximately 15

minutes of no-heat tumbling after tile

cloflles are d_y.

This option can only be used with the EASY

CAREand DELICATEScycles.

Replacing the Dryer Light Bulb (on some models)

A WARNING: reducetile

risk of electric shock, disconnect fllis
appliance flom file power supply

before attempting any user
mainmnance. Turning the controls

m the OFFposifion does not
disconnect this appliance flom the

power supply.

The dryer light is locamd above the dryer

door opening.

Before replacing the light bulb, be sure m

unplug the dryer power cord or disconnect

tile dcyer at tile household distribution
panel by removing tile fllse or switching

off tile circuit breakeL

Toreplacethe dryer light:

[--_ Using a small fiat blade screwdriver,

pry tile t)ottom of tile light cover out

and off tile light housing.

[_-] Unscrew tile bulb when cool and

replace it with an appliance bulb of
tile same or lower wattage.

V_] Snap the light cover back on tile light

housing.

Drying Rack (on some models)

A handy drying rack may be used for drying
articles such as smff_d toys, pillows or

washable sweaters.

[_] Remove tile lint screen.

[_--]Place tile flont bar under tile lip of tile

lint screen opening.

[j] _qlen items are dD,, remove tile rack

and replace the lint screen. DONor

OPERATETHEDRYERWITHOUTTHEtINT
SCREENIN PLACEUNLESSTHEDRYING

RACKISIN PLACE.

NOTE:

• Tile dxying rack must be used Mill file

TIMEDDRY cycle.

• Do not use this d_ying rack when there
are other clothes in tile d_yeL

7

Loadingand usingthe dryer.

Always follow the fabric manufacturer's care label when laundering.

SortingandLoadingHints

As a general rule, if clothes are sorted properly for the washer, they are sorted properly for the dryeL

Donotaddfabricsoftenersheetsoncetheloadhasbecomewarm.Theymaycausefabricsoftenerstains.
Bounce®FabricConditionerDryerSheetshavebeenapprovedforuseinall GEDryerswhenusedinaccordance
withthemanufacturer'sinstructions.

Donotoverload.Thiswastesenergyandcauseswrinkling.
Donotdrythefollowingitems:fiberglassitems,woolens,rubber-coateditems,plastics,itemswithplastictrimand

foam-filleditems.

CareandCleaningof theDryer

TheExterior:Wipe or dust any spills or washing

compounds with a damp cloth. Dryer control panel
and finishes may be damaged by some laundry

pretreatment soil and stain remover products.

Apply these products away from the d_yeL The

fabric may then be washed and d_ied nommlly.
Damage to your d_yer caused by these products is

not covered by your warmnb,:

The Lint Screen: Clean file lint screen before each

use. Lint buildup in the screen restricts air flow,

which causes longer diTing times. The screen is

locamd at the bottom of the door opening. Remove
by pulling straight up. Remove the lint and replace

the screen.

A waxy buildup may form on file lint screen flom

using dITer-added fabdc softener sheets. To remove
this buildup, wash the lint screen in warm, soapy

water. DtT thoroughly and replace. Do not operam

the d_Ter without the lint screen in place.

TheExhaust Duct:Inspect and clean the exhaust

ducting at least once a year to prevent cloggdng. A
partially clogged exhaust can lengthen the drying

time.

Follow these steps:

[7] urn off electrical supply by disconnecting the

plug from the wall socket.

[_-] Disconnect the duct flom the dryeL

[j] acuum the duct with the hose attachment and

reconnect the duct.

TheExhaustHood:Check flom the outside that the

flaps of the hood move freely when operating. Make
sure that there is no wildlife (birds, insects, etc.)

nesting inside the duct or hood.

8

Installation

Spacemaker Dryer

Instructions

DCXH46,DSXH43D,DPXH46,DH43,PSXH43

ffyouhaveanyquestions,in theU.S.,ca//800.0£ CARES(800.432.2737)orvisitour Website at:

GEAppliances.com.In Canada,ca//1.800.561.33440rvisitourWebsiteat:www.GEAppliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT - S},vethese

instructions for local inspector's use.

• IMPORTANT - Obse,, e

governing codes and ordinances.

• Note to Installer - Be sure to leave these

instructions with the Gonsumer.

• Note to Consumer - Keep these instructions

for fi_ture reference.

• Sldll level - Installation of tiffs appliance requires

basic mechanical and electrical skills.

• Completion time - 1-3 hours

• Proper installation is the responsibility of the
installm.

• Product failure due to improper installation is not
covered under the _rarranty.

• Remove and discard existing plastic or metal foil
duct and replace with UL-listed duct.

IN THE COMMONWEALTH OF
MASSACHUSETTS

• This product must be installed by a licensed
plumber or gas fitter

• When using ball-type gas shut-off valves, they

shall be the T-handle type.

• A flexible gas connector, when used, must not

exceed 3 feet.

CALIFORNIA SAFE DRINKING WATER
AND TOXIC ENFORCEMENT ACT

This act requires the governor of California to publish
a list of substances known t0 the state t0 cause cance_,

birth defects or other reproductive harm and requires
businesses to warn customers of potential exposure to

such substances. (;as appliances can cause minor
exposure to four of these substances, namely benzene,

carbon monoxide, formaldehyde and soot, caused
primarily by the incomplete combustion of natural

gas or LP feels. Properly adjusted dryers will minimize
incomplete combustion. Exposure to these substances

can be minimized further by properly venting the
dryer to the outdoors.

FOR YOUR SAFETY:

WARNING

• To reduce file risk of severe iqju_T or dead1, follow all
installation insuucfions.

• Clothes d_yer installation must be perfomled by a
qualified insmlleL

• Install the clothes d_yer according to these insnucfions
and in accordance with local codes.

• This d_yer illust be exhausmd m the outdooi_.

• Use only 4" rigid metal ducfing for exhausting the
clothes d_yer m the outdoors.

• DO NOT install a clothes &yet with flexible plastic
ducfing materials. If flexible metal (semi-rigid or foil-
type) duct is installed, it must be UIAismd and installed

in accordance with the insnucfions found in
"Connecting the Diyer m House Vent" on page 12 of

this manual. Flexible ducfing mamrials are known m
collapse, be easily crushed, and nap lint. These
conditions will obsn-uct d_yer airflow and increase the

risk of fire.

• Do not install or store this appliance in any location

where it could be exposed m wamr and/or weatheL

• Save these insn-ucfions. (Installers: Be sure to leave
these insnucfions with the cusmmeL)

• The National Fuel Gas code resnicts installations of
gas appliances in ga_wges. They must be 18" (45.7 cm)

off"the ground and protecmd flom vehicles by a
barrieL See Locationof YourDryersection.

• The electrical service to the &yet must conform with
local codes and ordinances and the latest edition of the

National Electrical Code, ANSI/NFPA 70 or in Canada,
CSA C22.1 Canadian Electrical Code Part 1.

• The gas service to the duet must conform with local
codes and ordinances or the lamst edition of the

National Fuel Gas Code ANSI Z223.1 or in Canada,
CAN/CGA B149.12. The gas dIyer is designed under

ANSI Z 21.5.1 or ANSI/UL2158-(_N/CSA C22.2

(latest editions) for home use only. This dryer is not
recommended for commercial applications such _ts
restatmmts or beauty salons.

9

Installation Instructions

TOOLS AND MATERIALS
YOU WILL NEED

[_] Phillips head screwdriver

[_]Adjustable pliers (adjust leveling legs)
[_] Gaxt)enter's level
[_] Flat or smfight blade screwdrNer (mW be needed

for cord smfin relief)

Duct tape
[_] Rigid or UL-listed flexible metal 4" (10.2 cm) duct
[_]Vent hood

[_] 1/4" nut drNer (remove temdnal block access

cover and instaU cord) (ELECTRIC DRYER)
[_] Pipe thread sealer (GAS DRYER)
[_] UIAismd smfin relief (may be supplied

with cord)

[_] UIAisted 30A, 240V, ,%wire,#10 AWG minimum

conductor power cord (U.S. existing su-ucmre)
[_] UIAismd 30A, 240V, 4-wire, #10 AWG

minimum conductor power cord isrequired

(U.S. new consuucfion)

PREPARING THE INSTALLATION SITE
AND UNPACKING YOUR DRYER

1°

Prepare die area and exhaust for inst_dlafion
of die new dxyeL

°

Check to be sure that die existing exmmal
exhaust is clean and fllat it meets attached

installation specifications.

3°

Place die four corner posts flom die shipping
carton on die floox; parallel m each otbex; 2-3"

apart. Carefidly 1Wdie dxyer on its left side on
mp of die comer posts. Remove the foam

shipping pad.

CAUTION: io prevent damage, do

not use die control panel as a means m pick up
or move die dxyeL

Foamshippingpad

[_] Flexible stainless smel or plas6c-coated brass

commecdng robe (if allowed by building code)

(GAS DRYER)
[_] Open-end wrenches for flexible robe and

connector (GAS DRYER)

4. Remm file dxyer m an upright position.

5. Move die dxyer m die desired location.

6. Connect die exmmal exhaust.

7. Adjust die leveling legs to match the washer
height. The dryer must be level and rest fimdy
on all four leveling legs.

8. Connect the power supply.

9. Check die operation of die power supply and

venting.

10. Place file (_,vner's ManuM and file Installation
Instructions in a location where they Mll be

noticed by file owneL

10

Installation Instructions

Read these instructions completely and carefully.

ELECTRICAL CONNECTION
INFORMATION FOR
ELECTRIC DRYERS

A_ WARNING- Io,e_l.ce_t,e,i_kof

fire, electric shock or personal i_jury:

• DO NOT USE AN EXTENSION CORD WITH
THIS APPLIANCE.

• THIS APPLIANCE MUST BE PROPERLY
GROUNDED.

This dryer must be electrically grounded in accordance
with local codes and ordinances, or in the absence of local

codes, in accordance with the NATIONAL ELECTRICAL
CODE, ANSI/NFPA NO. 70 or in Canada CSA C22.1

Canadian Electrical Code Part 1.

Electrical Requirements

• This dryer must be connected to a 208V or 240V

indMdual branch circuit, protected by 30-amp circuit

breakers or time-.delay fllses.

• Power supply: 3-wire 240wolt, single-.phase, 60-Hz,
Alternating Current. (Canada-240 volt, single-phase,

60-Hz Alternating Current.)

• Use copper conductors only.

• If the electric supply does not meet the above
specifications, call a licensed electrician.

ELECTRICAL CONNECTION

INFORMATION FOR GAS DRYERS

A_WARNING- To_e_l.c__heriskof

fire, electric shock or personal ii_jury:

• DO NOT USE AN EXTENSION CORD OR AN
ADAPTER PLUG WITH THIS APPLIANCE.

• DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR

REMOVE THE THIRD GROUNDING PRONG FROM
THE POWER CORD.

This dryer must be electrically grounded in accordance

with local codes and ordinances, or in the absence of local

codes, in accordance with the NATIONAL ELECTRICAL
CODE, ANSI/NFPA NO. 70 or in Canada, CSA C22.1

Canadian Electrical Code Part 1.

Electrical Requirements

• This d_yer must be supplied with 120V, 60-Hz,

and connecmd m a properly grounded branch
circuit, protected by a 15- or 20-amp circuit breaker

or time-delay flase.

• If the electric supply provided does not meet the

above specifications, it is recommended that a licensed
electrician install an approved outlet.

NOTE: A wiring diagaam is located under the top panel.

Ensureproperground

existsbeforeuse

External Ground (if required)

An external ground wire (not provided), which meets local

codes, may be added by attaching it to the green ground
screw on the rear of the dryer in the upper left corner

above the cord, and to grounded metal cold water pipe or
other established ground.

L-

Attachgroundwire
(obtainlocally)

NOTE: A wMng diagrmn is located under the top panel.

11

Installation Instructions

EXHAUST SYSTEM CHECKLIST

HOOD OR WALL CAP

• Terminate in a manner to prevent back drafts or ent W

of birds or other wildlifb.

• Termination should present minimal resistance to
the exhaust airflow and should require little or no
maintenance to prevent clogging.

• Never install a screen in or over the exhaust duct.

• Wall caps must be installed at least 12" above ground
level or any other obstruction with the opening
pointed down.

SEPARATION OF TURNS

• For best performance, separate all turns by at least
4 ft. of straight duct, including distance between last
mrn and dampened wall cap.

SEALING OF JOINTS

• All joints should be tight to avoid leaks. The male end
of each section of duct must point away fl'om the dryer.

• Do not assemble tile ductwork with fasteners that
extend into the duct. They will serve as a collection

point for lint.

• Duct joints should be made air- and moisture-tight
by wrapping the overlapped joints with duct tape
or aluminum tape.

• Horizontal r/lilS should slope down towards the
O/ltdoors 1/4" pet" foot.

INSULATION

• Ductwork that runs fllrough an unheated area or is
near air conditioning should be insulated to reduce
condensation and lint buildup.

Correct

Incorrect

Don_

WARNING To reduce the risk of fire

or personal injury:

• This cloflles dD,er must be exhausted to file outdoors.

• Use only 4" rigid metal ducfing for tile home exhaust
duct.

• Use only 4" rigid metal or UIAisted flexiNe metal (semi-
rigid or foil-t),pe) duct m commct tile d_yer m tile home

exhaust duct. It must be installed in accordance wifll the
insnucfions found in "Connecting Tile D_yer To House

Vent" on this page.

• Do not mmfinam exhaust in a chimney, a wall, a ceiling,
gas vent, crmd space, attic, under an enclosed floo_; or
in any other concealed space of a building.

Jk WARNING

• Never mmfinate file exhaust into a common duct
with a kitchen exhaust system. A combination of

grease and lint creams a pomnfial fire hazard.

• Do not use duct longer that specified in tile exhaust
length table. Longer ducts can accumulate lint,

creating a potential fire hazard.

• Never install a screen in or over tile exhaust duct.
This will cause lint m accumulate, creating a pomnfial

fire hazard.

• Do not assemble ductwork with any fasmneI5 that

exmnd into tile duct. These fasmners can accumulam

lint, creating a pomnfial fire halard.

• Do not obstruct incoming or exhausted all

• Provide an access for inspection and cleaning of tile

exhaust sysmm, especially at turns and joints. Exhaust
system shall be inspecmd and cleaned at least once
a yeaL

CONNECTING THE DRYER TO

HOUSE VENT

RIGID METAL TRANSITION DUCT

• For best drying performance, a rigid metal transition
duct is recommended.

• Rigid metal transition ducts reduce tile risk of

crushing and kinking.

UL-LISTED FLEXIBLEMETAL (SEMI-RIGID)
TRANSITION DUCT

• If rigid metal duct cannot be used, then UL-listed
flexible metal (semi-rigid) ducting can be used

(Kit X_X08X10077).

• Never install flexible metal duct in walls, ceilings,
floors or other enclosed spaces.

• Total length of flexible metal duct should not exceed

8 feet (2.4 m).

• For many applications, installing elbows at both

the dryer and the wall is highly recommended

(see illustrations at left). Elbows allow the dryer to
sit close to the wall without kinking and/or crushing
the transition duct, maximizing dwing performance.

• Avoid resting the duct on sharp objects.

UL-LISTED FLEXIBLEMETAL (FOIL-TYPE)
TRANSITION DUCT

• In special installations, it may be necessary to connect
the dryer to the house vent using a flexible metal

(foil-type) duct. A UL-listed flexible metal (foil-type)

duct may be used ONEY in installations where rigid

metal or flexible metal (semi-rigid) ducting cannot

be used AND where a 4" diameter can be maintained

throughout the entire length of the transition duct.

• In Canada and the United States, only the flexible
metal (foil-type) ducts that comply with the "Outline

for Clothes Dryer Transition Duct Subject 2158A"

shall be used.

12

Installation Instructions

CONNECTING THE DRYER TO
HOUSE VENT (CONT.)

• Never install flexible metal duct in walls, ceilings,
floors or odler enclosed spaces.

• Total lengdl of flexible metal duct should not
exceed 8 feet (2.4 m).

• Avoid resting tlle duct on sharp objects.

• For best diTing performance:

1. Slide one end of the duct over the clodles
dryer outlet pipe.

2. Secure the duct witll a clamp.

3. Witll the dryer in its permanent position,
extend the duct to its fldl lengdl. Allow 2" of
duct to overlap tlle exhaust pipe. Cut off and
remove excess duct. Keep tl_e duct as straight
as possible for maximum airflow.

4. Secure the duct to the exhaust pipe with
the odler clamp.

EXHAUST DUCTING LENGTH

The exhaust system should be inspected and cleaned a
minimum of eve U year widl nomml usage. The more tile

d_yer is used, tlle more often you should check tile exhaust
system and vent hood for proper operation.

• DO NOT assemble the duct work with fasteners that

exmnd into the duct. They will serve as collection points
for lint.

• Insulation - Ductwork which runs through an unheamd
area or is near an air conditioning duct should be

insulated to reduce condensation and lint buildup.

MAXIMUM LENGTH

of4"(10.2cm)Dia.RIGIDMETALDUCT

PREFERREDVENTHOODTYPE

4" (10.2cm) Louvered

of 90°

Number

0 60"(18,28m) 48" (14,63m)
1 52"(15,84m) 40" (12,19m)

2 44"{13,41m) 32"{9,75m)
3 32"(9.75m) 24"(7.31m)

4 28"(8.53m) 16"(4.87m)

INSTALLMALE FITTINGSIN CORRECTDIRECTION

. 2,5"

_. L

era)I_

EXHAUST DIRECTION

All (liTers are shipped set up for rear exhausting.
On elecuic d_yers, exhausting can be on the cabinet fight
or left side, or through the dryer bottom. G;tsdryeis can

exhaust on the cabinet fight side or the d_yer bottom. To
change exhaust direction you will need Exhaust Kit Pub.

No. 14-A018 and a rigid metal 4" 90-degree elbow. The kit
is available ttuough your GE remileL Follow the

insmlcdons supplied with the kit.

Same as EXHAUST DUCT LOCATING

5 7/8"

€ other side DIMENSIONS

3 3/4" 3 3/4" (9.5 cm)

115cm)

135/16"

•. (34cm)

4 3/8"

(11cm)

GAS SUPPLY REQUIREMENTS

Replace brassconnecting pipe that is not plastic-coated.
Stainless smel or plasfic-coamd brass MUST be used.

WARNING: Neve,','e.seoldflexible

connectors. The use of old flexible connectors can cause
gas leaks and personal injm3_ Always use NEW flexible

connectors \allen installing a gas appliance.

1°

Installation MUST conform wifll local codes, or in the
absence of local codes, with the National Fuel Gas

(]ode, ANSI Z223.1 (lamst edition) or in Canada, the
current CAN/CGA B149.

°

The gas supply line should be of i/2" (:l.27 cm) rigid
pipe.

3°

If codes allow, flexible metal robing may be used
m connect your diyer m the gas supply line. The

robing MUST be consmlcmd of stainless smel or
plasfic-coamd brass.

4°

The gas supply line MUST have an indMdual stmtoff
valve.

_°

A 1/8" (0.32 cm) NPT plugged tapping, accessible for
rest gauge connection, MUST be installed immediately

upsUeam of the gas supply comlecfion to the d_yeL

6°

The dryer MUST be discomlecmd flom die gas supply
piping sysmm during any pressure resting of the gas

supply piping sysmm at rest pressures in excess of 1/2
psig (3.45 kPa).

°

The d_yer MUST be isolamd flom die gas supply piping

system during any pressure resting of the gas supply

piping system at test pressures equal to or less than

1/2 psig (3.45 kPa).

13

Installation Instructions

LOCATION OF YOUR DRYER

Do Not Install the Dryer:

1. Do not install the dryer in an area exposed to dripping

water or outside weather conditions.

2. Do not install the dryer in an area where it will come

in contact with curtains, drapes or anything that will
obstruct the flow of combustion and ventilation ai_.

3. Do not install the dryer on carpet.
Floor MUST be solid with a maximum slope

of 1" (2.54 cm).

Undercounter Installation:

If an undercounmr* installation is desired, die dater
MUST have a top sheet kit installed, Pub. No. 14-A008.

Kit is available through your GE retailea.

*Custom-sizedcountertopis required.

Installation in Recess or Closet:

1.This dryer MUST be exhausted outdoors.

Allow thefollowingclearancesforeaseofinstallation:

FRONT SIDES REAR TOP

Alcove,stack, 3"(7.6cm) 0(0cm) 3" (7.6cm) 0(0cm)
undercounter
orcloset

THIS DRYER MUST BE EXHAUSTED OUTDOORS.

5. The following illustrations show minimum clearance

dilnensions for proper opeavtfion in a recess or closet

installation.

ii

..._ 114. O"

(Ocm)

II

2. No other tirol burning appliance shall be installed in the
same closet as the GAS DRYER.

3.Your dryer needs the space around it for proper
ventilation. DO NOT INSTALL YOUR DRYER IN A

CLOSET WITH A SOLID DOOR.

4. Gloset doors must be louvered or otherwise venfilamd
and must contain a minimum of 60 sq. in. of open area

equally disuibumd. If the closet contains both a washer
and a daTea, doors must contain a minimum of 120 sq.

in. of open area equally disuibumd. Air openings are
required to be unobsuucmd when a door is installed.

A louvered door with equivalent air openings for the flail
length of the door is acceptable.

in.

(7.6cm)

60sq.in.
(387.1sq.cm)

0

" 3.... 3"

.=) I1(._ ._) II (,.

" (7.6cm) " (7.6cm)

II II

II II

STACKED INSTALLATION

If a stacked w_her/dryer installation isdesired, )ou MUST
use Stacking Kit WE25X10020. This kit is available through

your GE retailer

60sq.in.
(387.1sq.cm)

3in.
[7.6cm)

Closet door

14

Installation Instructions

MOBILE HOME INSTALLATION

1. DIyer MUST be exhausted outside (outdoors, not
beneath the mobile home) using metal ducfing fllat will

not support combustion. Metal ducfing must be 4"

(10.16 cm) in diameter wifll no obstructions. Rigdd metal

duct is preferred.

2. If die d_Ter is exhausmd dlrough the floo_, file exhaust
sysmm MUST NOT mmlinam beneath the mobile

home. Termination MUST be securely fasmned to the
mobile home su_ucmre.

3. When installing a gas d_yer into a mobile home, a
provision must be made for outside make-up all This
provision is m be not less than twice the area of the d_yer

exhaust outlet.

4. Gas dryers MUST be fastened to the floor using Mobile
Home Installation Kit Pub. No. 14-D346-33.

5. See the Exhaust System Checklist section for other
important venting information.

6. Installation MUST conform to current Manufactured
Home Gonsmlcfion & SafetTyStandard (which is a

Federal Regulation Title 24 GFR--Part 32-80) oI,
when such standard is not applicable, with American

National Standard for Mobile Homes, ANSI/NFPA No.
501B. In Canada, the CSA Z240 is applicable.

Correct

ROUGH-IN DIMENSIONS

(68.3cm)

267/8" "_1

Electricalconnection

29/16" ,

139/16" (6.5cm7"-_"

1

(34.5cm)_(_

<

j

33/4"

(9.5cm)

3/4"

(1.9cm)

Dooropen

90°

3/16" (0.48cm)Dia.
gas poe

REARVIEW

471/2"

(120.7cm)

!

Under

counter

345/8"

(87.9cm)

36"

(91.6cm)

!

Incorrect

Don't

Thedryer is designedunderANSlZ21.5.1.

15

I

43/8"

(11.1cml""_ I

0ptiona4.-,.,_" ,

vent knockout '-

253/4"

(65.4cm)

SIDEVIEW

SERVICING - Consideration must be given to provide
adequate clearances for installation and servicing.

4<----

!

m

1'

33/4"

(9.5cm)

Installation Instructions

ELECTRICAL INSTALLATION FOR
ELECTRIC DRYERS

WARNING: Thefollow .gspec c

requirements for proper and safe elecuical installation of

your dIyeL Failure to follow these instructions can cream

elecuical shock and/or a fire hazard.

This appliance MUST be properly grounded.
Elecnical shock can result if the dIyer is not properly

g_ounded. Follow the insu_ucfions in tiffs manual for proper
grounding.

DO NOT use an exmnsion cord wifla dais dIyeL Some

exmnsion cords are not designed m withstand the amounts
of elecn-ical current this diyer utilizes and can melt,

creating elecu-ical shock and/or fire hazard. I,ocam the
diyer within reach of the wall outlet, taking into account

the length of power cord m be purch;ksed and allowing

some slack in the cord. Refer m ElectricalRequirementsin

this manual for the proper power cord m be purchased.

A UIAismd strain relief must be installed Ohm power cord.

If the strain relief is not attached, the cord can be pulled
out of the dIyer and can be cut by any movement of the

cord, resulting in elecn-ical shock.

NOTE: DIyers operating on 208welt power supply will

have longer diTing times than those operating
on 240-volt power supply.

A wiring diagq-amis located under the mp pmael.

GROUNDING REQUIREMENTS

_/kWARNING: Improper coianection of the

equipment%_ounding conductor can result in a risk of
electric shock. Check wifla a licensed electrician if you are in

doubt as to wheflaer die appliance is properly gnounded.

The diyer MUST be grounded. In die event of a
malfunction or breakdown, grounding will reduce the risk

of elecu-ical shock by creating a path of least resistance for
electrical current.

Grounding must be in accordance with local codes and
ordinances, or in the absence of local codes, in accordance
with the National Elecu-ical Code ANSI/NFPA No. 70.

For a grounded, cord-connected electric dryer."

If your diyer is equipped wifla a power supply cord having
an equipment-grounding conductor and a grounding

plug, the plug MUST be plugged into an appropriate,
copper-wired receptacle (in the U.S.), or in Canada, an

appropriam oudet that is properly installed and grounded
in accordance with all local codes and ordinances, flirt

doubt,calla licensedelectrician.

For a permanently connected electric dryer."

• The dITer MUST be connecmd m a grounded metal,
pemaanent wiring sysmm; or an equipment-g_ounding

conductor iaatlst be i-un with the circuit conductois and
colmecmd m the equipment-grounding mmfinal or lead

on the appliance.

For a grounded, cord_onnected gas dryer."

• This dIyer is equipped wifla a flnee-prong (grounding)
plug for your promcfion against shock hazard and should

be plugged direcdy into a properly grounded three-prong
receptacle. Do not cut or remove the grounding prong

flom this plug. Do not modify the plug on this appliance.
If itwill not fit the oudet, have a proper oudet installed by

a qualified elecu-ician.

16

Installation Instructions

3-WIRE SYSTEM FOR

ELECTRIC DRYERS

NOT for use in Canada.
DO NOT use for Mobile Home Installations.

NOT for use on new construction.

1. Remove the screws securing the terminal block access
cover and the strain relief mounting bracket located on

the back of the dryer upper cornet.

2. Install a UL-listed suMn relief into the power cord ent D,

hole of the mounting bracket. Finger-tighten the nut
only at tiffs time.

Greengroundscrew

Greenneutral
groundwire

conductorsonly.

I Usecopper

mountingbracket

Silverterminal

Tightennutto

threads

elief

3. Thread a UIAisted 30A, 240V, 3 #10 AWG mininmnl
copper conductor power cord through the strain relief.

4. Attach the power cord neutral (center wire) conductor
to the silver-colored center terminal on the terminal

block. Tighten the screw securel):

5. Attach the remaining two power cord outer conductors
to the outer brass-colored temfinals on the temfinal

block. Tighten both screws securely.

-& WARNING: Donotmake.st,a,pbe,,do,

crimp wiring/conductor at connections.

6. Reatmch the strain relief mounting bracket to the

back of the dryer with screws provided. Tighten screws
securel):

7. Tighten the screws securing the cord resuaint firefly

against the power cord.

8. Tighten the strain relief nut securely so that the strain

relief does not arm.

9. Reinstall the terminal block access covet.

4-WIRE SYSTEM FOR
ELECTRIC DRYERS

Effective January 1, 1996: The National ElecuJcal (;ode

requires that new construction (non existing) utilize a
4-wire connection to an electric @yet.

In Canada a 4-wire power supply cord is installed on
the dryer.

1. Remove the screws securing the mrminal block access
cover and the suain relief mounting bracket located on
the back of the dryer tappet cornet.

2. Install a UIAisted smdn relief in the enu T hole of
the mounting bracket. Finger-figbmn the nut only

at this time.

3.

Remove the green neutral ground wire flom the green
ground screw located above the terminal block.

Typical4

c0nduct0r/| - I_

receptacle_

Typical n. .
4 conductorcordZ_ WBte neutral

g- _ Red240V

Black240V

1.1

_,'_Greenground

4. Thread a UIAisted 30A, 240V, 4 #10 AWG minimum

copper conductor power cord through the smfin relief.

5. Attach the green power cord ground wire m the
cabinet with the green ground screw.

6. Attach the whim (neumfl) power cord conductor flom
the power cord and the green ground wire flom the
@yer harness to the siker-colored cenmr terminal on
the terminal block. Tigbmn the screw securely.

7. Attach the red and black power cord conductors to the
oumr bins>colored mrminals on the mmfinal block.

Greenground
screw Silverterminal

Greenneutral
groundwire

Green roundwire

mounting
bracket

Black

Nut

block

lighten nutto

threads

A

WARNIN' t.: Do,,otm.ke.st,-tVbe,,d

or crimp wMng/conductor at d_econnections.

8. Tighten the screws securing the cord restraint firmly
against the power cord.

9. Tigbmn the smfin relief nut securely so the smfin relief
does not turn.

10. Reinstall the mrminal block access covet.

17

Installation Instructions

GAS CONNECTION FOR
GAS DRYERS

1. Remove the shipping cap fiom gas pipe at the rear of
the dryeL

Conversion to LP Gas: DO NOT connect file d_Ter to
I,P gas service wifllout converting file gas valve. An LP
conversion kit (Pub. No. 14-A038) MUST be inst_dled

by a qualified gas mchnician.

a.

Connect a 1/2" (1.27 cm) I.D. semi-rigid
or approved pipe flom g_s supply line m
the ,3/8" (0.96 cm) pipe located on the back of the

dryeL Use a 1/2" m 3/8" (1.27 cmm 0.96 cm)
reducer for a connection. Apply an approved thread

sealer that is resistant m the corrosive action of
liquefied gases on all pipe connections.

b. Open the stmtoffvalve in the gas supply line.

c. Test all connections by brushing on a soap), water

solution.

WARNING: NEVERTEST

FOR GAS LEAKS WITH AN

OPEN FLAME.

CAUTION: Befo,eop. .i.gthed,),e,;

make sure the dryer area is clear and flee flom
combustible materials, gasoline, and other flammable

vapo,s. Also see that nothing (such _tsboxes,
clothing, etc.) obsuucts the flow of combustion and

ventilation all

6. Run the dD,er through a cycle check for proper
operation.

NOTE: On gas &yers, before file burner Mll light, it is

necessa_y for the gas line m be bled of all If the burner
does not light within 45 seconds the first time the d_yer is

turned on, the saferT switch will shut the burner off: If this
happens, mrn the timer m OFF and wait 5 minums before

making another attempt to light.

7. If your dD,er does not operate, ple_tse review the

Troubleshooting 77pssection in tiffs manual before

calling for service.

8. Place these instructions in a location near the dD,er for

din]re reference.

2. Connect the exhaust duct to outside exhaust system.

Use duct rope to seal all joints.

3,

X_rifllfile d_Ter in its finM position, adjust one or more

of file legs until tim dryer is resting solidly on M1four
legs. Place a level on top of file dryeL THE DRYER

MUST BE LEVEL AND RESTING SOLIDLY ON

ALL FOUR LEGS.

4. Plug the power cord into a grounded outlet.
NOTE: Check to ensure the power is off at circuit

breaker/fllse box before plugging the power cord
into the outlet.

5. Turn on the power at the circuit breaker/filse box.

18

Stacking Instructions

WARNING:

• To reduce file risk of electric shock, disconnect fllis
appliance flom the power supply before attempting

any tlseI illaintenance. Turning file conuols to the

OFF position does not disconnect this appliance

flom the power supply.

• Refer m die washer and dITer installation insuucfions

prior m stocking appliances. Reading all of tile
information contained in these insmlcfions will simplify

the installation and ensure a correct and sJe operation.

A fire hazard and/or personal i_,jtnT could result flom

improper installation.

TOOLS REQUIRED FOR STACKING
THE DRYER

• Phillips head screwdriver

• Ghannelqock adjustable pliers

MOUNTING THE DRYER TO
THE WASHER

Thenumbers in the illustration correspond to steps.

1. Remove file washer mp panel by first removing file 4

screws in die 2 brackets located on die top rear of die

washeI;

Slide the mp forward, lift die flont of die top up and
remove the mp panel.

Remove die 2 brackets flora die rear of die top panel.

2. Using file 4 screws fllat were removed in stop 1, install
die brackets in die rear support as shown.

3. Remove die 4 screws and die 2 long flont brackets
located on die top flont of die washeL

4. Install die 2 new flont mounting brackets provided and
the 4 screws that were removed in stop 3. Nora that the

tab of the flont mounting bracket is facing forward as
shown in the illusm_fion.

19

Stacking Instructions-Reversing Door Swing

Thenumbers in the illustration correspond to steps.

5. Using file blade end of a put b, knife covered with

masking tape, careflllly remove file hole plugs located
in the bottom of the d_Ter flont panel.

6. Remove the 4 legs flom the d_yer base.

7. Place the d_Ter on mp of the washeL Slide the dryer
back into the rear brackets (7A) then drop the flont
down over the flont b_vmkets (7B).

/

®

@

2

8. Insert the 2 long screws provided in file kit flnough
the holes in the dryer fiont panel and inst_dl into the

flont mounting b_ckets.

9. Install file hole plugs removed in stop 5.

10. Refer m die washer and d_yer installation insmlcdons
for proper installation and flmcfion.

11. S_wefile top panel and b_ackets in file case offlmne
sided)y-side use.

REVERSING THE DRYER
DOOR SWING

1. Open the d_yer dooL Remove the 4 hinge hole plugs or
screws flom the left side of door opening. Place nearby

for fimlre installation. NOTE: Youmayneed aplastic knife

to helppull out theplugs. Be carefulnot toscratch thepaint.

2.Remove the four screws fllat secure file door hinges m

the dIyer flont panel. NOTE: RemoveI screw fromeach

of the2hinges first. Holdthe doorfirmly beforeremovingthe
last 2screws.

3.Romm file door 180° and reinstall file door hinges m file

d_Ter flont panel with the 4 screws.

4. Install file 4 hinge hole plugs or screws fllat were

removed in stop 1into the open screw holes on the _ight

side of the door opening.

20

Remove4screws--onefrom eachhingefirst

Beforeyoucall forservice...

Troubleshooting -tips
Save time and money! Review the charts on the following

pages first and you may not need to call for service.

Possible Causes What ToDo

Dryer doesn'tstart Dryer is tmplugged * Make sure the dD,er plug is pushed completely into

Fuse is blown/circuit breaker is • Check the building's fl_se/circuit breaker box and
tripped replace fi_se or reset breakeL NOTE:Elect/ic dryers

Thermal limiter tripped • Check tile vent for any obstructions. Call authorized

Dryerdoesn'theat Fuse is blown/circuit breaker is * Check the building's fl_se/circuit breaker box and

tripped, the dryer may tumble replace fi_seor reset breakeL Your dD,er may ramble
but not heat if only one filse is blown or one breaker tripped.

Gas service is off • Make sure gas shutoff at dryer and main shutoff are

LP gas supply tank is empty • Refill or replace rank. Dryer should heat when utility
or there has been a utility sela_ice is restored.
interruption of natural gas
(gas models)

Dryershakesormakes Some shaking/noise is normal. • Move dryer to all even floor space, or adjust
noise Dryer may be sitting unevenly leveling legs _tsnecessary until even.

Improper use of fabric softener • Follow directions on fabric softener package.
Drying dirty items with clean ones • Use your dlTer to dry only clean items. Dirty items can

Clothes were not completely clean • Sometimes stains which cannot be seen when the

the outlet.

use two filses/breakers.

sela_ice pelson for replacement, if necessary.

filly open.

stain clean items and tile dryeL

clothes are wet appearafter drying. Use proper

w_tshing procedures before drying.
Lint filter is full • Clean lint screen before each load.
Improper sorting • Sort lint producers (like chenille) fiom lint collectors

Static electricity can attract lint • See suggestions in this section under Staticoccurs.

Overloading * Separate large loads into smaller olles.
Paper, tissue, etc., left in pockets • Empty all pockets before laundering clothes.

(like corduroy).

21

Beforeyoucall forservice...

Possible Causes

Staticoccurs

Inconsistent drying times Type of heat • Automatic dlying tinles will vmy according m the tTpe

Clothes take toolong Improper sorting • Separate heax T items flom lightweight items (generally,

tO dry a well-sorted washer load is a well-sorted &yet load).

Overdrying

No fabric softener was used • T_T a fabric softeneL
Synthetics, permanent press and • T_T a fabric softeneL

blends can cause static

Large loads of heavy fabrics (like • 1,arge, heax T fabrics contain more moisture and take
beach towels) longer to &Y. Separate large, heax T fabrics into smaller

Controls improperly set * Match control settings to the load you are drying.
Lint filter is full * Clean lint filter before eve_T load.
Improper or obstructed dueling • Check Installation Instructions for proper

What ToDo

• Try a fabric softene_.

• Adjust conuols %r less drying.

of heat used (elecnic, natural or 1,P gas), size of load,
10_pesof fabrics, wemess of clothes and condition of

exhaust ducts.

loads to speed &ying time.

ducting/venting.

• Make sure ducting is clean, flee of kinks and

unobstructed.

Check m see if outside wall damper ope_v_ms e_tsily.

Check die InstallationInstructionsm make sure die d_yer
venting is correct.

Blown fuses or tripped circuit • Replace fl_ses or reset circuit breakers. Since most
breaker &yers use two fi_ses/breakers, make sure both are

ope_v_ting.

Overloading/combining loads • Do not put more than one washer load in the dryer at

Underloading • If you are drying only one or two items, add a few items

Clothesare wrinkled Overdrying • Select a shorter drying time.

Letting items sit in dryer after • Remove imms when cycle ends and fold or hang
cycle ends immediamly.

Overloading • Separate lmge loads into smaller ones.

Clothesshrink Some fabrics will naturally shrink • To avoid shrinkage, follow gmment care labels exactly.

when washed. Others can be • Some items may be pressed back into shape after (hTing.

safely washed, but will shrink
in the dryer • l£you are concerned about shrinkage in a particular item,

a tinle.

m ensure proper rambling.

• Remove items while they still hold a slight amount of

moisture. Select a 1,ESS DRY setting.

do not machine wash or ramble d_T it.

22

Notes.

w

w

_P

!

m

23

!
!

GEDryer Warranty. (Forcustomers in the United States)

All warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. Toschedule service,

visit us on-line at GEAppliances. corn, or call 800.GECARES
(800.432.2737).Please have serial number and model number

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

available when calling for service.

GE Will Replace:

OneYear Any part of the dryer which fails due to a defect in materials or workmanship. During this

From the date of the limited one-year warranty, GE will also provide, free of charge, all labor and related service

originalpurchase costs to replace the defective part.

• Service trips to your home to teach you how to use

the product.

• Improper installation, delivery or maintenance.

• Failure of the product if it is abused, misused, or used for
other than the intended purpose or used commercially.

• Replacement of the light bulb.

• Damage to the product caused by accident, fire, floods

or acts of God.

• Incidental or consequential damage caused by possible
defects with this appliance.

• Damage caused after delivery.

• Product not accessible to provide required service.

• Replacement of house fuses or resetting of circuit

breakers.

EXCLUSION OFIMPLIED WARRANTIES--Your sole and exclusive remedy is product repair as provided in this
Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a
particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. If the product is located in an area where service by a GEAuthorized Servicer is not available,
you may be responsible for a trip charge or you may be required to bring the product to an Authorized GEService
location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. Toknow what your
legal rights are, consult your local or state consumer affairs office or your state's Attorney General

Warrantor: General Electric Company.Louisville, KY 40225

24

GEDryer Warranty.(For customers in Canada)

Aft warranty service provided by our Factory Service Centers,

or an authorized Customer Care_ technician. For service, call

1.800.561.3344.Please have serial number and model number

available when calling for service.

Mabe Will Replace:

Any partof the dryer which fails due to a defect in materials or workmanship. During this

Fromthedateof the

originalpurchase

• Service trips to your home to teach you how to use

the product.

• Improper installation, delivery or maintenance.

• Failure of the product if it is abused, misused, or used for
other than the intended purpose or used commercially.

• Product not accessible to provide required service.

limited one-year warranty,Mabe will also provide, free of charge, all labor and related service

costs to replace the defective part.

Staple yourreceipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

• Replacement of house fuses or resetting of circuit

breakers.

• Damage to the product caused by accident, fire, floods
or acts of God.

• Incidental or consequential damage caused by possible
defects with this appliance.

• Damage to finish not reported within 48 hours following
the delivery of the appliance.

EXCLUSION OFIMPLIED WARRANTIES--Your sole and exclusive remedy isproduct repair as provided in this
Limited Warranty. Any impfied warranties, including the impfied warranties of merchantabifity orfitness fora
particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada
for home use within Canada. In-home warranty service will be provided in areas where # is available and deemed
reasonable by Mabe to provide.

Some provinces donot allow the exclusion or limitation of incidental or consequential damages, so the above exclusion
may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from
province to province. Toknow what your legal rights are in your province, consult your local or provincial consumer

affairs office.

Warrantor: Mabe CanadaInc.,

Burlington,Ontario

25

ConsumerSupport.

GEAppliancesWebsite /n the U.S.A.GEAppliances.com

Have a question or need assistance with your appliance? TD, the GE Appliances Website 24 hours a day,
any day of the year! Fox greater convenience and lc,tster service, you can now download Owner's Manuals,
order parts or even schedule sexsqce on-line. In Canada: www.GEApplianees.ea

ScheduleService /, the U.S.A.GEAppliances.com

Expert GE repair service is only one step awayfrom your dooL Get on4ine and schedule your service at your
convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during nomml business hems.

In Canada, call 1.800.561.3344

RealLifeDesignStudio /n the U.S.A.GEAppliances.com

GE supports the Universal Design concept--products, services and environments that c_m be used by people of all
ages, sizes and capabilities. We recognize the need m desigm for a wide range of physical and mental abilities and

impaimmnts. Fox derails of GE's Univexsal Design applications, including kitchen design ideas for people with
disabilities, check out our Website today. Fox the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Managen Consumer Relations, Mabe Canada Inc.

Suite 310, 1 FacmxT Lane
Moncmn, N.B. E1C 9M3

ExtendedWarranties

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still
in eff)ct. You can purchase it on4ine anytime, or call 800.626.2224 during nomml business hems. GE Consumer

Home Services will still be there after your warmnl), expires. In Canada, call 1.888.261.2133

PartsandAccessories

IndMduals qualified m service dleir own appliances can have parts or accessories sent directly m their homes

(VISA, MasmrCard and Discover cards are accepted). Order on4ine today, 24 hours evexy day or by phone at

800.626.2002 during nomml business hems.

Instructionscontainedinthismanualcoverprocedurestobeperformedbyanyuser.Otherservicing generallyshouldbe
referredtoqualifiedservicepersonnelCautionmustbeexercised,sinceimproperservicingmaycauseunsafeoperation.

Customers in Canada should consult the yellow pages for the nearest Mabe service centen or call 1.800.561.3344.

ContactUs

If you are not satisfied wit1 die service you receive flom GE, contact us on our Website wit1 all die derails
including your phone numbex; or wrim m: General Managex; Customer Relations

GE Appliances, Appliance Park
Louisville, KY40225

In Canada: www.GEApplianees.ea, or write to: Directox; Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Facmxy Lane
Moncmn, N.B. E1C 9M3

/n the U.S.A.GEAppliances.com

/n the USA GEAppliances.com

/n the U.S.A.GEAppliances.com

RegisterYourAppliance /n the U.S.A.GEAppliances.com

Register your new appliance on-line--at your convenience! Timely product registration will allow for enhanced
communication and prompt service under the temls of your warrant),, should the need arise. You may also mail

in the we-.printed regfistration card included in the packing material. In Canada: www.GEApplianees.ea

26
