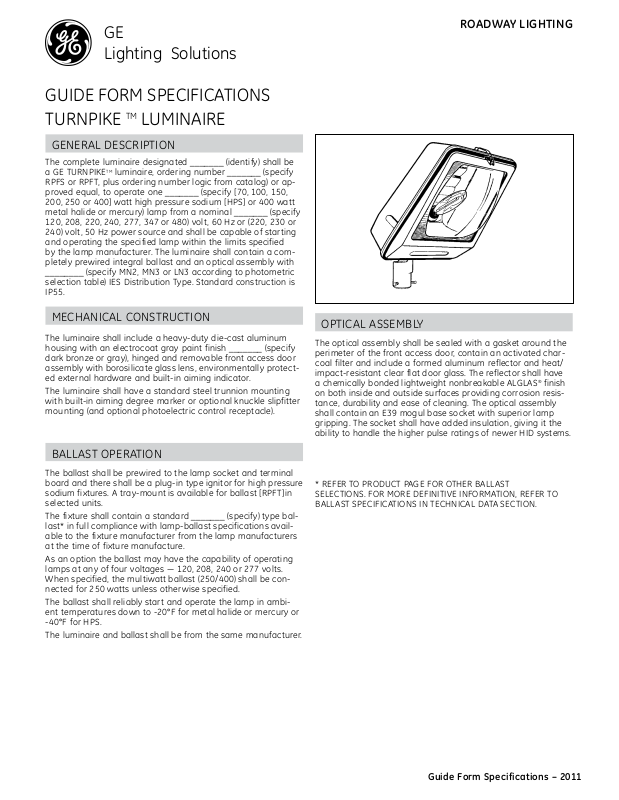

GE
ROADWAY LIGHTING
g
Lighting Solutions
GUIDE FORM SPECIFICATIONS
TURNPIKE TM LUMINAIRE
GENERAL DESCRIPTION
The complete luminaire designated _______ (identify) shall be
a GE TURNPIKETM luminaire, ordering number _______ (specify
RPFS or RPFT, plus ordering number logic from catalog) or approved equal, to operate one _______ (specify [70, 100, 150,
200, 250 or 400] watt high pressure sodium [HPS] or 400 watt
metal halide or mercury) lamp from a nominal _______ (specify
120, 208, 220, 240, 277, 347 or 480) volt, 60 Hz or (220, 230 or
240) volt , 50 Hz power source and shall be capable of starting
and operating the specified lamp within the limits specified
by the lamp manufacturer. The luminaire shall contain a completely prewired integral ballast and an optical assembly with
________ (specify MN2, MN3 or LN3 according to photometric
selection table) IES Distribution Type. Standard construction is
IP55.
MECHANICAL CONSTRUCTION
The luminaire shall include a heavy-duty die-cast aluminum
housing with an electrocoat gray paint finish _______ (specify
dark bronze or gray), hinged and removable front access door
assembly with borosilicate glass lens, environmentally protected external hardware and built-in aiming indicator.
The luminaire shall have a standard steel trunnion mounting
with built-in aiming degree marker or optional knuckle slipfitter
mounting (and optional photoelectric control receptacle).
OPTICAL ASSEMBLY
The optical assembly shall be sealed with a gasket around the
perimeter of the front access door, contain an activated charcoal filter and include a formed aluminum reflector and heat/
impact-resistant clear flat door glass. The reflector shall have
a chemically bonded lightweight nonbreakable ALGLAS
on both inside and outside surfaces providing corrosion resistance, durability and ease of cleaning. The optical assembly
shall contain an E39 mogul base socket with superior lamp
gripping. The socket shall have added insulation, giving it the
ability to handle the higher pulse ratings of newer HID systems.
®
finish
BALLAST OPERATION
The ballast shall be prewired to the lamp socket and terminal
board and there shall be a plug-in type ignitor for high pressure
sodium fixtures. A tray-mount is available for ballast [RPFT]in
selected units.
The fixture shall contain a standard _______ (specify) type ballast* in full compliance with lamp-ballast specifications available to the fixture manufacturer from the lamp manufacturers
at the time of fixture manufacture.
As an option the ballast may have the capability of operating
lamps at any of four voltages — 120, 208, 240 or 277 volts.
When specified, the multiwatt ballast (250/400) shall be connected for 250 watts unless otherwise specified.
The ballast shall reliably start and operate the lamp in ambient temperatures down to -20°F for metal halide or mercury or
-40°F for HPS.
The luminaire and ballast shall be from the same manufacturer.
* REFER TO PRODUCT PAGE FOR OTHER BALLAST
SELECTIONS. FOR MORE DEFINITIVE INFORMATION, REFER TO
BALLAST SPECIFICATIONS IN TECHNICAL DATA SECTION.
Guide Form Specifications – 2011
