GE RM94903 User Manual [en, es]

94903 Revised Size 1/21/02 2/25/02 4:26 PM Page 1

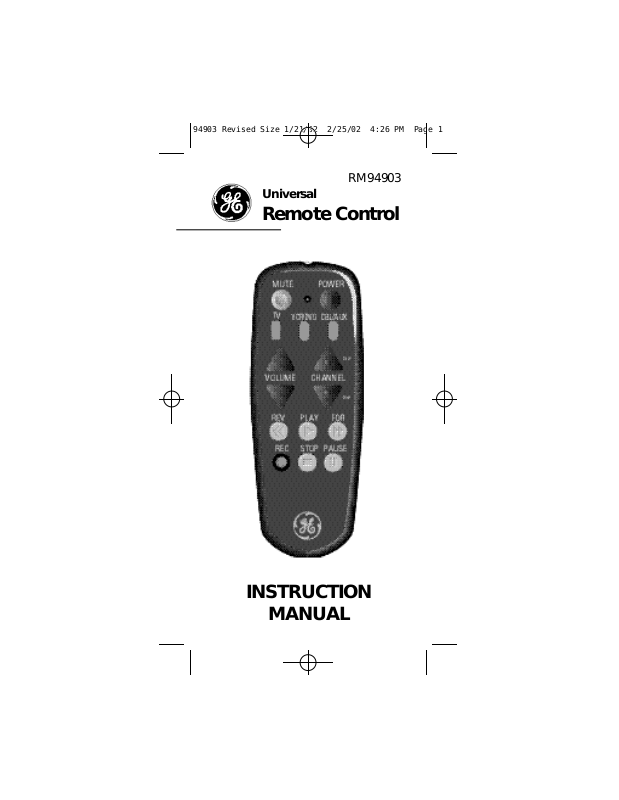

RM94903

Universal

Remote Control

INSTRUCTION

MANUAL

94903 Revised Size 1/21/02 2/25/02 4:26 PM Page 2

Table of Contents

Button Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Setting Up Your Universal Remote . . . . . . . . . . . . . . . .3

Programming Your Universal Remote For:

TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5

VCR or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7

Cable Box or Other Device . . . . . . . . . . . . . . . . . .7-8

Operating A TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Operating A Cable Box . . . . . . . . . . . . . . . . . . . . . . . . . .9

Operating a DVD Player . . . . . . . . . . . . . . . . . . . . . . .10

Operating A VCR . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11

Programming Using Code Search . . . . . . . . . . . . . . . .11

Code Retrieval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Operating A TV/VCR Combo Unit . . . . . . . . . . . . . . .13

Special Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Lost Your Codes? . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Code Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31-35

1

94903 Revised Size 1/21/02 2/25/02 4:26 PM Page 3

Button Description

MUTE

Operates the same as on
your original remote.

Indicator Light

Flashes to show that the
remote is working.

POWER

Operates the same as on
your original remote.

Device Buttons(TV,VCR/DVD,
CBL/AUX)

The TV, VCR/DVD and CBL/AUX
buttons are used to select the
home entertainment device
you want to control.

V O L U M E a n d C H A N N E L
Operate the same as on
your original remote. These
buttons are also used to
enter the code for your
device. The CHANNEL
buttons are also used to
control the SKIPfunctions
for DVD and CD Players.

VCR Buttons
The REV (Rewind/Reverse),
PLAY, FOR (Fast Forward),
REC (Record), STOP, and
PAUSE buttons control the

same functions as those
found on your VCR remote.
The REV and FOR are also
used to control the
REVERSE and FORWARD
functions for DVD and CD
Players.

2

94903 Revised Size 1/21/02 2/25/02 4:26 PM Page 4

Setting Up Your Universal Remote

Place batteries in the remote

1.

Remove the battery compart­ment cover.

2. Place two AAAbatteries as

shown, matching the + and –
end of each battery as indi­cated in the battery compart­ment.

3. Replace the cover.

Determine if your remote needs programming

(Some RCA, GE and ProScan devices may already be

1. Press the button of the device

2. If the device turns on, press

3. If the device you selected

4. Repeat steps 1-3 for other

pre-programmed. )

you want to control (for
example TV).

another button to confirm
(for example

CHANNEL UP).

(TV) responds, you will not
need to program the remote.
If the device you selected
(TV) does not respond, you
will need to program the
remote.

devices.

3

94903 Revised Size 1/21/02 2/25/02 4:26 PM Page 5

Programming TV Using Code Lists

1. Manually turn on the TV.

2.Find the code for your

brand in the list starting
below.

3.Press and hold the TV but-

ton for five (5) seconds, the
Indicator Light will light up.

4.Release the TV button.

The following buttons
stand for each digit of the
code:

1st Digit 2nd Digit 3rd Digit

5.Enter the first digit in the

code with the REV button.
Example: if the first num­ber is 3, depress the REV
button three times. If the
number is 0, do not press
REV and proceed to next
step.

X

1STCODE

NUMBER

Note: The Indicator Light
will blink after each num­ber is entered.

6.Enter the second digit in

the code with the PLAY
button the same way as in
step 5. If the number is 0,
do not press PLAYand pro­ceed to next step.

4

X

2NDCODE
NUMBER

94903 Revised Size 1/21/02 2/25/02 4:26 PM Page 6

Programming TV Using Code Lists (con’t)

7.Enter the third digit in the

code with the FOR button
the same way as in step 5.
If the number is 0, do not
press FOR and proceed to
next step.

8.Press STOP after code is
entered and the Indicator
Light will turn off.

9. With your TV on, press
CHANNEL Up. If the TV
responds, no further
programming is required.

10.Enter your code here for

easy reference.

3RDCODE

NUMBER

X

TV CODE

Programming VCR or DVD Player Using
Code Lists

1. Manually turn on the VCR.

2.Find the code for your
brand in the list starting
below.

3.Press and hold the VCR/DVD
button for five (5) seconds,
the Indicator Light will light
up.

4.Release the VCR/DVD button.

5

94903 Revised Size 1/21/02 2/25/02 4:26 PM Page 7

Programming VCR or DVD Player Using
Code Lists (con’t.)

The following buttons stand
for each digit of the code:

1st Digit 2nd Digit 3rd Digit

5.Enter the first digit in the

code with the REV button.
Example: if the first number
is 3, depress the REV button
three times. If the number is
0, do not press REV and pro­ceed to next step.

Note: The Indicator Light
will blink after each number
is entered.

6.Enter the second digit in the

code with the PLAY button
the same way as in step 5. If
the number is 0, do not
press PLAYand proceed to
next step.

X

1STCODE

NUMBER

2NDCODE

NUMBERX

7.Enter the third digit in the

code with the FOR button
the same way as in step 5.
If the number is 0, do not
press FOR and proceed to
next step.

8.Press STOP after code is
entered and the Indicator
Light will turn off.

6

3RDCODE

NUMBERX

94903 Revised Size 1/21/02 2/25/02 4:26 PM Page 8

Programming VCR or DVD Player Using
Code Lists (con’t.)

9. With your VCR or DVD
player on, press CHANNEL
Up. If the VCR or DVD
player responds, no further
programming is required.

10. Enter your code here for

easy reference.

VCR/DVD CODE

Programming Cable Box Using Code Lists

1. Manually turn on the Cable

Box.

2.Find the code for your brand
in the list starting on the
next page.

3.Press and hold the CBL/AUX
button for five (5) seconds,
the Indicator Light will light
up.

4.Release the CBL/AUX button.
The following buttons stand

for each digit of the code:

1st Digit 2nd Digit 3rd Digit

5.Enter the first digit in the
code with the REV button.
Example: if the first number
is 3, depress the REV button
three times. If the number is
0, do not press REV and pro­ceed to next step.

7

X

1STCODE

NUMBER

94903 Revised Size 1/21/02 2/25/02 4:26 PM Page 9

Programming Cable Box Using Code Lists

Note: The Indicator Light will
blink after each number is
entered.

6.Enter the second digit in the

code with the PLAY button
the same way as in step 5.
If the number is 0, do not
press PLAY and proceed to
next step.

7.Enter the third digit in the

code with the FOR button
the same way as in step 5.
If the number is 0, do not
press FOR and proceed to
next step.

8.Press STOP after code is
entered and the Indicator

Light will turn off.

X

2NDCODE

NUMBER

3RDCODE

NUMBERX

9. With your Cable Box on,
press CHANNEL Up. If the
Cable Box responds, no
further programming is
required.

10. Enter your code here for

easy reference.

8

CABLE/ OTHER

D E V I C EB O X CODE

94903 Revised Size 1/21/02 2/25/02 4:26 PM Page 10

Operating A TV

Turning the TV On and Off.

1.

Press TV to set the remote
to control the TV (most
RCA, GE and ProScan
models will only turn on
when pressing TV not
power).

2. Press POWER to turn the

TV on or off.

Change Channels and Volume on
the TV.

P ress VOLUME UP or V O L U M E
DOWN to change volume on

the TV.
P ress CHANNEL UP or C H A N-
NEL DOWN to change chan­nels on the TV.

Operating A Cable Box

Turning the Cable Box On or

Off.

1. Point the remote at the

cable box and press

CBL/AUXE.

2. Press POWER to turn it on

or off.

Changing Channels on the
Cable Box.

Press CHANNEL UP or CHAN­NEL DOWN to change chan-

nels on the cable box.

9

94903 Revised Size 1/21/02 2/25/02 4:26 PM Page 11

Operating A DVD Player

Turning the DVD Player On
and Off.

1.

Point the remote at the
DVD player and press
VCR/DVD.

2. Press POWER to turn the

DVD player on or off.

3. P ress CHANNEL UP or C H A N-
NEL DOWN for DVD S K I P

f u n c t i o n s .

4 . Use R E Vand F O Rfor DVD

reverse and forward func­t i o n s .

Operating A VCR

Operating A VCR

Turning the VCR On or Off.

1. Press VCR/DVD to set the

remote to control the VCR.
(Most RCA, GE and
ProScan models will only
turn on when pressing

VCR/DVD

2. Press POWER to turn the

VCR
on or off.

Using a tape in your VCR.

1. Turn on the VCR.

2. Insert a tape in the VCR.

3. Press PLAY to start the tape.

not

POWER.

)

10
