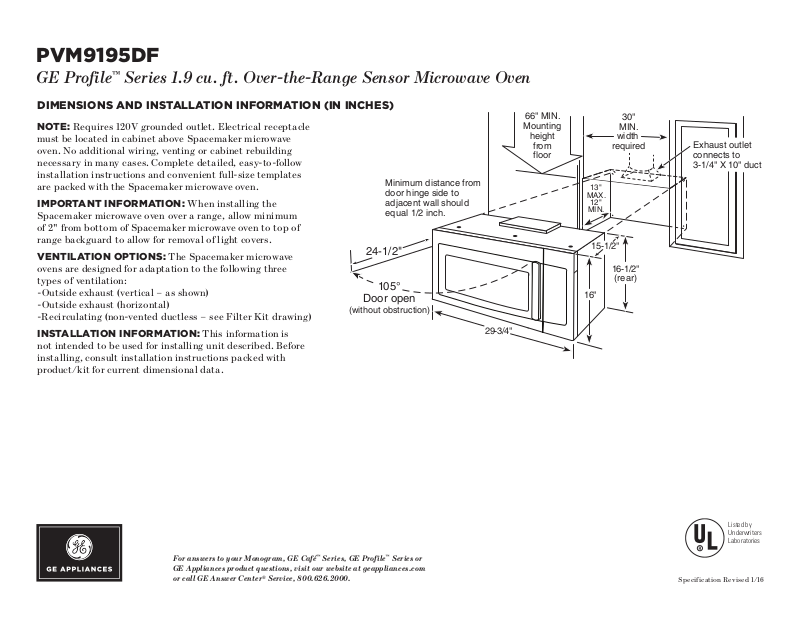

GE PVM9195DF Specification

PVM9195DF

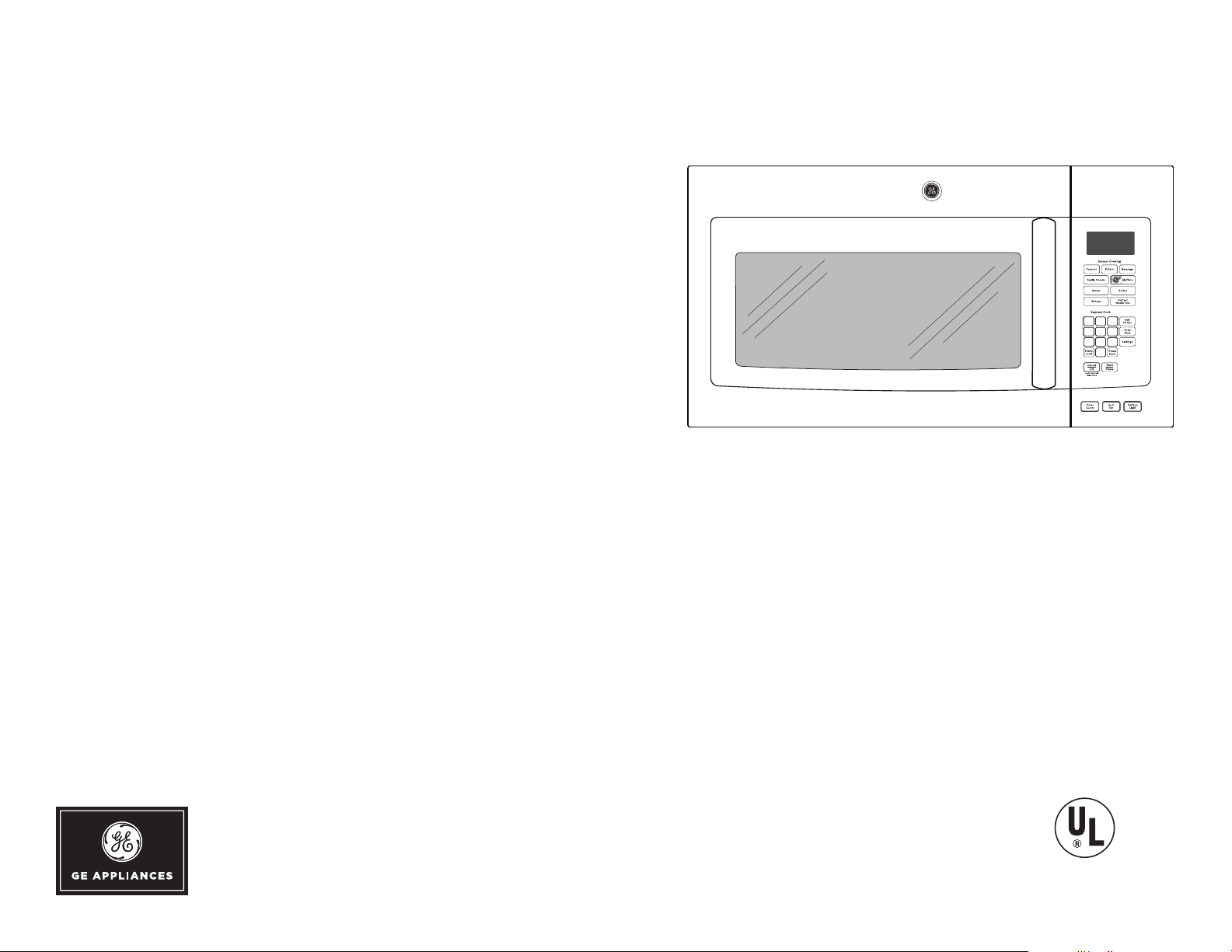

GE Profile™ Series 1.9 cu. ft. Over-the-Range Sensor Microwave Oven

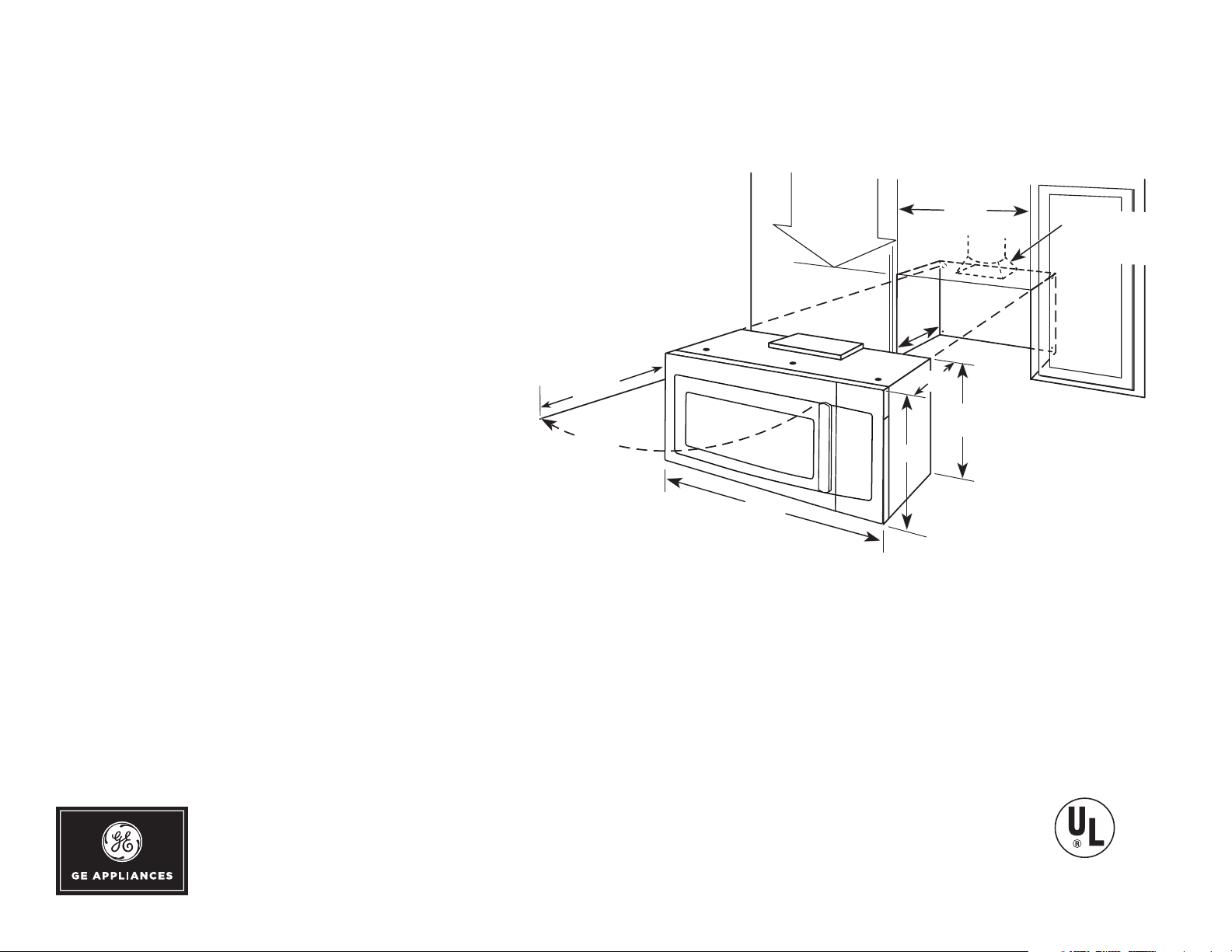

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

	NOTE: Requires 120V grounded outlet. Electrical receptacle		66" MIN.
			Mounting
	must be located in cabinet above Spacemaker microwave		height
	oven. No additional wiring, venting or cabinet rebuilding		from
			floor
	necessary in many cases. Complete detailed, easy-to-follow
	installation instructions and convenient full-size templates	Minimum distance from
	are packed with the Spacemaker microwave oven.
		door hinge side to
	IMPORTANT INFORMATION: When installing the
		adjacent wall should
	Spacemaker microwave oven over a range, allow minimum	equal 1/2 inch.
	of 2" from bottom of Spacemaker microwave oven to top of
	range backguard to allow for removal of light covers.	24-1/2"
	VENTILATION OPTIONS: The Spacemaker microwave
	ovens are designed for adaptation to the following three
	types of ventilation:	105°
	-Outside exhaust (vertical – as shown)
		Door open
	-Outside exhaust (horizontal)
		(without obstruction)
	-Recirculating (non-vented ductless – see Filter Kit drawing)

INSTALLATION INFORMATION: This information is not intended to be used for installing unit described. Before installing, consult installation instructions packed with product/kit for current dimensional data.

30"

MIN. width required

13"

MAX.

12"

MIN.

15-1/2"

16-1/2" (rear)

16"

Exhaust outlet connects to 3-1/4" X 10" duct

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.

Listed by

Underwriters

Laboratories

Specification Revised 1/16

PVM9195DF

GE Profile™ Series 1.9 cu. ft. Over-the-Range Sensor Microwave Oven

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

HOOD EXHAUST DUCT: Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.

EXHAUST CONNECTION: The hood exhaust has been designed to mate with a standard 3-1/4" x 10" rectangular duct. If a round duct is required, a rectangular-to-round transition adaptor must be used. Do not use less than a 6" diameter duct.

REAR EXHAUST: If a rear or horizontal exhaust is to be used, care should be taken to align exhaust with space between studs, or wall should be prepared at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.

MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct length of 3-1/4" x 10" rectangular or 6" diameter round duct should not exceed 140 equivalent feet.

ELBOWS, TRANSITIONS, WALL AND ROOF CAPS, etc., present additional resistance to airflow and are equivalent to a section of straight duct which is longer than their actual physical size. When calculating the total duct length, add the equivalent length of all transitions and adaptors plus the lengths of all straight duct sections. The chart below shows the approximate feet of equivalent length of some typical ducts.

OPTIONAL ACCESSORIES (AVAILABLE AT ADDITIONAL COST)

Filler Panel Kits JX36CWW and JX36CBB

When replacing a 36" range hood, this kit fills in the additional width to provide a custom built-in appearance. For installation between ­cabinets only; not for end- of-cabinet installation. Each kit ­contains two 3"-wide filler panels.

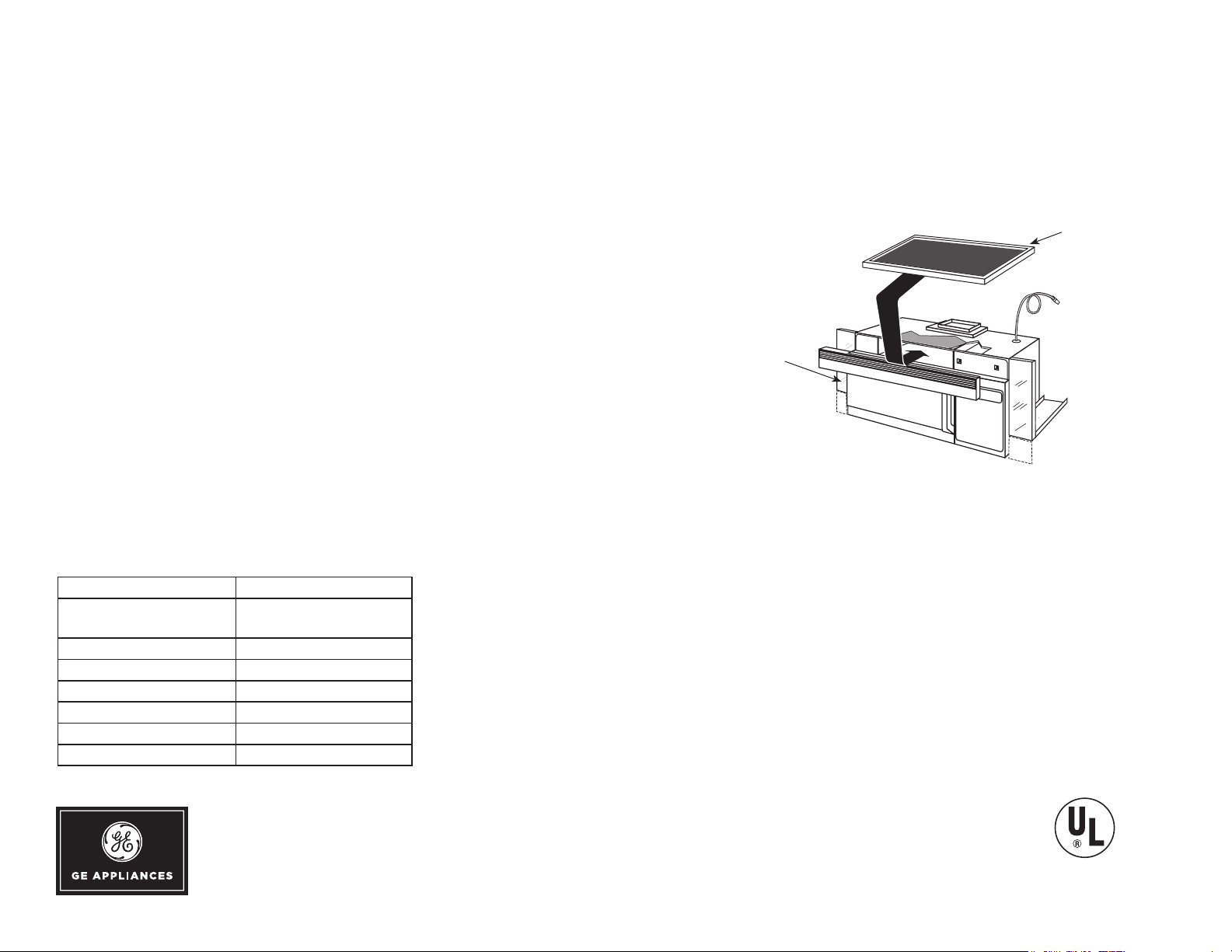

Filter Kit JX81H– Recirculating Charcoal Filter Kit To be used when the Spacemaker microwave oven cannot be vented to the outside.

DUCT	EQUIVALENT FEET
A. Rectangular-To-round
Transition Adaptor	5 ft.
B. Wall Cap	40 ft.
C. 90° Elbow	10 ft.
D. 45° Elbow	5 ft.
E. 90° Elbow	25 ft.
F. 45° Elbow	5 ft.
G. Roof Cap	24 ft.

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.

Filter Kit JX81D– Recirculating Charcoal Filter Kit To be used when the Spacemaker microwave oven cannot be vented to the outside.

Listed by

Underwriters

Laboratories

Specification Revised 1/16
