PTWN8050M/PTWN8055M
GE Profile Harmony™ 5.1 IEC cu. ft. Stainless Steel Capacity Washer

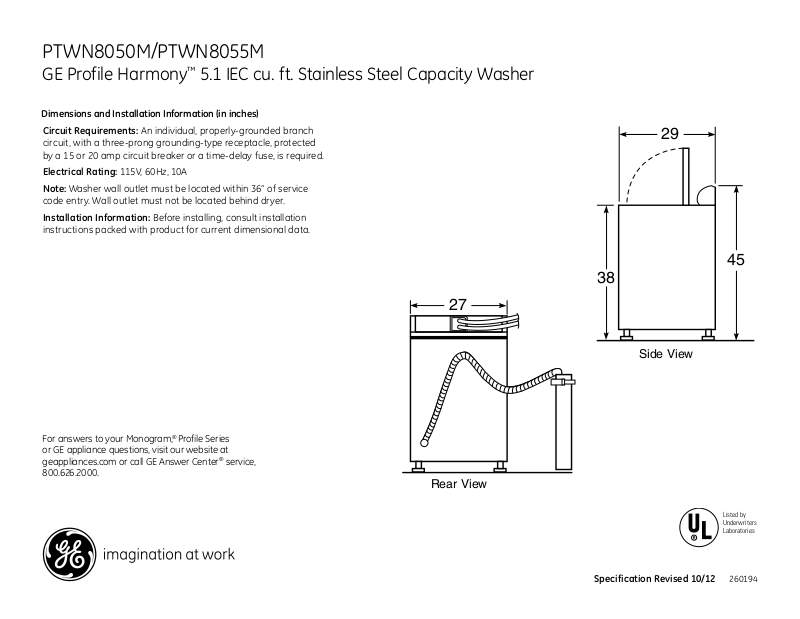

Dimensions and Installation Information (in inches)
Circuit Requirements: An individual, properly-grounded branch circuit, with a three-prong grounding-type receptacle, protected by a 15 or 20 amp circuit breaker or a time-delay fuse, is required.
Electrical Rating: 115V, 60Hz, 10A
Note: Washer wall outlet must be located within 36” of service code entry. Wall outlet must not be located behind dryer.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
29
45
38
27
Side View
For answers to your Monogram,® Profile Series or GE appliance questions, visit our website at
geappliances.com or call GE Answer Center® service,
800.626.2000.
Rear View
Listed by
Underwriters
Laboratories
Specification Revised 10/12 260194
PTWN8050M/PTWN8055M
GE Profile Harmony™ 5.1 IEC cu. ft. Stainless Steel Capacity Washer
Features and Benefits
• ENERGY STAR® qualified and CEE Tier II - Meets or exceeds federal guidelines for energy efficiency for year-round energy and money savings
• TidalWave wash system - Waves of water combined with Infusor technology and a centrifusion wash action help detergent and water flow through fabrics for a gentle and complete clean
• HydroHeater™ with Sanitize option - Internal water heater with Sanitize option boosts incoming water temperature
•QuietClose glass lid with extra-wide opening - Hydraulic tension allows the lid to close gently
•GE Profile warranty - Offers a lifetime warranty on the stainless tub and a limited ten-year parts warranty, providing peace of mind and dependability See written warranty for details
•Flow-Thru™ Dispensing System - Releases cleaning solution at just the right time for optimal wash performance
•Speed Wash - Provides a quick wash for lightly soiled items that are needed in a hurry
•My Cycles - Custom cycle that can be set for specific or frequent needs
•Model PTWN8050MWW – White
•Model PTWN8055MMS - Metallic Silver
Modified Energy Factor (MEF) |
2.21 |
|
|
|
|
|
|
Water Factor (WF) |
4.49 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
