GE PTS9000BN, PTS9000SN Specification

PTS9000BN/SN

Cutout width

28-1/2" MIN.

28-5/8" MAX.

B

A

C

Cutout height

27-1/4" MIN.
27-5/16" MAX.

Recommended
cutout location
from the floor

32-1/2"

Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 3/4"
C - Overlap of oven at bottom of cutout 1-1/4"

Oven

D - Install depth 23-1/2"
E - Overall height with trim 28-5/8"
F - Overall width 29-3/4"

Cutout width

28-1/2" MIN.

28-5/8" MAX.

B

A

C

Cutout height

27-1/4" MIN.
27-5/16" MAX.

Recommended
cutout location
from the floor

32-1/2"

30''

F

E

22"

Conduit
48"

Cutout depth

23-1/2" MIN

23" minimum

door opening
allowance

22" to
bottom of
junction box

Junction box
location

9-1/2" MAX.

D

PTS9000BNTS, PTS9000FNDS, PTS9000SNSS

Cutout width

28-1/2" MIN.

28-5/8" MAX.

B

A

C

Cutout height

27-1/4" MIN.
27-5/16" MAX.

Recommended
cutout location
from the floor

32-1/2"

30''

PTS9000BNTS, PTS9000FNDS, PTS9000SNSS

GE Profile™ 30" Smart Built-In Convection Single Wall Oven
with In-Oven Camera and Air Fry

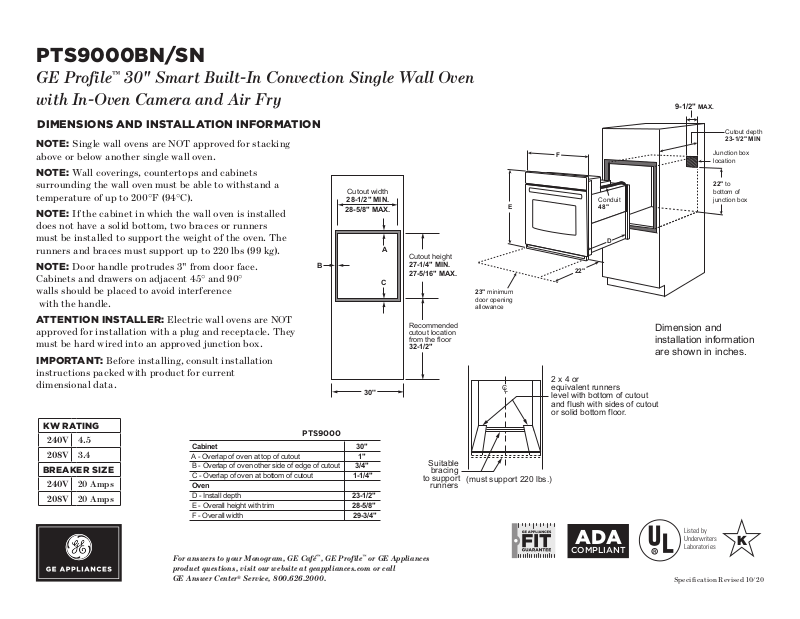

DIMENSIONS AND INSTALLATION INFORMATION

NOTE: Single wall ovens are NOT approved for stacking
above or below another single wall oven.

NOTE: Wall coverings, countertops and cabinets
surrounding the wall oven must be able to withstand a
temperature of up to 200°F (94°C).

NOTE: If the cabinet in which the wall oven is installed
does not have a solid bottom, two braces or runners
must be installed to support the weight of the oven. The
runners and braces must support up to 220 lbs (99 kg).

NOTE: Door handle protrudes 3" from door face.
Cabinets and drawers on adjacent 45° and 90°
walls should be placed to avoid interference
with the handle.

ATTE N TION I N STALL E R: Electric wall ovens are NOT
approved for installation with a plug and receptacle. They
must be hard wired into an approved junction box.

IMPORTANT: Before installing, consult installation
instructions packed with product for current
dimensional data.

KW RATING

24 0V 4.5

208V 3.4

BREAKER SIZE

24 0V 20 Amps

208V 20 Amps

Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 3/4"
C - Overlap of oven at bottom of cutout 1-1/4"

Oven

D - Install depth 23-1/2"
E - Overall height with trim 28-5/8"
F - Overall width 29-3/4"

For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.

PTS9000

B

Cutout width

28-1/2" MIN.

28-5/8" MAX.

C

30''

E

A

Cutout height

27-1/4" MIN.
27-5/16" MAX.

23" minimum

door opening
allowance

Recommended
cutout location
from the floor

32-1/2"

C

L

Suitable

bracing

to support

runners

(must support 220 lbs.)

F

Conduit
48"

D

22"

2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.

ADA

COMPLIANT

9-1/2" MAX.

Cutout depth

23-1/2" MIN

Junction box
location

22" to
bottom of
junction box

Dimension and
installation information
are shown in inches.

Listed by
Underwriters
Laboratories

Specification Revised 10/20

PTS9000BN/SN

Gas or Electric Cooktops May Be Installed Over This Oven.
See Cooktop Installation Instructions for Cutout Size.
See Label on Top of Oven for Approved Models.

240V/208V

Junction Box

Location

(junction box may

be in adjacent

cabinet)

Gas or Electric Connections for Gas
Cooktop Must be Located in an Adjacent
Accessible Location to the Right

Top and/or Side Fillers
May Be Necessary if
Unit is Positioned
Between Existing
Cabinets. Be Sure
They Are Attached
Securely, Since They
Will Anchor the Oven
in the Cabinet.

22" (55.9 cm) min.
Above Support
Platform

36" (91.4 cm)
Countertop
Height

Must Match
Toekick Height

24" (61 cm)

4" (10.2 cm)
Toekick

25" (63.5 cm)

MUST SUPPORT 220 lbs. (99 kg) FOR SINGLE OVENS

3/4" (1.9 cm)

Support Platform

Required

Side-bySide Installations

Install two ovens in separate cutouts.

Location

cabinet)

Gas or Electric Connections for Gas
Cooktop Must be Located in an Adjacent
Accessible Location to the Right

22" (55.9 cm) min.
Above Support
Platform

36" (91.4 cm)
Countertop
Height

Must Match
Toekick Height

24" (61 cm)

4" (10.2 cm)
Toekick

Gas or Electric Cooktops May Be Installed Over This Oven.
See Cooktop Installation Instructions for Cutout Size.
See Label on Top of Oven for Approved Models.

240V/208V

Junction Box

Location

(junction box may

be in adjacent

cabinet)

Gas or Electric Connections for Gas
Cooktop Must be Located in an Adjacent
Accessible Location to the Right

Top and/or Side Fillers
May Be Necessary if
Unit is Positioned
Between Existing
Cabinets. Be Sure
They Are Attached
Securely, Since They
Will Anchor the Oven
in the Cabinet.

2 1/2" min. (6.4 cm)

31 1/4" min.

(79.4 cm)

Cooktop

Wall Oven

SIDE OVEN

IMPORTANT:

Maintain a minimum
distance of 31 1/4"
from the top surface
of the countertop to
the wall oven
platform to ensure
that the cooktop and
wall oven do not
interfere with each
other (see picture).

22" (55.9 cm) min.
Above Support
Platform

36" (91.4 cm)
Countertop
Height

Must Match
Toekick Height

24" (61 cm)

4" (10.2 cm)
Toekick

25" (63.5 cm)

MUST SUPPORT 220 lbs. (99 kg) FOR SINGLE OVENS

3/4" (1.9 cm)

Support Platform

Required

Side-bySide Installations

Install two ovens in separate cutouts.

GE Profile™ 30" Smart Built-In Convection Single Wall Oven
with In-Oven Camera and Air Fry

OPTIONAL UNDERCOUNTER DIMENSIONS AND INSTALLATION INFORMATION

NOTE: 30" Single electric wall ovens are approved
for installation below a countertop, and below certain
gas and electric cooktops. Refer to the Approved
Combinations Matrix available at geappliances.com for
specific information.

NOTE: 30" Single electric wall ovens are approved for
installation above 27" and 30" warming drawers.

ATTENTION INSTALLER: Electric wall ovens are NOT
approved for installation with a plug and receptacle.
They must be hard wired into an approved junction box.

IMPORTANT: Before installing, consult installation
instructions packed with ALL products for current
dimensional and combination data.

(TWO OVENS IN SEPARATE CUTOUTS)

NOTE: One cooktop may be centered over either
oven in the side-by-side installation.

SIDE-BY-SIDE INSTALLATION

Center Line Center Line

30.5" (77.5 cm) 30" models

27" (68.58 cm) 27" models

Cooktop

Cutout – observe
all dimensions and
requirements

For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call

Cutout – observe
all dimensions and
requirements

2" (5.1 cm) min.

GE Answer Center® Service, 800.626.2000.

INSTALLATION BELOW A COOKTOP

2 1/2" min. (6.4 cm)

IMPORTANT:

Maintain a minimum
distance of 31 1/4"
from the top surface
of the countertop to
the wall oven
platform to ensure
that the cooktop and

31 1/4" min.

(79.4 cm)

wall oven do not
interfere with each
other (see picture).

Cooktop

Wall Oven

SIDE OVEN

Specification Revised 10/20
