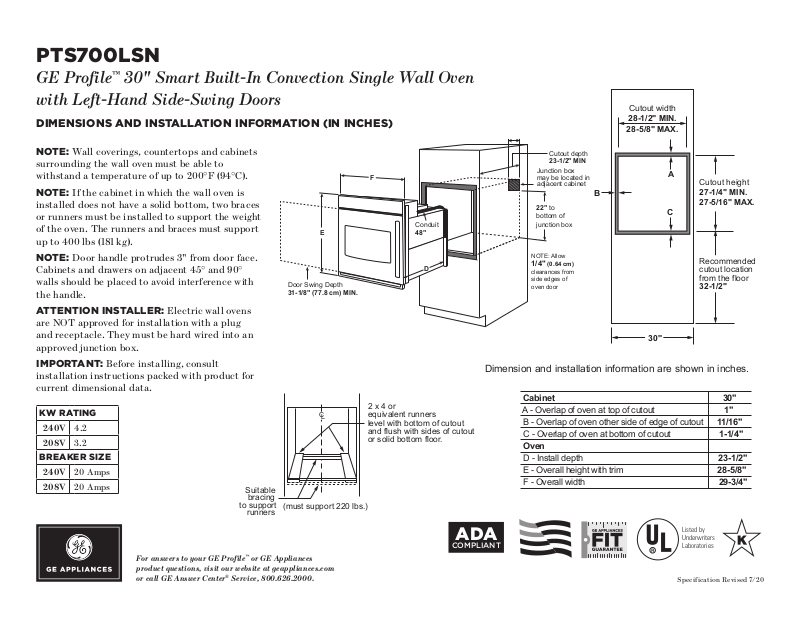

GE PTS700LSN Specification
PTS700LSN
GE Profile™ 30" Smart Built-In Convection Single Wall Oven with Left-Hand Side-Swing Doors
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Wall coverings, countertops and cabinets surrounding the wall oven must be able to withstand a temperature of up to 200°F (94°C).
NOTE: If the cabinet in which the wall oven is installed does not have a solid bottom, two braces or runners must be installed to support the weight of the oven. The runners and braces must support up to 400 lbs (181 kg).
NOTE: Door handle protrudes 3" from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.
ATTENTION INSTALLER: Electric wall ovens are NOT approved for installation with a plug and receptacle. They must be hard wired into an approved junction box.
F
Conduit
E |
48" |
D
Door Swing Depth
31-1/8" (77.8 cm) MIN.
Cutout depth
23-1/2" MIN
Junction box may be located in
adjacent cabinet
22" to bottom of junction box
NOTE: Allow
1/4" (0.64 cm) clearances from side edges of oven door
Cutout width
28-1/2" MIN.
28-5/8" MAX.
A |
B |
C |
30''
Cutout height
27-1/4" MIN.
27-5/16" MAX.
Recommended cutout location from the floor
32-1/2"
IMPORTANT: Before installing, consult installation instructions packed with product for current dimensional data.
KW RATING
240V 4.2
208V 3.2
BREAKER SIZE
240V 20 Amps
208V 20 Amps
|
2 x 4 or |
C |
equivalent runners |
L |
level with bottom of cutout |
|
and flush with sides of cutout |
|
or solid bottom floor. |
Suitable bracing
torunnerssupport (must support 220 lbs.)
Dimension and installation information are shown in inches.
Cabinet |
30" |
A - Overlap of oven at top of cutout |
1" |
B - Overlap of oven other side of edge of cutout |
11/16" |
C - Overlap of oven at bottom of cutout |
1-1/4" |
Oven |
|
D - Install depth |
23-1/2" |
E - Overall height with trim |
28-5/8" |
F - Overall width |
29-3/4" |
For answers to your GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
ADA |
Listed by |
Underwriters |
|
COMPLIANT |
Laboratories |
Specification Revised 7/20
PTS700LSN
GE Profile™ 30" Smart Built-In Convection Single Wall Oven with Left-Hand Side-Swing Doors
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES) |
|
|
|
UNDERCOUNTER INSTALLATION |
|
|
|||||||||
NOTE: 30" Single electric wall ovens are approved |
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
for installation below a countertop, and below |
Gas or Electric Cooktops May Be Installed Over This Oven. |
240V/208V |
|
|
|||||||||||
certain gas and electric cooktops. Refer to the |
See Cooktop Installation Instructions for Cutout Size. |
Junction Box |
|
|
|||||||||||
See Label on Top of Oven for Approved Models. |
|
|
|||||||||||||
Location |
|
|
|||||||||||||
Approved Combinations Matrix available at |
|
|
|
|
|
|
|
|
(junction box may |
|
|
||||
|
|
|
|
|
|
|
|
be in adjacent |
|
|
|||||
geappliances.com for specific information. |
|
|
|
|
|
|
|
|
cabinet) |
|
|
||||
|
|
|
|
|
|
|
|
|
|
||||||
|
25" |
(63.5 cm) |
Gas or Electric Connections for Gas |
||||||||||||
NOTE: 30" Single electric wall ovens are approved |
|
Cooktop Must be Located in an Adjacent |
|||||||||||||
|
|
|
|
|
|
|
|
Accessible Location to the Right |
|||||||
|
|
|
|
|
|
|
|
||||||||
for installation above 27" and 30" warming drawers. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ATTENTION INSTALLER: Electric wall ovens |
|
Top and/or Side Fillers |
|
|
|
|
|
|
|
||||||
are NOT approved for installation with a plug |
|
|
|
|
|
|
|
|
|||||||
|
May Be Necessary if |
|
|
|
|
|
|
|
|||||||
and receptacle. They must be hard wired into an |
|
Unit is Positioned |
|
|
|
|
|
|
|
||||||
|
Between Existing |
|
|
|
|
|
|
|
|||||||
approved junction box. |
|
Cabinets. Be Sure |
|
|
|
|
|
|
|
||||||
|
They Are Attached |
|
|
|
|
|
|
|
|||||||
|
|
Securely, Since They |
22" |
|
(55.9 cm) min. |
36" |
(91.4 cm) |
||||||||
IMPORTANT: Before installing, consult |
|
Will Anchor the Oven |
|
|
|
||||||||||
|
in the Cabinet. |
|
|
Above Support |
Countertop |
||||||||||
installation instructions packed with ALL products |
|
|
|
|
|
|
3/4" (1.9 cm) |
Platform |
Height |
||||||
|
|
|
|
|
|
|
Must Match |
|
|
||||||
for current dimensional and combination data. |
|
|
|
|
|
Support Platform |
|
|
|
||||||
|
|
|
|
|
|
|
Required |
|
Toekick Height |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
24" (61 cm) |
|
|
||||
|
|
MUST SUPPORT 220 lbs. (99 kg) FOR SINGLE OVENS |
|
|
|
|
|
|
|
||||||
SIDE-BY-SIDE INSTALLATION (TWO OVENS IN SEPARATE CUTOUTS)
Side-bySide Installations Install two ovens in separate cutouts.
4" (10.2 cm) Toekick
Center Line |
Center Line |
30.5" (77.5 cm) 30" models
27" (68.58 cm) 27" models
INSTALLATION BELOW A COOKTOP
Cooktop |
|
|
Cutout – observe |
|
Cutout – observe |
all dimensions and |
|
all dimensions and |
requirements |
|
requirements |
|
|
|
2" (5.1 cm) min.
NOTE: One cooktop may be centered over either oven in the side-by-side installation.
IMPORTANT:
Maintain a minimum distance of 31 1/4" from the top surface of the countertop to the wall oven platform to ensure that the cooktop and wall oven do not interfere with each other (see picture).
2 1/2" min. (6.4 cm) |
Cooktop |
31 1/4" min. |
(79.4 cm) |
Wall Oven |
SIDE OVEN
For answers to your GE Profile™ or GE Appliances product questions, visit our website |
|
at geappliances.com or call GE Answer Center® Service, 800.626.2000. |
Specification Revised 7/20 |
