GE PTD9000BN, PTD9000SN Specification
PTD9000BN/SN
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 3/4"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 53"
F - Overall width 29-3/4"
9-1/2" MAX.
F
Conduit
48"
47" to
bottom of
junction box
Junction box
location
Cutout depth
23-1/2" MIN
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
22"
23" minimum
door opening
allowance
E
D
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
PTD9000BNTS, PTD9000FNDS, PTD9000SNSS
Cutout width
28-1/2" MIN.
28-5/8" MAX.
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
PTD9000BNTS, PTD9000FNDS, PTD9000SNSS

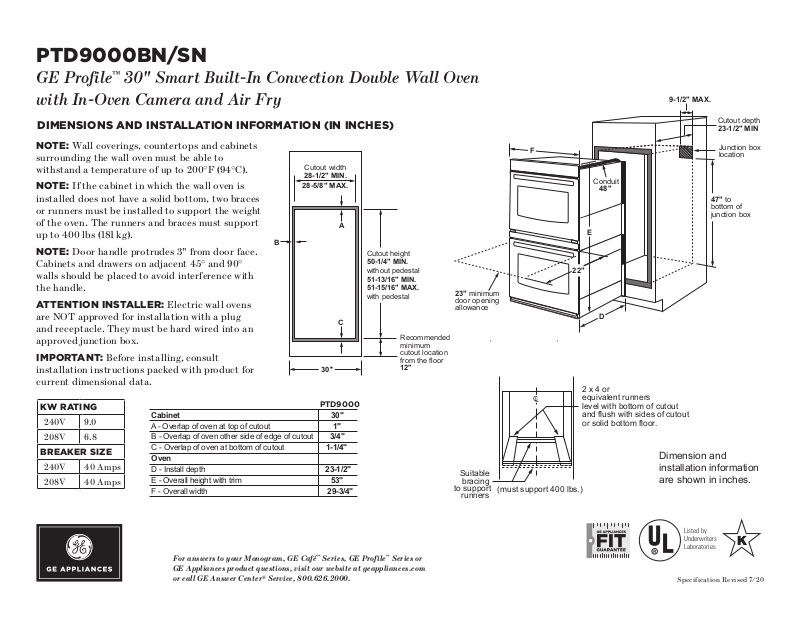

GE Profile™ 30" Smart Built-In Convection Double Wall Oven
with In-Oven Camera and Air Fry
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Wall coverings, countertops and cabinets
surrounding the wall oven must be able to
withstand a temperature of up to 200°F (94°C).
NOTE: If the cabinet in which the wall oven is
installed does not have a solid bottom, two braces
or runners must be installed to support the weight
of the oven. The runners and braces must support
up to 400 lbs (181 kg).
NOTE: Door handle protrudes 3" from door face.
Cabinets and drawers on adjacent 45° and 90°
walls should be placed to avoid interference with
the handle.
ATTENTION I N S TA L LE R : Electric wall ovens
are NOT approved for installation with a plug
and receptacle. They must be hard wired into an
approved junction box.
IMPORTANT: Before installing, consult
installation instructions packed with product for
current dimensional data.
KW R ATI N G
240V 9.0
208V 6.8
BREAKER SIZE
240V 40 Amps
208V 40 Amps
Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 3/4"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 53"
F - Overall width 29-3/4"
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
A
C
30''
PTD9000
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
23" minimum
door opening
allowance
Suitable
bracing
to support
runners
F
(must support 400 lbs.)
C
9-1/2" MAX.
Cutout depth
23-1/2" MIN
Junction box
location
Conduit
48"
47" to
bottom of
junction box
E
22"
D
2 x 4 or
L
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
Dimension and
installation information
are shown in inches.
Listed by
Underwriters
Laboratories
Specification Revised 7/20
PTD9000BN/SN
GE Profile™ 30" Smart Built-In Convection Double Wall Oven
with In-Oven Camera and Air Fry
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: 30" Double electric wall ovens are
approved for installation above 27" and 30"
warming drawers.
ATTENTION I N S TA L LE R : Electric wall ovens
are NOT approved for installation with a plug
and receptacle. They must be hard wired into an
approved junction box.
IMPORTANT: Before installing, consult
installation instructions packed with ALL
products for current dimensional and combination
data.
WHEN TO USE THE PEDESTAL RAILS:
When replacing an older GE Appliances 30"
double wall oven with a new GE Appliances model.
Cutout Height = 51-13/16" to 51-15/16". This is our
traditional cutout height.
WHEN NOT TO USE THE PEDESTAL RAILS:
When replacing a 30" double wall oven from
another manufacturer (ie; Whirlpool) with a new
GE Appliances model. Cutout height = 50-1/4".
You will need to verify that the existing cutout
matches the 50-1/4" dimension.
If the new GE Appliances 30" double wall oven
is being installed into new construction (ie; not a
replacement), then the recommended installation
is to use the pedestal rails.
Attachment
screws
Flanges toward
center of cutout
Top cutout
toward front
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Specification Revised 7/20
