GE PTD700RSNSS Quick Specs
PTD700RSN
Cutout width
28-1/2" MIN.
28-5/8" MAX.
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
JTD3000DNBB, JTD3000DNWW, JTD3000ENES,
JTD3000SNSS, JTD5000BNTS, JTD5000DNBB,
JTD5000DNWW, JTD5000ENES, JTD5000FNDS,
JTD5000SNSS, PTD7000BNTS, PTD7000FNDS,
PTD7000SNSS, PTD700LSNSS, PTD700RSNSS
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 11/16"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 53"
F - Overall width 29-3/4"
9-1/2" MAX.
F
Conduit
48"
47" to
bottom of
junction box
Cutout depth
23-1/2" MIN
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
E
D
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
Junction box
may be located in
adjacent cabinet
Door Swing Depth
31-1/8" (77.8 cm) MIN.
JTD3000DNBB, JTD3000DNWW, JTD3000ENES,
JTD3000SNSS, JTD5000BNTS, JTD5000DNBB,
JTD5000DNWW, JTD5000ENES, JTD5000FNDS,
JTD5000SNSS, PTD7000BNTS, PTD7000FNDS,
PTD7000SNSS, PTD700LSNSS, PTD700RSNSS

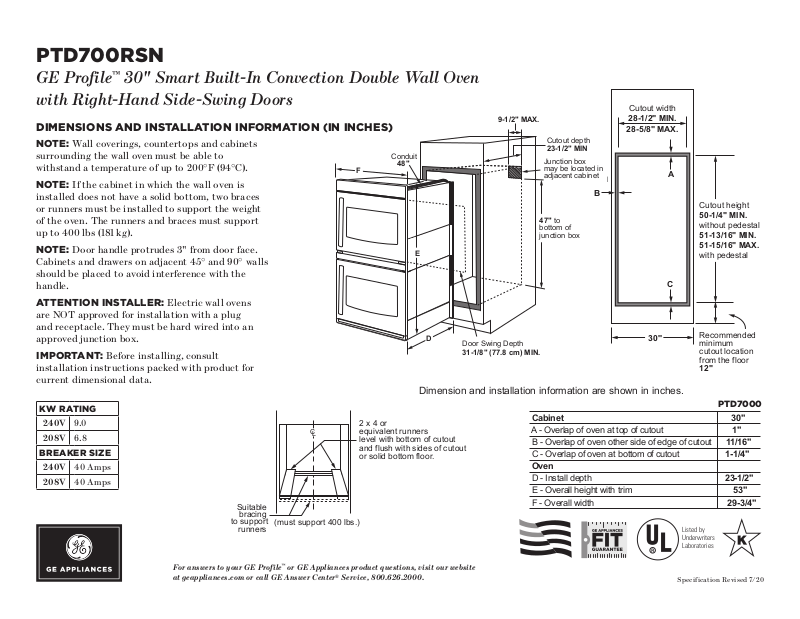

GE Profile™ 30" Smart Built-In Convection Double Wall Oven
with Right-Hand Side-Swing Doors
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Wall coverings, countertops and cabinets
surrounding the wall oven must be able to
withstand a temperature of up to 200°F (94°C).
NOTE: If the cabinet in which the wall oven is
installed does not have a solid bottom, two braces
or runners must be installed to support the weight
of the oven. The runners and braces must support
up to 400 lbs (181 kg).
NOTE: Door handle protrudes 3" from door face.
Cabinets and drawers on adjacent 45° and 90° walls
should be placed to avoid interference with the
handle.
ATTE N T I ON IN S TA LLER : Electric wall ovens
are NOT approved for installation with a plug
and receptacle. They must be hard wired into an
approved junction box.
IMPORTANT: Before installing, consult
installation instructions packed with product for
current dimensional data.
KW RATING
24 0V 9.0
208V 6.8
BREAKER SIZE
24 0V 40 Amps
208V 40 Amps
For answers to your GE Profile™ or GE Appliances product questions, visit our website
at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Suitable
bracing
to support
runners
(must support 400 lbs.)
C
L
F
2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
Conduit
48"
E
Dimension and installation information are shown in inches.
D
Door Swing Depth
31-1/8" (77.8 cm) MIN.
9-1/2" MAX.
Cutout width
28-1/2" MIN.
28-5/8" MAX.
Cutout depth
23-1/2" MIN
Junction box
may be located in
adjacent cabinet
47" to
bottom of
junction box
B
30''
A
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
C
Recommended
minimum
cutout location
from the floor
12"
PTD7000
Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 11/16"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 53"
F - Overall width 29-3/4"
Listed by
Underwriters
Laboratories
Specification Revised 7/20
PTD700RSN
GE Profile™ 30" Smart Built-In Convection Double Wall Oven
with Right-Hand Side-Swing Doors
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: 30" Double electric wall ovens are approved for
installation above 27" and 30" warming drawers.
IMPORTANT: Before installing, consult installation
instructions packed with ALL products for current
dimensional and combination data.
WHEN TO USE THE PEDESTAL RAILS: When
replacing an older GE Appliances 30" double wall oven with
a new GE Appliances model. Cutout Height = 51-13/16" to
51-15/16". This is our traditional cutout height.
WHEN NOT TO USE THE PEDESTAL RAILS:
When replacing a 30" double wall oven from another
manufacturer (ie; Whirlpool) with a new GE Appliances
model. Cutout height = 50-1/4". You will need to verify that
the existing cutout matches the 50-1/4" dimension.
If the new GE Appliances 30" double wall oven is being
installed into new construction (ie; not a replacement), then
the recommended installation is to use the pedestal rails.
Attachment
screws
Flanges toward
center of cutout
Top cutout
toward front
For answers to your GE Profile™ or GE Appliances product questions, visit our website
at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Specification Revised 7/20
