GE PTD700LSNSS Quick Specs
PTD700LSN
Cutout width
28-1/2" MIN.
28-5/8" MAX.
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
JTD3000DNBB, JTD3000DNWW, JTD3000ENES,
JTD3000SNSS, JTD5000BNTS, JTD5000DNBB,
JTD5000DNWW, JTD5000ENES, JTD5000FNDS,
JTD5000SNSS, PTD7000BNTS, PTD7000FNDS,
PTD7000SNSS, PTD700LSNSS, PTD700RSNSS
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 11/16"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 53"
F - Overall width 29-3/4"
9-1/2" MAX.
F
Conduit
48"
47" to
bottom of
junction box
Cutout depth
23-1/2" MIN
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
E
D
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
Junction box
may be located in
adjacent cabinet
Door Swing Depth
31-1/8" (77.8 cm) MIN.
JTD3000DNBB, JTD3000DNWW, JTD3000ENES,
JTD3000SNSS, JTD5000BNTS, JTD5000DNBB,
JTD5000DNWW, JTD5000ENES, JTD5000FNDS,
JTD5000SNSS, PTD7000BNTS, PTD7000FNDS,
PTD7000SNSS, PTD700LSNSS, PTD700RSNSS

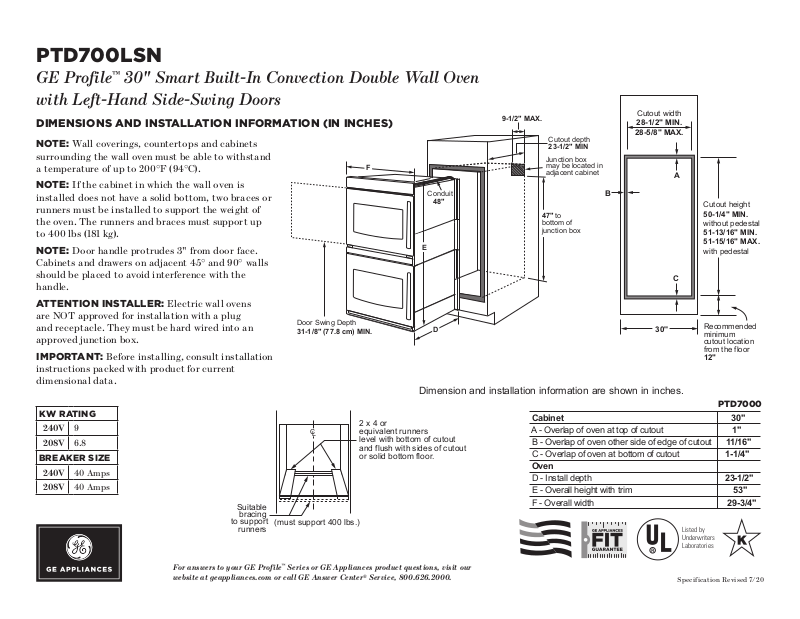

GE Profile™ 30" Smart Built-In Convection Double Wall Oven
with Left-Hand Side-Swing Doors
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Wall coverings, countertops and cabinets
surrounding the wall oven must be able to withstand
a temperature of up to 200°F (94°C).
NOTE: If the cabinet in which the wall oven is
installed does not have a solid bottom, two braces or
runners must be installed to support the weight of
the oven. The runners and braces must support up
to 400 lbs (181 kg).
NOTE: Door handle protrudes 3" from door face.
Cabinets and drawers on adjacent 45° and 90° walls
should be placed to avoid interference with the
handle.
ATTE N T I ON IN S TA LLER : Electric wall ovens
are NOT approved for installation with a plug
and receptacle. They must be hard wired into an
approved junction box.
IMPORTANT: Before installing, consult installation
instructions packed with product for current
dimensional data.
KW RATING
24 0V 9
208V 6.8
BREAKER SIZE
24 0V 40 Amps
208V 40 Amps
Door Swing Depth
31-1/8" (77.8 cm) MIN.
F
Dimension and installation information are shown in inches.
C
L
Suitable
bracing
to support
runners
For answers to your GE Profile™ Series or GE Appliances product questions, visit our
website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
(must support 400 lbs.)
2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
Conduit
E
48"
D
9-1/2" MAX.
Cutout depth
23-1/2" MIN
Junction box
may be located in
adjacent cabinet
B
47" to
bottom of
junction box
Cutout width
28-1/2" MIN.
28-5/8" MAX.
A
C
30''
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
PTD7000
Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 11/16"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 53"
F - Overall width 29-3/4"
Listed by
Underwriters
Laboratories
Specification Revised 7/20
PTD700LSN
GE Profile™ 30" Smart Built-In Convection Double Wall Oven
with Left-Hand Side-Swing Doors
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: 30" Double electric wall ovens are
approved for installation above 27" and 30"
warming drawers.
IMPORTANT: Before installing, consult
installation instructions packed with ALL
products for current dimensional and combination
data.
WHEN TO USE THE PEDESTAL RAILS:
When replacing an older GE Appliances 30"
double wall oven with a new GE Appliances model.
Cutout Height = 51-13/16" to 51-15/16". This is our
traditional cutout height.
WHEN NOT TO USE THE PEDESTAL RAILS:
When replacing a 30" double wall oven from
another manufacturer (ie; Whirlpool) with a new
GE Appliances model. Cutout height = 50-1/4".
You will need to verify that the existing cutout
matches the 50-1/4" dimension.
If the new GE Appliances 30" double wall oven
is being installed into new construction (ie; not a
replacement), then the recommended installation
is to use the pedestal rails.
Attachment
screws
Flanges toward
center of cutout
Top cutout
toward front
For answers to your GE Profile™ Series or GE Appliances product questions, visit our
website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Specification Revised 7/20
