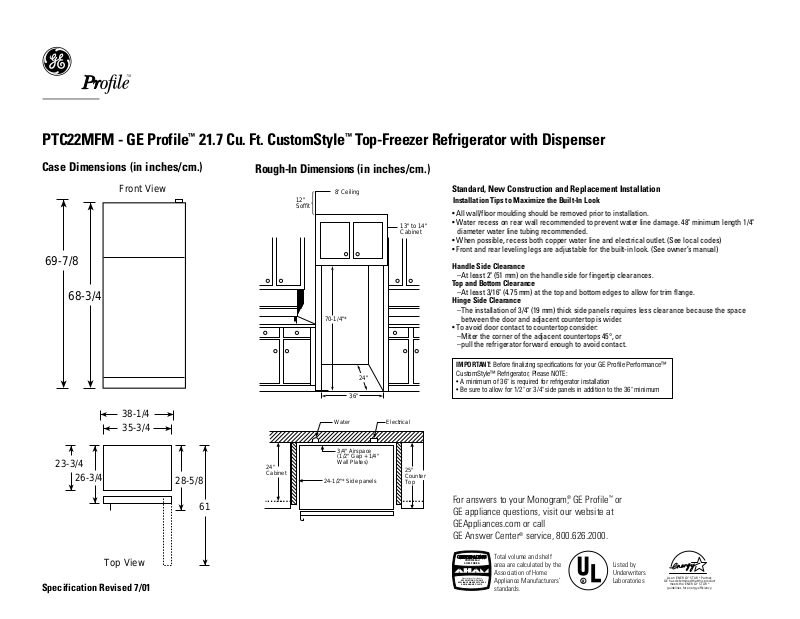

GE PTC22MFM Specification

TM

Specification Revised 7/01

PTC22MFM - GE Profile™21.7 Cu. Ft. CustomStyle™Top-Freezer Refrigerator with Dispenser

Case Dimensions (in inches/cm.)

69-7/8

68-3/4

Manufacturer Certified to

ASSOCIATION OF HOME

APPLIANCE MANUFACTURERS

ANSI/AHAN HRF-1-1979

VOLUME and
SHELF AREA

R

Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.

Listed by
Underwriters
Laboratories

35-3/4

28-5/8

23-3/4

61

26-3/4

38-1/4

25"
Counter
Top

ElectricalWater

3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)

24-1/2"* Side panels

24"
Cabinet

8' Ceiling

13" to 14"
Cabinet

12"
Soffit

70-1/4"*

36"

24"

Standard, New Construction and Replacement Installation

Rough-In Dimensions (in inches/cm.)

• All wall/floor moulding should be removed prior to installation.

• Water recess on rear wall recommended to prevent water line damage. 48" minimum length 1/4"
diameter water line tubing recommended.

• When possible, recess both copper water line and electrical outlet. (See local codes)

• Front and rear leveling legs are adjustable for the built-in look. (See owner’s manual)

Installation Tips to Maximize the Built-In Look

Handle Side Clearance

–At least 2" (51 mm) on the handle side for fingertip clearances.

Top and Bottom Clearance

–At least 3/16" (4.75 mm) at the top and bottom edges to allow for trim flange.

Hinge Side Clearance

–The installation of 3/4" (19 mm) thick side panels requires less clearance because the space

between the door and adjacent countertop is wider.

• To avoid door contact to countertop consider:
–Miter the corner of the adjacent countertops 45°, or
–pull the refrigerator forward enough to avoid contact.

IMPORTANT: Before finalizing specifications for your GE Profile Performance™
CustomStyle™ Refrigerator, Please NOTE:

• A minimum of 36" is required for refrigerator installation

• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36" minimum

Top View

Front View

As an ENERGY STAR® Partner,

GE has determined that this product

meets the ENERGY STAR®

guidelines for energy efficiency.

For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.

TM

Specification Revised 7/01

PTC22MFM - GE Profile™21.7 Cu. Ft. CustomStyle™Top-Freezer Refrigerator with Dispenser

R

EFR

IG

ER

A

TO

R

FREEZER

V

e

g

H

u

m

i

d

i

t

y

F

r

u

i

t

.....

.....

V

e

g

H

u

m

i

d

i

t

y

F

r

u

i

t

.....

.....

Features and Benefits

• 21.7 cu ft Capacity (Fresh Food 15.4 cu ft / Freezer 6.5 cu ft)

• SmartWater

™

Provides Cleaner, Better Tasting Water and Ice

through the LightTouch! Dispenser

• 2 Adjustable Humidity Vegetable/Fruit Crispers with Spill-Proof Crisper Cover

• Adjustable Temperature Meat Pan

• Slide-Out, Slide-Over Pans

• 4 Adjustable, Split Glass Fresh Food Cabinet Shelves (3 Slide-Out, Spill Proof)

• 3 Adjustable ClearLook

™

Modular Door Bins with Gallon Storage

• 1 Fixed Fresh Food Door Bin with Tall Bottle Storage

• QuickSpace

™

Shelf

• Beverage Rack

• Dairy Compartment

• 1 Adjustable Wire Everwhite Freezer Compartment Shelf

• 2 Freezer Door Gallon Bins

• Ice Storage Bin

• Deluxe Quiet Design

• Color-Matched Premium Deluxe Door Handles

• Energy Star Rated

• Model PTC22MFMWW - White on white

• Model PTC22MFMBB - Black on Black

• Model PTC22MFMCC - Bisque
