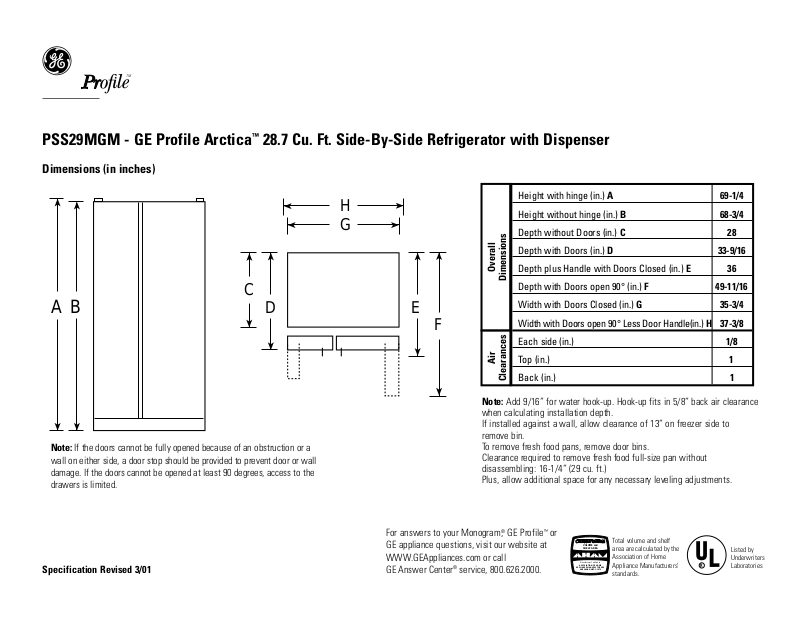

PSS29MGM - GE Profile Arctica™ 28.7 Cu. Ft. Side-By-Side Refrigerator with Dispenser
Dimensions (in inches)
H
G
|
|
|
|
|
|
|
|
|
A B |
C |
|
|
|
|
|||
|
|
|
|
|||||
|
|
|
D |
|
E |
F
Top View
Note: If the doors cannot be fully opened because of an obstruction or a wall on either side, a door stop should be provided to prevent door or wall damage. If the doors cannot be opened at least 90 degrees, access to the drawers is limited.
|
|
|
Height with hinge (in.) A |
69-1/4 |
|
|
|
Height without hinge (in.) B |
68-3/4 |
|
<![if ! IE]> <![endif]>Dimensions |
|
Depth without Doors (in.) C |
28 |
<![if ! IE]> <![endif]>Overall |
|
Depth with Doors (in.) D |
33-9/16 |
|
|
Depth plus Handle with Doors Closed (in.) E |
36 |
||
|
|
Depth with Doors open 90° (in.) F |
49-11/16 |
|
|
|
|
||
|
|
|
Width with Doors Closed (in.) G |
35-3/4 |
|
|
|
Width with Doors open 90° Less Door Handle(in.) H |
37-3/8 |
|
<![if ! IE]> <![endif]>Clearances |
|
Each side (in.) |
1/8 |
<![if ! IE]> <![endif]>Air |
|
Top (in.) |
1 |
|
|
|
Back (in.) |
1 |
Note: Add 9/16” for water hook-up. Hook-up fits in 5/8” back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 13” on freezer side to remove bin.
To remove fresh food pans, remove door bins.
Clearance required to remove fresh food full-size pan without disassembling: 16-1/4” (29 cu. ft.)
Plus, allow additional space for any necessary leveling adjustments.
|
For answers to your Monogram,® GE Profile™ or |
|
GE appliance questions, visit our website at |
|
WWW.GEAppliances.com or call |
Specification Revised 3/01 |
GE Answer Center® service, 800.626.2000. |
VOLUME and
SHELF AREA
Manufacturer Certified to
ASSOCIATION OF HOME APPLIANCE MANUFACTURERS ANSI/AHAN HRF-1-1979
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
Listed by Underwriters
R Laboratories
TM
PSS29MGM - GE Profile Arctica™ 28.7 Cu. Ft. Side-By-Side Refrigerator with Dispenser
Features and Benefits
•28.7 cu. ft. Capacity (Fresh Food 17.85 cu. ft. / Freezer 10.89 cu. ft.)
•ClimateKeeper™ System
•Upfront Electronic Digital Display Temperature Control
•SmartWater™ Plus Provides Cleaner, Better Tasting Water and Ice through the LightTouch! Dispenser
•Integrated Shelf Support System
• FrostGuard™ Technology
• Quick Ice™ Setting
•Door Alarm
•Child Lock
•3 Tilt-Out Freezer Storage Bins (2 Adjustable)
•4 Fresh Food ClearLook™ Modular Door Shelves (2 Adjustable)
•QuickSpace™ Shelf
•3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide-Out, Spill-Proof)
•Contoured Exterior
•Electronic Icemaker
•Premium Quiet Design
•Model PSS29MGMWW - White on white
•Model PSS29MGMBB - Black on black
•Model PSS29MGMCC - Bisque
Specification Revised 3/01
