GE PSS28KYHFS Specification

PSS28KYHFS
G
D
C
F
E
H
FRONT VIEW TOP VIEW
GE Profile™ 28.2 Cu. Ft. Side-by-Side Refrigerator

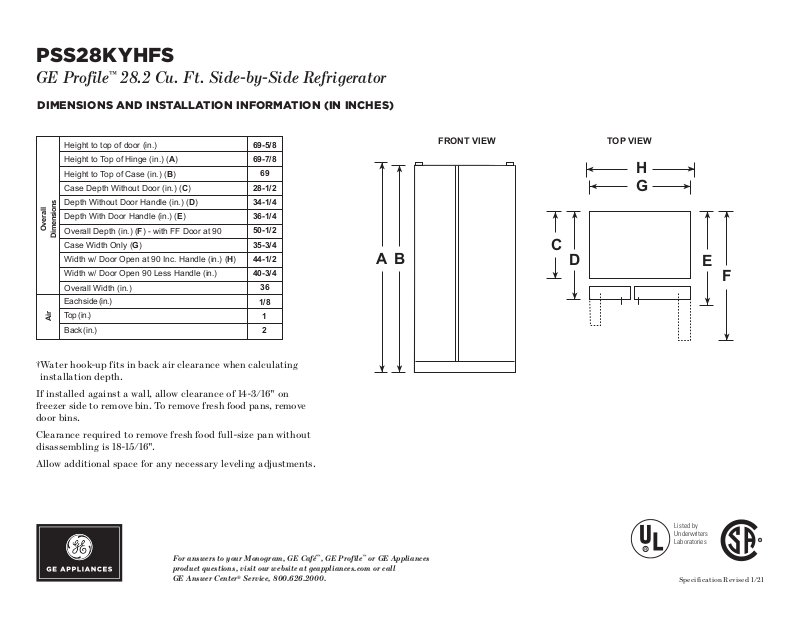

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
69-5/8
69-7/8
69
28-1/2
34-1/4
36-1/4
50-1/2
35-3/4
44-1/2
40-3/4
36
1/8
1
2
Height to top of door (in.)
Height to Top of Hinge (in.) (A)
Height to Top of Case (in.) (B)
Case Depth Without Door (in.) (C)
Depth Without Door Handle (in.) (D)
Depth With Door Handle (in.) (E)
Overall
Overall Depth (in.) (F) - with FF Door at 90
Dimensions
Case Width Only (G)
Width w/ Door Open at 90 Inc. Handle (in.) (H)
Width w/ Door Open 90 Less Handle (in.)
Overall Width (in.)
Each side (in.)
Top (in.)
Air
Back (in.)
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer side to remove bin. To remove fresh food pans, remove door bins.
Clearance required to remove fresh food full-size pan without disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
A
B
C
D
H G
E
F
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Listed by Underwriters Laboratories
Speci fication Revised 1/21
PSS28KYHFS
GE Profile™ 28.2 Cu. Ft. Side-by-Side Refrigerator
FEATURES AND BENEFITS
Total Capacity: 28.2 Cu. Ft.
FF Capacity: 17.5 Cu. Ft.
FZ Capacity: 10.7 Cu. Ft.
ADA Compliant: No
Energy Star: Yes
Full Depth
Ice & Water Dispenser: External
Water Filtration: Yes
Control Type: Electronic
Internal Lighting: LED
Shelves: Glass Spillproof
Colors Available: Fingerprint resistant stainless
Case Color: Dark Grey
Claims & Certifications: UFAS, Energy Star
Warranty: 1 Year Parts and Labor
Model PSS28KYHFS – Fingerprint resistant stainless
UFAS
COMPLIANT
Speci fication Revised 1/21
