TM

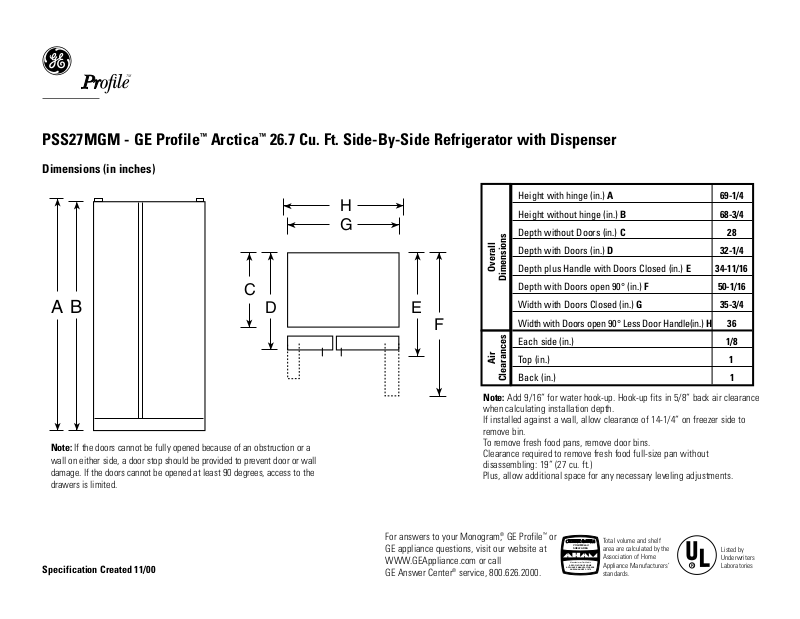

PSS27MGM - GE Profile™ Arctica™ 26.7 Cu. Ft. Side-By-Side Refrigerator with Dispenser
Dimensions (in inches)
H
G
|
|
|
|
|
|
|
|
|
A B |
C |
|
|
|
|
|||
|
|
|
|
|||||
|
|
|
D |
|
E |
F
Top View
Note: If the doors cannot be fully opened because of an obstruction or a wall on either side, a door stop should be provided to prevent door or wall damage. If the doors cannot be opened at least 90 degrees, access to the drawers is limited.
|
|
|
Height with hinge (in.) A |
69-1/4 |
|
|
|
Height without hinge (in.) B |
68-3/4 |
|
<![if ! IE]> <![endif]>Dimensions |
|
Depth without Doors (in.) C |
28 |
<![if ! IE]> <![endif]>Overall |
|
Depth with Doors (in.) D |
32-1/4 |
|
|
Depth plus Handle with Doors Closed (in.) E |
34-11/16 |
||
|
|
Depth with Doors open 90° (in.) F |
50-1/16 |
|
|
|
|
||
|
|
|
Width with Doors Closed (in.) G |
35-3/4 |
|
|
|
Width with Doors open 90° Less Door Handle(in.) H |
36 |
|
<![if ! IE]> <![endif]>Clearances |
|
Each side (in.) |
1/8 |
<![if ! IE]> <![endif]>Air |
|
Top (in.) |
1 |
|
|
|
Back (in.) |
1 |
Note: Add 9/16” for water hook-up. Hook-up fits in 5/8” back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 14-1/4” on freezer side to remove bin.
To remove fresh food pans, remove door bins.
Clearance required to remove fresh food full-size pan without disassembling: 19” (27 cu. ft.)
Plus, allow additional space for any necessary leveling adjustments.
|
For answers to your Monogram,® GE Profile™ or |
|
GE appliance questions, visit our website at |
Specification Created 11/00 |
WWW.GEAppliance.com or call |
GE Answer Center® service, 800.626.2000. |
VOLUME and
SHELF AREA
Manufacturer Certified to
ASSOCIATION OF HOME APPLIANCE MANUFACTURERS ANSI/AHAN HRF-1-1979
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
Listed by Underwriters
R Laboratories
TM
PSS27MGM - GE Profile™ Arctica™ 26.7 Cu. Ft. Side-By-Side Refrigerator with Dispenser
Features and Benefits
• 26.7 cu. ft. Capacity (Fresh Food 16.6 cu. ft. / Freezer 10.12 cu. ft.)
•ClimateKeeper™ System
•SmartWater™ Plus Provides Cleaner, Better Tasting Water and Ice through the LightTouch! Dispenser
•QuickIce™
•FreshSaver™ Filter
• Adjustable Humidity Crisper, Sealed Snack Pan and Adjustable Temperature
Meat Pan
•3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide-Out, Spill-Proof)
•QuickSpace™ Shelf
•4 Fresh Food ClearLook™ Modular Door Shelves (2 Adjustable)
•Dairy Compartment with Butter Dish
•Egg Bin
•Beverage Rack
•FrostGuard™
•3 Wire Everwhite Slide ‘N Store Freezer Baskets
•2 Wire Everwhite Freezer Compartment Shelves (1 Slide-Out)
•3 Tilt-Out Freezer Storage Bins (2 Adjustable)
•1 Deep Fixed Storage Bin
•Premium Quiet Design Quiet Package
|
• Color-Matched Premium Deluxe Door Handles |
|
• Model PSS27MGMWW - White on white |
Specification Created 11/00 |
• Model PSS27MGMBB - Black on black |
• Model PSS27MGMCC - Bisque |
