GE PSS26SHT Specification
PSS26SHT
GE Profile™ 25.7 Cu. Ft. Stainless Side-By-Side Refrigerator with Refreshment Center

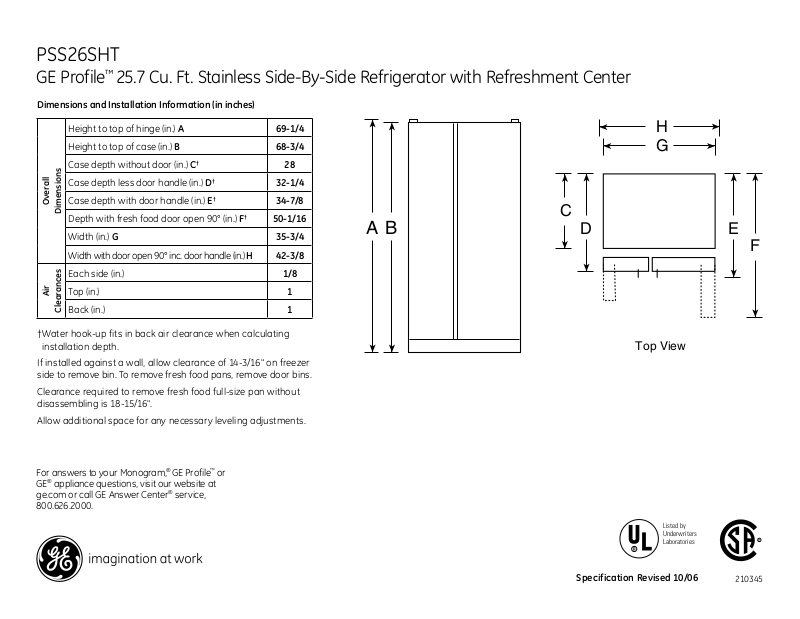

Dimensions and Installation Information (in inches)
|
Height to top of hinge (in.) A |
69-1/4 |
|
|
|
|
|
|
Height to top of case (in.) B |
68-3/4 |
|
|
|
|
|
| <![if ! IE]> <![endif]>Overall Dimensions |
Case depth without door (in.) C† |
28 |
|
Case depth less door handle (in.) D† |
32-1/4 |
||
Case depth with door handle (in.) E† |
34-7/8 |
||
Depth with fresh food door open 90° (in.) F† |
50-1/16 |
||
|
|||
|
Width (in.) G |
35-3/4 |
|
|
|
|
|
|
Width with door open 90° inc. door handle (in.) H |
42-3/8 |
|
|
|
|
|
| <![if ! IE]> <![endif]>Air Clearances |
Each side (in.) |
1/8 |
|
|
|
||
Top (in.) |
1 |
||
|
|
||
Back (in.) |
1 |
||
|
|
|
†Water hook-up fits in back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer side to remove bin. To remove fresh food pans, remove door bins.
Clearance required to remove fresh food full-size pan without disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
A B
H
G
C
D |
E |
F
Top View
Listed by Underwriters Laboratories
Specification Revised 10/06 |
210345 |
PSS26SHT
GE Profile™ 25.7 Cu. Ft. Stainless Side-By-Side Refrigerator with Refreshment Center
Features and Benefits
• Stainless Steel Exterior - Convey a look of utmost polish and sophistication
•Refreshment Center - Provides convenient in-door access to favorite foods and drinks
•ClimateKeeper™ System - Best Temperature Management System You Can Buy!
•CustomCool™ Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer
•Electronic controls with actual temperature display - Eliminates guesswork in setting
refrigerator temperatures
• Tall LightTouch! Dispenser with LED lighting - Dispenses water and ice at the slightest touch; LED lighting provides long-lasting illumination
•Slide ‘n Store™ Full-Extension Freezer Baskets - Extends 12” to 16” beyond the cabinet, providing easy loading and unloading
•Quick Ice™ Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
•TurboCool™ Setting - “Revs up” the refrigerator, cooling it quickly after frequent door openings
•Integrated Ice™ System - Frees up valuable freezer space. It tilts down, providing easy access to bulk ice
•Tilt-Out Freezer Door Bins - Move forward for convenient access
•Integrated Shelf Support System - Provides strong, yet flexible support
•Model PSS26SHTSS - Stainless steel
*
Specification Revised 10/06 |
210345 |
