GE PSD1000ZWH Specification

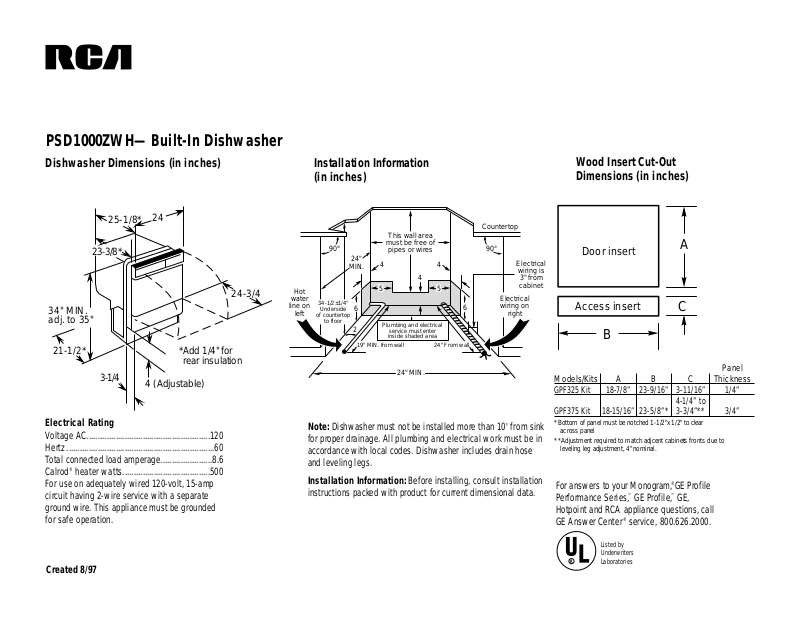

PSD1000ZWH—Built-In Dishwasher

Dishwasher Dimensions (in inches)

25-1/8*

23-3/8*

34" MIN.
adj. to 35"

21-1/2*

3-1/4

Electrical Rating

Voltage AC.......................................................120

Hertz..................................................................60

Total connected load amperage.......................8.6

Calrod®heater watts.......................................500

For use on adequately wired 120-volt, 15-amp
circuit having 2-wire service with a separate
ground wire. This appliance must be grounded
for safe operation.

24

*Add 1/4" for

*rear insulation

4 (Adjustable)

24-3/4

Installation Information
(in inches)

This wall area

must be free of

pipes or wires

44

4

55

Plumbing and electrical

service must enter

19" MIN. from wall

inside shaded area

24" MIN.

24" From wall

Hot

water

line on

left

90°

34-1/2±1/4"

Underside

of countertop

to floor

24"

MIN.

6

2

Note: Dishwasher must not be installed more than 10' from sink
for proper drainage. All plumbing and electrical work must be in
accordance with local codes. Dishwasher includes drain hose
and leveling legs.

Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.

Countertop

90°

6

Electrical

wiring is

3" from
cabinet

Electrical
wiring on

right

Wood Insert Cut-Out
Dimensions (in inches)

Door insert

Access insert

A

C

B

Panel

Models/Kits A B C Thickness

GPF325 Kit 18-7/8” 23-9/16” 3-11/16” 1/4”

4-1/4” to

GPF375 Kit 18-15/16” 23-5/8”* 3-3/4”** 3/4”

*Bottom of panel must be notched 1-1/2"x1/2" to clear

across panel

**Adjustment required to match adjcent cabinets fronts due to

leveling leg adjustment, 4" nominal.

For answers to your Monogram,®GE Profile
Performance Series,™GE Profile,™GE,
Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.

Created 8/97

Listed by

R

Underwriters
Laboratories

PSD1000ZWH—Built-In Dishwasher

HEATED
DRY

ON

OFF

Features and Benefits

• 2 Wash Levels

• 1 Cycle/2 Options

• Normal Wash (Dial)

ON

OFF

• Heated Dry On/Off (On Rocker)

• Standard Upper Rack

• Deluxe Flat Lower Rack

• Standard Silverware Basket

• Trimless Appearance

• Model PSD1000ZWH–White

Created 8/97
