PSCF5VGX

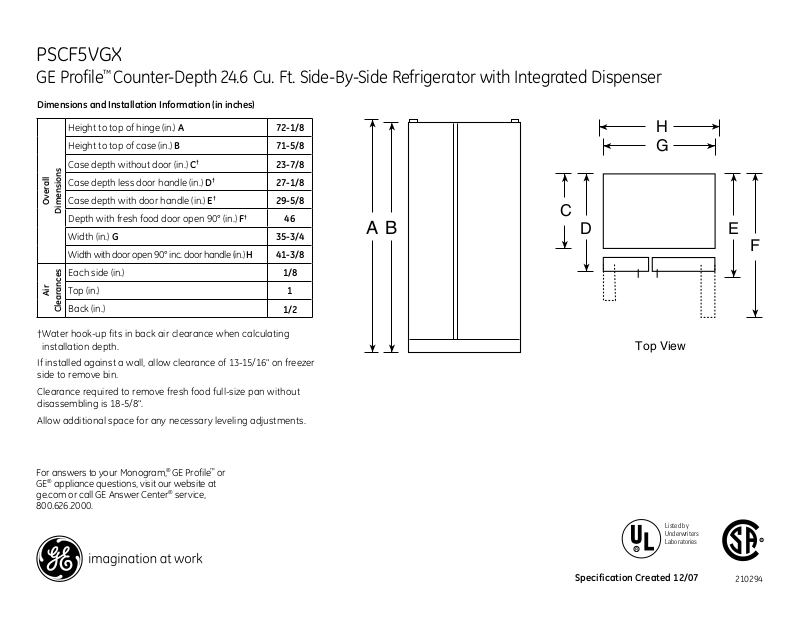

GE Profile™ Counter-Depth 24.6 Cu. Ft. Side-By-Side Refrigerator with Integrated Dispenser
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 72-1/8
Height to top of case (in.)
Case depth without door (in.)
Case depth less door handle (in.)
Case depth with door handle (in.)
Overall
Dimensions
Depth with fresh food door open 90° (in.)
Width (in.)
Width with door open 90° inc. door handle (in.)
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 13-15/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-5/8".
Allow additional space for any necessary leveling adjustments.
G 35-3/4
B 71-5/8
†
C
†
D
†
E
†
F
23-7/8
27-1/8
29-5/8
H 41-3/8
46
1/8
1
1/2
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 12/07
210294
Page 2
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70"*†
23 cu. ft. models
72-1/2"*
25 cu. ft. models
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
PSCF5VGX
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70"*†
23 cu. ft. models
72-1/2"*
25 cu. ft. models
GE Profile™ Counter-Depth 24.6 Cu. Ft. Side-By-Side Refrigerator with Integrated Dispenser
Rough-In Dimensions and Installation Information (in inches)
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
* The rough-in dimensions of 70" for 23 cu. ft. models and 72-
1/2" for 25 cu. ft. models are minimum and measured from the
finished floor to top of opening (or the underside of the overhead
cabinets). For Models with Trim Kit: If frameless style cabinets
are planned for above the refrigerator, you may need to consider
adding a maximum of 1/4" (70-1/4") to height of opening for 23
cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow for
additional clearance between the cabinet doors and the top of
refrigerator trim when the cabinet doors are in open position.
† Model PSDW3YGX is 71-3/4"
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Created 12/07
Listed by
Underwriters
Laboratories
210294
Page 3
Water
Crushed
Cubed
Light
Door Alarm
On
TurboCool
On
Replace Door
Filter
EXPRESSTHAW
PSCF5VGX
GE Profile™ Counter-Depth 24.6 Cu. Ft. Side-By-Side Refrigerator with Integrated Dispenser
Features and Benefits
• Counter-Depth Design - Offers a built-in look without the built-in expense
• High-Gloss Finish - Provides sleek elegance with a smooth surface
• ClimateKeeper
You Can Buy
• Integrated Dispenser with LED Lighting and PreciseFill - Illuminates the dispenser and pours water in
accurate increments
• CustomCool
• Slide 'n Store
loading and unloading
• Quick Ice
• TurboCool
• Integrated Ice
• Tilt-Out Freezer Door Bins - Move forward for convenient access
™
Temperature Management System - Best Temperature Management System
™
Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer
™
Full-Extension Freezer Baskets - Extends 12" to 16" beyond the cabinet, providing easy
™
Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
™
Setting - Cools the refrigerator quickly after frequent door openings
™
System - Frees up valuable freezer space; It tilts down, providing easy access to bulk ice
• Integrated Shelf Support System - Provides strong, yet flexible support
• Adjustable ClearLook
• In-the-Door Beverage Rack - Conveniently located inside the refrigerator door to increase flexibility
and to free up valuable shelf space
™
Door Bins - Hold gallon-size containers with style and ease
• Adjustable Slide-Out, Spillproof Glass Shelves - Raised edges help contain spills and slide-out shelves
make clean up quick and easy
• GE Water Filtration System - Delivers clean great-tasting water and ice through the
LightTouch! Dispenser
• Model PSCF5VGXBB - Black on black
• Model PSCF5VGXWW - White on white
