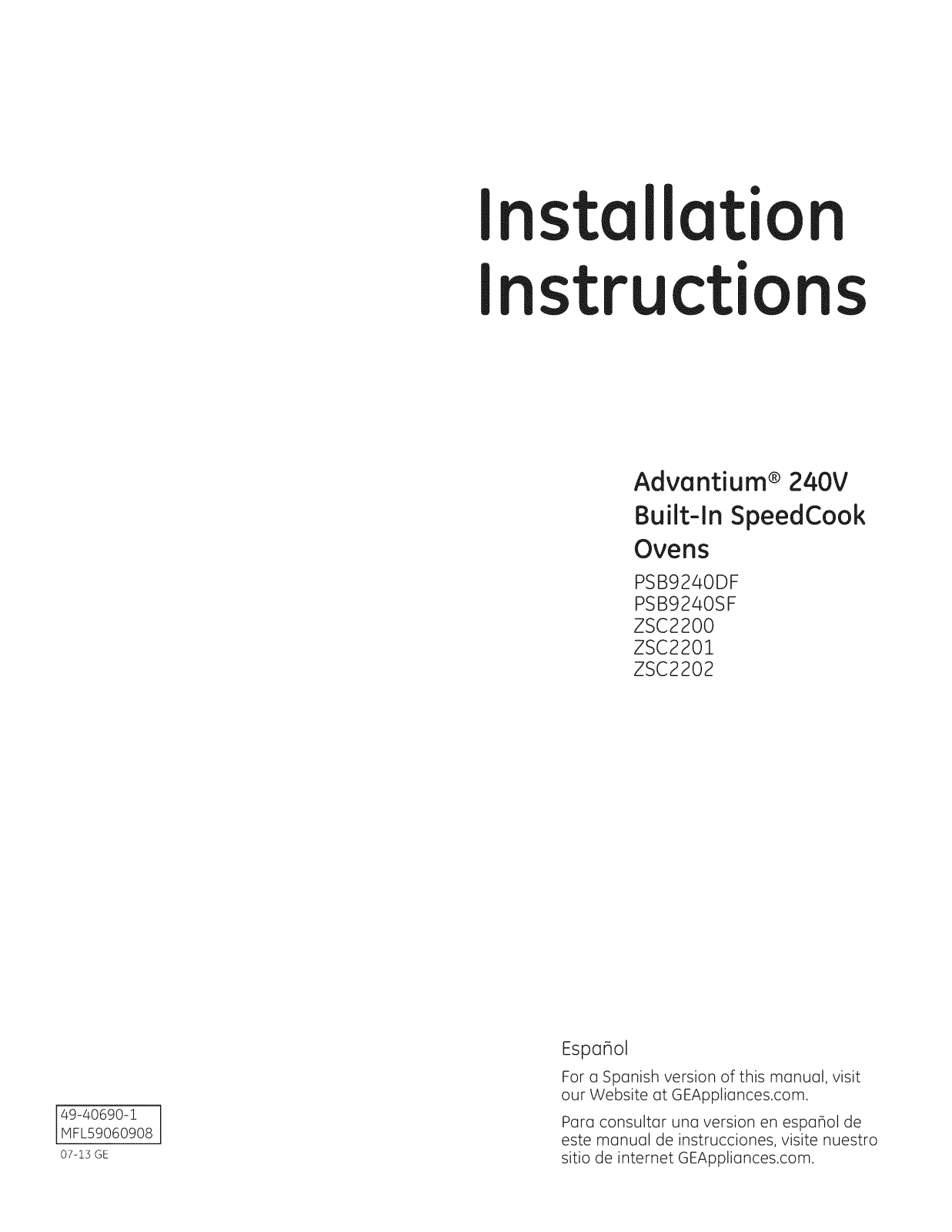

GE PSB9240DF1BB, PSB9240DF1WW, PSB9240SF1SS Installation Guide
Installation
I structi n
Advantium ®240V
Built-ln SpeedCook
Ovens
PSB9240DF
PSB9240SF
ZSC2200
ZSC2201
ZSC2202
49-40690-1
HFL59060908 i
07-13 GE
Espaflol
For a Spanish version of this manual, visit
our Website at GEAppliances.com.
Para consultar una version en espaflol de
este manual de instrucciones, visite nuestro
sitio de internet GEAppliances.com.

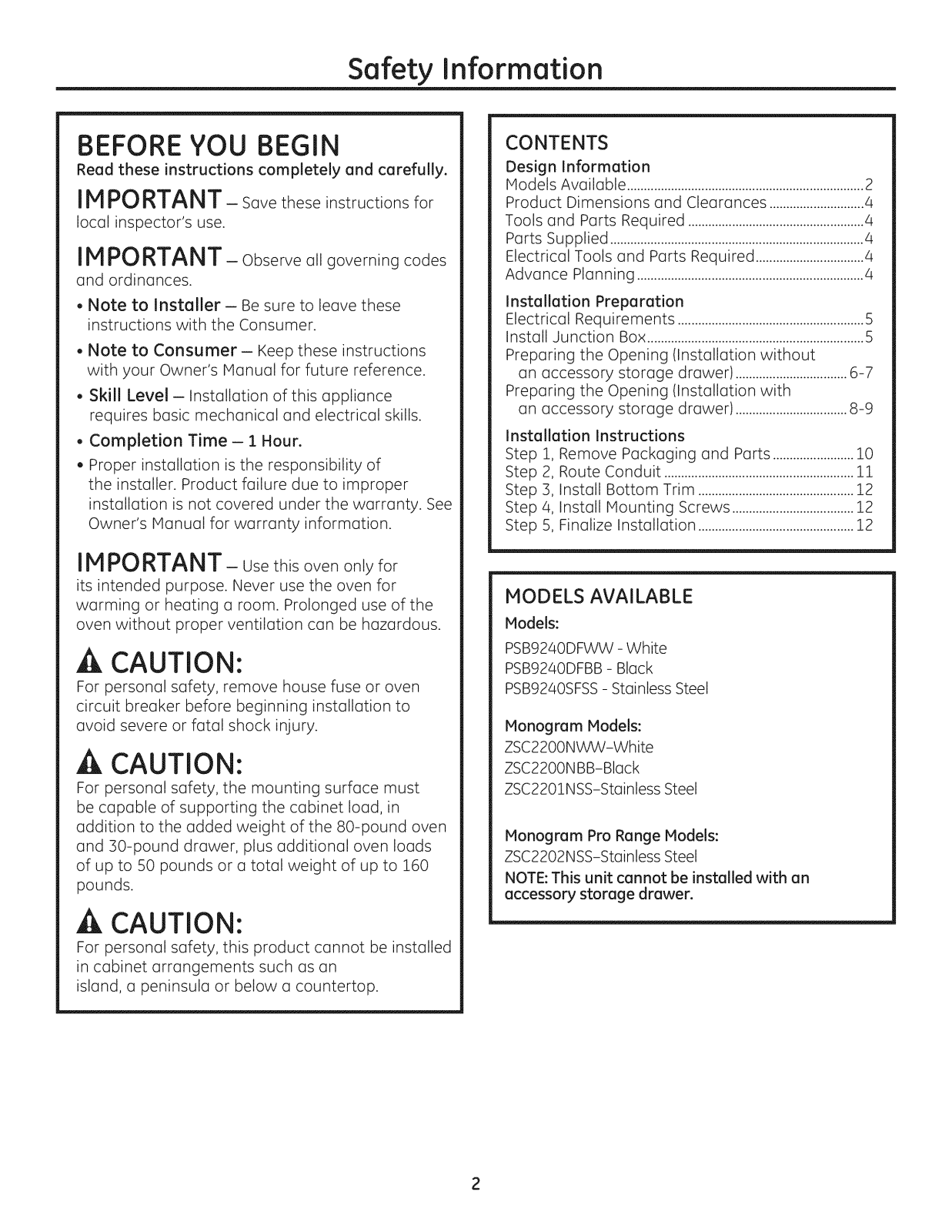

Safety Information
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT- Save these instructions for
local inspector's use.
IMPORTANT-Observeallgoverningcodes
and ordinances.
• Note to Installer - Be sure to leave these
instructions with the Consumer.
• Note to Consumer - Keep these instructions
with your Owner's Manual for future reference.
• Skill Level- Installation of this appliance
requires basic mechanical and electrical skills.
• Completion Time - 1 Hour.
• Proper installation is the responsibility of
the installer. Product failure due to improper
installation is not covered under the warranty. See
Owner's Manual for warranty information.
IMPORTANT-Use thisoven onlyfor
itsintendedpurpose.Never use the oven for
worming or heatingo room. Prolonged use ofthe
oven without properventilationcon be hazardous.
A CAUTION:
For personal safety, remove house fuse or oven
circuit breaker before beginning installation to
ovoid severe or fatal shock injury.
A CAUTION:
For personal safety, the mounting surface must
be capable of supporting the cabinet load, in
addition to the added weight of the 80-pound oven
and 30-pound drawer, plus additional oven loads
of up to 50 pounds or o total weight of up to 160
pounds.
CONTENTS
Design Information
Models Available ......................................................................2
Product Dimensions and Clearances ............................4
Tools and Ports Required ....................................................4
Ports Supplied ...........................................................................4
Electrical Tools and Ports Required ................................4
Advance Planning ...................................................................4
Installation Preparation
Electrical Requirements .......................................................5
Install Junction Box ................................................................5

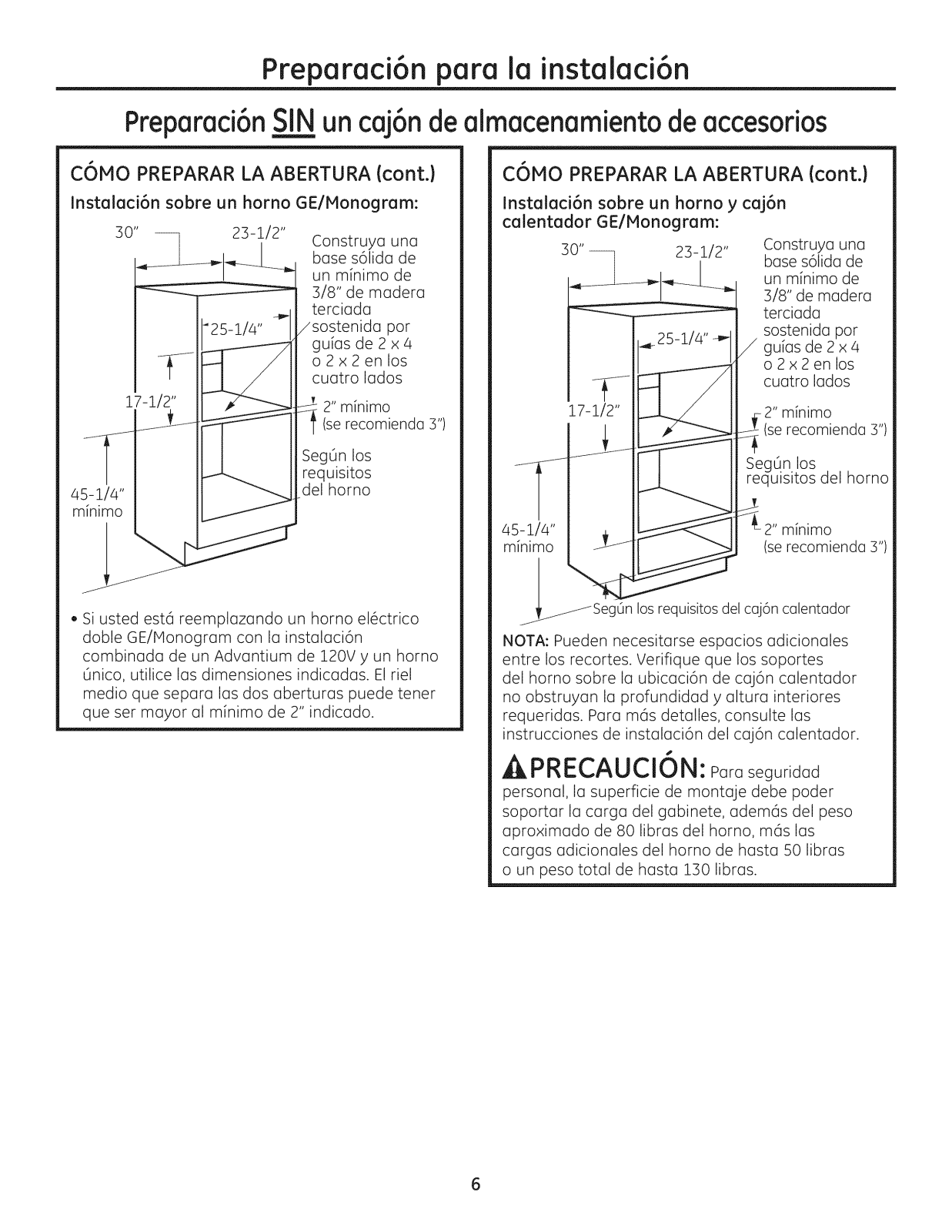

Preparing the Opening (installation without
on accessory storage drawer) .................................6-7

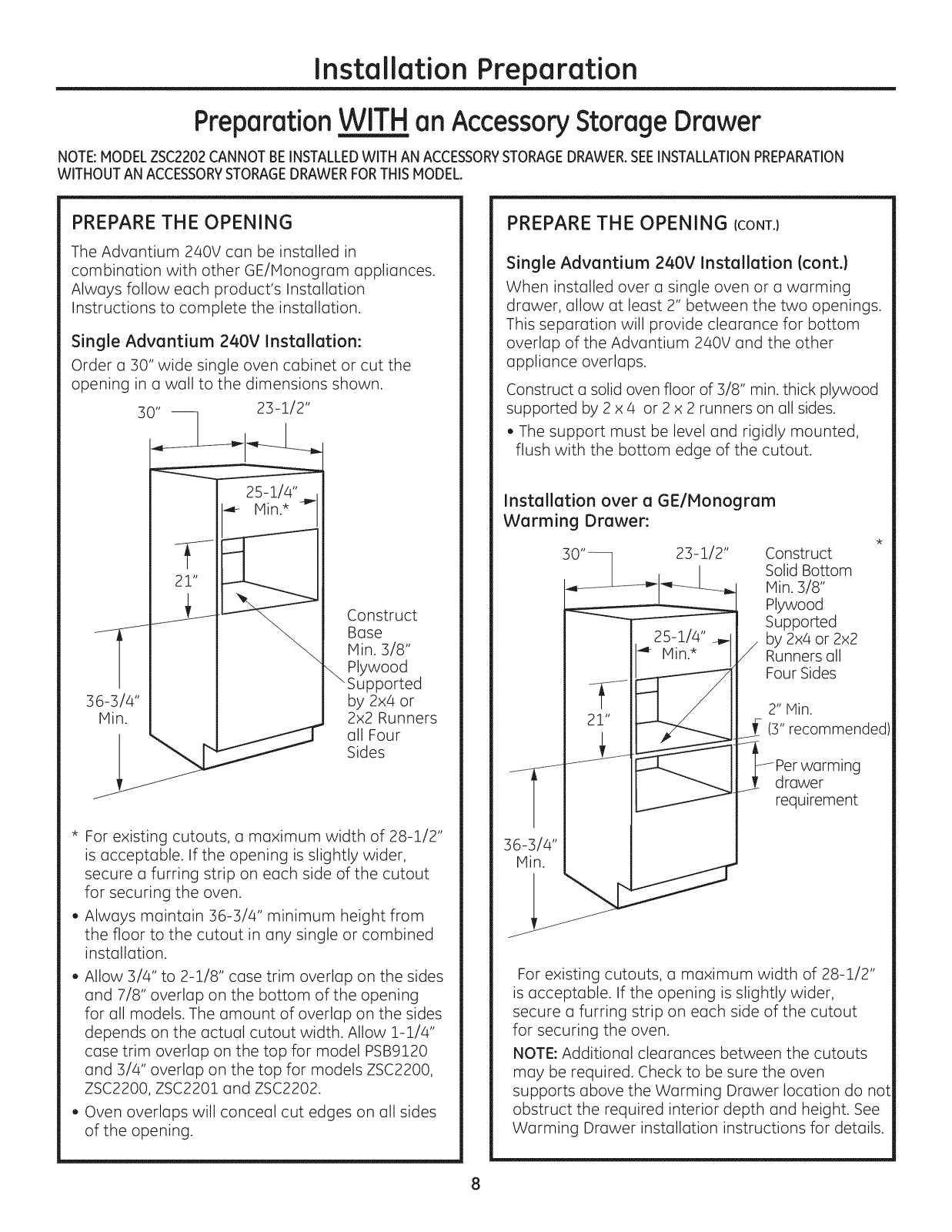

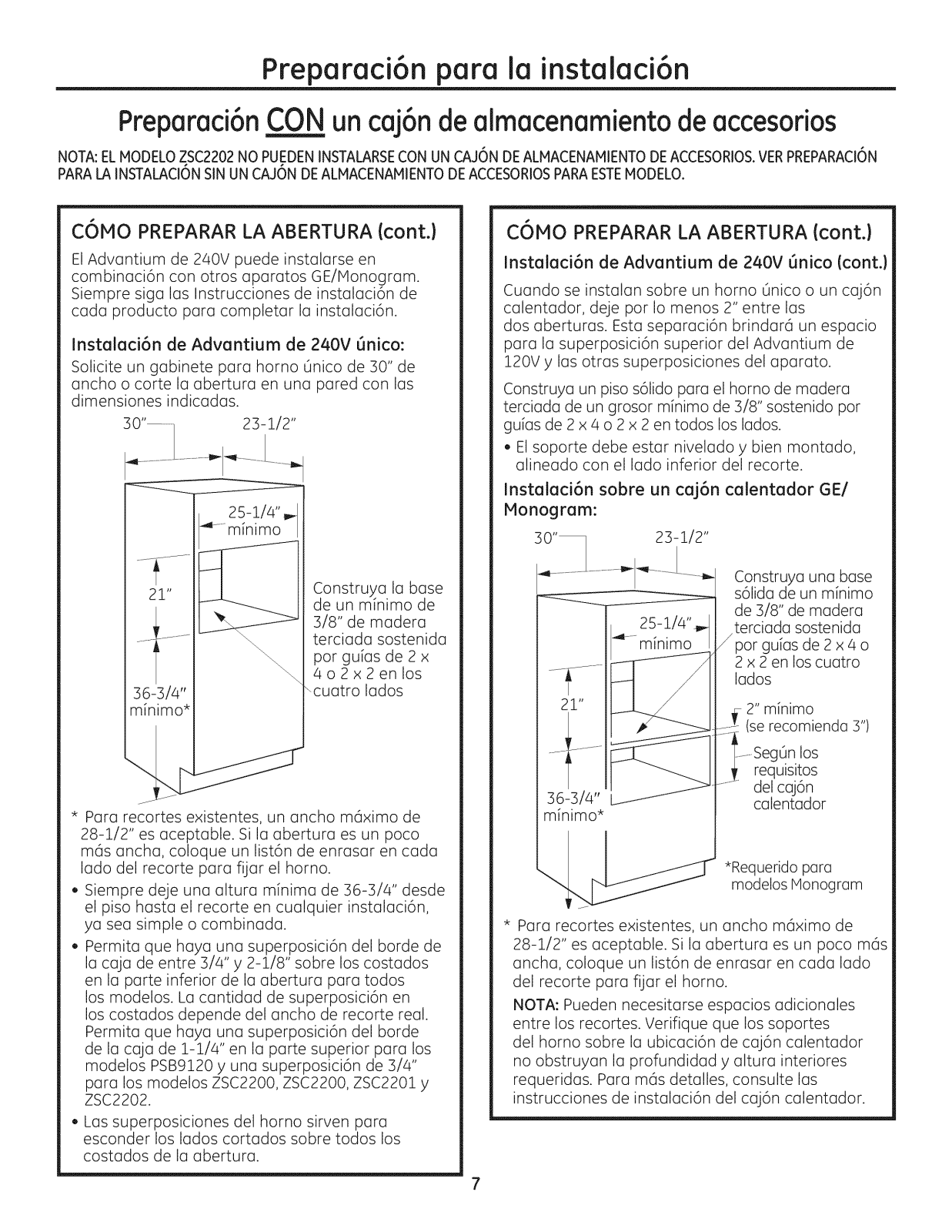

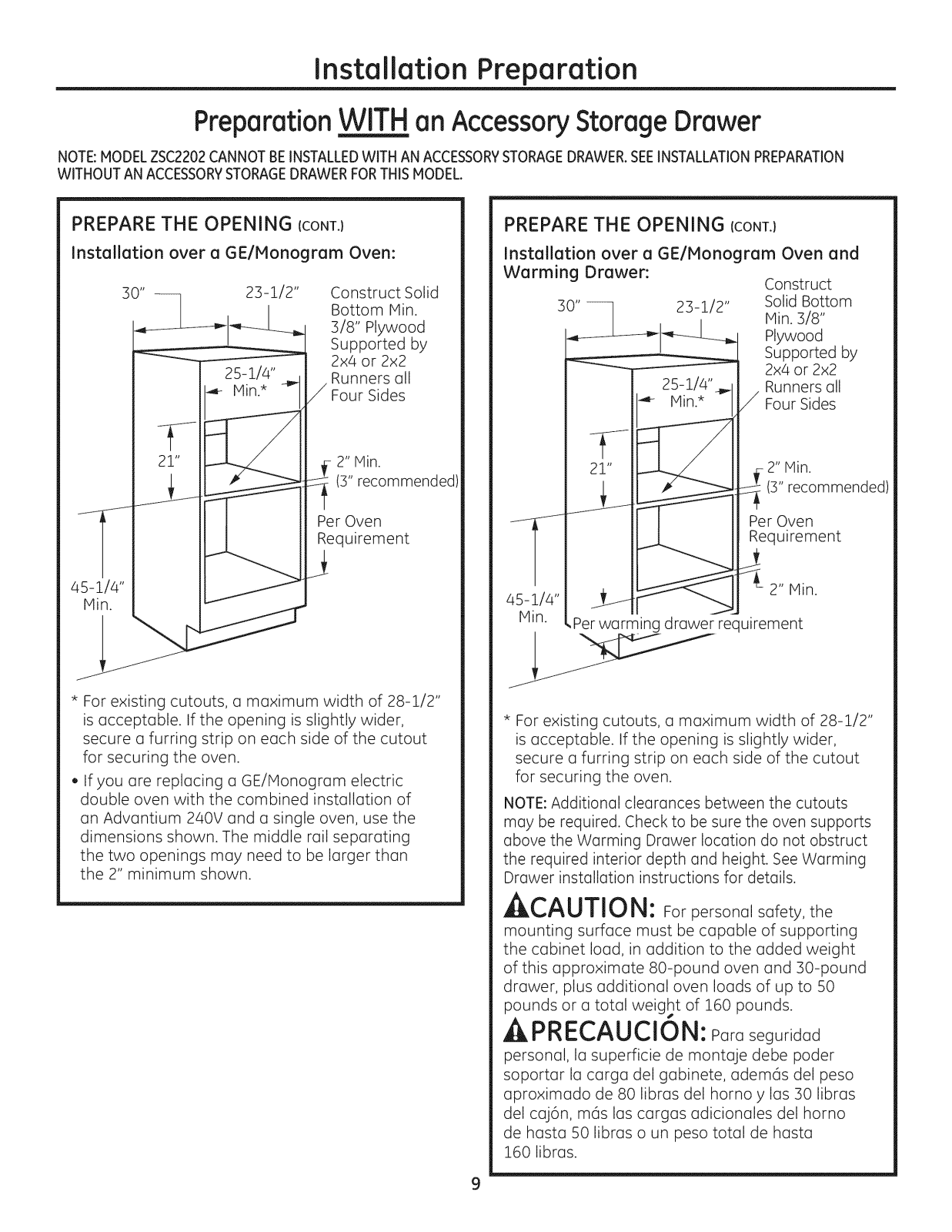

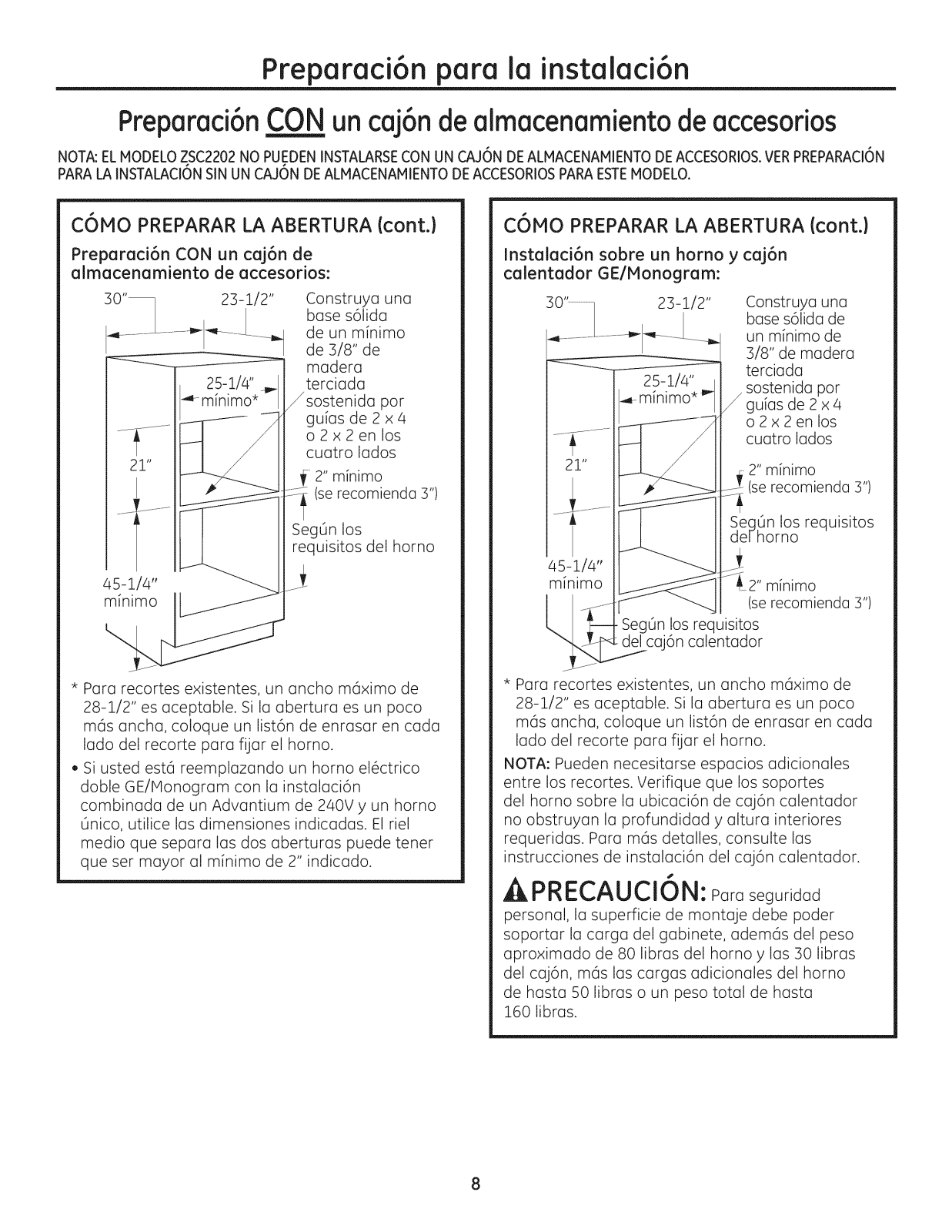

Preparing the Opening (installation with
an accessory storage drawer) .................................8-9
Installation Instructions

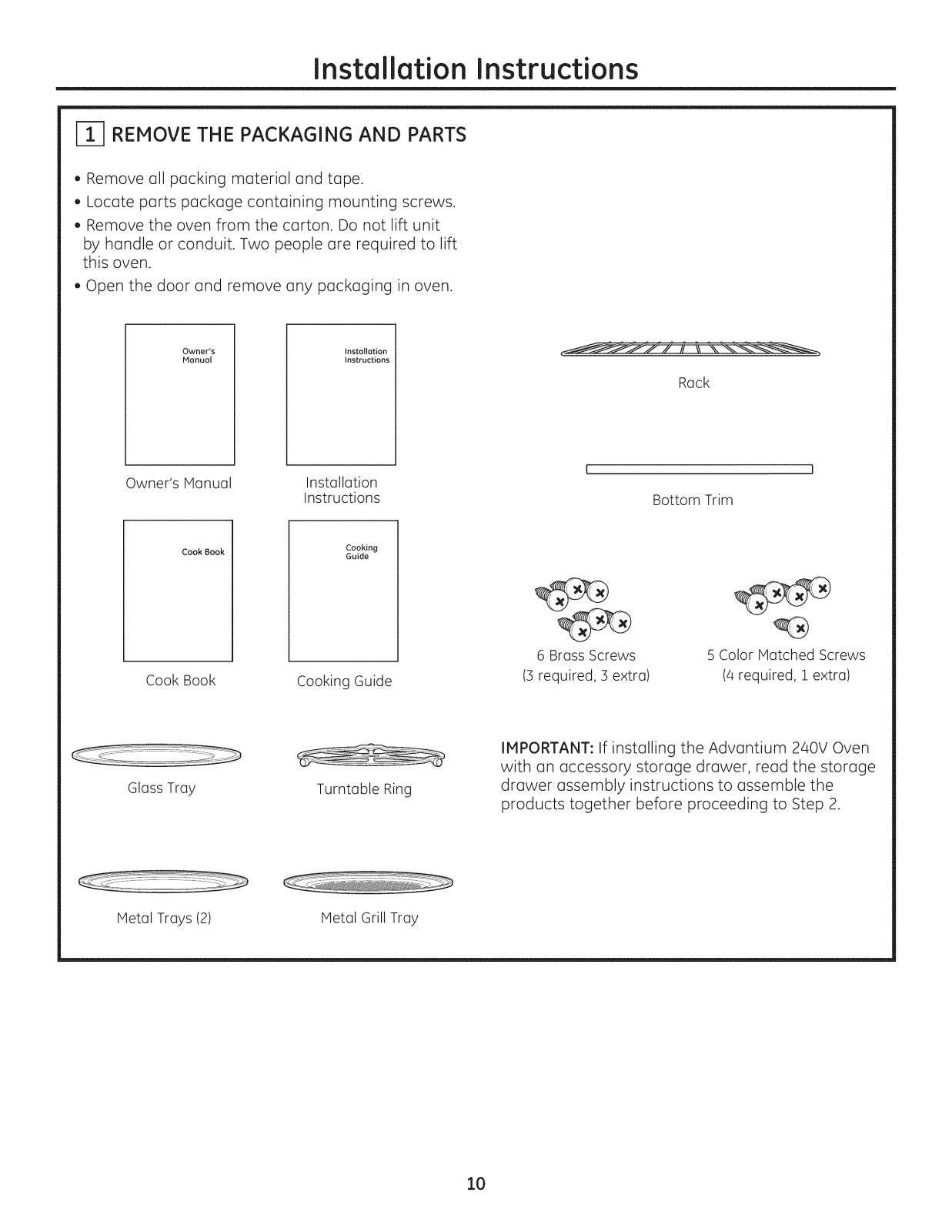

Step 1, Remove Packaging and Ports ........................10
Step 2, Route Conduit ........................................................11

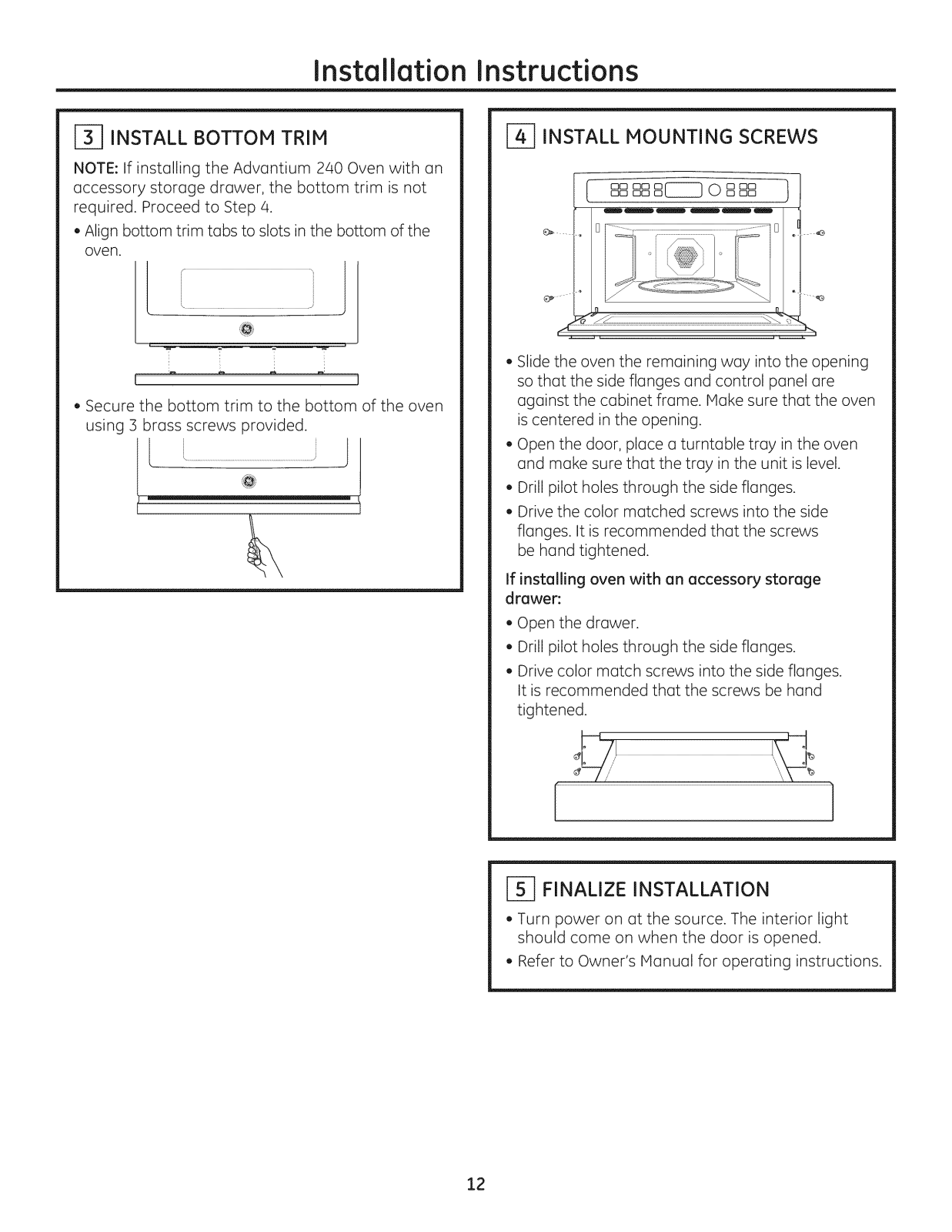

Step 3, Install Bottom Trim ..............................................12
Step 4, Install Mounting Screws ....................................12
Step 5, Finalize Installation ..............................................12
MODELS AVAILABLE
Models:
PSB9240DFWW - White
PSB9240DFBB - Block
PSB9240SFSS- Stainless Steel
Monogram Models:
ZSC2200NWW-White
ZSC2200N BB-Block
ZSC220ZNSS-Stoinless Steel
Monogram Pro Range Models:
ZSC2202NSS-Stoinless Steel
NOTE:This unit cannot be installed with on
accessory storage drawer,
A CAUTION:
For personal safety, this product cannot be installed
in cabinet arrangements such as on
island, a peninsula or below a countertop.

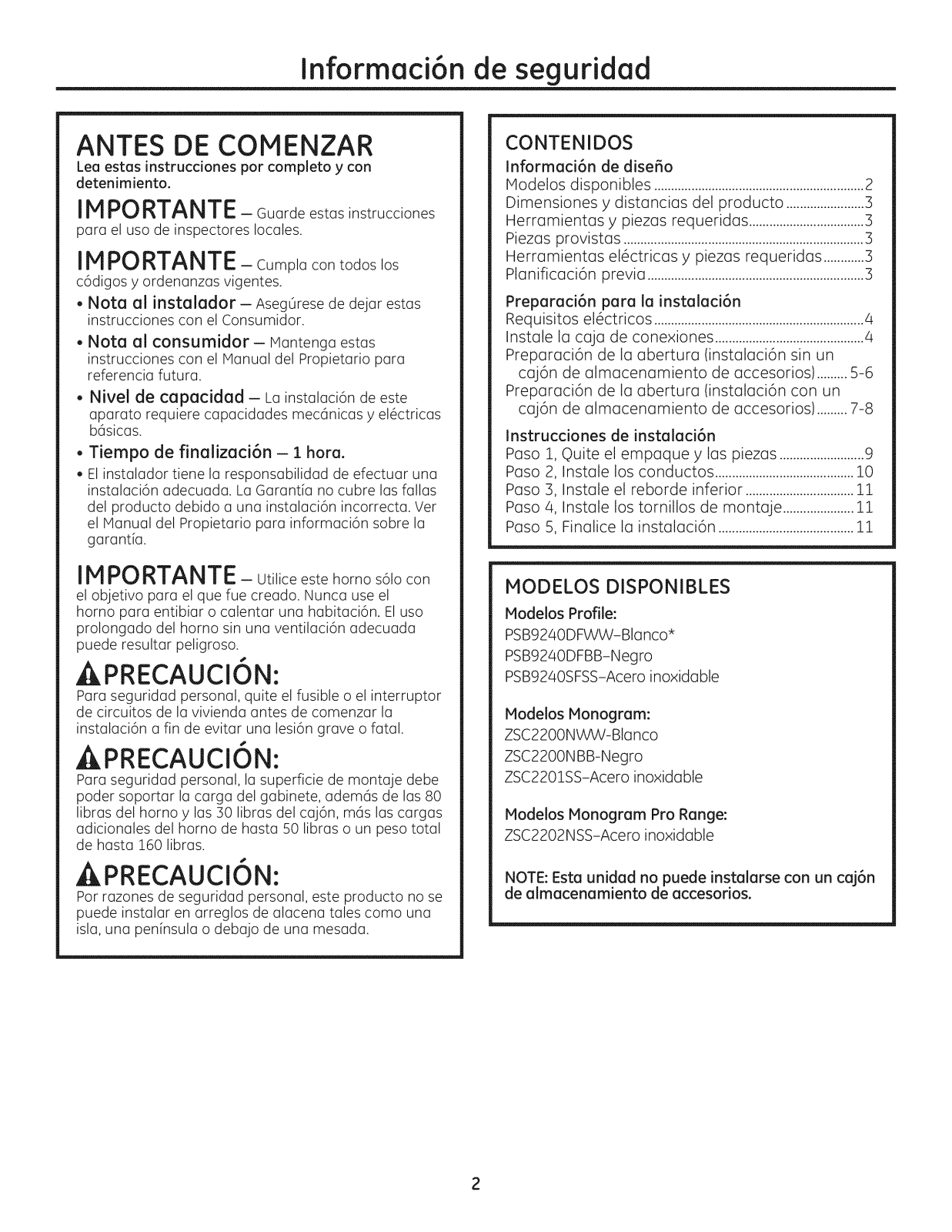

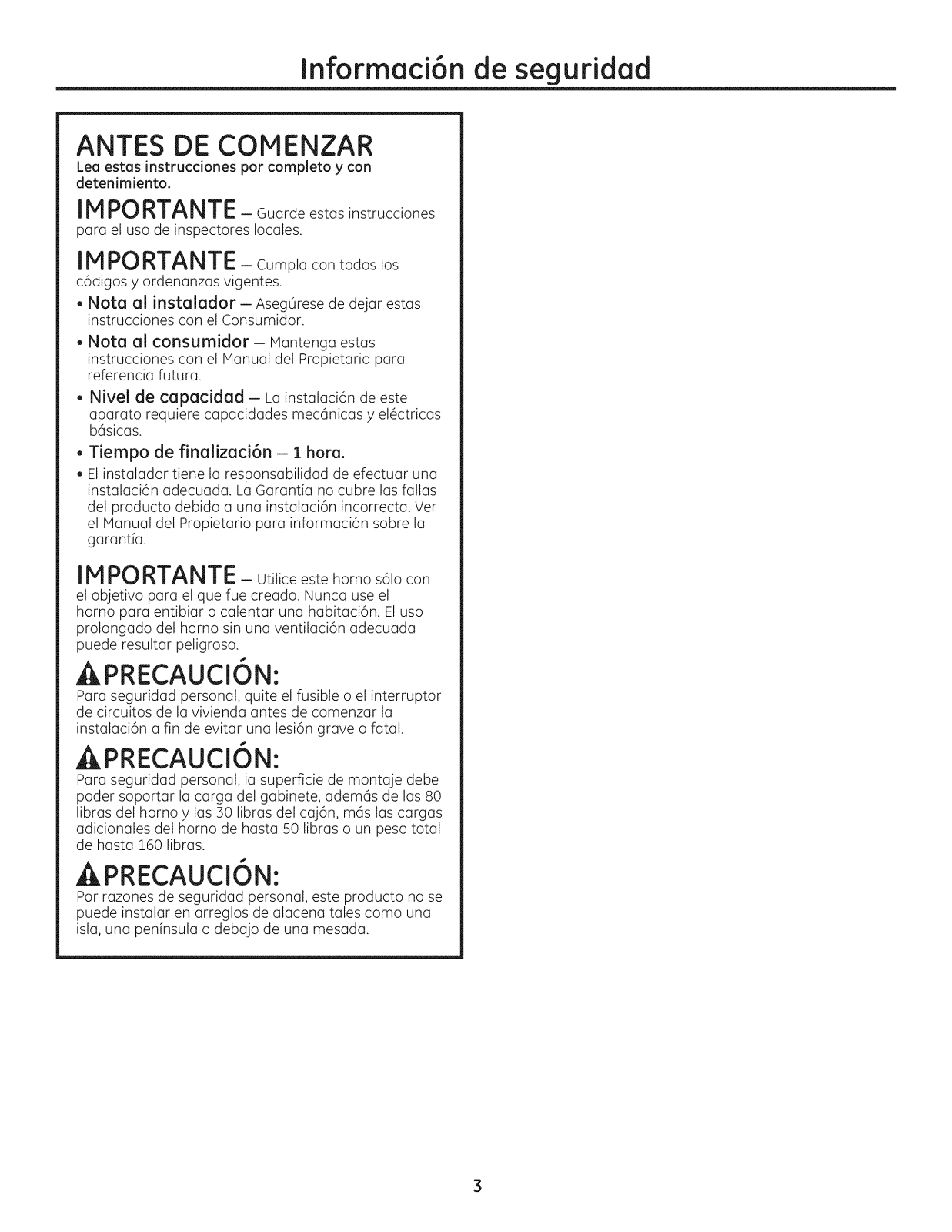

Informaci6n de seguridad
ANTES DE COMENZAR
Lea estas instrucdones par completo y con
detenimiento.
IMPORTANTE - Guardeestasinstrucciones
para el usa de inspectores locales.
IMPORTANTE -Cumplacontodoslos
c6digos y ordenanzas vigentes.
• Nota al instalador- AsegGrese de dejar estas
instrucciones con el Consumidor.
• Nota al consumidor- Mantenga estas
instrucciones con el Manual del Propietario para
referencia futura.
• Nivel de capacidad - La instalaci6n de este
aparato requiere capacidades mecanicas y el6ctricas
b5sicas.
• Tiempo de finalizaci6n - 1 hare.
• Elinstalador tiene la responsabilidad de efectuar una
instalaci6n adecuada. La Garant[a no cubre las fallas
del producto debido a una instalaci6n incorrecta. Vet
el Manual del Propietario para informaci6n sabre la
garant[a.
IMPORTANTE - Utiliceestehornos61ocon
elobjetivoparaelque fuecreado.Nunca useel
homo paraentibiaro calentaruna habitaci6n.Elusa
prolongadodelhornosinunaventilaci6nadecuada
puede resultarpeligroso.
APRECAUCI6N:
Paraseguridad personal, quite el fusible o el interruptor
de circuitos de la vivienda antes de comenzar la
instalaci6n a fin de evitar una lesi6n grave o fatal.
APRECAUCION:
Para seguridad personal, la superficie de montaje debe
poder soportar la carga del gabinete, adem_s de las 80
libras del horno y las 30 libras del caj6n, mc_slas cargas
adicionales del homo de hasta 50 libras o un peso total
de hasta 160 libras.
APRECAUCI6N:
Par razones de seguridad personal, este producto no se
puede instalar en arreglos de alacena tales coma una
isla, una peninsula o debajo de una mesada.
3

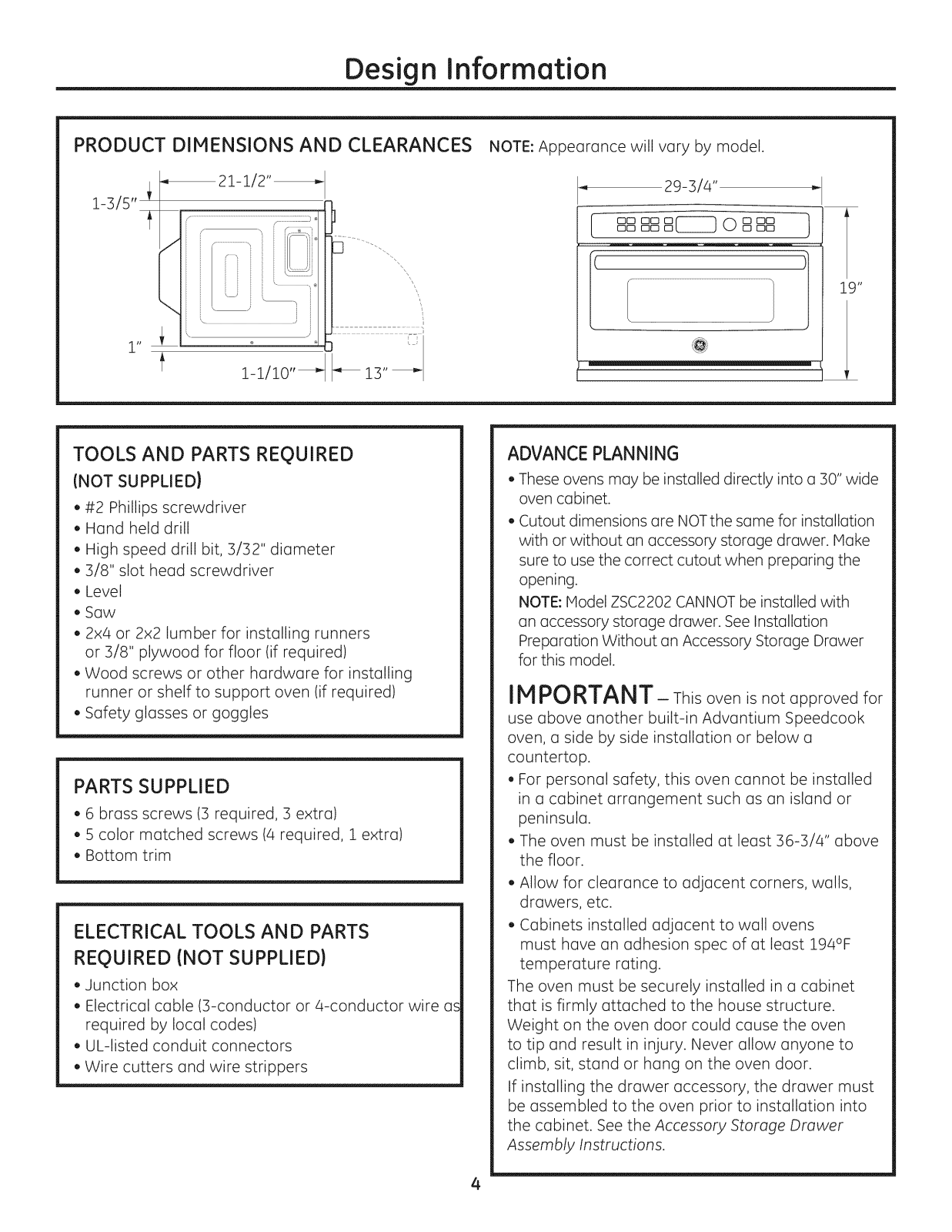

Design Information
PRODUCT DIMENSIONS AND CLEAR
z-s/s"
21-1/2"_
.........................................................................I[IZZI: _1
_a
ANCES
TOOLS AND PARTS REQUIRED
(NOT SUPPLIED)
• #2 Phillips screwdriver
• Hand held drill
High speed drill bit, 3/32" diameter
3/8" slot head screwdriver
Level
• Saw
2x4 or 2x2 lumber for installing runners
or 3/8" plywood for floor (if required)
Wood screws or other hardware for installing
runner or shelf to support oven (if required)
Safety glasses or goggles
PARTS SUPPLIED
• 6 brass screws (3 required, 3 extra)
• 5 color matched screws (4 required, 1 extra)
• Bottom trim
ELECTRICAL TOOLS AND PARTS
REQUIRED (NOT SUPPLIED)
• Junction box
Electrical cable (3-conductor or 4-conductor wire as
required by local codes)
UL-listed conduit connectors
Wire cutters and wire strippers
NOTE: Appearance will vary by model.
-,, 29-3/4" -
[ oooosc0ooo}oooo oo
19"
ADVANCE PLANNING
• These ovens may be installed directly into a 30" wide
oven cabinet.
Cutout dimensions are NOTthe same for installation
with or without an accessory storage drawer. Make
sure to use the correct cutout when preparing the
opening.
NOTE: Model ZSC2202 CANNOT be installed with
an accessory storage drawer. See Installation
Preparation Without an Accessory Storage Drawer
for this model.
IMPORTANT- Thisoven isnot approved for
use above another built-inAdvantium Speedcook
oven,a sideby sideinstallationorbelow a
countertop.
• Forpersonalsafety,thisoven cannot be installed
ina cabinetarrangement such as an islandor
peninsula.
• The oven must be installedatleast36-3/4"above
the floor.
Allow for clearance to adjacent corners, walls,
drawers, etc.
Cabinets installed adjacent to wall ovens
must hove on adhesion spec of at least 194°F
temperature rating.
The oven must be securely installed in a cabinet
that is firmly attached to the house structure.
Weight on the oven door could cause the oven
to tip and result in injury. Never allow anyone to
climb, sit, stand or hang on the oven door.
If installing the drawer accessory, the drawer must
be assembled to the oven prior to installation into
the cabinet. See the Accessory Storage Drawer
Assembly Instructions.
4
Installation Preparation

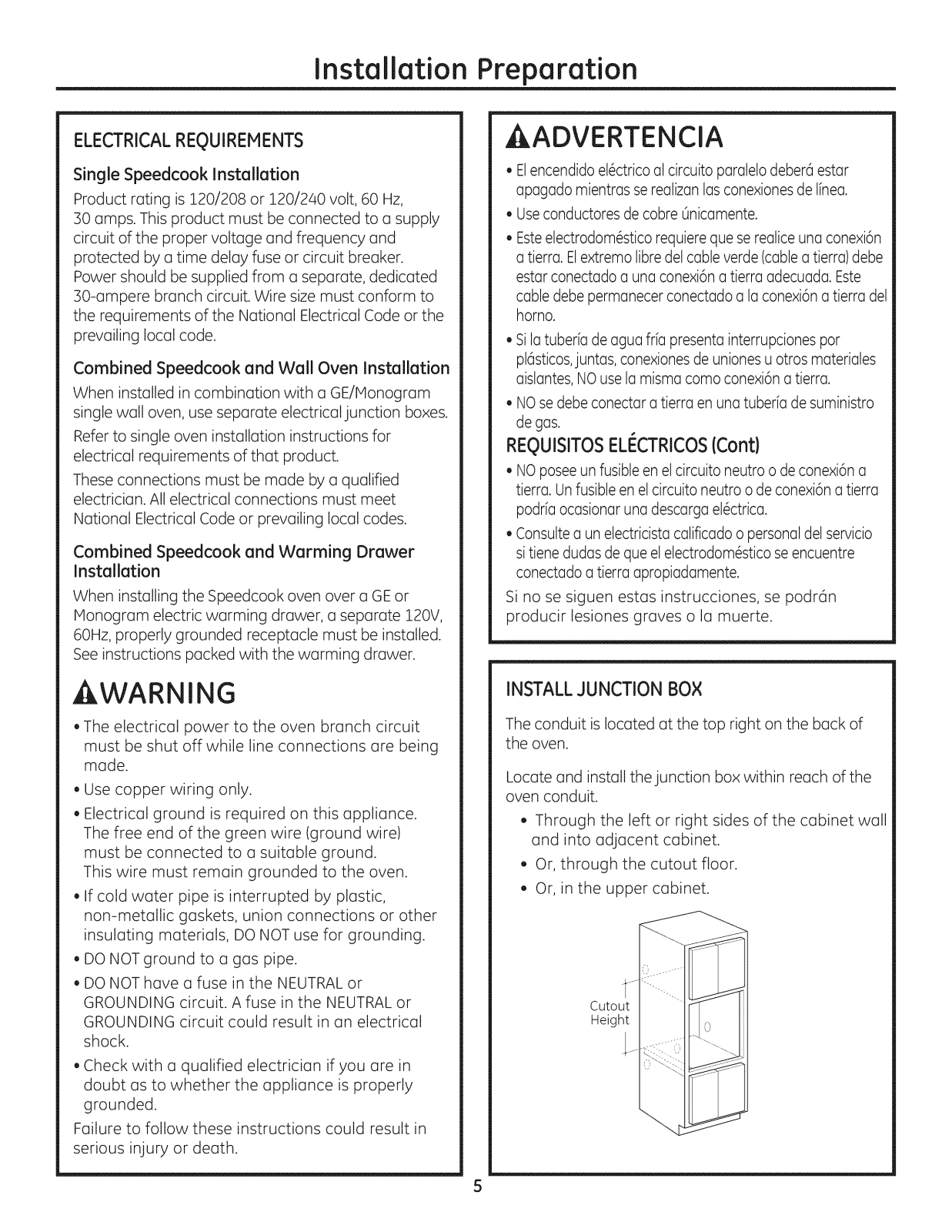

ELECTRICAL REQUIREMENTS
Single Speedcook Installation
Product rating is 120/208 or 120/240 volt, 60 Hz,
30 amps. This product must be connected to a supply
circuit of the proper voltage and frequency and
protected by a time delay fuse or circuit breaker.
Power should be supplied from a separate, dedicated
30-ampere branch circuit. Wire size must conform to
the requirements of the National Electrical Code or the
prevailing local code.
Combined Speedcook and Wall Oven Installation
When installed in combination with a GE/Honogram
single wall oven, use separate electrical junction boxes.
Refer to single oven installation instructions for
electrical requirements of that product.
These connections must be made by a qualified
electrician. All electrical connections must meet
National Electrical Code or prevailing local codes.
Combined Speedcook and Warming Drawer
Installation
When installing the Speedcook oven over a GE or
Monogram electric warming drawer, a separate 120V,
60Hz, properly grounded receptacle must be installed.
See instructions packed with the warming drawer.

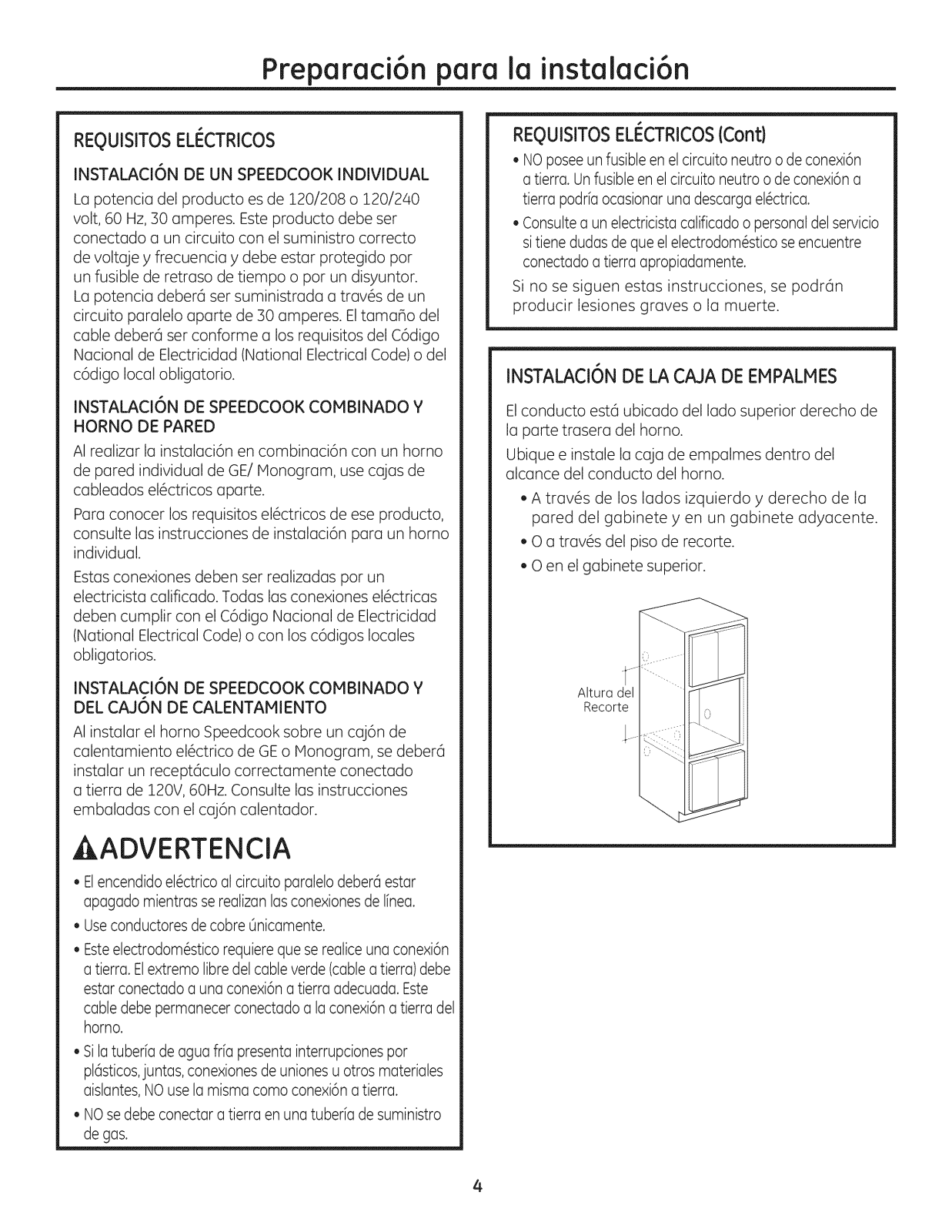

AADVERTENCIA
Elencendido el@ctricoal circuito paralelo deber(i estar
apagado mientras se realizanlasconexionesde Ifnea.
• Useconductores de cobre 0nicamente.
• Esteelectrodom@sticorequiereque se realice una conexi6n
a tierra. Elextremo libredel cable verde (cablea tierra)debe
estar conectado a una conexi6n a tierra adecuada. Este
cable debe permanecer conectado a la conexi6n a tierra del
homo.
• Sila tuberfa de agua frfa presentainterrupciones por
pkisticos,juntas, conexiones de uniones u otros materiales
aislantes,NOusela misma como conexi6n a tierra.
o NO sedebe conectar a tierra en una tuberfa de suministro
de gas.
REQUISITOSELI_CTRICOS(Cant)
NOposeeun fusible en elcircuito neutro o de conexi6n a
tierra. Un fusible en el circuito neutro o de conexi6n a tierra
podrfa ocasionar una descarga el_ctrica.
• Consultea un electricistacalificado o personal del servicio
sitiene dudas de que el electrodom_stico seencuentre
conectado a tierra apropiadamente.
Si no se siguen estas instrucciones, se podr6n
producir lesiones graves o la muerte.
,&WARNING
• The electrical power to the oven branch circuit
must be shut off while line connections are being
made.
• Use copper wiring only.
• Electrical ground is required on this appliance.
The free end of the green wire (ground wire)
must be connected to a suitable ground.
This wire must remain grounded to the oven.
If cold water pipe is interrupted by plastic,
non-metallic gaskets, union connections or other
insulating materials, DO NOT use for grounding.
• DO NOT ground to a gas pipe.
• DO NOT have a fuse in the NEUTRAL or
GROUNDING circuit. A fuse in the NEUTRAL or
GROUNDING circuit could result in an electrical
shock.
Check with a qualified electrician if you are in
doubt as to whether the appliance is properly
grounded.
Failure to follow these instructions could result in
serious injury or death.
INSTALLJUNCTION BOX
The conduit is located at the top right on the back of
the oven.
Locate and install the junction box within reach of the
oven conduit.
Through the left or right sides of the cabinet wall
and into adjacent cabinet.
Or, through the cutout floor.
Or, in the upper cabinet.
5

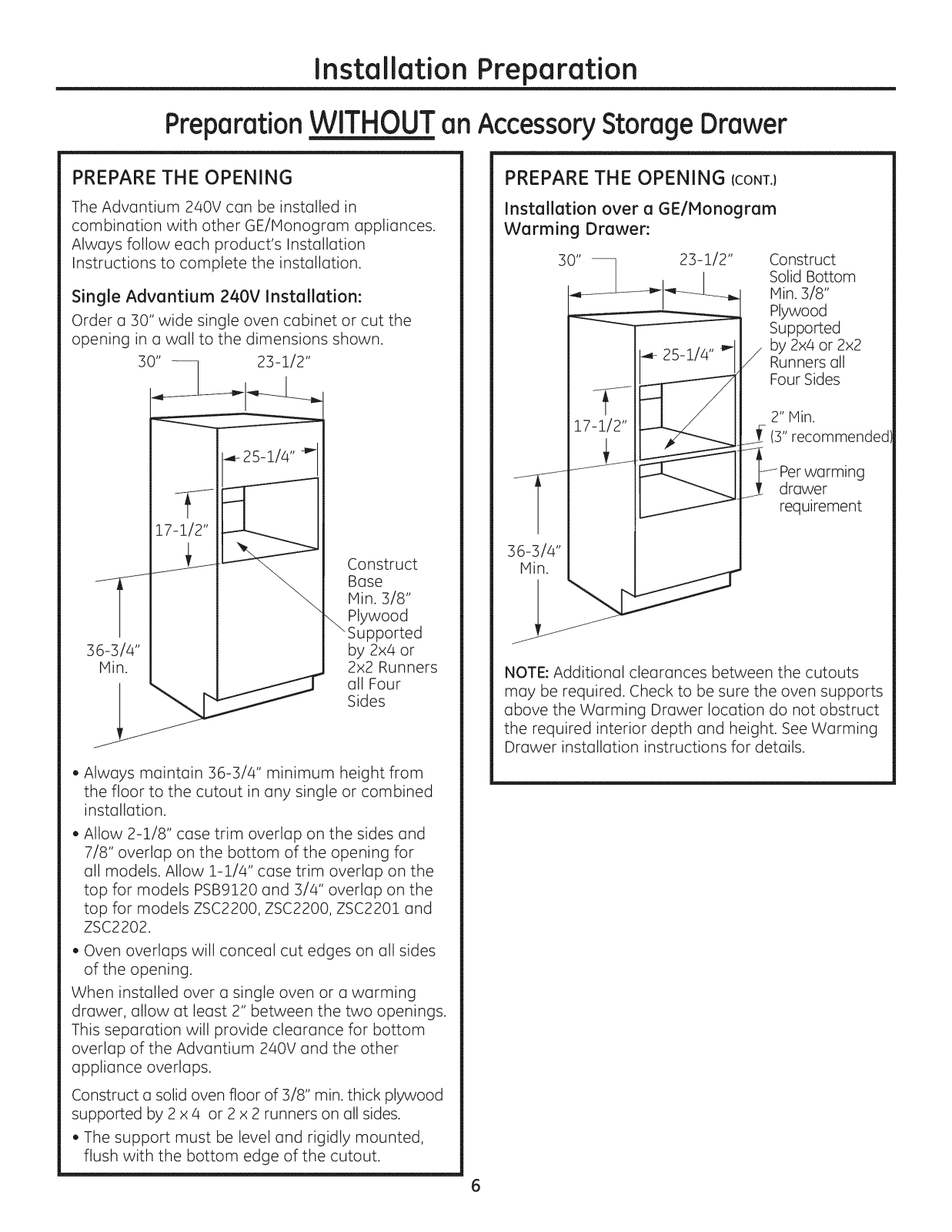

Installation Preparation
PreparationWITHOUTanAccessoryStorage
PREPARE THE OPENING
The Advantium 240V can be installed in
combination with other GE/Monogram appliances.
Always follow each product's Installation
Instructions to complete the installation.
Single Advantium 240V Installation:
Order o 50" wide single oven cabinet or cut the
opening in o wall to the dimensions shown.
30" 23-1/2"
4- 25-1/4" -_
17-1/2"
W
36-314"
Min.
Construct
Bose
Min. 3/8"
Plywood
Supported
by 2x4 or
2x2 Runners
oil Four
Sides
Drawer
PREPARE THE OPENING {CONT.}
Installation over a GE/Honogram
Warming Drawer:
30"
25-1/4"
17-1/2"
36-314"
Min.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer locution do not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.
Construct
Solid Bottom
Min. 3/8"
Plywood
Supported
by 2x4 or 2x2
Runners all
Four Sides
2" Min.
(3"recommended
_rworming
drawer
requirement
• Always maintain 36-3/4" minimum height from
the floor to the cutout in any single or combined
installation.
,, Allow 2-1/8" case trim overlap on the sides and
7/8" overlap on the bottom of the opening for
oil models. Allow 1-1/4" case trim overlap on the
top for models PSB9120 and 3/4" overlap on the
top for models ZSC2200, ZSC2200, ZSC2201 and
ZSC2202.
,, Oven overlaps will conceal cut edges on all sides
of the opening.
When installed over o single oven or o worming
drawer, allow at least 2" between the two openings.
This separation will provide clearance for bottom
overlap of the Advuntium 240V and the other
appliance overlaps.
Construct o solid oven floor of 3/8" min. thick plywood
supported by 2 x 4 or 2 x 2 runners on all sides.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
Installation Preparation
PreparationWITHOUTanAccessoryStorage
PREPARE THE OPENING (CONT.)
Installation over a GE/Monogram Oven:
30" 23-1/2" Construct Solid
Bottom Min.
3/8" Plywood
Supported by
2x4 or 2x2
Runners all
/ Four Sides
(3"recommended)
2" Min.
Per Oven
Requirement
Drawer
PREPARE THE OPENING (CONT.)
Installation over a GE/Monogram Oven and
Warming Drawer:
Construct
30" -- 23-1/2"
Solid Bottom
Hin. 3/8"
Plywood
Supported by
2x4 or 2x2
Runners all
Four Sides
Min.
(3" recommended)
Per Oven
Requirement
2" Hin.
• If you are replacing u GE/tVlonogrum electric
double oven with the combined installation of
on Advontium 240V and u single oven, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than
the 2" minimum shown.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Worming Drawer location do
not obstruct the required interior depth and height.
See Warming Drawer installation instructions for
details.
A CAUTION: Forpersonal safety, the
mounting surface must be capable of supporting
the cabinet load, in addition to the added weight
of this approximate 80-pound oven, plus additional
oven loads of up to 50 pounds or o total weight
of 130 pounds.
APRECAUCI6N: Poroseguridod
personal, Io superficie de montoje debe poder
soportor Io cargo del gabinete, ademc_s del peso
aproximodo de 80 libros del homo, mc_s los
cargos odicionales del homo de hasto 50 libros
o un peso total de hosta 130 libros.
Installation Preparation
Preparation WITH an Accessory Storage Drawer
NOTE:MODELZSC2202CANNOTBEINSTALLEDWITH ANACCESSORYSTORAGEDRAWER.SEEINSTALLATIONPREPARATION
WITHOUTAN ACCESSORYSTORAGEDRAWERFORTHISMODEL.
PREPARE THE OPENING
The Advantium 240V can be installed in
combination with other GE/Monogram appliances.
Always follow each product's Installation
Instructions to complete the installation.
Single Advantium 240V Installation:
Order o 30" wide single oven cabinet or cut the
opening in o wall to the dimensions shown.
30" 23-1/2"
25-1/4"
1/
21"
Construct
Bose
Min. 3/8"
T
36-3/4"
Min.
Plywood
Supported
by 2x4 or
2x2 Runners
oil Four
Sides
PREPARE THE OPENING (CONT.}
Single Advantium 240V Installation {cont.)
When installed over o single oven or o worming
drawer, allow at least 2" between the two openings.
This separation will provide clearance for bottom
overlap of the Advuntium 240V and the other
appliance overlaps.
Construct u solid oven floor of 3/8" min. thick plywood
supported by 2 x 4 or 2 x 2 runners on all sides.
The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
Installation over a GE/Monogram
Warming Drawer:
23-1/2" Construct
Solid Bottom
Min. 3/8"
Plywood
Supported
by 2x4 or 2x2
Runners all
Four Sides
2" Min.
(3"recommended
_g
drower
requirement
* For existing cutouts, o maximum width of 28-1/2"
is acceptable. If the opening is slightly wider,
secure u furring strip on each side of the cutout
for securing the oven.
. Always maintain 36-3/4" minimum height from
the floor to the cutout in any single or combined
installation.
• Allow 3/4" to 2-1/8" cose trim overlap on the sides
and 7/8" overlap on the bottom of the opening
for all models. The amount of overlap on the sides
depends on the actual cutout width. Allow 1-1/4"
case trim overlap on the top for model PSB9120
and 3/4" overlap on the top for models ZSC2200,
ZSC2200, ZSC2202 and ZSC2202.
• Oven overlaps will conceal cut edges on all sides
of the opening.
For existing cutouts, o maximum width of 28-1/2"
is acceptable. If the opening is slightly wider,
secure u furring strip on each side of the cutout
for securing the oven.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer locution do no
obstruct the required interior depth and height. See
Warming Drawer installation instructions for details.
Installation Preparation
Preparation WIT_______HHan Accessory Storage Drawer
NOTE:MODELZSC2202CANNOTBEINSTALLEDWITH ANACCESSORYSTORAGEDRAWER.SEEINSTALLATIONPREPARATION
WITHOUTAN ACCESSORYSTORAGEDRAWERFORTHISMODEL.
PREPARE THE OPENING CCONT.I
Installation over a GE/Monogram Oven:
30" -- 23-1/2"
Construct Solid
Bottom Hin.
3/8" Plywood
Supported by
2x4 or 2x2
Runners all
Four Sides
2" Min.
(3" recommended
Per Oven
Requirement
PREPARE THE OPENING CCONT.I
Installation over a GE/Monogram Oven and
Warming Drawer:
30" -- 23-1/2" Solid Bottom
,Per warming drawer requirement
Construct
Hin. 3/8"
Plywood
Supported by
2x4 or 2x2
Runners all
Four Sides
2" Min.
(3" recommended)
Per Oven
Requirement
2" Hin.
* For existing cutouts, a maximum width of 28-1/2"
is acceptable. If the opening is slightly wider,
secure a furring strip on each side of the cutout
for securing the oven.
, If you are replacing a GE/Honogram electric
double oven with the combined installation of
an Advantium 240V and a single oven, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than
the 2" minimum shown.
* For existing cutouts, a maximum width of 28-1/2"
is acceptable. If the opening is slightly wider,
secure a furring strip on each side of the cutout
for securing the oven.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location do not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.
CAUTION: Forpersonalsafety,the
mounting surface must be capable of supporting
the cabinet load, in addition to the added weight
of this approximate 80-pound oven and 30-pound
drawer, plus additional oven loads of up to 50
pounds or a total weight of 160 pounds.
APRECAUCION: Paraseguridad
personal, la superficie de montaje debe poder
soportar la carga del gabinete, ademds del peso
aproximado de 80 libras del homoy las B0 libras
del caj6n, mc_slas cargas adicionales del homo
de basra 50 libras o un peso total de basra
160 libras.
9
Installation Instructions
REMOVE THE PACKAGING AND PARTS
• Remove oil packing material and tope.
Locate parts package containing mounting screws.
• Remove the oven from the carton. Do not lift unit
by handle or conduit. Two people are required to lift
this oven.
• Open the door and remove any packaging in oven.
Owner's
Manual
Owner's Manual
Cook Book
Installotion
Instructions
Installation
Instructions
Cooking
Guide
Cook Book Cooking Guide
Gloss Troy Turntable Ring
Rack
[ I
Bottom Trim
6 Brass Screws
(3 required, 3 extra)
5 Color Matched Screws
(4 required, 1 extra)
IMPORTANT: If installing the Advantium 240V Oven
with an accessory storage drawer, read the storage
drawer assembly instructions to assemble the
products together before proceeding to Step 2.
Metal Trays (2) Metal Grill Troy
lO
Loading...
