GE PSB9120SF Specification
PSB9120SF
C
2x4’s or
equivalent
solid floor
4-3/16"
25-1/4"
Cutout width
Junction
box location
17-1/2"
Cutout height
29-3/4"
19"
21-1/2"
Back of Control
Conduit
(48-1/2"
long)
B
30"
5" min.from
floor 1" min.
above toekick
A
Advantium Wall Oven Dimensions (in inches)and
Cabinet Installation (in inches)
Note: Cabinets installed adjacent
to wall ovens must have an adhesion
spec of at least 194° F temperature rating.
23-1/2"
Cutout depth
Construct Solid Bottom
MIN. 3/8" Plywood
Supported by 2 x 4
or 1 x 2 Runners,
all Four Sides.
(Platform must be
able to support cabinet
load, weight of oven,
and additional
oven loads)
A = The unit overlap is 1/2" but allow 5/8" clearance from top edge of cutout
B = The unit overlap is 2-1/4" but allow 2-3/8" clearance from side edges of cutout
C = The unit overlap is 1" but allow 1-1/8" clearance from bottom edge of cutout
C
4-3/16"
25-1/4"
Cutout width
Junction
box location
17-1/2"
Cutout height
29-3/4"
19"
21-1/2"
Back of Control
Conduit
(48-1/2"
long)
B
30"
5" min.from
floor 1" min.
above toekick
A
Advantium Wall Oven Dimensions (in inches)and
Cabinet Installation (in inches)
Note: Cabinets installed adjacent
to wall ovens must have an adhesion
spec of at least 194° F temperature rating.
23-1/2"
Cutout depth
Construct Solid Bottom
MIN. 3/8" Plywood
Supported by 2 x 4
or 1 x 2 Runners,
all Four Sides.
(Platform must be
able to support cabinet
load, weight of oven,
and additional
oven loads)
A = The unit overlap is 1/2" but allow 5/8" clearance from top edge of cutout
B = The unit overlap is 2-1/4" but allow 2-3/8" clearance from side edges of cutout
C = The unit overlap is 1" but allow 1-1/8" clearance from bottom edge of cutout
to oven installation height
C
C
L
2x4’s or
equivalent
solid floor
21-5/8"
over centerline
of cabinet
4-3/16"
25-1/4"
Cutout width
Junction
box location
17-1/2"
Cutout height
29-3/4"
19"
21-1/2"
Back of Control
Conduit
(48-1/2"
long)
B
30"
5" min.from
floor 1" min.
above toekick
A
Advantium Wall Oven Dimensions (in inches)and
Cabinet Installation (in inches)
Note: Cabinets installed adjacent
to wall ovens must have an adhesion
spec of at least 194° F temperature rating.
23-1/2"
Cutout depth
Construct Solid Bottom
MIN. 3/8" Plywood
Supported by 2 x 4
or 1 x 2 Runners,
all Four Sides.
(Platform must be
able to support cabinet
load, weight of oven,
and additional
oven loads)
A = The unit overlap is 1/2" but allow 5/8" clearance from top edge of cutout
B = The unit overlap is 2-1/4" but allow 2-3/8" clearance from side edges of cutout
C = The unit overlap is 1" but allow 1-1/8" clearance from bottom edge of cutout

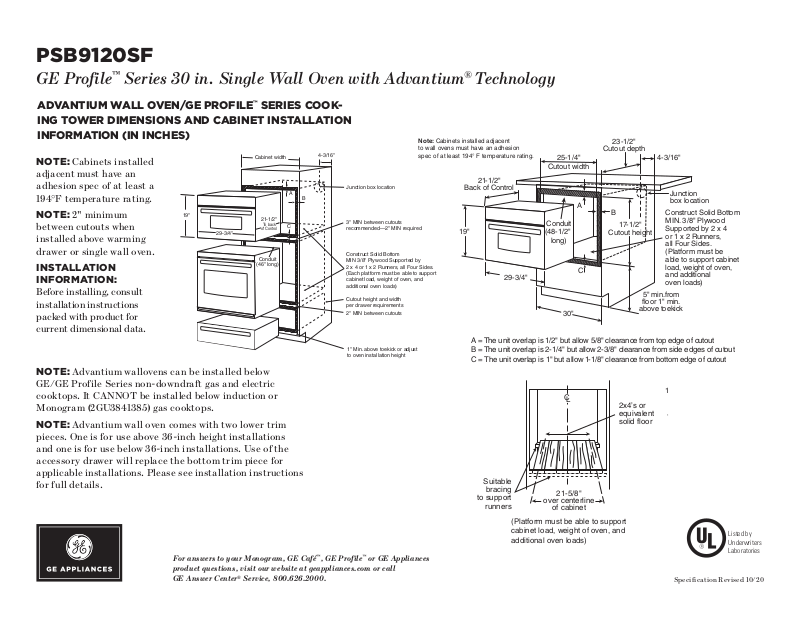

GE Profile™ Series 30 in. Single Wall Oven with Advantium® Technology
ADVANTIUM WALL OVEN/GE PROFILE™ SERIES COOKING TOWER DIMENSIONS AND CABINET INSTALLATION
INFORMATION (IN INCHES)
NOTE: Cabinets installed
Cabinet width
adjacent must have an
adhesion spec of at least a
194°F temperature rating.
NOTE: 2" minimum
between cutouts when
installed above warming
drawer or single wall oven.
INS TA LLATI O N
INFORMATION:
Before installing, consult
installation instructions
packed with product for
19"
29-3/4"
29-3/4"
21-1/2"
To back
of Control
Conduit
(46" long)
current dimensional data.
NOTE: Advantium wallovens can be installed below
GE/GE Profile Series non-downdraft gas and electric
cooktops. It CANNOT be installed below induction or
Monogram (2GU3841385) gas cooktops.
NOTE: Advantium wall oven comes with two lower trim
pieces. One is for use above 36-inch height installations
and one is for use below 36-inch installations. Use of the
accessory drawer will replace the bottom trim piece for
applicable installations. Please see installation instructions
for full details.
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
C
4-3/16"
A
B
Junction box location
3" MIN between cutouts
recommended—2" MIN required
Construct Solid Bottom
MIN 3/8" Plywood Supported by
2 x 4 or 1 x 2 Runners, all Four Sides.
(Each platform must be able to support
cabinet load, weight of oven, and
additional oven loads)
Cutout height and width
per drawer requirements
2" MIN between cutouts
1" Min. above toekick or adjust
Suitable
bracing
to support
runners
(Platform must be able to support
cabinet load, weight of oven, and
additional oven loads)
C
L
21-5/8"
over centerline
of cabinet
2x4’s or
equivalent
solid floor
Listed by
Underwriters
Laboratories
Speci fication Revised 10/20
PSB9120SF
Installation over Warming Drawer:
Installation over a Wall Oven and Warming Drawer:
GE Profile™ Series 30 in. Single Wall Oven with Advantium® Technology
PREPARATION WITH AN ACCESSORY DRAWER
PREPARE THE OPENING
The Advantium 120V can be installed in combination with other BuiltIn appliances. Always follow each product's Installation Instructions to
compete the installation.
SIN GLE OVE N I NSTA L LATIO N :
Order a 30" wide single oven cabinet or cut the opening in a wall to the
dimensions shown.
* For existing cutouts, a maximum
width of 28-1/2" is acceptable.
If the opening is slightly wider,
secure a furring strip on each side
of the cutout for securing the oven.
- The unit overlap on the top is 1/2"
but allow 5/8" clearance from top
edge of cutout. The unit overlap on
each side is 2−1/4" but allow 2−3/8"
clearance from side edges of cutout.
The unit overlap on the bottom is
5/8" but allow 3/4" clearance from
bottom edge of cutout.
- Oven overlaps will conceal cut edges on all sides of the opening.
NOTE: PSB9120 series Advantium can be installed below GE/GE
Profile non-downdraft gas and electric cooktops. It CANNOT be
installed below induction or Monogram (2GU3841385) gas cooktops.
NOTE: PSB9120 series Advantium oven comes with two lower trim
pieces. One is for use above 36-inch height installations and one is
for use below 36-inch installations. Use of the accessory drawer will
replace the bottom trim piece for applicable installations. Please see
installation instructions for full details.
36-3/4" Min.
from floor
1" Min.
above
toekick
PREPARE THE OPENING (CONT.)
When installed over a single oven or a
INSTALLATION OVER A BUILT-IN
OVEN AND WARMING DRAWER:
warming drawer, allow at least 2" between
the two openings. This separation will
30"
provide clearance for bottom overlap of
the Advantium and the other appliance
overlaps.
30"
23-1/2"
Construct a solid oven floor of 3/8" min.
thick plywood supported by 2 x 4 or 2 x 2
25-1/4"
runners on all sides.
- The support must be level and rigidly
21"
Construct base -
Min. 3/8" plywood
supported by 2x4
or 2x2 runners all
four sides.
mounted, flush with the bottom edge of
the cutout.
23-1/2"
Construct solid
bottom - Min. 3/8"
25-1/4"
Min.
21"
plywood supported
by 2x4 or 2x2
runners all four
sides
2" Min.
(3" recommended)
Per warming
drawer
requirement
36-3/4" Min.
from floor
1" Min.
above
toekick
30"
45-1/4" Min.
from floor
1" Min.
above
toekick
NOTE: Additional clearances between
the cutouts may be required. Check to be
sure the oven supports above the Warming
Drawer location do not obstruct the required
interior depth and height. See Warming
Drawer installation instructions for details.
CAUTION: For personal safety, the
mounting surface must be capable of
supporting the cabinet load, in addition
23-1/2"
25-1/4"
Min.
21"
Per warming drawer requirement
Construct solid
bottom - Min. 3/8"
plywood supported
by 2x4 or 2x2
runners all four
sides
2" Min.
(3" recommended)
Per oven
requirement
2" Min.
to the added weight of the oven and drawer,
plus additional oven loads.
NOTE: Additional clearances between
the cutouts may be required. Check to be
sure the oven supports above the Warming
Drawer location do not obstruct the required
interior depth and height. See Warming
Drawer installation instructions for details.
Listed by
Underwriters
Laboratories
Speci fication Revised 10/20
