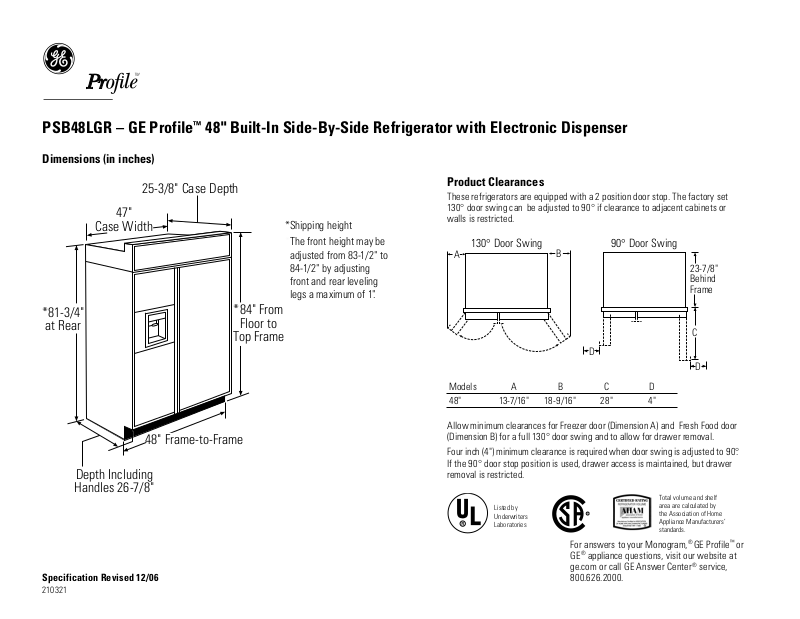

Page 1
PSB48LGR – GE Profile™ 48" Built-In Side-By-Side Refrigerator with Electronic Dispenser
130° Door Swing 90° Door Swing
B
A
23-7/8"
Behind
Frame
C
D
D
48" Frame-to-Frame
Depth Including
Handles 26-7/8"
47"
Case Width
25-3/8" Case Depth
*81-3/4"
at Rear
*84" From
Floor to
Top Frame
Dimensions (in inches)
Product Clearances
These refrigerators are equipped with a 2 position door stop. The factory set
130° door swing can be adjusted to 90° if clearance to adjacent cabinets or
* Shipping height
* The front height may be
adjusted from 83-1/2" to
84-1/2" by adjusting
front and rear leveling
legs a maximum of 1".
walls is restricted.
Models A B C D
48" 13-7/16" 18-9/16" 28" 4"
Specification Revised 12/06
210321
Allow minimum clearances for Freezer door (Dimension A) and Fresh Food door
(Dimension B) for a full 130° door swing and to allow for drawer removal.
Four inch (4") minimum clearance is required when door swing is adjusted to 90°.
If the 90° door stop position is used, drawer access is maintained, but drawer
removal is restricted.
Total volume and shelf
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Page 2
PSB48LGR – GE Profile™ 48" Built-In Side-By-Side Refrigerator with Electronic Dispenser
24"
*84"
*3" to 4"
1-1/2"
The Installation Space
*The finished cutout width must be: 47-1/2" for 48" models
Water and Electrical Locations
The opening must be prepared with the electrical and water
supply located as shown.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond adjacent
cabinets, depending on your installation.
Additional Specifications
• A 120 volt, 60Hz, 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded 3-prong
electrical receptacle recessed into the back wall. Electrical
must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor or rear
wall. The water line installed should be 1/4" O.D. copper
tubing or GE SmartConnect™ tubing between the cold water
line and water connection location. The line should be long
enough to extend to the front of the refrigerator. Installation
of an easily accessible shutoff valve in the water line
is required.
Specification Revised 12/06
210321
Side Panels
Side panels (not
supplied) must be
used whenever
the sides of the
refrigerator will be
exposed.
* Depending on
installation height.
Flooring
For proper installation, this refrigerator must be placed on a
level surface of hard material that is at the same height as the
rest of the flooring. This surface should be strong enough to
support a fully loaded refrigerator, or approximately 1500 lbs.
NOTE: Protect the finish of the flooring. Cut a large section of
the cardboard carton and place under the refrigerator where
you are working.
Listed by
Underwriters
Laboratories
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Grounding the Refrigerator
IMPORTANT—Please read carefully
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
The power supply cord of this appliance is equipped with a
three-prong (grounding) plug which mates with a standard
three-prong (grounding) wall receptacle to minimize the
possibility of electric shock hazard from this appliance.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Where a standard 2-prong wall outlet is encountered, it is
your personal responsibility and obligation to have it replaced
with a properly grounded 3-prong wall outlet.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG FROM
THE POWER CORD.
DO NOT USE AN ADAPTER PLUG
TO CONNECT THE REFRIGERATOR
TO A 2-PRONG OUTLET.
DO NOT USE AN EXTENSION CORD
WITH THIS APPLIANCE.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Page 3
PSB48LGR – GE Profile™ 48" Built-In Side-By-Side Refrigerator with Electronic Dispenser

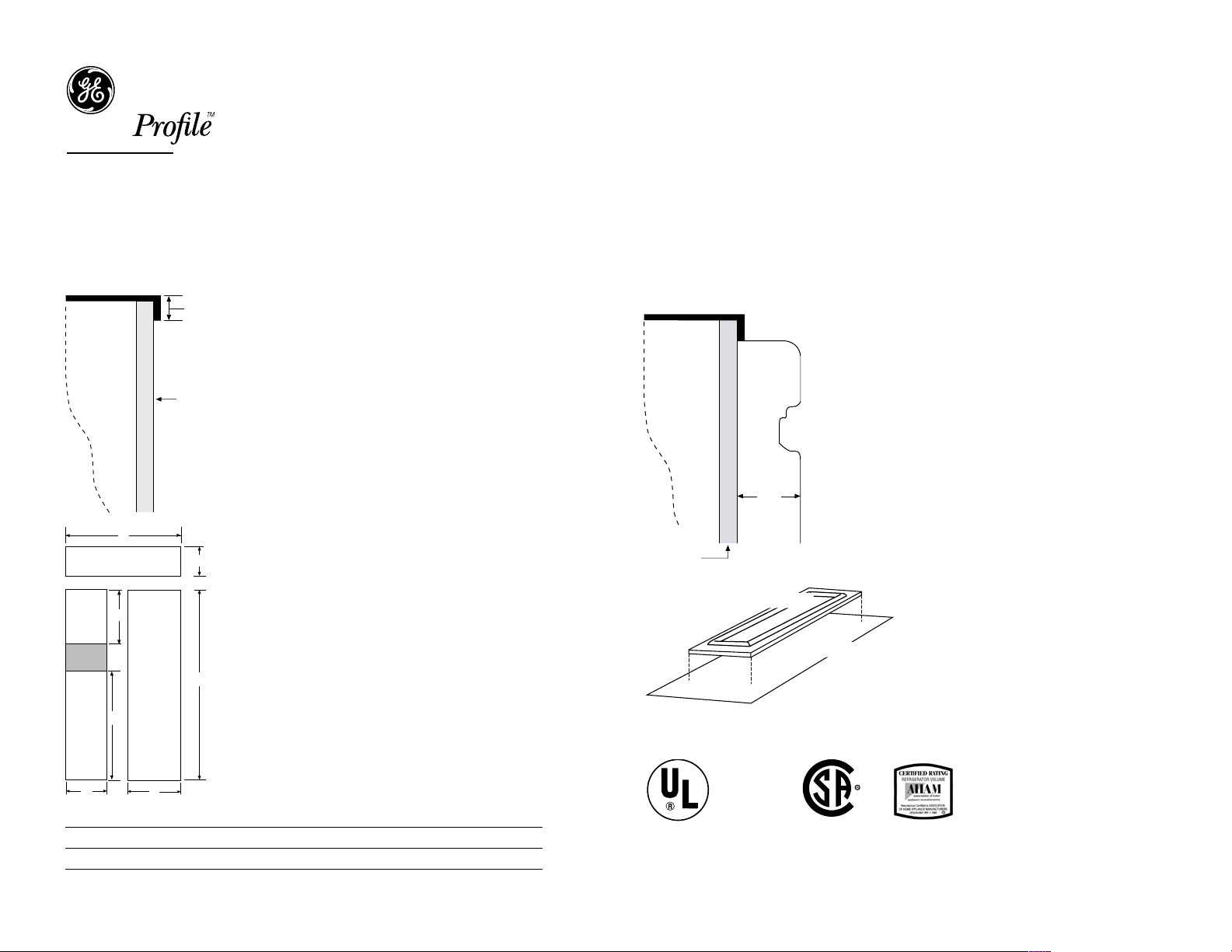

Custom Panel
Backer Panel
1/4"
Panel
Door
5/16"
Trim
Reveal
E
D
F
A
B
Grille Panel
C
Dispenser
Cutout
Freezer
Panel
Fresh Food
Panel
G
3/4"
Custom
Panel
1/4"
Backer
Panel
Door
3/4"
1/4" Framed Panel Dimensions
If you choose to install framed panels, they must be cut to the dimensions shown.
The panels will slide into the frame on the door and grille.
IMPORTANT
Maximum weight for Fresh Food panel is 70 pounds
and 30 pounds total for Freezer panels.
IMPORTANT NOTE:
Dispenser Trim
The refrigerator is supplied with factory installed dispenser trim.
• If panel is less than 1/4" thick, a noticeable gap will be
created around the dispenser trim.
Foam tape may be applied on the door to improve the fit.
• If panel is more than 1/4" thick, the panel will not fit behind
the trim.
1/4" Front Panel Dimensions (in inches)
A B C D E F G
48" Models 45-31-32 10-3/4 67-7/8 18-15/32 26-15/32 17-5/8 35-5/32
Specification Revised 12/06
210321
NOTE:
3/4" Custom Panel Dimensions
For a more custom appearance, 3/4" framed custom panels may be installed on trimmed
models. The overlay panel is secured to a 1/4" finished back panel. The custom panel then
slides into the trim. Please see installation instructions for detailed information.
.250 + .750 = 1.000 Maximum Total Panel Thickness
NOTE: Left-to-right offset is not always equal
to top-to-bottom offset.
Total volume and shelf
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Page 4
PSB48LGR – GE Profile™ 48" Built-In Side-By-Side Refrigerator with Electronic Dispenser

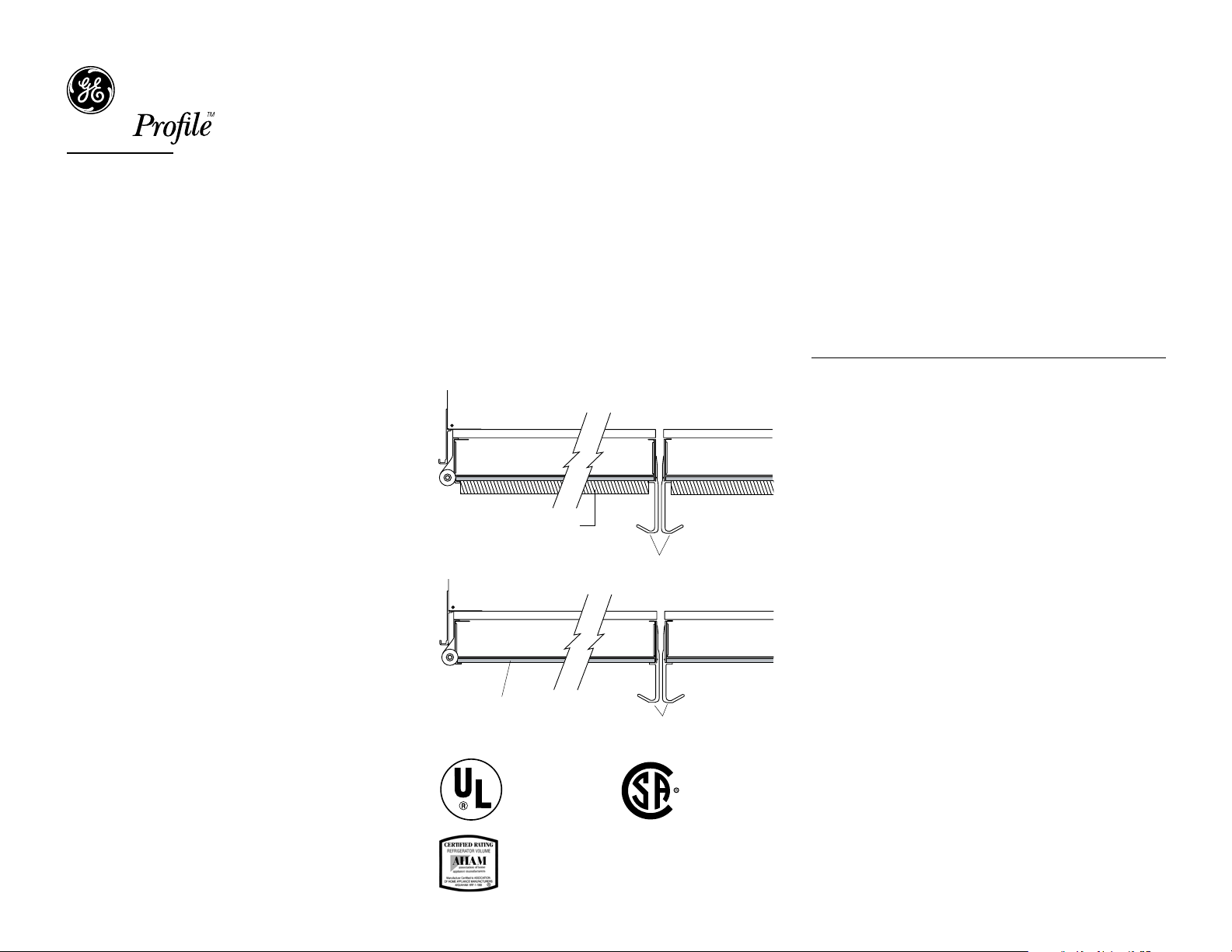

Framed Panel
Door Handles
Door Handles
3/4" Custom Panel
Customization Basics:
Framed or Custom Panels
Stainless Steel Wrapped Models
48" wide model—PSB48LSRBV
Trimmed Models
48" wide models—PSB48LGRWW, PSB48LGRBV
Door Handles
The handles can be used to accommodate both framed or
custom panels.
Trimmed Refrigerators
Trimmed refrigerators are designed to be customized with
decorative panels. Field installed custom door and grille panels
are required. You may install 1/4" thick custom panels from
your cabinet manufacturer. The decorative panel slides into
the factory installed trim. Or, order black and white accessory
panels from your Profile™ dealer.
Accessory Panels
White and black accessory panels are available from your
Profile dealer. Panels are cut to size and ready to install.
White Black
Models Acrylic Acrylic
PSB48LGRWV PSPK48DWW
PSB48LGRBV PSPK48DBB
Specification Revised 12/06
210321
Listed by
Underwriters
Laboratories
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Page 5

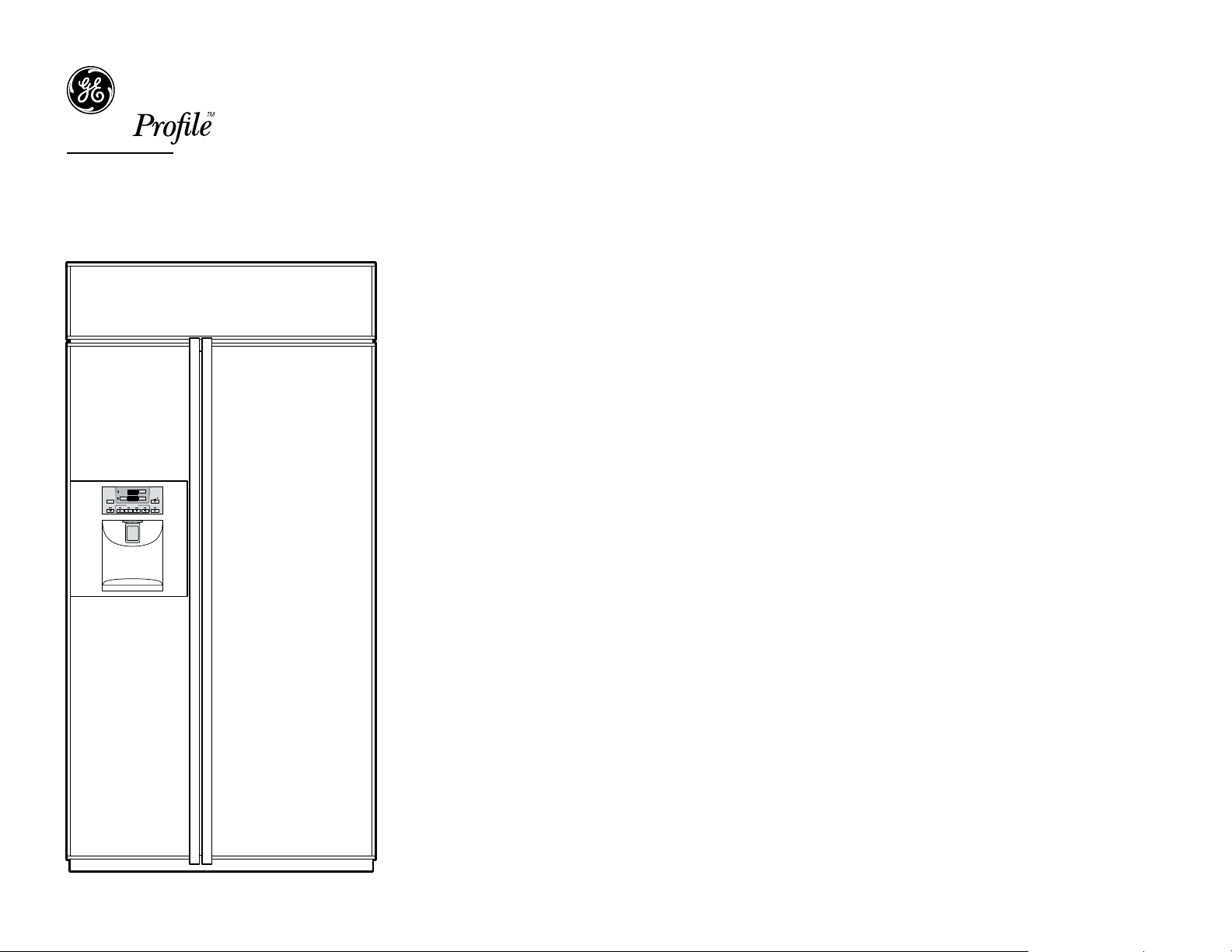

PSB48LGR – GE Profile™ 48" Built-In Side-By-Side Refrigerator with Electronic Dispenser
ADJUST TEMPERATURE
COLDER
REFRIGERATOR
37° F IS RECOMMENDED
0° F IS RECOMMENDED
FREEZER
COLDER
DISPLAY
TEMP
DOOR ALARM WATER CRUSHED
ICE DISPENSER
CUBED QUICK ICE
WARMER
WARMER
LOCK
RESET FILTER
HOLD 3 SECS
LIGHT
HOLD FOR
3 SECS
TO ACTIVATE
Features and Benefits
• Built-In Configuration – Enjoy a true, built-in appearance with the flexibility of a flush design that blends
into the decor
• ClimateKeeper™ System – The Best Temperature Management System You Can Buy!
• Electronic Dispenser with Actual Temperature Display – Located on the dispenser to provide easy access
and electronic accuracy in controlling fresh food and freezer temperatures
• Soft-Touch Dispenser with Child Lock and Door Alarm - Dispenses water and ice with gentle pressure,
complete with safety and convenience features
• Adjustable Spillproof Glass Shelves – Help contain spills for ease of cleaning
Specification Revised 12/06
210321
• GE SmartWater™ Plus Filtration System – Delivers clean, great-tasting water and ice through the Soft-touch
dispenser with indicator light
• FrostGuard™ Technology – Reduces freezer burn, so foods retain their texture and flavor
• QuickIce™ Option – Makes ice up to 50% faster than normal settings—ideal for entertaining
• Slide ’n Store™ Full-Extension Freezer Baskets – Extends 12" to 16" beyond the cabinet, providing easy
access to contents
• Secure-Close Door System – Engineered with an advanced hinge system that automatically pulls the door shut
• Model PSB48LGRWV – White on white
• Model PSB48LGRBV – Black on black
