GE PSB1201NSS01, PSB1200NWW01, PSB1200NBB01 Owner’s Manual

Download

Page 1

ge.com

Advantium

Advantium Quick Start ............. 9

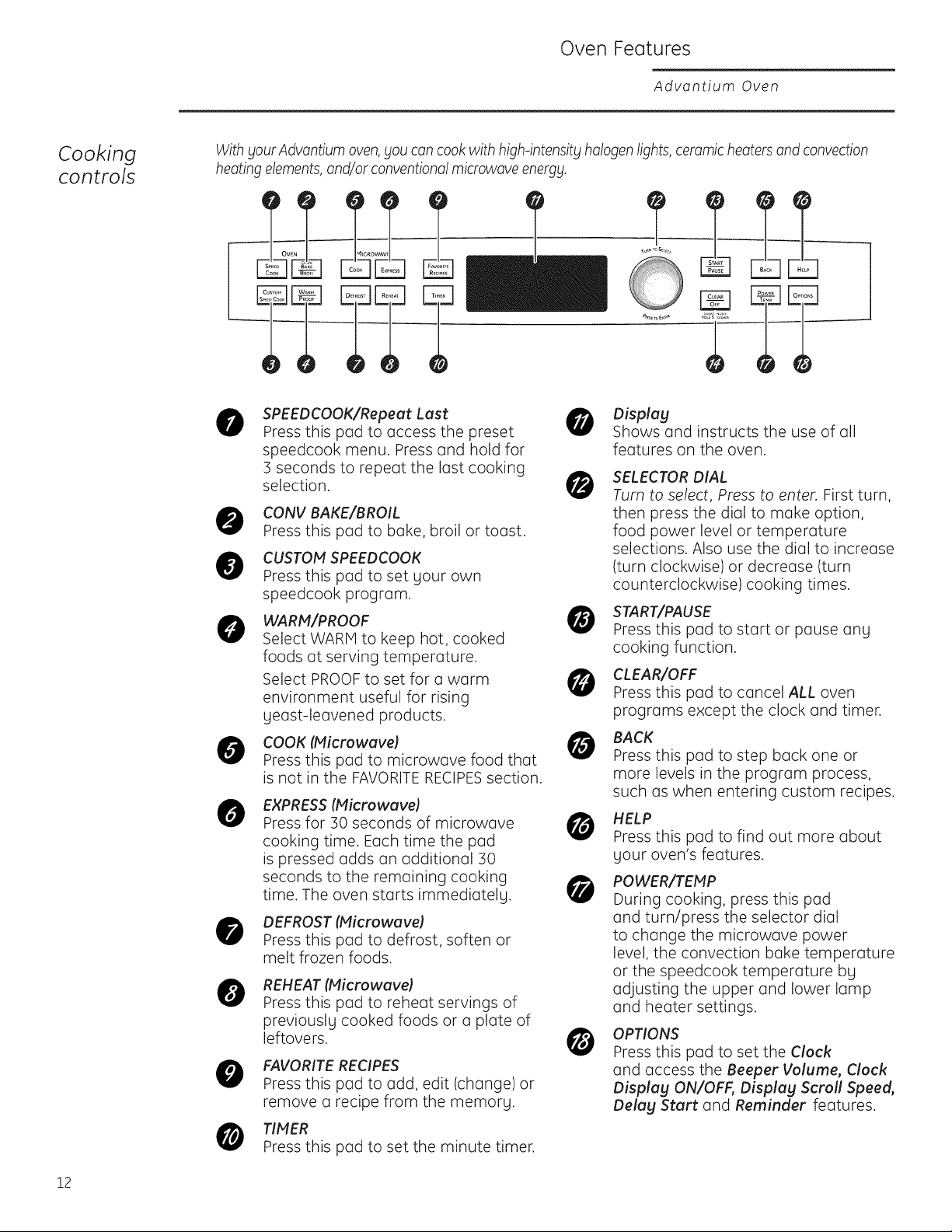

Cooking controls ................. 12

Oven features .................... !1

Safetg .......................... 2-7

What isAdvantium? ............... 8

Speedcooking

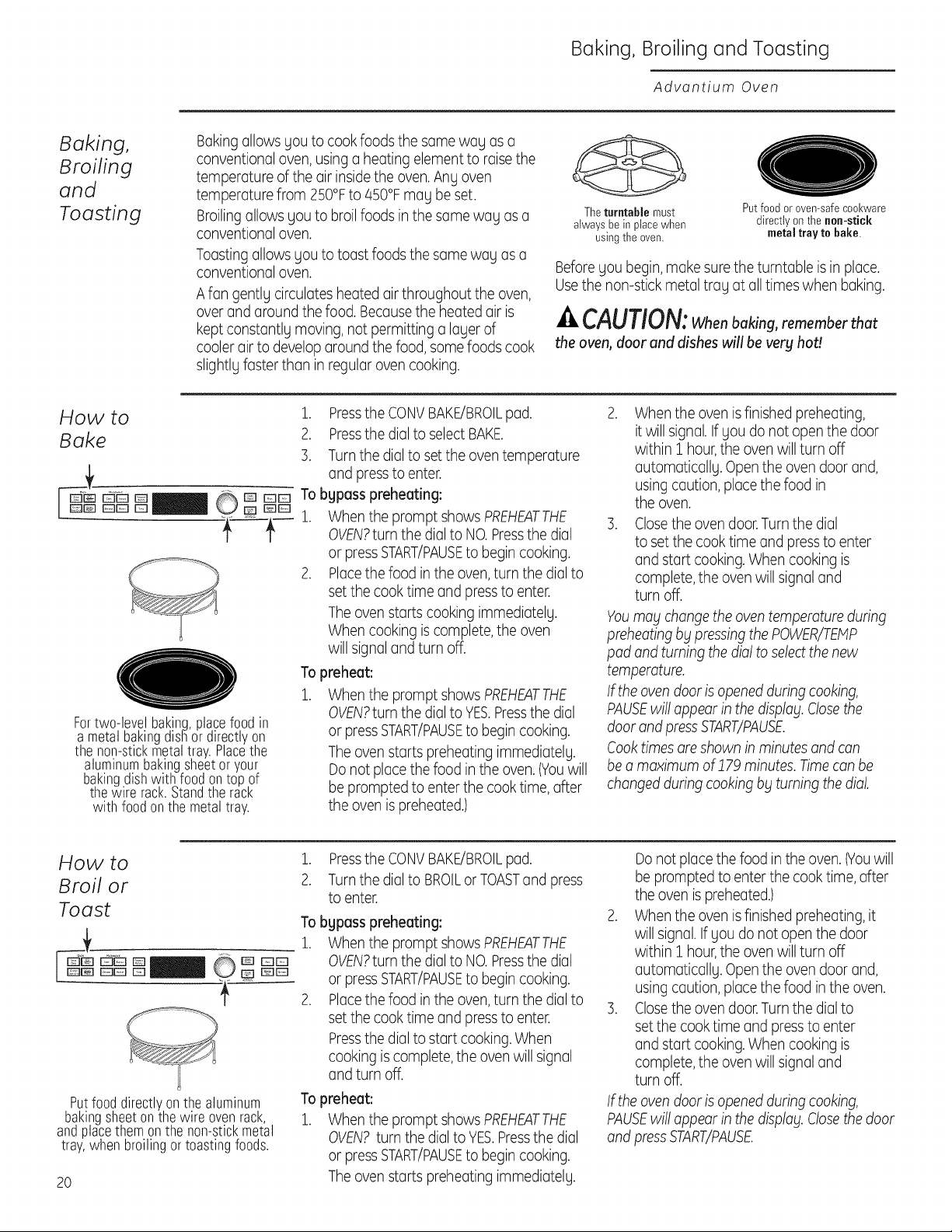

Baking, Broiling and Toasting ..... 20

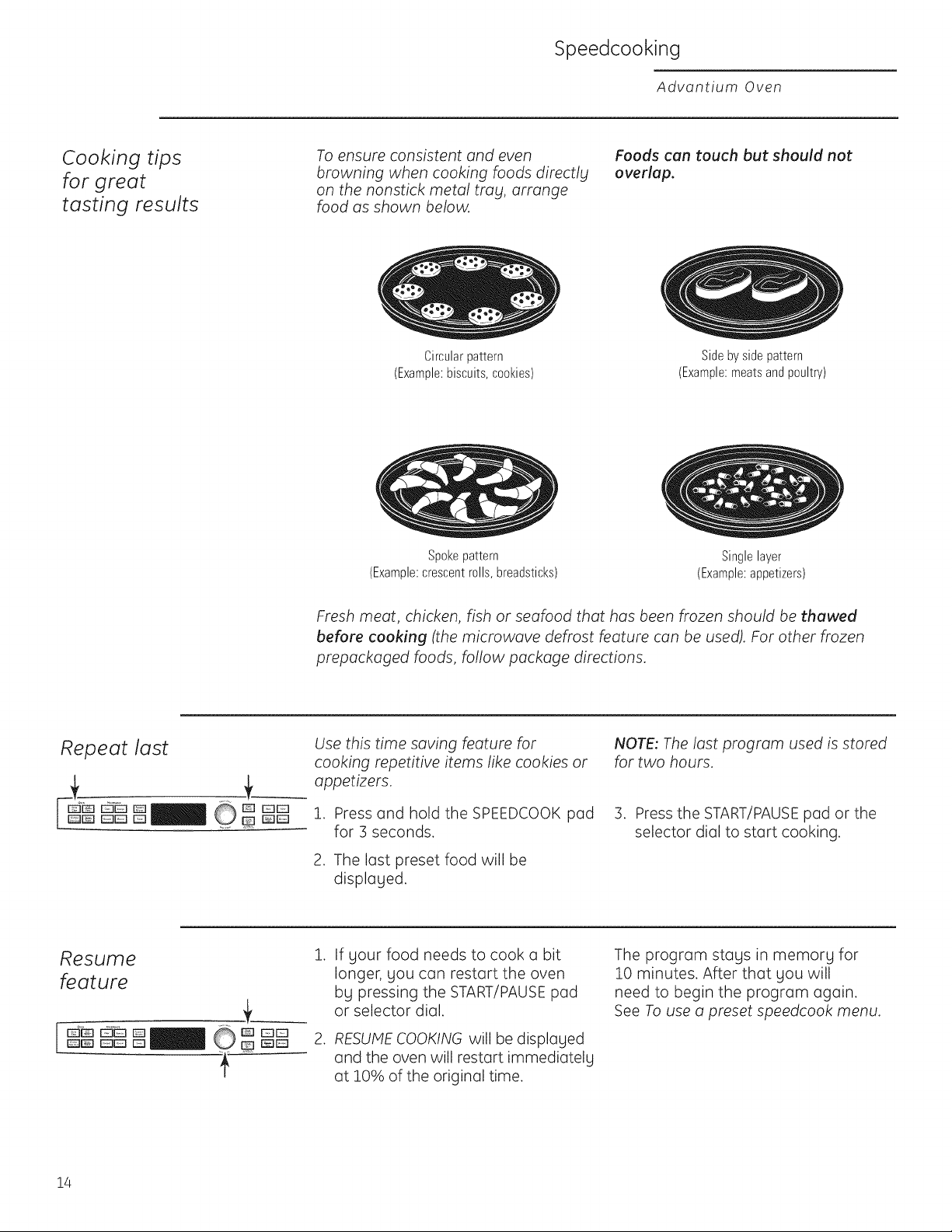

Cooking tips ..................... 14

Favorite recipes .............. 17, 18

Power level ...................... 15

Proofing ......................... 21

Repeat last ...................... 14

Resume feature .................. 14

Speedcook cookware ............ 16

Speedcook menu guide .......... 10

Speedcook-safe cookware ......... 5

Things that are normal ........... 19

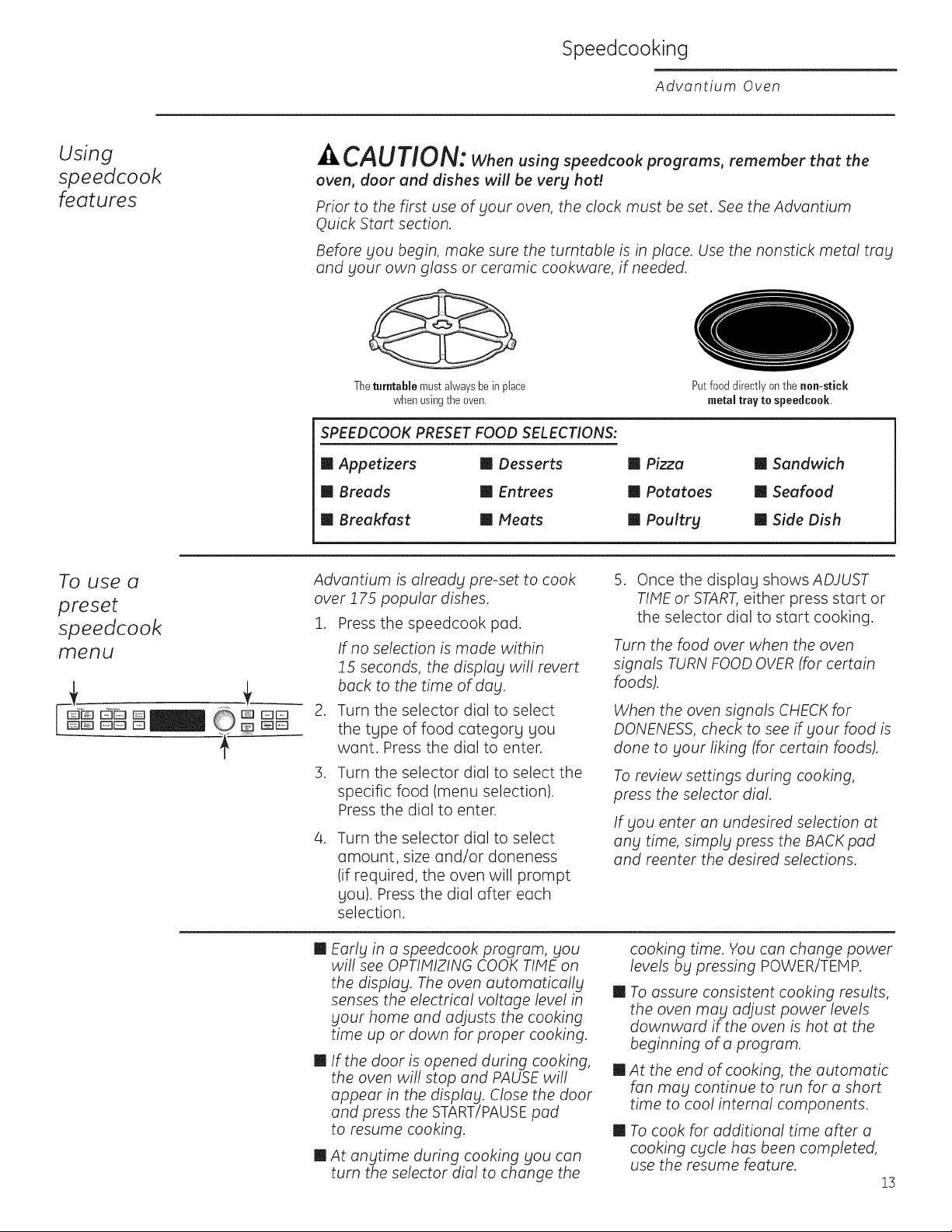

Using a preset

speedcook menu ................ 1]

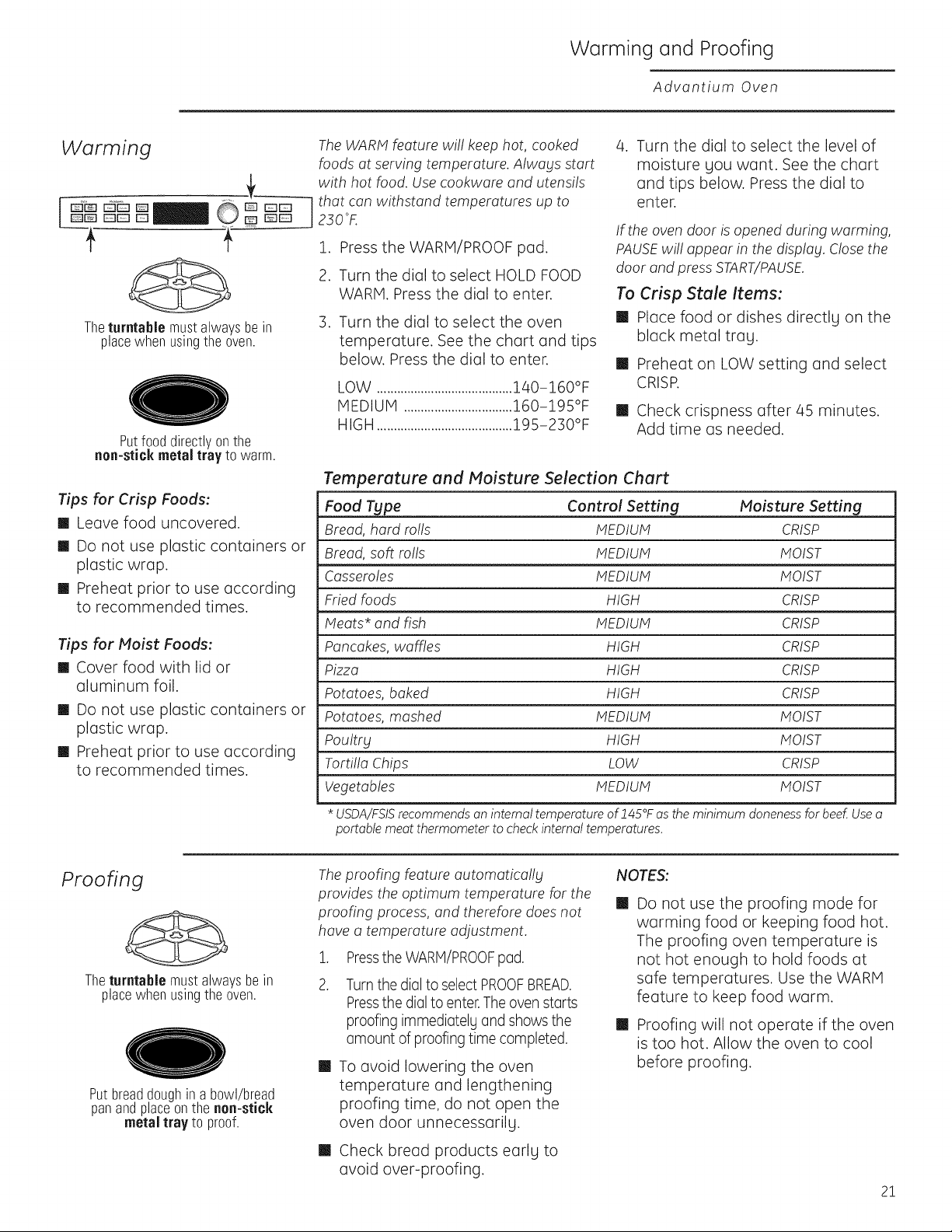

Warming ........................ 21

Microwaving

Cook bg time .................... 2]

Cooking tips ..................... 2]

Defrost bg food tgpe ............. 24

Defrost bg time .................. 24

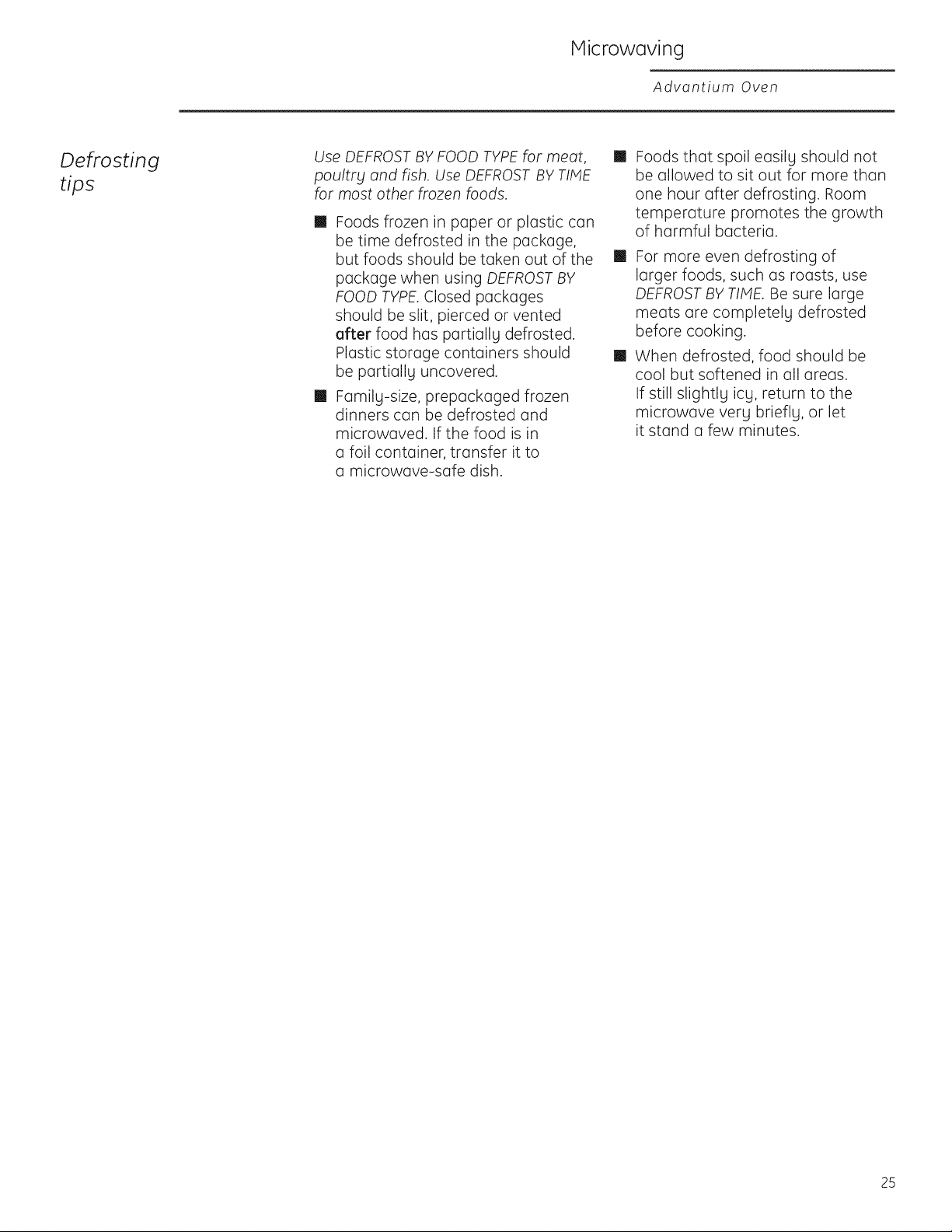

Defrosting tips ................... 25

Express ........................ 9, 2]

Favorite recipes .................. 2]

Microwave power level(s) ......... 2]

Microwave-safe cookware ......... 6

Precautions to avoid possible

exposure to excessive

microwave energg ................ 2

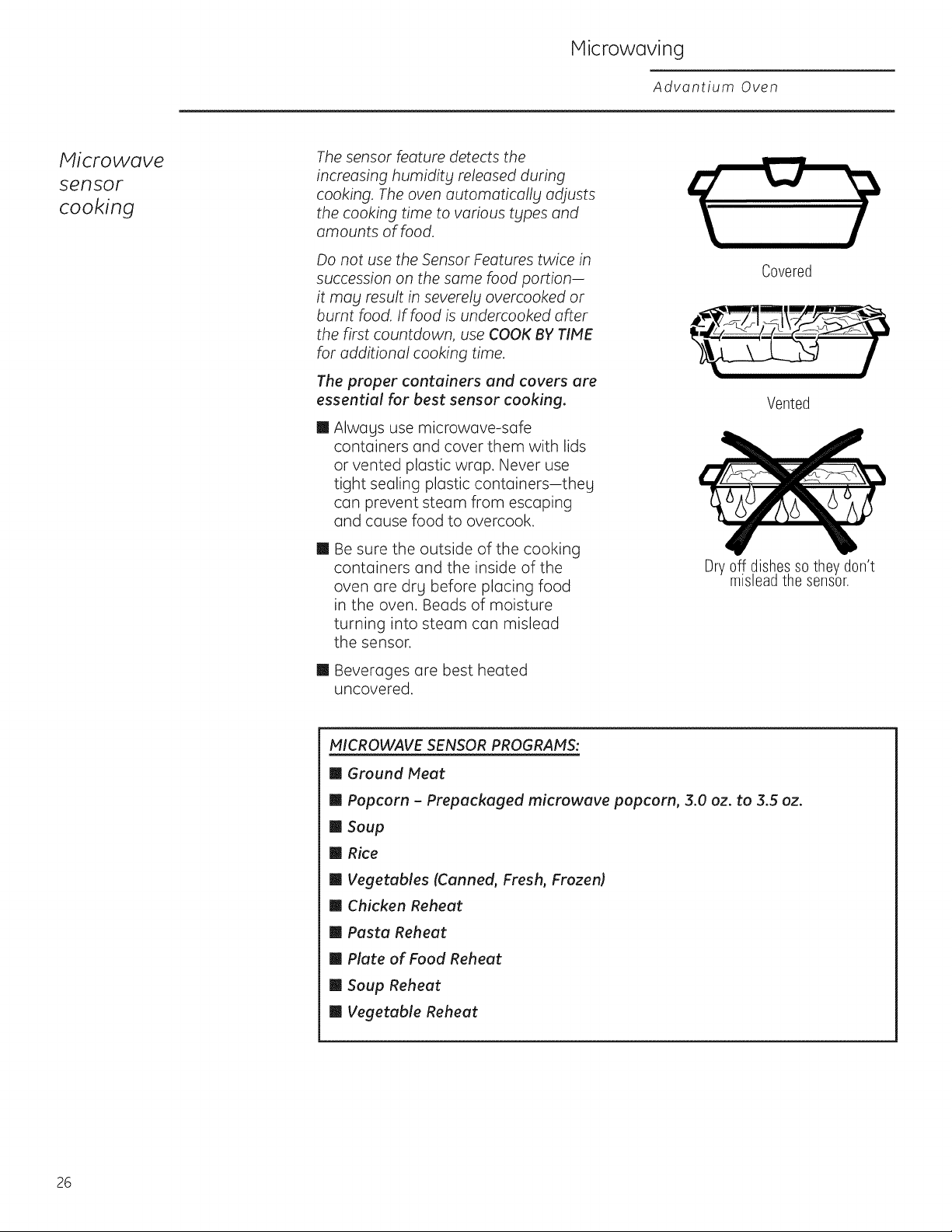

Sensor cooking ............... 26, 27

Things that are normal ........... 27

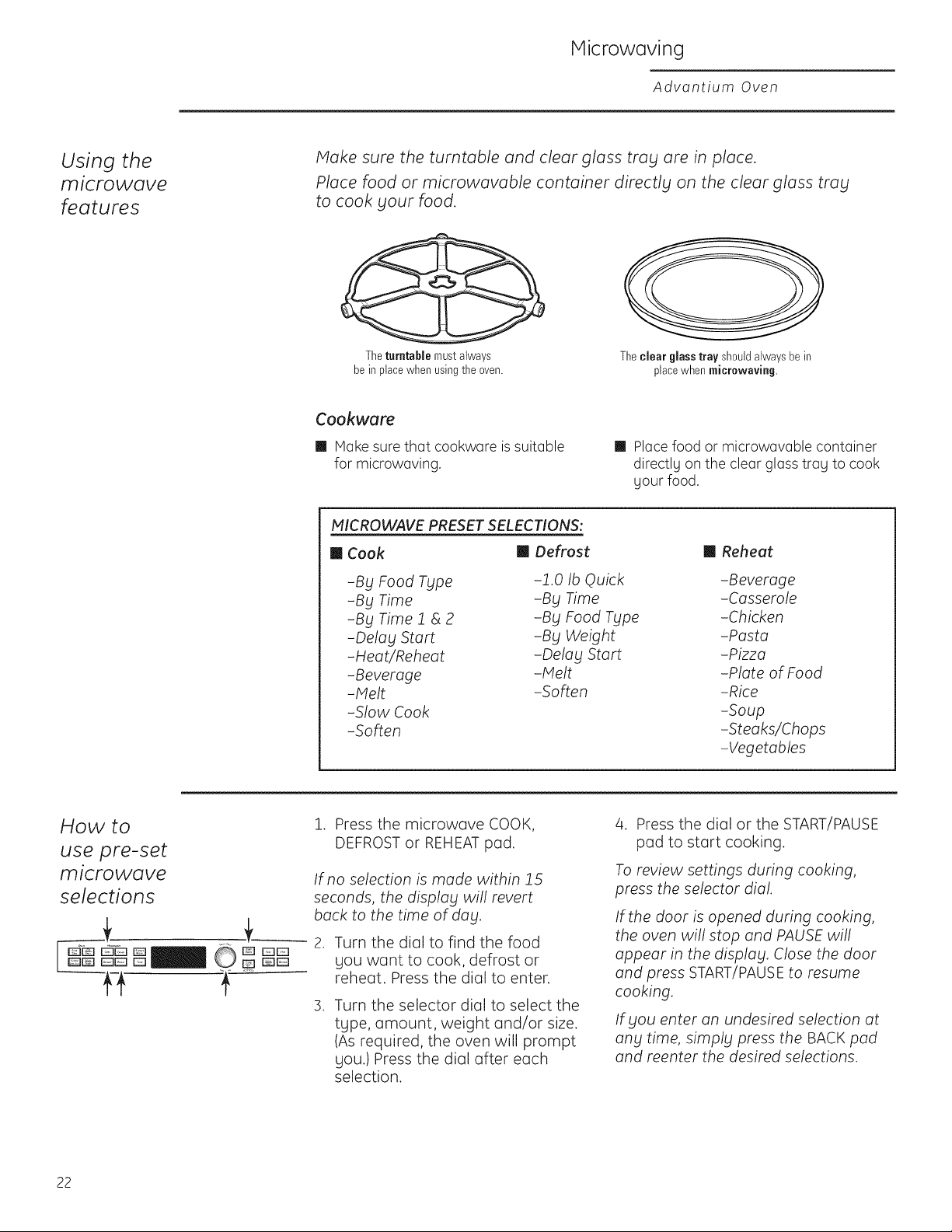

Using preset

microwave selections ............ 22

Other Features

Automatic fan ................... 50

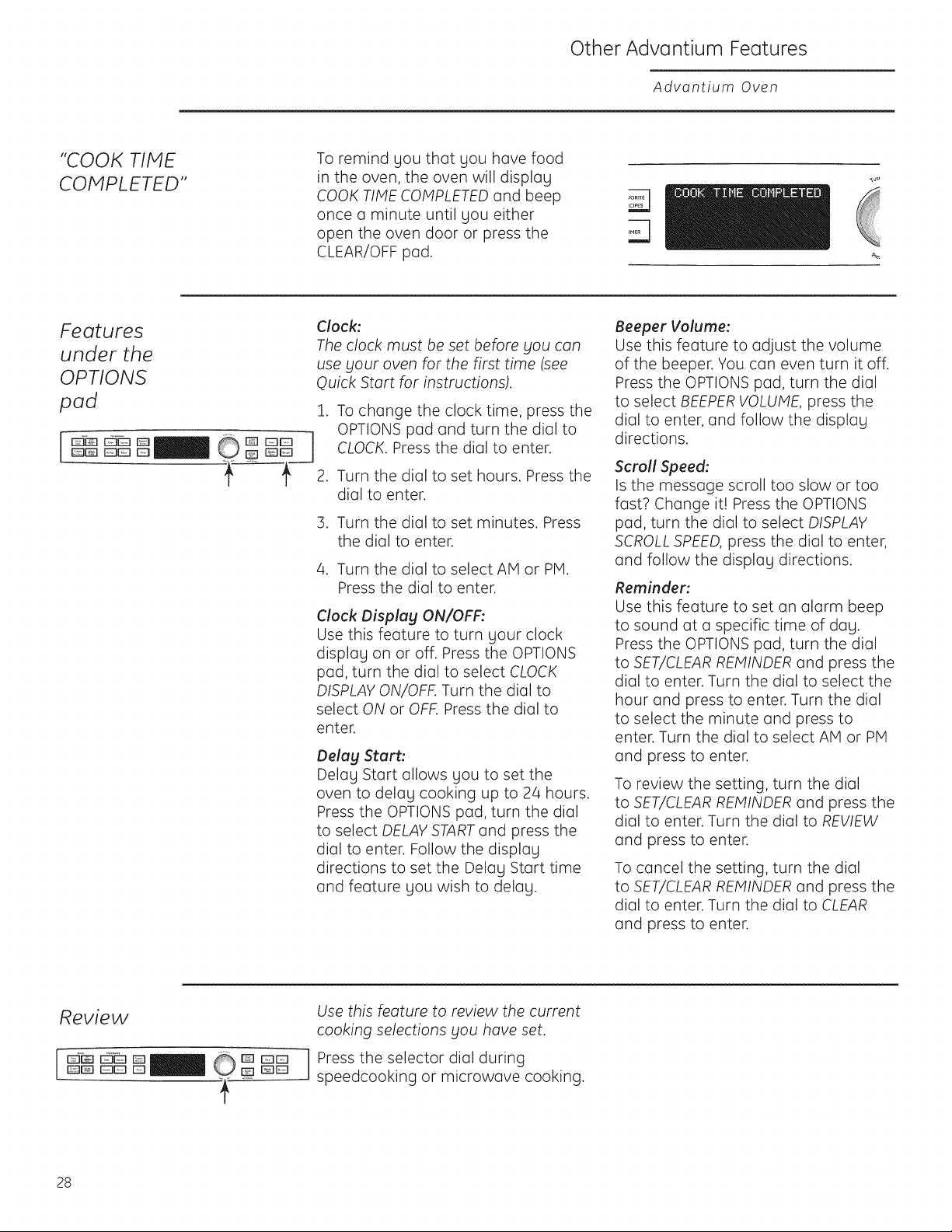

Beeper volume ................... 28

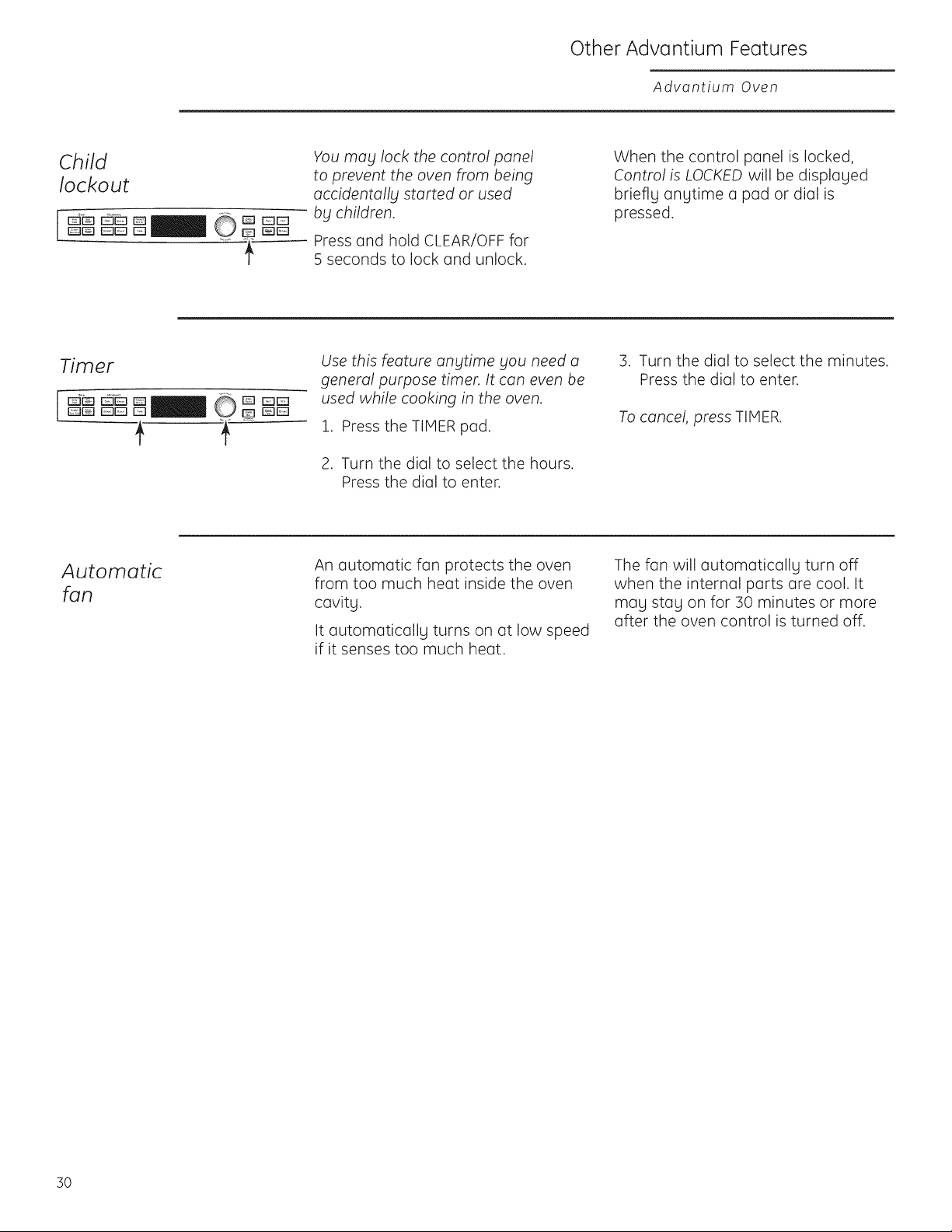

Child lockout ..................... ]0

Clock .......................... 9, 28

Delag start ...................... 28

Displag ON/OFF .................. 28

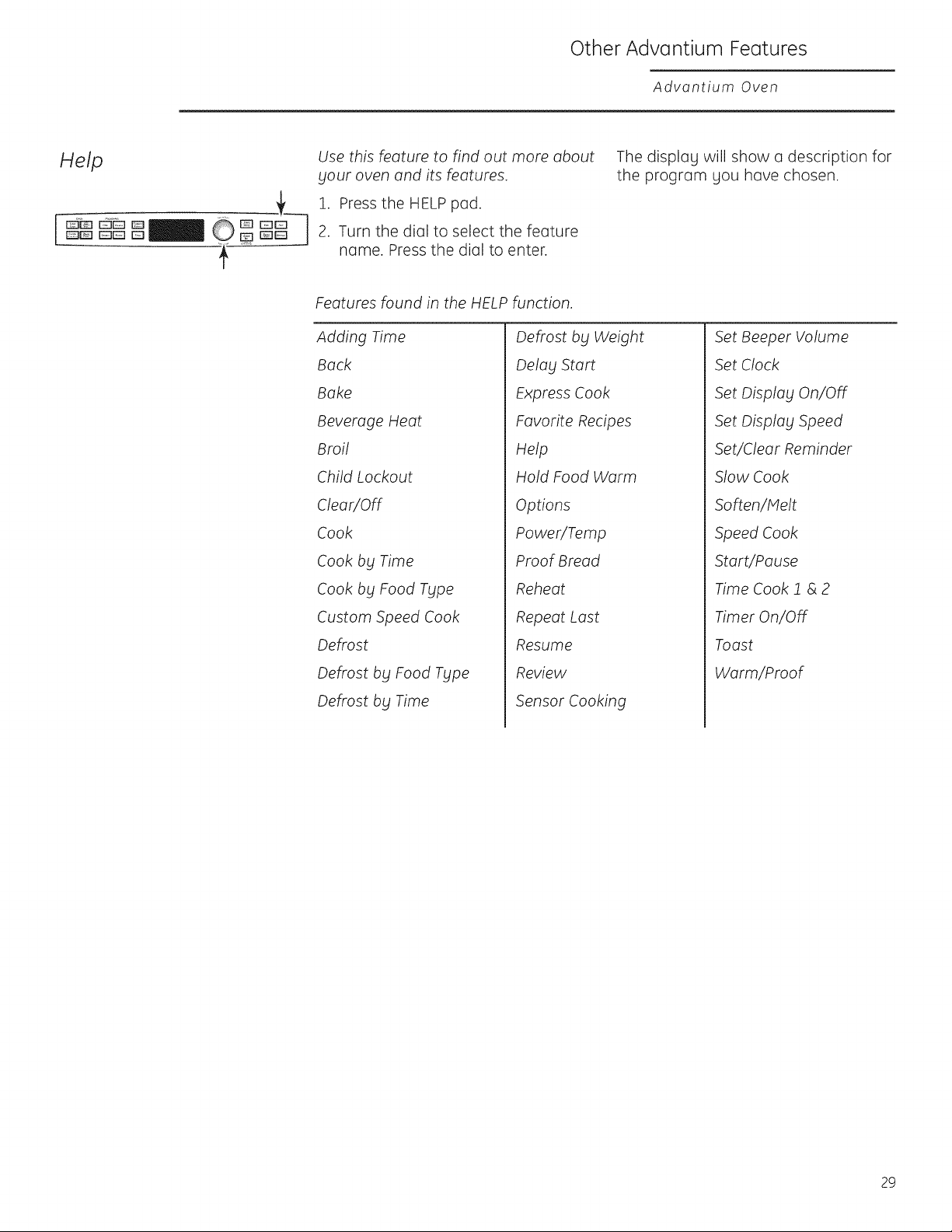

Help ............................. 29

Reminder ........................ 28

Review .......................... 28

Scroll speed ...................... 28

Timer ............................ ]0

Care and Cleaning

Cleaning the inside ............... 31

Cleaning the outside ............. ]2

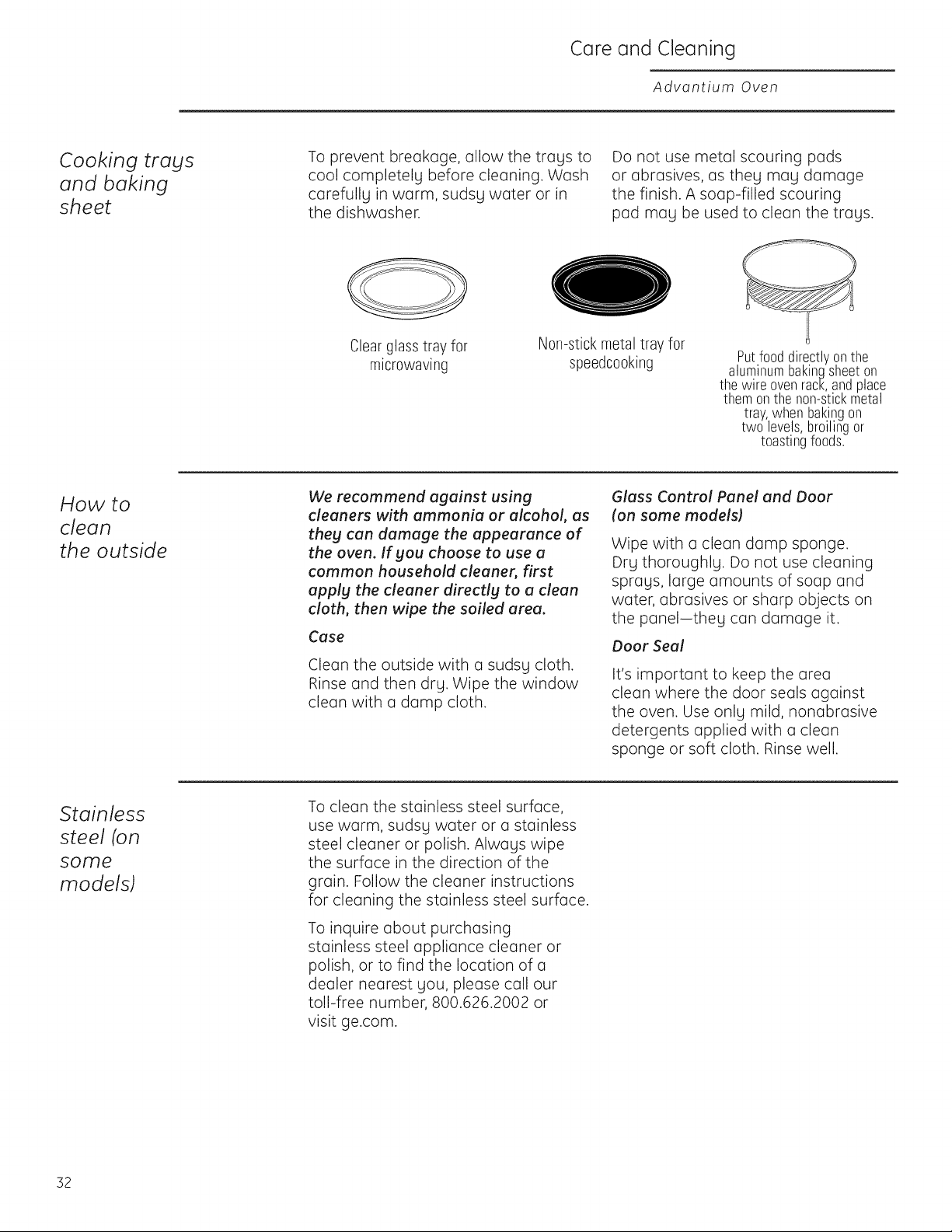

Cooking trags

and baking sheet ................ ]2

Removable turntable ............. ]1

Troubleshooting

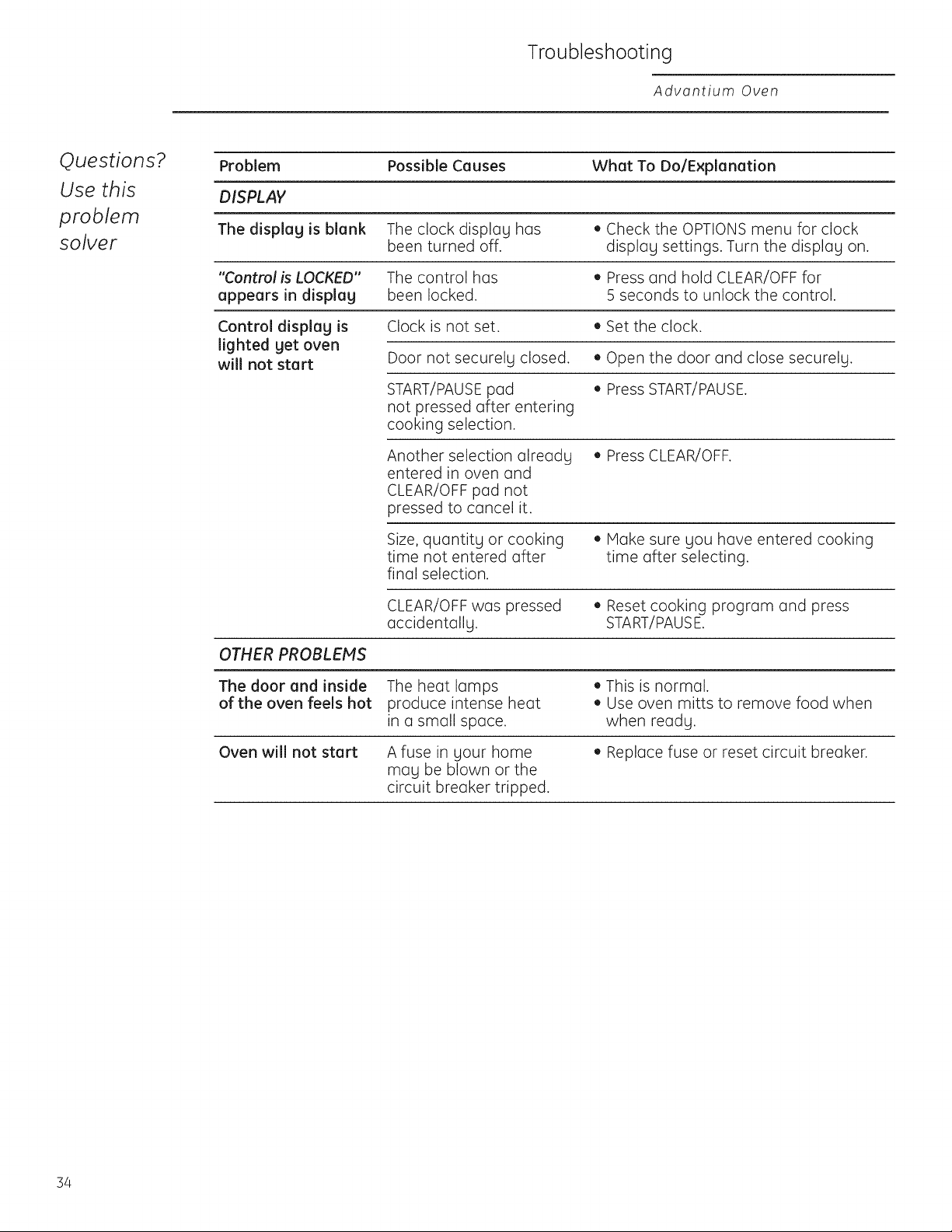

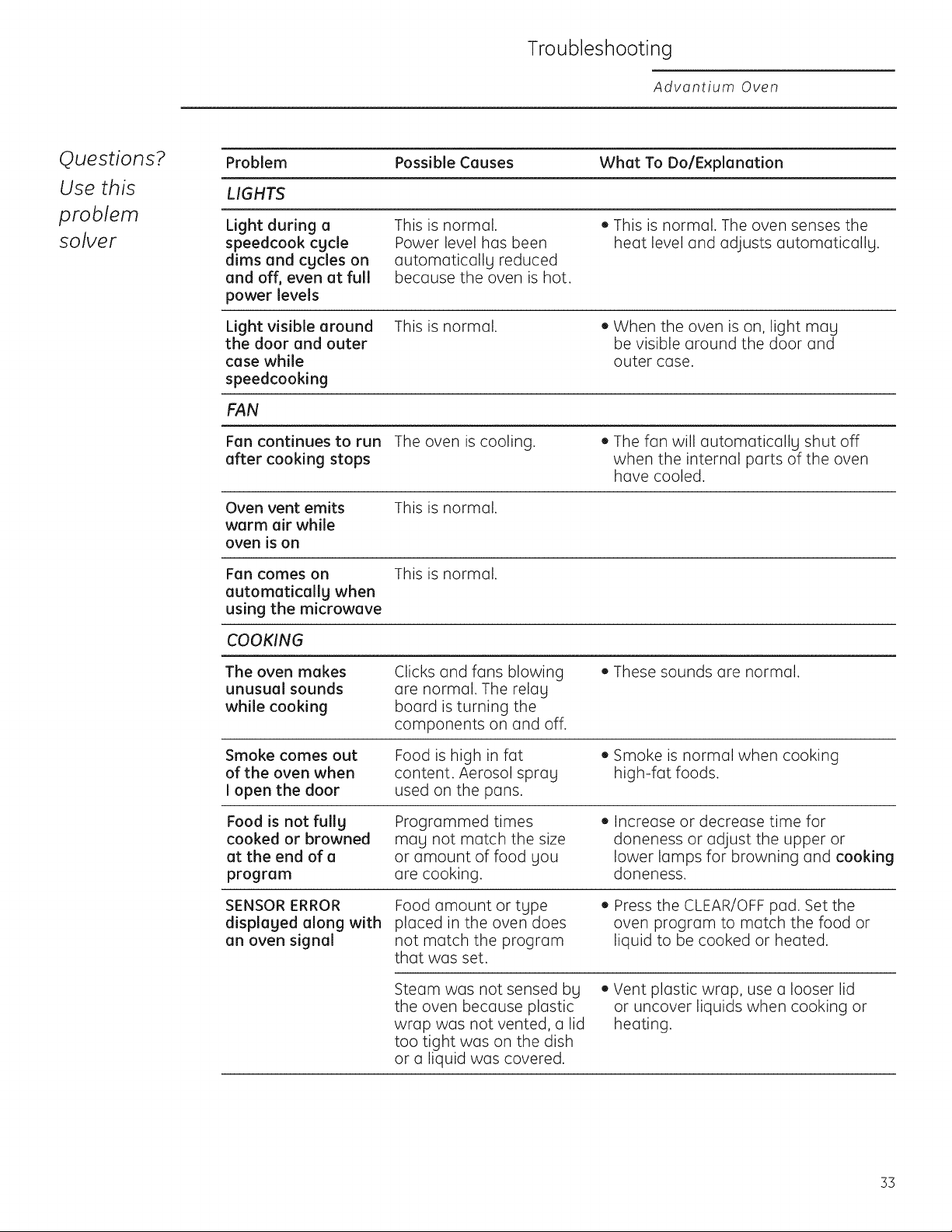

Problem Solver ............... ]], ]4

Consumer Support

Consumer Support ...... Back Cover

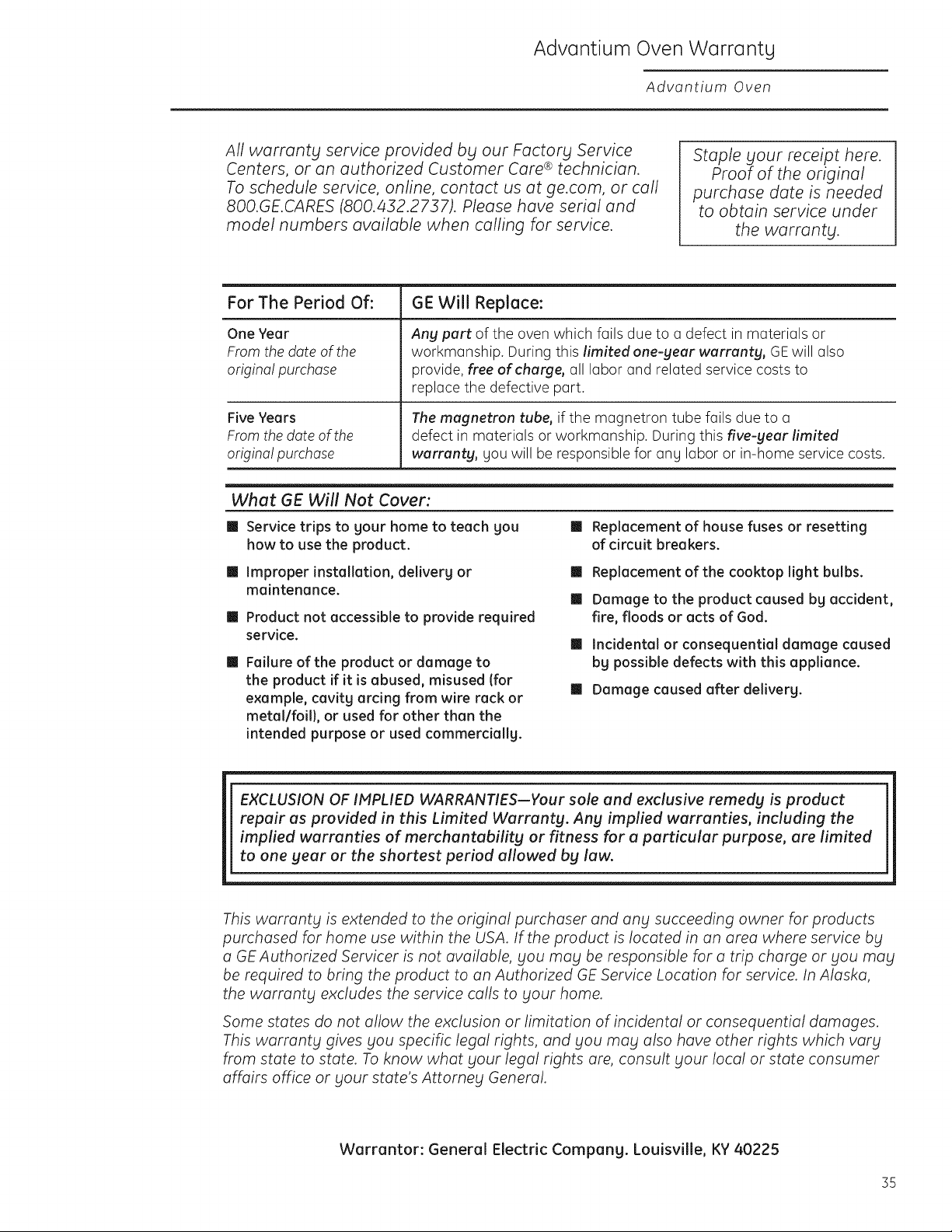

Warrantg ........................ ]5

Espafiol

For a Spanish version of this manual, visit our Website at ge.com

Paraconsultaruna versionen espaholde estemanual de

instrucciones,visitenuestrositio de internetge.com

PSB:1200 PSB:120:l

Write the model and serial numbers here: Model #

Serial #

Findthese numbers on a label inside the oven.

http://geodvontium.com MFL38211605 49-40592 ll-08 JR

Page 2

IMPORTANT SAFETY INSTRUCTIONS

Advantium Oven

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY

(a)

Do Not Attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energg. It is important not to defeat or tamper with the safetg interlocks.

(b)

Do Not Place ang object between the oven front face and the door or allow soil or

cleaner residue to accumulate on sealing surfaces.

SAVE THESE INSTRUCTIONS

(c)

Do Not Operate the oven if it is damaged.

It is particularlg important that the oven door close properlg and that there is no damage to the:

(1) door (bent), (2) hinges and latches (broken or loosened),

(3) door seals and sealing surfaces.

(d)

The Oven Should Not be adjusted or

repaired bg angone except properlg qualified service personnel.

Page 3

IMPORTANT SAFETY INSTRUCTIONS

Advantium Oven

.4,WARNING!

To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

SAFETY PRECAUTIONS

[]

Read all instructions before using

this appliance. When using electrical appliances, basic safetg precautions should be followed, including the

following:

[] Read and follow the specific precautions in

the PRECAUTIONS TOAVOID POSSIBLE

EXPOSURE TOEXCESSIVEMICROWAVE ENERGY section on page 2.

[] Be sure gour appliance is properly installed

and grounded bg a qualified technician in accordance with the provided installation

instructions.

[] Install or locate this appliance onlg in

accordance with the provided installation instructions.

[] Some products such as whole eggs and

sealed containers-for example, closed

jars-are able to explode and should not be

heated in this oven. Such use of the oven could result in injurg.

[] Do not mount this appliance over

a sink.

[]

Do not store angthing directlg on top of

this appliance surface when this appliance is in operation.

[]

This oven is not approved or tested for marine use.

[] This oven is UL listed for standard wall

installation.

[]

Do not operate this appliance if it has

been damaged or dropped.

[]

As with ang appliance, close supervision is necessarg when used bg children.

[]

Use this appliance onlg for its intended use

as described in this manual.

[]

Do not use corrosive chemicals or vapors

in this appliance.

[]

This oven is specificallg designed to heat, drg or cook food and is not intended for

laboratorg or industrial use.

[]

This appliance must onlg be serviced bg qualified service personnel. Contact nearest authorized service facilitg for

examination, repair or adjustment.

[] Do not cover or block ang openings

on the appliance.

[] Do not store this appliance outdoors.

Do not use this product near water- for example, in a wet basement, near a swimming pool, near a sink or in similar

locations.

[] See door surface cleaning instructions in

the Care and Cleaning of the Oven section of this manual.

[] To reduce the risk of fire in the oven cavitg:

- Do not overcook food. Carefullg attend appliance when paper, plastic or other combustible materials are placed inside the oven while microwave cooking.

- Remove wire twist-ties and metal handles from paper or plastic containers before

placing them in the oven.

- Do not use the oven for storage purposes.

Do not leave paper products, cooking utensils

or food in the oven when not in use.

- If materials inside the oven ignite, keep the oven door closed, turn the oven off and shut off power at the fuse or circuit breaker

panel. If the door is opened, the fire mag spread.

- Do not use the Sensor Features twice in succession on the same food portion.

If food is undercooked after the first countdown, use COOK BYTIME for additional cooking time.

[] If installing the Advantium 120V Oven below

36", you must use the plastic bottom trim due to burn risk to children. The plastic trim

acts as insulation and will help prevent burns to children from hot surfaces.

[]If installing the Advantium 120V Oven

below 36", do not remove the plastic door trim due to burn risk to children. The plastic

trim acts as insulation and will help prevent burns to children from hot surfaces.

SAVE THESE INSTRUCTIONS

Page 4

.4,WARNING!

SAFETY PRECAUTIONS

IMPORTANT SAFETY INSTRUCTIONS

Advantium Oven

ARCING

[]

Do not operate the oven without

the turntable in place. The turntable must be unrestricted so it can turn.

[] During and after use, do not touch,

or let clothing or other flammable materials contact ang interior area of the oven; allow sufficient time for cooling first.

[] Keep the oven free from grease buildup.

Arcing can occur during both speedcooking and microwave cooking. If _tou see arcing,

press the CLEAR/OFF pad and correct the oroblem.

Arcing is the microwave term for sparks in the oven. Arcing is caused bg:

[] Metal or foil touching the side of

the oven.

[] Foil not molded to food (upturned

edges act like antennas).

[] Use foil only as recommended in

this manual.

[]

Cook meat and poultrg thoroughlg- meat to at least an INTERNAL

temperature of Z60°F, and poultr U to at least an INTERNAL temperature of

Z80°F. Cooking to these temperatures

usuallg protects against foodborne illness.

[]

Potentiallg hot surfaces include the

oven door, floor, walls, oven rack and turntable.

[] Metal cookware used during either

speedcook or microwave cooking (except for the pans provided with the oven).

[] Metal, such as twist-ties, poultrg pins,

or gold-rimmed dishes, in the oven.

[] Recycled paper towels containing small

metal pieces being used in the oven.

FOODS

[]

When microwaving, place all foods and containers onthe clear glasstrag.

[]

Do not pop popcorn in your oven unlessJn a special microwave popcorn accessorg or unlessyou usepopcorn labeledfor usein

microwave ovens.

[]

Do not boil eggs in this oven. Pressure will build up inside egg golk and will cause it to burst, possibly resulting in injury.

[]

Do not operate the oven without food inside. This nag cause damage to the

oven. It increases the heat around the magnetron and can shorten the life of

the oven.

[]

Foods with unbroken outer "skin" such as potatoes, hot dogs, sausages, tomatoes,

apples, chicken livers and other giblets, and egg golks should be pierced to allow steam to escape during cooking.

[] SUPERHEATED WATER

Liquids, such as water, coffee or tea, are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boifing when the container is

removed from the microwave oven is not always present. THISCOULD RESULTIN

VERYHOTLIQUIDS SUDDENLYBOILING OVERWHEN THE CONTAINERISDISTURBED

ORA SPOON OROTHER UTENSILIS INSERTEDINTO THELIQUID.

To reduce the risk of injurg to persons:

Do not overheat the liquid.

Stir the liquid both before and halfwag through heating it.

Do not use straight-sided containers with

narrow necks.

- After heating, allow the container to stand in the microwave oven for a short time

before removing the container.

- Use extreme care when inserting a spoon or other utensil into the container.

SAVE THESE INSTRUCTIONS

Page 5

.4,WARNING!

IMPORTANT SAFETY INSTRUCTIONS

Advantium Oven

Speedcook

oven-safe

cookware

Theturntable must

alwaysbein placewhen

usingtheoven.

Putfooddirectlyonthe

hen-stick metaltray

to speedcook.

Oven-safe cookware

for

Baking, Broiling, Warming,

Proofing & Toasting

[]

The oven and door will get very hot when speedcooking.

[]

Cookware will become hot because of heat transferred from the heated food. Oven mitts will be needed to handle the cookware.

[] Do not use coverings, containers or

cooking/roasting bags made of foil, plastic, wax or paper when speedcooking.

[] Do not cover the turntable, wire oven

rack, trays or any part of the oven with metal foil. This will cause arcing in the

oven.

[]

Use the nonstick metal tray in the same way you would use a shallow baking pan or baking tray.

[]

The oven and door will get very hot when baking, broiling, warming, proofing or toasting.

[]

Cookware will become hot. Oven mitts will be needed to handle the cookware.

[]

Do not use coverings, containers or cooking/roasting bags made of foil, plastic, wax or paper when speedcooking.

[]

Do not cover the turntable, wire oven rack, trays or any part of the oven with metal foil. This will cause arcing in the

oven.

[]

Use the non-stick metal tray in the same way you would use a shallow baking pan or baking tray.

[]

Place food directly on the trays when

cooking unless prompted by the oven to do otherwise.

[] Any oven-safe dish can be used in

your oven. Recipes in the Advantium Cookbook were tested in Pyrex® glass cookware and Corningware ®ceramic

casseroles. Cook times and results may vary when using other types of

oven-safe dishes. Place them directly on the trays.

[] Do not use the oven to dry newspapers. [] Use of the clear glass tray when

speedcooking will result in inferior cooking performance.

[] Use the aluminum baking sheet on the

wire oven rack, and place them on the non-stick metal tray when baking on two levels, broiling or toasting foods.

[] Place food directly on the trays when

cooking unless prompted by the oven to do otherwise.

[] Any oven-safe dish can be used in

your oven. Recipes in the Advantium Cookbook were tested in Pyrex® glass cookware and Corningware ®ceramic

casseroles. Cook times and results may vary when using other types of

oven-safe dishes. Place them directly on the trays.

[] Do not use the oven to dry newspapers. [] Use of the clear glass tray when

baking, broiling, warming, proofing or toasting will result in inferior cooking performance.

Theturntable must

always.bein placewhen

usingtheoven.

Putfood directlyonthe

non-stick metal tray

to bakeononelevel.

metaltray,when bakingontwo

levels,broilingortoastingfoods.

SAVE THESE INSTRUCTIONS

Page 6

a,WARNING!

IMPORTANT SAFETY INSTRUCTIONS

Advantium Oven

tVlicrowave-

safe

cookware

Theturntable must

alwaysbein placewhen

usingtheoven.

Theclear glasstray

shouldalwaysbe in place

whenmicrewaving.

Hake sure to use suitable cookware during microwave cooking. Host glass casseroles, cooking dishes, measuring cups, custard cups, pottery or china dinnerware which does not have metallic trim or glaze with a metallic sheen can be used. Some cookware is labeled

"suitable for microwaving."

[]

Place food or microwavable container directly on the clear glass tray to cook

your food.

[]

Use of the non-stick metal tray during microwave cooking will result in inferior

cooking performance.

[]

If you are not sure if a dish is

microwave-safe, use this test: Place in the oven both

the dish you are Howtotest fora testing and a glass micr0wave-safedish.

measuring cup filled with 1 cup of water-set the

measuring cup either in or next to the dish. Microwave 30-45 seconds

at high. If the dish heats, it should not be used for microwaving.

If the dish remains cool and only the water in the cup heats, then the dish

is microwave-safe.

[]

Cookware may become hot because of heat transferred from the heated food.

Oven mitts may be needed to handle the cookware.

[] Do not use recycled paper products.

Recycled paper towels, napkins and waxed paper can contain metal flecks

which may cause arcing or ignite.

Paper products containing nylon or nylon filaments should be avoided,

as they may also ignite.

[] Use foil only as directed in this manual.

When using foil in the oven, keep the foil at least 1" away from the sides of the

oven.

[]

Do not use the oven to dry newspapers.

[]

If you use a meat thermometer while cooking, make sure it is safe for use

in microwave ovens.

[] Some styrofoam trays (like those that

meat is packaged on) have a thin strip of metal embedded in the bottom. When

microwaved, the metal can burn the floor of the oven or ignite a paper towel.

[] Paper towels, waxed paper and plastic

wrap can be used to cover dishes in order to retain moisture and prevent

spattering. Be sure to vent plastic wrap so steam can escape.

[] Not all plastic wrap is suitable for use

in microwave ovens. Check the package for proper use.

[] "Bailable" cooking pouches and tightly

closed plastic bags should be slit, pierced or vented as directed by package. If they

are not, plastic could burst during or immediately after cooking, possibly resulting in injury. Also, plastic storage containers should be at least partially uncovered because the U form a tight

seal. When cooking with containers tightly covered with plastic wrap, remove covering carefully and direct steam away from hands

and face.

[] Plastic cookware-Plastic cookware

designed for microwave cooking is very useful, but should be used carefully. Even

microwave-safe plastic may not be as tolerant of overcooking conditions as are glass or ceramic materials and may soften or char if subjected to short

periods of overcooking. In longer exposures to overcooking, the food and cookware could ignite.

Follow these guidelines:

1. Use microwave-safe plastics only and use them in strict compliance

with the cookware manufacturer's recommendations.

2. Do not microwave empty containers.

3. Do not permit children to use plastic cookware without complete supervision.

SAVE THESE INSTRUCTIONS

Page 7

.4,WARNING!

SAFETY PRECAUTIONS

[]

Don't defrost frozen beverages in [] narrow-necked bottles (especially carbonated beverages). Even if the

container is open, pressure can build up. [] This can cause the container to burst,

possibly resulting in injury.

[]

Foods cooked in liquids (such as pasta) may tend to boil more rapidly than foods containing less moisture.

Should this occur, refer to the Care and Cleaning of the oven section for

instructions on how to clean the inside of the oven.

IMPORTANT SAFETY INSTRUCTIONS

Advantium Oven

Do not overcook potatoes. They could dehydrate and catch fire, causing damage to your oven.

Avoid heating baby food in glassjars, even with the lid off. Hake sure all infant

food is thoroughly cooked. Stir food to distribute the heat evenly. Be careful to prevent scalding when warming formula. The container may feel cooler than the formula really is. Always test the formula before feeding the baby.

[] Do not attempt to deep fry in the oven.

Notice-- Pacemakers

[] Hot foods and steam can cause

burns. Be careful when opening any containers of hot food, including popcorn bags, cooking pouches and boxes. To prevent possible injury, direct steam away from hands and face.

[] Host pacemakers are shielded from

interference from electronic products, including microwaves. However, patients with pacemakers may wish to consult their physicians if they have concerns.

SAVE THESE INSTRUCTIONS

Page 8

What is Advantium?

Advantium Oven

Getting to know

Advantium

The new Advantium oven uses

breakthrough Speedcook technology

to harness the power of light. The Advantium oven cooks the outside

of foods much like conventional radiant heat, while also penetrating

the surface so the inside cooks simultaneously. While halogen light is

the primary source of power, a "microwave boost" is added with

certain foods. Foods cook evenly and fast, retaining their natural moisture.

) [

-/-/-/-I-I-

//111

/111

III

Turntable

[] The turntable rotates to ensure even cooking. Controls

[] The oven control contains preset recipes. [] Turn-and-press dial makes menu selection easg.

Halogen Lump end Ceramic Heaters [] One 500-watt halogen bulb and one 700-watt ceramic

heater cook food from above.

[] One 37g-watt ceramic heater cooks food from below.

Rear Convection Heat Element [] Operates when using bake.

Microwave [] A microwave "boost" is automatically added with certain foods.

[] The oven can also be used as a 975-watt microwave oven.

Page 9

Advantium Quick Start

Advantium Oven

Set the clock

Microwaving

with Express

When Lieu first plug in the oven or after a power outage:

1. Turn the selector dial to set the hour. Press the dial to enter.

2. Turn the dial to set the minute. Press the dial to enter.

3. Turn the dial to select AM or PM. Press the dial to enter.

Press EXPRESSrepeatedlg for 30-second increments of microwave

cooking time. The oven starts immediatelg.

To change the time:

1. Press the OPTIONS pad.

2. Turn the dial to SET CLOCK. Press the dial to enter and follow

the displaLI directions to set.

Theturntable mustalwaysbe in

placewhen usingtheoven.

Theclear glass tray should

always be inplacewhen

microwaving.

Begin

speedcooking

1. Press the SPEEDCOOK pad.

2. Turn the dial to FOOD MENU. Press the dial to enter.

Turn the dial to select the tgpe of food categorLI Lieu want. Press the

dial to enter it.

Turn the dial to select the specific food. Press the dial to enter it.

Turn the dial to select the amount,

size, and/or doneness (if required,

the oven will prompt gou). Press the

dial after each selection.

Once the displag shows ADJUST TIME OR START,either press the dial or start pad to start cooking.

[]

Press CLEAR/OFF at any time to stop cooking.

Theturntable mustalwaysbe in

placewhen usingthe oven.

Putfooddirectly onthe

non-stick metal tray to

speedceek

Page 10

Speedcook Menu Guide

Advantium Oven

Oisplog

prompts

Preset

speedcook

selections

After pressing the SPEEDCOOKpad, the oven will prompt Sou to make

several selections, such as the example below.

1. Turn the dial until FOOD 3. MENUappears. Press

the dial to enter.

2. Turn the dial until POULTRYappears. 4.

Pressthe dial to enter.

[] After a cooking cucle has been

completed, use the Resume feature to cook for additional time.

MenuSelection

Appetizers Bagel Bites

Breads Bagels (frozen)

Breakfast Bagels (frozen)

Desserts Brownies

Entree Burritos (frozen)

Cheese Sticks Egg Rolls (Frozen)

Hot Dip (2-4 Cups) 2alapeno Poppers

Meat Balls (Frozen) Nachos

Nuts Roasted Onion Rings

Pizza Rolls Soft Pretzels (Frozen)

Biscuits Bread Sticks

Cheese Bread Crescent Rolls

Dinner Rolls Garlic Bread

Quick Bread (9x5) Sweet Rolls/Danish

Taco Shells (boxed) Texas Toast

Belgian Waffles Breakfast Pizza

Casserole (egg 7xll) Coffee Cake

French Toast Pancakes (frozen) Nashbrown Patties

Rolls (refrigerated) Sausage Biscuit

Sausage Strudel (frozen)

Sweet Rolls/Danish Turnovers Waffles (frozen)

Cakes (mix 9x13) Cobbler (fresh 7x11)

Coffee Cake

Cookies Pie (fresh fruit)

Rolls (refrigerated) Turnovers

Chimichanga Casserole

Egg Rolls (frozen) Enchilada (fresh)

Lasagna Meatloaf (9x5)

Ouesadillas (fresh) Stuffed Peppers (6)

Turn the dial until

CHICKEN,BONELESS

appears. Press the dial to enter.

Turn the dial to

Se/ectSIZE: MEDIUM(7-9 oz each)

Press the dial to enter.

[] To review settings during cooking,

press the selector dial.

Meats Filet Mignon

Pizza Deft/Fresh

Potatoes Baked Potato

Poultrg Chicken, Bone-In

Sandwich Corn Dog (frozen)

Seafood Cod Fillets

Side Dish Refried Beans (1B oz)

NOTE:Whenspeedcooking,use the non-stickmetaltray.

5. Turn the dial to

Se/ectamount: !-2 pieces

Pressthe dial to enter.

6. Use NON-STICK METAL

TRAYis displayed.

MenuSelection

Hamburger Lamb Chops Pork Chops

Roast- Pork Roast- Beef

Ribege Steak Sirloin Steak

Strip Steak T-Bone Steak

Tenderloin

Use Precooked Crust Frozen Pizza

Hashbrown Patties Frozen Fries

Frozen Nugget Sweet Potato/Yam

Chicken, Boneless Chicken Fillet (frozen)

Chicken Finger (frozen) Chicken, Fried (frozen)

Chicken Nugget (frozen) Chicken Patty (frozen)

Chicken Tender (frozen) Chicken Wings (frozen)

Chicken, Whole Turkey

Crescent Roll Hot Dog Grilled Sandwich

Not Dog in a Bun Pocket Sandwich

Taquitos (frozen)

Fish Sticks (frozen) Frozen Breaded Lobster Tails

Orange Roughs Fillet

Salmon Sea Bass

Shellfish

Swordfish Steak

Talapia Tuna Steaks

Whitefish

Roasted Asparagus Roasted Bell Pepper

Roasted Chilis (6) Roasted Corn Roasted Garlic

Roasted Mixed Vegetables Stuffing (mix)

Stuffed Mushrooms Stuffed Tomatoes

Page 11

Oven Features

Advantium Oven

Oven

features

Throughout this manual, features and appearance may vary from your model.

NOTE;Handle appearance may differ on some models.

Turntable

The turntable must alwags be in

place, on the oven floor, for all cooking. Be sure the turntable is seated securely over the spindle

in the center of the oven.

Nonstick Metal Trabl

Put food directlg on the nonstick metal trag and place on the turntable when

using the speedcook and bake features.

Wire Oven Rack and Aluminum

Baking Sheet

Put food directly on the aluminum

baking sheet on the wire oven rack, and place them on the nonstick metal tray, when baking on two levels,

broiling or toasting foods.

Clear Glass Trabl

Place on the turntable when using the

microwave features. Place food or

microwave-safe cookware directlg on the trag.

Upper Halogen Lamp/Ceramic

Heater

Operates when using speedcook or broil.

Window

Allows cooking to be viewed while keeping microwaves confined in

the oven.

Door Handle

Pull to open the door. The door must be securelg latched for the oven to operate.

Door Latches

Lower Ceramic Heater

Operates when using speedcook.

Control Panel

The pads used to operate the oven are located on the control panel.

Rear Convection Heat Element Operates when using bake.

Page 12

Oven Features

Advantium Oven

Cooking

controls

With _jourAdvantium oven,Ljoucan cookwith high-intensit_jhalogenlights,ceramicheaters and convection

heating elements,and/or conventionalmicrowave energy.

SPEEDCOOK/Repeat Last

Press this pad to access the preset speedcook menu. Press and hold for

3 seconds to repeat the last cooking selection.

CONV BAKE/BROIL Press this pad to bake, broil or toast.

CUSTOM SPEEDCOOK

Press this pad to set your own speedcook program.

@ WARM/PROOF @

Select WARM to keep hot, cooked

foods at serving temperature.

Select PROOF to set for a warm environment useful for rising

yeast-leavened products.

0 COOK(Microwave) 0

Press this pad to microwave food that is not in the FAVORITE RECIPESsection.

EXPRESS(Microwave)

Press for 30 seconds of microwave cooking time. Each time the pad

is pressed adds an additional 30 seconds to the remaining cooking

time. The oven starts immediately.

DEFROST (Microwave)

Press this pad to defrost, soften or melt frozen foods.

REHEAT (Microwave)

Press this pad to reheat servings of previously cooked foods or a plate of

leftovers.

FAVORITE RECIPES

Press this pad to add, edit (change) or remove a recipe from the memory.

Display

Shows and instructs the use of all features on the oven.

SELECTOR DIAL Turn to select, Press to enter. First turn,

then press the dial to make option, food power level or temperature

selections. Also use the dial to increase (turn clockwise) or decrease (turn counterclockwise) cooking times.

START/PAUSE

Press this pad to start or pause any cooking function.

CLEAR/OFF Press this pad to cancel ALL oven

programs except the clock and timer.

BACK

Press this pad to step back one or more levels in the program process,

such as when entering custom recipes.

HELP

Press this pad to find out more about your oven's features.

POWER/TENP

During cooking, press this pad and turn/press the selector dial

to change the microwave power level, the convection bake temperature

or the speedcook temperature by adjusting the upper and lower lamp

and heater settings.

OPTIONS

Press this pad to set the Clock and access the Beeper Volume, Clock

Display ON/OFF, Display Scroll Speed, Delay Start and Reminder features.

TIMER

Press this pad to set the minute timer.

Page 13

Speedcooking

Advantium Oven

Using

speedcook

features

TO use o

preset

speedcook

_D _ _rcq

CAUTION: When using speedcook programs, remember that the

oven, door and dishes will be verg hot! Prior to the first use of gout oven, the clock must be set. See the Advantium

Quick Start section.

Before gou begin, make sure the turntable is in place. Use the nonstick metal trag and gear own glass or ceramic cookware, if needed.

Theturntable mustalwaysbein place

whenusingthe even.

SPEEDCOOK PRESET FOOD SELECTIONS:

[] Appetizers [] Desserts

[] Breads [] Entrees

[] Breakfast [] Heats

Advantium is alreadg pre-set to cook

over 175 popular dishes.

1. Press the speedcook pad. If no selection is made within

15 seconds, the displag will revert

back to the time of dag.

2. Turn the selector dial to select the type of food category you

want. Press the dial to enter.

3. Turn the selector dial to select the specific food (menu selection).

Press the dial to enter.

. Turn the selector dial to select

amount, size and/or doneness (if required, the oven will prompt

gou). Press the dial after each selection.

[] Pizza [] Sandwich [] Potatoes [] Seafood

[] Poultrg [] Side Dish

5. Once the displag shows ADJUST TIMEor START,either press start or

the selector dial to start cooking.

Turn the food over when the oven

signals TURN FOOD OVER (for certain

foods).

When the oven signals CHECKfor DONENESS, check to see if gour food is

done to your liking (for certain foods).

To review settings during cooking,

press the selector dial.

If gou enter an undesired selection at any time, simply press the BACK pad

and reenter the desired selections.

Putfood directlyonthenan-stick

metal tray to speedcook

[] Early in a speedcook program, you

will see OPTIMIZING COOK TIME on the display. The oven automatically

senses the electrical voltage level in gour home and adjusts the cooking

time up or down for proper cooking.

[]

If the door is opened during cooking, the oven will stop and PAUSE will

appear in the display. Close the door and press the START/PAUSEpad to resume cooking.

[] At an_Itime during cooking you can

turn the selector dial to change the

cooking time. You can change power levels bg pressing POWER/TEMP.

[] To assure consistent cooking results,

the oven may adjust power levels downward if the oven is hot at the

beginning of a program.

[] At the end of cooking, the automatic

fan may continue to run for a short time to cool internal components.

[] To cook for additional time after a

cooking cycle has been completed, use the resume feature.

Page 14

Speedcooking

Advantium Oven

Cooking tips for great

tasting results

To ensure consistent and even browning when cooking foods directly

on the nonstick metal tra_t, arrange

food as shown below.

Circularpattern

(Example:biscuits,cookies)

Spokepattern Singlelayer

(Example:crescentrolls,breadsticks) (Example:appetizers)

Foods can touch but should not overlap.

Sidebyside pattern

(Example:meatsandpoultry)

Fresh meat, chicken, fish or seafood that has been frozen should be thawed before cooking (the microwave defrost feature can be used). For other frozen

prepackaged foods, follow package directions.

Repeat last

......._

Use this time saving feature for cooking repetitive items like cookies or appetizers.

1. Press and hold the SPEEDCOOK pad

2. The last preset food will be

Resume i.

feature

LF .......

D_ _D D < 9 _., r_ 2.

for 3 seconds.

displayed.

If your food needs to cook a bit longer, you can restart the oven by pressing the START/PAUSE pad

or selector dial. RESUMECOOKING will be displayed

and the oven will restart immediately at 10% of the original time.

NOTE: The last program used is stored for two hours.

3. Press the START/PAUSEpad or the

selector dial to start cooking.

The program stays in memory for

i0 minutes. After that you will

need to begin the program again.

See To use a preset speedcook menu.

Page 15

Speedcooking

Advantium Oven

Speedcook power level

...............

Advantium uses power from a high- intensitLI halogen light, ceramic

heaters and microwaves to cook food from the top, bottom and interior

simultaneouslLI to seal in moisture and flavor.

When using the preset speedcook recipes on the food menu, the power levels are already selected for you. However, these power levels can be adjusted before or during cooking. See POWER/TEMP in the Cooking Controls section. The custom speedcook feature allows you to speedcook items not on the preset food menu bLI selecting Llour own cook time and power level settings.

Each power level gives gou heater power and microwave energg for a certain percentage of the time.

UPPER POWER (U) controls both the upper heater and microwave power.

A higher UPPERPOWER setting will utilize more upper heater power, browning food faster on top. A lower UPPER POWER setting utilizes more microwave power, causing food to cook more evenlLI throughout.

Select a higher setting for foods such as pizza and baked goods. Select a lower setting for foods such as casseroles, meat and fish.

LOWER POWER (L)controls the lower heater.

Select a higher setting to brown foods

more on the bottom. Select a lower

setting for less browning on the

bottom.

Press the SPEEDCOOK pad and

turn the dial to select FOOD MENU

or FAVORITERECIPES,or press CUSTOM SPEEDCOOK to manually set power level and timer. Press the

dial to enter.

2. Turn the dial to select a food, time or power level as prompted. Press

the dial to enter.

To change the power level when

prompted by the display, turn the dial clockwise to increase or

counterclockwise to decrease

the upper power level. Press the

dial to enter.

Microwave levels are set automaticallg based on the upper

and lower lamp settings.

Press the START/PAUSE pad or the selector dial to start cooking.

If gou do not want to change one of the settings, just press the dial to move

to the next selection. NOTE: Be careful when adjusting

power levels so that gou do not over- or undercook food.

Follow these general guidelines when selecting the best U and L settings for gout

favorite recipes:

U = Select a higher setting for L --

thin foods requiring a golden brown top (example: fish fillets, toast, boneless chicken breasts). Select a lower setting for thicker foods and foods with high sugar or fat content (example: cakes,

roasts).

Select a higher setting for thick or dense foods that mag not cook quicklg in the center (example: casseroles). Select a lower setting for thin foods (example: cookies) and foods containing high fat or sugar content (example: pastrg, cakes).

Page 16

Speedcooking

Advantium Oven

Speedcook

cookware

Custom

speedcook

[] Follow cookware suggestions on

the oven display or in the cookbook or cooking guide.

[] Cookware will become hot because

of heat transferred from the heated food. Oven mitts will be needed to handle the cookware.

[]

Place food directly on the nonstick metal tray when cooking, unless prompted by the oven to do

otherwise.

[]

Use the nonstick metal tray in the same way you would use a shallow baking pan or baking tray.

[]

In addition to the cookware provided, you can use non-metal

casserole dishes, pie plates and other heat-safe cookware. Place

them directly on the turntable.

Advantium gives gou the flexibilitg to cook gour favorite dishes.

If gou want to cook a food item that is not among the preset selections, use custom speedcook.

1. Press the CUSTOM SPEEDCOOK pad.

If no entries are made within 15 seconds, the display will revert

back to the time of day.

2. Turn the selector dial to select the cooking time. Press the dial

to enter.

[]

Be sure to select a size that will rotate easily.

[]

Place the nonstick metal tray on the turntable. Place glass or ceramic cookware on the tray.

[]

Do not use cookware or coverings made of paper, plastic or foil when cooking during a speedcook cycle.

, Turn the dial clockwise to increase

or counterclockwise to decrease the upper power level. Press the

dial to enter.

Turn the dial to change the lower

power level. Press the dial to enter.

Press the START/PAUSEpad or press the selector dial to start

cooking.

For power level and cooking time suggestions, use your cooking guide

or cookbook.

The display will prompt you to

select the power level(s).

Page 17

Speedcooking

Advantium Oven

Favorite recipe--

to enter and save

_ _ E3rc'l

Add and save up to 30 of sour own Speedcook or microwave recipes, or preset Speedcook menu recipes as a favorite recipe. Once it's done, you can quickly recall sour favorite so that sour food cooks just the wag Sou want it everg time!

1. Press the FAVORITERECIPESor the SPEEDCOOK pad.

. Turn the dial until FAVORITE

RECIPESappears. Press the dial to enter. (Skip this step if the FAVORITE RECIPESpad was pressed in step 1.)

3. Turn the dial until ADD RECIPE appears. Press the dial to enter.

4. Turn the dial to COPYSPEED RECIPEor to ADD NEW RECIPE. Press the dial to enter.

If COPYSPEED RECIPEwas selected, turn dial to food

tgpe(s) and press the FAVORITE RECIPESpad to enter and save the

recipe. If ADD NEW RECIPEwas selected,

turn the dial to select SPEEDCOOK or MICROWAVE recipe. Press the

dial to enter and continue with these steps.

5. SELECT COOK TIME appears. Turn the dial to select the cooking time.

Press the dial to enter.

Thedisplay will prompt _touto select the power level(s).

. Turn the dial clockwise to increase

or counterclockwise to decrease the power level(s). Press the dial to

enter.

For power level and cooking time

suggestions, use btour cooking guide

or cook book.

SPELL THE FOOD NAME appears. Turn the dial to the first letter of

sour food description and press the dial to enter. Continue this process to spell the rest of the food name. Press the START/PAUSEpad to save the recipe and its name.

Favorite recipe--

to find and use

To find and use stored favorite

recipes:

1. Press the FAVORITERECIPES or the SPEEDCOOK pad.

2. Turn the dial until FAVORITE RECIPESappears. Press the

dial to enter.

. Turn dial to USEFAVORITE RECIPE

and press to enter.

4. The recipe names gou entered will appear.

5. Turn dial until the recipe gou want is displaged and press the dial to

enter.

Press the START/PAUSEpad or press the selector dial to start

cooking.

Page 18

Speedcooking

Advantium Oven

Favorite recipe--

to adjust or change

_B_ 0 _

To adjust or change stored custom

speedcook recipes:

1. Press the FAVORITERECIPESor the SPEEDCOOK pad.

2. Turn the dial until FAVORITE RECIPESappears. Press the dial to

enter.

]

3. Turn the dial until EDITRECIPE appears. Press the dial to enter.

4. Turn the dial to the recipe Llou want to change. Press the dial to enter. Current settings appear.

5. Press the dial to edit.

The displag will prompt gou to select the power level(s) and edit the name. Turn the dial and press to enter the appropriate settings.

For power level and cooking time suggestions, use _tour cooking guide

or cook book.

Favorite recipe--

to delete

....... ........

__ 0 ___

To delete stored custom speedcook

recipes:

1. Press the FAVORITERECIPESor the

SPEEDCOOK pad.

2. Turn the dial until FAVORITE

j RECIPES Press the dial to

enter.

Turn the dial until DELETE RECIPE appears and press the dial to

enter.

Turn dial to the recipe gou want to delete and press the

dial to enter.

appears.

Page 19

Speedcooking

Advantium Oven

Things that

are normal

Cooking Times

[] When speedcooking preprogrammed foods,

gou mag see OPTIHIZING COOK TIHE in the displag several seconds after you press START/PAUSE The oven automatically senses the electrical voltage level in your home and adjusts the cooking time up or down for proper cooking.

Fen/Vent

[]

The fan will be on during cooking. At the end of cooking, the automatic fan mag continue to run for a short time, and the displag will read Oven is Cooling. The fan will automatically shut off when the internal parts of the oven have cooled.

[]

The oven vent will emit warm air while the oven is on.

Lights

[] When the oven is on, light mag be visible

around the door or outer case.

[] The halogen lights will dim and cgcle

on and off during a speedcook cgcle, sometimes even at full power levels.

This is normal. The oven senses the heat level and adjusts automaticallg.

Oven Heat

[] No preheating time is required during

Speedcook cgcles. The oven begins cooking immediatelg.

[] The door and inside of the oven will be verg

hot. Use caution when opening the door and removing food.

[] Do not use cookware or coverings made

of paper, plastic or foil when cooking during a speedcook cgcle.

[]

When cooking for an extended period of time, the oven may automaticallg reduce the power levels to maintain the appropriate level of oven heat.

Sounds

[] Clicks and a fan blowing are normal sounds

during cooking. The relay board is turning components on and off.

Page 20

Baking, Broiling and Toasting

Advantium Oven

Baking, Broiling

and Toasting

HOW to 1. Pressthe CONVBAKE/BROILpad.

Bakingallows you to cook foods the same way as a conventional oven, using a heating element to raisethe

temperature of the air insidethe oven.Any oven temperature from 250% to 4BO°Fmay beset.

Broilingallows you to broilfoods in the same way as a conventional oven.

Toastingallows you to toast foods the same way as a conventional oven.

Afan gently circulates heated air throughout the oven, over and around the food. Becausethe heated air is

kept constantly moving, not permitting a layer of cooler air to develop around the food, some foods cook

slightly faster than in regular oven cooking.

Bake 2. Pressthe dial to select BAKE.

3. Turnthe dial to setthe oven temperature

EE]_

_ B _ _ _ Tobgpasspreheating:O

'f_'f-- OVEN?turn the dial to NO.Pressthe dial

Fortwo-levelbaking,placefoodin

a metalbakingdishor directlyon

thenon-stickmetaltray. Placethe

aluminumbakingsheetoryour bakingdishwith foodontop of

thewire rack.Standthe rack

with foodon the metaltray.

_ 1. When the prompt shows PREHEATTHE

and pressto enter.

or pressSTART/PAUSEto begin cooking.

2. Placethe food inthe oven,turn the dial to set the cook time and pressto enter. Theoven starts cooking immediately.

When cooking is complete, the oven will signal and turn off.

Topreheat:

1. When the prompt shows PREHEATTHE OVEN?turnthe dial to YES.Pressthe dial

or pressSTART/PAUSEto begin cooking. Theoven starts preheating immediately.

Do not placethe food in the oven.(Youwill be prompted to enter the cook time, offer

the oven ispreheated.)

The turntable must

always be in place when

using the oven.

Beforeyou begin,make sure the turntable is in place. Usethe non-stick metal tray at all times when baking.

Put food or oven-safe cool<ware

directly on the non-stick

metal tray to bake.

CAUTION:Whenboking,re e berthot

the oven, door and dishes will be very hot!

2. Whenthe oven isfinished preheating, it will signal.If you do not open the door

within 1 hour,the ovenwill turn off automatically. Open the oven door and,

using caution, placethe food in the oven.

3. Closethe oven door.Turnthe dial to set the cook time and pressto enter

and start cooking. When cooking is complete, the oven will signal and

turn off.

Youmay changethe oventemperatureduring preheatingbbtpressingthe POWER/TEIVlp

pad and turning the dial to selectthenew temperature.

#the oven door isopenedduring cooking, PAUSEwill appear in the display. Closethe

door and pressSTART/PAUSE. Cooktimesare shown in minutes and con

be a maximum of 179 minutes. Timecan be changedduring cookingb_tturning thedial

How to

Broil or

Toast

Putfood directlyon the aluminum

bakingsheetontile wire ovenrack,

andplacethemonthe non-stickmetal

tray,when broilingor toastingfoods.

1. PresstheCONVBAKE/BROILpad.

2. Turnthe dial to BROILorTOASTand press to enter.

Tobgpasspreheating:

1. When the prompt shows PREHEATTHE OVEN?turnthe dial to NO.Pressthe dial

or pressSTART/PAUSEto begin cooking.

2. Placethe food inthe oven,turn the dial to set the cook time and pressto enter. Pressthe dial to start cooking. When

cooking iscomplete, the oven will signal and turn off.

To preheat:

1. When the prompt shows PREHEATTHE OVEN?turn the dial to YES.Pressthe dial

or pressSTART/PAUSEto begin cooking. Theoven starts preheating immediately.

Do not placethe food inthe oven.(Youwill be prompted to enter the cook time, offer

the oven ispreheated.)

2. Whenthe oven isfinished preheating, it will signal.If you do not open the door

within 1 hour,the ovenwill turn off automatically. Open the oven door and,

using caution, placethe food in the oven.

3. Closethe oven door.Turnthe dial to set the cook time and pressto enter

and start cooking. When cooking is complete, the oven will signal and

turn off.

If the oven door isopenedduring cooking, PAUSEwill appear in the displa_t.Closethedoor

and pressSTART/PAUSE.

Page 21

Warming and Proofing

Advantium Oven

Warming

ooooo°°°

Theturntable mustalwaysbein

placewhenusingthe oven.

Putfood directly on the

non-stick metal tray to warm.

TheWARM feature wi/! keep hot, cooked

foods at serving temperature. Always start

with hot food. Usecookware and utensils that can withstand temperatures up to

230 °E

1. Press the WARM/PROOF pad.

2. Turn the dial to select HOLD FOOD WARM. Press the dial to enter.

3. Turn the dial to select the oven temperature. See the chart and tips

below. Press the dial to enter.

LOW ........................................140-160°F

MEDIUM ................................160-195%

HIGH ........................................195-230°F

Temperature and Moisture Selection Chart

Tips far Crisp Foods: m Leave food uncovered.

m Do not use plastic containers or

plastic wrap.

m Preheat prior to use according

to recommended times.

Tips for Moist Foods:

m Cover food with lid or

aluminum foil.

m Do not use plastic containers or

plastic wrap.

m Preheat prior to use according

to recommended times.

Food Type Control Setting Moisture Setting

Bread, hard rolls MEDIUM CRISP Bread, soft roils MEDIUM MOIST

Casseroles MEDIUM MOIST Fried foods HIGH CRISP

Meats* and fish MEDIUM CRISP Pancakes, waffles HIGH CRISP Pizza HIGH CRISP Potatoes, baked HIGH CRISP Potatoes, mashed MEDIUM MOIST

Poultry HIGH MOIST Tortilla Chips LOW CRISP Vegetables MEDIUM MOIST

* USDA/FSIS recommends an internal temperature of 145°F as the minimum doneness forbeef Use a

portable meat thermometer to check internal temperatures.

. Turn the dial to select the level of

moisture you want. See the chart and tips below. Press the dial to

enter.

If the oven door is opened during warming, PAUSEwil! appear in the disp!ag. Close the door and press START/PAUSE

To Crisp Stale Items:

[] Place food or dishes directly on the

black metal tray.

[] Preheat on LOW setting and select

CRISR

[] Check crispness after 45 minutes.

Add time as needed.

Proofing

Theturntable must alwaysbein

placewhen usingtheoven.

Putbreaddoughill a b0wl/bread

panandplace0nthe non-stick

metal tray to proof.

Theproofing feature automatically provides the optimum temperature for the proofing process, and therefore does not have a temperature adjustment.

1. Pressthe WARM/PROOFpad.

2. Turnthe dial to select PROOFBREAD. Pressthe dialto enter.Theoven starts

proofing immediately and shows the []

amount of proofing time completed.

[] To avoid lowering the oven

temperature and lengthening proofing time, do not open the oven door unnecessarily.

[] Check bread products early to

avoid over-proofing.

NOTES:

[]

Do not use the proofing mode for warming food or keeping food hot. The proofing oven temperature is not hot enough to hold foods at safe temperatures. Use the WARM feature to keep food warm.

Proofing will not operate if the oven is too hot. Allow the oven to cool

before proofing.

Page 22

IVlicrowaving

Advantium Oven

Using the microwave

features

Make sure the turntable and clear glass tray are in place. Place food or microwavable container directly on the clear glass tray

to cook btour food.

Theturntable mustalways

bein placewhenusingthe oven.

Theclear glass tray shouldalwaysbein

placewhen micrawaving.

Cookwure

Make sure that cookware is suitable for microwaving.

MICROWAVE PRESET SELECTIONS:

[] Cook [] Defrost

-By Food Type -1.0 Ib Quick -Beverage

-By Time -By Time -Casserole

-By Time 1 & 2 -By Food Type -Chicken

-Delay Start -By Weight -Pasta

-Heat/Reheat -Delay Start -Pizza

-Beverage -Melt -Plate of Food

-Melt -Soften -Rice

-Slow Cook -Soup

-Soften -Steaks/Chops

m Placefood or microwavable container

directlg on the clear glass trag to cook sour food.

[] Reheot

-Vegetables

How to

use pro-set

microwave

selections

1. Press the microwave COOK, DEFROSTor REHEATpad.

If no selection is made within 15

seconds, the display will revert

back to the time of day.

2. Turn the dial to find the food

gou want to cook, defrost or

reheat. Press the dial to enter.

3. Turn the selector dial to select the

tgpe, amount, weight and/or size. (As required, the oven will prompt

gou.) Press the dial after each selection.

4. Press the dial or the START/PAUSE pad to start cooking.

To review settings during cooking,

press the selector dial.

If the door is opened during cooking, the oven will stop and PAUSE will appear in the display. Close the door and press START/PAUSEto resume cooking.

If you enter an undesired selection at any time, simply press the BACK pad

and reenter the desired selections.

Page 23

Microwaving

Advantium Oven

Cook Bbl Time and Cook By

Time 1 & 2

Express

Microwave

power level(s)

........

Use COOK BY TIME and COOK BY TIME

1 & 2 to microwave food that is not in the recipe section and at the time(s) you set.

The power level is automatically set at high, but you can change it for

more flexibilitg. Press the COOK pad.

Turn the dial to select COOK BY TIME or COOK BYTIME 1 & 2

and press the dial to enter. Turn the dial to set the cook time

and press the dial to enter.

Press EXPRESSrepeatedlg for 30-second increments of microwave

cooking time. Oven starts immediatelg.

First, follow directions for COOK BY

TIME, COOK BYTIME 1 & 2,

DEFROST BY TIME or EXPRESS. Press the POWER/TEMP pad.

Turn the dial clockwise to increase

and counterclockwise to decrease

the power level. Press the dial to enter.

4. Press the dial or the START/PAUSE pad to start cooking.

If you selected COOK BY TIME 1 & 2, turn the dial to set the second cook

time and press the dial to enter.

NOTE: To change the power level if you don't want full power, press the

POWER/TEMP pad after entering the

time(s). Turn the dial to select and press the dial to enter.

4. Press the dial or the START/PAUSE pad to start cooking.

You may open the door during COOK BY TIME and COOK BY TIME 1 & 2 to

check the food. Close the door and

press START/PAUSE to resume cooking.

Here are some examples of uses for various power levels:

High 10: Fish, bacon, vegetables,

boiling liquids. Med-High 7: Gentle cooking of meat

and poultrg; baking casseroles and reheating.

Medium 5: Slow cooking and tenderizing for stews and less

tender cuts of meat.

Favorite recipes

Cooking tips

[] You can change the power level

before or during a cooking program.

See the Favorite recipe sections in the Speedcook section of this book for

instructions on how to save, use,

change or delete a favorite recipe.

[] When cooking bacon, lager strips on

a plate. Cover each lager with a paper towel.

[] When cooking vegetables,

use a microwave-safe casserole or bowl. Cover with a microwave-

safe lid or vented plastic wrap.

Low 2 or 3: Defrosting, simmering, delicate sauces.

Worm 1: Keeping food warm,

softening butter.

[] For frozen vegetables, follow

the package instructions for adding water.

[] For fresh vegetables, add

2 tablespoons of water for each serving.

Page 24

Hicrowaving

Advantium Oven

Defrost bg

food type

Auto Defrost automaticallg sets the

defrosting times and power levels

to give even defrosting results for

meats, poultrg and fish weighing up to 6 pounds.

1. Remove food from the package and place it on a microwave-safe

dish.

2. Press the DEFROST pad.

3. Turn the dial to DEFROSTBY FOOD

TYPE.Press the dial to enter.

4. Turn the dial to select food tgpe.

Press the dial to enter.

Turn the dial to the food weight,

using the Conversion Guide

at right. For example, dial 1.2 for

1.2 pounds (1 pound, 3 oz.) Press the dial to enter.

Press the dial or START/PAUSE pad

to start defrosting.

Turn the food over when the oven signals TURN FOOD OVER.

[] Remove defrosted meat or shield

warm areas with small pieces of foil for even defrosting.

[] After defrosting, most meats need to

stand 5 minutes to complete defrosting. Large roasts should

stand for about 30 minutes.

Conversion Guide If the weight of food is stated in

pounds and ounces, the ounces must

be converted to tenths (.1) of a pound.

Weight of Food Enter Food Weight

in Ounces (tenths of u pound)

i-2 .i

5 .2

4-5 .5

6-7 .4

8 .5

9-!0 .6

!! .7

12-15 .8 14-15 .9

Defrost bg time

Use Time Defrost to defrost for a

selected length of time.

1. Press the DEFROST pad.

2. Turn the selector dial to DEFROST BY TIME. Press the dial to enter.

3. Turn the dial to select the time gou want. Press the dial to enter.

4. Press the dial or START/PAUSE pad to start defrosting.

5. Turn the food over when the oven signals TURN FOOD OVER.

Power level is automatically set at 3, but can be changed. To change the

power levels, see the Microwave Power Level(s) section. You can defrost small

items quickly by raising the power level after entering the time. Power level 7 cuts the total defrosting time in

about half; power level 10 cuts the total time to about 1/3. When

defrosting at high power levels, food will need more frequent attention

than usual.

Page 25

IVlicrowaving

Advantium Oven

Defrosting

tips

Use DEFROST BY FOOD TYPEfor meat, poultry and fish. Use DEFROST BY TIME

for most other frozen foods.

[]

Foods frozen in paper or plastic can be time defrosted in the package,

but foods should be taken out of the [] package when using DEFROST BY

FOOD TYPE.Closed packages should be slit, pierced or vented after food has partially defrosted. Plastic storage containers should [] be partially uncovered.

[]

Family-size, prepackaged frozen dinners can be defrosted and

microwaved. If the food is in a foil container, transfer it to

a microwave-safe dish.

[]

Foods that spoil easily should not

be allowed to sit out for more than one hour after defrosting. Room

temperature promotes the growth of harmful bacteria.

For more even defrosting of larger foods, such as roasts, use DEFROST BY TIME. Be sure large meats are completely defrosted before cooking.

When defrosted, food should be cool but softened in all areas.

If still slightly icy, return to the microwave very briefly, or let

it stand a few minutes.

Page 26

IVlicrowaving

Advantium Oven

Microwave sensor

cooking

The sensor feature detects the

increasing humidity released during cooking. The oven automatically adjusts the cooking time to various tbtpes and

amounts of food.

Do not use the Sensor Features twice in

succession on the same food portion- it may result in severely overcooked or

burnt food. If food is undercooked after the first countdown, use COOK BY TIME for additional cooking time.

The proper containers and covers are essential for best sensor cooking.

[]

Alwags use microwave-safe

containers and cover them with lids or vented plastic wrap. Never use

tight sealing plastic containers-theg

can prevent steam from escaping and cause food to overcook.

[]

Be sure the outside of the cooking containers and the inside of the

oven are drg before placing food in the oven. Beads of moisture

turning into steam can mislead the sensor.

Covered

Vented

Dry off dishes sothey don't

mislead the sensor.

[] Beverages are best heated

uncovered.

MICROWAVE SENSOR PROGRAMS: [] Ground Meat

[] Popcorn - Prepackaged microwave popcorn, 3.0 oz. to 3.5 oz. [] Soup

[] Rice [] Vegetables (Canned, Fresh, Frozen)

[] Chicken Reheat [] Pasta Reheat [] Plate of Food Reheat

[] Soup Reheat [] Vegetable Reheat

Page 27

IVlicrowaving

Advantium Oven

To use all

sensor

programs

Advantium's microwave mode

features sensor cooking. The oven automatically senses when food is

done and shuts itself off-eliminating the need to program cook times and

__ power levels.

!. Press the COOK pad and turn the

dial to COOK BYFOOD TYPE. Press the dial to enter. Or press the

REHEATpad.

2. Turn the dial to select the food gou

want. Press the dial to enter.

3. Press the dial or press the START/

PAUSEpad to start cooking.

Do not open the oven door until time is counting down in the displag.

If the door is opened, close it and press START/PAUSE immediately.

If the food is not done enough, use COOK BY TIME in the microwave

selector to cook for more time.

NOTE: Do not use the Sensor Features twice in succession on the same food

portion-it mag result in severelg overcooked or burnt food.

[]

If gou have been speedcooking and

the oven is alreadg hot, it mag

indicate that it is too hot for sensor

cooking. Of course, gou can alwags continue with COOK BY TIME or

SPEEDCOOK.

NOTE: If the oven is too hot then it will automatically change to time cooking.

[]

To shorten or lengthen the cook time, wait until the time

countdown shows in the displag. Then turn the dial to add or

subtract time.

[]

If gou open the door while Sensor Cooking, SENSOR ERROR will appear. Close the door, press START/PAUSEto begin again.

Notes about the Reheat program:

Reheated foods mag have wide variations in temperature. Some areas mag be extremelg hot.

It is best to use COOK BY TIME and not REHEATfor these foods:

[] Bread products [] Food that must be reheated

uncovered.

[] Foods that need to be stirred

or turned.

[] Foods calling for a dry look or crisp

surface after reheating.

Things that are normal

Interference

[] TV/radio interference might be noticed

while using the microwave. Similar to the interference caused bg other small appliances, it does not indicate a problem

with the microwave. Move the radio or TV as far awag from the microwave as possible, or

check the position of the TV/radio antenna.

Lights

[] The oven cavitg light will come on

during a microwave cooking cgcle.

Oven Heat

[] Cookware mag become hot because of heat

transferred from the heated food. Oven mitts

mag be needed to handle the cookware.

[] Steam or vapor mag escape from around

the door.

Page 28

Other Advantium Features

Advantium Oven

"COOK TIME

COMPLETED"

Features

under the

OPTIONS

pad

To remind you that you have food

in the oven, the oven will display COOK TIME COMPLETED and beep once a minute until you either open the oven door or press the CLEAR/OFF pad.

Clock:

The clock must be set before you can use your oven for the first time (see

Quick Start for instructions).

1. To change the clock time, press the OPTIONS pad and turn the dial to

CLOCK.Press the dial to enter.

2. Turn the dial to set hours. Press the dial to enter.

3. Turn the dial to set minutes. Press

the dial to enter.

4. Turn the dial to select AM or PM. Press the dial to enter.

Clock Display ON/OFF: Use this feature to turn your clock

display on or off. Press the OPTIONS

pad, turn the dial to select CLOCK DISPLAY ON/OFF. Turn the dial to

select ON or OFF.Press the dial to enter.

Delay Start:

Delay Start allows you to set the

oven to delay cooking up to 24 hours.

Press the OPTIONS pad, turn the dial to select DELAYSTARTand press the dial to enter. Follow the display directions to set the Delay Start time and feature you wish to delay.

Beeper Volume:

Use this feature to adjust the volume

of the beeper. You can even turn it off.

Press the OPTIONS pad, turn the dial to select BEEPER VOLUME, press the dial to enter, and follow the display

directions.

Scroll Speed:

Is the message scroll too slow or too fast? Change it! Press the OPTIONS pad, turn the dial to select DISPLAY SCROLL SPEED, press the dial to enter, and follow the display directions.

Reminder:

Use this feature to set an alarm beep to sound at a specific time of day.

Press the OPTIONS pad, turn the dial to SET/CLEAR REMINDER and press the

dial to enter. Turn the dial to select the hour and press to enter. Turn the dial

to select the minute and press to enter. Turn the dial to select AM or PM

and press to enter. To review the setting, turn the dial

to SET/CLEAR REMINDER and press the dial to enter. Turn the dial to REVIEW

and press to enter. To cancel the setting, turn the dial

to SET/CLEAR REMINDER and press the dial to enter. Turn the dial to CLEAR

and press to enter.

Review

D_ _D EU_ _ D Fqr_ I Press the selector dial during

Use this feature to review the current cooking selections you have set.

speedcooking or microwave cooking.

Page 29

Other Advantium Features

Advantium Oven

Help use this feature to find out more about

your oven and its features.

_m _ _ _ 0 __ 2. Turn the dial to select the feature

..........J 1. Press the HELP pad.

f ..... name. Press the dial to enter.

Features found in the HELP

Adding Time

Back Bake

Beverage Heat Broil

Child Lockout

Clear/Off Cook

Cook by Time

Cook by Food Type

function.

Defrost by Weight

Delay Start

Express Cook Favorite Recipes

Help Hold Food Warm

Options Power/Temp Proof Bread

Reheat

The displag will show a description for

the program gou have chosen.

Set Beeper Volume Set Clock

Set Display On/OFF Set Display Speed Set/Clear Reminder

Slow Cook Soften/Melt

Speed Cook Start/Pause

Time Cook 1 & 2

Custom Speed Cook Defrost

Defrost by Food Type Defrost by Time

Repeat Last Resume

Review

Sensor Cooking

Timer On/OFF Toast

Warm/Proof

Page 30

Other Advantium Features

Advantium Oven

Child lockout

Timer

Automatic

fan

You may lock the control panel to prevent the oven from being accidentall_l started or used

b_tchildren.

Press and hold CLEAR/OFF for

5 seconds to lock and unlock.

use this feature an_Itime _lOUneed a general purpose timer. It can even be used while cooking in the oven.

1. Press the TIMER pad.

2. Turn the dial to select the hours. Press the dial to enter.

An automatic fan protects the oven from too much heat inside the oven

cavitg.

It automaticallg turns on at low speed

if it senses too much heat.

When the control panel is locked,

Control is LOCKED will be displaged brieflg angtime a pad or dial is pressed.

3. Turn the dial to select the minutes. Press the dial to enter.

To cancel, press TIMER.

The fan will automaticallg turn off when the internal parts are cool. It mag stag on for 30 minutes or more

after the oven control is turned off.

Page 31

Care and Cleaning

Advantium Oven

Helpful hints

How to clean the inside

An occasional thorough wiping with a solution of baking soda and water keeps the inside fresh.

Be certain the oven control is

turned off before cleaning ang

part ofthis oven.

Clean the inside of the oven often for proper heating performance.

Some spatters can be removed with a paper towel, others mag require a warm soapg cloth. Remove greasg spatters with a sudsg cloth; then rinse with a damp cloth.

Do not use abrasive cleaners or sharp utensils on oven walls.

Never use a commercial oven cleaneron any part ofgour oven.

Do not clean the inside of the oven with metal scouring pads. Pieces can

break off the pad, causing electrical shock.

s- %

Walls, Floor,Inside Window, Metal and

Plastic Partson the Door

Removable

turntable

The area underneath the turntable

should be cleaned frequentlg to avoid odors and smoking during a cooking cgcle.

The turntable can be broken if

dropped. Wash carefullg in warm, sudsg water. Drg completelg and replace.

To replace the turntable, place its

center over the spindle in the center of

the oven and turn it until it seats into

place. (Make sure the smooth side of

the turntable is facing up and that its

center seats securelg on the spindle.)

Turntable

Do not usethe oven without the

turntable in place.

Page 32

Care and Cleaning

Advantium Oven

Cooking trags and baking

sheet

How to

clean

the outside

To prevent breakage, allow the trays to cool completely before cleaning. Wash carefully in warm, sudsy water or in

the dishwasher.

Clearglass tray for

microwaving

We recommend against using cleaners with ammonia or alcohol, as

theg can damage the appearance of the oven. If gou choose to use a

common household cleaner, first applg the cleaner directlg to a clean

cloth, then wipe the soiled area. Case

Clean the outside with a sudsy cloth. Rinse and then dry. Wipe the window clean with a damp cloth.

Non-stick metal tray for

speedcooking

Do not use metal scouring pads or abrasives, as theg mag damage the finish. A soap-filled scouring pad mag be used to clean the trags.

Putfooddirectlyonthe

aluminumbakingsheeton

thewire ovenrack,and place

themonthenon-stickmetal

tray,when bakingon

two levels,broilingor

toastingfoods.

Glass Control Panel and Door (on some models)

Wipe with a clean damp sponge.

Dry thoroughly. Do not use cleaning sprays, large amounts of soap and water, abrasives or sharp objects on the panel-they can damage it.

Door Seal

It's important to keep the area clean where the door seals against the oven. Use only mild, nonabrasive detergents applied with a clean sponge or soft cloth. Rinse well.

Stainless steel (on

some

models)

To clean the stainless steel surface, use warm, sudsg water or a stainless steel cleaner or polish. Alwags wipe

the surface in the direction of the grain. Follow the cleaner instructions

for cleaning the stainless steel surface. To inquire about purchasing

stainless steel appliance cleaner or polish, or to find the location of a dealer nearest gou, please call our toll-free number, 800.626.2002 or visit ge.com.

Page 33

Troubleshooting

Advantium Oven

Questions? Use this

problem

solver

Problem Possible Causes What To Do/Explanation

LIGHTS

Light during a speedcook cycle dims and cycles on

and off, even at full power levels

Light visible around

the door and outer

case while speedcooking

This is normal.

Power level has been

automatically reduced

because the oven is hot.

This is normal.

• This is normal. The oven senses the heat level and adjusts automatically.

• When the oven is on, light may be visible around the door and

outer case.

FAN

Fan continues to run The oven is cooling. after cooking stops

Oven vent emits

warm air while

oven is on Fan comes on This is normal.

automatically when using the microwave

This is normal.

• The fan will automatically shut off

when the internal parts of the oven

have cooled.

COOKING

The oven makes

unusual sounds

while cooking

Smoke comes out of the oven when

I open the door

Food is not fully

cooked or browned at the end of a

program

SENSOR ERROR displayed along with

an oven signal

Clicks and fans blowing are normal. The relay

board is turning the

components on and off.

Food is high in fat

content. Aerosol spray

used on the pans. Programmed times

may not match the size or amount of food you are cooking.

Food amount or type

placed in the oven does

not match the program that was set.

Steam was not sensed by the oven because plastic wrap was not vented, a lid too tight was on the dish or a liquid was covered.

• These sounds are normal.

• Smoke is normal when cooking high-fat foods.

Increase or decrease time for

doneness or adjust the upper or

lower lamps for browning and cooking

doneness.

• Press the CLEAR/OFF pad. Set the

oven program to match the food or

liquid to be cooked or heated.

o Vent plastic wrap, use a looser lid

or uncover liquids when cooking or heating.

Page 34

Troubleshooting

Advontium Oven

Questions?

Use this

problem solver

Problem Possible Causes What To Do/Explanation

DISPLAY

The display is blank The clock displag has ,, Check the OPTIONS menu for clock

been turned off. displag settings. Turn the displag on.

"Control is LOCKED" The control has • Press and hold CLEAR/OFF for appears in display been locked. 5 seconds to unlock the control.

Control display is Clock is not set. • Set the clock. lighted get oven will not start

Door not securelg closed. • Open the door and close securelg. START/PAUSEpad ',,Press START/PAUSE

not pressed after entering cooking selection.

Another selection alreadg

entered in oven and CLEAR/OFF pad not

pressed to cancel it. Size, quantitg or cooking

time not entered after final selection.

CLEAR/OFF was pressed accidentallg.

• Press CLEAR/OFF.

• Make sure gou have entered cooking time after selecting.

• Reset cooking program and press

START/PAUSE.

GE PSB1201NSS01, PSB1200NWW01, PSB1200NBB01 Owner’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
