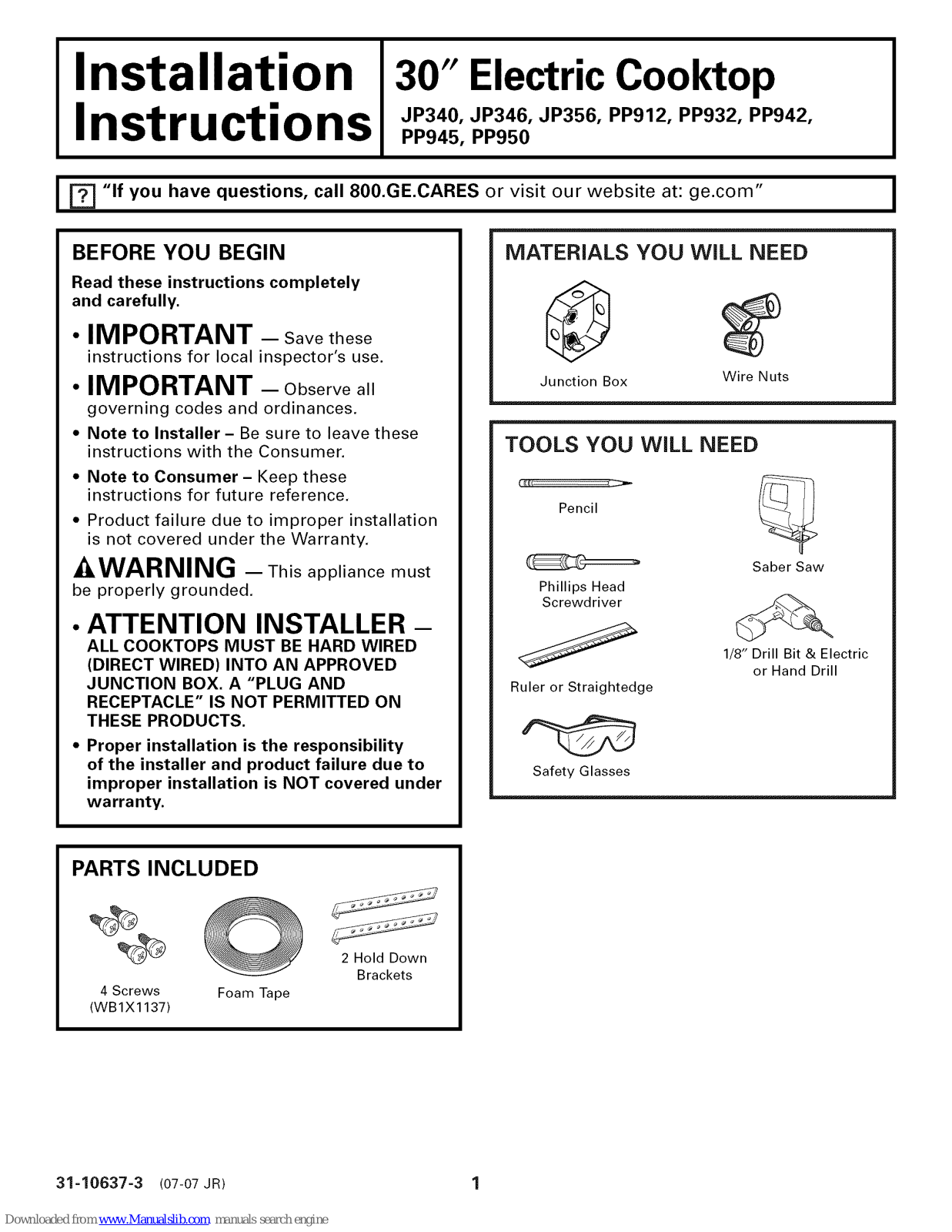

GE JP350, JP930, JP931, JP938, JP939 Installation Instructions Manual
...
IIinstallation 130" ElectricCooktop
nstructions PP,12, PP932, PP,42,
I[_ "If you have questions, call 800.GE.CARES or visit our website at: ge.com" I
PP945, PP950
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
• IMPORTANT - Savethese
instructions for local inspector's use.
• IMPORTANT - Observeall
governing codes and ordinances.
• Note to Installer - Be sure to leave these
instructions with the Consumer.
• Note to Consumer - Keep these
instructions for future reference.
• Product failure due to improper installation
is not covered under the Warranty.
_IWARNING - This appliance must
be properly grounded.
• ATTENTION INSTALLER -
ALL COOKTOPS MUST BE HARD WIRED
(DIRECT WIRED) INTO AN APPROVED
JUNCTION BOX. A "PLUG AND
RECEPTACLE" IS NOT PERMITTED ON
THESE PRODUCTS.
• Proper installation is the responsibility
of the installer and product failure due to
improper installation is NOT covered under
warranty.
MATERIALS YOU WiLL NEED
Junction Box Wire Nuts
TOOLS YOU WiLL NEED
Pencil
Saber Saw
Phillips Head
Screwdriver
1/8" Drill Bit & Electric
or Hand Drill
Ruler or Straightedge
Safety Glasses
PARTS INCLUDED
4 Screws Foam Tape
(WB1X1137)
31-10637-3 (07-07 JR) 1
2 Hold Down
Brackets
Installation Instructions

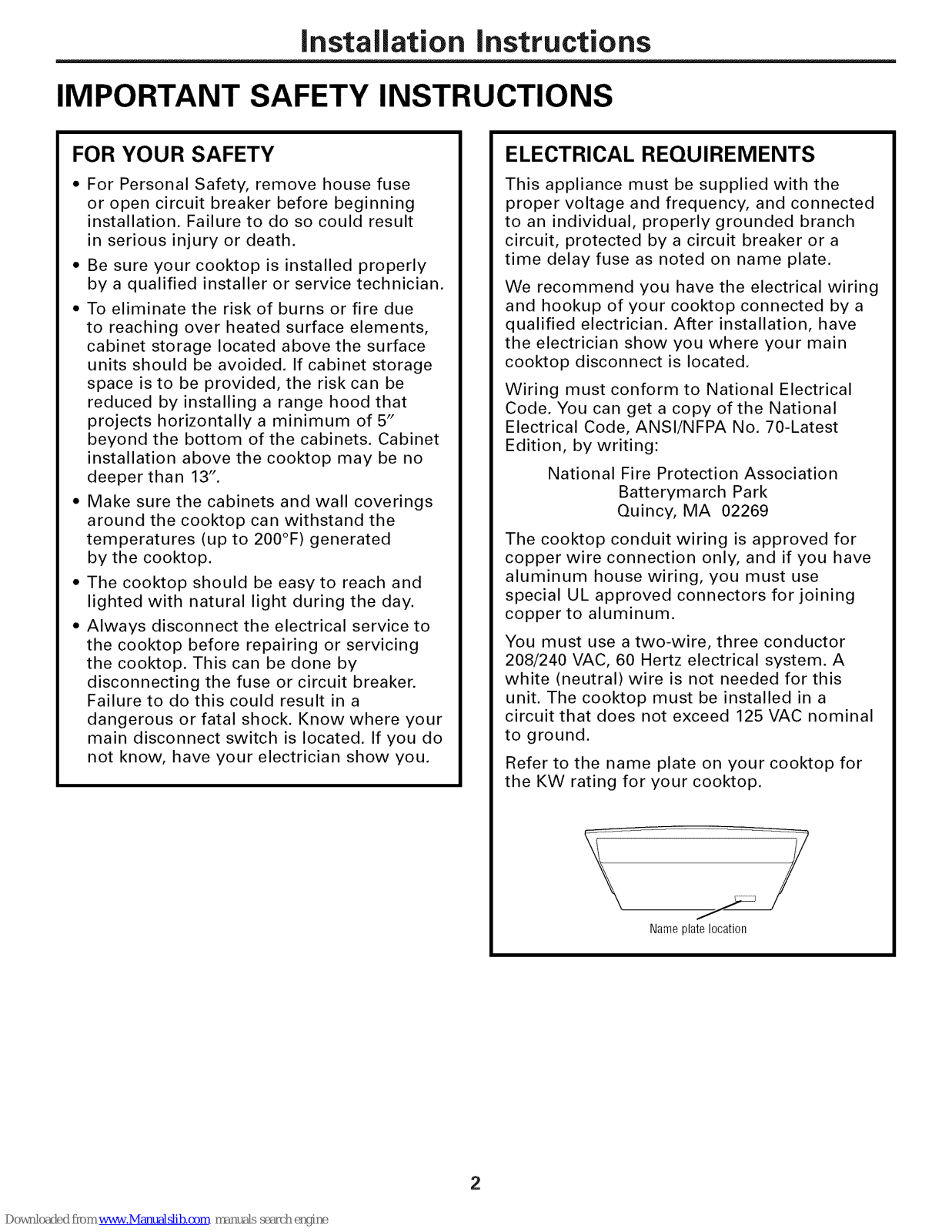

IMPORTANT SAFETY INSTRUCTIONS
FOR YOUR SAFETY
• For Personal Safety, remove house fuse
or open circuit breaker before beginning
installation. Failure to do so could result
in serious injury or death.
• Be sure your cooktop is installed properly
by a qualified installer or service technician,
• To eliminate the risk of burns or fire due
to reaching over heated surface elements,
cabinet storage located above the surface
units should be avoided. If cabinet storage
space is to be provided, the risk can be
reduced by installing a range hood that
projects horizontally a minimum of 5"
beyond the bottom of the cabinets. Cabinet
installation above the cooktop may be no
deeper than 13".
• Make sure the cabinets and wall coverings
around the cooktop can withstand the
temperatures (up to 200°F) generated
by the cooktop.
• The cooktop should be easy to reach and
lighted with natural light during the day.
• Always disconnect the electrical service to
the cooktop before repairing or servicing
the cooktop. This can be done by
disconnecting the fuse or circuit breaker.
Failure to do this could result in a
dangerous or fatal shock. Know where your
main disconnect switch is located. If you do
not know, have your electrician show you.
ELECTRICAL REQUIREMENTS
This appliance must be supplied with the
proper voltage and frequency, and connected
to an individual, properly grounded branch
circuit, protected by a circuit breaker or a
time delay fuse as noted on name plate.
We recommend you have the electrical wiring
and hookup of your cooktop connected by a
qualified electrician. After installation, have
the electrician show you where your main
cooktop disconnect is located,
Wiring must conform to National Electrical
Code. You can get a copy of the National
Electrical Code, ANSI/NFPA No. 70-Latest
Edition, by writing:
National Fire Protection Association
Batterymarch Park
Quincy, MA 02269
The cooktop conduit wiring is approved for
copper wire connection only, and if you have
aluminum house wiring, you must use
special UL approved connectors for joining
copper to aluminum.
You must use a two-wire, three conductor
208/240 VAC, 60 Hertz electrical system. A
white (neutral) wire is not needed for this
unit. The cooktop must be installed in a
circuit that does not exceed 125 VAC nominal
to ground.
Refer to the name plate on your cooktop for
the KW rating for your cooktop.
j
Nameplate location
Installation Instructions

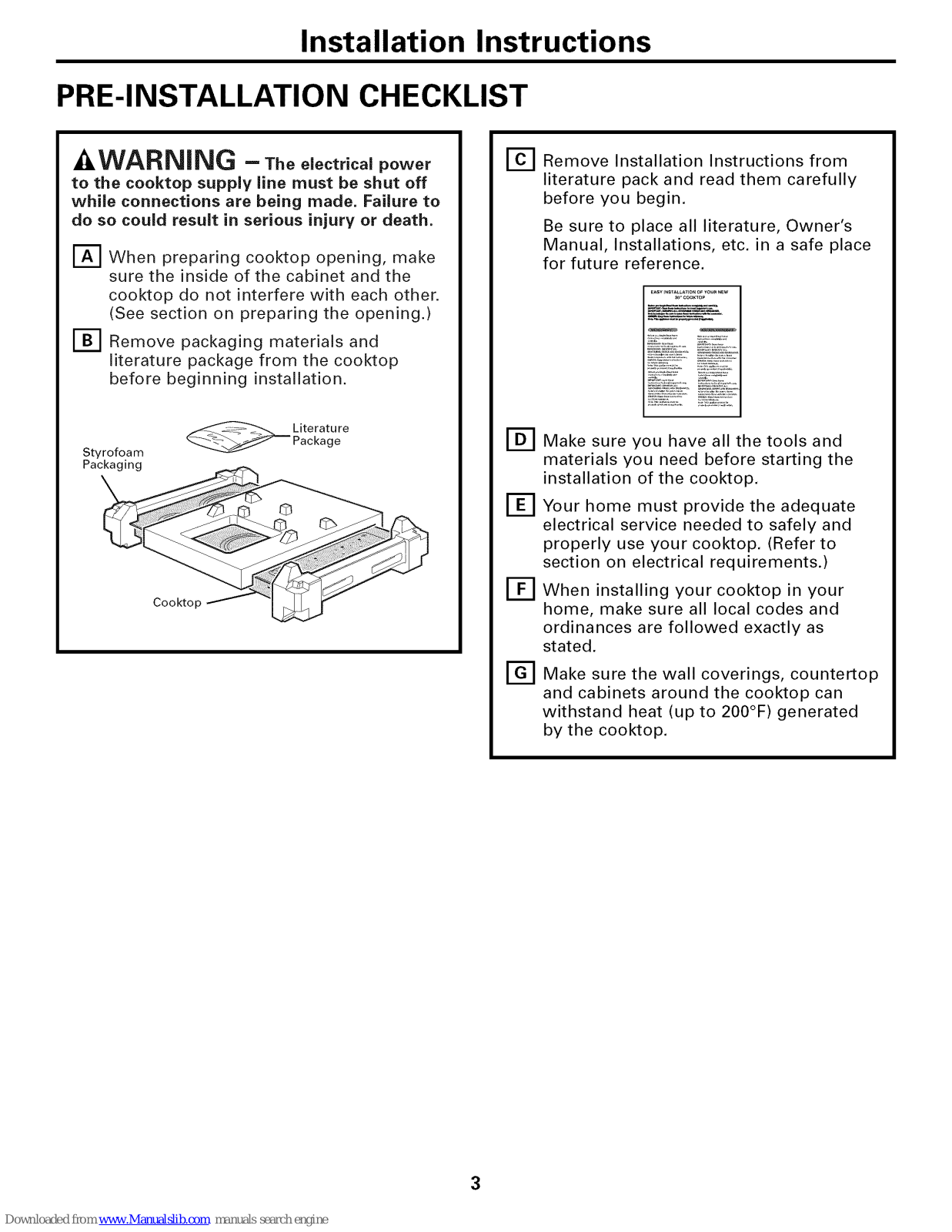

PRE-INSTALLATION CHECKLIST
- WARNING - Theelectricalpower
to the cooktop supply line must be shut off
while connections are being made, Failure to
do so could result in serious injury or death.
['_ When preparing cooktop opening, make
sure the inside of the cabinet and the
cooktop do not interfere with each other.
(See section on preparing the opening.)
[-_ Remove packaging materials and
literature package from the cooktop
before beginning installation.
_Literature
StFrofoam _Package
Packaging
Coo
ChCj Remove Installation Instructions from
literature pack and read them carefully
before you begin.
Be sure to place all literature, Owner's
Manual, Installations, etc. in a safe place
for future reference.
3O"¢_
C= L
@
Make sure you have all the tools and
materials you need before starting the
installation of the cooktop.
m
Your home must provide the adequate
electrical service needed to safely and
properly use your cooktop. (Refer to
section on electrical requirements.)
When installing your cooktop in your
home, make sure all local codes and
ordinances are followed exactly as
stated.
Make sure the wall coverings, countertop
and cabinets around the cooktop can
withstand heat (up to 200°F) generated
by the cooktop.
Installation Instructions

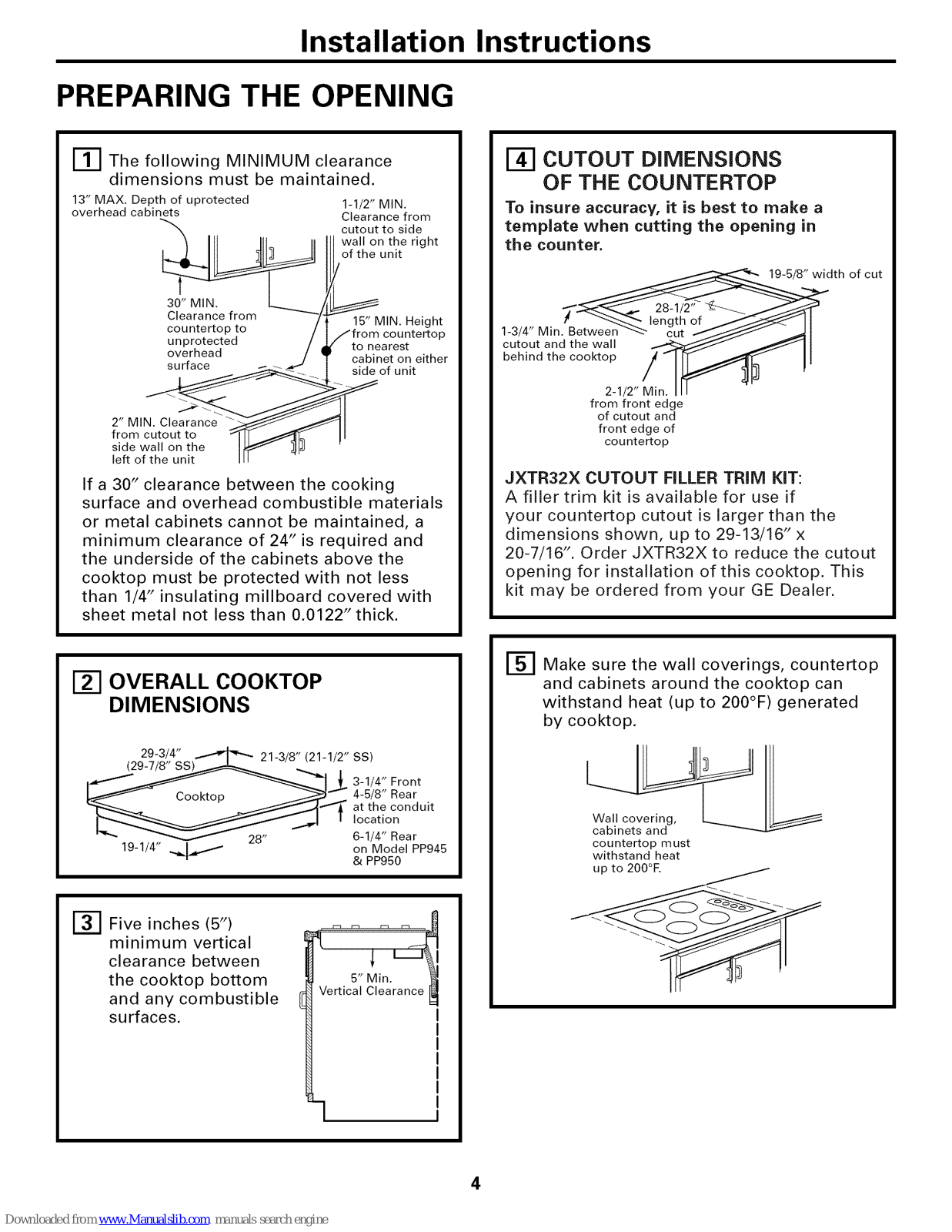

PREPARING THE OPENING
IT] The following MINIMUM clearance
dimensions must be maintained.
13" MAX. Depth of uprotected 1-1/2" MIN.
overhead cabinets Clearance from
30" MIN.
Clearance from 15" MIN. Height
countertop to countertop
unprotected to nearest
overhead cabinet on either
surface side of unit
2" MIN. Clearance
from cutout to
side wall on the
left of the unit
cutout to side
wall on the right
of the unit
If a 30" clearance between the cooking
surface and overhead combustible materials
or metal cabinets cannot be maintained, a
minimum clearance of 24" is required and
the underside of the cabinets above the
cooktop must be protected with not less
than 1/4" insulating millboard covered with
sheet metal not less than 0.0122" thick.
CUTOUT DIMENSIONS
OF THE COUNTERTOP
To insure accuracy, it is best to make a
template when cutting the opening in
the counter.
dth of cut
1-3/4" Min. Between _ cut //// _J I
cutout and the wall __ _11
behind the cooktop /--I_ !1
2-1/2" Min. III
from front edge
of cutout and
front edge of
countertop
JXTR32X CUTOUT FILLER TRIM KIT:
A filler trim kit is available for use if
your countertop cutout is larger than the
dimensions shown, up to 29-13/16" x
20-7/16". Order JXTR32X to reduce the cutout
opening for installation of this cooktop. This
kit may be ordered from your GE Dealer.
OVERALL COOKTOP
DIMENSIONS
29-3/4" ,,,,---_'_,, 21-3/8" (21-1/2" SS)
(29-7/8" SS) _ '
I_""'__ ____1._ 3-1/4" Front
Cnnktnn _ 4-5/8" Rear
......... _"_ at the conduit
, location
"_'" _ 28" 6-1/4" Rear
19-1/4" J_,,_ on Model PP945
E_ Five inches (5")
minimum vertical
clearance between
the cooktop bottom
and any combustible
surfaces.
& PP950
5" Min._
Vertical Clearance
F_ Make sure the wall coverings, countertop
and cabinets around the cooktop can
withstand heat (up to 200°F) generated
by cooktop.
countertop must
withstand heat
up to 20_
4
Installation Instructions

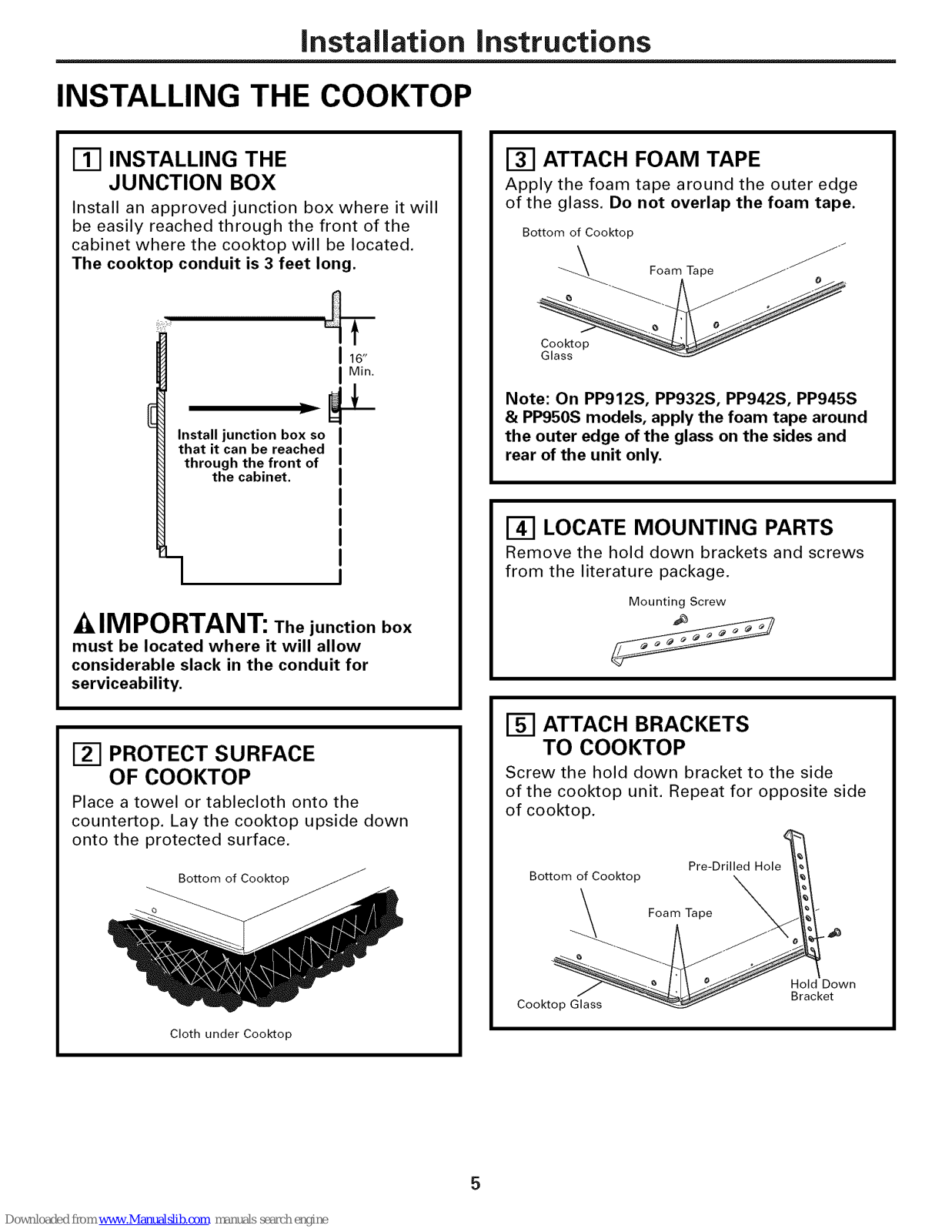

INSTALLING THE COOKTOP
Ill INSTALLING THE
JUNCTION BOX
Install an approved junction box where it will
be easily reached through the front of the
cabinet where the cooktop will be located.
The cooktop conduit is 3 feet long.
I 16_
I Min.
Install junction box so
that it can be reached
through the front of
the cabinet,
q
IMPORTANT: The junction box
must be located where it will allow
considerable slack in the conduit for
serviceability.
[] ATTACH FOAM TAPE
Apply the foam tape around the outer edge
of the glass. Do not overlap the foam tape.
Bottom of Cooktop
_._oar'n Tape _'___-
J
cto op
Note: On PP912S, PP932S, PP942S, PP945S
& PP950S models, apply the foam tape around
the outer edge of the glass on the sides and
rear of the unit only.
_-I LOCATE MOUNTING PARTS
Remove the hold down brackets and screws
from the literature package.
Mounting Screw
[] PROTECT SURFACE
OF COOKTOP
Place a towel or tablecloth onto the
countertop. Lay the cooktop upside down
onto the protected surface.
Bottom of Cooktop
Cloth under Cooktop
[] ATTACH BRACKETS
TO COOKTOP
Screw the hold down bracket to the side
of the cooktop unit. Repeat for opposite side
of cooktop.
Bottom of Cooktop
Cooktop Glass
Pre-Drilled Hole
Foam Tape
Hold Down
Bracket
