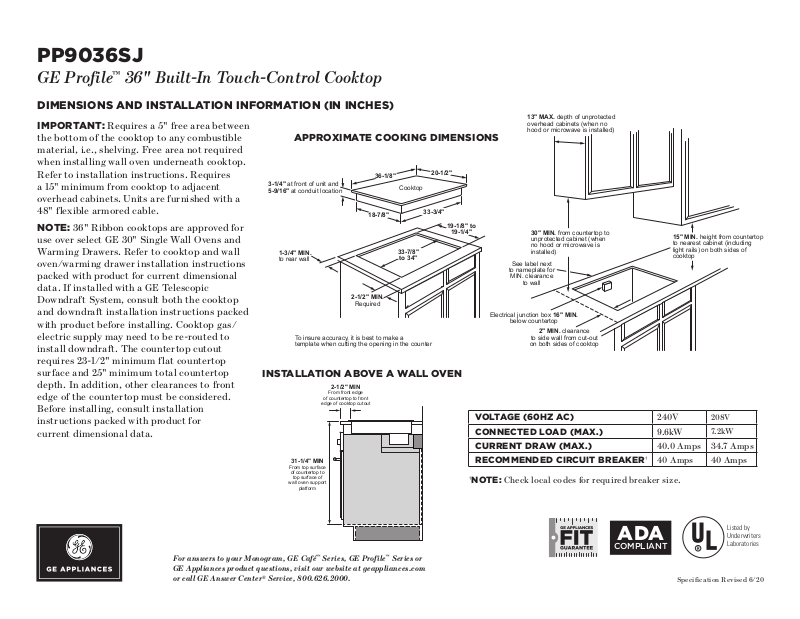

GE PP9036SJ Specification

PP9036SJ

PP9036SJ, PP7036SJ, JP5036SJ

INSTALLATION ABOVE A WALL OVEN

GE Profile

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

IMPORTANT: Requires a 5" free area between
the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires
a 15" minimum from cooktop to adjacent
overhead cabinets. Units are furnished with a
48" flexible armored cable.

NOTE: 36" Ribbon cooktops are approved for
use over select GE 30" Single Wall Ovens and
Warming Drawers. Refer to cooktop and wall
oven/warming drawer installation instructions
packed with product for current dimensional
data. If installed with a GE Telescopic
Downdraft System, consult both the cooktop
and downdraft installation instructions packed
with product before installing. Cooktop gas/
electric supply may need to be re-routed to
install downdraft. The countertop cutout
requires 23-1/2" minimum flat countertop
surface and 25" minimum total countertop
depth. In addition, other clearances to front
edge of the countertop must be considered.
Before installing, consult installation
instructions packed with product for
current dimensional data.

™

36" Built-In Touch-Control Cooktop

APPROXIMATE COOKING DIMENSIONS

3-1/4" at front of unit and
5-9/16" at conduit location

1-3/4" MIN.

to rear wall

2-1/2" MIN.

To insure accuracy, it is best to make a
template when cutting the opening in the counter

INSTALLATION ABOVE A WALL OVEN

2-1/2" MIN

From front edge

of countertop to front

edge of cooktop cutout

31-1/4" MIN

From top surface

of countertop to

top surface of

wall oven support

platform

18-7/8"

Required

36-1/8"

Cooktop

33-7/8"

to 34"

20-1/2"

33-3/4"

13" MAX. depth of unprotected

overhead cabinets (when no
hood or microwave is installed)

19-1/8" to

19-1/4"

Electrical junction box 16" MIN.

30" MIN. from countertop to

unprotected cabinet (when
no hood or microwave is
installed)

See label next

to nameplate for

MIN. clearance

to wall

below countertop

2" MIN. clearance

to side wall from cut-out

on both sides of cooktop

15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop

VOLTAGE (60HZ AC) 240V
CONNECTED LOAD (MAX.) 9.6 kW
CURRENT DRAW (MAX.) 40.0 Amps 34.7 A mps
RECOMMENDED CIRCUIT BREAKER†40 Amps 40 Amps

†

NOTE: Check local codes for required breaker size.

208V

7.2 kW

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

ADA

COMPLIANT

Listed by
Underwriters
Laboratories

Specification Revised 6/20

PP9036SJ

GE Profile

FEATURES AND BENEFITS

Five radiant cooking elements

Glide touch controls

Power Boil tri-ring element

Power Boil dual-ring element

SyncBurners

Multi-element timer

Control lock capability

Custom settings

Melt setting

Fit Guarantee

™

36" Built-In Touch-Control Cooktop

Model PP9036SJSS – Stainless steel

* OPTIONAL STAINLESS STEEL CLAD

ALUMINUM GRIDDLE

Achieve even results with this lightweight griddle,
tailored to fit GE SyncBurners. Order part number
JXGRIDL1 from your GE Dealer

GUARANTEED FIT
Replacing a similar cooktop from GE Appliances or another brand?
GE cooktops are guaranteed for an exact fit or GE Appliances will
pay up to $100 toward modifications

Visit geappliances.com for more info

Specification Revised 6/20
