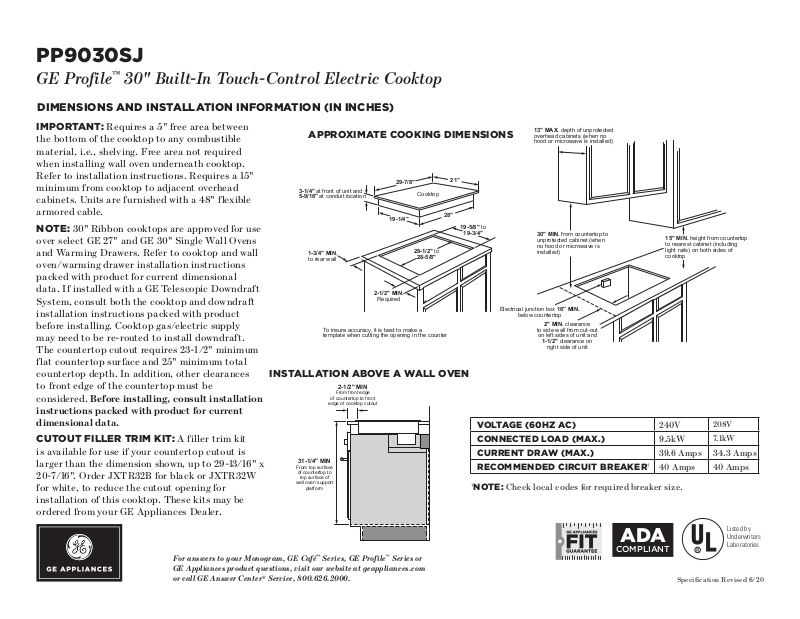

GE PP9030SJ Specification

PP9030SJ

ADA

PP9030SJ, PP7030SJ, JP5030SJ

INSTALLATION ABOVE A WALL OVEN

GE Profile

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

™

30" Built-In Touch-Control Electric Cooktop

IMPORTANT: Requires a 5" free area between
the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires a 15"
minimum from cooktop to adjacent overhead
cabinets. Units are furnished with a 48" flexible
armored cable.

NOTE: 30" Ribbon cooktops are approved for use
over select GE 27" and GE 30" Single Wall Ovens
and Warming Drawers. Refer to cooktop and wall
oven/warming drawer installation instructions
packed with product for current dimensional
data. If installed with a GE Telescopic Downdraft
System, consult both the cooktop and downdraft
installation instructions packed with product
before installing. Cooktop gas/electric supply
may need to be re-routed to install downdraft.
The countertop cutout requires 23-1/2" minimum
flat countertop surface and 25" minimum total
countertop depth. In addition, other clearances
to front edge of the countertop must be
considered. Before installing, consult installation

instructions packed with product for current
dimensional data.

CUTOUT FILLER TRIM KIT: A filler trim kit
is available for use if your countertop cutout is
larger than the dimension shown, up to 29-13/16" x
20-7/16". Order JXTR32B for black or JXTR32W
for white, to reduce the cutout opening for
installation of this cooktop. These kits may be
ordered from your GE Appliances Dealer.

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

APPROXIMATE COOKING DIMENSIONS

21"

28"

19-5/8" to

3-1/4" at front of unit and
5-9/16" at conduit location

19-1/4"

1-3/4" MIN.

to rear wall

2-1/2" MIN.

Required

To insure accuracy, it is best to make a
template when cutting the opening in the counter

29-7/8"

Cooktop

28-1/2" to

28-5/8"

INSTALLATION ABOVE A WALL OVEN

2-1/2" MIN

From front edge

of countertop to front

edge of cooktop cutout

31-1/4" MIN

From top surface

of countertop to

top surface of

wall oven support

platform

13" MAX. depth of unprotected
overhead cabinets (when no
hood or microwave is installed)

19-3/4"

Electrical junction box 16" MIN.

VOLTAGE (60HZ AC) 240V
CONNECTED LOAD (MAX.) 9.5kW

30" MIN. from countertop to
unprotected cabinet (when
no hood or microwave is
installed)

below countertop

2" MIN. clearance

to side wall from cut-out

on left sides of unit and

1-1/2" clearance on

right side of unit

15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop

208V

7.1kW

CURRENT DRAW (MAX.) 39.6 Amps 34.3 Amps
RECOMMENDED CIRCUIT BREAKER†40 Amps 40 Amps

†

NOTE: Check local codes for required breaker size.

COMPLIANT

Specification Revised 6/20

Listed by
Underwriters
Laboratories

PP9030SJ

GE Profile

FEATURES AND BENEFITS

Five radiant cooking elements

Glide touch controls

Power Boil dual-ring element

2nd Power Boil dual-ring element

SyncBurners

Multi-element timer

Control lock capability

Custom settings

Keep warm setting

Fit Guarantee

Model PP9030SJSS – Stainless steel

™

30" Built-In Touch-Control Electric Cooktop

* OPTIONAL STAINLESS STEEL CLAD

ALUMINUM GRIDDLE

Achieve even results with this lightweight griddle,
tailored to fit GE SyncBurners. Order part number
JXGRIDL1 from your GE Dealer.

GUARANTEED FIT
Replacing a similar cooktop from GE Appliances or another brand?
GE cooktops are guaranteed for an exact fit or GE Appliances will
pay up to $100 toward modifications

Visit geappliances.com for more info

Specification Revised 6/20
