PP7036DJ

CP9536SJ, PP9036DJ,

PP7036DJ, JP5036DJ

13" MAX. depth of unprotected

INSTALLATION ABOVE A WALL OVEN

GE Profile

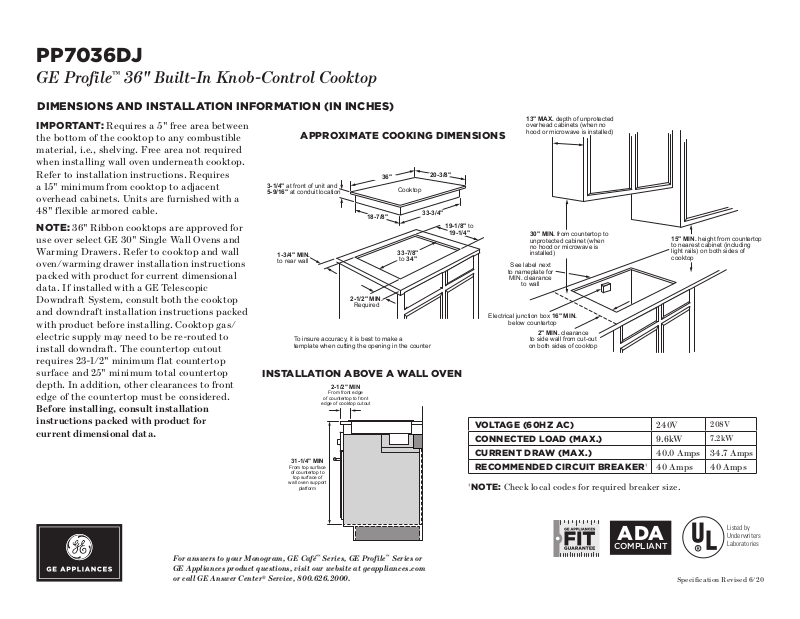

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

™

36" Built-In Knob-Control Cooktop

IMPORTANT: Requires a 5" free area between
the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires
a 15" minimum from cooktop to adjacent
overhead cabinets. Units are furnished with a
48" flexible armored cable.

NOTE: 36" Ribbon cooktops are approved for
use over select GE 30" Single Wall Ovens and
Warming Drawers. Refer to cooktop and wall
oven/warming drawer installation instructions
packed with product for current dimensional
data. If installed with a GE Telescopic
Downdraft System, consult both the cooktop
and downdraft installation instructions packed
with product before installing. Cooktop gas/
electric supply may need to be re-routed to
install downdraft. The countertop cutout
requires 23-1/2" minimum flat countertop
surface and 25" minimum total countertop
depth. In addition, other clearances to front
edge of the countertop must be considered.

Before installing, consult installation
instructions packed with product for
current dimensional data.

APPROXIMATE COOKING DIMENSIONS

20-3/8"

33-3/4"

19-1/8" to

19-1/4"

3-1/4" at front of unit and
5-9/16" at conduit location

18-7/8"

1-3/4" MIN.

to rear wall

2-1/2" MIN.

Required

To insure accuracy, it is best to make a
template when cutting the opening in the counter

36"

Cooktop

33-7/8"

to 34"

INSTALLATION ABOVE A WALL OVEN

31-1/4" MIN

From top surface

of countertop to

top surface of

wall oven support

platform

2-1/2" MIN

From front edge

of countertop to front

edge of cooktop cutout

overhead cabinets (when no
hood or microwave is installed)

30" MIN. from countertop to
unprotected cabinet (when
no hood or microwave is
installed)

See label next

to nameplate for

MIN. clearance

to wall

Electrical junction box 16" MIN.

below countertop

2" MIN. clearance

to side wall from cut-out

on both sides of cooktop

VOLTAGE (60HZ AC) 240V
CONNECTED LOAD (MAX.) 9.6 kW

15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop

208V

7.2 kW

CURRENT DRAW (MAX.) 40.0 Amps 34.7 A mps
RECOMMENDED CIRCUIT BREAKER†40 Amps 40 Amps

†

NOTE: Check local codes for required breaker size.

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

ADA

COMPLIANT

Listed by
Underwriters
Laboratories

Specification Revised 6/20

PP7036DJ

GE Profile

FEATURES AND BENEFITS

Five radiant cooking elements

Power Boil tri-ring element

Power Boil dual-ring element

SyncBurners

Keep warm setting

Melt setting

Control lock capability

Red LED with black glass surface

Hot surface indicator lights

™

36" Built-In Knob-Control Cooktop

Cooktop “on” indicator light

Fit Guarantee

Model PP7036DJBB – Black on black

* OPTIONAL STAINLESS STEEL CLAD

ALUMINUM GRIDDLE

Achieve even results with this lightweight griddle,
tailored to fit GE SyncBurners. Order part number
JXGRIDL1 from your GE Dealer.

GUARANTEED FIT
Replacing a similar cooktop from GE Appliances or another brand?
GE cooktops are guaranteed for an exact fit or GE Appliances will
pay up to $100 toward modifications

Visit geappliances.com for more info
