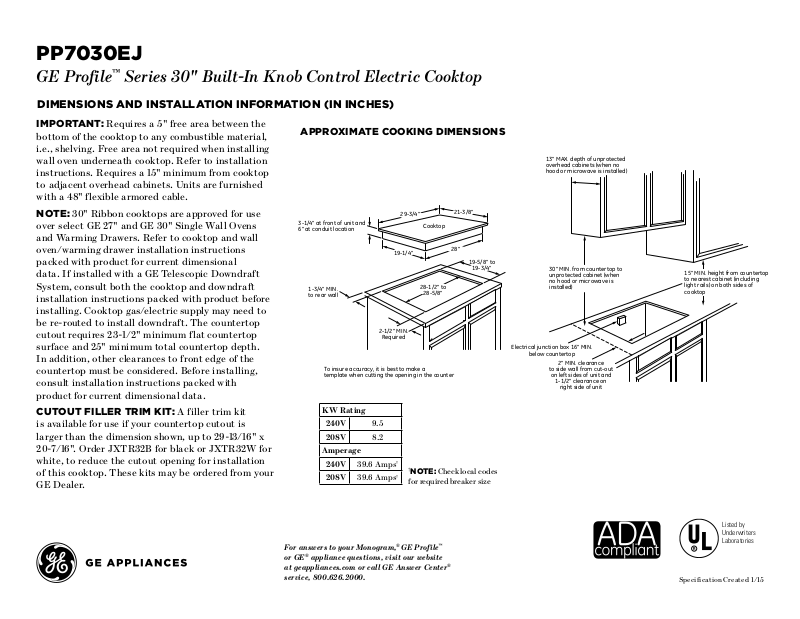

GE PP7030EJES Specification Sheet

CP9530SJ, PP9030DJ, PP7030EJ, JP7030DJ,

JP5030DJ

pp7030eJ

GE Profile™ Series 30" Built-In Knob Control Electric Cooktop

DImensIons anD InstallatIon InformatIon (In InChes)

Important: Requires a 5" free area between the

bottom of the cooktop to any combustible material,
i.e., shelving. Free area not required when installing
wall oven underneath cooktop. Refer to installation
instructions. Requires a 15" minimum from cooktop
to adjacent overhead cabinets. Units are furnished
with a 48" flexible armored cable.

note: 30" Ribbon cooktops are approved for use
over select GE 27" and GE 30" Single Wall Ovens
and Warming Drawers. Refer to cooktop and wall
oven/warming drawer installation instructions
packed with product for current dimensional
data. If installed with a GE Telescopic Downdraft
System, consult both the cooktop and downdraft
installation instructions packed with product before
installing. Cooktop gas/electric supply may need to
be re-routed to install downdraft. The countertop
cutout requires 23-1/2" minimum flat countertop
surface and 25" minimum total countertop depth.
In addition, other clearances to front edge of the
countertop must be considered. Before installing,
consult installation instructions packed with
product for current dimensional data.

Cutout fIller trIm kIt: A filler trim kit
is available for use if your countertop cutout is
larger than the dimension shown, up to 29-13/16" x
20-7/16". Order JXTR32B for black or JXTR32W for
white, to reduce the cutout opening for installation
of this cooktop. These kits may be ordered from your
GE Dealer.

approxImate CookIng DImensIons

21-3/8"

28"

19-5/8" to

19-3/4"

3-1/4" at front of unit and
6" at conduit location

19-1/4"

1-3/4" MIN.
to rear wall

2-1/2" MIN.

Required

To insure accuracy, it is best to make a
template when cutting the opening in the counter

KW Rating

240V 9.5

208V 8.2

Amperage

240V 39.6 A mps

208V 39.6 Amps

29-3/4"

Cooktop

28-1/2" to

28-5/8"

†

†

note: Check local codes

†

for required breaker size

13" MAX. depth of unprotected
overhead cabinets (when no
hood or microwave is installed)

30" MIN. from countertop to
unprotected cabinet (when
no hood or microwave is
installed)

Electrical junction box 16" MIN.

below countertop

2" MIN. clearance

to side wall from cut-out

on left sides of unit and

1-1/2" clearance on

right side of unit

15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop

For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.

Listed by
Underwriters
Laboratories

Specification Created 1/15

pp7030eJ

GE Profile

features anD BenefIts
Five radiant cooking elements - Cook foods quickly and evenly on this
sleek, glass surface

6"/9" Power Boil element - Use different pan sizes on this single, 3,100­watt flexible element that produces rapid powerful heat

5"/8" dual element - Use different pan sizes on this single, 2,200-watt
flexible element

SyncBurners - Control two 7" elements simultaneously to evenly heat
large cookware or griddles*

Keep Warm setting - Keep food warm with GE’s lowest
heat setting or boil water in minutes with this fully functional
6" element

Melt setting - Gently melt delicate foods without burning
or scorching

Control lock capability - Protects against unintended activation

Red LED backlit knobs with patterned glass surface - Achieve
a modern look with the convenience of knob controls

Hot surface indicator lights - Know when elements are too
hot to touch with a quick glance"

™

Series 30" Built-In Knob Control Electric Cooktop

* optIonal staInless steel ClaD

alumInum grIDDle

Achieve even results with this lightweight griddle,
tailored to fit GE SyncBurners. Order part number
JXGRIDL1 from your GE Dealer.

Cooktop “On” indicator light - A light lets you know when
an element is active

Model PP7030EJES - Slate

Specification Created 1/15
