GE PP7030SJ, PP7030BM Specification

PP7030SJ/BM

ADA

PP9030SJ, PP7030SJ, JP5030SJ

INSTALLATION ABOVE A WALL OVEN

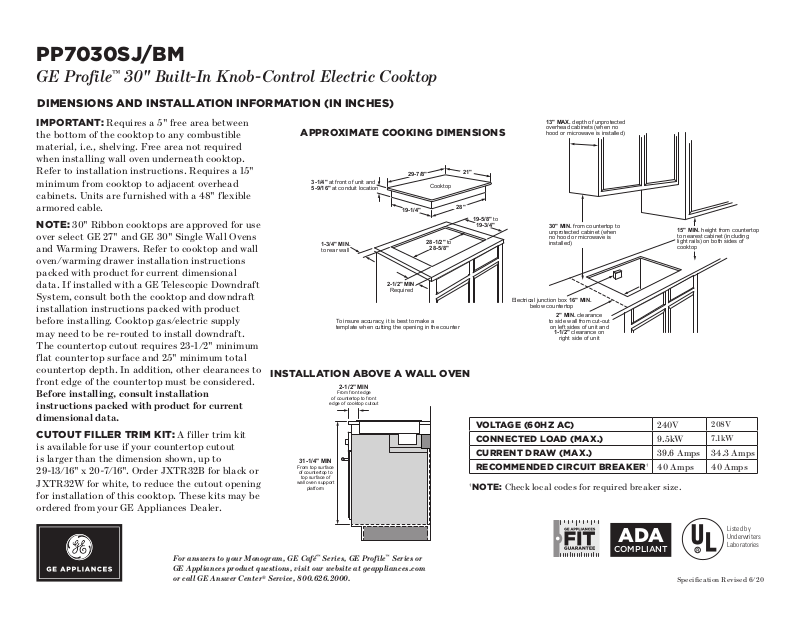

GE Profile™ 30" Built-In Knob-Control Electric Cooktop

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

IMPORTANT: Requires a 5" free area between

the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires a 15"
minimum from cooktop to adjacent overhead
cabinets. Units are furnished with a 48" flexible
armored cable.

NOTE: 30" Ribbon cooktops are approved for use
over select GE 27" and GE 30" Single Wall Ovens
and Warming Drawers. Refer to cooktop and wall
oven/warming drawer installation instructions
packed with product for current dimensional
data. If installed with a GE Telescopic Downdraft
System, consult both the cooktop and downdraft
installation instructions packed with product
before installing. Cooktop gas/electric supply
may need to be re-routed to install downdraft.
The countertop cutout requires 23-1/2" minimum
flat countertop surface and 25" minimum total
countertop depth. In addition, other clearances to
front edge of the countertop must be considered.

Before installing, consult installation
instructions packed with product for current
dimensional data.

CUTOUT FILLER TRIM KIT: A filler trim kit
is available for use if your countertop cutout
is larger than the dimension shown, up to
29-13/16" x 20-7/16". Order JXTR32B for black or
JXTR32W for white, to reduce the cutout opening
for installation of this cooktop. These kits may be
ordered from your GE Appliances Dealer.

APPROXIMATE COOKING DIMENSIONS

3-1/4" at front of unit and
5-9/16" at conduit location

1-3/4" MIN.

to rear wall

2-1/2" MIN.

Required

To insure accuracy, it is best to make a
template when cutting the opening in the counter

INSTALLATION ABOVE A WALL OVEN

2-1/2" MIN

From front edge

of countertop to front

edge of cooktop cutout

31-1/4" MIN

From top surface

of countertop to

top surface of

wall oven support

platform

29-7/8"

19-1/4"

Cooktop

28-1/2" to

28-5/8"

13" MAX. depth of unprotected

overhead cabinets (when no
hood or microwave is installed)

21"

28"

19-5/8" to

19-3/4"

Electrical junction box 16" MIN.

30" MIN. from countertop to

unprotected cabinet (when
no hood or microwave is
installed)

below countertop

2" MIN. clearance

to side wall from cut-out

on left sides of unit and

1-1/2" clearance on

right side of unit

15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop

VOLTAGE (60HZ AC) 240V
CONNECTED LOAD (MAX.) 9.5kW
CURRENT DRAW (MAX.) 39.6 Amps 34.3 Amps
RECOMMENDED CIRCUIT BREAKER†40 Amps 40 Amps

†

NOTE: Check local codes for required breaker size.

208V

7.1kW

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

COMPLIANT

Listed by
Underwriters
Laboratories

Specification Revised 6/20

PP7030SJ/BM

GE Profile™ 30" Built-In Knob-Control Electric Cooktop

FEATURES AND BENEFITS

Five radiant cooking elements

Power Boil dual-ring element

SyncBurners

2nd Power Boil dual-ring element

Keep warm setting

Melt setting

Control lock capability

Red LED with black glass surface

Hot surface indicator lights

Cooktop "on" indicator light

Fit Guarantee

Model PP7030SJSS – Stainless steel

Model PP7030BMTS – Black Stainless

* OPTIONAL STAINLESS STEEL CLAD

ALUMINUM GRIDDLE

Achieve even results with this lightweight griddle,
tailored to fit GE SyncBurners. Order part number
JXGRIDL1 from your GE Dealer.

GUARANTEED FIT
Replacing a similar cooktop from GE Appliances or another brand?
GE cooktops are guaranteed for an exact fit or GE Appliances will
pay up to $100 toward modifications

Visit geappliances.com for more info

Specification Revised 6/20
