LED Lighting System
Lighting solutions for single and
double-sided cabinet signs
Technical Data Sheet
Tetra® PowerStrip
Energy efficient solutions for cabinet signs
Tetra PowerStrip and Tetra PowerStrip DS from
GE Lighting Solutions are the innovative
that replace fluorescent tubes in cabinet signs resulting
in reduced energy costs, improved uniformity and
lower maintenance expenses.
Tetra PowerStrip is our 12 Volt LED system for
single-sided cabinet signs, and Tetra PowerStrip
High Output and Tetra PowerStrip DS
LED system for double-sided cabinet signs.
LED systems
is our 24 Volt
Tetra® PowerStrip
• Single-sided LED system
• 12 Volt System, 24 Volt System for HO
•
Pre-drilled holes and industrial grade
mounting tape for easy install
Tetra® PowerStrip DS
• Double-sided LED system
• 24 Volt System
Rail can be custom cut to length
•
LED Benefits Drive Sales
Tetra PowerStrip has the potential to increase
sales by offering valued benefits for end-user
driven projects. This LED system is a cost effective
investment for sign owners who are conscious
about their energy and maintenance costs, brand
image and environmental impact.
Tetra PowerStrip drastically slashes energy costs
by offering up to 79% energy savings over T12HO
fluorescent while providing better light consistency
across the sign face. This lighting system delivers
uniform light up to 4 times longer than fluorescent.
This long life drastically reduces maintenance costs
while protecting brand image, and it’s all backed
up with a 5 year limited warranty. The LED system
contains no lead, mercury or glass making handling
and disposal less of a concern.
Cabinets have never been
easier to install
Tetra PowerStrip is a low-voltage lighting system
that does not require the construction of sockets
for mounting. The easy-to-handle system eliminates
the handling of fragile glass tubes and can be cut
between modules for easy installation in new or
retrofit signs of any size.
Easy clip-on installation of mounting brackets is a snap.
Tetra Powerstrip High Output
The OptiLens
™
Difference
and Tetra Powerstrip DS High
Output are now both 24 Volt
LED System
When brightness matters most, Tetra PowerStrip
High Output and Tetra PowerStrip DS High Output
deliver up to 35% more light than standard Tetra,
commanding attention to your customer's brand image.
GE Reliability
Only GE Lighting Solutions has the depth of
experience that comes from supplying over 20
million feet of Tetra LED lighting systems across
the globe. Every Tetra product is backed with a
reputation for reliability that is unsurpassed in the
industry. We perform stringent testing of the entire
system-utilizing GE Six Sigma standards-rather than
just pass on supplier reported performance claims.
Tetra PowerStrip features OptiLens™, an innovative
technology that maximizes LED performance. This
patent-pending optical lens helps spread light exactly
where it’s needed most, resulting in bright, uniform
light distribution across the entire sign face.
Tetra PowerStrip with OptiLens provides over 20%
greater surface area coverage than just LEDs alone.
We have added more LED's to improve uniformity.

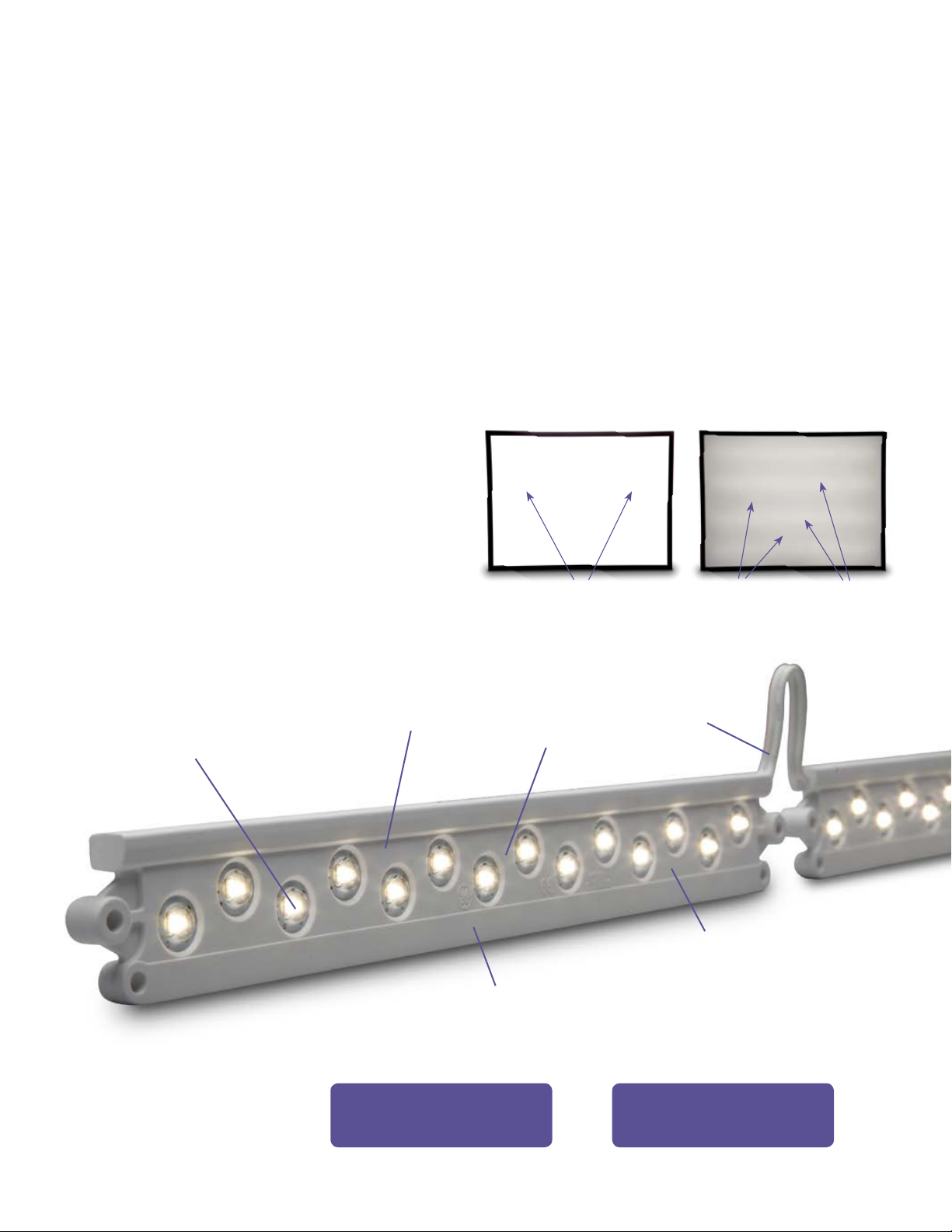

Tetra PowerStrip
Even Illumination
Fluorescent T8
Shadows Striping
Patent-pending OptiLens™
maximizes the area of light
coverage by creating a wide,
viewing angle
3M VHB™ industrial grade
mounting tape allows
for greater convenience
when installing
Low-voltage 12V & 24V wiring
Continuous wire
through LED module
uses IDC connectors
for maximum
strain relief
Can be cut on
wire between
any module
Overmolded design
protects against moisture,
dust and damage
Tetra® PowerStrip DS Tetra® PowerStrip SS
High output (28 LEDs per module)
or standard (10 LEDs per module)
Tetra PowerStrip
High output (14 LEDs per
module) or standard (5 LEDs per
module) Tetra PowerStrip
Components
SKU Description Package Quantity
GESS71-1 Tetra PowerStrip 7100K 48 Modules
GESS50-1 Tetra PowerStrip 5000K 48 Modules
GESS41-1 Tetra PowerStrip 4100K 48 Modules
GESS32-1 Tetra PowerStrip 3200K 48 Modules
GEDS71-1 Tetra PowerStrip DS 7100K 32 Modules
GEDS50-1 Tetra PowerStrip DS 5000K 32 Modules
GEDS41-1 Tetra PowerStrip DS 4100K 32 Modules
GEDS32-1 Tetra PowerStrip DS 3200K 32 Modules
GESS24H71-1 Tetra PowerStrip High Output 7100K 48 Modules
GESS24H50-1 Tetra PowerStrip High Output 5000K 48 Modules
GESS24H41-1 Tetra PowerStrip High Output 4100K 48 Modules
GESS24H32-1 Tetra PowerStrip High Output 3200K 48 Modules
GEDSH71-2 Tetra PowerStrip DS High Output 7100K 32 Modules
GEDSH50-2 Tetra PowerStrip DS High Output 5000K 32 Modules
GEDSH41-2 Tetra PowerStrip DS High Output 4100K 32 Modules
GEDSH32-2 Tetra PowerStrip DS High Output 3200K 32 Modules
9409 18 AWG Supply Wire (0.82 mm2) 500 ft./spool (152.4 m)
191600041 22-14 AWG Twist-On Wire Connectors (0.33 – 2.08 mm2) 500/PK
192160004 18-14 AWG In-line Connectors (IDC) (0.82 – 2.08 mm2) 500/PK
GETMEC1 18 AWG Wire End Caps (0.82 mm2) 100/PK
GEDSRL08 Tetra Mounting Rail 8 Rails
GEDSLB1 Tetra Mounting Rail Assembly Bracket 20/PK
GEDSRC1 Tetra Mounting Clip 8/PK
Technical Specifications
Energy Energy
Typical Brightness LEDs Consumption Consumption Power Supply Viewing
Specification Item CCT (lumens/module) Voltage Module (Strip/Module) (System/Module) Loading Angle
Tetra PowerStrip 7100K, 5000K 280
4100K, 3200K 210
Tetra PowerStrip DS 7100K, 5000K 560
4100K, 3200K 420
Tetra PowerStrip 7100K, 5000K 368
High Output 4100K, 3200K 344
Tetra PowerStrip DS 7100K, 5000K 735
High Output 4100K, 3200K 687
Specification Item Tetra PowerStrip
Cutting Resolution Cut on wire between every module
Power Supply GEPS12-20 Input: 90-264VAC; Output: 12VDC GEPS24-20 Input: 90-264VAC; Output: 24VDC
GEPS12-60-NA Input: 108-305VAC; Output: 12VDC GEPS24D-80U Input: 90-305VAC; Output: 24VDC
GEPS12-60-GL Input: 108-305VAC; Output: 12VDC GEPS24-100-NA Input: 108-305VAC; Output: 24VDC
GEPS12W-60 Input: 90-264VAC; Output: 12VDC GEPS24-100-GL Input: 108-305VAC; Output: 24VDC
GEPS12D-60U Input: 108-305VAC; Output: 12VDC GEPS24-180U Input: 90-305VAC; Output: 24VDC
GEPS12-180U Input: 90-305VAC; Output: 12VDC
Maximum Supply Wire Limits 60W,80W, 100W,180W 20W Supply Wire Gauge
20 ft. (6.1 m) 120 ft. (36.6 m) 18AWG/0.82mm2 supply wire - 9409
25 ft. (7.6 m) 16AWG/1.31mm2 supply wire
35 ft. (10.6 m) 14AWG/2.08mm2 supply wire
40 ft. (12.1 m) 12AWG/3.31mm2 supply wire
Wiring to be installed in accordance with Article 725 of the National Electric code (NEC).
Operating Environment -40 °C to +60 °C
Module Dimensions (h x l x w) Tetra PowerStrip: 0.45 x 1.14 x 9.20 in. Tetra PowerStrip High Output: 0.47 x 9.29 x 1.12 in.
(11 x 29 x 234 mm) (12 x 29 x 236 mm)
Tetra PowerStrip DS: 0.40 x 1.34 x 9.20 in. Tetra PowerStrip DS High Output: 0.55 x 8.98 x 1.32 in.
(10 x 34 x 234 mm) (14 x 34 x 228 mm)
Sign Dimensions For best results, recommended sign depth is For best results, recommended sign depth is
5 inches (127mm) or greater 10 inches (254mm) or greater
Warranty GE offers a limited system warranty of up to five (5) years
System Certifications UL Recognized #E219167, UL Classified #E229508, CE, C-tick, RoHS.
12V
24V
24V
24V
5 2.40 2.82 20 Modules / 60W PS 140°
10 4.80 5.64 16 Modules / 100W PS 140°
14 2.90 3.41 30 Modules / 100W PS 140°
28 5.80 6.82 16 Modules / 100W PS 140°
