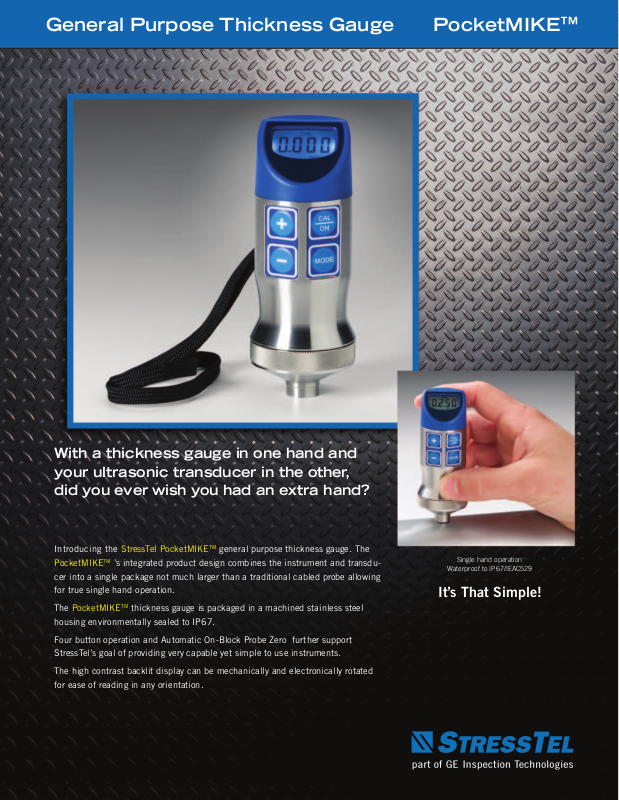

General Purpose Thickness Gauge PocketMIKE
™
With a thickness gauge in one hand and
your ultrasonic transducer in the other,
did you ever wish you had an extra hand?
Introducing the StressTel PocketMIKETM general purpose thickness gauge. The
PocketMIKETM ’s integrated product design combines the instrument and transdu-
cer into a single package not much larger than a traditional cabled probe allowing
for true single hand operation.
The PocketMIKE
housing environmentally sealed to IP67.
Four button operation and Automatic On-Block Probe Zero further support
StressTel’s goal of providing very capable yet simple to use instruments.
The high contrast backlit display can be mechanically and electronically rotated
for ease of reading in any orientation.
TM
thickness gauge is packaged in a machined stainless steel
Single hand operation
Waterproof to IP67/IEAC529
It’s That Simple!
PocketMIKE™ SPECIFICATIONS
Kit Includes
Instrument
Wrist Lanyard
One 1.5V AA Alkaline Battery
Hard Shell Carry Case
Integrated Transducer
Couplant
Operating Manual
Certificate of Calibration
Special Features
Integrated Transducer, 5 MHz
True Single Hand Operation
Machined Stainless Steel Housing
Environmentally Sealed to IP67/IEC529
Automatic On-Block Probe Zero
Automatic Timed Shutoff
Auto Backlight Mode
Known Thickness Calibration
Known Velocity Calibration
4 Button Sealed Membrane Keypad
User Selectable Measurement Units
Exchangeable Probes
Physical Size
100 mm High (4 inches)
35 mm Nominal Diameter (1.38 inches)
12 mm (0.5 inch) Probe Diameter
Weight
200 grams with Battery
Power Source
One 1.5V AA Alkaline Battery
Measuring Range*
1.0 mm to 250 mm
(0.040 inches to 9.999 inches)
1 Power Key
2 Increase value within CAL or SETUP
3 Decrease value within CAL or SETUP
4 SETUP key to change operating modes
5 Initiates CAL function
6 Backlight Status indicator
7 Coupling indicator
8 Thickness Mode indicator
9 Velocity Mode indicator
10 CAL Mode indicator
11 Metric or Imperial Units
12 Battery Control
12
10 8 9
11
7
6
* Material and application dependent
Specifications subject to change without notice
GEInspectionTechnologies.com
GE Inspection Technologies, LP
50 Industrial Park Road
Lewistown, PA, USA 17044
phone +1-717 242-0327
fax +1-717 242-2606
GE Inspection Technologies Systems GmbH
Robert-Bosch-Straße 3
D-50354 Hürth, Germany
phone +49 2233-601-0
fax +49 2233-601-402
Displayed Resolution
0,01 up to 99,99 mm, 0,1 above
(0.001 up to 9.999 inches, 0.01 above)
Operating Temperature
-10º C to +50º C
(14º F to 122º F)
Probe Surface
Temperature
-10º C to +100º C
(14º F to 212º F)
2
3
5
1
4
We reserve the right to technical modifications without prior notice.
©2004 General Electric Company. All rights reserved
GEIT-29000US (10/04)
