GE PKD7000BN, PKD7000FN, PKD7000SN Specification
PKD7000BN/FN/SN
Cutout width
25" MIN.
25-1/4" MAX.
B
A
C
Cutout height
49-11/16" MIN.
50-1/8" MAX.
Recommended
minimum
cutout location
from the floor
13-1/4"
27''
Cutout width
25" MIN.
25-1/4" MAX.
B
A
C
Cutout height
49-11/16" MIN.
50-1/8" MAX.
Recommended
minimum
cutout location
from the floor
13-1/4"
27''
CKD70DM2NS5, CKD70DP2NS1, JKD3000DNBB,
JKD3000DNWW, JKD3000SNSS, JKD5000DNBB,
JKD5000DNWW, JKD5000ENES, JKD5000SNSS,
PKD7000BNTS, PKD7000FNDS, PKD7000SNSS
Cabinet 27"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 1"
C - Overlap of oven at bottom of cutout 1"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 51-1/8"
F - Overall width 26-3/4"
8-3/4" MAX.
F
Conduit
48"
44" to
bottom of
junction box
Junction box
location
Cutout depth
23-1/2" MIN
Cutout width
25" MIN.
25-1/4" MAX.
B
A
C
22"
23" minimum
door opening
allowance
E
D
Cutout height
49-11/16" MIN.
50-1/8" MAX.
Recommended
minimum
cutout location
from the floor
13-1/4"
27''
CKD70DM2NS5, CKD70DP2NS1, JKD3000DNBB,
JKD3000DNWW, JKD3000SNSS, JKD5000DNBB,
JKD5000DNWW, JKD5000ENES, JKD5000SNSS,
PKD7000BNTS, PKD7000FNDS, PKD7000SNSS
GE Profile

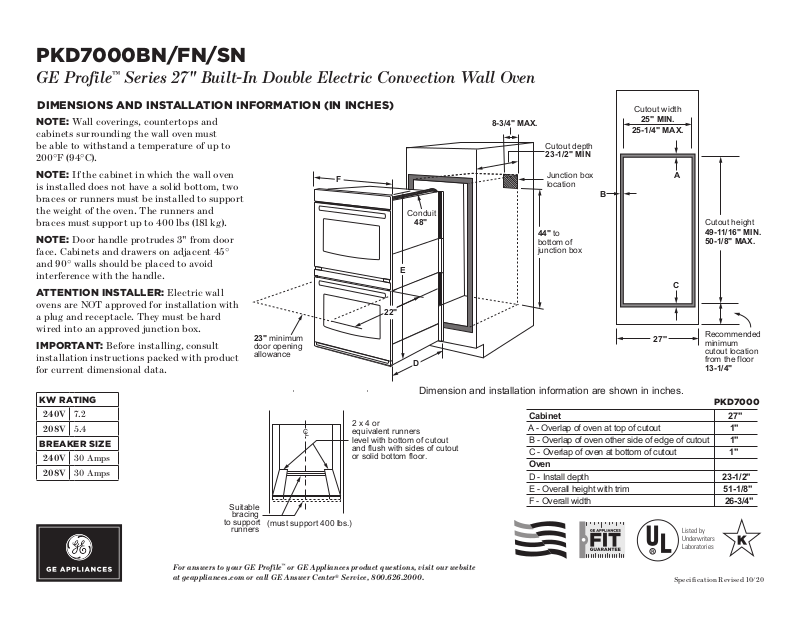

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Wall coverings, countertops and
cabinets surrounding the wall oven must
be able to withstand a temperature of up to
200°F (94°C).
NOTE: If the cabinet in which the wall oven
is installed does not have a solid bottom, two
braces or runners must be installed to support
the weight of the oven. The runners and
braces must support up to 400 lbs (181 kg).
NOTE: Door handle protrudes 3" from door
face. Cabinets and drawers on adjacent 45°
and 90° walls should be placed to avoid
interference with the handle.
ATTE N TION I N STALL E R: Electric wall
ovens are NOT approved for installation with
a plug and receptacle. They must be hard
wired into an approved junction box.
IMPORTANT: Before installing, consult
installation instructions packed with product
for current dimensional data.
™
Series 27" Built-In Double Electric Convection Wall Oven
23" minimum
door opening
allowance
Cutout width
8-3/4" MAX.
Cutout depth
23-1/2" MIN
F
Conduit
48"
E
22"
D
Junction box
location
B
44" to
bottom of
junction box
25" MIN.
25-1/4" MAX.
A
C
27''
Cutout height
49-11/16" MIN.
50-1/8" MAX.
Recommended
minimum
cutout location
from the floor
13-1/4"
KW RATI N G
24 0V 7.2
208V 5.4
BREAKER SIZE
24 0V 30 Amps
208V 30 Amps
For answers to your GE Profile™ or GE Appliances product questions, visit our website
at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Suitable
bracing
to support
runners
C
L
(must support 400 lbs.)
Dimension and installation information are shown in inches.
2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
PKD7000
Cabinet 27"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 1"
C - Overlap of oven at bottom of cutout 1"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 51-1/8"
F - Overall width 26-3/4"
Listed by
Underwriters
Laboratories
Specification Revised 10/20
PKD7000BN/FN/SN
GE Profile
FEATURES AND BENEFITS
Brilliant Touch 7" Display – A bright, interactive touch screen makes it fun
and easy to program the oven
True European Convection – Achieve delicious results from a third heating
element and fan combination
Anywhere control with remote notification – Save time by be preheating and
controlling your oven from anywhere using the GE Appliances Kitchen app
Never scrub, smooth glide racks – Easily remove even the heaviest dishes
with a roller rack that’s engineered to glide seamlessly out of the oven
Precision temperature probe – Internal probe allows monitoring of roasts
and meats to assure they are thoroughly and accurately cooked without
opening the oven door
Never scrub racks – Save time and effort with racks that are specially
engineered to withstand the heat of the self-clean cycle
10-pass hidden bake element – Even baking and quick cleanup are assured,
with a 10-pass element that heats a large cooking area and is hidden for an
easy-to-wipe surface
™
Series 27" Built-In Double Electric Convection Wall Oven
8-pass broil element – Get full broil coverage and even browning from
edge to edge
Scan-to-cook – Prepare your favorite packaged foods to perfection
simply by scanning the barcode on the package with your smartphone
and letting your oven adjust settings automatically
Model PKD7000BNTS – Black Stainless
Model PKD7000FNDS – Black Slate
Model PKD7000SNSS – Stainless steel
FIT GUARANTEE
Replacing a similar wall oven from GE Appliances or another brand?
GE wall ovens are guaranteed for an exact fit or GE Appliances will
pay up to $300 toward modifications.
Visit geappliances.com for more info
Specification Revised 10/20
