GE PHP9036DJBB Specs

PHP9036DJ

php9036DJ

GE Profile

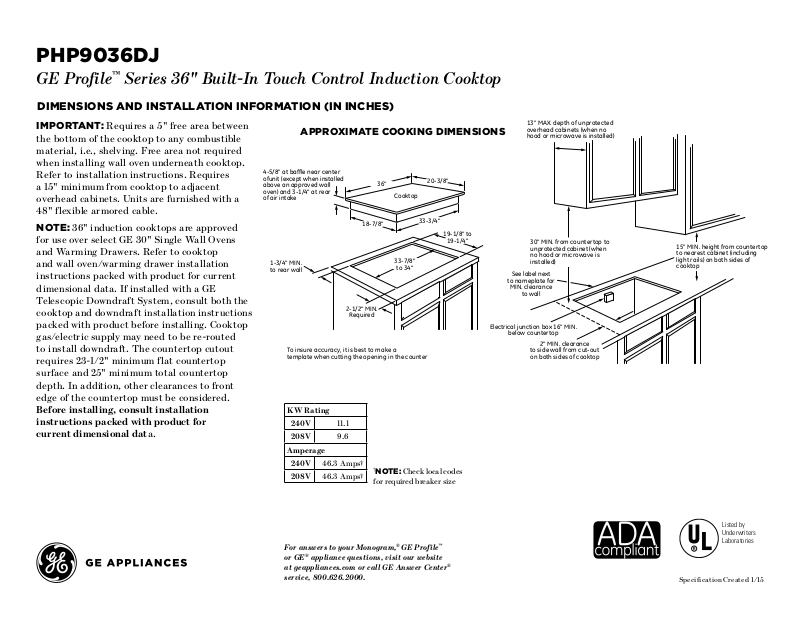

DImensIons anD InstallatIon InformatIon (In Inches)

Important: Requires a 5" free area between

the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires
a 15" minimum from cooktop to adjacent
overhead cabinets. Units are furnished with a
48" flexible armored cable.

note: 36" induction cooktops are approved
for use over select GE 30" Single Wall Ovens
and Warming Drawers. Refer to cooktop
and wall oven/warming drawer installation
instructions packed with product for current
dimensional data. If installed with a GE
Telescopic Downdraft System, consult both the
cooktop and downdraft installation instructions
packed with product before installing. Cooktop
gas/electric supply may need to be re-routed
to install downdraft. The countertop cutout
requires 23-1/2" minimum flat countertop
surface and 25" minimum total countertop
depth. In addition, other clearances to front
edge of the countertop must be considered.

Before installing, consult installation
instructions packed with product for
current dimensional data.

™

Series 36" Built-In Touch Control Induction Cooktop

approxImate cookIng DImensIons

4-5/8" at baffle near center
ofunit (except when installed
above an approved wall
oven) and 3-1/4" at rear
of air intake

1-3/4" MIN.
to rear wall

To insure accuracy, it is best to make a
template when cutting the opening in the counter

KW Rating

240V 11.1

208V 9.6

Amperage

240V 46. 3 A mps†

208V 46.3 Amps†

2-1/2" MIN.

36"

18-7/8"

Required

†

note: Check local codes

for required breaker size

Cooktop

33-7/8"

to 34"

20-3/8"

33-3/4"

19-1/8" to

19-1/4"

13" MAX. depth of unprotected
overhead cabinets (when no
hood or microwave is installed)

30" MIN. from countertop to
unprotected cabinet (when
no hood or microwave is
installed)

See label next

to nameplate for

MIN. clearance

to wall

Electrical junction box 16" MIN.

below countertop

2" MIN. clearance
to side wall from cut-out
on both sides of cooktop

15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop

For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.

Listed by
Underwriters
Laboratories

Specification Created 1/15

php9036DJ

GE Profile

features anD BenefIts

Five Induction elements - Enjoy a new level of rapid, precise heating with a
cool-to-the-touch surface that’s easy to clean

Digital touch controls - Accurately control your heating and enjoy an easy to
clean surface

11" 3,700-watt induction element - Rapidly boil water with GE's most
powerfull induction element

SyncBurners - Control two 7" elements simultaneously to evenly heat large
cookware or griddles*

Kitchen timer - Helps coordinate meal preparation and cooking

Control lock capability - Protects against unintended activation

Pan presence & size sensor - Cook efficiently with elements that heat to the
size of your pan and shut off when no pan is present

Red LED display with black glass surface - Achieve a modern look that
complements the entire kitchen

Hot surface indicator lights - Know when elements are too hot to touch with a
quick glance

™

Series 36" Built-In Touch Control Induction Cooktop

* optIonal staInless steel claD

alumInum grIDDle

Achieve even results with this lightweight griddle,
tailored to fit GE SyncBurners. Order part number
JXGRIDL1 from your GE Dealer.

Model PHP9036DJBB - Black on black
