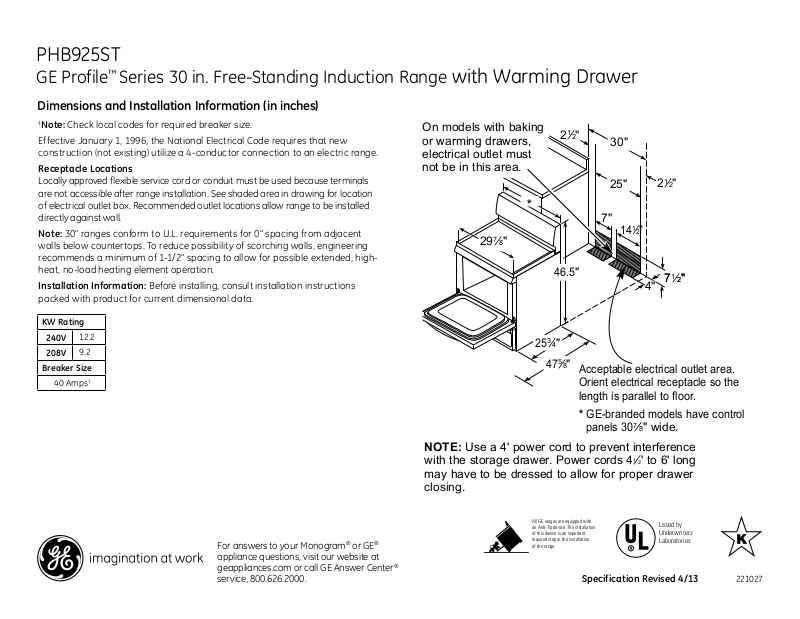

PHB925ST

GE Profile™ Series 30 in. Free-Standing Induction Range with Warming Drawer

Dimensions and Installation Information (in inches)

†Note: Check local codes for required breaker size.

Effective January 1, 1996, the National Electrical Code requires that new construction (not existing) utilize a 4-conductor connection to an electric range.

Receptacle Locations

Locally approved flexible service cord or conduit must be used because terminals are not accessible after range installation. See shaded area in drawing for location of electrical outlet box. Recommended outlet locations allow range to be installed directly against wall.

Note: 30" ranges conform to U.L. requirements for 0" spacing from ­adjacent walls below countertops. To reduce ­possibility of scorching walls, engineering recommends a minimum of 1-1/2" spacing to allow for possible extended, highheat, no-load heating element operation.

Installation Information: Before installing, consult installation instructions packed with product for ­current dimensional data.

KW Rating

240V 12.2

208V 9.2

Breaker Size

40 Amps†

For answers to your Monogram® or GE® appliance questions, visit our website at geappliances.com or call GE Answer Center® service, 800.626.2000.

	On models with baking	21⁄2"
	or warming drawers,
	electrical outlet must
	not be in this area.

*

297⁄8"

46.5"

253⁄4"

30"

25" 21⁄2"

7"

141⁄2"

4"3 71⁄2"

475⁄8" Acceptable electrical outlet area. Orient electrical receptacle so the length is parallel to floor.

*GE-branded models have control panels 307⁄8" wide.

NOTE: Use a 4' power cord to prevent interference with the storage drawer. Power cords 41⁄2' to 6' long may have to be dressed to allow for proper drawer closing.

All GE ranges are equipped with	Listed by
an Anti-Tip device. The installation
of this device is an important,	Underwriters
required step in the installation	Laboratories
of the range.

Specification Revised 4/13

221027

PHB925ST

GE Profile™ Series 30 in. Free-Standing Induction Range with Warming Drawer

Features and Benefits

•Induction cooktop technology - Innovative, fast, efficient cooking

•PreciseAir™ convection system - A reversing fan circulates heat and air for evenly browned and baked foods

•Warming drawer - The convenient drawer keeps foods warm and ready to serve and helps makes meal coordination easier

•Glass touch controls - Set temperatures quickly and clean with little effort

•Hidden bake oven interior - Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning

•Black gloss oven interior - Black oven interior adds a stylish touch to any kitchen

•Convection cook - A reversing fan surrounded by a third element circulates on every rack

•Model PHB925STSS - Stainless Steel
