GE PGB930SEJ Specification
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
29 7/8"
Minimum to
cabinets on
either side
Maximum
depth for
cabinets above
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
46 1/4"
28 3/4"
w/ handle
26 1/4"
w/o handle
29 7/8"
11 1/4"
36"
to
36 1/2"

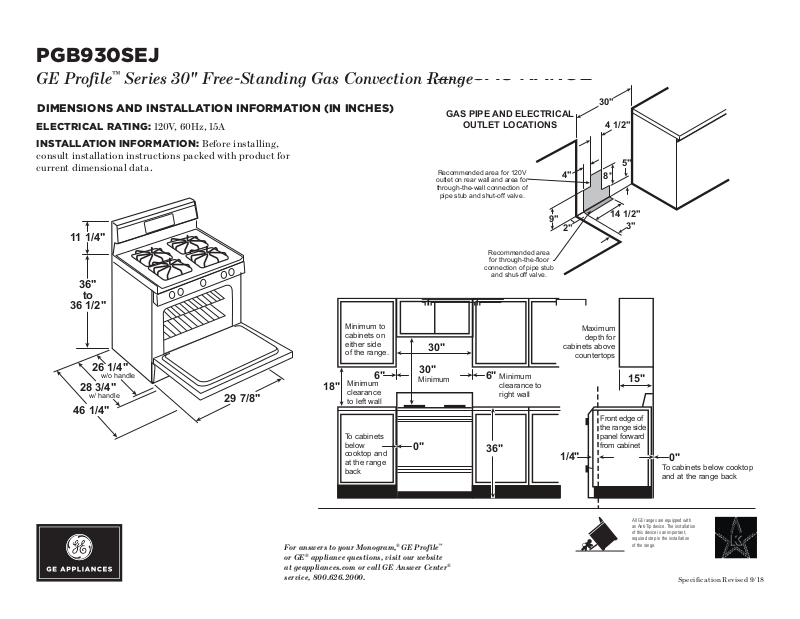

PGB930SEJ
GE Profile
™
Series 30" Free-Standing Gas Convection Range
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRICAL RATING: 120V, 60Hz, 15A
INSTALLATION INFORMATION : Before installing,
consult installation instructions packed with product for
current dimensional data.
Minimum to
cabinets on
either side
of the range.
Minimum
clearance
to left wall
To cabinets
below
cooktop and
at the range
back
6"
18"
For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
30"
30"
Minimum
0"
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
6"
Minimum
clearance to
right wall
36"
4"
9"
2"
cabinets above
countertops
1/4"
30"
4 1/2"
8"
Maximum
depth for
Front edge of
the range side
panel forward
from cabinet
5"
14 1/2"
3"
15"
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
0"
To cabinets below cooktop
and at the range back
Speci fication Rev ised 9/18
PGB930SEJ
GE Profile
FEATURES AND BENEFITS
Dual purpose center burner - Accommodate everything from grills and griddles
to oversized pots with the industry's first combination oval/round burner
Edge-to-edge cooktop - A large, continuous cooking surface gives you extra room
for pots and pans of all sizes and lets cookware move easily from burner to burner.
20,000 BTU tri-ring burner - Offers the f lexibility of three different burners
Extra-large, integrated reversible cast iron grill/griddle - Enjoy ultimate cooking
versatility. Cook up to six grilled cheeses on the industry's largest integrated griddle,
and then flip it over to grill your favorite foods.
Chef Connect - Three options with a single touch. For instant convenience, choose
when to automatically sync clocks and the range burners with the microwave's surface
light and vent.
Gas convection oven - Circulates heat for high-quality results
Heavy-duty, self-clean roller rack - Provide easy access to oven interior
Self-clean with Steam Clean option - Clean your oven the way you want
Heavy-duty, self-clean grates - Easily clean grates by placing them in the oven
during the self-clean cycle.
™
Series 30" Free-Standing Gas Convection Range
Precise Simmer burner - Delicate foods don’t burn with low, even heat
Model PGB930SEJSS - Stainless steel
Speci fication Rev ised 9/18
