GE PFSS6PKW Specification
94" French Door Bottom Freezer Refer
A
Front View
Top View
G
D
C
F
B
E
H
PFSS6PKW
GE Profile™ ENERGY STAR® 25.5 Cu. Ft. French Door Bottom-Freezer Drawer Refrigerator

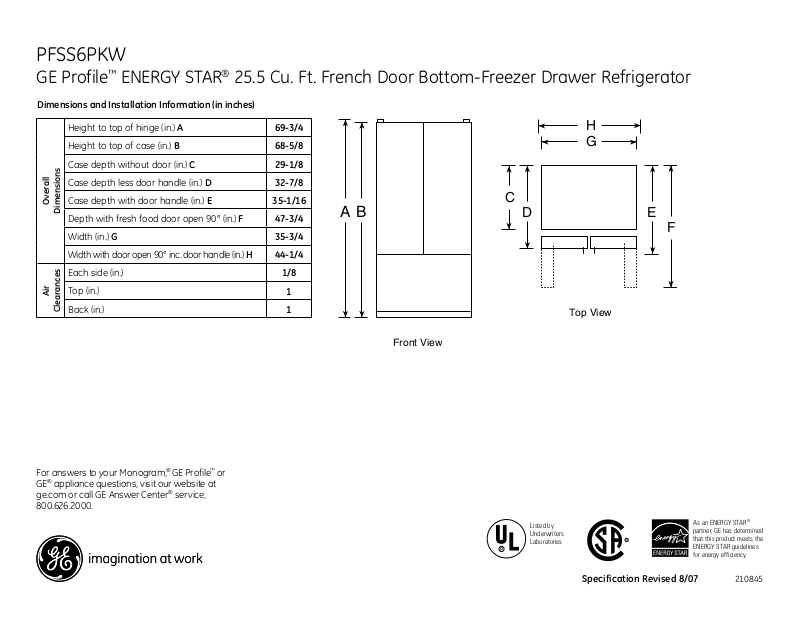

Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 69-3/4
Height to top of case (in.) B 68-5/8
Case depth without door (in.) C 29-1/8
Case depth less door handle (in.) D 32-7/8
Case depth with door handle (in.) E 35-1/16
Overall
Dimensions
Depth with fresh food door open 90° (in.) F 47-3/4
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 44-1/4
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
1/8
1
1
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
Specification Revised 8/07
210845
ENERGY
SAVER
TURBO FREEZE TURBO COOL
CLIMATE KEEPER
ADJUST
FREEZER
(Hold 3 sec
for Turbo Freeze)
Ice &
WATER
(Hold 3 sec
to Reset Filter)
ALARM/
LIGHT
A
DJUST
R
EFRIGERATOR
(Hold 3 sec
for Turbo Cool)
Light ON/OFF
(Hold 3 seconds)
ICE OFF/
L
OCK
(Hold 3 sec
to Lock Cantrol)
e
°F
°F
-2° F Recommended 38° F Recommended
PFSS6PKW
GE Profile™ ENERGY STAR® 25.5 Cu. Ft. French Door Bottom-Freezer Drawer Refrigerator
Features and Benefits
• Stainless Steel with Hidden Hinges - Features hidden door hinges and a smooth, stainless
steel finish to provide a sleek appearance
• Integrated Ice and Water Dispenser with Actual Temperature Display - Provides chilled, filtered
water and crushed or cubed ice while displaying the actual temperature of the refrigerator
• ClimateKeeper with Dual Evaporators - Uses two evaporators to maintain higher humidity
for fresh foods
• LED Lighting - Places contents into clear, brilliant view
• Freshness Center
™
- Offers maximum convenience by utilizing two humidity-controlled
drawers and 1 full-length adjustable temperature deli drawer
• Slide 'n Store
• QuickSpace
™
Freezer Basket - Offers easy access and flexible storage
™
Shelf - Slides out of the way to make room for tall items
• TurboCool & TurboFreeze Settings - Restores proper temperature to the refrigerator and
freezer after frequent door openings
• Model PFSS6PKWSS - Stainless steel
Specification Revised 8/07
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
210845
