GE PFSS2MJX Specification

PFSS2MJX

94" French Door Bottom Freezer Refer

A

Front View

Top View

G

D

C

F

B

E

H

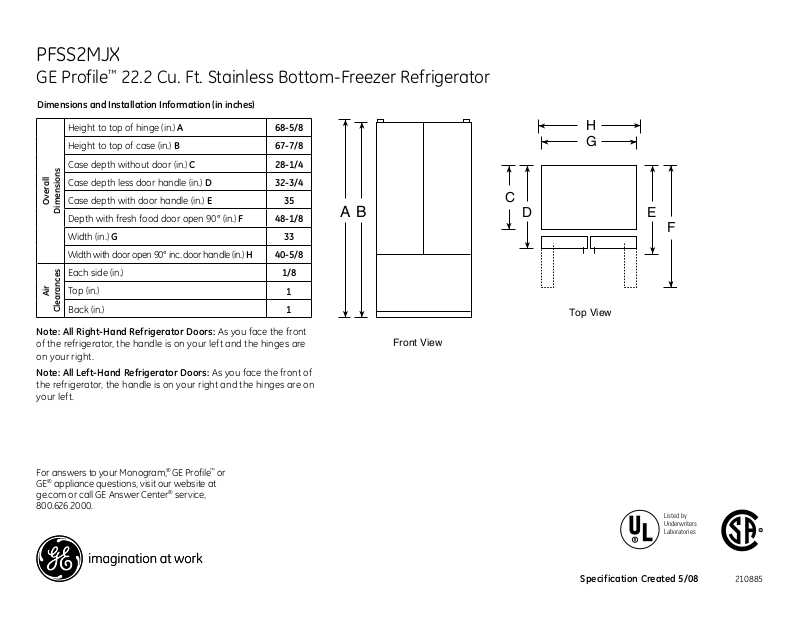

GE Profile™ 22.2 Cu. Ft. Stainless Bottom-Freezer Refrigerator

Dimensions and Installation Information (in inches)

Height to top of hinge (in.) A 68-5/8

Height to top of case (in.) B 67-7/8

Case depth without door (in.) C 28-1/4

Case depth less door handle (in.) D 32-3/4

Case depth with door handle (in.) E 35

Overall

Dimensions

Depth with fresh food door open 90° (in.) F 48-1/8

Width (in.) G 33

Width with door open 90° inc. door handle (in.) H 40-5/8

Each side (in.)

Top (in.)

Air

Clearances

Back (in.)

Note: All Right-Hand Refrigerator Doors: As you face the front
of the refrigerator, the handle is on your left and the hinges are
on your right.

Note: All Left-Hand Refrigerator Doors: As you face the front of
the refrigerator, the handle is on your right and the hinges are on
your left.

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

1/8

1

1

Listed by
Underwriters
Laboratories

Specification Created 5/08

210885

PFSS2MJX

GE Profile™ 22.2 Cu. Ft. Stainless Bottom-Freezer Refrigerator

Features and Benefits

• Stainless-Steel Doors with Top & Bottom Bevels - Provides a striking finish and contoured doors to
accentuate kitchen decor

• External Water Dispenser with Actual Temperature Display and Child Lock - Provides fresh water,
displays the actual temperature setting and locks to prevent unwanted use

™

• ClimateKeeper
greater degree of control over food preservation

• Factory-Installed Icemaker with Water Filtration System - Automatically creates fresh, filtered ice cubes

• BrightSpace
the refrigerator

• Freshness Center
full-length adjustable temperature deli drawer

• Multi-Level Slide 'n Store
storage flexibility and keeps contents perfectly in place

• Condiment Bin and Beverage Rack - Provides convenient storage for canned drinks and condiments

• QuickSpace

• TurboCool

Temperature Management System - Digital controls and electronic sensors give you a

™

Interior with GE Reveal™ Lighting - Cast a natural-looking glow throughout

™

- Offers maximum convenience by utilizing two humidity-controlled drawers and 1

™

Basket System - Includes three full-extension baskets for tremendous

™

Shelf - Quickly slides out of the way to make room for tall items

™

Setting - Cools the refrigerator quickly after frequent door openings

• Secure-Close Door System - Securely pulls the door shut, even after you release the handle

• Adjustable Spillproof Glass Shelves - Raised edges help contain spills to make clean up quick and easy

• Adjustable Gallon Door Bins - Provides additional storage space for milk and other
gallon-size containers

™

• NeverClean

Condenser - Condenser coils are encased, so they don't require cleaning in normal

operating environments

• Deluxe Quiet Design - Significantly reduces operating noise

• Model PFSS2MJX - Stainless steel

Specification Created 5/08

210885
