GE PEM31SM Specification

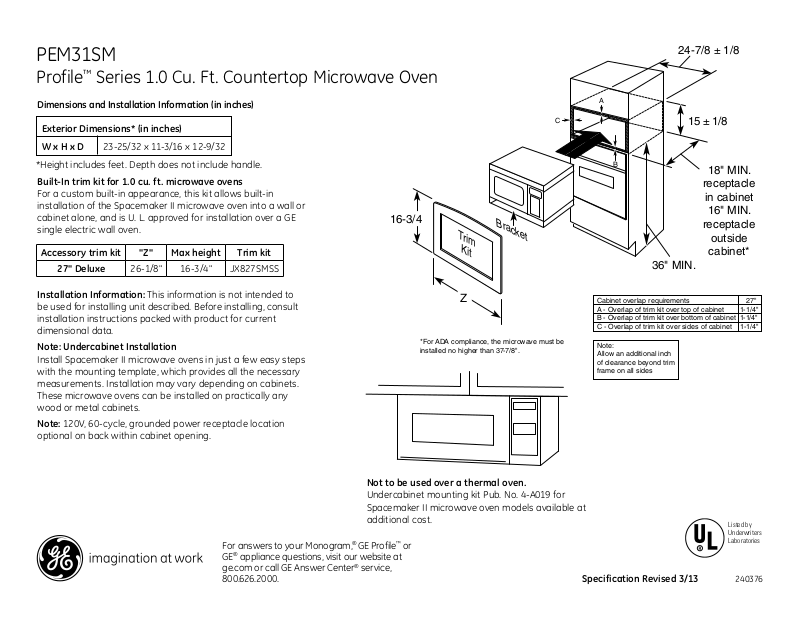

PEM31SM
Profile™ Series 1.0 Cu. Ft. Countertop Microwave Oven
24-7/8 ± 1/8
Dimensions and Installation Information (in inches)
Exterior Dimensions* (in inches)
W x H x D 23-25/32 x 11-3/16 x 12-9/32
*Height includes feet. Depth does not include handle.
Built-In trim kit for 1.0 cu. ft. microwave ovens
For a custom built-in appearance, this kit allows built-in
installation of the Spacemaker II microwave oven into a wall or
cabinet alone, and is U. L. approved for installation over a GE
single electric wall oven.
Accessory trim kit "Z" Max height Trim kit
27" Deluxe
26-1/8" 16-3/4" JX827SMSS
Installation Information: This information is not intended to
be used for installing unit described. Before installing, consult
installation instructions packed with product for current
dimensional data.
Note: Undercabinet Installation
Install Spacemaker II microwave ovens in just a few easy steps
with the mounting template, which provides all the necessary
measurements. Installation may vary depending on cabinets.
These microwave ovens can be installed on practically any
wood or metal cabinets.
Note: 120V, 60-cycle, grounded power receptacle location
optional on back within cabinet opening.
16-3/4
Trim
Kit
Z
*For ADA compliance, the microwave must be
installed no higher than 37-7/8".
Bracket
A
C
B
15 ± 1/8
18" MIN.
receptacle
in cabinet
16" MIN.
receptacle
outside
cabinet*
36" MIN.
Cabinet overlap requirements 27"
A - Overlap of trim kit over top of cabinet 1-1/4"
B - Overlap of trim kit over bottom of cabinet 1-1/4"
C - Overlap of trim kit over sides of cabinet 1-1/4"
Note:
Allow an additional inch
of clearance beyond trim
frame on all sides
Not to be used over a thermal oven.
Undercabinet mounting kit Pub. No. 4-A019 for
Spacemaker II microwave oven models available at
additional cost.
®
For answers to your Monogram,
GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Revised 3/13
Listed by
Underwriters
Laboratories
240376
PEM31SM
Profile™ Series 1.0 Cu. Ft. Countertop Microwave Oven
Features and Benefits
• 1.0 Cu. Ft. Capacity - 800 Watts (IEC-705 test procedure)
• Sensor Cooking Controls - Automatically adjust the time and
power for exceptional cooking results
• Optional Trim Kit - Offers a built-in appearance of a
countertop model
• Optional Hanging Kit (Part No JXA019K) - Allows quick, easy
undercabinet installation
• Auto and Time Defrost - Automatically defrosts for a specified
amount of time
• Turntable On/Off - Ideal for oversized, oblong-shaped dishes
• Timer On/Off - Optional reminder signals when meals are done
• Child Lock Out - Enables you to lock the keypad to prevent the
oven from being accidentally started
• Kitchen Timer - Operates as a minute timer and can be used at
any time, even when the oven is operating
• Add 30 Seconds - Increases cooking times with one touch
• Electronic Touch Controls - Offer easy point-and-cook convenience
• Model PEM31SMSS – Stainless steel
Specification Revised 3/13
Listed by
Underwriters
Laboratories
240376
