GE PDW22SIS Specification
PDW22SIS
GE Profile™ 22.2 Cu. Ft. Stainless-Wrapped Bottom-Freezer Drawer Refrigerator with Internal

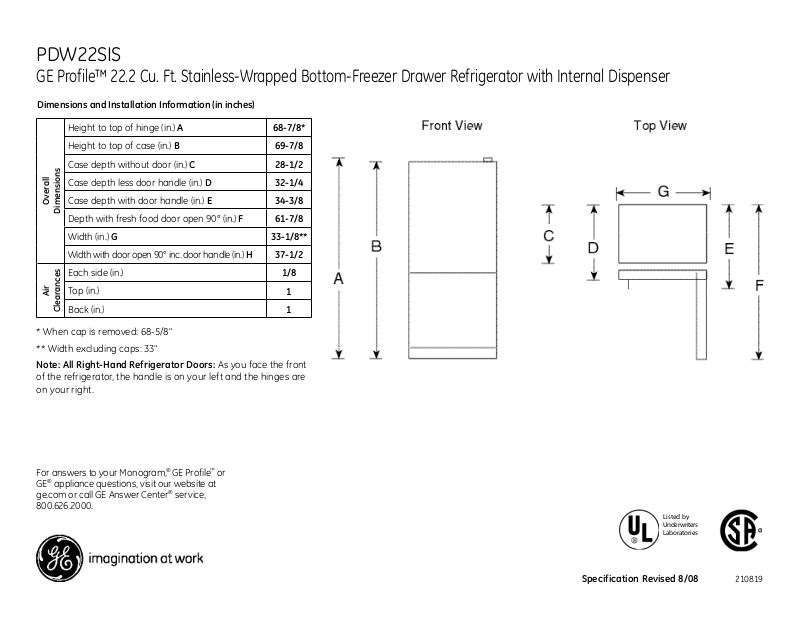

Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 68-7/8*
Height to top of case (in.) B 69-7/8
Case depth without door (in.) C 28-1/2
Case depth less door handle (in.) D 32-1/4
Case depth with door handle (in.) E 34-3/8
Overall
Dimensions
Depth with fresh food door open 90° (in.) F 61-7/8
Width (in.) G 33-1/8**
Width with door open 90° inc. door handle (in.) H 37-1/2
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
* When cap is removed: 68-5/8"
** Width excluding caps: 33"
Note: All Right-Hand Refrigerator Doors: As you face the front
of the refrigerator, the handle is on your left and the hinges are
on your right.
1/8
1
1
Dispenser
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 8/08
210819
PDW22SIS
GE Profile™ 22.2 Cu. Ft. Stainless-Wrapped Bottom-Freezer Drawer Refrigerator with Internal
Features and Benefits
• Stainless-Wrapped - Provides stainless steel doors, side panels and top for
a truly dramatic look
• Internal Water Dispenser With GE SmartWater™ Filtration - Delivers chilled fresh-tasting
water through an internal water dispenser
• Upfront, Electronic Touch Temperature Controls with Digital Temperature Display -
Clearly displays exact temperature for the fresh food and freezer compartments
• ClimateKeeper™ system - Best Temperature Management System You Can Buy!
• Multi-Level Slide n’ Store™ Basket System - Includes three full-extension baskets for
tremendous storage flexibility and keeps contents perfectly in place
• Integrated Icemaker with GE SmartWater™ Filtration - Combines an icemaker and ice bin
in one system so cubes don't fall onto the freezer floor
• BrightSpace™ Interior with GE Reveal™ Lighting - Cast a clear natural-looking glow
throughout the refrigerator
• ShelfSaver™ Rack - Provides convenient storage for a 12-pack, two egg cartons or
a 9” by 13” casserole dish
Dispenser
• QuickSpace™ Shelf - Quickly slides out of the way to make room for tall items
• Self-Closing Drawer - Self-closing hinges automatically pull the drawer shut when it’s
within one inch of the closed position
• Adjustable Humidity Vegetable/Fruit Crisper - Provides the ideal storage environment
for fruits and vegetables
• Model PDW22SISSS - Stainless steel-wrapped
Specification Revised 8/08
210819
