GE PDW1860NSS User Manual

PDW1860N

22-1/2

17-5/8" to 18" Min.

GE Profile™ Series SpaceMaker® 18" Dishwasher

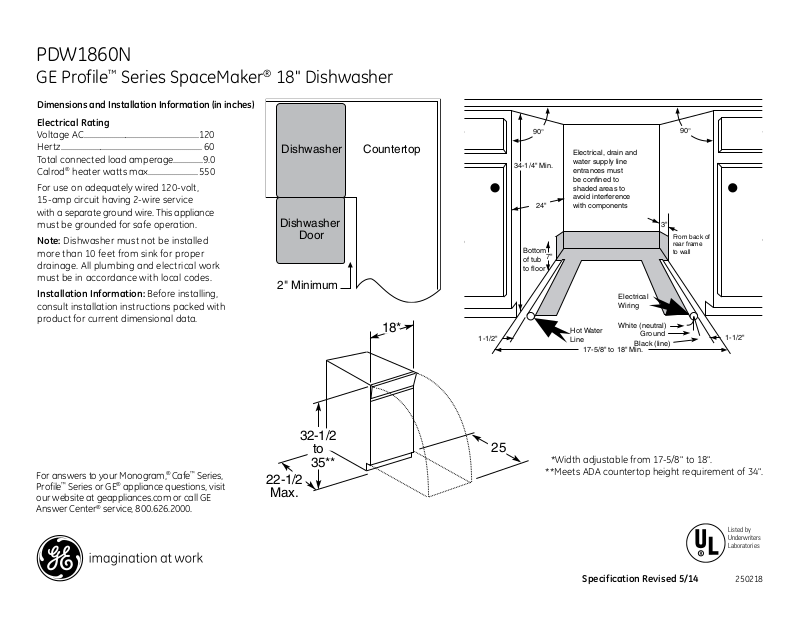

Dimensions and Installation Information (in inches)

Electrical Rating

Voltage AC..........................................................120

Hert z....................................................................... 60

Total connected load amperage...............9.0

Calrod® heater watts max......................... 550

For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.

Note: Dishwasher must not be installed
more than 10 feet from sink for proper
drainage. All plumbing and electrical work
must be in accordance with local codes.

Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.

Dishwasher Countertop

Dishwasher

Door

2" Minimum

18*

1-1/2"

90°

34-1/4" Min.

24"

Bottom
of tub
to floor

Electrical, drain and
water supply line
entrances must
be confined to
shaded areas to
avoid interference
with components

7"

Hot Water
Line

Electrical
Wiring

White (neutral)

Ground

Black (line)

90°

3"

From back of
rear frame
to wall

1-1/2"

®

For answers to your Monogram,

Cafe™ Series,
Profile™ Series or GE® appliance questions, visit
our website at geappliances.com or call GE
Answer Center® service, 800.626.2000.

Max.

32-1/2

to

35**

25

*Width adjustable from 17-5/8" to 18".
**Meets ADA countertop height requirement of 34".

Listed by
Underwriters
Laboratories

Specification Revised 5/14

250218

PDW1860N

Profile™ Series SpaceMaker® 18" Dishwasher

Features and Benefits

• Bright annealed stainless steel interior - A lustrous finish and lasting beauty that resists

stains and corrosion

• Hidden electronic controls - Tucks easy-to-use controls out of sight inside the door's

top edge

• Glasses cycle - Gently washes glassware; great for entertaining

• Air-dry cycle - Washes lightly soiled dishes without a heated dry

• ADA-compliant - Dishwasher design allows for simple operation and easy access

• 1-24-hour Delay Start - Offers the ability to start the dishwasher when no one's home

• Model PDW1860NSS -Stainless steel

CYCLE

HEAVY NORMAL LIGHT GLASSES RINSE SPEED SOAK

RINSE AID

TIME

AY

DEL

HR.

1 - 24

ON

OFF

SELECT
