GE PDT845SMJES, PDT845SSJSS Specification Sheet
PDT845SMJ/SSJ
GE Profile™ Series Stainless Steel Interior Dishwasher with Hidden Controls

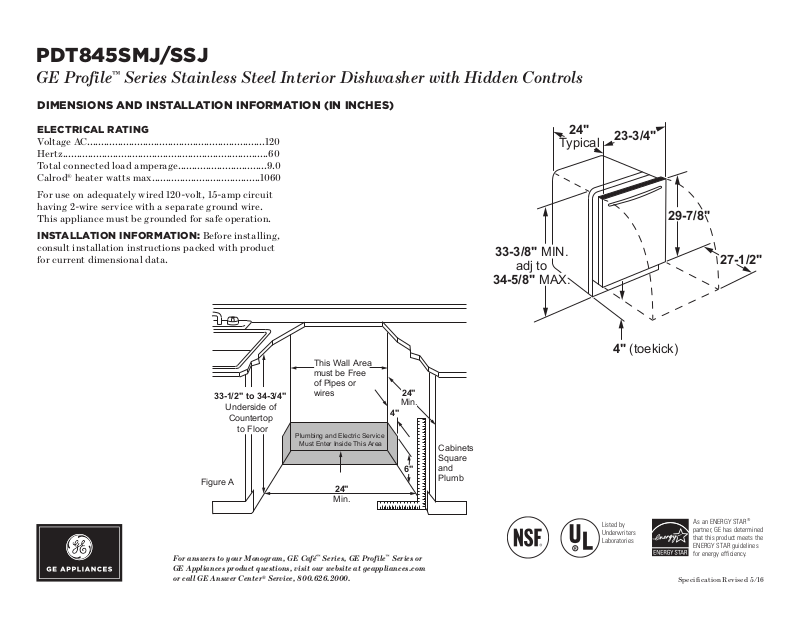

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRICAL RATING
Voltage AC................................................................120
Hertz..........................................................................60
Total connected load amperage................................9.0
Calrod® heater watts max.......................................1060
For use on adequately wired 120-volt, 15-amp circuit
having 2-wire service with a separate ground wire.
This appliance must be grounded for safe operation.
INSTA L L ATION IN FO R MATION : Before installing,
consult installation instructions packed with product
for current dimensional data.
33-1/2" to 34-3/4"
Underside of
Countertop
to Floor
Figure A
This Wall Area
must be Free
of Pipes or
wires
Plumbing and Electric Service
Must Enter Inside This Area
24"
Min.
4"
24"
Min.
6"
Cabinets
Square
and
Plumb
Typical
33-3/8" MIN.
adj to
34-5/8" MAX.
24"
23-3/4"
29-7/8"
27-1/2"
4" (toekick)
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Speci fication Revise d 5/16
PDT845SMJ/SSJ
GE Profile™ Series Stainless Steel Interior Dishwasher with Hidden Controls
FEATURES AND BENEFITS
Advanced wash system with more than 140 cleaning jets - Achieve the ultimate clean
from an industry-leading number of jets that deliver complete washing coverage to every
corner of the dishwasher
Deep Clean silverware jets - No matter how you load your silverware basket, powerful
jets blast away stuck-on food for silverware that’s always spotless
Bottle Jets - Clean hard-to-reach areas inside tall items with dedicated jets integrated
into the upper rack that shower water deep inside for the ultimate clean
Easy touch adjustable upper rack with 2 Stem Safe shelves - Quickly adjust the upper
rack 2 inches up or down to accommodate tall glassware and 10 ½" plates with plenty of
room in the bottom rack for large platters and cookie sheets
Full extension smooth glide upper rack with fold-down tines - Easily fit large or oddshaped items in the upper rack
Hidden vent with fan dry and hidden heater - Get dry and table-ready items every time
thanks to a 1,000-watt hidden heater and fan that circulates the air to remove moisture
Reversing quad blade wash arm - Dishes come out impressively clean thanks to this
revolutionary lower wash arm, with 25 spray jets reversing direction to hit items from
every angle
LED status indicator on door - A dishwasher this quiet has a status light to let you know
it is running
Side jets - Cascading water fills the dishwasher while hydrating soils
42 dBA - Motor runs quietly to keep kitchen peaceful
Model PDT845SSJSS – Stainless steel
Model PDT845SMJES – Slate
Speci fication Revise d 5/16
