GE PCF25PGW Specification
"94 SxS Refer
A
Top View
G
D
C
F
B
E
H

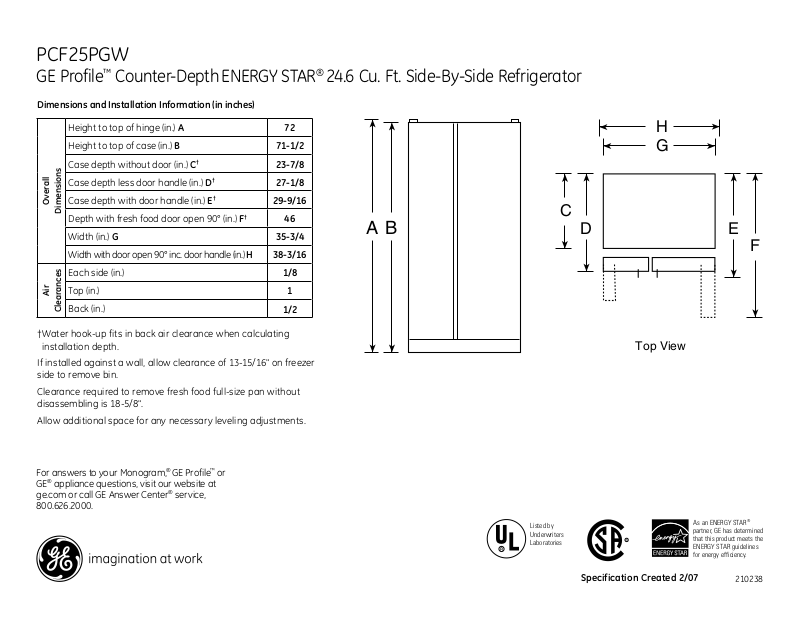

PCF25PGW
GE Profile™ Counter-Depth ENERGY STAR® 24.6 Cu. Ft. Side-By-Side Refrigerator
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 72
Height to top of case (in.)
Case depth without door (in.)
Case depth less door handle (in.)
Case depth with door handle (in.)
Overall
Dimensions
Depth with fresh food door open 90° (in.)
Width (in.)
Width with door open 90° inc. door handle (in.)
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 13-15/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-5/8".
Allow additional space for any necessary leveling adjustments.
G 35-3/4
B 71-1/2
†
C
†
D
†
E
†
F
23-7/8
27-1/8
29-9/16
H 38-3/16
46
1/8
1
1/2
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 2/07
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
210238
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70-1/4"*
23 cu. ft. models
72-1/4"*
25 cu. ft. models
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
PCF25PGW
GE Profile™ Counter-Depth ENERGY STAR® 24.6 Cu. Ft. Side-By-Side Refrigerator
Rough-In Dimensions and Installation Information (in inches)
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
**The rough-in dimensions of 70-1/4"/72-1/4" are minimum and
measured from the finished floor to top of opening (or the
underside of the overhead cabinets). For Models with Trim Kit:
If frameless style cabinets are planned for above the refrigerator,
you may need to consider adding a maximum of 1/4" (70-1/2")
to height of opening for 23 cu. ft. models and 1/8" (72-3/8") for
25 cu. ft. models to allow for additional clearance between the
cabinet doors and the top of refrigerator trim when the cabinet
doors are in open position.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 2/07
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
