"94 SxS Refer
A
Front View
Top View
G
D
C
F
B
E
H
PCF23NGW

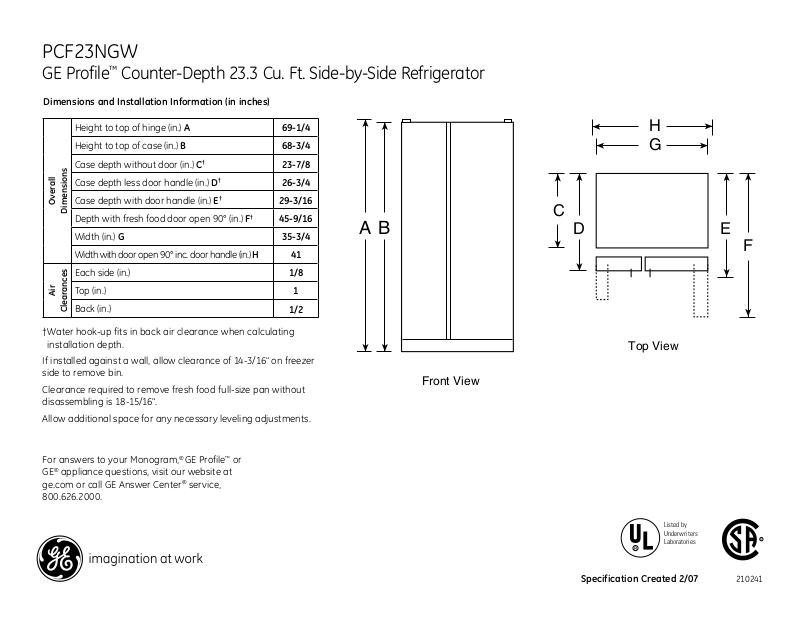

GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-by-Side Refrigerator
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 69-1/4
Height to top of case (in.) B 68-3/4
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Overall
Dimensions
Depth with fresh food door open 90° (in.) F
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 41
†
†
†
†
23-7/8
26-3/4
29-3/16
45-9/16
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
1/8
1
1/2
Listed by
Underwriters
Laboratories
Specification Created 2/07
210241
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70-1/4"*
23 cu. ft. models
72-1/4"*
25 cu. ft. models
PCF23NGW
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-by-Side Refrigerator
Dimensions and Installation Information (in inches)
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
* The rough-in dimensions of 70-1/4”/72-1/4” are minimum and
measured from the finished floor to top of opening (or the
underside of the overhead cabinets) For Models with Trim Kit: If
frameless style cabinets are planned for above the refrigerator,
you may need to consider adding a maximum of 1/4” (70-1/2”)
to height of opening for 23 cu. ft. models and 1/8” (72-3/8”) for
25 cu. ft. models to allow additional clearance between cabinet
doors and top of refrigerator trim when cabinet doors are in
open position.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Created 2/07
Listed by
Underwriters
Laboratories
210241
OUNCE CUP
PCF23NGW
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-by-Side Refrigerator
Features and Benefits
• Counter-Depth Configuration - Offers a built-in look by fitting almost completely flush with
surrounding cabinetry and blending in with décor
• High-Gloss Finish - Provides sleek elegance with a smooth surface
• ClimateKeeper
• Integrated Dispenser with LED Lighting and PreciseFill - Illuminates the dispenser and pours
water in accurate increments
• CustomCool
• Slide 'n Store
• Quick Ice
• TurboCool
• Integrated Ice
to bulk ice
• Tilt-Out Freezer Door Bins - Move forward for convenient access
™
System - Best Temperature Management System That You Can Buy
™
Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer
™
Freezer Basket - Offers easy access and flexible storage
™
Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
™
Setting - "Revs up" the refrigerator, cooling it quickly after frequent door openings
™
System - Frees up valuable freezer space; It tilts down, providing easy access
• Integrated Shelf Support System - Provides strong, yet flexible support
• Adjustable ClearLook
• In-the-Door Beverage Rack - Conveniently located inside the refrigerator door to increase
™
Door Bins - Hold gallon-size containers with style and ease
flexibility and to free up valuable shelf space
• Adjustable Slide-Out, Spillproof Glass Shelves - Shelves slide out, spills stay put
• GE Water Plus Filtration System - Delivers clean, great-tasting water and ice through the
LightTouch! Dispenser with indicator light
• Model PCF23NGWWW - White on white
• Model PCF23NGWBB - Black on black
Specification Created 2/07
210241
