Page 1
GE Consumer & Industrial
g
Multilin
F650
Digital Bay Controller
Instruction manual
GEK-106310N
Firmware version: 2.20
GE Multilin
215 Anderson Avenue
L6E 1B3 Markham, ON -CANADA
T (905) 294 6222 F (905) 294 8512
E gemultilin@ge.com
EnerVista F650 Setup version:
Copyright © 2005 GE Multilin
GE Multilin
Avda. Pinoa, 10
48170 Zamudio SPAIN
T +34 94 485 88 00 F +34 94 485 88 45
E gemultilin.euro@ge.com
2.20
Internet: www.GEMultilin.com
Page 2
TABLE OF CONTENTS
1. GETTING STARTED 1.1 IMPORTANT PROCEDURES
1.1.1 CAUTIONS AND WARNINGS...........................................................................1-1
1.1.2 INSPECTION CHECKLIST................................................................................1-4
1.1.3 SAFETY INSTRUCTIONS......................................... .... ... .................................1-6
1.2 OVERVIEW
1.2.1 INTRODUCTION TO 650 FAMILY OF RELAYS ...............................................1-7

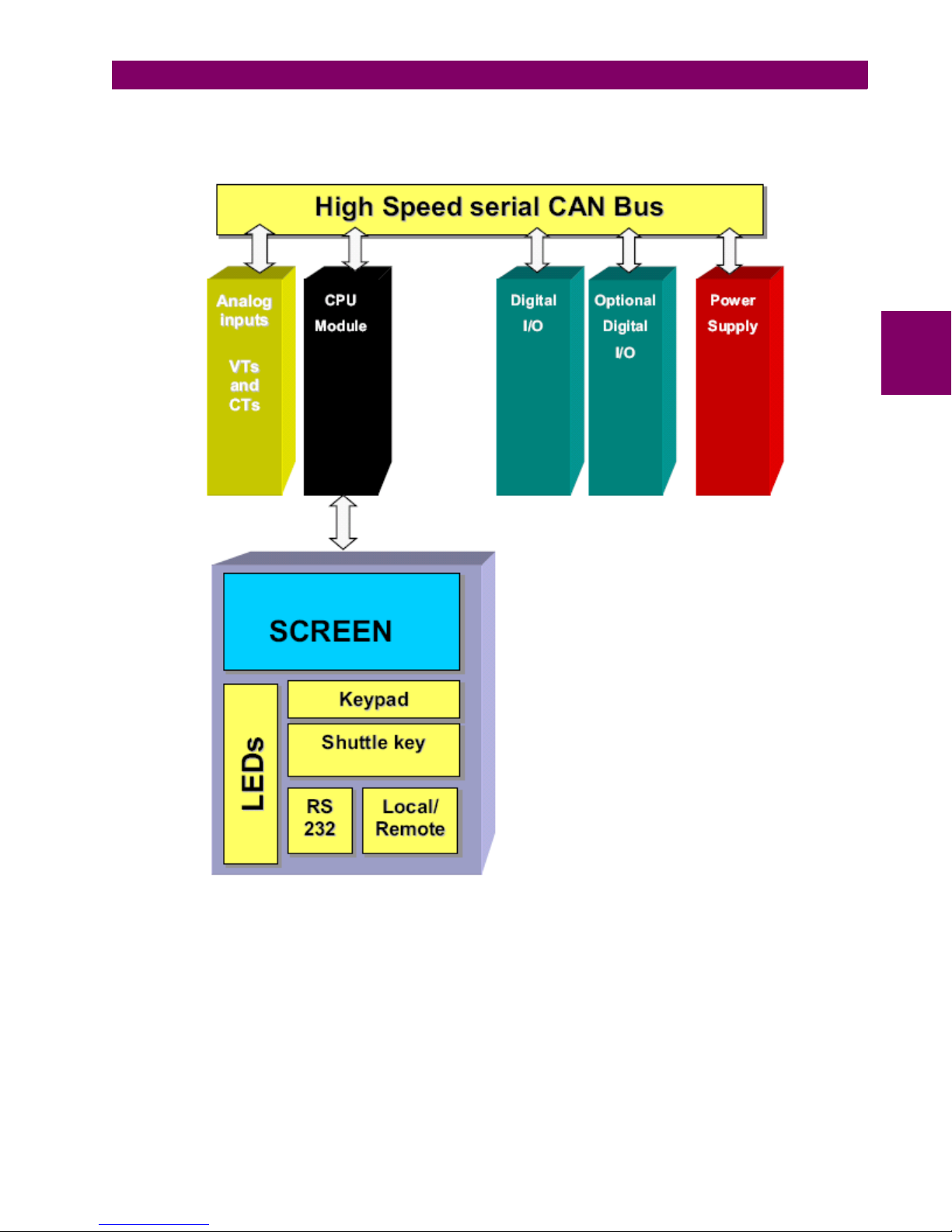

1.2.2 HARDWARE ARCHITECTURE.........................................................................1-7
1.2.3 SOFTWARE ARCHITECTURE..................................................................... .... .1-8
1.2.4 COMMUNICATIONS ARCHITECTURE ............................................................1-8
1.3 ENERVISTA 650 SETUP SOFTWARE
1.3.1 SYSTEM REQUIREMENTS ............................................................................1-10
1.3.2 INSTALLATION................................................................................................1-10
1.3.3 CONNECTING WITH THE UNIT.....................................................................1-15
1.3.4 COMMUNICATIONS........................................................................................1-16
2. PRODUCT DESCRIPTION 2.1 OVERVIEW
2.1.1 F650 OVERVIEW......................................... ................................................. ..... 2-1
2.2 SUMMARY
2.2.1 ANSI DEVICE NUMBERS AND FUNCTIONS...................................................2-2
2.3 ORDERING CODE
2.4 TECHNICAL SPECIFICATIONS
2.4.1 PROTECTION UNITS.................................................................. ... ...................2-6
2.4.2 CONTROL........................................................................................................2-16
2.4.3 MONITORING..................................................................................................2-17
2.4.4 USER –PROGRAMABLE ELEMENTS............................................................2-19
2.4.5 METERING......................................................................................................2-20
2.4.6 INPUTS............................................................................................................2-21
2.4.7 REAL TIME CLOCK.........................................................................................2-23
2.4.8 OUTPUTS........................................................................................................2-23
2.4.9 CONTROL POWER SUPPLY..........................................................................2-24
2.4.10 COMMUNICATIONS........................................................................................2-24
2.4.11 ENVIRONMENTAL CHARACTERISTICS.......................................................2-25
2.4.12 PACKAGING AND WEIGHT............................................................................2-26
2.4.13 TYPE TESTS...................................................................................................2-26
2.4.14 APPROVALS ...................................................................................................2-26
2.5 EXTERNAL CONNECTIONS
3. HARDWARE 3.1 MODULE DESCRIPTION
GE Multilin F650 Digital Bay Controller 1
3.2 MECHANICAL DESCRIPTION

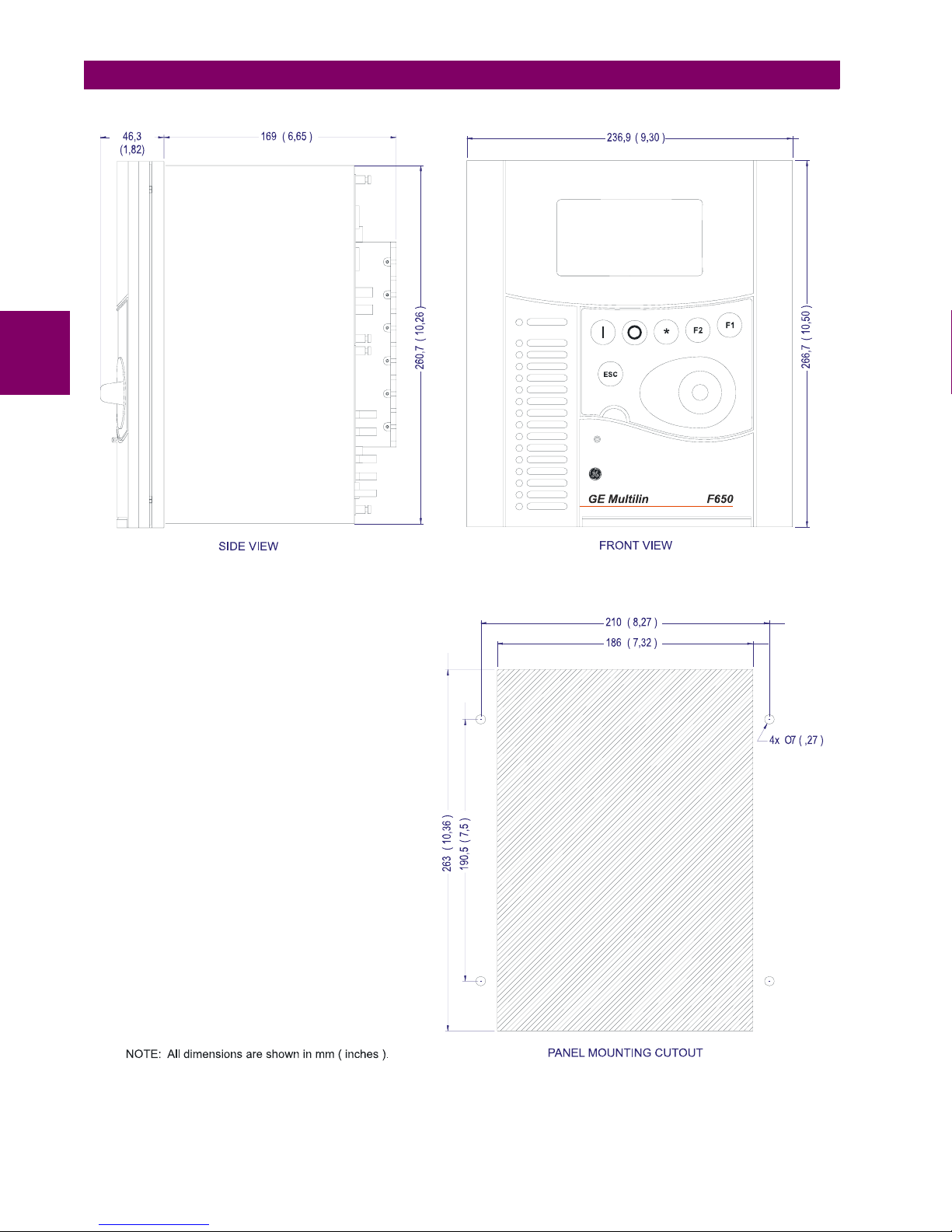

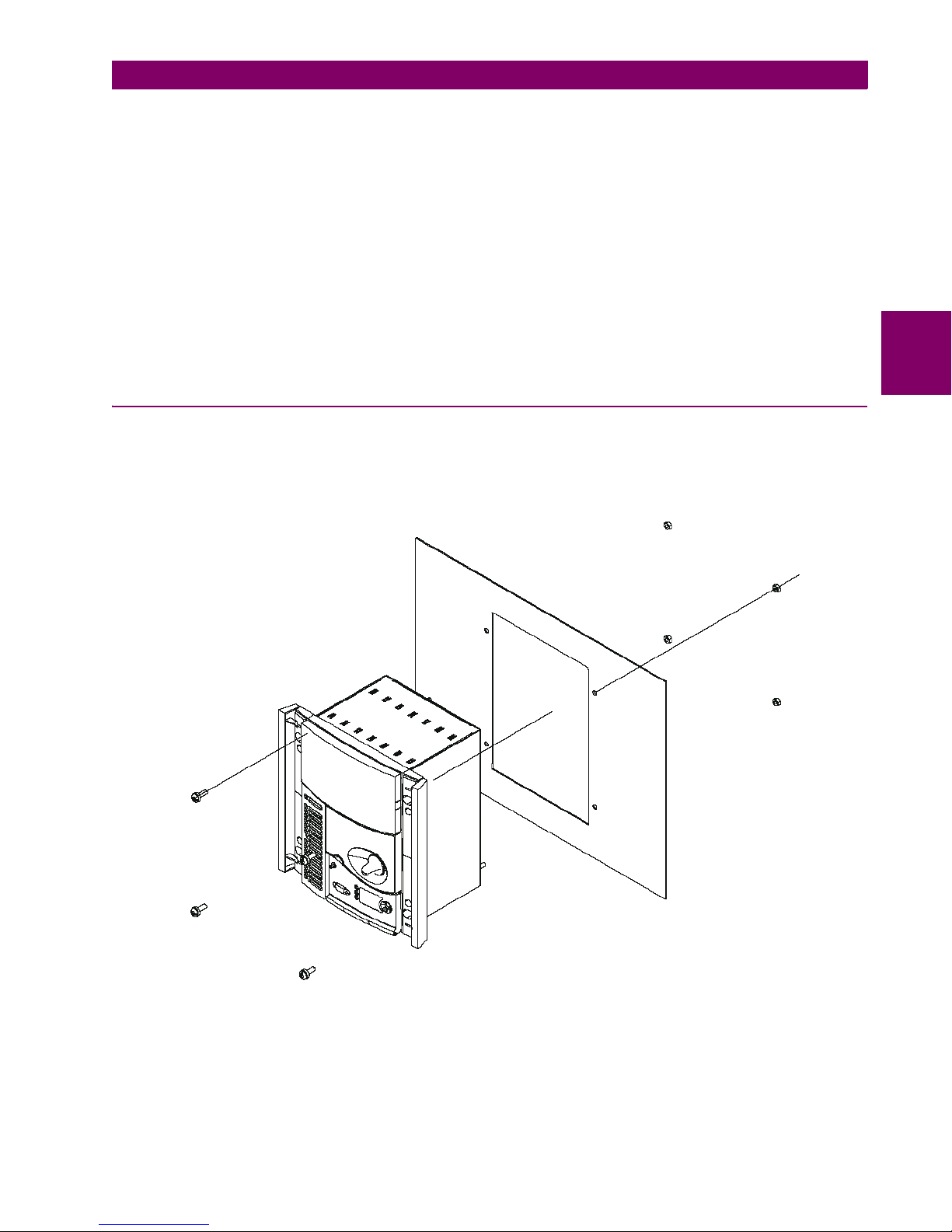

3.2.1 MOUNTING........................................................................................................3-3
3.2.2 REAR DESCRIPTION........................................................................................3-5
3.3 WIRING
3.3.1 EXTERNAL CONNECTIONS.............................................................................3-9
3.3.2 DIGITAL INPUTS WITH TRIP CIRCUIT SUPERVISION ..................................3-9
3.3.3 CABLE/FIBER ETHERNET BOARD..................................................................3-9
3.4 OPTIC FEATURES
3.5 TRANSCEIVER OPTICAL POWER BUDGET VERSUS LINK LENGTH
Page 3
TABLE OF CONTENTS
4. HUMAN INTERFACES,
SETTINGS & ACTUAL
VALUES
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
4.1.1 OVERVIEW ........................................................................................................4-1

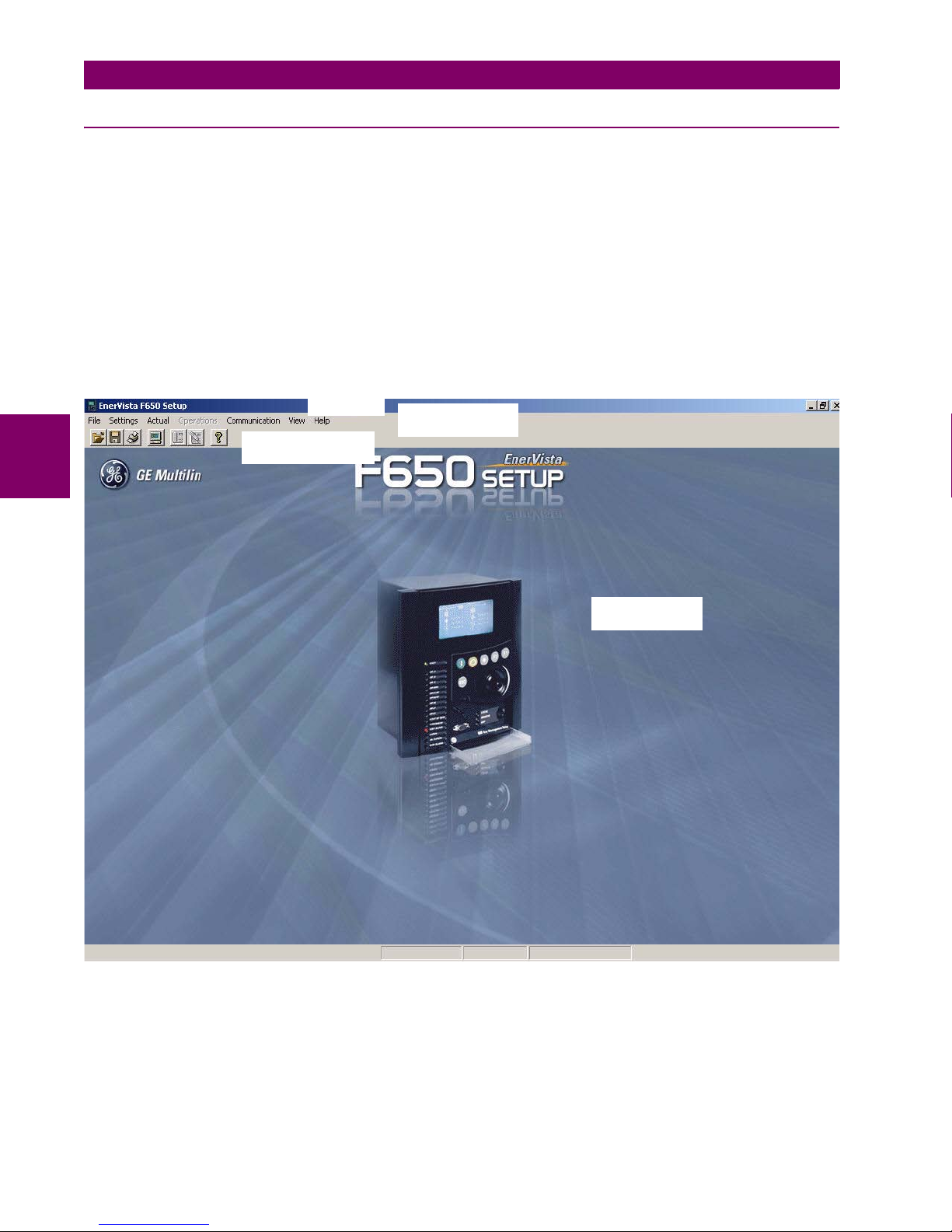

4.1.2 MAIN SCREEN...................................................................................................4-2
4.1.3 STARTING COMMUNICATION..........................................................................4-3
4.1.4 FILE MANAGEMENT ......................................................... .... ... .........................4-7
4.1.5 ENERVISTA 650 SETUP MENUS STRUCTURE ............................................4-12
4.1.6 FILE MENU OVERVIEW............................... .... ... ............................................4-13
4.1.7 SETTINGS MENU OVERVIEW........................................................................4-17
4.1.8 ACTUAL VALUES MENU OVERVIEW.............................................................4-26
4.1.9 OPERATIONS MENU OVERVIEW..................................................................4-31
4.1.10 COMMUNICATION MENU OVERVIEW...........................................................4-31
4.1.11 SECURITY MENU OVERVIEW........................................................................4-32
4.1.12 VIEW MENU OVERVIEW.................................................................................4-32
4.1.13 HELP MENU OVERVIEW ................................................................................4-32
4.2 HUMAN MACHINE INTERFACE (HMI)
4.2.1 DISPLAY...........................................................................................................4-33
4.2.2 FRONT LED INDICATORS..............................................................................4-34
4.2.3 PUSHBUTTONS..............................................................................................4-34
4.2.4 FRONT PORT AND COVER SEALING SYSTEM............................................4-35
4.2.5 TEXT MENUS...................................................................................................4-36
4.2.6 GRAPHIC DISPLAY.........................................................................................4-55
4.3 WEB SERVER
4.3.1 HOME...............................................................................................................4-64
4.3.2 SNAPSHOT EVENTS......................................................................................4-65
4.3.3 CONTROL EVENTS........................................................................................4-66
4.3.4 ALARMS..........................................................................................................4-67
4.3.5 OSCILLOGRAPHY..........................................................................................4-68
4.3.6 FAULT REPORT .............................................................................................4-69
4.3.7 DATA LOGGER................................................................................................4-70
4.3.8 METERING.......................................................................................................4-71
5. SETTINGS 5.1 OVERVIEW
5.1.1 SETTING MAIN MENU.......................................................................................5-1
5.2 PRODUCT SETUP
5.2.1 COMMUNICATION SETTINGS..........................................................................5-3
5.2.2 MODBUS USER MAP........................................................................................5-6
5.2.3 FAULT REPORT ................................................................................................5-6
5.2.4 OSCILLOGRAPHY.............................................................................................5-9
5.2.5 DATA LOGGER................................................................................................5-12
5.2.6 DEMAND .........................................................................................................5-14
5.3 SYSTEM SETUP
5.3.1 GENERAL SETTINGS....................................... ... .... ........................................5-20
5.3.2 FLEX CURVES.................................................................................................5-20
5.3.3 BREAKER.........................................................................................................5-22
5.3.4 SWITCHGEAR .................................................................................................5-24
5.4 PROTECTION ELEMENTS
5.4.1 CHANGE OF SETTING TABLES IN F650 ELEMENTS...................................5-25
5.4.2 INVERSE TIME CURVES CHARACTERISTICS..............................................5-29
5.4.3 PHASE CURRENT...........................................................................................5-39
5.4.4 NEUTRAL CURRENT ......................................................................................5-50
5.4.5 GROUND CURRENT .......................................................................................5-56
5.4.6 SENSITIVE GROUND CURRENT....................................................................5-59
5.4.7 NEGATIVE SEQUENCE CURRENT................................................................5-64
5.4.8 VOLTAGE ELEMENTS ....................................................................................5-65
5.4.9 POWER............................................................................................................5-70
5.5 CONTROL ELEMENTS
5.5.1 SETTING GROUP............................................................................................5-77
5.5.2 UNDERFREQUENCY ELEMENT (81U)...........................................................5-78
5.5.3 OVERFREQUENCY ELEMENT (81O).............................................................5-78
5.5.4 SYNCHRONISM CHECK ELEMENT - SYNCHROCHECK (25)......................5-79
2 F650 Digital Bay Controller GE Multilin
Page 4
TABLE OF CONTENTS
5.5.5 AUTORECLOSE (79).......................................................................................5-87
5.5.6 BREAKER FAILURE ELEMENT (50BF)..........................................................5-94
5.5.7 VT FUSE FAILURE ELEMENT (VTFF)...........................................................5-97
5.5.8 BROKEN CONDUCTOR..................................................................................5-98
5.5.9 LOCKED ROTOR ............................................................................................5-99
5.6 INPUTS/OUTPUTS
5.6.1 INPUT/OUTPUT PLACEMENT......................................................................5-101
5.6.2 CONTROL SETTINGS FOR INPUTS/OUTPUTS..........................................5-102
5.6.3 INPUTS..........................................................................................................5-104
5.6.4 OUTPUTS...................................................................................................... 5-106
5.6.5 CIRCUIT SUPERVISION AND CONTACT SEAL-IN CIRCUITS................... 5-108
5.6.6 ANALOG BOARDS SPECIFIC SETTINGS ...................................................5-118
5.6.7 VIRTUAL INPUTS..........................................................................................5-119
5.6.8 VIRTUAL OUTPUTS......................................................................................5-119
5.7 TESTINGS
5.7.1 FORCE IO –INPUT TESTING .......................................................................5-120
5.7.2 FORCE IO –OUTPUT TESTING ...................................................................5-120

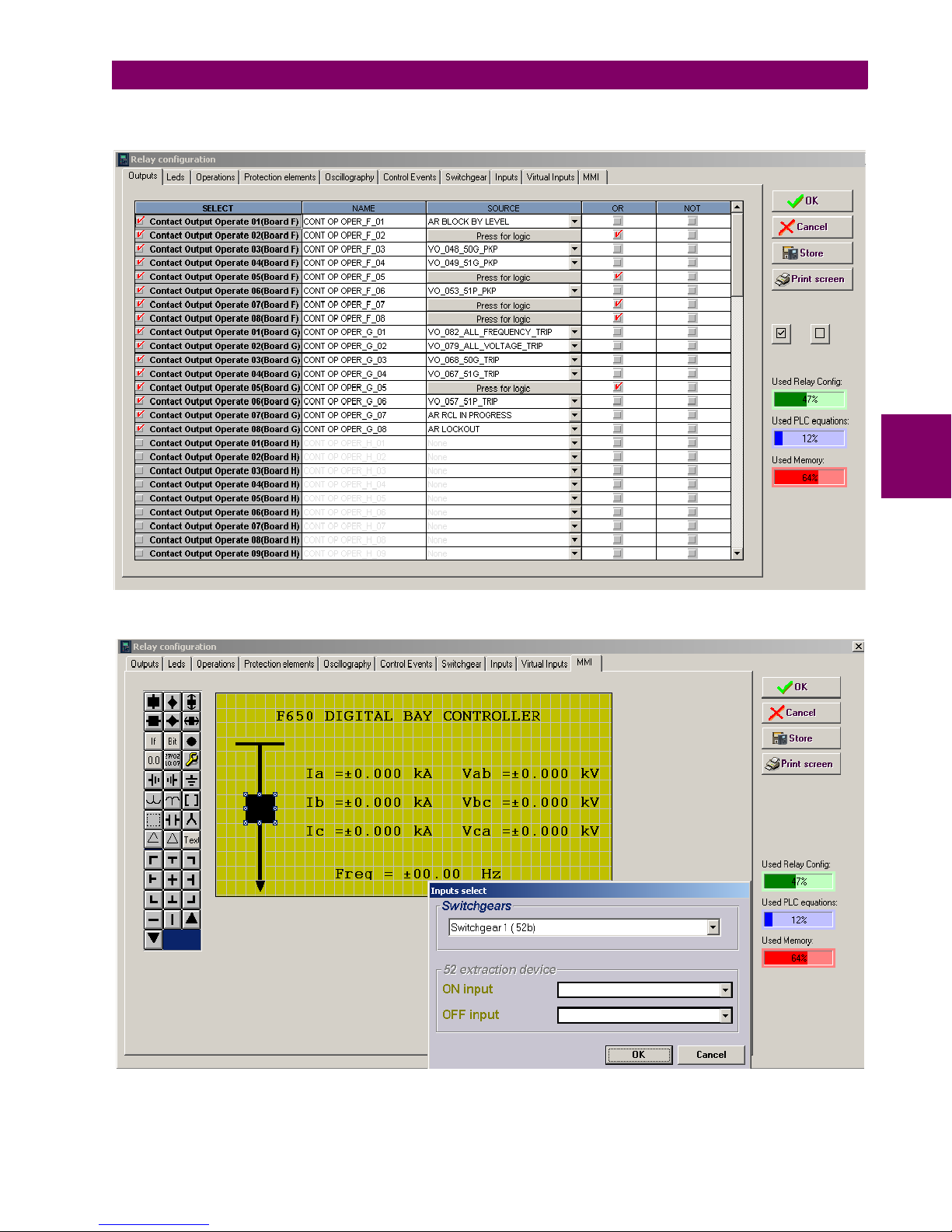

5.8 RELAY CONFIGURATION
5.8.1 OUTPUTS...................................................................................................... 5-121
5.8.2 LEDS..............................................................................................................5-122
5.8.3 OPERATIONS................................................................................................5-123
5.8.4 PROTECTION ELEMENTS....................................................................... .... 5-127
5.8.5 OSCILLOGRAPHY ........................................................................................5-128
5.8.6 CONTROL EVENTS......................................................................................5-129
5.8.7 SWITCHGEAR .............................................................................................. 5-131
5.8.8 HMI (HUMAN-MACHINE INTERFACE).........................................................5-132
5.9 LOGIC CONFIGURATION (PLC EDITOR)
5.9.1 INTRODUCTION............................................................................................5-135
5.9.2 THEORY OF OPERATION............................................................................5-136
5.9.3 MAIN MENU...................................................................................................5-139
5.9.4 CONFIGURATION GENERATION................................................................5-140
5.9.5 GENERATION OF LIBRARIES ................................. .... ................................5-141
5.9.6 EXAMPLE OF APPLICATION .......................................................................5-143
6. ACTUAL VALUES 6.1 FRONT PANEL
6.1.1 LEDS..................................................................................................................6-1
6.2 STATUS
6.2.1 OPERATION BITS.............................................................................................6-2
6.2.2 BREAKER..........................................................................................................6-2
6.2.3 PROTECTION....................................................................................................6-2
6.2.4 CONTROL ELEMENTS.....................................................................................6-8
6.2.5 PROTECTION SUMMARY........................................................................... ...6-13
6.2.6 SNAPSHOT EVENTS SUMMARY...................................................................6-14
6.2.7 MODBUS USER MAP......................................................................................6-15
6.2.8 SWITCHGEAR STATUS..................................................................................6-16
6.2.9 CALIBRATION.................................................................................................6-17
6.2.10 FLEX CURVES ................................................................................................6-18
6.2.11 SYSTEM INFO.................................................................................................6-18
6.2.12 RECORD STATUS ..........................................................................................6-18
6.3 METERING
6.3.1 PRIMARY VALUES..........................................................................................6-22
6.3.2 SECONDARY VALUES...................................................................................6-25
6.3.3 PHASOR DIAGRAM........................................................................................6-27
6.3.4 FREQUENCY...................................................................................................6-27
6.3.5 INPUTS / OUTPUTS........................................................................................6-28
6.4 RECORDS
6.4.1 EVENT RECORDER........................................................................................6-34
6.4.2 WAVEFORM CAPTURE..................................................................................6-36
6.4.3 FAULT REPORT..............................................................................................6-37
6.4.4 DATA LOGGER...............................................................................................6-39
GE Multilin F650 Digital Bay Controller 3
Page 5
TABLE OF CONTENTS
7. IEC 61850 PROTOCOL 7.1 IEC61850 GENERIC SUBSTATION STATE EVENT (GSSE)
7.1.1 REMOTE DEVICES............................................................................................7-1
7.1.2 REMOTE INPUTS..............................................................................................7-3
7.1.3 REMOTE OUTPUTS..........................................................................................7-4
7.2 IEC 61850 PROFILE FOR F650
7.2.1 INTRODUCTION ................................................................................................7-6
7.2.2 ACSI CONFORMANCE STATEMENT...............................................................7-6
7.2.3 LOGICAL NODES ............................................................................................7-11
7.2.4 COMMON DATA CLASS........................................................... .......................7-29
7.2.5 DATASETS.......................................................................................................7-44
7.2.6 MAPPINGS BETWEEN TOC CURVES IN IEC 61850 AND F650 RELAY
IMPLEMENTATION. 7-46
7.2.7 UNIDADES Y ESCALAS DE LOS DATOS ANALÓGICOS .............................7-47
8. SECURITY 8.1 ADDING USERS
8.1.1 USER RIGHTS...................................................................................................8-1
8.2 CHANGING PASSWORDS
8.3 ENABLING SECURITY
8.4 LOGING INTO ENERVISTA 650 SETUP
9. BOOTCODE AND
FIRMWARE UPGRADE
9.1 INTRODUCTION
9.1.1 COMMUNICATION PARAMETERS...................................................................9-2
9.2 BOOT CODE UPGRADE
9.3 FIRMWARE VERSION UPGRADE
9.3.1 FIRMWARE UPGRADE ......................................................... ... .........................9-9
9.4 STEP LIST SUMMARY FOR VERSIONS 1.70 AND LATER
9.4.1 BOOT CODE UPGRADE (*).............................................................................9-12
9.4.2 FIRMWARE UPGRADE (*)................................................. .... ... .......................9-12
10. COMMISSIONING 10.1 VISUAL INSPECTION
10.2 GENERAL CONSIDERATIONS ON THE POWER SUPPLY NETWORK
10.3 ISOLATION TESTS
10.4 INDICATORS
10.5 POWER SUPLY TESTING
10.6 COMMUNICATIONS
10.7 VERIFICATION OF MEASURE
10.7.1 VOLTAGES ......................................................................................................10-7
10.7.2 PHASE CURRENTS.........................................................................................10-7
10.7.3 ACTIVE, REACTIVE POWER, AND COSJ METERING..................................10-8
10.7.4 FREQUENCY...................................................................................................10-8
10.8 INPUTS AND OUTPUTS
10.8.1 DIGITAL INPUTS............................................................. .................................10-9
10.8.2 CONTACT OUTPUTS....................................................................................10-10
10.8.3 CIRCUIT CONTINUITY SUPERVISION INPUTS ..........................................10-10
10.8.4 LATCHING CIRCUITS....................................................................................10-10
4 F650 Digital Bay Controller GE Multilin
Page 6
TABLE OF CONTENTS
10.9 CONNECTIONS FOR TESTING PROTECTION ELEMENTS
10.10 INSTANTANEOUS OVERCURRENT (50PH, 50PL, 50N, 50G Y 50SG)
10.11 INVERSE TIME OVERCURRENT (51PH, 51PL, 51N, 51G Y 46)
10.12 DIRECTIONAL ELEMENTS (67P, 67N, 67G, 67SG)
10.12.1 67P ELEMENT...............................................................................................10-14
10.12.2 67N ELEMENT...............................................................................................10-14
10.12.3 67G ELEMENT..............................................................................................10-15
10.12.4 67SG ELEMENT............................................................................................10-16
10.13 UNDERVOLTAGE ELEMENTS (27P, 27X)
10.13.1 27P ELEMENT...............................................................................................10-17
10.13.2 27X ELEMENT...............................................................................................10-17
10.14 OVERVOLTAGE ELEMENTS (59P, 59X, 59NH, 59NL, 47)
10.14.1 59P ELEMENT...............................................................................................10-18
10.14.2 59X ELEMENT...............................................................................................10-18
10.14.3 59NH AND 59NL ELEMENTS.......................................................................10-19
10.14.4 47 ELEMENT - NEG SEQ OV .......................................................................10-20
10.15 FREQUENCY ELEMENTS (81O/81U)
10.16 RECLOSER (79)
10.16.1 RECLOSING CYCLE.....................................................................................10-22
10.16.2 RECLOSER STATUSES ...............................................................................10-23
10.16.3 EXTERNAL RECLOSE INITIATION ..............................................................10-23
10.17 THERMAL IMAGE ELEMENT (49)
11. APPLICATION EXAMPLES 11.1 EXAMPLE1: COMMUNICATION & PROTECTION SETTINGS
PROCEDURE
11.1.1 DESCRIPTION OF THE EXERCISE...............................................................11-1
11.1.2 PROCEDURE TO COMMUNICATE WITH THE RELAY.................................11-1
11.1.3 PROCEDURE TO SET THE PROTECTION FUNCTION................................11-3
11.1.4 TEST................................................................................................................11-4
11.2 EXAMPLE 2: TOC PROTECTION + RECLOSING SETTINGS
PROCEDURE
11.2.1 DESCRIPTION OF THE EXERCISE...............................................................11-5
11.2.2 PROCEDURE TO COMMUNICATE THE RELAY...........................................11-5
11.2.3 PROCEDURE TO SET THE PROTECTION FUNCTION................................11-5
11.2.4 PROCEDURE TO SET THE RECLOSER .......................................................11-6
11.2.5 PROCEDURE TO SET THE SYNCHRO CHECK ...........................................11-6
11.3 EXAMPLE Nº 3 – PROCEDURE TO SET AN OPERATION
11.3.1 DESCRIPTION OF THE EXERCISE...............................................................11-8
11.3.2 PROCEDURE ................................................................................................. 11-8
11.3.3 TEST..............................................................................................................11-10
12. FREQUENTLY ASKED
QUESTIONS
12.1 COMMUNICATIONS
12.2 PROTECTION
12.3 CONTROL AND HMI
12.4 RELAY CONFIGURATION
13. TROUBLESHOOTING
GUIDE
GE Multilin F650 Digital Bay Controller 5
Page 7
TABLE OF CONTENTS
A. LOGIC OPERANDS
B. MODBUS PROTOCOL B.1 ACCESS TO F650 DATA
B.2 MODBUS F650
B.2.1 FUNCTIONS USED...........................................................................................B-2
B.2.2 PHYSICAL LAYER............................................................................... .............B-3
B.2.3 DATA LINK LAYER ...........................................................................................B-4
B.2.4 GENERIC READING.........................................................................................B-5
B.2.5 GENERIC WRITING..........................................................................................B-6
B.2.6 FUNCTION CODES .........................................................................................B-7
B.2.7 EXCEPTIONS AND ERROR RESPONDS........................................................B-8
B.3 DATA TYPE
B.4 MODBUS APPENDIX
B.4.1 DATA MANAGEMENT ....................................................................................B-10
B.4.2 WRITING SETTINGS......................................................................................B-11
B.4.3 SNAP-SHOT EVENTS ....................................................................................B-12
B.4.4 OPERATIONS.................................................................................................B-15
B.5 OUTPUT WRITING
B.5.1 CONTROL EVENTS........................................................................................B-17
B.5.2 EVENT STRUCTURE......................................................................................B-18
B.6 EVENTS STATUS REQUEST (ALARMS)
B.6.1 CONTROL EVENTS RETRIEVAL FROM THE COMMAND LINE .................B-21
B.6.2 SERIAL COMMUNICATION............................................................................B-22
B.6.3 ETHERNET COMMUNICATION.....................................................................B-23
B.6.4 ACKNOWLEDGEMENT OF EVENTS (ALARMS)...........................................B-24
B.6.5 VIRTUAL INPUTS WRITING...........................................................................B-25
B.6.6 USER MAP......................................................................................................B-26
B.6.7 RETRIEVING OSCILOGRAPHY.....................................................................B-27
B.6.8 TIME SYNCHRONIZATION ............................................................................B-28
B.6.9 ENQUEUEING MESSAGES ..........................................................................B-29
B.6.10 TRACES AND TROUBLESHOOTING.............................................................B-30
B.6.11 MODBUS CHECK FUNCTION........................................................................B-31
B.7 MEMORY MAP
C. DNP 3.0 PROTOCOL FOR
F650
6 F650 Digital Bay Controller GE Multilin
C.1 DNP 3.0 PROTOCOL SETTINGS
C.2 DNP 3.0 DEVICE PROFILE DOCUMENT
C.3 IMPLEMENTATION TABLE
C.4 BINARY INPUT POINTS
C.5 DNP CONFIGURATION EXAMPLES
C.5.1 CONFIGURING DNP USER MAP...................................................................C-11
C.5.2 EXAMPLE OF CUSTOM BINARY INPUT POINTS MAP................................C-13
C.5.3 MULTIPLE DNP 3.0 MASTERS COMMUNICATION WITH F650...................C-15
C.6 BINARY OUTPUT AND CONTROL RELAY OUTPUT
C.7 BINARY COUNTERS
C.8 ANALOG INPUTS
Page 8
TABLE OF CONTENTS
D. IEC 60870-5-104 PROTOCOL D.1 INTRODUCTION
D.2 TECHNICAL DESCRIPTION
D.3 BASIC APPLICATION FUNCTIONS
D.4 IEC 104 SETTINGS
D.5 IEC 60870-5-104 POINT LIST
E. FACTORY DEFAULT LOGIC E.1 FACTORY DEFAULT SETTINGS
E.1.1 FACTORY DEFAULT SETTINGS.....................................................................E-1
F. FACTORY DEFAULT
CONFIGURATION
F.1 FACTORY DEFAULT SETTINGS
F.2 FACTORY DEFAULT CONFIGURATION
G. MISCELLANEOUS G.1 F650 FIRMWARE REVISION HISTORY
G.2 GE MULTILIN WARRANTY
GE Multilin F650 Digital Bay Controller 7
Page 9
TABLE OF CONTENTS
8 F650 Digital Bay Controller GE Multilin
Page 10
1 GETTING STARTED 1.1 IMPORTANT PROCEDURES
1 GETTING STARTED 1.1IMPORTANT PROCEDURES 1.1.1 CAUTIONS AND WARNINGS
To help ensure years of trouble free operation, please read through the following chapter for information to help guide you through the initial installation procedures of your new relay.
BEFORE ATTEMPTING TO INSTALL OR USE THE RELAY, IT IS IMPERATIVE THAT ALL WARNINGS
AND CAUTIONS IN THIS MANUAL ARE REVIEWED TO HELP PREVENT PERSONAL INJURY,
EQUIPMENT DAMAGE, AND/OR DOWNTIME.
CAUTION: THE OPERATOR OF THIS INSTRUMENT IS ADVISED THAT IF THE EQUIPMENT IS USED IN
A MANNER NOT SPECIFIED IN THIS MANUAL, THE PROTECTION PROVIDED BY THE EQUIPMENT
MAY BE IMPAIRED
1
a) COMMUNICATION BOARDS WITHDRAWAL / INSERTION
WARNING: MODULE WITHDRAWAL AND INSERTION SHALL ONLY BE PERFORMED BY DULY QUALIFIED SERVICE PERSONNEL. FOR PERSONAL SECURITY PURPOSES, BEFORE ACCOMPLISHING
ANY WITHDRAWAL OR INSERTION OPERATION, THE RELAY MUST BE POWERED OFF AND ALL
THE REAR TERMINALS MUST BE POTENTIAL FREE. THE RELAY MUST BE GROUNDED USING THE
REAR GROUNDING SCREW.
The modular design of the relay allows withdrawal and insertion of the communication module.
Figure 1–2:: MODULE WITHDRAWAL/INSERTION shows the location of communication modules on the rear part of the
relay. Skilled personnel must carry out the insertion or extraction of communication boards only after interrupting the relay
auxiliary voltage and ensuring that all the rear terminals are potential free.
GE Multilin F650 Digital Bay Controller 1-1
Figure 1–1: FRONT VIEW OF F650 UNITS
Page 11
1.1 IMPORTANT PROCEDURES 1 GETTING STARTED
Communication boards are installed on the rear of the unit, the upper port being reserved for the asynchronous
communications board and CAN, and the lower port for the ETHERNET board in any of its configurations.
1

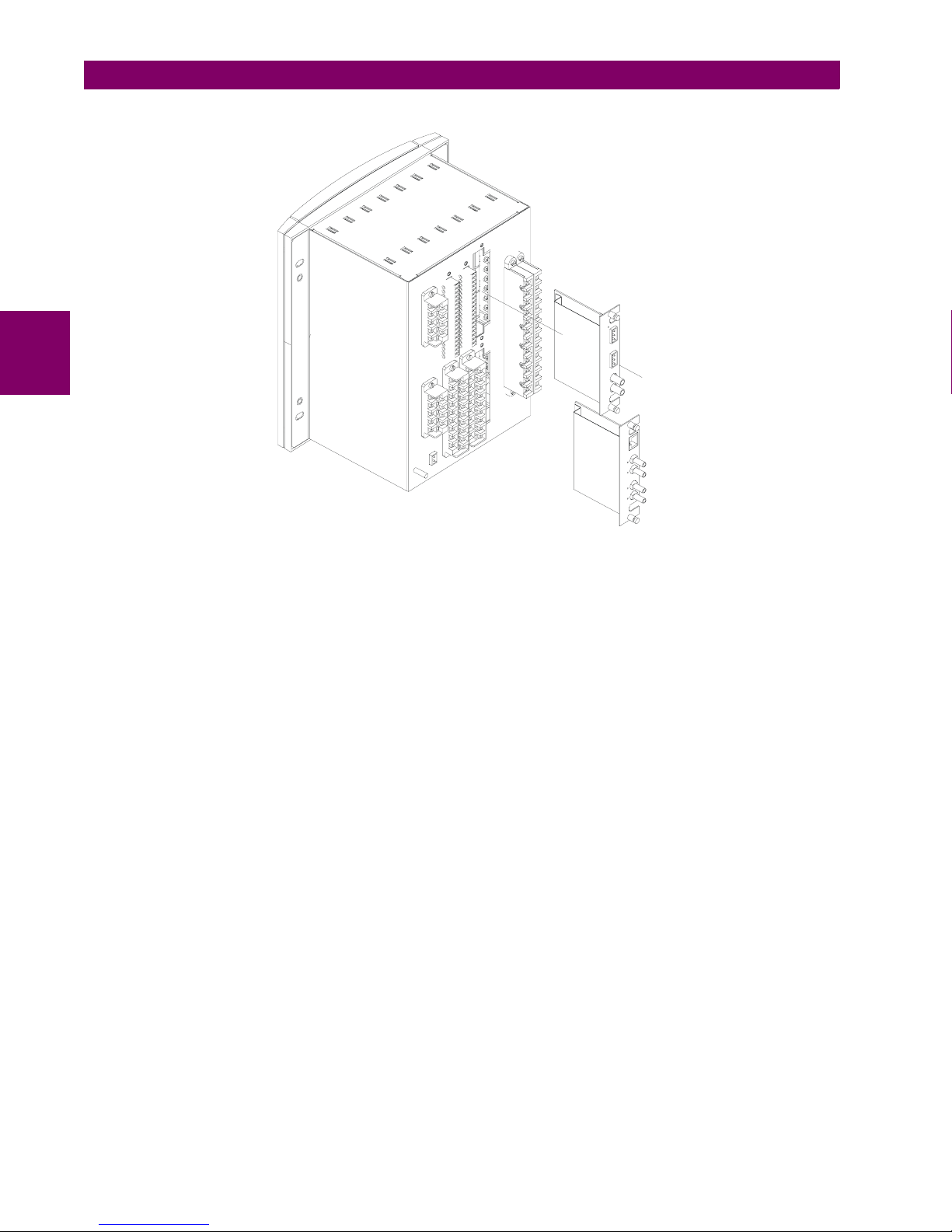

Figure 1–2: MODULE WITHDRAWAL/INSERTION
Before performing any of these actions, control power must be removed from the relay and all the relay rear terminals
must be potential free. A grounded antistatic wristband must be used when manipulating the module in order to avoid
electrostatic discharges that may cause damage to the electronic components.
WITHDRAWAL: Loose the small screws that keep the faceplate in place and extract the module.
INSERTION: Insert the module and press it firmly in the case, until it is completely fixed. After this, bolt the facep late
screws and replace the control power. Check that the relay is fully operative.
GE Multilin will not be responsible for any damage in the relay, connected equipment or personnel whenever this safety
rules are not followed.
1-2 F650 Digital Bay Controller GE Multilin
Page 12
1 GETTING STARTED 1.1 IMPORTANT PROCEDURES
b) MAGNETIC MODULE TERMINALS
M agnetic Module for AC
Currents and Voltage Inputs

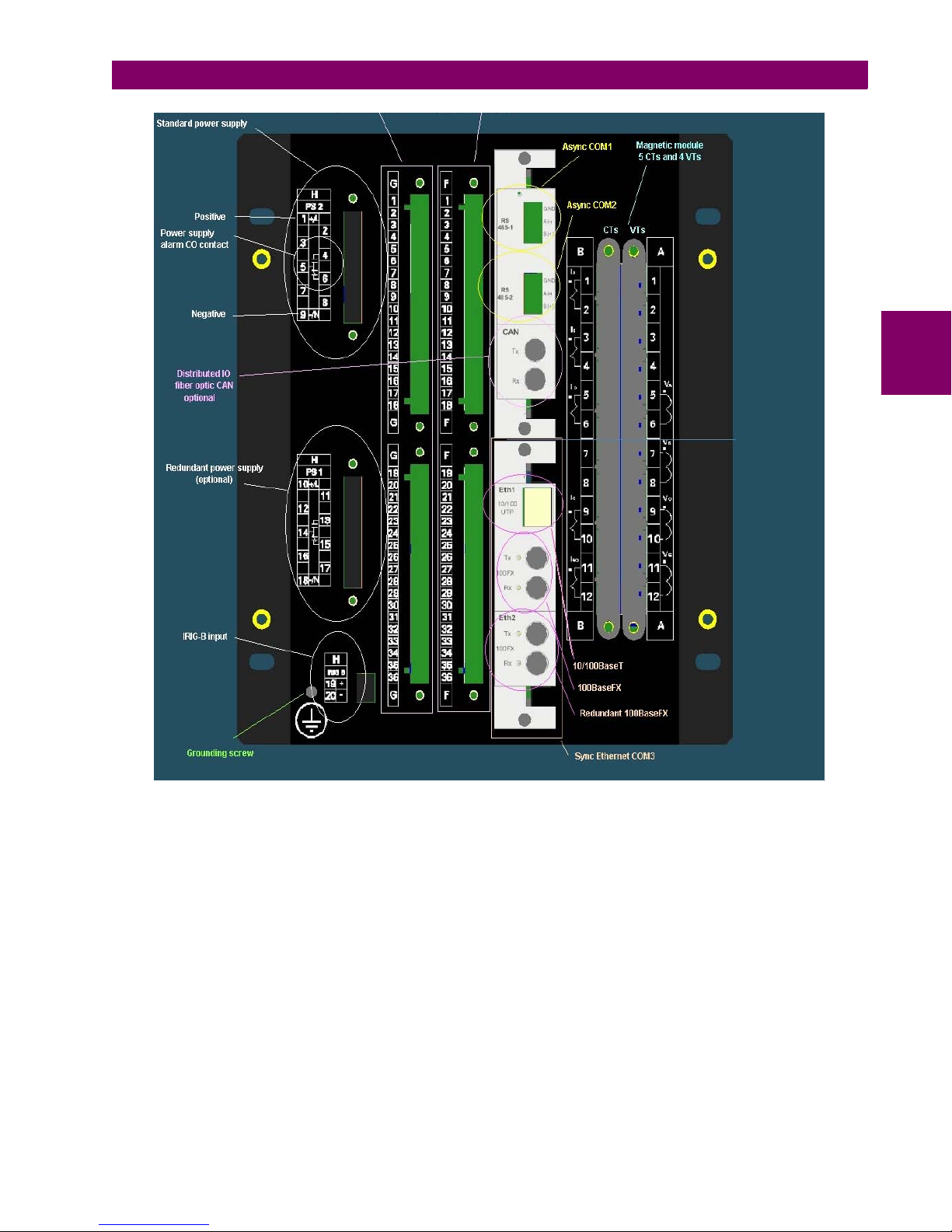

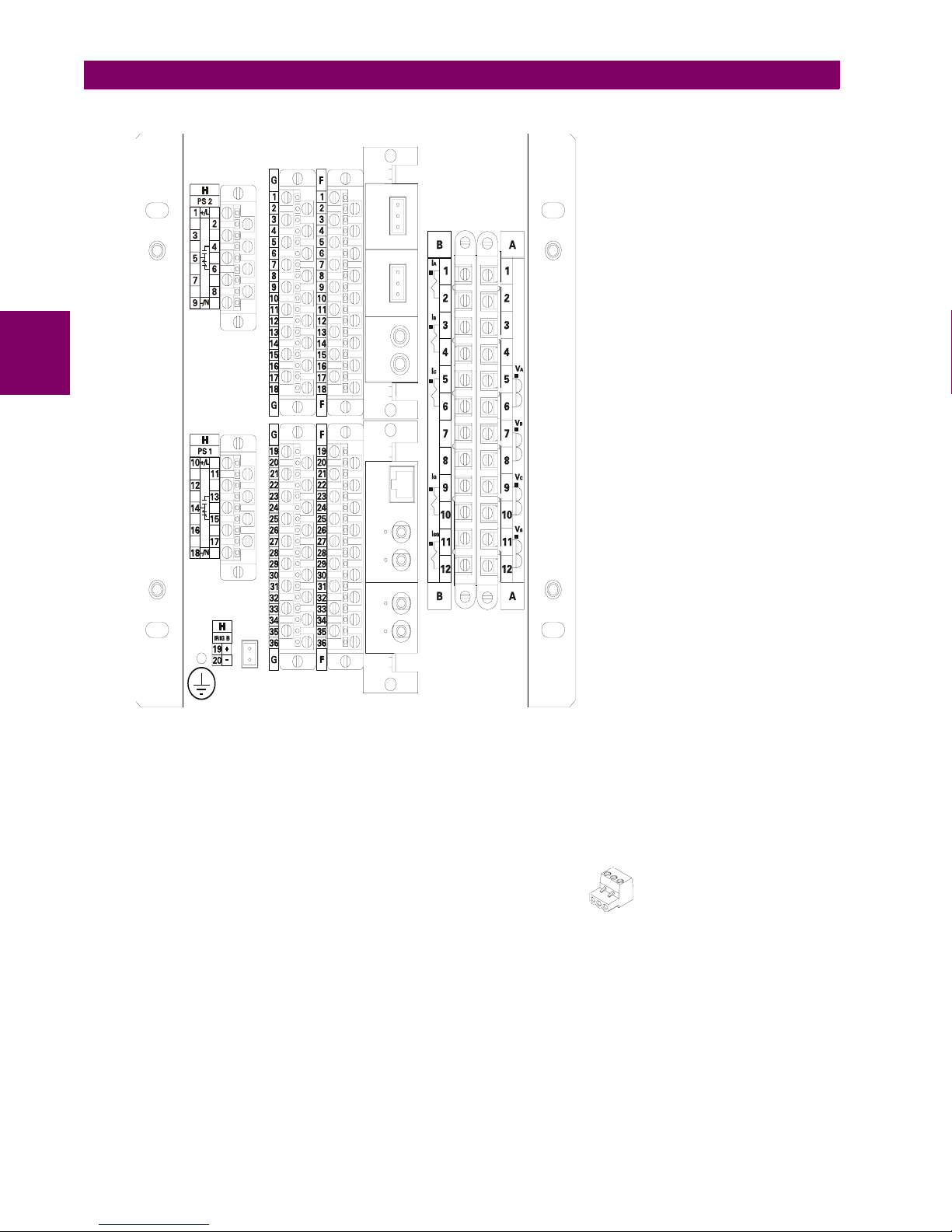

Figure 1–3: REAR VIEW OF F650 UNIT
GE Multilin will not be responsible for any damage in the relay, connected equipment or personnel
whenever this safety rules are not followed.
1
GE Multilin F650 Digital Bay Controller 1-3
Page 13
1.1 IMPORTANT PROCEDURES 1 GETTING STARTED
1.1.2 INSPECTION CHECKLIST
1
Open the relay packaging and inspect the relay for physical damage.
Refer to the label on the side of the relay verifies that the model number is the correct model ordered.
Figure 1–4: IDENTIFICATION LABEL (A4455P6)
- Please ensure that you receive the following items with your relay:
• Mounting screws for rear terminals and for fixing the relay to a cabinet
• CD containing EnerVista F650 Setup software
• Wiring diagram
• Certificate of Compliance
For product information, instruction manual updates, and the latest software updates, please visit the GE
Multilin Home Page www.geindustrial.com/multilin
1-4 F650 Digital Bay Controller GE Multilin
.
Page 14
1 GETTING STARTED 1.1 IMPORTANT PROCEDURES
Note: If there is any physical damage detected on the relay, or any of the contents listed are missing, please
contact GE Multilin immediately at:
EUROPE, MIDDLE EAST AND AFRICA:
GE MULTILIN
Av. Pinoa, 10
48170 Zamudio, Vizcaya (SPAIN)
Tel.: (34) 94-485 88 54, Fax: (34) 94-485 88 38
E-mail: multilin.tech.euro@ge.com
AMERICA, ASIA AND AUSTRALIA:
GE MULTILIN
215, Anderson Avenue
L6E 1B3 Markham, ON (CANADA)
Tel.: +1 905 294 6222, Fax: +1 905 201 2098
E-mail: multilin.tech@ge.com
1
The information provided herein does not intend to cover all details of variations of the equipment nor does it take
into account the circumstances that may be present in your installation, operating or maintenance activities.
Should you wish to receive additional information, or for any particular problem that cannot be solved by referring
to the information cont ained herein, please contact GENERAL ELECTRIC MULTILIN.
GE Multilin F650 Digital Bay Controller 1-5
Page 15
1.1 IMPORTANT PROCEDURES 1 GETTING STARTED
1.1.3 SAFETY INSTRUCTIONS
1
The F650 ground screw shown in Figure 1–5:: LOCATION OF GROUNDING SCREW must be correctly
grounded.
Figure 1–5: LOCATION OF GROUNDING SCREW
Before establishing the communication with a F650 unit through the front serial port, please ensure that the computer is
grounded.
In case of using a laptop, it is recommended not to have it connected to its power supply. The reason for this is that in many
cases it might not be correctly grounded either due to the power supply or to the connector cables used.
This is required not only for personal protection, but also for avoiding a voltage difference between the relay serial
port and the computer port, which could produce permanent damage either to the computer or the relay.
GE Multilin will not be responsible for any damage in the relay or connected eq uipment whenever this elemental
safety rule is not followed.
1-6 F650 Digital Bay Controller GE Multilin
Page 16
1 GETTING STARTED 1.2 OVERVIEW
1.2OVERVIEW 1.2.1 INTRODUCTION TO 650 FAMILY OF RELAYS
This platform of relays has been designed to meet the goals that are appearing nowadays in the environment of new
substations.
Historically, protection, control and metering functions have been performed by electromechanical elements at the
beginning, then static devices, and finally by digital equipment able to integrate all these functions in a single device, called
IED (Intelligent Electronic Device).
These IEDs not only must be able to perform all functions related to system protection and control, but also, using high
speed communications, they must share information among them and send this information to control dispatch centers,
thus reducing the quantity of auxiliary elements and wiring up to 70%.
The F650 relay belongs to this new generation of devices, and can be easily incorporated in substation automation
schemes.
1.2.2 HARDWARE ARCHITECTURE
F650 units incorporate a series of interconnected modules to perform protection and control function s. Firstly, it includes a
group of AC transformers for retrieving current and voltage. These magnitudes, once digitized, are sent to a digital signal
processor (DSP), which performs metering functions and communicates with the main processor via a wide band bus. This
architecture liberates the main processor from performing real time mete ring, allowing a high sampling rate, of up to 64
samples per cycle, without interfering with global performance.
F650 relays are digital devices that include a CPU that can control multiple types of input and output signals.
INPUTS CPU OUTPUTS
BUS CAN
Virtual Inputs
Contact Inputs
Analog inputs
Voltage & Current
Remote CAN Bus
Inputs
Protection Elements
PLC
(logic)
LAN
Virtual Outputs
Contact Outputs
Remote CAN Bus
Outputs
BUS CAN
Figure 1–6: F650 CONCEPT BLOCK DIAGRAM
1
Contact Inputs/Outputs are signals associated to physical input/output contacts in the relay
Analog Inputs are signals coming from the inputs of cu rr ent an d voltage transformers, used for monitoring the
power system signals.
Remote CAN Bus Inputs/Outputs: are signals associated to physical input/output contacts from independent
modules connected to the 650 unit via a fiber optic CAN Bus.
PLC: Programmable Logic Controller. Control module that enables the unit configuration (assignment of
inputs/outputs) and the implementation of logic circuits.
Protection Elements: Relay protection elements, for example: Overcurrent, overvoltage, etc.
GE Multilin F650 Digital Bay Controller 1-7
Page 17
1.2 OVERVIEW 1 GETTING STARTED
1.2.3 SOFTWARE ARCHITECTURE
1
The firmware (software embedded in the relay) has been designed using object oriented programming
techniques (OOP). These techn iques are based on the use o f objects and classes, and provide the software
architecture with the same characteristics as the hardware architecture, i.e., modularity, scalability and
flexibility.
1.2.4 COMMUNICATIONS ARCHITECTURE
The main processor performs protection, control, and communication functions, incorporating two internal processors, one for generic use and a second one dedicated for communications.
A dedicated serial port is used for communication between the main processor and the human-machine interface. Serial connection provides great immunity against electromagnetic disturbances, thus increasing system
safety.
All F650 units incorporate an RS232 serial port on the front of the relay. There is also a possibility to incorporate up to two additional communication modules on the rear.
One of the modules provides asynchronous serial communications, using different physical media (RS485,
plastic or glass fiber optic) depending on the selected model. The module incorporates two identical ports,
COM1 and COM2. COM2 port is multiplexed with the front port. Additionally, this module may incorporate a
glass fiber optic port for CAN BUS communications, used for the connection to the Remote CAN BUS I/O module. This feature allows increasing up to 100% the I/O capability, when the maximum number of I/Os available
inside the relay (up to 32 inputs and 16 outputs) is not enough for a specific application.
Available options are:
Table 1–1: TABLE 1-1 REAR SERIAL COMMUNICATIONS BOARD 1
Board Code Functionality
F Without additional communication ports
A
Two RS485 ports
P Two Plastic F.O. ports
G Two Glass F.O. ports
X Two RS485 ports and a CAN port for remote CAN Bus Inputs/Outputs
Y Two Plastic F.O. ports and a CAN port for remote CAN Bus Inputs/Outputs
Z Two Glass F.O. ports and a CAN port for remote CAN Bus Inputs/Outputs
The other module provides Ethernet communications (COM3 port), using 10/100BaseTX (self-negotiable speed) or
100BaseFX connectors, depending on the selected model. Most complete models include a double redundant 100BaseFX
fiber optic port. Redundancy is provided at a physical media level; the unit incorporates internally duplicated and
independent controllers for extended system reliability and accessibility.
1-8 F650 Digital Bay Controller GE Multilin
Page 18
1 GETTING STARTED 1.2 OVERVIEW
Available Options are:
Table 1–2: REAR ETHERNET COMMUNICATIONS BOARD 2
1
Board
Functionality
Code
B One 10/100BaseTX port (self-negotiable speed)
C One 10/100BaseTX port and one 100BaseFX port.
D One 10/100BaseTX port and two 100BaseFX ports
For options C and D it is required to select the active physical media, by means of an internal se lector inside the module.
The factory configuration for this selection is the 10/100BaseTX port.
Finally, internal communication with input and output modules is performed via an internal CAN bus, independent from the
one used for remote CAN BUS I/Os. This fact provides increased communication speed, as well as the possibility of
acknowledgement of modules, abnormalities, etc. As this is a serial port supp orti ng a communi ca ti ons pro tocol, it provi des
extraordinary immunity against external or internal disturbances.
Figure 1–7: COMMUNICATIONS ARCHITECTURE (B6816F1)
GE Multilin F650 Digital Bay Controller 1-9
Page 19
1.3 ENERVISTA F650 SETUP SOFTWARE 1 GETTING STARTED
1.3ENERVISTA F650 SETUP SOFTWARE 1.3.1 SYSTEM REQUIREMENTS
1
The EnerVista F650 Setup software interface is the preferred method to edit settings and view actual values
because the PC monitor can display more information in a simple comprehensible format.
The following minimum requirements must be met for the EnerVista F650 Setup software to properly operate
on a PC:
• Pentium® class or higher processor (Pentium® II 300 MHz or higher recommended)
• Windows® NT 4.0 (Service Pack 3 or higher), Windows® 2000, Windows® XP
• Internet Explorer® 5.0 or higher
• 64 MB of RAM (128 MB recommended)
• 40 MB of available space on system drive and 40 MB of available space on inst allation drive
• RS232C serial and Ethernet port for communications to the relay
1.3.2 INSTALLATION
After ensuring the minimum requirements for using EnerVista F650 Setup are met (see previous section), use
the following procedure to install the EnerVista F650 Setup from the GE EnerVista CD.
1. Insert the GE EnerVista CD into your CD-ROM drive.
2. Click the Install Now button and follow the installation instructions to install the no-charge EnerVista software.
3. When installation is complete, start the EnerVista Launchpad application.
4. Click the IED Setup section of the Launch Pad window.
5. In the EnerVista Launch Pad window, click the Add Product button and select the “F650 Bay Controller” relay from the
Install Software window as shown below. Select the “Web” option to ensure the most recent software release, or select
“CD” if you do not have a web connection, then click the Add Now button to list software items for the F650.
1-10 F650 Digital Bay Controller GE Multilin
Figure 1–8: LAUNCHPAD WINDOW
Page 20
1 GETTING STARTED 1.3 ENERVISTA F650 SETUP SOFTWARE
Figure 1–9: ADD PRODUCT WINDOW
1
6. If “Web” option is selected, chose the F650 software program and release notes (if desired) from the list and click the
Download Now button to obtain the installation program.
Figure 1–10: WEB UPGRADE WINDOW
7. EnerVista Launchpad will obtain the installation program from the Web or CD. Once the download is complete, double-
click the installation program to install the EnerVista F650 Setup software.
8. Select the complete path, including the new directory name, where the EnerVista F650 Setup will be installed.
GE Multilin F650 Digital Bay Controller 1-11
Page 21
1.3 ENERVISTA F650 SETUP SOFTWARE 1 GETTING STARTED
9. Click on Next to begin the installation. The files will be installed in the directory indicated and the in stallation program
1
will automatically create icons and add EnerVista F650 Setup to the Windows start menu.
10. Follow the on-screen instructions to install the EnerVista F650 Setup software. When the Welcome window appears,
click on Next to continue with the installation procedure.
Figure 1–11: ENERVISTA F650 SETUP INSTALLATION
11. When the Choose Destination Location window appears, and if the software is not to be located in the default
directory, click Change… and type in the comple te path name including the new directory name and click Next to
continue with the installation procedure.
Figure 1–12: ENERVISTA F650 SETUP INST ALLATION CONT.
1-12 F650 Digital Bay Controller GE Multilin
Page 22
1 GETTING STARTED 1.3 ENERVISTA F650 SETUP SOFTWARE
12. The default program group where the application will be added to is shown in the Sele cted Program F older window.
Click Next to begin the installation process, and all the necessary program files will be copied into the chosen directory.
Figure 1–13: SELECT PROGRAM FOLDER
1
13. To finish with the installation process, select the desired language for startup.
Figure 1–14: LANGUAGE WINDOW
14. Click Finish to end the installation. The F650 device will be added to the list of installed IEDs in the EnerVista
Launchpad window, as shown below.
GE Multilin F650 Digital Bay Controller 1-13
Page 23
1
1.3 ENERVISTA F650 SETUP SOFTWARE 1 GETTING STARTED
Figure 1–15: ENERVISTA LAUNCHPAD
1.3.3 CONNECTING WITH THE UNIT
This section is intended as a quick start guide to using th e EnerV ista F650 Setup software. Please refer to section 4.1 in this manual for more information about the EnerVista F650 Setup software interface.
a) CONFIGURING AN ETHERNET CONNECTION
Before starting, verify that the Ethernet network cable is properly connected to the Ethernet port on the ba ck of
the relay.
1. Install and start the latest version of the EnerVista F650 Setup software (available from the GE
EnerVista CD or online from http://www.GEindustrial.com/multilin (see previous section for instal-
lation instructions).
2. Go to “Communication>Computer” and enter the following data referred to communications:
3. Select Control Type as MODBUS TCP/IP from the drop-down list. This option will display a number of interface parameters that must be entered for proper Ethernet communications.
4. Enter the relay IP address (from “Setpoint>Product Setup >Communication Settings>Net-
work>IP ADDRESS”) in the IP Address field in MODBUS TCP/IP SETUP.
5. Enter the relay ModBus address (from “Setpoint>Product Setup >Communication Set-
tings>ModBus Protocol>ModBus Address COM1/COM2 setting”) in the Unit Identifier (Slave
Address) field.
6. Enter the ModBus port address (from “Setpoint>Product Setup >Communication Set-
tings>ModBus Protocol>ModBus Port Number” setting) in the ModBus Port field.
7. The Device has now been configured for Ethernet communications. Proceed to press the ON button to begin communicating.
1-14 F650 Digital Bay Controller GE Multilin
Page 24
1 GETTING STARTED 1.3 ENERVISTA F650 SETUP SOFTWARE
b) CONFIGURING AN RS232 CONNECTION
Before starting, verify that the RS232 serial cable is properly connected to the RS232 port on the front panel of
the relay.
1. Install and start the latest version of the EnerVista F650 Setup software (available from the GE
EnerVista CD or online from http://www.GEindustrial.com/multilin (see previous section for instal-
lation instructions).

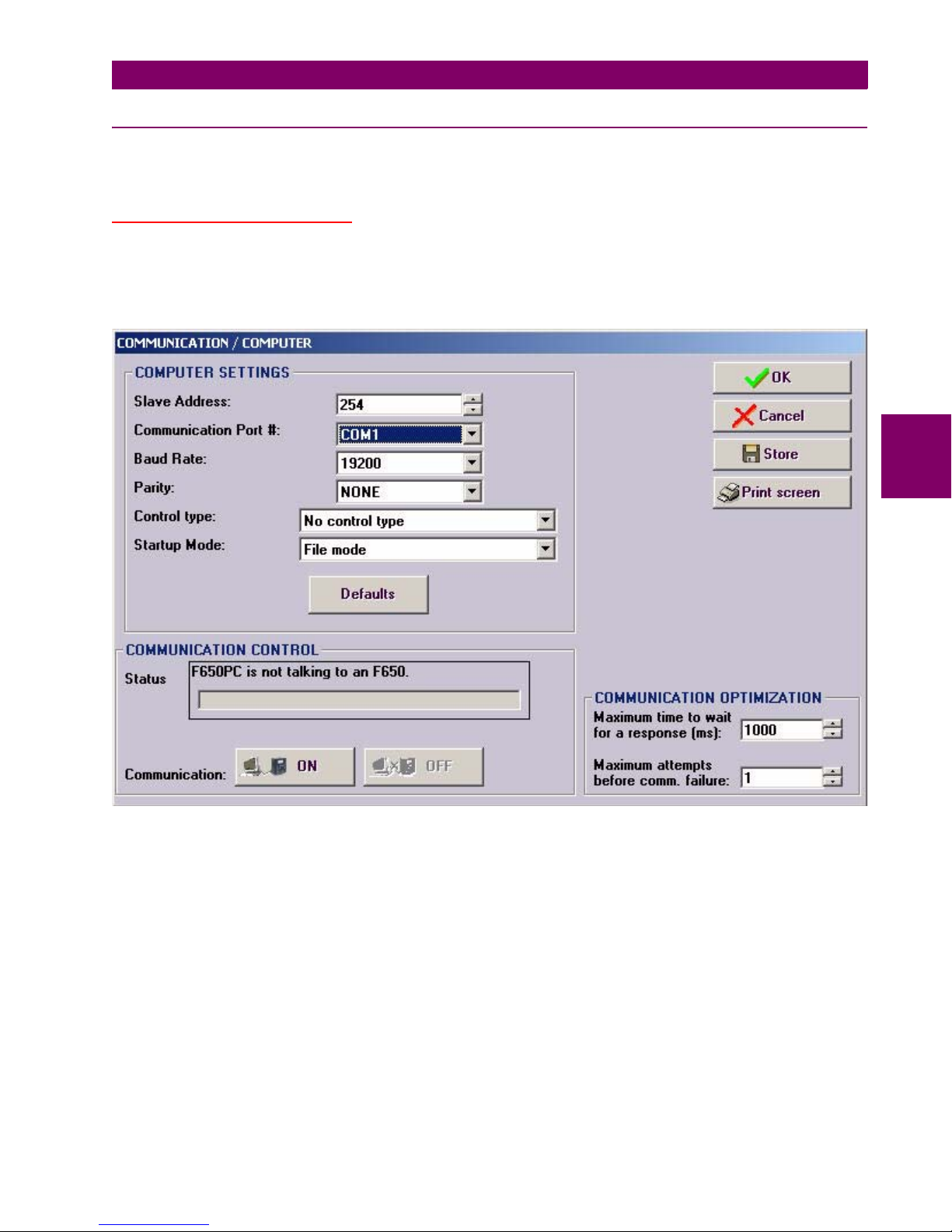

2. Go to “Communication>Computer” and enter the following data referred to communications:
3. Select Control Type as No Control Type from the drop-down list. This option will display a number
of interface parameters that must be entered for pr op er ser ial com m u nica tio n s.
4. Enter the relay Slave Address (“Setpoint>Product Setup >Communication Settings>ModBus
Protocol” menu) in the Slave Address field.
5. Enter the physical communications parameters (Baudrate and parity settings) from “Set-
point>Product Setup >Communication Settings>Serial Ports” menu, in their respective fields.
6. The Device has now been configured for RS232 communications. Proceed to press the ON button to begin communicating.
1.3.4 COMMUNICATIONS
To communicate with the relay via the faceplate RS232 port, a standard “straight through” serial cable is used. The DB9
male end is connected to the relay and the DB9 or DB25 female end is connected to the PC COM1 or COM2 port as
described in the figure below.
Direct connection to the Ethernet port will be carried out using a crossover cable. If this connection is performed through a
hub or switch, we will use direct Ethernet cable.
To communicate with the relay rear RS485 port from a computer R S232 port, an RS232/RS485 co nverter box is needed.
We recommend using the F485 converter, manufactured by GE. This converter box is connected to the computer using a
straight through serial cable. A shielded twisted pair (20, 22 or 24 AWG according to the American standards; 0.25, 0.34 or
2
0.5 mm
terminals. In order to minimize communication e rrors that could be ca used by external noise, it is recommended to use a
shielded twist pair. In order to avoid loops where external currents could flow, the cable shield must be grounded only at
one end.
The converter box (-, +, GND) terminals are connected to the relay (SDA, SDB, GND) terminals respectively. For long
communications cables (longer than 1 km), the RS485 circuit must be terminated in a RC network (i.e. 120 ohm, 1 nF). This
circuit is shown on Figure 1–17:: RS485 CONNECTION FOR F650 UNITS, associated to text Zt(*).
according to the European standards) cable is used to connect the converter box to the relay rear communications
1
GE Multilin F650 Digital Bay Controller 1-15
Page 25
1.3 ENERVISTA F650 SETUP SOFTWARE 1 GETTING STARTED
1
Figure 1–16: RELAY- PC CONNECTION FOR RS232 FRONT PORT
To minimize errors from noise, the use of shie lded twisted pair wire is recommended. For a correct operation, polarity must
be respected, although if it is not so, there is no danger to damage the unit. For instance, the relays must be connected with
all RS485 SDA terminals connected together, and all SDB terminals connected together. This may result confusing
sometimes, as the RS485 standard refers only to terminals named “A” and “B”, although many devices use terminals
named “+” and “-“.
As a general rule, terminals “A” should be connected to terminals “-“, and terminals “B” to “+”. The GND terminal should be
connected to the common wire inside the shield, when provi ded. Otherwise, it should be connected to the shield. Each
relay should also be daisy chained to the next one in the link. A maximum of 32 relays can be connected in this manner
without exceeding driver capability. For larger systems, additional serial channels must be added. It is also possible to use
commercially available repeaters to increase the number of relays on a single channel to more than 32 . Do not use other
connection configuration different than the recommended.
Lightning strikes and ground surge currents can cause large mo mentary voltage differences between remote ends of the
communication link. For this reason, surge protection devices are internally provided. To ensure maximum reliability, all
equipment should have similar transient protection devices installed.
1-16 F650 Digital Bay Controller GE Multilin
Page 26
1 GETTING STARTED 1.3 ENERVISTA F650 SETUP SOFTWARE
1
Figure 1–17: RS485 CONNECTION FOR F650 UNITS
GE Multilin F650 Digital Bay Controller 1-17
Page 27
1
1.3 ENERVISTA F650 SETUP SOFTWARE 1 GETTING STARTED
1-18 F650 Digital Bay Controller GE Multilin
Page 28
2 PRODUCT DESCRIPTION 2.1 OVERVIEW
2 PRODUCT DESCRIPTION 2.1OVERVIEW 2.1.1 F650 OVERVIEW
The F650 is a protection, control, monitoring, metering and registering unit, suitable for many different applications, such as
main protection for distribution feeders and transmission lines, as well as backup prote ction for transformers, busbars,
capacitor banks, etc. The main features of F650 devices include:
• Directional overcurrent protection for phases, neutral, ground and sensitive ground
• Under and overvoltage protection
• Under and overfrequency protection
• Autorecloser
• Synchronism
• Metering
• Oscillography registers, fault reports, data logger
• Bay control (open/close commands, etc.)
• Bay mimic.
• Communications (RS232/RS485/fibre optic/Ethernet)
• Fully programmable front buttons, 15 LED’s and input/output contacts
2
GE Multilin F650 Digital Bay Controller 2-1
Figure 2–1: FUNCTIONAL BLOCK DIAGRAM
Page 29
2.2 SUMMARY 2 PRODUCT DESCRIPTION
2.2SUMMARY
2.2.1 ANSI DEVICE NUMBERS AND FUNCTIONS
DEVICE
NUMBER
2
25 Synchronism 51PV Phase Time Overcurrent with Voltage
27P Phase Undervoltage 51SG Ground Time Overcurrent for sensitive
27X Auxiliary Undervoltage 59N Neutral Overvoltage (two elements, High
32 Sensitive Directional Power 59P Phase Overvoltage
32FP Forward Power 59X Auxiliary Overvoltage
46 Negative Sequence Time Overcurrent 67P Phase Directional
47 Negative Sequence Overvoltage 67N Neutral directional
48 Locked Rotor 67G Ground Directional
49 Protection against Overload by thermal model 67SG Sensitive Ground Directional
50G Ground Instantaneous Overcurrent (measured
50N Neutral Instantaneous Overcurrent (calculated
50P Phase Instantaneous Overcurrent (two
50SG Ground Instantaneous Overcurrent for
50ISG Isolated Ground Instantaneous Overcurrent
51G Ground Time Overcurrent (measured from 4
51N Neutral Time Overcurrent (calculated from the
FUNCTION DEVICE
NUMBER
th
from 4
from the phase currents)
elements, High and Low)
sensitive ground systems (measured from 5
current transformer)
(measured from 5
current transformer)
phase currents)
current transformer)
th
current transformer)
79 Automatic Recloser (Four shot recloser)
810 Overfrequency
81U Underfrequency
I2/I1 Broken Conductor
th
50BF Breaker Failure
th
VTFF VT Fuse Failure
FUNCTION
Restraint (two elements, High and Low)
ground systems (measured from 5
current transformer)
and Low)
th
Table 2–1: OTHER DEVICE FUNCTIONS
INPUTS/OUTPUTS METERING COMMUNICATIONS
9 Analog Inputs: 5 current inputs (3 for
phases, 1 for ground, 1 for sensitive
ground), 4 voltage inputs (3 for phases, 1
for busbar or auxiliary voltage)
Digital Programmable Contact Inputs (up
to 32)
Digital Programmable Contact Outputs
(up to 16)
32 Latched Virtual Inputs
32 Self-Reset Virtual Inputs
Virtual Outputs (up to 512) Frequency ModBus User Map
Tripping and closing circuit supervision Sequence components of currents
2-2 F650 Digital Bay Controller GE Multilin
Metering Current for phases, ground
and sensitive ground inputs
Voltages phase to phase and phase
to ground
Real, Reactive and Apparent Power
and Power Factor
Three Phase Energy IEC 870-5-104
and voltages
Front RS232 port, Two rear
RS485/fibre optic ports, 10/100 TX
and 100 FX Mbps Ethernet port
ModBus Communications RTU
and over TCP/IP
DNP Multimaster (3.0 Level 2)
Page 30
2 PRODUCT DESCRIPTION 2.2 SUMMARY
USER INTERFACE RECORDS OTHERS
Alphanumerical display (4x20) Data Logger Breaking Arcing Current (I2t)
Graphic display (16 x 40) Demand Breaker Control
User Programmable LEDs (15) Event Recorder (up to 128
configurable events)
User Programmable Keys (up to 5) Fau lt Locator and Fault report (up
to 10 records)
Easy menu management thanks to
shuttle key
Configurable One-Line Diagram (Graphic
model only)
Phasor Diagram (available in EnerVista
F650 Setup)
Oscillography (up to 20 records) Settings Groups (up to 3)
Snapshot Events (up to 479) Operations (up to 24)
IRIG-B synchronization
Logic Equations (PLC Editor)
Web Server Application
2
GE Multilin F650 Digital Bay Controller 2-3
Page 31
2.3 ORDERING CODE 2 PRODUCT DESCRIPTION
2.3ORDERING CODE
F650 units are supplied as ½ 19” rack, 6 units high devices, containing the foll owing modules: power supply, CPU, I/O
modules, communication modules. Each of these modules can be supplied in different versions that must be speci fied
when ordering. The required information to completely define an F650 model is shown on TABLE 2-1.
Table 2–2: ORDERING CODE
2
F650 - - - F - G - - DESCRIPTION
B Basic display (4x20 characters)
M Graphic display (240x128 pixels)
REAR SERIAL COMMUNICATIONS BOARD 1
F None
A Redundant RS485
P Redundant plastic fiber optic
G Redundant glass fiber optic
X Redundant RS48 5 + fiber remote CAN bus I/O
Y Redundant plastic fiber optic + fiber remote CAN bus I/O
Z Redundant glass fiber optic + fiber remote CAN bus I/O
C Cable remote CAN Bus I/O
M RS485 + cable remote CAN Bus I/O
REAR ETHERNET COMMUNICATIONS BOARD 2
B 10/100 Base TX
C 10/100 Base TX + 100 Base FX
D 10/100 Base TX + Redundant 100 Base FX
E Redundant 10/100 Base TX
I/O BOARD IN SLOT F
1 16 Digital Inputs + 8 Outputs
2 8 Digital Inputs - 8 Outputs + 2 trip/close circuit supervision
circuits
I/O BOARD IN SLOT G
0 None
1 16 Inputs + 8 Outputs
AUXILIARY VOLTAGE
LO 24-48 Vdc (range 19.2 – 57.6)
HI 110-250 Vdc (range 88 – 300)
120-230 Vac (range 96 – 250)
LOR Redundan t LO
HIR Redundant HI
LANGUAGE
English/English
F French/English
P Russian/Eng lish (*)
S Spanish/English
SPECIAL MODELS: MOD001: 6A output contacts instead of 16A.
(*) Note: Russian language available only for basic display models.
For those applications requiring a high number of inputs and outputs, F650 units can be connected to a CIO module
(Remote CAN Bus I/O module) for using up to 2 additional boards.
2-4 F650 Digital Bay Controller GE Multilin
Page 32
2 PRODUCT DESCRIPTION 2.3 ORDERING CODE
F650 units allow monitoring and configuring these I/O boards as if they were internal boards, located on slots F and G. In
this case, slots are labeled as H y J.
The required information to completely define a CIO Module is shown on TABLE 2-2.
Table 2–3: ORDERING CODE FOR CIO MODULE
CIO H - J - - DESCRIPTION
I/O BOARD IN SLOT H
1 16 inputs + 8 outputs
2 8 inputs + 4 circuit supervision circuits + 6 outputs + 2 outputs with
tripping current supervision (latching)
I/O BOARD IN SLOT J
0 None
1 16 inputs + 8 outputs
2 8 inputs + 4 circuit supervision circuits + 6 outputs + 2 outputs with
tripping current supervision (latching)
AUXILIARY VOLTAGE
LO 24-48 Vdc (range 19.2 – 57.6)
HI 110-250 Vdc (range 88 – 300)
120-230 Vac (range 96 – 250)
2
GE Multilin F650 Digital Bay Controller 2-5
Page 33
2.4 TECHNICAL SPECIFICATIONS 2 PRODUCT DESCRIPTION
2.4TECHNICAL SPECIFICATIONS
NOTE: TECHNICAL SPECIFICA TIONS ARE SUBJECT T O CHANGE WITHOUT NOTICE
2.4.1 PROTECTION UNITS
Phase and ground units use as operation magnitude the current value received by the unit in current inputs, while the
neutral unit uses the calculated current value fro m the three ph ase currents.
2
The isolated ground unit will be used only fo r those applications where the neutral is comp letely isolated, and it uses the
fifth CT of the unit. This CT has a sensitivity that is 10 times higher than the universal model (connected to 1A or 5A
transformers). Therefore, it does not admit such a high permanent overload.
a) PHASE TIME OVERCURRENT WITH VOLTAGE RESTRAINT (51PH/51PL)
Current Input Phasor (without harmonics) or RMS
Rated current For connection to 1 or 5 A CTs.
Pickup level 0.05 to 160.00 A in steps of 0.01 A
Reset level 98% of the pickup level
Level Accuracy
Curve Shapes IEEE extremely / very / moderately inverse
Curve Multiplier (Time Dial) 0.00 to 900.00 s in steps of 0.01 s
Reset type Instantaneous or time delayed according to IEEE
Timing accuracy Operate at > 1.03 times the pickup ±3.5% of operate time or
Voltage restraint Selectable by setting
Saturation Level 48 times the pickup level
Snapshot Events Selectable by setting
0.5% of the reading 10 mA from 0.05 to 10 A
1.5% of the reading for higher values.
IEC A/B/C/long-time inverse/short time inverse curve
IAC extremely / very / normally / moderately inverse
ANSI extremely / very / normally / moderately inverse
2
t
I
Definite time
Rectifier curve
FlexCurve A/B/C/D user curve
30 ms. (whichever is greater)
b) GROUND TIME OVERCURRENT (51G)
Current Input Phasor (without harmonics) or RMS
Rated current For connection to 1 or 5 A CTs.
Pickup level 0.05 to 160.00 A in steps of 0.01 A
Reset level 98% of the pickup level
Level Accuracy
2-6 F650 Digital Bay Controller GE Multilin
0.5% of the reading 10 mA from 0.05 to 10 A
1.5% of the reading for higher values.
Page 34
2 PRODUCT DESCRIPTION 2.4 TECHNICAL SPECIFICATIONS
Curve Shapes IEEE extremely / very / moderately inverse
IEC A/B/C/long-time inverse/short time inverse curve
IAC extremely / very / normally / moderately inverse
ANSI extremely / very / normally / moderately inverse
2
I
t
Definite time
Rectifier curve
FlexCurve A/B/C/D user curve
Curve Multiplier (Time Dial) 0.00 to 900.00 s in steps of 0.01 s
Reset type Instantaneous or time delayed according to IEEE
Timing accuracy Operate at > 1.03 times the pickup ±3.5% of operate time or
30 ms. (whichever is greater)
Saturation Level 48 times the pickup level
Snapshot Events Selectable by setting
c) NEUTRAL TIME OVERCURRENT (51N)
Current Input Fundamental Phasor (without harmonics)
Rated current For connection to 1 or 5 A CTs.
Pickup level 0.05 to 160.00 A in steps of 0.01 A
Reset level 98% of the pickup level
Level Accuracy
Curve Shapes IEEE extremely / very / moderately inverse
Curve Multiplier (Time Dial) 0.00 to 900.00 s in steps of 0.01 s
Reset type Instantaneous or time delayed according to IEEE
Timing accuracy Operate at > 1.03 times the pickup ±3.5% of operate
Saturation Level 48 times the pickup level
Snapshot Events Selectable by setting
0.5% of the reading 10 mA from 0.05 to 10 A
1.5% of the reading for higher values.
IEC A/B/C/long-time inverse/short time inverse curve
IAC extremely / very / normally / moderately inverse
ANSI extremely / very / normally / moderately inverse
2
I
t
Definite time
Rectifier curve
FlexCurve A/B/C/D user curve
time or 30 ms. (whichever is greater)
2
d) SENSITIVE GROUND TIME OVERCURRENT (51SG)
Current Input Phasor (without harmonics) or RMS
Rated current For connection to 1 or 5 A CTs.
Pickup level 0.005 to 16.000 A in steps of 0.001 A
Reset level 98% of the pickup level
Level Accuracy
GE Multilin F650 Digital Bay Controller 2-7
1.5% of the reading 1 mA from 0.005 to 16 A
Page 35
2.4 TECHNICAL SPECIFICATIONS 2 PRODUCT DESCRIPTION
Curve Shapes IEEE extremely / very / moderately inverse
IEC A/B/C/long-time inverse/short time inverse curve
IAC extremely / very / normally / moderately inverse
ANSI extremely / very / normally / moderately inverse
2
I
t
Definite time
2
Curve Multiplier (Time Dial) 0.00 to 900.00 s in steps of 0.01 s
Reset type Instantaneous or time delayed according to IEEE
Timing accuracy Operate at > 1.03 times the pickup ±3.5% of operate
Saturation Level 48 times the pickup level
Snapshot Events Selectable by setting
e) PHASE AND GROUND INSTANTANEOUS OVERCURRENT (50PH/50PL/50G)
Current Input Phasor (without harmonics) or RMS
Rated current For connection to 1 or 5 A CTs.
Pickup level 0.05 to 160.00 A in steps of 0.01 A
Reset level 97% of the pickup level
Level Accuracy
Overreach < 2%
Trip delay 0.00 to 900.00 s. in steps of 0.01 s.
Reset delay 0.00 to 900.00 s. in steps of 0.01 s.
Operate time 20 ms at 3 x Pickup at 50 Hz, typically
Timing accuracy ±3% of operate time or 30 ms. (whichever is greater)
Snapshot Events Selectable by setting
Rectifier curve
FlexCurve A/B/C/D user curve
time or 30 ms. (whichever is greater)
0.5% of the reading 10 mA from 0.05 to 10 A
1.5% of the reading for higher values
f) NEUTRAL INSTANTANEOUS OVERCURRENT (50N)
Current Input Fundamental Phasor (without harmonics)
Rated current For connection to 1 or 5 A CTs.
Pickup level 0.05 to 160.00 A in steps of 0.01 A
Reset level 97% of the pickup level
Level Accuracy
Overreach < 2%
Trip delay 0.00 to 900.00 s. in steps of 0.01 s.
Reset delay 0.00 to 900.00 s. in steps of 0.01 s.
Operate time 20 ms at 3 x Pickup at 50 Hz, typically
Timing accuracy ±3% of operate time or 30 ms. (whichever is greater)
Snapshot Events Selectable by setting
2-8 F650 Digital Bay Controller GE Multilin
0.5% of the reading 10 mA from 0.05 to 10 A
1.5% of the reading for higher values
Page 36
2 PRODUCT DESCRIPTION 2.4 TECHNICAL SPECIFICATIONS
g) SENSITIVE GROUND INSTANTANEOUS OVERCURRENT (50SG)
Current Input Phasor (without harmonics) or RMS
Rated current For connection to 1 or 5 A CTs.
Pickup level 0.005 to 16.000 A in steps of 0.001 A
Reset level 97% of the pickup level
Level Accuracy
Overreach < 2%
Trip delay 0.00 to 900.00 s. in steps of 0.01 s.
Reset delay 0.00 to 900.00 s. in steps of 0.01 s.
Operate time 20 ms at 3 x Pickup at 50 Hz
Timing accuracy ±3% of operate time or 30 ms. (whichever is greater)
Snapshot Events Selectable by setting
h) ISOLATED GROUND INSTANTANEOUS OVERCURRENT (50IG)
Current Input Fundamental Phasor (without harmonics)
Voltage Input Fundamental Phasor (without harmonics)
Current Pickup level 0.005 to 0.400 A in steps of 0.001 A
Voltage Pickup level 2 to 70 V in steps of 1 V
Reset level 97-98% of the pickup level
Level Accuracy
Trip delay 0.00 to 900.00 s. in steps of 0.01 s.
Time to instantaneous 0.00 to 900.00 s. in steps of 0.01 s.
Timing accuracy ±3% of operate time or 30 ms. (whichever is greater)
Snapshot Events Selectable by setting
1.5% of the reading 1 mA from 0.005 to 16 A
1.5% of the reading 1 mA from 0.005 to 16 A
2
i) NEGATIVE SEQUENCE (46)
Current Input Fundamental Phasor (without harmonics)
Pickup level 0.05 to 160.0 A in steps of 0.01 A
Reset level 98% of the pickup level
Level Accuracy
Curve Shapes IEEE extremely / very / moderately inverse
Curve Multiplier (Time Dial) 0.00 to 900.00 s in steps of 0.01 s
Reset type Instantaneous or time delayed according to IEEE
Timing accuracy Operate at > 1.03 times the pickup ±3.5% of operate
GE Multilin F650 Digital Bay Controller 2-9
0.5% of the reading 10 mA from 0.05 to 10 A
1.5% of the reading for higher values
IEC A/B/C/long-time inverse/short time inverse curve
IAC extremely / very / normally / moderately inverse
ANSI extremely / very / normally / moderately inverse
2
t
I
Definite time
Rectifier curve
FlexCurve A/B/C/D user curve
time or 30 ms. (whichever is greater)
Page 37
2.4 TECHNICAL SPECIFICATIONS 2 PRODUCT DESCRIPTION
Saturation Level 48 times the pickup level
Snapshot Events Selectable by setting
j) PHASE DIRECTIONAL (67P)
2
Directionality Forward and reverse selectable by setting
Polarizing Quadrature Voltage:
ABC seq: Phase A (VBC), Phase B (VCA), Phase C
(VAB)
ACB seq: Phase A (VCB), Phase B (VAC), Phase C
(VBA)
Polarizing voltage threshold 0 to 300 Vac in steps of 1 V
Characteristic angle -90º to +90º in steps of 1º
Block Logic Permission or Block selectable by setting
Angle accuracy
Operate time <30ms, typically
k) GROUND DIRECTIONAL (67G)
2º for I>0.1 A and V>5 Vac
Directionality Forward and reverse selectable by setting
Polarizing Voltage, current, dual
Polarizing V o ltage VN (measured or calculated, selected by setting)
Polarizing Current
Operating Current
Polarizing Voltage threshold 0 to 300 Vac in steps of 1 V
Polarizing Current threshold 0.005 A
Characteristic angle -90º to +90º in steps of 1º
Block Logic Permission or Block selectable by setting
Angle accuracy
Operate time <30ms, typically
l) NEUTRAL DIRECTIONAL (67N)
Directionality Forward and reverse selectable by setting
Polarizing Voltage, current, dual
Polarizing V o ltage V
Polarizing Current
Operating Current I
Polarizing Voltage threshold 0 to 300 Vac in steps of 1 V
Polarizing Current threshold 0.005 A
Characteristic angle -90º to +90º in steps of 1º
Block Logic Permission or Block selectable by setting
Isg (measured from 5
Ig (measured from 4th current transformer)
2º for I>0.1 A and V>5 Vac
(measured or calculated, selected by setting)
N
Isg (measured from 5
N
th
current transformer)
th
current transformer)
2-10 F650 Digital Bay Controller GE Multilin
Page 38
2 PRODUCT DESCRIPTION 2.4 TECHNICAL SPECIFICATIONS
Angle accuracy
Operate time <30ms, typically
m) SENSITIVE GROUND DIRECTIONAL (67SG)
Directionality Forward and reverse selectable by setting
Polarizing Voltage
Polarizing V o ltage VN (measured or calculated, selected by setting)
Operating Current
Polarizing Voltage threshold 0 to 300 Vac in steps of 1 V
Characteristic angle -90º to +90º in steps of 1º
Block Logic Permission or Block selectable by setting
Angle accuracy
Operate time <30ms, typically
n) THERMAL MODEL (49)
Current Input Fundamental Phasor (without harmonics)
Rated current For connection to 1 or 5 A CTs.
Pickup level 0.05 to 160.0 A in steps of 0.01 A
Reset level 97% of the pickup level
Level Accuracy
Timing accuracy ±3.5% of operate time or 30 ms. (whichever is greater)
Heating constant Between 3 and 600 minutes
Cooling constant 1 to 6 times the heating constant
Snapshot Events Selectable by setting
2º for I>0.1 A and V>5 Vac
th
Isg (measured from 5
2º for I>0.1 A and V>5 Vac
0.5% of the reading 10 mA from 0.05 to 10 A
1.5% of the reading for higher values
current transformer)
2
o) PHASE OVERVOLTAGE (59P)
Voltage Input Fundamental Phasor (without harmonics) of phase-to-phase
Pickup level 3 to 300 in steps of 1 V
Reset level 97% of the pickup level
Level Accuracy
Trip delay 0.00 to 900.00 s. in steps of 0.01 s.
Reset delay 0.0 0 to 900.00 s. in steps of 0.01 s.
Timing accuracy ±3.5% of operate time or 30 ms. (whichever is greater)
Logic Any/Two/All phases logic selectable by setting
Snapshot Events Selectable by setting
GE Multilin F650 Digital Bay Controller 2-11
voltages
1% reading 0.1% Full Scale from 10 to 275 V
Page 39
2.4 TECHNICAL SPECIFICATIONS 2 PRODUCT DESCRIPTION
p) PHASE UNDERVOLTAGE (27P)
Voltage Input Fundamental Phasor of phase-to-ground or phase-to-
phase voltages (selectable by setting)
Pickup level 3 to 300 in steps of 1 V
Reset level 103% of the pickup level
Level accuracy
2
Curve Shapes Fixed time or inverse curve
Reset type Instantaneous
Curve Multiplier (Time Dial) 0.00 to 900.00 s. in steps of 0.01 s.
Timing accuracy ±3.5% of operate time or 30 ms. (whichever is greater)
Minimum Voltage Threshold 0 to 300 in steps of 1 V
Logic Any/Two/All phases logic selectable by setting
Supervised by Breaker Selectable by setting
Snapshot Events Selectable by setting
q) NEUTRAL OVERVOLTAGE (59NH/59NL)
1% reading 0.1% Full Scale from 10 to 275 V
Voltage Input Fundamental Phasor of the neutral voltage
Pickup level 3 to 300 in steps of 1 V
Reset level 97% of the pickup level
Level accuracy
Trip delay 0.00 to 900.00 s. in steps of 0.01 s
Reset delay 0.00 to 900.00 s. in steps of 0.01 s
Timing accuracy ±3.5% of operate time or 30 ms. (whichever is greater)
Snapshot Events Selectable by setting
r) NEGATIVE SEQUENCE OVERVOLTAGE (47)
Voltage Input Fundamental Phasor
Pickup level 3 to 300 in steps of 1 V
Reset level 97% of the pickup level
Level accuracy
Trip delay 0.00 to 900.00 s. in steps of 0.01 s
Reset delay 0.00 to 900.00 s. in steps of 0.01 s
Timing accuracy ±3.5% of operate time or 30 ms. (whichever is greater)
Snapshot Events Selectable by setting
1% reading 0.1% Full Scale from 10 to 275 V
1% reading 0.1% Full Scale from 10 to 275 V
s) AUXILIARY OVERVOLTAGE (59X)
Voltage Input Fundamental Phasor
Pickup level 3 to 300 in steps of 1 V
Reset level 97% of the pickup level
2-12 F650 Digital Bay Controller GE Multilin
Page 40
2 PRODUCT DESCRIPTION 2.4 TECHNICAL SPECIFICATIONS
Level accuracy
Trip delay 0.00 to 900.00 s. in steps of 0.01 s
Reset delay 0.00 to 900.00 s. in steps of 0.01 s
Timing accuracy ±3.5% of operate time or 30 ms. (whichever is greater)
Snapshot Events Selectable by setting
t) AUXILIARY UNDERVOLTAGE (27X)
Voltage Input Fundamental Phasor
Pickup level 3 to 300 V in steps of 1 V
Reset level 97% of the pickup level
Level accuracy
Curve Shapes Fixed time or inverse curve
Reset type Instantaneous
Curve Multiplier (Time Dial) 0.00 to 900.00 s. in steps of 0.01 s
Timing accuracy ±3.5% of operate time or 30 ms. (whichever is greater)
Snapshot Events Selectable by setting
u) UNDERFREQUENCY (81U)
1% reading 0.1% Full Scale from 10 to 275 V
1% reading 0.1% Full Scale from 10 to 275 V
2
Pickup level 20.00 to 65.00 Hz in steps of 0.01 Hz
Reset level Pickup + 0.03 Hz
Level accuracy
Trip delay 0.00 to 900.00 s. in steps of 0.01 s
Reset delay 0.00 to 900.00 s. in steps of 0.01 s
Minimum voltage threshold 30 to 300V in steps of 1 V
Timing accuracy ±3.5% of operate time or 100 ms. (whichever is greater)
Snapshot Events Selectable by setting
v) OVERFREQUENCY (81O)
Pickup level 20.00 to 65.00 Hz in steps of 0.01 Hz
Reset level Pickup - 0.03 Hz
Level accuracy
Trip delay 0.00 to 900.00 s. in steps of 0.01 s
Reset delay 0.00 to 900.00 s. in steps of 0.01 s
Minimum voltage threshold 30 to 300V in steps of 1 V
Timing accuracy ±3.5% of operate time or 100 ms. (whichever is greater)
Snapshot Events Selectable by setting
0.01 Hz of the reading
0.01 Hz of the reading
GE Multilin F650 Digital Bay Controller 2-13
Page 41
2.4 TECHNICAL SPECIFICATIONS 2 PRODUCT DESCRIPTION
w) FORWARD POWER (32FP)
Current, Voltage Fundamental Phasor (primary values)
Number of stages 2
Pickup level (two stages) 0.00-10000.00 MW in steps of 0.01 MW
Reset level 97% of the pickup level
2
Level accuracy for primary magnitudes ±3% complete range.
Trip delay (two stages) 0.00 to 900.00 s in steps of 0.01 s
Timing accuracy ±3.5% of operate time or 30 ms. (whichever is greater)
Block Time after close 0.00 to 900.00 s in steps of 0.01 s
Snapshot Events Selectable by setting
x) SENSITIVE DIRECTIONAL POWER (32)
Current, Voltage Fundamental Phasor (primary values)
Number of stages 2
Pickup level (two stages) -10000.00 to 10000.00 MW (primary values) in steps of
0.01 MW
Characteristic Angle (two stages) 0.00 to 359.99 in steps of 0.01
Reset level 97% of the pickup level
Accuracy for primary magnitudes ± 3% complete range
Trip delay (two stages) 0.00 to 900.00 s in steps of 0.01 s
Timing accuracy ±3.5% of operate time or 30 ms. (whichever is greater)
Block Time after close 0.00 to 900.00 s in steps of 0.01 s
Snapshot Events Selectable by setting
y) BROKEN CONDUCTOR (I2/I1)
Pickup level 20.0-100.0% (I2/I1 ratio) in steps of 0.1%
Reset level 97% of the pickup level
Trip delay 0.00 to 900.00 s in steps of 0.01 s
Timing accuracy ±3.5% of operate time or 30 ms. (whichever is greater)
Minimum Phase Current Threshold 0.05 A
Snapshot Events Selectable by setting
Operation Threshold
Note: The I2/I1 current inhibition level for the different
firmware versions is as follows
Firmware Version Current Inhibition Level
1.50 or Lower 10 mA
1.60 or Higher 50 mA
1.80 or Higher Selectable by setting from 0.000 to 1.000 in steps of 0.001 A
2-14 F650 Digital Bay Controller GE Multilin
0.000 to 1.000 A in steps of 0.001 A
Page 42
2 PRODUCT DESCRIPTION 2.4 TECHNICAL SPECIFICATIONS
z) LOCKED ROTOR (48)
Current Input Phasor (without harmonics) or RMS
Rated current For connection to 1 or 5 A CTs.
Full Load Current 0.10 to 10.00 KA in steps of 0.01 KA
Pickup level 1.01 to 109.00 in steps of 0.01
Reset level 97% of the pickup level
Level accuracy for primary magnitudes ±3% complete range.
Trip delay 0.00 to 900.00 s. in steps of 0.01 s.
Reset delay 0.00 to 900.00 s. in steps of 0.01 s.
Operate time 20 ms at 3 x Pickup at 50 Hz, typically
Timing accuracy ±3.5% of operate time or 30 ms. (whichever is greater)
Snapshot Events Selectable by setting
2.4.2 CONTROL
a) AUTORECLOSE (79)
Schemes Three-pole tripping schemes
Number of shots Up to 4 reclose attempts before lockout
Dead time Independent dead time setting before each shot adjust-
able between 0 and 900 s in steps of 0.01 s
Reclaim time 0.0 0 to 900.00 s in steps of 0.01 s
Condition permission Selectable by setting
Hold time 0.00 to 900.00 s in steps of 0.01 s
Reset time 0.00 to 900.00 s in steps of 0.01 s
Snapshot Events Selectable by setting
Possibility to modify protection settings after each shot programmable through PLC (block signals available after each
shot)
2
b) SYNCHROCHECK (25)
Dead/live levels for line and bus 0.00 to 300.00 in steps of 0.01 V
Maximum voltage difference 2.00 to 300.00 V in steps of 0.01 V
Maximum angle difference 2.0º to 80.0º in steps of 0.1º
Maximum frequency slip 10 to 5000 mHz in steps of 10 mHz
Synchronism time 0.01 to 600.00 s in steps of 0.01 s
Angle accuracy 2º
Dead Source function None
Snapshot Events Selectable by setting
GE Multilin F650 Digital Bay Controller 2-15
(DL-DB) Dead Line - Dead Bus
(LL-DB) Live Line-Dead Bus
(DL-LB) Dead Line – Live Bus
Page 43
2.4 TECHNICAL SPECIFICATIONS 2 PRODUCT DESCRIPTION
c) FUSE FAILURE
Algorithm based on positive sequence of voltage and current
Activation by V
d) BREAKER FAILURE (50BF)
2
Current Input Fundamental Phasor (without harmonics)
Rated current For connection to 1 or 5 A CTs.
Pickup level for supervision 0.05 to 160.00 A in steps of 0.01 A
Pickup level for high level 0.05 to 160.00 A in steps of 0.01 A
Pickup level for low level 0.05 to 160.00 A in steps of 0.01 A
Pickup level for internal arcing 0.05 to 160.00 A in steps of 0.01 A
Reset level 97% of the pickup level
Level Accuracy
Timing accuracy ±3.5% of operate time or 30 ms. (whichever is greater)
Snapshot Events Selectable by setting
2/V1
ratio
0.5% of the reading 10 mA from 0.05 to 10 A
1.5% of the reading for higher values.
e) BREAKER SETTINGS
Number of Switchgear 1 to16 (selection of switchgear for breaker control)
Maximum KI2t 0.00 to 9999.99 in steps of 0.01 (kA)2 s
KI2t integration Time
Maximum openings 0 to 9999 in steps of 1
Maximum Openings in one hour 1 to 60 in steps of 1
Snapshot Events Selectable by setting
f) BREAKER MAINTENANCE
2
t Breaker Counters for Phases A, B, C 0.00 to 9999.99 in steps of 0.01 (kA)2 s
KI
Breaker Openings Counter 0 to 9999 in steps of 1
Breaker Closings Counter 0 to 9999 in steps of 1
g) SWITCHGEAR
Switchgear 1 to16 (configurable in “relay configuration” screen).
Snapshot Events Selectable by setting (for each switchgear in “system
0.03 to 0.25 s in steps of 0.01 s
setup”)
2-16 F650 Digital Bay Controller GE Multilin
Page 44
2 PRODUCT DESCRIPTION 2.4 TECHNICAL SPECIFICATIONS
2.4.3 MONITORING
a) OSCILLOGRAPHY
Maximum Records: Up to 20 Oscillography records.
Sampling rate: Programmable to 4, 8, 16, 32 or 64 samples per power cycle
Capacity per record:
No of Oscillos * No of samples/cycle
Trigger position:
Trigger: Programmable via PLC
Data: 5 current channels and 4 voltage channels
Data Storage: In non volatile memory (flash) without battery
Format: International Standard COMTRADE ASCII - IEEE C37.111-1999.
Automatic Overwrite: Selectable by setting. (Oscillography records can be concatenated)
Snapshot Events: Selectable by setting
b) FAULT LOCATOR
5% to 95% of total length
Up to 16 digital channels programmable through PLC
27592 samples
2
Method: Single-ended
Positive Sequence Module: 0.01 to 250.00 Ohm in steps of 0.01 Ohms
Positive Sequence Angle: 25 to 90º in steps of 1º
Zero Sequence Module: 0.01 to 750.00 Ohms in steps of 0.01 Ohm
Zero Sequence Angle: 25 a 90º in steps of 1º
Line Length: 0.0 to 2000.0 in steps of 0.1 (miles or km)
Accuracy: 5% (typical)
Display Fault on HMI: Selectable by setting
Snapshot Events: Selectable by setting
Maximum Records: Up to 10 fault report records.
Data: Fault date and time, pre-fault currents and voltages, fault currents and voltages,
fault type, distance to the fault (fault location), line parameters, recloser and
breaker status information.
Data Storage: In non volatile memory (flash) without battery available through communications
In volatile memory (ram) available through HMI (if selectable by setting)
Format: Text in ASCII format
GE Multilin F650 Digital Bay Controller 2-17
Page 45
2.4 TECHNICAL SPECIFICATIONS 2 PRODUCT DESCRIPTION
c) SNAPSHOT EVENTS
Capacity: 479 scrolling events
Time-tag
Timing Accuracy: 1 ms (using the IRIG-B synchronization input)
Triggers:
2
Data Storage
The snapshot event recording procedure can be enabled or disabled by setting for each protection function
d) CONTROL EVENTS
Capacity: 128 events programmable through PLC
Time-tag:
Timing Accuracy: 1 ms (using the IRIG-B synchronization input)
Triggers: By any digital signal programmable through PLC
Alarm Possibility to display the event as an alarm on the alarms panel.
Data Storage: In non volatile memory (flash) without battery
Control events are also displayed in the snapshot events recording
1 ms using an internal clock of 100 s
Any element pickup, dropout
Digital input /output change of state
By virtual inputs and control events
In non volatile memory (flash) without battery
1 ms using an internal clock of 100 s
Information available always through Communications for all models and also in
HMI for models with graphical display (M in ordering code).
e) DEMAND
Channels: 9
Parameters: Ia (kA RMS), Ib (kA RMS), Ic (kA RMS), Ig (kA RMS), Isg (kA RMS), I2 (kA), P
(MW), Q (MVAr) and S (MVA)
Current and Power Method Thermal Exponential, Block Interval, Rolling Demand
Measurements: Each channel sho ws the present and maximum measu red value, with date and
time for the maximum recorded value.
Samples: 5, 10, 15, 20, 30, 60 minutes.
Accuracy:
Trigger Input Selectable by setting (operation mode selection for the Block Interval calculation
Snapshot Events: Selectable by setting
f) DA TA LOGGER
Number of Channels:
Parameters Any available analog actual value
Samples 1 sec., 1, 5, 10, 15, 20, 30, 60 min.
Storage Capacity Fixed, 32768 measures
1%
method)
1 to 16
2-18 F650 Digital Bay Controller GE Multilin
Page 46
2 PRODUCT DESCRIPTION 2.4 TECHNICAL SPECIFICATIONS
2.4.4 USER –PROGRAMABLE ELEMENTS
a) PLC LOGIC
Programming language: The logical configuration is performed using graphical functions based on the
IEC 61131-3 standard.
Lines of code: 512
Supported operations: NOT, XOR, OR (2 to 8 inputs), AND (2 to 8 inputs), NOR (2 to 8 inputs),
NAND (2 to 8 inputs), Latch (Reset Dominant), Edge Detectors, Timers.
2 inputs default gates, from 3 to 8 inputs provided in library format.
Libraries: Logical gates fully programmable by user. To create user-programmable logic to
be distributed as a single object.
Inputs: Any logical variable, contact or virtual input
Number of timers: 8 maximum in each logic scheme (provided in library format)
b) FLEXCURVES
Number: 4 (A through D)
Reset points: 40 (0 through 1 of pickup)
Operate points: 80 (1 through 20 of pickup)
Time delay: 0 to 65535 ms in steps of 1
Saturation Level 20 times the pickup level
2
c) USER-PROGRAMMABLE LEDS
Number: 15 configurable LEDs plus a ready non configurable LED
Programmability: from any logical variable, contact, or virtual input
Reset mode: Self-reset or Latched.
The first 5 LED’s are latched by hardware (red color ones), usually configured for
trip signals.
The following 10 ones (yellow and green) are self-reset but can be latched
through PLC configuration.
Reset Signal: The LED’s can be reset by hardware, pressing the front “esc” key during more
than 3 seconds or using the LED reset signal through PLC configuration.
d) USER-DEFINABLE DISPLAYS
Number of configurable displays: 1 (one line diagram fully configurable). In graphical displays only
Number of fixed displays: 6, Metering (in primary values), Snapshot events (all and new), Alarms, Inputs
and outputs screen with test functionality for inputs and outputs. In graphical dis-
plays only
Number of selectable displays: Logotype, metering or both in scrolling mode, can be selectable as default
screen in text display for all models (basic and mimic). The metering screen con-
tains current and voltages for phases and ground in primary values.
GE Multilin F650 Digital Bay Controller 2-19
Page 47
2.4 TECHNICAL SPECIFICATIONS 2 PRODUCT DESCRIPTION
e) USER-PROGRAMMABLE FRONT KEYS
Number of configurable Keys: 5
Operation: drive PLC operands
2
a) CURRENT
Accuracy:
b) VOLTAGE
Accuracy:
c) REAL POWER (WATTS)
Accuracy:
d) REACTIVE POWER (VARS)
Accuracy:
e) APPARENT POWER (VA)
2.4.5 METERING
0.5% of the reading 10 mA from 0.05 to 10 A (for phases and ground)
1.5% of the reading 1 mA from 0.005 to 5 A (for sensitive ground)
1.5% of the reading for higher values
1% reading 0.1% Full Scale from 10 to 275 V
1% of the reading at-0.8 < PF = -1 and 0.8 <PF=1
1% of the reading at-0.2 = PF = 0.2
Accuracy:
f) WATT-HOURS (POSITIVE AND NEGATIVE)
Accuracy:
Range:
Parameters: 3-phase only
Update rate: 100 ms
g) WAR-HOURS (POSITIVE AND NEGATIVE)
Accuracy:
Range:
Parameters: 3-phase only
Update rate: 100 ms
h) POWER FACTOR
Accuracy: 0.02
Parameters: 3-Phase and single phase
1% of the reading
1% of the reading
0 to 2147 MWh
1% of the reading
0 to 2147 MVArh
2-20 F650 Digital Bay Controller GE Multilin
Page 48
2 PRODUCT DESCRIPTION 2.4 TECHNICAL SPECIFICATIONS
i) FREQUENCY
Accuracy:
j) ANGLE
Accuracy: 2º
a) AC CURRENT INPUTS
CT Ratio: 1.0 to 6000.0 in steps of 0.1
Rated currents: Appropriate for 1 or 5 A. F650 has unive rsal range for CT (valid for 1 or 5 A to
Relay Burden: < 0.04 Ohm
Current Withstand Continuous at 20 A
b) AC VOLTAGE INPUTS
VT Ratio 1.0 to 6000.0 in steps of 0.1
Rated Voltages 275 Vac
Metering range: From 2 to 275 V a c
Relay Burden: 0.05 VA at 120 Vac (50 or 60 Hz)
Voltage Withstand: Continuous at 260 V to neutral
VAC inputs do not need varistors, as the impulse test is applied to 100% of the transformers
10 mHz at 50 Hz
12 mHz at 60 Hz
2.4.6 INPUTS
only one terminal).
1 second at 500 A for phases and ground
1 second at 50 A for sensitive ground
1 min/hr at 420 to neutral
2
c) DIGITAL INPUTS
Input Activation Voltage Threshold: 1 to 255 Vdc in steps of 1 V (selectable by setting)
Impedance: > 100 kOhm
Maximum error:
Load for voltage supervision inputs: 2 mA + V/100 kOhm
Voltage threshold for voltage supervi-
sion inputs
Debounce Time: 1 to 50 in steps of 1 ms
Recognition time: < 1ms
Timing resolution: 1 ms
For Input Activation Voltage Threshold and Debounce Time there is a single setting for all inputs in the same
group (inputs sharing the same common). In mixed and supervision boards there are two groups of inputs,
called A and B.
Input Type and Delay Input Time are not grouped; there is a different setting for each input.
GE Multilin F650 Digital Bay Controller 2-21
10% setting 2.5 V
< 10 V (fixed)
Page 49
2.4 TECHNICAL SPECIFICATIONS 2 PRODUCT DESCRIPTION
Input Type Positive-Edge / Negative-Edge / Positive/ Negative
Delay Input Time 0 to 60000 ms in steps of 1 ms (Input signal time delay)
d) IRIG-B INPUT
Amplitude modulation: DC SHIFT = Demodulated input (no carrier)
2
Input Voltage:
Input Burden: 1.5 mA
Input Impedance: 3.3 kOhm
Minimum Input Voltage: 2.4 V
Maximum Input Voltage: +/- 24 V
Formats: B000 (*) B001, B002 and B003 (*)
Isolation: 2 kV
TTL
(*) Signal combinations recognized in accordance with IRIG Standard 200-95
2.4.7 REAL TIME CLOCK
Accuracy:
Backup energy: More than 1 week
Carry continuous: 16 A
Make and Carry for 1 sec 60 A
Break at L/R of 40 ms: 0.3 A DC max. at 125 Vdc
Operate Time: < 8 ms
Contact material: Silver Alloy
Output Logic Type, Output Type and Pulse Output Time are selectable by setting for each output
Output Logic Type Positive / Negative
Output Type Normal / Pulse / Latch (Selectable by setting for each output)
Pulse Output Time 0 to 60000 ms in steps of 1 ms (applicable only to signals set as pulse type)
Separate operate and reset signal can be configured by any digital signal programmable through PLC
Typical 20 ppm
2.4.8 OUTPUTS
0.25 A DC max. at 250 Vdc
Contact Outputs (F31-F33, F3 4F36) for board type 2 (supervision) in slot F:
2-22 F650 Digital Bay Controller GE Multilin
The current seal-in circuit is used for verifying the current condition in a circuit during the time that the tripping contact remains closed. If the current in the tripping
circuit is maintained over 100 mA, the function is sealed independently of the status of the function that caused the trip.
Page 50
2 PRODUCT DESCRIPTION 2.4 TECHNICAL SPECIFICATIONS
2.4.9 CONTROL POWER SUPPLY
LOW RANGE (LO)
Nominal DC Voltage: 24 to 48 V
Min/Max DC Voltage 19.2 / 57.6 V
Note: Low range is DC only
HIGH RANGE (HI)
Nominal DC Voltage: 110 to 250 V
Min/Max DC Voltage 88 / 300 V
Nominal AC Voltage: 120 to 230 V
Min/Max AC Voltage 102 / 250 V
ALL RANGES
Voltage Loss hold-up time 200 ms typical, worst case 100 ms without unit reset
Power consumption Typical =25 VA, Maximum =45 VA
Display backlight auto power-off mode after 15 minutes without touching any key, in order to ensure long life and minimum
consumption.
2.4.10 COMMUNICATIONS
2
FRONT PORT:
Front port: COM2
Type RS232
Baud Rate 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 y 115200 bauds
Default Baud Rate 19200
Protocols available:
Typical distance: 1200 m
Isolation: 2 kV
ASYNCHRONOUS REAR PORTS:
None or two rear ports (depending on
model):
Type (depending on model):
Model F None
Model A Two RS485 ports
Model X Two RS485 ports with CAN for inputs/outputs module
Model P Two 1mm-plastic F.O. ports
Model Y Two 1mm-plastic F.O. ports with CAN for inputs/outputs module
Model G Two multimode glass F.O. ports with ST connectors
Model Z Two multimode glass F.O. ports with ST connectors with CAN for inputs/outputs
Optic Features for ST connectors
devices:
Baud Rate: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 y 115200 bauds
Default Baud Rate 19200
ModBus
COM1, COM2
(rear COM2 multiplexed with front port)
module
Wave length: 1300nm
Fiber type: multimode 62.5/125 m or 50/125 m
®
RTU / DNP 3.0
GE Multilin F650 Digital Bay Controller 2-23
Page 51
2.4 TECHNICAL SPECIFICATIONS 2 PRODUCT DESCRIPTION
Protocols available:
Typical distance: 1200 m
Isolation: 2 kV
CAN PORT:
Rear port: CAN port in models X, Y, Z for asynchronous rear ports
Type: Multimode glass F.O. port with ST connectors
2
Wave length: 1300 nm
Fiber type:
Isolation: 2 kV
ETHERNET PORT:
Rear port: COM3
Type (depending on model):
Model B: 10/100BaseTX self-negotiable
Model C: 10/100BaseTX + 100Base FX
Model D: 10/100BaseTX + Double 100BaseFX (Physical media redundancy)

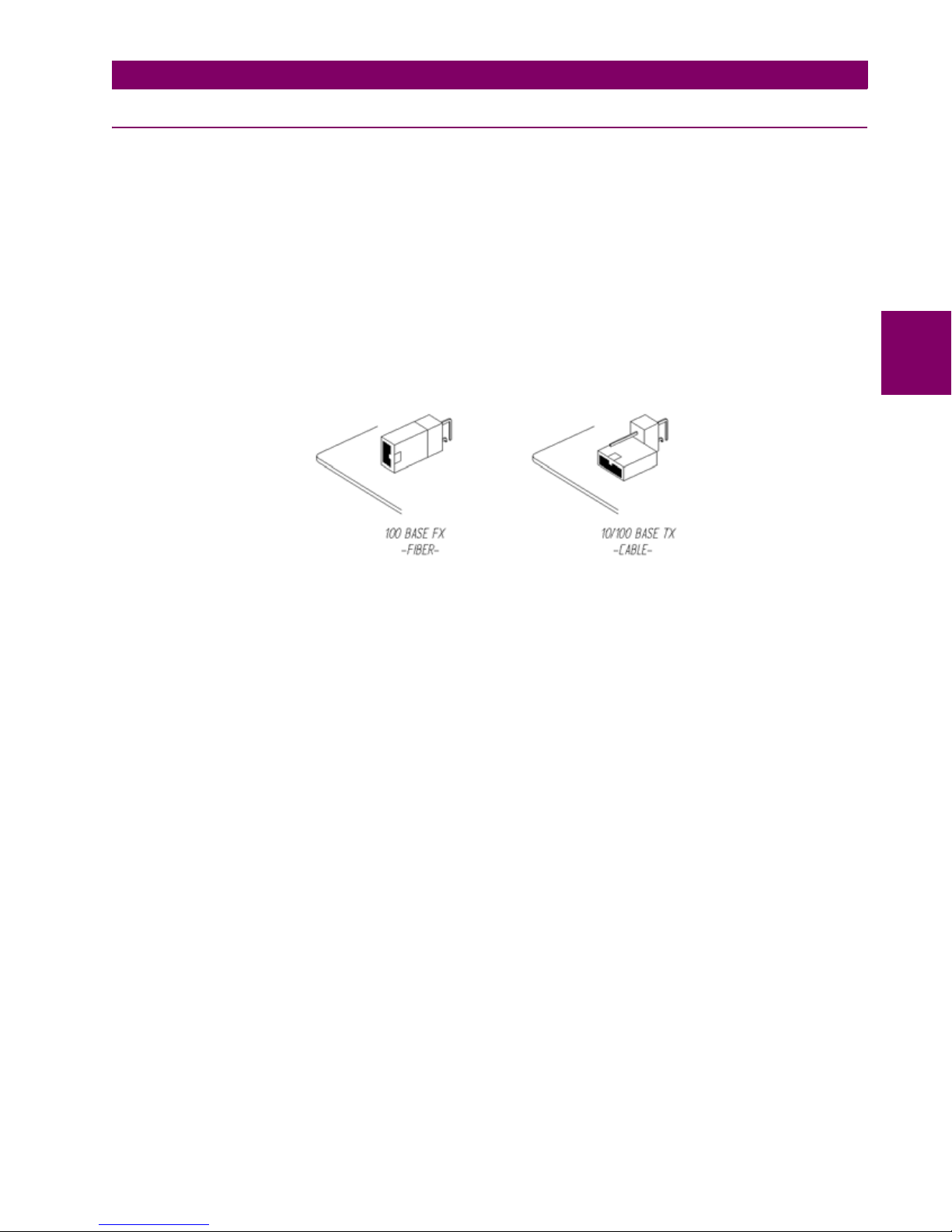

10/100BaseTX RJ45 connector
100BaseFX ST connectors
Wave length: 1300 nm
Fiber type:
Protocols available: ModBus® TCP/IP
Typical distance: 1.65 km
Response time to ModBus commands: 10 ms Typical
Isolation: 2 kV
In Models C and D, the 10/100BaseTX port is selected by an internal switch (see 3.3.3)
Two witness LED’s for transmission and reception are included
ModBus
multimode 62.5/125 m or 50/125 m
multimode 62.5/125 m or 50/125 m
DNP over TCP/IP and UDP/IP
IEC 870-5-104
Http, ftp, tftp (allow the use of a standard Internet browser)
®
RTU / DNP 3.0
Operating temperature:
Storage temperature:
Humidity (non condensing): 95%
Altitude Up to 2000 m
Installation category II
Net weight: 5 kg
Packaged: 6 kg
Package dimensions: 30x40x40 cm (DxWxH)
2-24 F650 Digital Bay Controller GE Multilin
2.4.11 ENVIRONMENTAL CHARACTERISTICS
- 10C to + 60C
- 40C to + 80C
2.4.12 PACKAGING AND WEIGHT
Page 52
2 PRODUCT DESCRIPTION 2.4 TECHNICAL SPECIFICATIONS
2.4.13 TYPE TESTS
Category Standard Class Test
EMC IEC 61000-4-1 IEC 60255-22-1 III Oscillatory waves immunity
IEC 61000-4-2 IEC 60255-22-2
IEC 61000-4-3 IEC 60255-22-3 III Radiated electromagnetic field disturbance
IEC 61000-4-4 IEC 60255-22-4 IV Electrical fast transient
IEC 61000-4-5 IEC 60255-22-5 IV Surge immunity test
IEC 61000-4-6 IEC 60255-22-6 III
IV Electrostatic discharge immunity test
test
Conducted electromagnetic field disturbance test
IEC 61000-4-8 EN 61000-4-8 IV Power frequency magnetic field immunity
ENV50204 III
Radiated electromagnetic field
disturbance test – 1890 MHz.
EMC Emisivity IEC 60255-25 EN 61000-6-4 A Conducted and radiated emissions
Product IEC 60255-5 2 kV Insulation resistance – dielectric test
IEC 60255-5 6kV .5J Impulse test
IEC 60255-11 100 ms Power supp ly Voltage dips/interruptions/vari-
ations:
Mechanical IEC 60255-21-1 I Vibration test (sinusoidal)
IEC 60255-21-2
IEC 60255-21-3
I
Shock and bump
II
Seismic
2
Type test report available upon request.
F650 has been designed to comply with the highest existing requirements. Mo re specifically, UNIPEDE recommendations
for high voltage substations are followed, even if for most applications such high classes are not required.
The relay complies with ANSI C37.90 standards, and has been designed to comply with international standards.
2.4.14 APPROVALS
ISO9001 Registered system.
CE marking: Meets the CE standards relevant for protections.
GE Multilin F650 Digital Bay Controller 2-25
Page 53
2.5 EXTERNAL CONNECTIONS 2 PRODUCT DESCRIPTION
2.5EXTERNAL CONNECTIONS
F650 units can hold two different options for F module:
Option 1:Board with 16 inputs and 8 outputs.
Option 2: Board with 8 digital inputs, 4 circuit supervision outputs, 6 conventional outputs, and two current sensing outputs

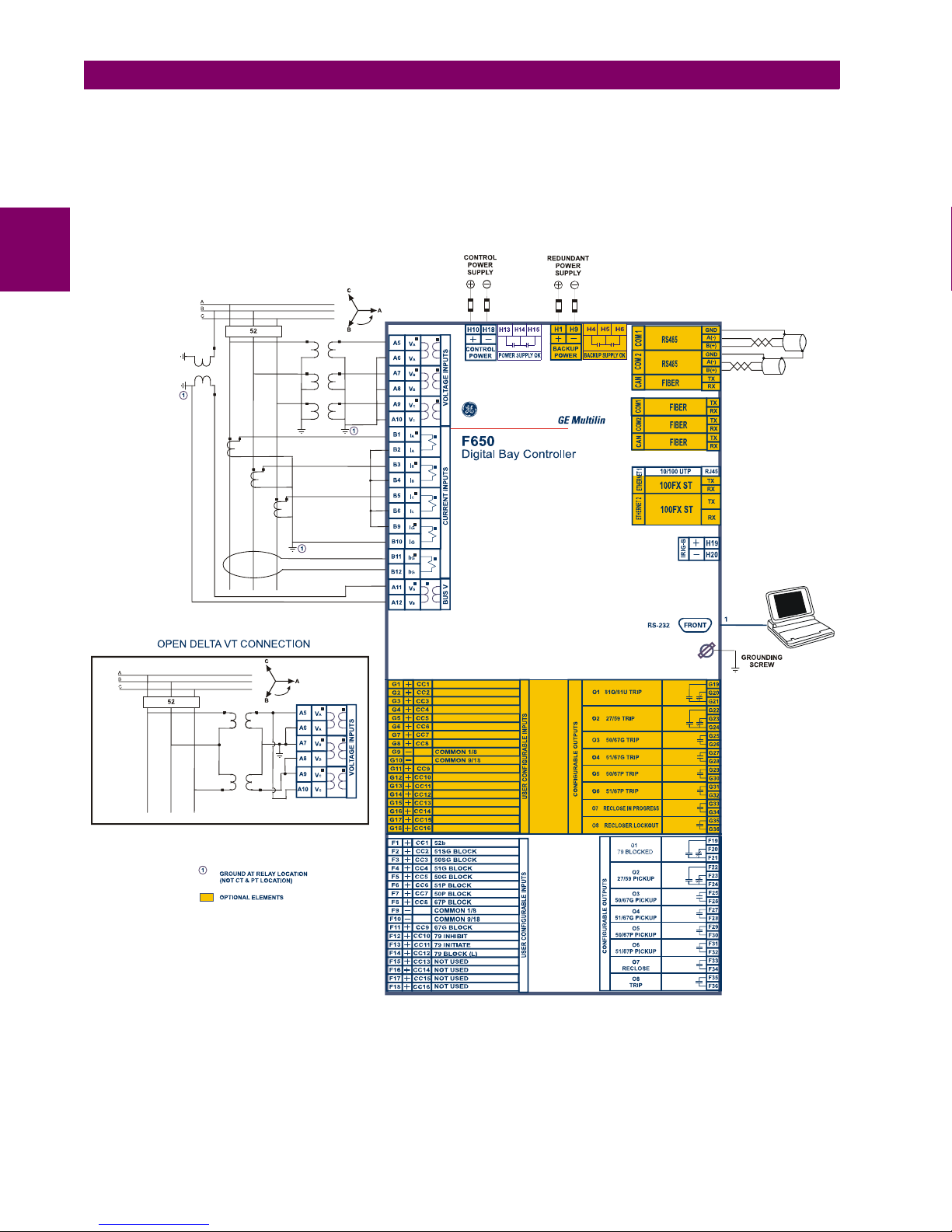

Each model has a different wiring diagram, as follows:
2
Figure 2–2: WIRING DIAGRAM FOR MODELS WITH OPTION 1 (189C4216H3)
2-26 F650 Digital Bay Controller GE Multilin
Page 54
2 PRODUCT DESCRIPTION 2.5 EXTERNAL CONNECTIONS

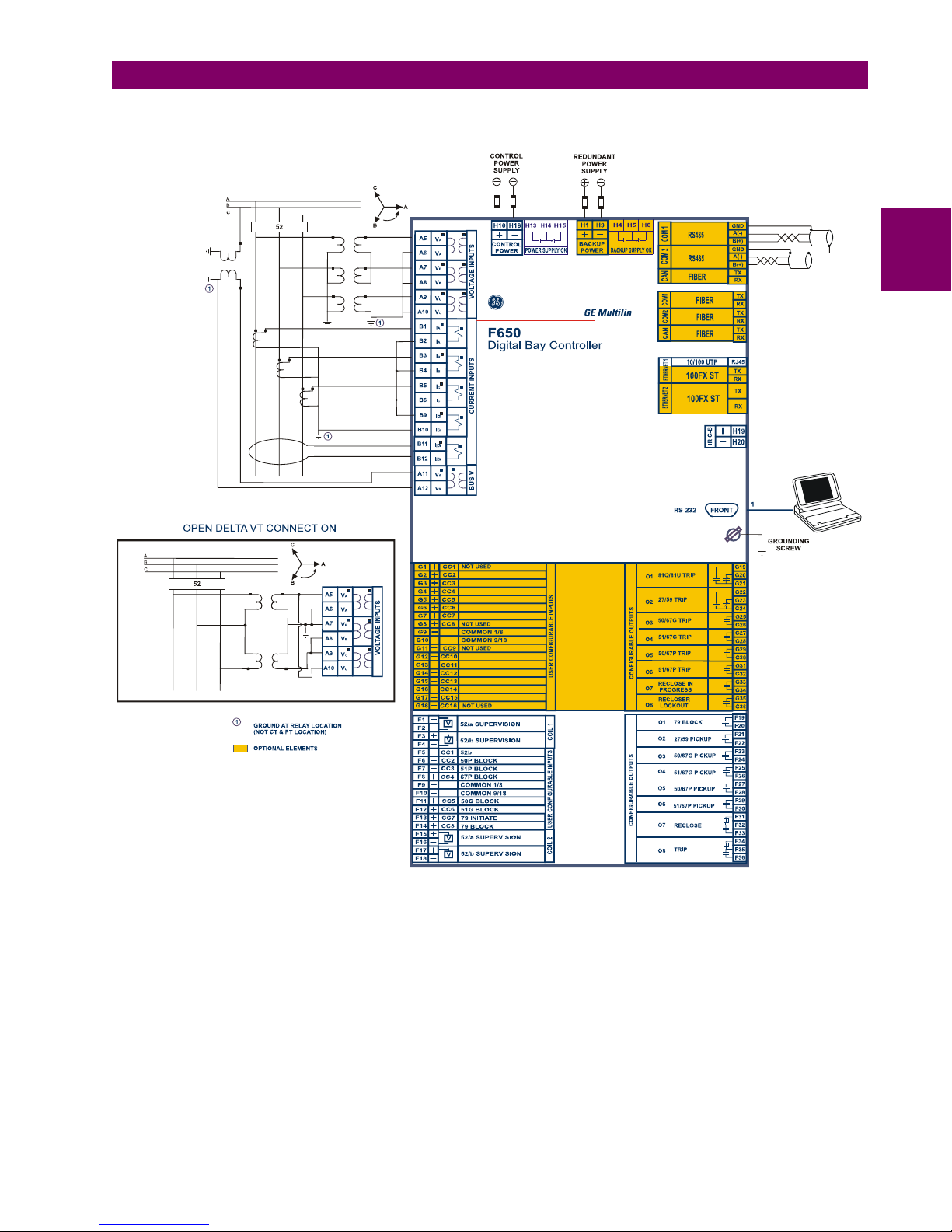

The option 2 wiring diagram is shown below:
2
Figure 2–3: WIRING DIAGRAM FOR MODELS WITH OPTION 2 (189C4216H2)
GE Multilin F650 Digital Bay Controller 2-27
Page 55
2
2.5 EXTERNAL CONNECTIONS 2 PRODUCT DESCRIPTION
2-28 F650 Digital Bay Controller GE Multilin
Page 56
3 HARDWARE 3.1 MODULE DESCRIPTION
3 HARDWARE 3.1MODULE DESCRIPTION
3
F650 units incorporate the following modules:
• Power supply, which can be simple or redundant, depending on the selected model
• Front module with alphanumerical (4 x 20) or optional graphical (16 x 40 characters) display. It includes the bus
on its rear, which communicates with the rest of modules via a high speed CAN bus.
• Transformers module with 5 current transformers and 4 voltage transformers
• CPU including a powerful DSP for measure processing as well as synchronous and as ynchronous communication
accessories.
GE Multilin F650 Digital Bay Controller 3-1
Figure 3–1: BLOCK DIAGRAM
Page 57
3.1 MODULE DESCRIPTION 3 HARDWARE
• Input/Output module included in basic unit
• Optionally, a second I/O module can be added.
The F650 can incorporate a simple or redundant power supply.
The power supply module is fixed to the base plate using 4 screws, and the main and backup modules are
identical.
These modules work in parallel continuously, distributing the 50% of the load for each of them, thus ensuring
greater reliability, and an instantaneous load transfer from the failed power supply to the other one, without
loss of time or module reset.
A relay connected to the low voltage side of the power supply monitors this voltage. The three contact
terminals, normally open, common, and normally closed, are available at the external connector terminals.
This relay monitors only the power supply integrity and it is not controlled by the main microprocessor. This
3
way, if we want a relay to monitor whether the unit is ready to protect (READY), we should program one of the
auxiliary relays in the unit.
This is a “fly-back” type power supply, providing high efficiency, stability and reliability thanks to the maturity of
this technology. There are two available ranges, Hi and Low, in order to optimize efficiency and general
performance, including the capability to tolerate auxiliary voltage interruptions (dips).
Oversized components highly resistant to temperature are used. For example, all capacitors are specified to
stand up to 105ºC, transformer components are specially designed to stand up to 180ºC, the used MOSFET
transistor is of very low resistance, supports high voltage and is refrigerated by an oversized heat sink. This
allows to support temperatur es over the 60ºC shown in the Technical Characteristics section, and prolonged
overloads such as the ones occurring at batteries in deep charge mode (much higher than +15% voltage
shown in the Technical Characteristics section).
High capacitance capacitors are also used, providing high tolerance to prolonged dips, 100ms, even in the
most unfavorable consumption conditions. This allows the relay to continue with normal operation without
undesired resets, which would cause a long time of protection unavailability

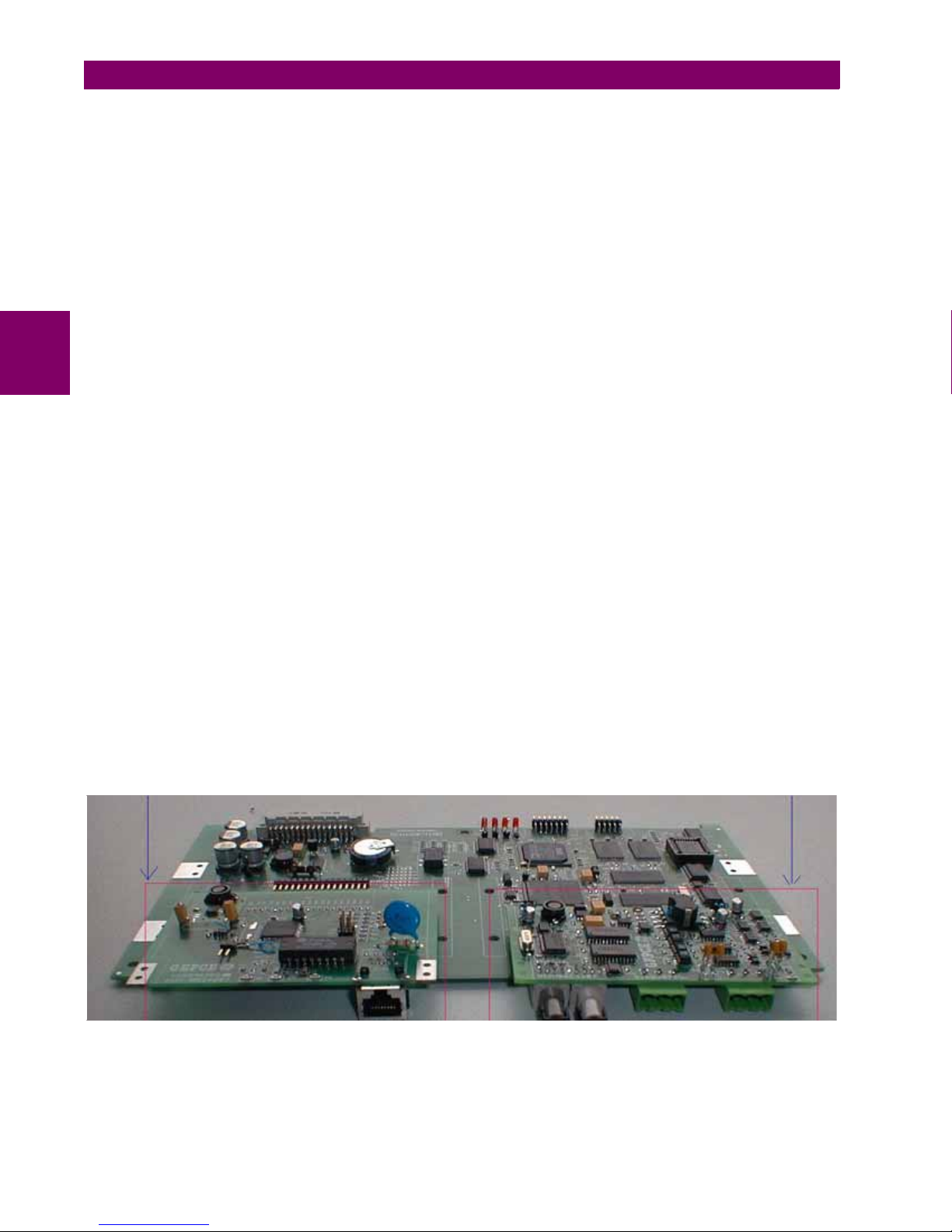

Figure 3–2:: COMMUNICATIONS MODULE shows the location of communications modules over the CPU.
These modules have been designed in accordance with the “plug and play” philosophy, so that units can be
easily updated after their purchase, allowing for a simple and economical migration of the application.
Skilled personnel must carry out the insertion or extraction of communication boards, only after interrupting the
relay auxiliary voltage, and making sure that all rear terminals are potential free.
Figure 3–2: COMMUNICATIONS MODULE
3-2 F650 Digital Bay Controller GE Multilin
Page 58
3 HARDWARE 3.2 MECHANICAL DESCRIPTION
3.2MECHANICAL DESCRIPTION
The model number and electrical characteristics of the unit are indicated on the label located on the right side
of the relay case.
The metallic case of the unit is highly resistant to corros ion . It is made of stainless steel (AISI 304), co ated with
an epoxy layer, and the rest of the metallic pieces are covered with a high quality resistive coating that has
successfully passed at least 96 hours in the salt spray chamber (S/N ASTM B-117).
The front of the relay is ma de of a conductor thermoplastic, flame retardant (V0), highly resistive material,
which guarantees the unit’s immunity to all kinds of EMI/RFI/ESD interferences. As well, an IP51 (IEC 529)
protection degree against dust and water through the front and with the relay mounted in the panel.
In order to guarantee safety and preventing access to the unit by unauthorized personnel, the front part of the
relay has a sealable cover to protect the RS 232 front port and the operation mode key.
3.2.1 MOUNTING
The unit is designed for semi-flush mounting. The relay is secured to the panel with the 4 M6 screws provided
with the unit. The user has access to the front keypad, display and communication port. The wiring is at the
rear of the unit. The drilling dimensions are shown on Figure 3–4:: DRILLING DIMENSIONS DIAGRAM.
3
The relay width allows the mounting of two units on a standard 19’’ panel, 6 units high.
GE Multilin F650 Digital Bay Controller 3-3
Figure 3–3: PANEL MOUNTING
Page 59
3
3.2 MECHANICAL DESCRIPTION 3 HARDWARE

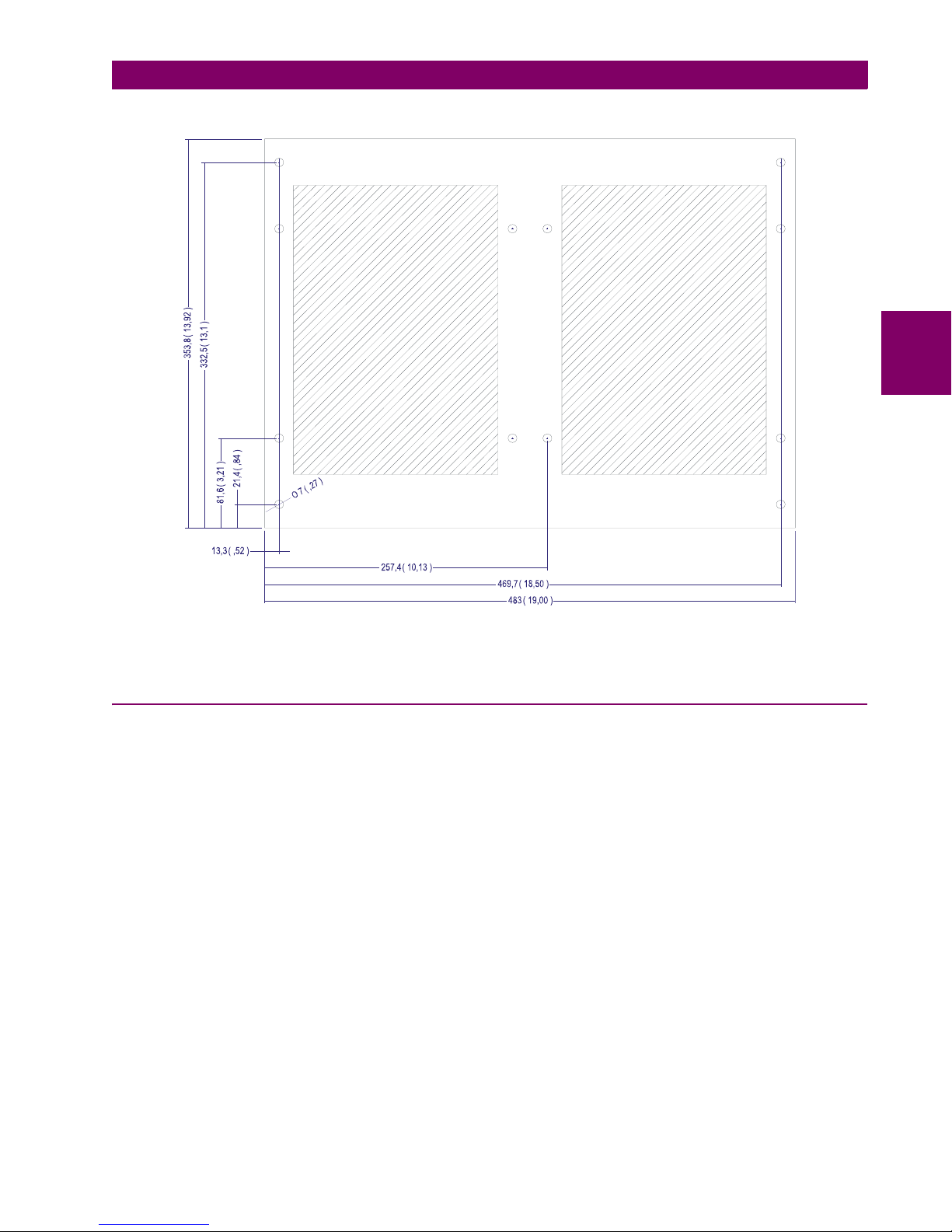

Figure 3–4: DRILLING DIMENSIONS DIAGRAM
3-4 F650 Digital Bay Controller GE Multilin
Page 60
3 HARDWARE 3.2 MECHANICAL DESCRIPTION
3
Figure 3–5: DIMENSIONS OF THE 19” RACKS 6U HIGH FOR TWO RELAYS
3.2.2 REAR DESCRIPTION
The relay is wired through the terminal blocks located at the rear of the unit. Terminal blocks vary depending
on their functionality. The magnetic module, which receives the CT secondary currents and the metering
voltages, incorporates a very robust terminal bo ard (colu mns A and B). In this terminal board, current te rminals
are shorted two-by-two when the transformer module is extracted, so that the CT secondary never remains
open. For safety reasons it is not allowed to change or swift the magnetic module terminals. The
maximum recommended cable section for this terminal board, with the appropriate terminal, is 6 mm
2
(AWG
10).
The rest of the terminal blocks (columns F, G, and H), for power supply, inputs/outputs and IRIG-B, incorporate
high quality connectors with the capacity to withstand a rated current of 15 A at 300 V. These terminal blocks
admit a cable section of up to 2.54 mm
2
(AWG 12).
The communication boards have a differen t type of connector depending on the selected media: RS485, glass
or plastic fiber optic.
GE Multilin F650 Digital Bay Controller 3-5
Page 61
3
3.2 MECHANICAL DESCRIPTION 3 HARDWARE
COM 1 (RS 485)
GND
A(-)
B(+)
COM 2 (RS485)
GND
A(-)
B(+)
CAN
Tx
Rx
Eth1
10/100
UTP
Tx
100FX
Rx
Eth2
Tx
100FX
Rx
Figure 3–6: CONNECTORS LOCATION
3-6 F650 Digital Bay Controller GE Multilin
Page 62
3 HARDWARE 3.2 MECHANICAL DESCRIPTION
TYPE OF COMMUNICATION CONNECTOR
Plug-in, 3 poles.
RS485
IRIG B Plug-in, 2 poles.
Plastic fiber optic Versatile Link
3
Ethernet 10/100 UTP (10/
100BaseTX)
Glass fiber optic (100BaseFX) ST
Ethernet 100 FX (100BaseFX) ST
CAN Distributed I/O ST
Figure 3–7: COMMUNICATIONS MEDIA SELECTOR GUIDE
Communication boards are installed at the rear part of the unit, the upper port being reserved for the
asynchronous communications board and CAN, and the lower port for the ETHERNET board in any of its
configurations.
Skilled personnel must carry out the insertion or extraction of communication boards only after interrupting the
relay auxiliary voltage.
RJ45, Class 5.
GE Multilin F650 Digital Bay Controller 3-7
Page 63
3
3.2 MECHANICAL DESCRIPTION 3 HARDWARE
Figure 3–8: DETAIL OF INSERTION/EXTRACTION OF COMMUNICATION MODULES
The number of screws and fixtures has been minimized to guarantee an easy maintenance operation, and to
protect the application from severe vibrations such as those experienced during long distance transportation.
The transformers module with the VTs and CTs is already connected to a female connector screwed to
the case that incorporates shorting bars in the current inputs, so that it can be extracted without the
need to short-circuit the currents externally. It is very important, for safety reasons not to change or
swift the terminals for CTs and VTs.
A grounded antistatic wristband must be used when manipulating the module in order to avoid electrostatic
discharges that may cause damage to the electronic components.
3-8 F650 Digital Bay Controller GE Multilin
Page 64
3 HARDWARE 3.2 MECHANICAL DESCRIPTION
3
GE Multilin F650 Digital Bay Controller 3-9
Figure 3–9: REAR TERMINALS LOCATION
Page 65
3.3 WIRING 3 HARDWARE
3.3WIRING 3.3.1 EXTERNAL CONNECTIONS
F650 units can hold two different options for F mod ule :
Option 1: Board with 16 inputs and 8 outputs.
Option 2: Board with 8 digital inputs, 4 circuit supervision outputs, 6 conventional outputs, and two cur-
rent sensing outputs
Each model has a different wiring diagram, both wiring diagrams can be seen in chapter 2 in this manual.
The wiring diagram for models with option 1 has the internal code (189C4216H3)
The wiring diagram for models with option 2 has the internal code (189C4216H2).
3
3.3.2 DIGITAL INPUTS WITH TRIP CIRCUIT SUPERVISION
The Option 2 I/O board includes two groups of 4 inputs with one common, in terminals F9 to F10. It also
includes 6 auxiliary outputs, in terminals F19 to F30 with normally open contacts and two current sensing
(latching) outputs (F31-F33 and F34-F36).
Besides, there are 2 groups of inputs for trip circuit supervision. The first group includes two isolated digital
inputs, terminals F1-F2 and F3-F4. The second group, symmetrical and identical to the first, is formed by
isolated voltage inputs F15-F16 and F17-F18.
Using voltage detectors and current sensing, it is possible to implement several trip or close circuit supervision
schemes, as well as protection of the unit output contact.
In order to implement these schemes, it is not necessary to perform any se tting in the unit. Internal
functions are always operative. The detailed description of trip circuit supervision is included in chap-
ter 5 in this manual.
3-10 F650 Digital Bay Controller GE Multilin
Page 66
3 HARDWARE 3.3 WIRING
3.3.3 CABLE/FIBER ETHERNET BOARD
The Ethernet board is the communication board 2 (COM3) shown in Figure 3–2:: COMMUNICATIONS
MODULE. It is located in the bottom at the rear part of the relay.
In Models C and D, the 10/100BaseTX port is selected by an internal switch. To select between fiber and cable
it is necessary to extract the board, switch the jumper to the selected position, as indicated on Figure 3–10::
FIBER/CABLE SELECTION and insert the board again. As with any other relay manipulation, the relay power
supply must be removed and the operation must be performed only by skilled personnel.
The default port selected by switch is 10/100 TX in factory configuration. The switch selects between cable
(10/100 TX) and the first fiber port (100 FX). In Ethernet board type D (double fiber port) the backup channel is
always fiber.
3
Figure 3–10: FIBER/CABLE SELECTION
GE Multilin F650 Digital Bay Controller 3-11
Page 67
3.4 OPTIC FEATURES 3 HARDWARE
3.4OPTIC FEATURES
Wave length: 1300nm
Connector types: ST package style
Fiber type: multimode 62.5/125 m or 50/125 m
Trans mitter characteristics
3
Parameter
Output Optical Power BOL
62.5/125 m, NA = 0.275 Fiber
EOL
Output Optical Power BOL
50/125 m, NA = 0.275 Fiber
EOL
Output Optical Power at
Logic “0” State
Receiver characteristics
Parameter
Input Optical Power
Minimum at Window Edge
Min.Typ.Max.Unit Referenc
e
-19
-20
-
22.
-14 dBm
avg.
-14 dBm
avg.
Note 1
Note 1
5
-
23.
5
-45 dBm
Note 2
avg.
Min.Typ.Max.Unit Referenc
e
-
33.
-31 dBm
avg.
Note 3
9
Input Optical Power
Minimum at Eye Center
Input Optical Power Maximum -14 dBm
-
35.
2
-
31.
8
dBm
avg.
Note 4
Note 3
avg.
Notes:
1. These optical power values are measured with the following conditions:
The Beginning of Live (BOL) to the End of Life (EOL) optical power degradation is typically 1.5 dB per industry
convention for long wavelength LEDs. The actual degration observed in Agilent’s 1300nm LED products is <1 dB, as
specified in this data sheet.
Over the specified operating voltage and temperature ranges.
With HALT Line State, (12.5 MHz square-wave), input signal.
At the end of one meter of noted optical fiber with cladding modes removed.
The average power value can be converted to a peak power value by adding 3 dB. Higher output optical power
transmitters are available on special request.
3-12 F650 Digital Bay Controller GE Multilin
Page 68
3 HARDWARE 3.4 OPTIC FEATURES
2. The transmitter provides compliance with the need for Transmit_Disable commands from the FDDI SMT layer by
providing an Output Optical Power level of <-45 dBm average in response to a logic “0” input. This specification applies
to either 62.5/125 m or 50/125 m fiber cables.
3. This specification is intended to indicate the performance of the receiver section of the transceiver when Input Optical
Power signal characteristics are present per the following definitions. The Input Optical Power dynamic range from the
minimum level (with a window time-width) to the maximum level is the range over which the receiver is guaranteed to
provide output data with a Bit Error Ratio (BER) better than or equal to 2.5e-10.
At the Beginning of Life (BOL).
Over the specified operating temperature and voltage ranges.
4. All conditions for Note 3 apply except that the measurement is made at the center of the symbol with no window time-
width.
3
GE Multilin F650 Digital Bay Controller 3-13
Page 69
3.5 TRANSCEIVER OPTICAL POWER BUDGET VERSUS LINK LENGTH 3 HARDWARE
3.5TRANSCEIVER OPTICAL POWER BUDGET VERSUS LINK LENGTH
Optical Power Budget (OPB) is the available optical power for a fiber optic link to accommodate fiber cable
losses plus losses due to in-line connectors, splices, optical switches, and to provide margin for link aging and
unplanned losses due to cable plant reconfiguration and repair.
3
OPB (dB)
62.5/125 m
11.4 8 0
10.9 7.4 0.3
10.5 7.1 0.5
9.6 6.2 1.0
8.5 5.3 1.5
7.3 4.3 2.0
63.32.5
50/125 m
Fiber optic
Cable
length
(km)
3-14 F650 Digital Bay Controller GE Multilin
Page 70
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
4 HUMAN INTERFACES 4.1ENERVISTA 65 0 SETUP SOFTWARE INTERFACE 4.1.1 OVERVIEW
This software package uses ModBus protocol, and it is designed to communicate with a single relay at a time. GE offers
different communication software packages, such as GE-POWER, which can be used to communicate simultaneously with
several relays.
EnerVista 650 Setup software provides an easy way to configure, monitor and manage all F650 features.
a )Setting files
EnerVista 650 Setup software provides two ways of working with setting files:
1.OFF LINE Mode: Creating or editing setting files not connected to the relay, to be stored later in the proper unit.
2. ON LINE Mode: Connecting to the relay. This on line mode allows settings modifications, reading metering
values, internal status, oscillography records, event records, etc.
b) Configuration
The relay allows to fully program all the inputs, outputs, LEDs, control events, operations, block signals in
protection elements, switchgear, one line diagram in HMI, and create internal logic.
For simple relay configurations a direct configuration can be used (Relay configuratio n screen), and for more
complex configurations a PLC Editor tool is provided (Logic Configuration screen).
c) Monitoring of all metering values, internal states, inputs and outputs provided by F650 device.
d) Performing the previously configured operations
e) Updating of operating system, firmware version and web server utility.
f) One line diagrams configuration (bay mimics) for its use in models with graphical display only.
g) Registering data info for control events, snapshot events, alarms, fault reports, oscillography files, data logger, etc.
4
GE Multilin F650 Digital Bay Controller 4-1
Page 71
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
a
r
ar
4.1.2 MAIN SCREEN
EnerVista 650 Setup software provides the following areas:
• Title
• Main menu bar
• Main icon bar
• Working area
• Status bar
4
Title
Main ic on b a
Main menu b
Workin g a re
Figure 4–1: ENERVISTA 650 SETUP MAIN SCREEN
4-2 F650 Digital Bay Controller GE Multilin
Page 72
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
4.1.3 STARTING COMMUNICATION
To start communicating with the relay go to “Communication>Computer>Computer settings” section in the main
EnerVista 650 Setup menu.
Safety instructions must be followed before connecting the computer to the relay. Safety instructions are detailed in section
1.1.3 falta hacer referencia cruzada
grounding. Otherwise, communication may not be viable, or even, in worst cases, the relay and/or the computer could
result damaged by overvoltages.
For on-line working, previously ensure that all relay communication parameters, such as baudrate, slave ModBus address,
etc, match the computer settings.
. Connect the relay ground terminal and the communicating comp uter to a good
4
Figure 4–2: COMMUNICATION PARAMETERS MENU
The “Communication > computer” screen is divided in several subsections:
Computer settings: Main communication parameters for serial communication and control type selection.
ModBus/TCP Setup (if ModBus /TCP is selected as control type): Communication parameters for ModBus TCP
communication.
Communication control: Device communication status (communicating or not communicating).
Communication optimization: allows optimizing the communica tion time outs and failure establishing.
GE Multilin F650 Digital Bay Controller 4-3
Page 73
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
COMPUTER SETTINGS:
Shows the communication parameters necessary in order to establish communication with the unit. Such as slave address,
communication port, baud rate, parity, control type and startup mode.
Baud rate, parity, data bits, stop bits and ModBus slave address for com2 (RS232 front port and second serial p ort in the
rear communication board) are displayed in the default text logotype main screen.
ModBus Slave Address: ModBus addresses used for serial and Ethernet communication. These parameters can be
accessed through the relay HMI and EnerVista 650 Setup software. In Relay HMI: go to “Main screen>View or Change
Settings menu >Product Setup>Communication> ModBus Protocol”.
To move through the HMI, press intro (press in shuttl e key) to enter in the internal menus and “esc” to exit.
In EnerVista 650 Setup go to “Setpoint>Product Setup>Com munication Settings>ModBus Protocol”
Communication ports: port used in the computer for serial communication.
Baud Rate: Baud rate for serial communication (from 1200 up to 115200 bauds in EnerVista 650 Setup, from 300 to
115200 in relay).
4
Parity: parity for serial communication. None, odd or even can be selected.
Baud rate and parity are serial communication parameters located both in seri al ports menu. In relay HMI: go to “Main
screen>View or Change Settings menu >Product Setup>Communication> Serial Ports”. In EnerVista 650 Setup, go
to “Setpoint>Product Setup>Communication Settings>Serial Ports”.
Control Type: The available control modes are:
• No Control Type, this option selects the serial communication mode, for use with serial communication ports (front
port, RS485, or plastic or glass fiber optic).
• MODBUS/TCP, this option selects ModBus TCP/IP communication mode, for communica tion through the Ethernet
port. In this case, the top right window will show the typical parameters to be programmed; IP address, port address
and unit identifier in the MODBUS TCP SETUP section.
To access the relay IP address in relay HMI, go to “Main screen>View or Change Settings menu >Product
Setup>Communication> Ethernet>Ethernet 1 or 2”. In EnerVista 650 Setup, go to “Setpoint>Product
Setup>Communication Settings>Network (Ethernet)>Ethernet 1 or 2”.
For port address and unit identifier, in relay HMI go to “Main screen>View or Change Settings menu >Product
Setup>Communication>ModBus Protocol”. In EnerVista 650 Setup, go to “Setpoint>Product
Setup>Communication Settings>ModBus Protocol”.
• MODEM, this option displays the parameter to set in case of using a modem for the communication, such as Phone
number, Time out (sec), init. command, type of dialing (tones or pulses).
COMMUNICATION CONTROL:
The Communication Control subsection is located on the bottom left communication window and shows the communication
status in the relay. There are two legends, “Status” in which the communication text status will be displayed and
“Communication” which includes two buttons to start (ON) and stop (OFF) the communication with the relay.
Relay NOT communicating: In status, a message will be displayed with the communication status, e.g. 650 Setup is not
talking to an F650. The ON button will be available to press and the OFF button will be disabled (in grey color). In this stage
the relay is not communicating to the computer and the communication parameters can be modified to establish the
communication lately by pressing in the ON communication button.
4-4 F650 Digital Bay Controller GE Multilin
Page 74
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
Relay communicating: In status, a message will be displayed with th e commun ication status, e.g . 650 Setup is now talking
to an F650. The ON button will be disabled (i n grey color) and th e OFF button will be availabl e to press. In this stage the
relay communicating to the computer and the communication parameters cannot be modified. In the example on Figure 4–
2: COMMUNICATION PARAMETERS MENU , communication has not been established yet.
4
GE Multilin F650 Digital Bay Controller 4-5
Page 75
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
COMMUNICATION OPTIMIZATION:
The parameters shown on the bottom right window (Communica tion optimization) can improve commun ication, althoug h it
is recommended to leave the default values indicated by the EnerVista 650 Setup. These parameters are the maximum
time to wait for a response in the relay (in ms) and the maximum attempts to perform before assuming communications
failure.
The rest of options available in the Communication menu in EnerVista 650 Setup are:
• Modem: Allows configuring the unit for remote communications via modem, using telephonic l ine. It i s o nly avail able if
the relay is not communicating and if modem has been select on Communication>compu te r control type selection. Go
to “Communication>Modem”
• Troubleshooting (Serial or Ethernet connection): Lets the user to perform reading or writing in ModBus a ddresses, for
verifying communications and access to different positions in the ModBus memory map. Only available if the
communication has already been established. Go to “Communication>Troubleshooting”. An example is provided in
Figure 4–3:
4

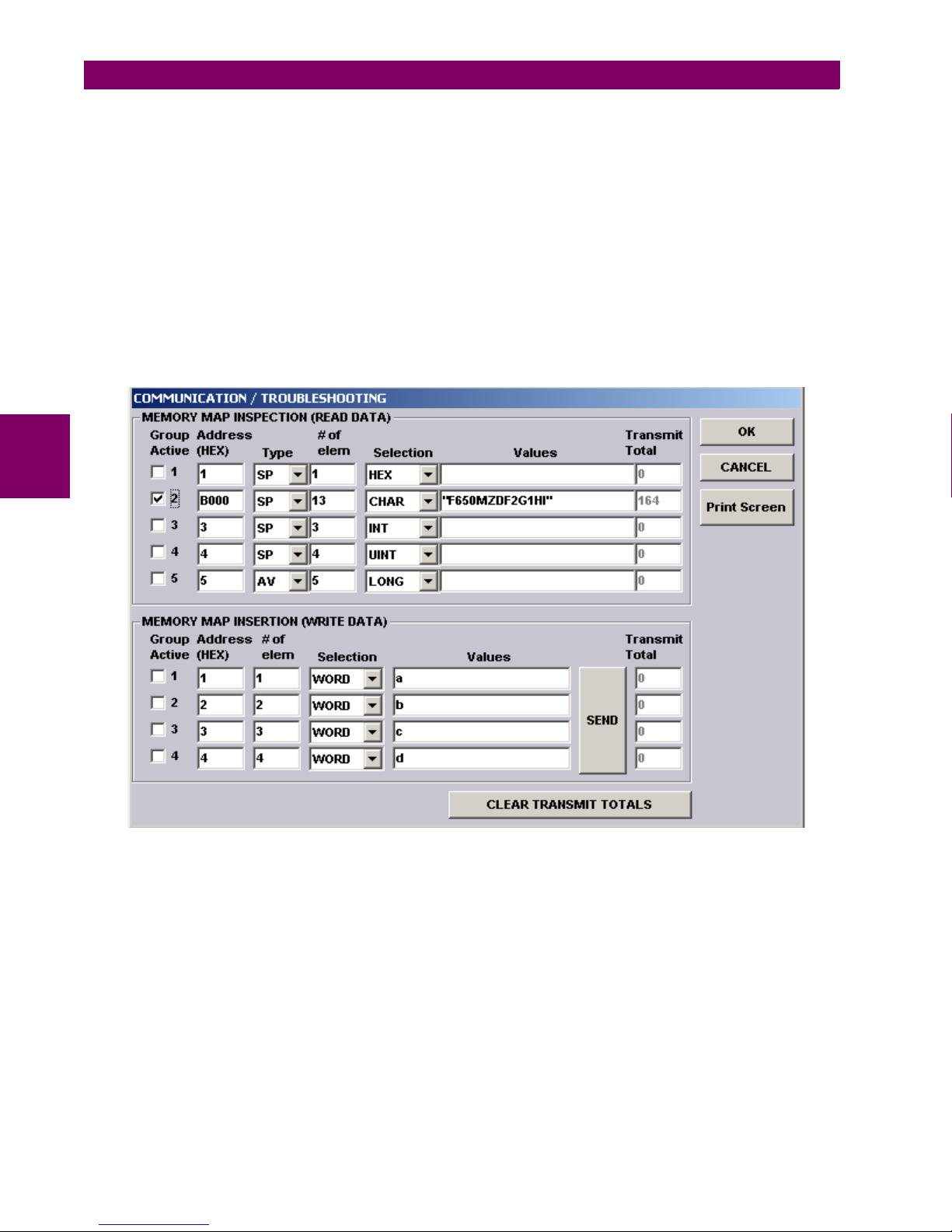

Figure 4–3: COMMUNICATION TROUBLESHOOTING SCREEN
• Calibration (Serial or Ethernet connection): Allows retrieving the unit calibration settings and storing them in a file (with
extension *.cal). For reading or storing the calibration settings in the relay go to “Communications>Calibration>Get
or Set calibration settings” and select the intended calibration file. The calibration retrieval process is necessary to
be performed before updating the unit boot code, when the operating system is updated all the data in the relay is
deleted, including the factory calibration settings. When o nly the firmware is updated (for versions h igher than 1.50),
the calibration settings are automatically saved in the relay.
• Upgrade firmware version (Ethernet connection): Go to “Communications>Upgrade firmwa re version”, this menu
allows the user to update the firmware version of the relay through Ethernet communication. Firmware is related to the
relay internal program, designed by GE Multilin, which performs the protection and control functions, and which is run
by the relay main microprocessor.
• Upgrade operating system (Serial and Ethernet connection): Go to “Communications>Upgrade operating system”.
This option allows the user to update the relay boot code. This is the program that supports the firmware and provi des
auxiliary services for access to electronic devices included in the relay.
4-6 F650 Digital Bay Controller GE Multilin
Page 76
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
IMPORTANT NOTE:
READ CAREFULLY THE FLASH MEMORY UPDATE PROCED URE DESCRIBED IN
SECTION AND CLOSE ALL THE RUNNING APPLICATIONS BEFORE
PERFORMING FIRMWARE AND boot code UPDATING PROCCESS
Before updating firmware check that the firmware version that is going to be updated
match the boot code version of the relay. Otherwise it is necessary to update the boot
code before proceeding to update the firmware. Other combinations of fi rmware and
boot code different from the listed below will not be operative
The boot code version is available in the logotype main screen in HMI; it is the number
between brackets in the first line, e.g. F6501.70 (2.35). The boot code version is 2.35
Firmware version up to 1.5X must be used with Boot Code 2.30 (or 2.20 and 2.35)
Firmware version from 1.6X up to 1.7X must be used with Boot Code 2.35
Thanks to the use of a double flash memory, one with the Bootcode startup program and the boot code, and a second one
with the application program (firmware), a high reliability is guaranteed when updating the un it firmware, as even in the
case of a communication breakdown during the firmware upgrade process, we can retry the process for an unlimited
number of times.
• Upgrade 650 web server (Ethernet connection): Go to “Communications> Upgrade 650 web server”. The relay web
server application can be updated to further versions (if available) using this me nu without modifying the relay boot
code.
• Upload info files to relay (Ethernet connection): Go to “Communications>Upload info files to relay”. This
functionality is used to store setting files (*.650) inside the relay, as well as auxiliary files used by the programmable
logic graphical editor (*.pep, *.aut, *.lib).
• Download info files from relay (Ethernet connection): Go to “Communications>Download info files from relay”.
This functionality is used for retrieving the files (*.650 and *.pep, *.aut, *.lib) th at have been previously stored in the
relay flash memory.
IMPORTANT NOTE:
4
*.650 files contain protection, control settings, relay configuration and compiled logic
equations. This file can be retrieved from the relay, using the “File>Get info from
relay” option in EnerVista 650 Setup (through serial or Ethernet communication).
“File>Send info to relay” option stores this *.650 file in the relay.
*.pep, *.aut and lib files contain the logic configuration projects necessary to modify the
logic (virtual outputs) in the relay. These files can be stored in the relay, using the
“Communication>Upload info files to relay” option in EnerVista 650 Setup (through
Ethernet communication). They can be retrieved using “Communication>Download
info files to relay” option in EnerVista 650 Setup program (Ethernet communication).
Take into account th at the *.pep, *.aut and library files are necessary to modify the PLC
logic (virtual outputs). Without these files setting and configuration can be modified but
not logic equations (virtual outputs). It is advisable to use the
“Communication>Upload info files to relay” option to store these logic configuration
files into the relay.
It is important to distinguish between “Send / Get info to relay” and “Upload /
Download info files to/from relay”. “File>Send/Get info to relay” sends/gets
settings and configuration and compiled logic equation to/from the relay (*.65 0 format),
and the relay automatically starts working with the new settings once they are stored.
“Communications>Upload/Download info files to relay“, stores/retrieves in the
relay flash memory: settings, configuration and compiled logic equations (*.650) besides
the PLC files (*.pep, *.aut, *.lib). This is only a physical storage (file backup).
GE Multilin F650 Digital Bay Controller 4-7
Page 77
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
(
p
)
y
p (
p
)
(
p
)
gn (
pp
4.1.4 FILE MANAGEMENT
File management with EnerVista 650 Setup software:
4.1.4.1 OFF LINE MODE WITHOUT CONNECTION TO THE RELAY
4
Run EnerVista F650 Setup
O pen a *.650 file
“
File>O
M odify protection Settings
and rela
Is it necessary to
additional logic?
” m e n u
en
configuration
program
NO NO
YES
Launch the Logic Configuration tool in EnerVista
F650 Setu
Create new or m odify the existing logic:
“
oint>Logic Configuration
Set
“
File>O
en Project
”
”
Com pile and save logic file (*.pep) and drawing
desi
*.aut) in L ogic Configuration tool
Exit PLC G raphic Editor and save the *.650 file
fro m th e m a in a
Is th e re la y
c o m p le te ly
configured?
YES
Save *.650 settings & configuration file
Store in the com puter the Logic configuration files (*.pep, *.aut, *.lib) as
well as the *.650 for further logic changes.

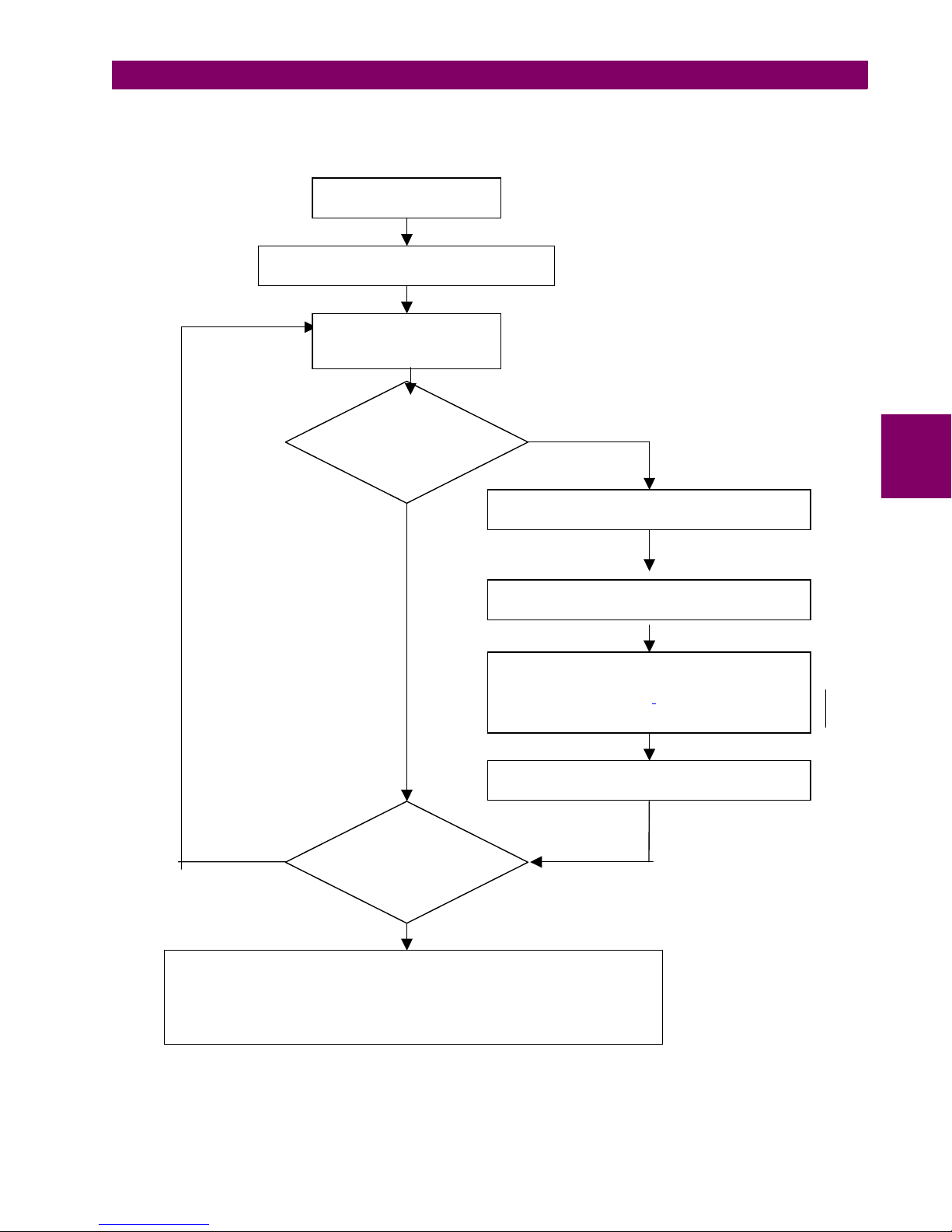

Figure 4–4: OFF-LINE MODE FILE MANAGEMENT
lication m enu
4-8 F650 Digital Bay Controller GE Multilin
Page 78
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
NOTE 1: Depending on the type of Inputs/Outputs incorporated in relay slots F and G, configuration options will be different.

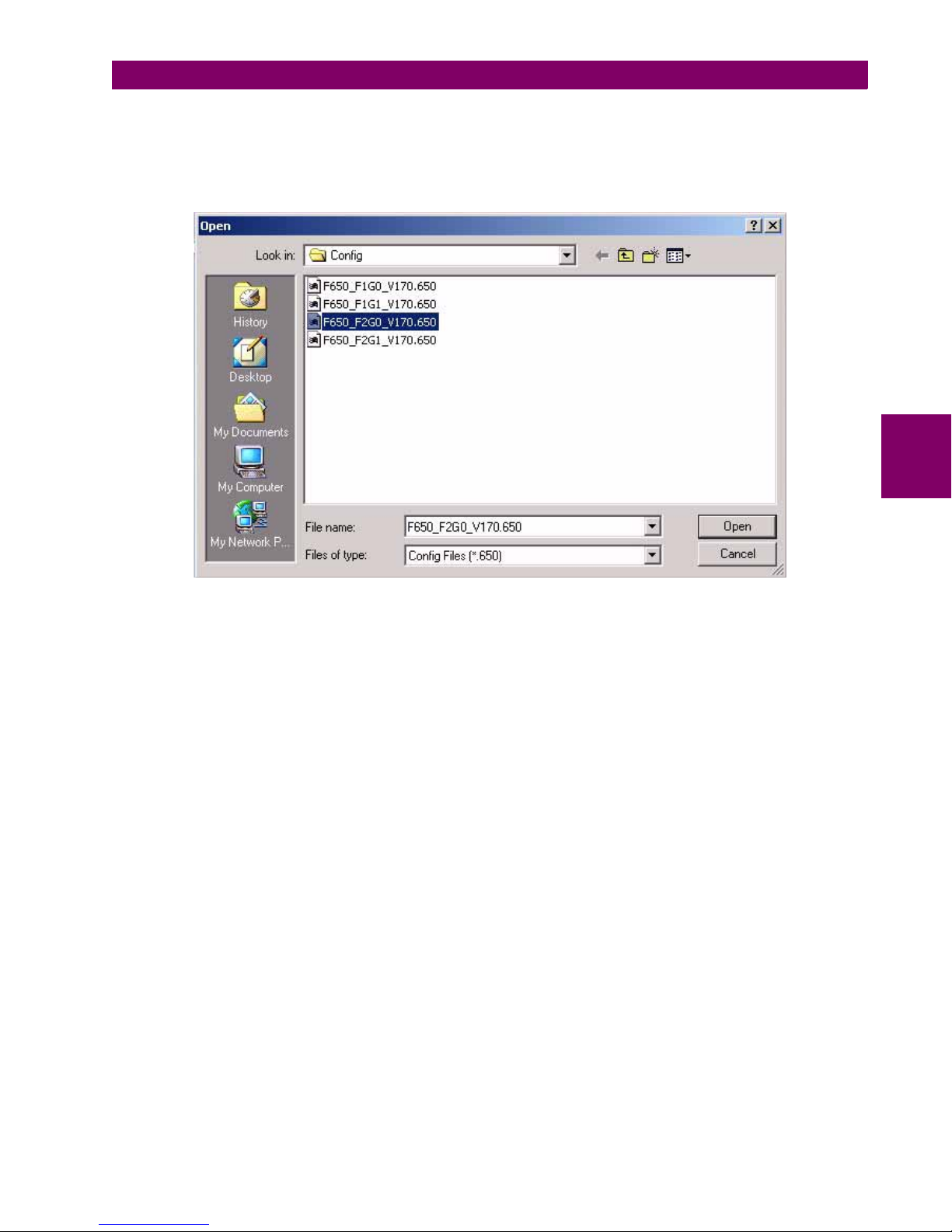

There are 2 template files available for working off-line with any F650 available model:
F650_F1G0_V200.650: Board 1 in slot F and without any board in slot G.
F650_F1G1_V200.650: Board 1 in slot F and board 1 in slot G.
F650_F1G4_V200.650: Board 1 in slot F and board 4 in slot G.
F650_F1G5_V200.650: Board 1 in slot F and board 5 in slot G.
F650_F2G0_V200.650: Board 2 in slot F and without any board in slot G.
F650_F2G1_V200.650: Board 2 in slot F and board 1 in slot G.
F650_F2G4_V200.650: Board 2 in slot F and board 4 in slot G.
F650_F2G5_V200.650: Board 2 in slot F and board 5 in slot G.
T able 4–1: TYPES OF FILES GENERATED BY ENERVISTA 650 SETUP SOFTWARE OPERATION MODE OFF-LINE:
FILE TYPE SETTINGS & CONFIGURATION FILE *.650
Relevant
sections inside
the file
Created by EnerVista 650 Setup
Definition and
contents
File storage in
the PC
File Retrieval
of previously
stored files in
PC
Protection Settings and
Configuration Section
Relay configuration file
containing all
protection elements
Settings, input/output
and LEDs
configuration, graphic
display configuration,
etc.
EnerVista 650 Setup:
“File>Save *”
EnerVista 650 Setup:
“File>Open *”
Compiled logic equations
section
Logic configuration graphic
editor (PLC Editor)
Equations corresponding to
the logic created and compiled
in the PLC Editor
EnerVista 650 Setup:
“File>Save *”
It is necessary to store the
logic configuration files used to
create the PLC project for
further logic modifications.
EnerVista 650 Setup:
“File>Open *”
It is necessary to have the
logic configuration files used to
create the PLC project
LOGIC CONFIGURATION FILES (*.PEP, *AUT, *.LIB)
*.PEP *.AUT *.LIB
Header for
Logic project
Logic
configuration
graphic editor
(PLC Editor)
PLC project file
containing the
necessary
information
relative to the
relay model,
logic libraries
included in the
project (*.lib),
graphic file
name (*.aut),
etc.
PLC Editor:
“File>Save
Project”
PLC Editor:
“
File>Open
Project”
Graphical edition
container. Logic
equations in FDB
format.
Logic configuration
graphic editor (PLC
Editor)
PLC Project file
containing all the
drawings used by the
logic, required by F650
relay based on IEC
61131-3 standard.
Functional block
diagram (FDB).
PLC Editor:
“File>Save Project”
PLC Editor:
“File>Open Project”
User programmable
logic objects
Logic configuration
graphic editor (PLC
Editor)
Library file to be
included as an object
in a PLC project.
Logic packages that
can be stored into
libraries and be
distributed in different
PLC projects.
PLC Editor:
“File>Save Library”
PLC Editor:
“File>Library>New
Library”
4
Connect with the relay
Basic
information
transfer mode
to the relay
(“Communications>Computer”)
Open the created file (“File>Open *”)
Send to relay from the menu: “File>Send info to relay”
Note that texts used in the configuration of inputs,
outputs, etc. are not sent to the relay. The only texts
sent to relay are operations, events, and LEDs.
GE Multilin F650 Digital Bay Controller 4-9
Connect with the relay (“Communications>Computer”)
Launch F650 PLC Editor (“Setpoint>Logic Configuration”)
Open the created PLC project (“File>Open Project”)
Compile the project (“Run>Compile”)
Now the logic (virtual outputs) can be sent directly to relay
(“Run>Send Equations to Relay”). Texts of virtual outputs are
not stored in the relay, only in the logic configuration files to be
edited.
Page 79
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
In case of using element libraries (either existing (“File Library>Open Library”) or created by the user (“File Library>New
Library”)), the program will create and manage the corresponding files (*.lib) in a folder named FDB (Functional Block
Diagram). These files are used for the PLC project compilation. It is necessary to store them with the other logic
configuration files that built the PLC project (*.pep, *.aut, *.lib).
Besides sending basic information to the relay (Settings + configuration) in *.650 format, it is recommended to store *.650,
*.pep, *.aut and *.lib files inside the relay (“Communication>Upload info files to relay”), to ensure that logic configuration
files will be available in the future for further logic modifications; ei ther if these files are not used by the relay, they are
required for connecting to a relay and analyzing its configuration. The program manages the logic configuration files
globally, so that when the user selects to save file *.pep in the relay, the associated *.aut and *.lib files are also stored.
4
File storage inside the relay
(RECOMMENDED)
Retrieval of files stored in the relay
(RECOMMENDED)
“Communication > Upload info files to relay” through Ethernet
“Communication > Download info files from relay” through Ethernet
4-10 F650 Digital Bay Controller GE Multilin
Page 80
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
(
p
)
y
p (
p
)
(
p
)
y
4.1.4.2 ON LINE MODE CONNECTED TO THE RELAY
Run EnerVista F650 Setup
Connect to the relay
“
Com m unication>Com
uter>ON
”
NO
M odify and send to the
relay protection Settings
and rela
configuration
YES
Is it n e ce s s a ry to
program
additional logic?
Launch the Logic Configuration tool in EnerVista
F650 Setu
Create new or m odify the existing logic
“
oint>Logic C o n figuration
Set
“
File>O
en Project
”
”
4
NO
and save logic file (*.pep) and drawing design
(*.aut) in 650 PLC Editor
Send logic to relay (“
Is th e re la y
com pletely
configured?
Com pile (“
”) and Exit PLC G raphic Editor
Rela
Run>Compile
Run>Send Equations to
YES
Save all settings & configuration (“
Store in the relay the Logic configuration files (*.pep, *.aut, *.lib) as well as the
*.650 for further logic changes. (“
C o m m u n ic a tio n > U p lo a d in fo file s to re la y
Figure 4–5: ON LINE MODE FILE MANAGEMENT
F ile > G e t in fo fro m re la y
”)
l (“
File>Save Project
”)
”)
”)
GE Multilin F650 Digital Bay Controller 4-11
Page 81
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
Table 4–2: TYPES OF FILES CREATED BY ENERVISTA 650 SETUP– ONLINE OPERATION MODE
FILE TYPE SETTINGS & CONFIGURATION FILE *.650
Relevant
sections
inside the file
Created by EnerVista 650 Setup
Definition and
contents
4
Basic
information
transfer mode
to the relay
File storage in
PC
File storage inside the relay in a flash memory (RECOMMENDED): “Communication>Upload info files to relay” through Ethernet
File Retrieval of relay hard disk stored files (RECOMMENDED):
Protection Settings and
Configuration Section
Relay configuration file
containing all protection
elements, settings, input/
output and LEDs
configuration, graphic
display configuration, etc.
Connect with the relay (“Communications>Computer”) Connect with the relay (“Communications>Computer”)
Send settings and configuration from file: Launch 650 PLC Editor (“Setpoint>Logic Configuration”)
Send protection and
control settings to relay:
“File>Send info to
relay”, select *.650 file,
choose Protection and
Control settings option in
screen and press send
Modify settings and configuration directly in the relay:
Go to “Setpoint>
>>Product Setup
>>System Setup
>>Protection Elements
>>Control Elements
>>Inputs/Outputs” in
EnerVista 650 Setup and
modify the selected
settings and press store
to send them to the relay.
EnerVista 650 Setup:
“File>Get info from
relay”. User definable
texts retrieved are
operations, events, and
LEDs.
Compiled logic equations
section (relay configuration
and logic configuration)
Logic configuration graphic
editor (PLC Editor) and relay
configuration screen
Equations corresponding to
the logic created and
compiled in the PLC Editor
Send configuration and logic
compiled equation to relay:
“File>Send info to relay”,
select *.650 file, choose
“Relay and Logic
Configuration” option in
screen and press send.
When the message
“Configuration stored”
appear in the relay HMI the
configuration has been
stored.
Go to “Settings>Relay
Configuration>
>>Outputs
>>LEDs
>>Operations
>>Protection Elements
>>Oscillography
>>Operations
>>Control Events
>>Switchgear
>>Inputs
>>Virtual Inputs
>>Operations
>>MMI (HMI)”
in EnerVista 650 Setup,
modify the selected values
and press store to send them
to the relay.
EnerVista 650 Setup:
The relay provides this
information in a basic format
(compiled equations). It is
necessary to have the logic
configuration files used for
creating the PLC project to
view the logic in a graphical
way (FDB) and be able to
modify it (virtual outputs).
LOGIC CONFIGURATION FILES (*.PEP, *.AUT, *.LIB)
*.PEP *.AUT *.LIB
Graphical edition
Header for Logic
project
Logic configuration
graphic editor (PLC
Editor)
PLC project file
containing the
necessary
information relative
to the relay model,
logic libraries
included in the
project (*.lib),
graphic file name
(*.aut), etc.
Open the created PLC project (“File>Open Project”)
Compile the project (“Run>Compile”)
Now the logic (virtual outputs) can be sent directly to relay
(“Run>Send Equations to Relay”). Texts of virtual outputs are
not stored in the relay, only in the logic configuration files to be
edited.
PLC Editor:
“File>Save Project” “File>Save Library”
The relay will not
provide this
information unless
the *.pep file is
stored in the relay
To store the logic configuration files in the relay use the
“Communication>Upload info files to relay” option
“Communication/Download info files from relay” through
Ethernet
container. Logic
equations (Virtual
Outputs) in FDB
format.
Logic configuration
graphic editor (PLC
Editor)
PLC Project file
containing all the
drawings used by
the logic, required
by F650 relay
based on IEC
61131-3 standard.
Functional block
diagram (FDB).
The relay will not
provide this
information unless
the *.pep file is
stored in the relay.
User programmable
logic objects
Logic configuration
graphic editor (PLC
Editor)
Library file to be
included as an object
in a PLC project.
Logic packages that
can be stored into
libraries and be
distributed in different
PLC projects.
The relay will not
provide this
information unless
the *.pep file is stored
in the relay.
4-12 F650 Digital Bay Controller GE Multilin
Page 82
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
REMINDER:
Logic programming support files (*.pep, *.aut, *.lib) CANNOT be retrieved directly from the relay.
It is necessary
* Either to have stored these files in the PC
* Or to have uploaded previously the files into the relay (“Communication>Upload info files to relay”)
4.1.5 ENERVISTA 650 SETUP MENUS STRUCTURE
The EnerVista 650 Setup menus structure is shown in EnerVista 650 SETUP MENUS STRUCTURE.
Unless specified, options are available in both On-line and Off-line mode.
Options enabled only in On-line mode are marked as (*)
Options enabled only in Off-line mode are marked as (**)
The “View > Language ” submenu allows the user to change the default language for the EnerVista 650 Setup program and
it is only enabled when the relay is not communicating and no file has been opened.
4
Table 4–3: ENERVISTA 650 SETUP MENUS STRUCTURE
FILE SETPOINT ACTUAL
Open (**) Product Setup Front Panel NA Computer Login user Traces
Save As
(**)
Close (**)
Config File
Converter
Properties
(**)
Get info
from relay
(*)
Send info
to relay (*)
Print Setup
(**)
Print
Preview
(**)
Print (**) NA
Print to file
(**)
Exit NA
System Setup Status NA Modem (*)
Protection
Elements
Control
Elements
Inputs/Outputs Records (*) NA
Relay
Configuration
Logic
Configuration
Clock (*) NA
Metering NA Troubleshooting (*)
Inputs/Outputs NA Calibration (*)
OPERATIONS
(*)
NA
NA
NA
NA
COMMUNICATION SECURITY VIEW HELP
ModBus
Memory
Map
Languages
(**)
Upgrade firmware
version (*)
Upgrade operating
system (*)
Upgrade F650 Web
Server
Upload info files to
relay
Download info files
from relay
Change
Password
User
Management
Instruction
Manual
About
EnerVista
650 Setup
GE Multilin F650 Digital Bay Controller 4-13
Page 83
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
Table 4–4: GENERAL OVERVIEW OF FILE MENU:
FILE
Open (**) Open a settings and configuration file for off-line working.
Save As (**) Save *.650 settings and configuration file.
Close (**) Close the opened *.650 file in EnerVista 650 Setup.
Config File (*.650)
Converter
Properties (**) File properties for *.650.
Get info from relay (*)
Send info to relay (*) Send and write the *.650 settings and configuration to the relay.
Print Setup (**) To configure printer settings.
Print Preview (**) Preview of settings and configuration file printing format.
Print (**) Launch the *.650 file to be printed.
4
Options enabled only in On-line mode are marked as (*). Options enabled only in Off-line mode are marked as (**)
Print to file (*.xls) (**) *.650 printed to file in excel format.
Exit Quit the application closing all the open windows.
4.1.6 FILE MENU OVERVIEW
Tool to convert the *.650 files from one version to another
Retrieve the *.650 settings and relay configuration compiled equations
from the relay.
4-14 F650 Digital Bay Controller GE Multilin
Page 84
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
4.1.6.1 OPEN, SAVE AS AND CLOSE
In these options, the program opens a dialog box (with default path to Files> Config program fold er) where the setting and
configuration files can be selected for their “off-line” edition. For enabling access to this menu, there must be no
communication between the PC program and the relay. (Mode off-line: “Communication>Computer>OFF”).
4
Figure 4–6: OPEN FILE MENU
Once the *.650 file with the appropriated relay model (FXGX) is selected, the program will enable the off-line options to fully
program the unit. The enabled menus in the EnerVista 650 Setup program are: File, Settings, Actual, Communication, View
and Help.
The off-line mode displays the File, Settings, Actual, Communication, View and Help submenus to program the unit.
The Actual values submenus are for structure purposes only Values are not refreshed while the relay is not communicating.
The “Save as” and ”Close” submenus are used to save the *.650 file into the computer and to close the current file. To work
in off line mode for settings and configuration edition it is not necessary to use th e ”Close” option, a new *.650 can be
opened without closing the previous one. The ”Close file” op tion is used to clea r all data in EnerVista 650 Setup program,
enabling “Language”, ”Upload firmware” and “boot code” options.
GE Multilin F650 Digital Bay Controller 4-15
Page 85
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
4.1.6.2 CONFIG FILE (*650) CONVERTER
4
This tool provides automatic conversion of configuration files from a firmware version to a previous or later version.
Open the source *.650 file and select the version and model to be converted to.
It is possible to change the model type (FXGX) using the conversion tool. It must be taken into account that part of the logic
can be readjusted to fit the new input and output boards selection. Notice also that the external wiring of inputs and outputs
board are different for type 1, 2, 4 and 5.
4.1.6.3 PROPERTIES
When this option is selected, the program will show a screen including the relay model information, firmware version, etc. of
the file being edited, as shown on Figure 4–8:

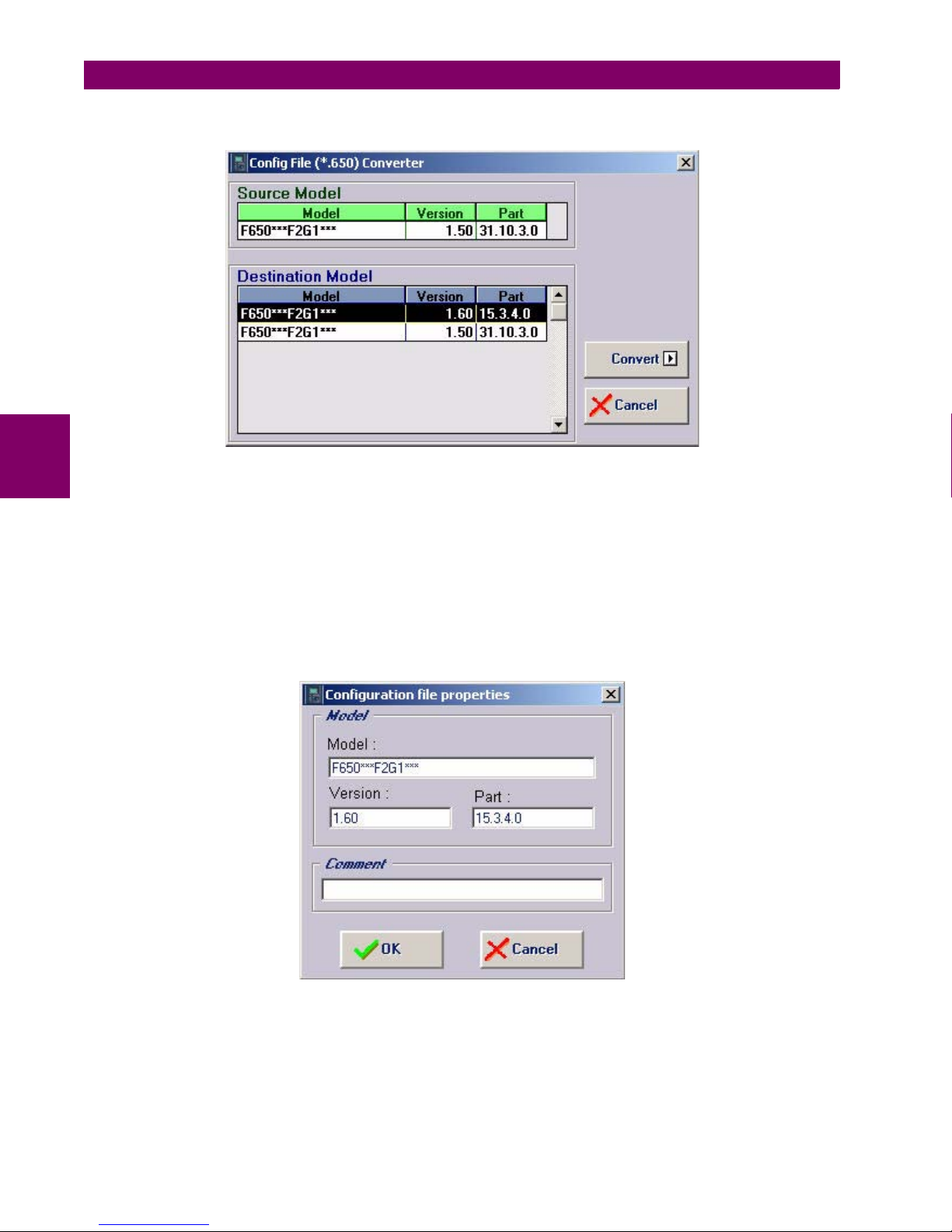

Figure 4–7: CONFIG FILE (*650) CONVERTER MENU
4.1.6.4 PRINTING OPTIONS (PRINT SETUP/PRINT PREVIEW/PRINT/PRINT TO FILE)
The printing options are active only in off-line mode, in “File edition”, and not in on-line mode, connected with the relay.
4-16 F650 Digital Bay Controller GE Multilin
Figure 4–8: FILE PROPERTIES MENU
Page 86
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
4.1.6.5 PRINT SETUP
Option to configure the printing options and settings for the printi ng device.
4.1.6.6 PRINT PREVIEW
Option to preview the whole settings and configuration file (*.650) in paper format to be printed as shown in Figure 4–9:.
4

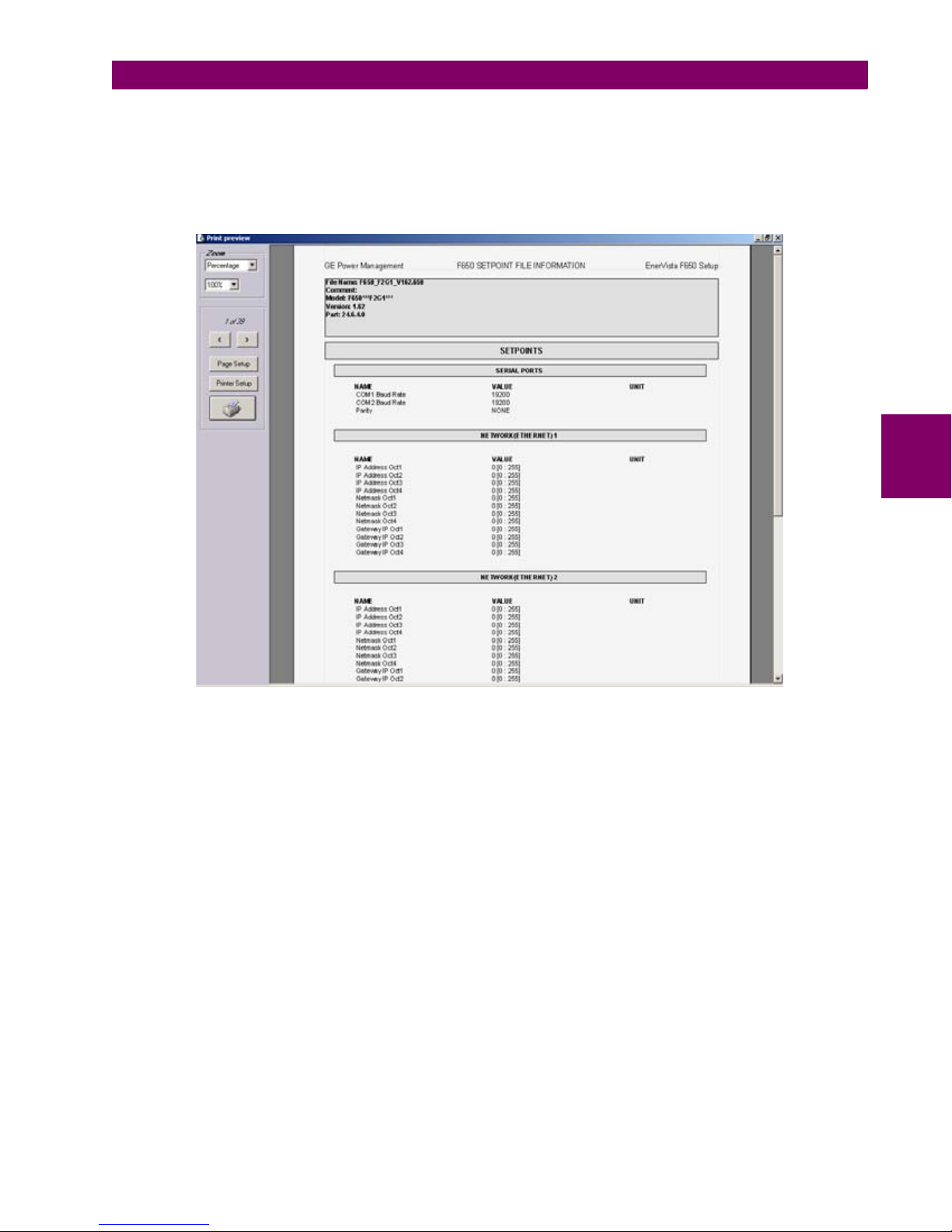

Figure 4–9: PRINT PREVIEW OF SETTINGS FILE
4.1.6.7 PRINT
In this option, the program will print the relay configuratio n using the PC default (active) pri nter on port COMx or LPT. This
option is active only in off-line mode, in file edition, and not in on-line mode, connected with the relay.
4.1.6.8 PRINT TO FILE (*XLS)
Possibility to export the configuration file to an Excel file using the “Print to file (*.xls)” option.
GE Multilin F650 Digital Bay Controller 4-17
Page 87
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
Table 4–5: GENERAL OVERVIEW OF SETPOINT MENU IN ENERVISTA 650 SETUP:
SETPOINT
Communications settings for all protocols and physical mediums.
ModBus user map definition, fault report, oscillography, data logger and
demand settings.
General Settings, Flex Curves Definition, Breaker settings and
maintenance, and switchgear snapshot events management.
Phase, Neutral, Ground, Sensitive Ground and Negative Sequence
Current Settings. Voltage Elements settings and Power Settings
management.
Setting groups, under and overfrequency settings, synchrocheck,
autoreclose, breaker failure, VT fuse failure, broken conductor and
locked rotor settings management.
Configuration of Outputs, LEDs, Operations, Protection Elements,
Oscillography, Operations, Control Events, Switchgear, Inputs, Virtual
Inputs, Operations and HMI. Whole relay configuration with internal relay
signals or user-definable ones as logic (virtual outputs).
Logic configuration graphic editor (PLC Editor). It is a PLC Project file
editor that contains all the internal drawings used to make the logic
(virtual outputs) based on IEC 61131-3 standard. Functional block
diagram (FDB).
Relay synchronization to computer clock or to user-definable date and
time. On-line mode only.
4
Product Setup
System Setup
Protection Elements
Control Elements
Inputs/Outputs Contact I/O settings for all boards available in device, Remote Comms.
Relay Configuration
Logic Configuration
Clock (*)
Options enabled only in On-line mode are marked as (*). Options enabled only in Off-line mode are marked as (**)
4.1.7 SETTINGS MENU OVERVIEW
4.1.7.1 PRODUCT SETUP
Table 4–6: GENERAL OVERVIEW OF PRODUCT SETUP MENU:
PRODUCT
SETUP
Communication
Settings
ModBus User Map
Fault Report Fault report settings. Possibility to show fault reports on HMI screen.
Oscillography
Data Logger Data logger configuration
Demand
Options enabled only in On-line mode are marked as (*). Options enabled only in Off-line mode are marked as (**)
Serial Ports, Network (Ethernet), ModBus Protocol, DNP Slave and IEC
870-5-104 settings.
ModBus user map definition. The ModBus user map is formed by 256
records, selectable from the complete relay ModBus map.
Oscillography settings (trigger position, samples per cycle, etc). The
trigger and digital channels (up to 16) must be configured in
“Settings>Relay configuration”.
Demand settings. The demand trigger and demand reset signals must be
configured in “Settings>Relay configuration”
4-18 F650 Digital Bay Controller GE Multilin
Page 88
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
e) COMMUNICATION SETTINGS
This section details the settings related to communication parameters for the different protocols available in the F650.
Table 4–7: GENERAL OVERVIEW OF COMMUNICATION SETTINGS MENU:
COMMUNICATI
ON SETTINGS
Serial Ports Baud rate and parity for COM1 and COM2 serial communication ports.
Ethernet communication parameters for COM3 (IP Address, Netmask,
Gateway IP, etc.)
Network (Ethernet)
ModBus Protocol
DNP3 Slave
IEC 870-5-104,
SNTP (*) Sinchronization over Ethernet settings
Options enabled only in On-line mode are marked as (*). Options enabled only in Off-line mode are marked as (** )
NOTE: The ModBus Slave address used by Ethernet ports is the one set
for COM2.EnerVista 650 Setup software allows programming two
different Ethernet addresses, but the first IP has always to be set as the
second IP Address is an Alias.
ModBus Slave Addresses for serial and Ethernet communication and the
ModBus port number used for ModBus TCP/IP
Physical port, Slave Address for DNP, IP Addresses for Masters, TCP/
UDP Port, Unsolicited Response parameters, Analog scale factors and
deadbands, message fragment size, Binary input block.
TCP Port, Common Addr of ASDU, Cyclic Meter Period and,
Synchronization Event settings.
4
4.1.7.2 SYSTEM SETUP
This section shows the settings related to the system setup definition such as shown in the following table.
Table 4–8: GENERAL OVERVIEW OF SYSTEM SETUP MENU:
SYSTEM
SETUP
This screen describes and enables the settings of the power system
where the relay will operate. Some of these settings will be used only for
General Settings
Flex Curves
Breaker settings
Breaker maintenance
Switchgear Configuration of snapshot events for each switchgear (enable or disable)
metering values presentation purposes; however, some of them apply
directly to the sampling and analog-digital conversion process (rated
frequency setting). Therefore, these settings need to be adjusted so that
they fit the system settings.
Flex Curves – Programmable user curves: The relay incorporates 4 user
curves called Flex Curve A, B, C and D. The points for these curves are
defined by the user in “Settings>System Setup>Flex Curves>Edit
Curve” menu in EnerVista 650 Setup. User defined flex curves can be
selected as an operation curve in all the time overcurrent functions in the
relay.
Breaker settings, maintenance and switchgear selection of the device
configured as breaker in the F650. The selected switchgear will be used
in recloser, breaker failure and synchronism functions. The settings are
Number of Switchgear, Maximum KI
Openings, Max.Openings 1 hour.
These settings correspond to the initialization of (KI)
counting of number of openings and closings of the switchgear
configured as breaker. These Counters allow the breaker Maintenance.
They are used to cumulate the breaker ageing produced by a trip or a
breaker opening. In order to incorporate the breaker historic, in case of
existing breakers, the system allows assigning an initial value to
accumulated amperes, and to the number of opening and closing
operations.
2
t, KI2t Integ. Time, Maximum
2
t counters, and the
Options enabled only in On-line mode are marked as (*). Options enabled only in Off-line mode are marked as (**)
GE Multilin F650 Digital Bay Controller 4-19
Page 89
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
4.1.7.3 PROTECTION ELEMENTS
This option shows all the protection-grouped elements available in the rel ay as shown in Table 1–9:. Each of these groups
includes the specific protection units of the same type. For example phase currents group includes TOC, IOC, directional
units, etc. There are three groups available, so there are three protection units of each function that can work in grouped
mode or ungrouped (altogether).
Table 4–9: GENERAL OVERVIEW OF PROTECTION ELEMENTS MENU:
PROTECTION
ELEMENTS
Phase Current All overcurrent grouped functions for phase current.
Neutral Current
Ground Current
Sensitive Ground
Current
Negative Sequence
Current
4
Options enabled only in On-line mode are marked as (*). Options enabled only in Of f-line mode are marked as (**)
Voltage Elements
Power Forward and directional power grouped protection functions.
All overcurrent grouped functions for neutral current. (Calculated from
phases, not measured)
All overcurrent grouped functions for ground current. (Measured from 4
current input)
All overcurrent grouped functions for sensitive ground current.
(Measured from 5
Negative sequence time overcurrent function
All under and overvoltage grouped functions for phases, neutral,
auxiliary voltage and negative sequence.
th
current input)
th
4-20 F650 Digital Bay Controller GE Multilin
Page 90
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
Table 4–10: DIFFERENT PROTECTION ELEMENTS INCLUDED
PHASE
CURRENT
Phase TOC High Phase time overcurrent, high level (51PH)
Phase TOC Low Phase time overcurrent, low level (51PL)
Phase IOC High Phase instantaneous overcurrent, high level (50PH)
Phase IOC Low Phase instantaneous overcurrent, low level (50PL)
Phase Directional Phase directional unit (67P). Quadrature Voltage for polarization
Thermal Model Thermal model or Thermal image unit for phases (49)
NEUTRAL
CURRENT
Neutral TOC Neutral time overcurrent (51N)
Neutral IOC Neutral instantaneous overcurrent (50N)
Neutral Directional Neutral directional unit (67N). Voltage, current and dual polarization.
GROUND
CURRENT
Ground TOC Ground time overcurrent (51G)
Ground IOC Ground instantaneous overcurrent (50G)
Ground Directional Ground directional unit (67G). Voltage, current and dual polarization.
SENSITIVE
GROUND
CURRENT
Sensitive Ground TOC Sensitive ground time overcurrent (51SG)
Sensitive Ground IOC Sensitive ground instantaneous overcurrent (50SG)
Isolated Ground IOC Isolated ground overcurrent (50IG)
NEGATIVE
SEQUENCE
CURRENT
VOLTAGE
ELEMENTS
POWER
Sensitive Ground
Directional
Negative Sequence
TOC
Phase UV Phase undervoltage (27P)
Phase OV Phase overvoltage (59P)
Neutral OV High Neutral overvoltage, high level (59NH)
Neutral OV Low Neutral overvoltage, low level (59NL)
Negative Sequence
OV
Auxiliary OV Auxiliary overvoltage (59X)
Auxiliary UV Auxiliary undervoltage (27X)
Forward Power Forward power (32FP), in primary values.
Directional Power Directional power (32), in primary values.
Sensitive ground directional unit (67SG)
Negative sequence time overcurrent (46P)
Negative sequence overvoltage (47)
4
GE Multilin F650 Digital Bay Controller 4-21
Page 91
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
4.1.7.4 CONTROL ELEMENTS
This option shows all the control elements available in the relay as shown in Table 4–11:. Some of the elements are
grouped ones such as underfrequency, overfrequency and broken conductor.
Table 4–11: GENERAL OVERVIEW OF CONTROL ELEMENTS MENU:
CONTROL
ELEMENTS
F650 units incorporate a flexible grouping capability for protection units.
This means that protection units can be used in either single setting
group (default mode-all units can operate simultaneously) or three
setting groups (in this mode, protection units are grouped in three
independent tables, with only one of them active at a given time).
Protection element grouping involves only Protection elements together
with broken conductor detection and over and under frequency, which
are usually considered as control elements. The rest of control elements
such as recloser, fuse failure, breaker failure, synchronism, and breaker
settings are not involved in the tabled groups concept.
Broken or fallen conductor detection function (I2/I1). Grouped element.
Ratio between the negative sequence current, I2, and the positive
sequence current I1. In normal and balanced load situations, this ratio is
zero, while in severe load fault conditions, an unbalance is produced and
this ratio is increased.
4
Setting Group
Underfrequency Underfrequency unit (81U). Grouped element
Overfrequency Overfrequency unit (81O). Grouped element
Synchrocheck Synchronism check unit (25). Not grouped, a single unit provided
Autoreclose Recloser (79). Not grouped, a single unit provided
Breaker Failure Breaker failure (50BF). Not grouped, a single unit provided
VT Fuse Failure Fuse Failure (VTFF). Not grouped, a single unit provided
Broken Conductor
Locked Rotor Locked rotor detection function (48). Grouped element.
4-22 F650 Digital Bay Controller GE Multilin
Page 92
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
4.1.7.5 INPUT/OUTPUTS
Section that contains the settings for all input and output boards and the Force Outputs and Virtual inputs activation tools.
Table 4–12: GENERAL OVERVIEW OF “INPUTS/OUTPUTS” SETTINGS MENU.
INPUTS/
OUTPUTS
Contact I/O
Force Outputs (*)
Virtual Inputs (*)
Remote Comms.
Options enabled only in On-line mode are marked as (*). Options enabled only in Off-line mode are marked as (** )
Inputs and outputs settings for all boards in F650. The I/O settings
configuration can only be performed through EnerVista 650 Setup, not
HMI available.
This menu allows activating each contact output in the relay, to facilitate
maintenance testing. On line mode only.
This menu allows operating virtual inputs. These variables are used as
inputs to logic schemes configured in the relay. Virtual inputs can be
operated in a latched mode (32 latched virtual inputs) or in Self-reset
mode (32 self reset virtual inputs).
This menu allows configuring remote inputs coming from other devices
through GSSE messages.
This section shows the settings related to inputs and outputs for the different boards available in F650 (F, G, H, J).
Table 4–13: GENERAL OVERVIEW OF “INPUTS/OUTPUTS>CONTACT I/O” SETTINGS MENU.
CONTACT I/O
Board F Board located in first slot, always connected, either type 1 or 2.
Board G
Board H Board located in first slot of CIO Module (external inputs/outputs module)
Board J
Board located in second slot, depends on model definition. If model is
type G0 there is no board in second slot.
Board located in second slot of CIO Module (external inputs/outputs
module)
4
GE Multilin F650 Digital Bay Controller 4-23
Page 93
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
4.1.7.6 RELAY CONFIGURATION
This is the relay configuration section in which the relay can be configured using internal states or already compiled
equation on PLC Editor.
Table 4–14: GENERAL OVERVIEW OF RELAY CONFIGURATION MENU:
RELAY CONFIG
Outputs Configuration of contact output operate and reset signals for all boards.
4
LEDs
Operations
Protection Elements
Oscillography
Control Events
Switchgear
Remote outputs
Inputs
Virtual Inputs
MMI (HMI-Human
Machine Interface)
15 LEDs fully configurable from any logical variable, contact or virtual
input. First 5
can be latched through PLC configuration. From the LED configuration
screen, it is possible to print the vertical LED label for the relay
Configurable operations up to 24. Operation texts, interlocks, final states,
frontal keys, time outs and masters.
This tab allows assigning operands (logic signals) as inputs to different
protection elements. To block, reset, initiate the different protection
elements inputs.
Trigger and up to 16 digital channels to be included in oscillography
records, are programmable from any logical variable, contact or virtual
input. Text configuration is only for off-line mode.
NOTE: This screen is used for the configuration of digital channels and
oscillography trigger. The rest of parameters, such as function enabling/
disabling, sampling rate, number of oscillography files, etc. must be set
on the Settings>Product Setup>Oscillography menu.
Up to 128 user programmable events from any logical variable, contact
or virtual input. Possibility to display the event as an alarm on the alarms
panel. Control events are also displayed in the snapshot events
recording. 1 ms time tagging.
A control event is a logic signal associated to an operand or combination
of operands, that allows following the status of that signal.
Up to 16 configurable switchgear elements. A switchgear element can be
a breaker, a line selector switch, a grounding selector switch, a busbar
selector switch, etc. This screen allows configuration of type of contacts,
opening and closing time, contact assignation and text for events related
to switchgear. There are 64 pre-established events for switchgear, which
correspond to opening, closing, Error01 and Error11 of the 16
programmable switchgear elements.
Up to 32 DNA bits and 6?????? bits to be transmitted to remote devices
over CAN using GSSE messages
Text configuration for off-line mode file management for all the contact
inputs available in device.
Text configuration for off-line mode file management. 32 latched and 32
self reset virtual inputs.
Screen for one line diagram configuration. This menu shows a scenario
to draw a simplified one-line diagram of a bay in a feeder, line,
transformer, etc. The menu includes a library for power elements,
metering elements, text and drawings. See an example in Figure 4–11:
LEDs are latched by hardware, the rest are self-reset but
4-24 F650 Digital Bay Controller GE Multilin
Page 94
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
The following figures show an example of the default factory configuration for F650.
4
Figure 4–10: RELAY CONFIGURATION
GE Multilin F650 Digital Bay Controller 4-25
Figure 4–11: HMI CONFIGURATION
Page 95
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
4.1.7.7 LOGIC CONFIGURATION
This logic configuration allows creating more complex configur ations, using the graphical PLC, than using the tables from
Relay Configuration. For file management detailed information go to section 4.1.4.
Table 4–15: GENERAL OVERVIEW OF LOGIC CONFIGURATION MENU:
LOGIC CONFIG
*.pep
*.aut
*.lib
Header for Logic project: PLC project file containing the necessary
information relative to the relay model, logic libraries included in the
project (*.lib), graphic file name (*.aut), etc.
PLC Project file containing all the drawings used by the logic, required by
F650 relay based on IEC 61131-3 standard. Functional block diagram
(FDB).
User programmable logic objects: Library file to be included as an object
in a PLC project. Logic packages that can be stored into libraries and be
distributed in different PLC projects.
4
4-26 F650 Digital Bay Controller GE Multilin
Page 96
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
4.1.7.8 CLOCK
This menu allows to update the date and time of the relay, either synchronizing them with the PC clock, or entering the
information manually.
4
Figure 4–12: CLOCK
4.1.8 ACTUAL VALUES MENU OVERVIEW
The menu bar in the main screen of EnerVista 650 Setup software shows the ACTUAL menu option. This option
concentrates and displays all the status of protection, control elements, metering, counters information, oscillography,
events, fault locator, etc. This section shows only the structure of menus in EnerVista 650 Setup.
Table 4–16: GENERAL OVERVIEW OF ACTUAL VALUES MAIN MENU:
ACTUAL
Front Panel>LEDs The relay front LEDs status is shown on this menu.
Status
Metering
Inputs/Outputs
Records
Protection and control status signals for all available protection functions
in device.
All metering values available in device. Primary and secondary values,
frequency and phasor diagram provided.
All input and output status provided. For contact inputs and contact
outputs as well as virtual input and virtual output signals.
Only enabled in on line mode, retrieval of all the available records in
device. Snapshot events, control events, oscillography and fault reports.
4.1.8.1 FRONT PANEL
The front panel menu shows only the LEDs submenu where all the front LEDs can be monitored.
4.1.8.2 STATUS
The following menu includes all the available protection status in the device.
GE Multilin F650 Digital Bay Controller 4-27
Page 97
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
Table 4–17: GENERAL OVERVIEW OF STATUS MENU:
STATUS
Operation bits
Breaker
Protection Status of all the protection units in the device.
Control Elements Status of all the control units available in the device.
Protection Summary
Snapshots events
summary
ModBus User Map
Switchgear Status
4
Calibration
Flex Curves
System Info
Records Status
SNTP-IRIG-B Information related to synchronization via IRIG_B or SNTP
Up to 24 elements. OPERATION BIT XX is (0) when the configured time
out for the operation XX expires or when success conditions are met.
And it is (1) if operation XX is executed and interlocks are fulfilled.
Breaker status (open, closed or undefined). The rest of the status signals
corresponding to the switchgear XX configured as breaker are in the
“Status>Switchgear Status>Switchgear XX” menu.
This screen shows a complete list of all protection and control elements
in the relay, showing their status (enabled or not).
Summary of the snapshot events status (enabled or disabled) for
protection, control, inputs and outputs boards and switchgear.
Up to 256 elements. Value in SIGNED INT 16 BIT format of the reading
for the selected address configured in “Settings>Product
Setup>ModBus User Map”
Up to 16 blocks of switchgear status signals for the 16 configurable
devices. Status signals such as inputs for A and B contacts, status for A
and B, open and close status, error 00 and error 11, open init and close
init, fail to open and fail to close signals.
Internal states for calibration. Factory calibration and calibration error
signals.
Flex curve status for A, B, C and D user curves. (0) if it is not configured,
(1) if it is configured. To configure a flex curve go to “Settings>System
Setup>Flex Curves” menu.
This screen can monitor the system parameters and the internal status of
the Relay boot code. Not enabled by default, password required
Information related to the different records stored in the Relay, such as:
Fault reports, control events, oscillography , data logger , demand, energy,
and breaker maintenance.
Table 4–18: DIFFERENT CONTROL ACTUAL VALUES INCLUDED IN THE CONTROL ELEMENTS MENU
CONTROL
Frequency Status signals (pickups and operations) for under and overfrequency
Synchrocheck Status signals for synchrocheck function (25).
Autoreclose S t atus signals for autoreclose function (79). Close signal, recloser status
Breaker Failure Status signals for breaker failure function (50BF).
VT Fuse Failure Fuse failure detection signal.
Broken Conductor Status signals (pickups and operations) for broken conductor (I2/I1).
Setting Groups Status signals (activations and blocks) for the relay setting group change.
Locked Rotor Status signals (pickups and operations) for locked rotor units.
units.
(ready, lockout, etc), block signals after each shot.
By default the “setting group” setting is disabled and all the grouped
elements can be enabled at the same time.
4-28 F650 Digital Bay Controller GE Multilin
Page 98
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
Table 4–19: DIFFERENT PROTECTION ACTUAL VALUES INCLUDED IN THE PROTECTION MENU
PROTECTION
Protection Blocks This screen shows all the protection element blocks available. Protection
Phase Current Protection status signals (pickups and operations) for time overcurrent,
Neutral Current Protection status signals (pickups and operations) for time overcurrent,
Ground Current Protection status signals (pickups and operations) for time overcurrent,
Sensitive Ground
Current
Negative Sequence
Current
Thermal Model Protection status signals for thermal model. Reset, alarm and operation
Voltage Protection status signals (pickups and operations) for all voltage
Power Protection status signals (pickups and operations) for forward and
elements block signals can be configured at “Settings>Relay
Configuration > Protection Elements”.
instantaneous overcurrent and directional protection functions for phase
current.
instantaneous overcurrent and directional protection functions for neutral
current (calculated from phases).
instantaneous overcurrent and directional protection functions for ground
current (measured from 4
Protection status signals (pickups and operations) for time overcurrent,
instantaneous overcurrent, isolated and directional protection functions
for ground current (measured from 4
Protection status signals (pickups and operations) for negative sequence
time overcurrent function.
signals for phases and for unit, besides the thermal image values in
percentage for all phases and units.
functions, undervoltage, overvoltage, neutral overvoltage, negative
sequence overvoltage and auxiliary under and over voltage.
directional power units.
th
current input).
th
current input).
4
Table 4–20: SHOWS THE ACTUAL VALUES RELATED TO RECORDING FUNCTIONS IN THE RECORDS STATUS
MENU:
RECORD
STATUS
Fault Reports This menu shows the fault report status signals, as fault report trigger,
Control Events Status of the control events (if the signal configured to launch the control
Oscillography Status of signals related to oscillography recording, such as status or
Data Logger Data logger information about oldest and newest sample time stamp,
Demand Demand trigger and reset inputs status.
Energy Freeze, unfreeze and reset input signals for energy counters.
Breaker Maintenance All signals related to breaker maintenance, such as number of openings,
fault date, fault type and location, besides the fault report number.
event is active or not).
digital channels, oscillography trigger, number of records available, etc.
and number of channels and days configured in data logger settings.
2
closings, (KI)
t counters, alarm signal for (KI)2t, etc.
GE Multilin F650 Digital Bay Controller 4-29
Page 99
4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE 4 HUMAN INTERFACES
4.1.8.3 METERING
The Metering menu includes all the measurements available in the device. Primary and secon dary values, and also the
data related to the recording functions in the relay.
Table 4–21: GENERAL OVERVIEW OF METERING MENU:
METERING
Primary Values Primary values measurements for currents, voltages, power, energy and
Secondary Values Secondary values measurements for currents, voltages and power.
Phasor Diagram Current, voltage and sequence components.
Frequency Line and Bus frequencies.
demand
4.1.8.4 INPUTS/OUTPUTS
The Inputs/Outputs menu includes all the inputs and outputs signals available in the device. Contact and virtual type.
Table 4–22: GENERAL OVERVIEW OF INPUTS/OUTPUTS MENU:
INPUTS/
4
OUTPUTS
Contact Inputs Status of digital inputs in the Relay for each board according to the relay
Contact Output Status Status of digit al outputs in the Relay for each board according to the relay
Contact Outputs
Operates
Contact Outputs
Resets
IO Board Status Status of I/O boards. This status provides if the hardware it is OK (boards
Virtual Inputs Status of Virtual inputs latched (32) and self-reset (32).
Virtual Outputs Status of virtual outputs (configured in PLC Editor). Up to 512.
Remote Outputs States of remote outputs
Remote Inputs Status of remote device and remote inputs
Analog Inputs (*) Measurements coming from analog inputs (DCMA)
model.
model.
Status (activated or not) of the variables used to operate a contact
output. To configure these signals go to “Settings>Relay
Configuration>Outputs” menu.
Status (activated or not) of the variables used to reset a contact output.
T o configure these signals go to “Settings>Relay Configuration>Outputs”
menu. This output reset Command will only be effective if the “latch”
option has been Selected for the “Output Type” setting on the I/O board,
thus when the contact output has been configured to emulate function 86
(latching relay).
matching relay model, correctly inserted in their tracks, in good state and
communicating through the internal CAN Bus).
Options enabled only in On-line mode are marked as (*). Options enabled only in Off-line mode are marked as (** )
4.1.8.5 RECORDS
The Records menu is only available in on line mode and incl udes the possibili ty to retrieve all the records availabl e in the
device. By serial or Ethernet.
Table 4–23: GENERAL OVERVIEW OF RECORDS MENU:
RECORDS (*)
Event recorder (*) Retrieval and visualization of snapshot event (all and new), control
Waveform capture (*) Retrieval of oscillography files, by serial or Ethernet.
Fault Report (*) Retrieval and visualization of fault report files, by serial or Ethernet.
Data logger (*) Retrieval and visualization of data logger files. Only by Ethernet.
Options enabled only in On-line mode are marked as (*). Options enabled only in Off-line mode are marked as (** )
4-30 F650 Digital Bay Controller GE Multilin
events and alarm panel. By serial or Ethernet (ModBus RTU or TCP/IP)
Page 100
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
4.1.9 OPERATIONS MENU OVERVIEW
Option only available in on line mode, showing all the operations previously configured in the relay with their corresponding
texts.
Table 4–24: GENERAL OVERVIEW OF OPERATIONS MENU:
OPERATIONS
Operation 1 (*) Entry to fir st operation (with its corresponding text)
... ...
Operation 24 (*)
Options enabled only in On-line mode are marked as (*). Options enabled only in Off-line mode are marked as (** )
Entry to 24
th
operation (with its corresponding text)
4.1.10 COMMUNICATION MENU OVERVIEW
The communication menu includes the computer screen to start communicating with the relay, the different update
procedures available in device: firmware, boot code, web server and other file storing capabilities (upload and download
info files to/from relay).
For more detail information go to section starting communication for communication menus description and to section for
flash memory update procedures.
4
Table 4–25: GENERAL OVERVIEW OF COMMUNICATION MENU:
COMMUNICATION
Computer Menu to start communication with the relay.
Modem (**) Menu to set modem communication parameters (only available if control
Troubleshooting (*) Menu that Lets the user to perform reading or writing in ModBus
Calibration (*) Retrieval and store calibration settings from/to relay.
Upgrade firmware
version (**)
Upgrade boot code (**) Menu to update the relay boot code (front RS323 and Ethernet
Upgrade F650 web
server
Upload info files to
relay
Download info files
from relay
Options enabled only in On-line mode are marked as (*). Options enabled only in Off-line mode are marked as (** )
type is set to modem in computer menu).
addresses, for verifying communications and access to different
positions in the ModBus memory map.
Menu to update the relay firmware version through Ethernet
connection)
Menu to update the web server application (if available)
Hard disk storage of settings and configuration files on the relay.
Retrieval of settings and configuration files that had been previously
stored in the relay hard disk.
GE Multilin F650 Digital Bay Controller 4-31
Loading...
