GE MTX21EABWW Specification
Created 4/98

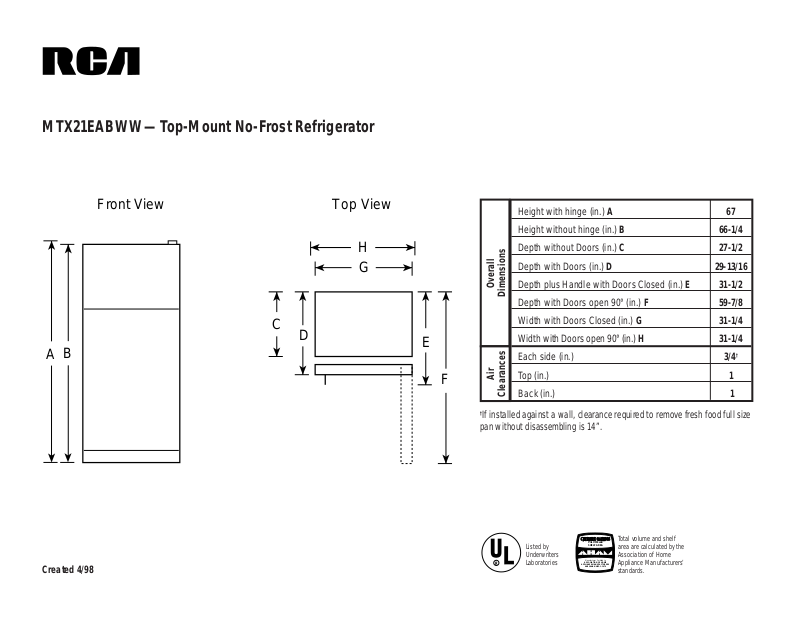

MTX21EABWW—Top-Mount No-Frost Refrigerator
Front View Top View
A
G
E
C
F
B
D
H
†
If installed against a wall, clearance required to remove fresh food full size
pan without disassembling is 14”.
Height with hinge (in.) A67
Height without hinge (in.) B 66-1/4
Depth without Doors (in.) C 27-1/2
Depth with Doors (in.) D 29-13/16
Depth plus Handle with Doors Closed (in.) E 31-1/2
Depth with Doors open 90° (in.) F 59-7/8
Width with Doors Closed (in.) G 31-1/4
Width with Doors open 90° (in.) H 31-1/4
Each side (in.) 3/4
†
Top (in.) 1
Back (in.) 1
Overall
Dimensions
Air
Clearances
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Created 4/98
MTX21EABWW—Top-Mount No-Frost Refrigerator
Features and Benefits
• 20.6 cu. ft. Capacity (Fresh Food 14.25 cu. ft. / Freezer 6.30 cu. ft.)
• 2 Clear Vegetable/Fruit Crispers
• Clear Snack Pan
• 2 Adjustable Full-Width Wire Everwhite Fresh Food Cabinet Shelves
• Dairy Compartment
• Fixed Fresh Food Gallon Door Storage
• 1 Adjustable Full-Width Wire Everwhite Freezer Shelf
• 2 Freezer Door Shelves
• Equipped for Optional Automatic Icemaker
• 2 Ice 'n Easy Trays with Ice Storage Bin
• Color-Matched Door Handles
• MTX21EABWW–White on white
• MTX21EABAA–Almond on almond
