GE JVX3300DJ Specification

JVX3300DJ

29-7/8"

5-1/2"

12"

20"

30" UNDER-THE-COUNTER HOOD

PRODUCT DIMENSIONS

29-7/8"

5-1/2"

12"

20"

30" UNDER-THE-COUNTER HOOD

PRODUCT DIMENSIONS

3-7/8"

1-1/4"

7-3/4"

2-1/2"

5/8"

7-1/2"

3-1/4"

10"

7/8"

30" UNDER-THE-COUNTER HOOD

INSTALLATION DIMENSIONS

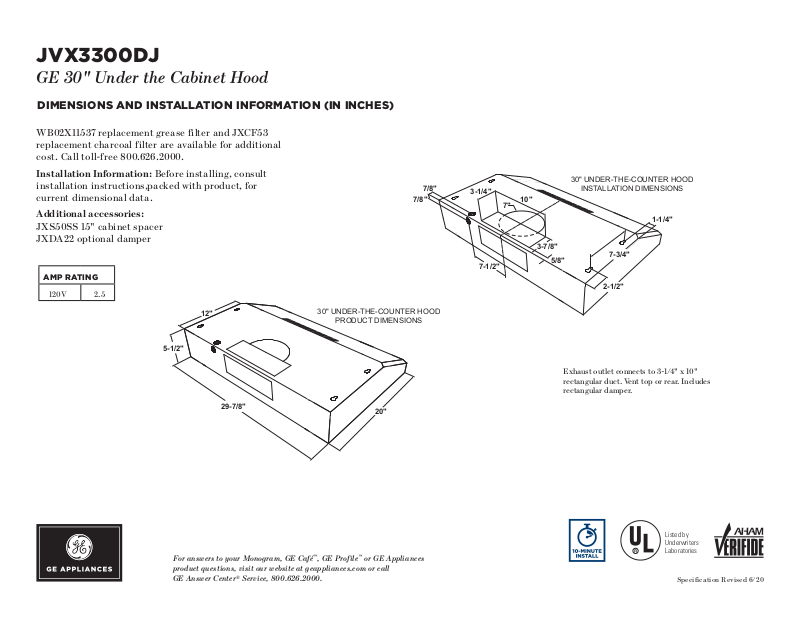

GE 30" Under the Cabinet Hood

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

WB02X11537 replacement grease filter and JXCF53 replacement charcoal filter are available for additional cost. Call toll-free 800.626.2000.

Installation Information: Before installing, consult installation instructions,packed with product, for current dimensional data.

Additional accessories:

JXS50SS 15" cabinet spacer JXDA22 optional damper

AM P R AT I N G

120V 2.5

Exhaust outlet connects to 3-1/4" x 10" rectangular duct. Vent top or rear. Includes

For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.

rectangular damper.

Listed by Underwriters Laboratories

Speci fication Revised 6/20

JVX3300DJ

Light

O

Power

GE 30" Under the Cabinet Hood

FEATURES AND BENEFITS

Easy installation – 10 minutes or less by one person

Two-speed, 200-CFM venting system – Removes smoke, grease, odors and moisture

Front controls – Enjoy easy access and a subtle appearance

Cooktop lighting – Illuminate cooking space and surrounding surface

Convertible venting options – Select recirculating or external venting

Vertical and rear exhaust – Exhausts from the top or rear of the hood

Appearance (Partially enclosed bottom) – Enjoy easy access to hood interior

Dishwasher safe filter – Filters grease and is dishwasher-safe

Model JVX3300DJWW – White on white

Model JVX3300DJBB – Black on black

CFM/SONES RATINGS

Exhaust High Speed (HS) 200/6.5

Exhaust Low Speed (LS) 130/5.0

Speci fication Revised 6/20
