GE JVX3240SJ Specification
JVX3240SJ
23-7/8"
5-1/2"
12"
20"
24" UNDER-THE-COUNTER HOOD
PRODUCT DIMENSIONS
23-7/8"
5-1/2"
12"
20"
24" UNDER-THE-COUNTER HOOD
PRODUCT DIMENSIONS
24" UNDER-THE-COUNTER HOOD
INSTALLATION DIMENSIONS
1-1/4"
7-3/4"
2-1/2"
5/8"
7-1/2"
3-1/4"
10"
7/8"
7/8"
3-7/8"
7"

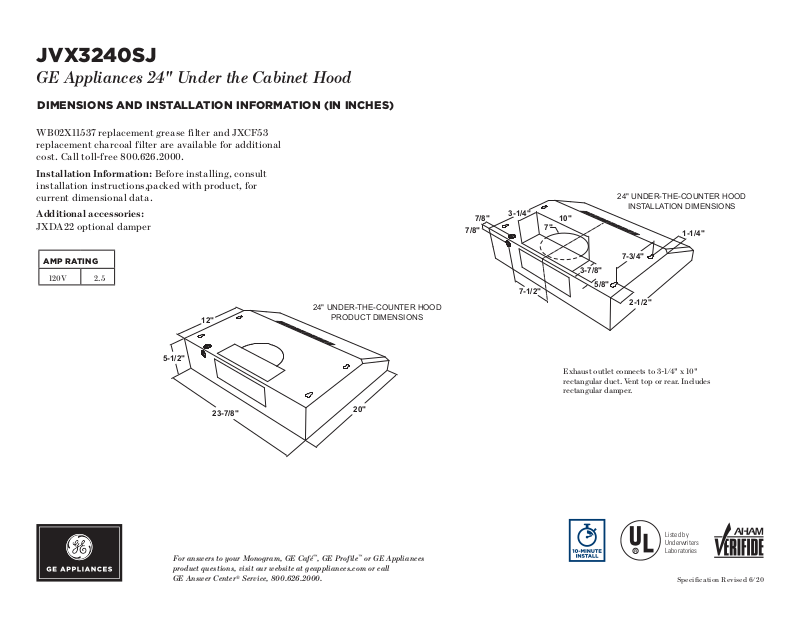

GE Appliances 24" Under the Cabinet Hood
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
WB02X11537 replacement grease filter and JXCF53
replacement charcoal filter are available for additional
cost. Call toll-free 800.626.2000.
Installation Information: Before installing, consult
installation instructions,packed with product, for
current dimensional data.
Additional accessories:
JXDA22 optional damper
AM P R ATING
120V 2.5
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
Exhaust outlet connects to 3-1/4" x 10"
rectangular duct. Vent top or rear. Includes
rectangular damper.
Listed by
Underwriters
Laboratories
Speci fication Rev ised 6/20
JVX3240SJ
Light
On
O
Hi
Lo
O
Power
GE Appliances 24" Under the Cabinet Hood
FEATURES AND BENEFITS
Easy installation – 10 minutes or less by one person
Two-speed, 200-CFM venting system – Removes smoke, grease,
odors and moisture
Front controls - Enjoy easy access and a subtle appearance
Cooktop lighting – Illuminate cooking space and surrounding surface
Convertible venting options - Select recirculating or external venting
Vertical and rear exhaust – Exhausts from the top or rear of the hood
Appearance (Partially enclosed bottom) – Enjoy easy access to hood interior
Dishwasher safe filter – Filters grease and is dishwasher-safe
Model JVX3240SJSS – Stainles steel
CFM/SONES RATINGS
Exhaust High Speed (HS) 200/6. 5
Exhaust Low Speed (LS) 130/5.0
Speci fication Rev ised 6/20
