GE JV395S Specification
TM

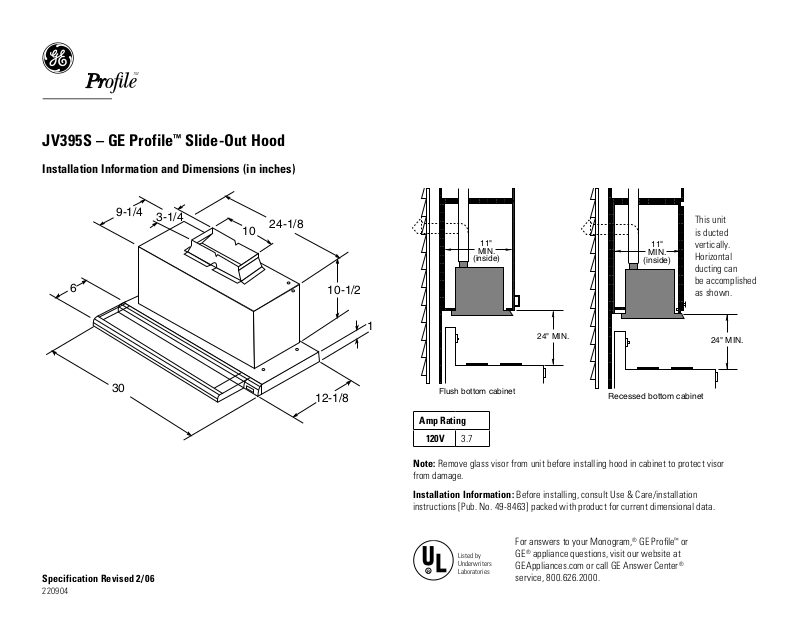

JV395S – GE Profile™ Slide-Out Hood
Installation Information and Dimensions (in inches)
9-1/4 3-1/4
10 24-1/8
6 |
10-1/2 |
1
12-1/8
Specification Revised 2/06
|
|
This unit |
|
|
is ducted |
11" |
11" |
vertically. |
MIN. |
MIN. |
Horizontal |
(inside) |
(inside) |
|
|
|
ducting can |
|
|
be accomplished |
|
|
as shown. |
|
24" MIN. |
24" MIN. |
|
|
Flush bottom cabinet |
Recessed bottom cabinet |
|
Amp Rating
120V 3.7
Note: Remove glass visor from unit before installing hood in cabinet to protect visor from damage.
Installation Information: Before installing, consult Use & Care/installation instructions [Pub. No. 49-8463] packed with product for current dimensional data.
|
|
For answers to your Monogram,® GE Profile™ or |
|
Listed by |
GE® appliance questions, visit our website at |
|
Underwriters |
GEAppliances.com or call GE Answer Center® |
R |
Laboratories |
service, 800.626.2000. |
|
|
220904
TM
JV395S – GE Profile™ Slide-Out Hood
Features and Benefits
• Black on black Model
• 30" Vented Hood With Cooktop Light
• See-Through Glass Visor Slides In and Out
• 300 CFM Performance With Variable Speed Fan Control
•Auto Heat Sensor
•Compact Housing Leaves Ample Shelf Space Behind Cabinet Doors
•Vertical Exhaust With 3-1/4" x 10" Rectangular Duct
•Sones Rating: Top Exhaust – 4.5
•Also Available In Black on black as in Model JV394S and Bisque as in Model JV396S
Specification Revised 2/06
220904
