GE JV376VBB Specification
JV376VBB - GE High Performance Range Hood
GE Appliances
Specification Created 4/00
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center
®
service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
7
29-7/8
19-3/4
3
12
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
Center line
of hood
Wiring
Knockouts
Top Vent
Knockout
9
5
5
5
1/4
9/16
12
3-1/4
7-1/2
3-1/4
1
5
1-3/8
1-3/8

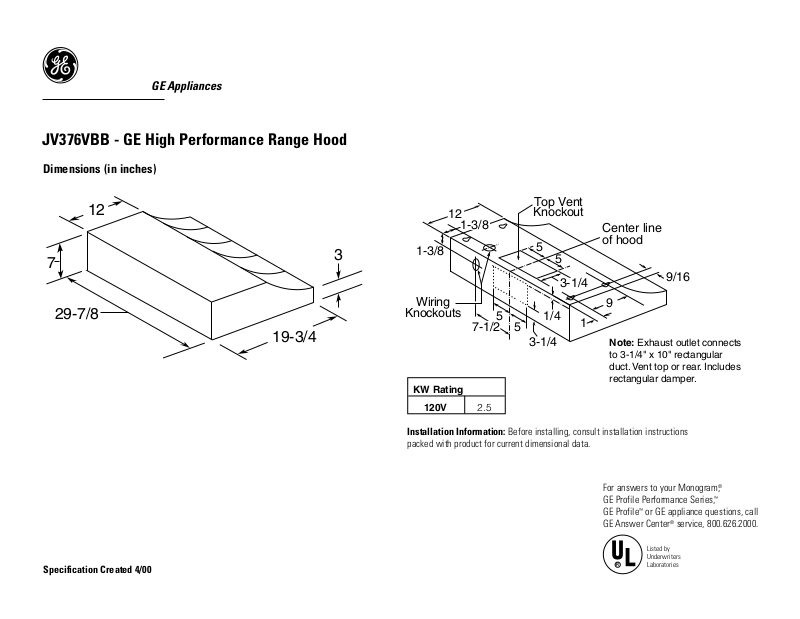

Dimensions (in inches)
Note: Exhaust outlet connects
to 3-1/4" x 10" rectangular
duct. Vent top or rear. Includes
rectangular damper.
KW Rating
120V 2.5
JV376VBB - GE High Performance Range Hood
GE Appliances
Specification Created 4/00
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center
®
service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Ductwork Requirements
Use 3-1/4” x 10” or 7” round ducting for the best performance.
The length of ductwork and number of elbows should be kept
to a minimum for efficient operation.
Use caulking to seal exterior openings around the hood.
Static Pressure vs Duct Length
Equivalent Duct Length (ft.)
Static Rect.
Pressure CFM 3-1/4” x 10” 7” dia. 8” dia. 9” dia.
.06 4 10 19 34
.10 410 7 17 31 56
.15 400 11 25 47 83
.20 370 15 33 62 111
.25 345 18 42 78
90° elbow 5 11 12 14
45° elbow 2-1/2 5-1/2 6 7
10
Equivalent length in feet
Air volume in CFM
20 30 40 500
0
100
200
300
400
500
7" RND
3-1/4" x 10"
3-1/4" x 10" Transition to 7" Round = 2 ft.
7" Round elbow = 8 ft.
7" Roof cap = 70 ft.
Ducting Chart
Venting
This hood must be vented vertically through upper cabinets or horizontally
through an outside wall. Ductwork is not included.
Improper duct sizing or restrictive roof caps reduce air moving capacity
and will not provide enough ventilation for an indoor electric grill.
Indoor electric grills produce more smoke than normal cooking and require
at least 410 CFM to provide adequate ventilation.
Follow the guidelines for proper duct sizing in the duct charts. NOTE: The
venting system must exhaust to the outside.
